Multiple electronic signatures on multiple documents

Antonio Lioy and Gianluca Ramunno

Politecnico di Torino

Dip. di Automatica e Informatica

Torino (Italy)

Abstract. European, international and Internet standards are available to support

electronic signatures. The most common signature formats are deﬁned via the

ASN.1 syntax with DER encoding, or the XML language. Furthermore PDF is a

widespread document format with support for e-signatures. Application of signa-

tures to e-documents must consider several aspects: long term signature validity,

non-repudiation, qualiﬁed certiﬁcates, and many others. This paper focuses on the

relationships among multiple documents and multiple signatures and analyses the

support provided by current formats to this problem. Where lack of standardiza-

tion or standard proﬁling is found, a proposal is made towards better application

of e-signatures.

1 Introduction

It’s a common belief that the ﬁeld of electronic signatures (in short e-signatures) is an

already established one. While this is true for the basic technical and legal foundations,

we believe that many aspects have still to be investigated and properly deﬁned. In partic-

ular, the ﬂexibility and richness of signature and documents in the paper world are still

unmatched, and this can cause unexpected problems in real-life applications. In this pa-

per we focus on the problems related to multiple signatures on the same document (as in

the case of countersignatures), signature of document parts or of multiple documents.

The complex relationships between multiple signatures and documents are explored,

with reference to the major formats, to identify problems and suggest solutions that can

improve the practical applicability of electronic signatures.

ISO deﬁnes [1] digital signature as “Data appended to, or a cryptographic trans-

formation of, a data unit that allows the recipient of the data unit to prove the source

and integrity of the data unit and protect against forgery e.g. by the recipient.” This

deﬁnition is neutral from the technology point of view – for example, it can be imple-

mented with asymmetric encryption or with a Message Authentication Code – and is

also neutral with respect to the signer, that can be a machine or a human being. The

e-signature deﬁnition in the European Directive [2] is also technologically neutral but

is related to a speciﬁc type of signer: a (natural or legal) person. The same Directive de-

ﬁnes an “advanced electronic signature” as a subset of the e-signatures and is equivalent

to the ISO deﬁnition of digital signature. We can therefore state that a digital signature

is an e-signature, when related to a person.

Lioy A. and Ramunno G. (2004).

Multiple electronic signatures on multiple documents.

In Proceedings of the 1st Inter national Workshop on Electronic Government and Commerce: Design, Modeling, Analysis and Security, pages 24-34

DOI: 10.5220/0001405300240034

 SciTePress

Since the term “electronic signature” is more closely related to the transposition

of the handwritten signatures in the electronic world, we prefer this term over “digital

signature”. However when we’ll need to refer to speciﬁc aspects of a digital signature,

this term will be used. If not differently speciﬁed, in this paper a digital signature is

always implemented via asymmetric encryption.

2 E-signatures and e-documents in real contexts

The simplest use of an e-signature is its application to a single document. However, the

real use cases in the paper world are more complex. To gain widespread acceptance,

e-signatures should support applications as complex as those supported by handwritten

signatures. We will analyse this problem by looking at two of its more complex facets:

multiple signatures and multiple documents.

2.1 Relationships among signatures

Several different signatures can be applied at the same time to a single document. De-

pending on the fact that the order of the signatures is important or not, two categories

can be deﬁned: independent (i.e. parallel) signatures and countersignatures (wrapping

and overall signatures).

Independent signatures on a single document do not depend on each other. They

are also called “parallel” as they can be computed simultaneously. From a functional

perspective, these signatures can be considered as created at the same time even if in

practice they aren’t; anyway, it doesn’t matter which signature is created ﬁrst. In terms

of digital signatures, independent signatures are generated by computing a signature

algorithm with different keys on the same digest computed over the document being

signed (Fig. 1-a).

Countersignatures must be considered in pairs: the embedded signature (the ﬁrst

one in time) covers the document, while the wrapping signature (the second one) covers

both the document and the ﬁrst signature. Many countersignatures can be applied to the

same document, each one wrapping the previous one that becomes embedded. In terms

of digital signatures, two different forms of countersignatures exist: in the ﬁrst one, the

digest of the wrapping signature is computed only over the embedded signature (Fig. 1-

b), while in the other the digest of the wrapping signature is computed over both the

embedded signature and the document (Fig. 1-c). To distinguish between the two forms

of countersignatures and according to [3], for the rest of this paper we will talk about

independent signatures, wrapping/embedded signatures and overall signatures.

An example of wrapping/embedded signature is the signature carried by the coun-

terSignature attribute deﬁned by CMS [4] and supported by ETSI [5]. Examples of

overall signatures are those implemented by nesting several S/MIME objects [6] and

the time-stamps (repeatedly) applied to a signature for long term validation as in the

ETSI ES-A format.

The distinction between wrapping and overall signatures makes sense only in the

electronic world and only when implemented as digital signatures. In the real world,

a handwritten counter-signature on a paper document is implicitly applied both to the

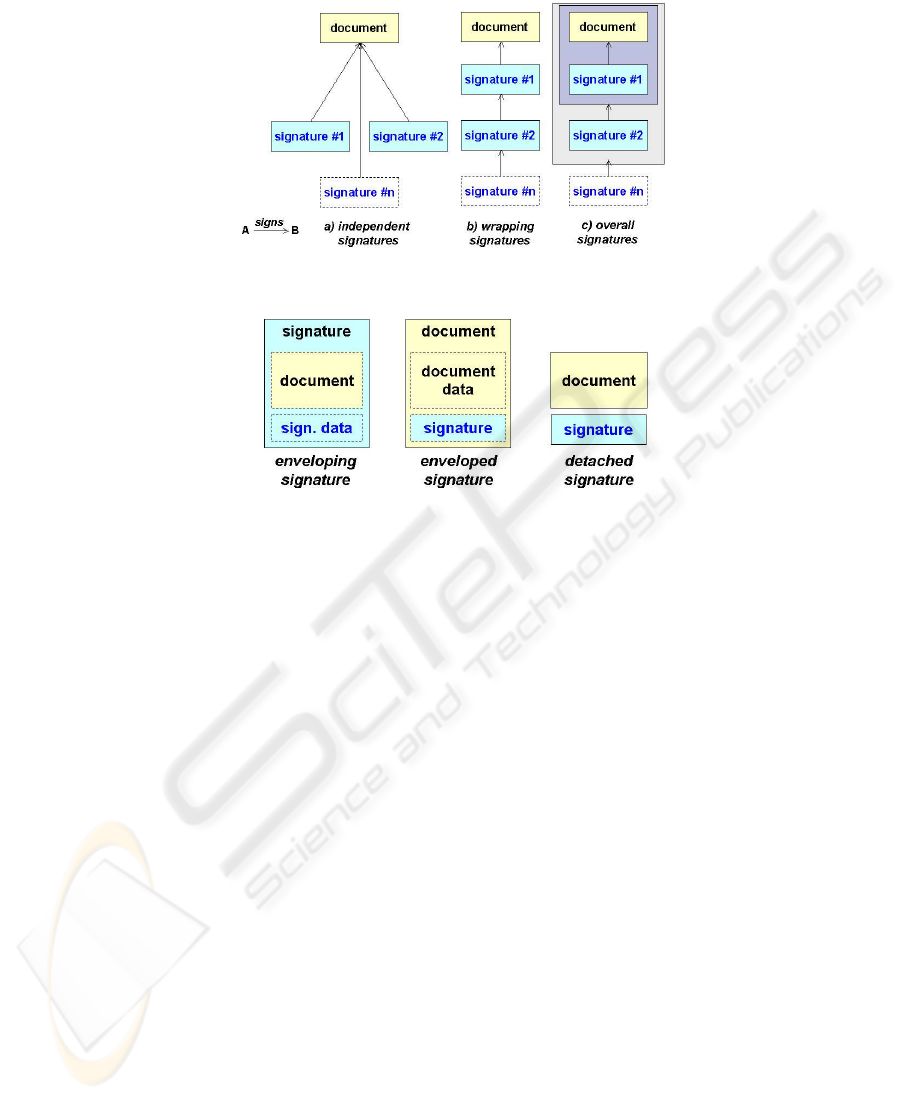

Fig. 1. Independent, wrapping and overall signatures

Fig. 2. Signatures-documents relationships

existent signature(s) and to the document. Moreover, from a semantic point of view, the

wrapping and overall signatures perform the same function as both sign the document

with the previous signature(s): the wrapping signature does it indirectly (via a signature

chain) while the overall signature does it directly (by an encapsulation procedure).

The three basic relationships among electronic signatures can be used to build any

complex set of relationships among any number of signatures.

2.2 Signature-document relationships

By looking at the relationship between the signature and the document being signed, it

is possible to classify signatures as enveloped, enveloping and detached (Fig. 2). An en-

veloped signature is embedded within the document. An enveloping signature contains

the document. In both cases, the signature and the document are stored together in the

same “envelope”, while a detached signature is stored separately from the document

being signed.

2.3 Multi-part documents / dossiers

Another relationship is the one among documents or parts of them. Documents related

to a single topic or ﬁle can be grouped in a unique dossier (Fig. 3-a). Moreover, depend-

ing on the application, some documents may require to have many signatures, each one

applied to a single part of the document (Fig. 3-b).

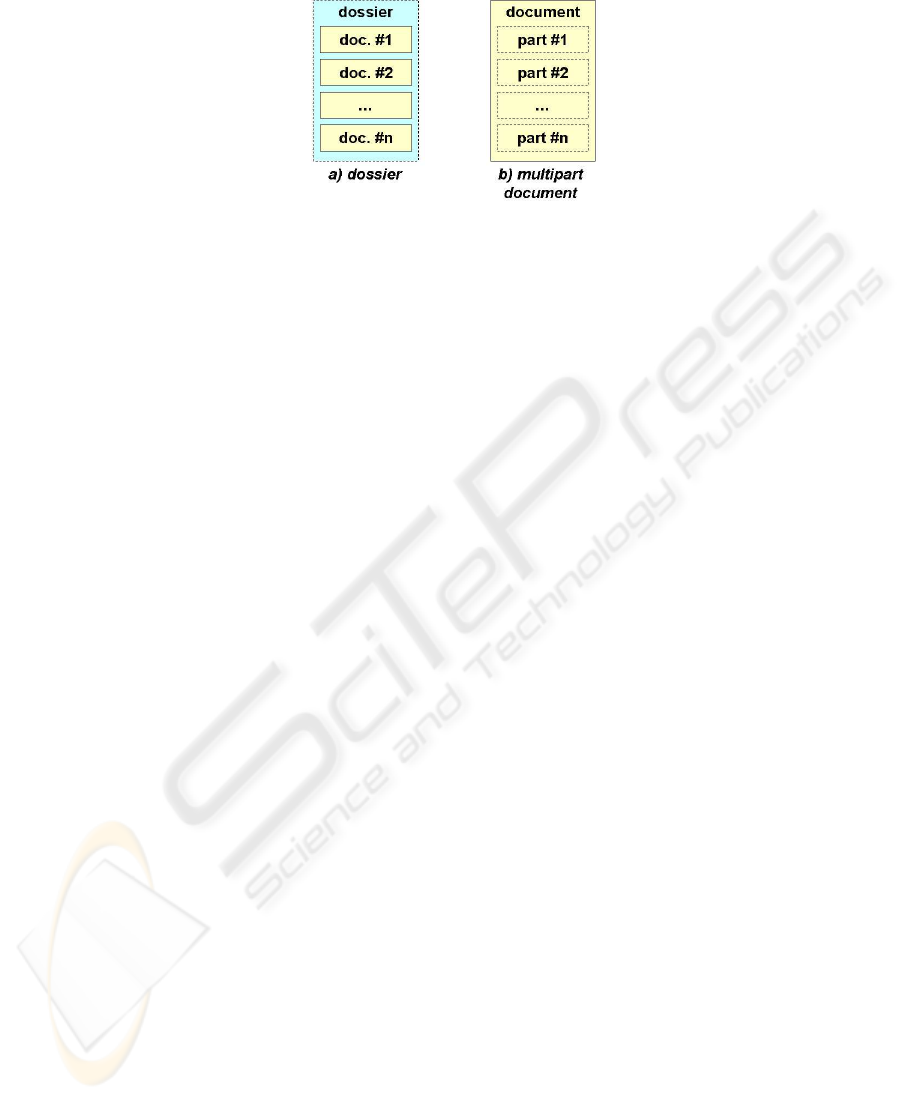

Fig. 3. Dossiers and multi-part documents

An electronic dossier can be implemented in different ways. One of them is by cre-

ating a multi-part MIME [7] object, where each document is a MIME part. Another

way is by linking together the dossier documents via an indirect digital signature. To

calculate this signature the document digests must be concatenated and a digital signa-

ture computed over them. This cryptographically binds the documents together even if

they are physically stored separately.

The implementation of a multi-part document to allow signing each part individ-

ually, is strictly related to the document and signature formats. The document format

must support a method to identify the boundaries of each part, while the signature for-

mat must support a mechanism to clearly store these data.

3 Current formats for electronic signatures

By combining the basic relationships (signatures-signatures, signatures-documents and

documents-documents) it is possible to create in the electronic world the variety of

real cases found in the paper world. However, the current e-signature formats give a

limited support to these schemes. In general they work well with one document and one

signature but hit limits when creating complex schemes. In the next sections we will

analyse some widespread e-signature formats from the perspective of the relationships

among e-signatures and e-documents.

3.1 Cryptographic Message Syntax (CMS)

CMS is a multi-purpose format for cryptographic services: it supports digital signatures,

Message Authentication Codes, encryption, etc. Here we will consider only the signed-

data content type. CMS is speciﬁed by ASN.1 [8] with data encoded via DER [9]. The

SignedData content type supports many signers (signerInfos) of the same content

(encapContentInfo). This basic structure (Fig. 4-a) makes easy creating multiple in-

dependent signatures. Among the data included in each signer’s structure (SignerInfo),

there are signed (signedAttrs) and unsigned (unsignedAttrs) attributes. The former

are covered by the digest in the signature and are used to cryptographically bind some

data to the content. Therefore the signed attributes can’t be modiﬁed later without inval-

idating the signature. On another hand, the unsigned attributes are used to transport data

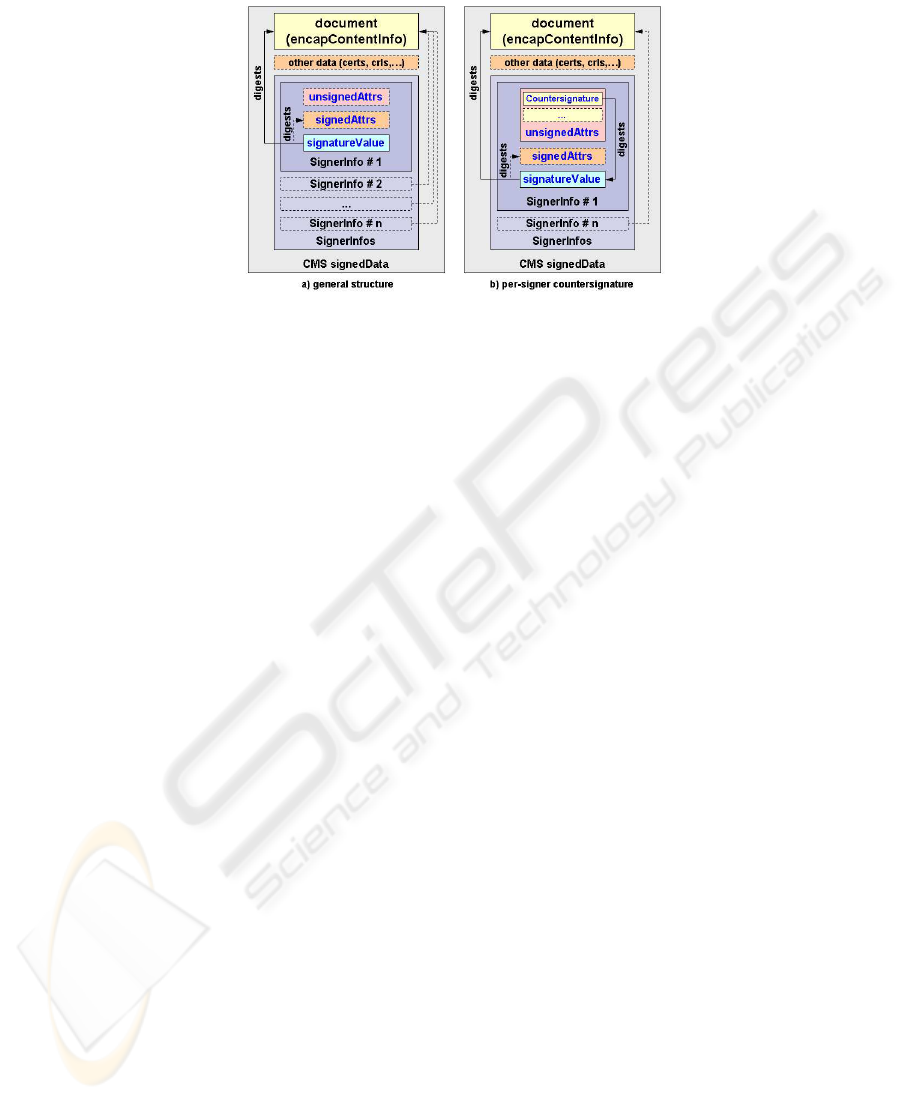

Fig. 4. CMS signed-data

that don’t need to or cannot be signed (e.g. a counter-signature that can be generated

only after the generation of the ﬁrst signature). If the signedAttrs structure is present, at

least two signed attributes must be present: content-type and message-digest. The for-

mer carries the type of data being signed, while the latter contains the digest computed

only over the document.

Signatures relationships. The signed-data format natively supports several indepen-

dent signatures. Furthermore CMS deﬁnes the Countersignature unsigned attribute

that contains a countersignature (Fig. 4.b). Since attributes are per-signer, the coun-

tersignatures are per-signer in either form, wrapping or overall. Therefore a signature

that countersigns two independent signatures is not supported by CMS but by nesting

several signed-data envelopes. In this case, the inner object contains the independent

signatures and becomes the “document” being signed of the outer CMS object. The

latter will include only one signature that represents the countersignature in the overall

form. Nesting CMS objects is the S/MIME approach for digital signature and message

encryption.

Signatures-documents relationships. CMS supports only enveloping and detached

signatures: the former when the structure encapContentInfo contains the document

being signed, the latter when this structure is empty.

Multi-part documents and dossiers relationships. The document can be in whatever

format, as it is considered a single binary object (a “blob”). Even if the possibility

of signing only a speciﬁc part of a document depends on the document format, CMS

doesn’t provide any support to include the reference to a document fragment, in order to

signal that only a fragment has been signed. Furthermore CMS doesn’t provide native

support for signing dossiers.

3.2 XML Signature (XMLdsig)

XML Signature [10] is the format designed to support digital signatures encoded via

XML. No other security service is supported. This format is an XML application, de-

ﬁned by using the Document Type Deﬁnition (DTD) syntax and the XML Schema

language [11].

XMLdsig has been designed to support any document format: a document in a

generic format is considered as a single blob while special procedures are used when

signing XML documents. In fact several forms of an XML document with the same

semantics may exist. These forms have a different binary representation but the same

logical representation, such as the DOM [12] node tree generated by a parser. Different

binary representations lead to different digests and consequently to different signature

values. Therefore, before being signed, an XML document must be transformed into a

canonical representation by using a proper algorithm, such as C14n [13]. Moreover a

generic transformation - such as an XSLT [14] one - could have been applied over the

document before being signed. XMLdsig takes into account these issues: the canonical-

isation algorithms and pre-signature transformations are speciﬁed within the signature

structure and are signed together with the document.

XMLdsig is an indirect signature: it is implemented by calculating an overall digest

over the set of the digests computed on each document being signed. Complex schemes

with more than two levels of digest calculation are also supported. This core structure,

the intrinsic nature of XML and the extensive use of URIs to refer to the data covered

by the digital signature make XMLdsig capable to sign multiple documents, parts of

documents, or documents stored elsewhere and accessed through a reference (URI), as

well as to ﬂexibly control how a signature has to be validated.

The main elements of XMLdsig are:

– <SignedInfo> references the documents being signed and their digests;

– <SignatureValue> is the signature computed by applying a digital signature al-

gorithm to the digest of the canonicalised <SignedInfo> element;

– <Object> is an optional element that can appear in multiple instances to include

any data type; it is generally used to:

• carry the document being signed in the case of enveloping signatures

• carry some signature properties or assertions as <SignatureProperties> to

be optionally signed together with the documents

• carry one or many <Manifest> objects

– <Manifest> is an optional element very similar to <SignedInfo> (it can include

references to the documents being signed and their digests) but has a different se-

mantics in the signature validation process, described later.

The basic structure of an XML signature is given in Fig. 5 including the digest cal-

culation while the various transformations and the structure carrying the signer’s key

data are omitted. The validation of an XML signature containing only the mandatory

<SignedInfo> must be performed as follows:

1. check that every reference within <SignedInfo> is valid

2. re-calculate the digests over every referenced document and verify that they match

with the ones stored within <SignedInfo>

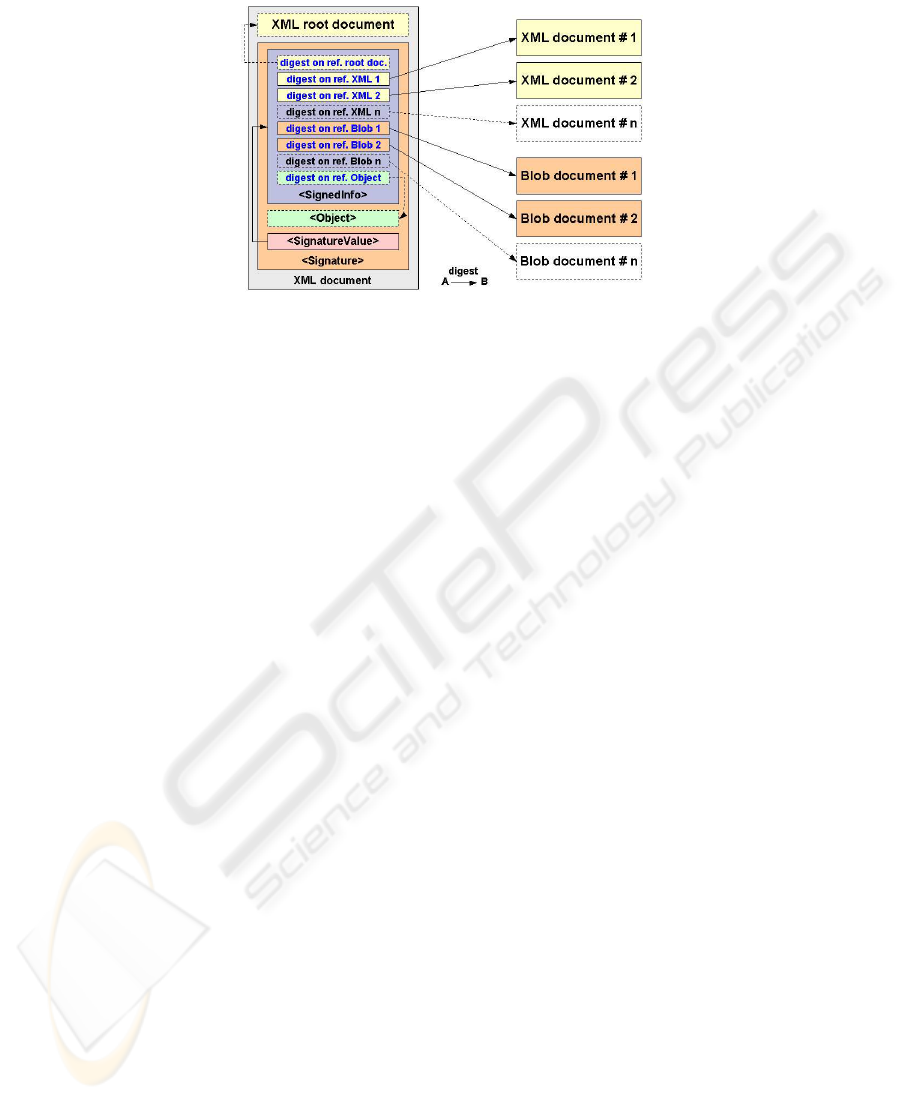

Fig. 5. XML Signature general structure

3. re-calculate the digest over the <SignedInfo> after having applied the transfor-

mations speciﬁed within the same element

4. use this digest and the signature as input of the proper veriﬁcation function of the

chosen signature algorithm.

A scheme that includes <Object> and <Manifest> is shown in Fig. 6. When the

<Manifest> is present within <Object>, the reference to <Manifest> is included

within <SignedInfo>. During signature validation, the latter is a reference to be manda-

tory checked together with the related digest while the veriﬁcation logic of the ref-

erences in <Manifest> is left to the application: it can check all the references and

digests, only part of them or none.

More complex schemes can be implemented by hierarchically nesting multiple

<Manifest> up to the last one that is referenced within <SignedInfo>.

It is also possible to have any number of <Object>, each one including any number

of elements of any type. The elements to be signed must have the “id” attribute and the

related reference inserted into <SignedInfo> or <Manifest>. The reference is an URI

with the fragment identiﬁer equal to the value of the “id” attribute. XMLdsig provides

very powerful and ﬂexible mechanisms. However it doesn’t natively offer standardized

structures to support signed and unsigned attributes as CMS does. Furthermore CMS

deﬁnes a wide set of attributes that can be used. Therefore we can say that XMLdsig is

at a lower functional level than CMS.

Signatures relationships. XMLdsig doesn’t provide any native support for indepen-

dent signatures and countersignatures but, given its ﬂexibility, it allows the implemen-

tation of countersignatures in both forms. Wrapping signatures can be implemented

by placing an XML signature object within an <Object> element of a signature ap-

plied to a number of documents. The value of the inner signature is computed over the

<SignatureValue> of the outer signature. Overall signatures can also be easily im-

plemented by nesting the signatures in a manner similar to S/MIME. In both cases the

deﬁnition of a proﬁle of the XMLdsig speciﬁcation can help to implement the coun-

tersignatures in a standard way.

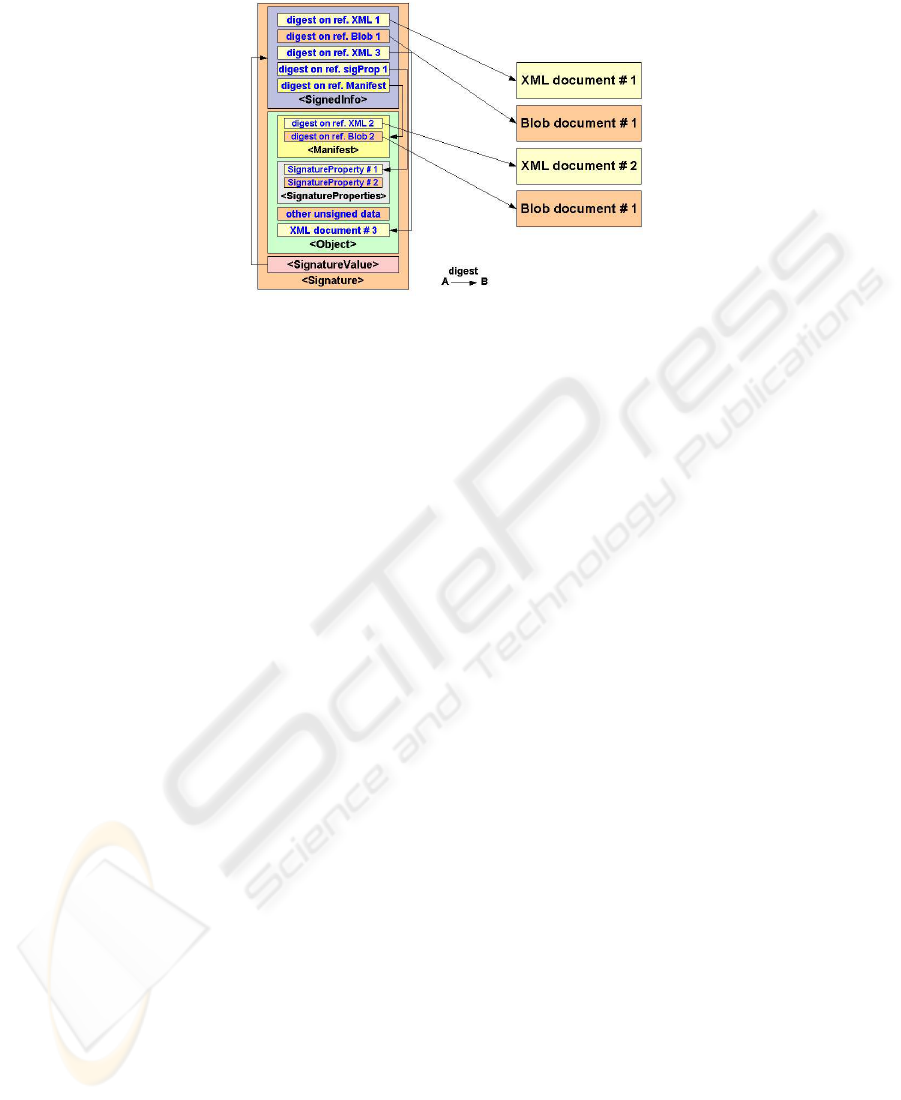

Fig. 6. XML Signature with Object and Manifest

Signatures-documents relationships. XMLdsig supports all the signatures-documents

relationships. Enveloping and detached signatures can be applied over any kind of doc-

ument, while the enveloped signature applies only to XML documents. In fact an XML

signature can be placed within an XML document and the <SignatureValue> can be

computed over a portion of the document as it can occur when signing document frag-

ments (see next subsection). The signature is enveloped because the root element of the

document substantially wraps the signature.

Multi-part documents and dossiers relationships. The core syntax and processing

of the XMLdsig speciﬁcation natively support the signature applied over a number of

documents (dossiers). It is also possible to sign parts of documents if the format of

the document being signed supports the selection of document portions by means of

fragment identiﬁers compatible with the URI syntax. HTML, XML and XHTML are

examples of such document formats: the fragments are identiﬁed by the “id” attribute

of the tag enclosing the portion being signed, according to the syntax in [15, 16].

3.3 Portable Document Format (PDF)

PDF [17] is a widespread proprietary format for electronic documents whose speciﬁca-

tion is publicly available. It supports electronic signatures but only the enveloped type,

due to its nature of document format. A PDF document is stored in the ﬁle as a col-

lection of objects (e.g. the pages) organized in a hierarchical structure. The support for

electronic signatures was ﬁrst introduced in PDF v. 1.3. The signature can be computed

over many byte ranges of the PDF ﬁle and it is stored in a structure called “signature

dictionary”. In the latest version of PDF (v. 1.5) a new digest mechanism has been

added. Now it is possible to calculate a digest over an object or an object hierarchy, as

they are or after being transformed: for example it is possible to apply a selective digest

to include certain object types and to exclude other one. In this way it is possible to

implement schemes as the one where an author creates a form to be ﬁlled and signs it

excluding the empty ﬁelds from the signature. Later a user can check the signature to

authenticate the form and then ﬁll the form and sign the whole resulting document.

Among the properties signed with the document, there is the registered name of

the signature handle, that is the application that generated the signature and that should

verify it later on.

The PDF features related to the e-signatures are numerous and very ﬂexible. As for

XMLdsig, these basic mechanisms can be considered as powerful building blocks to

implement complex signature schemes. However the PDF speciﬁcation doesn’t provide

any predeﬁned scheme. Each signature handler, as the signature plug-ins for the Acrobat

product, can implement its own set of signature schemes.

Signatures relationships. Since it is possible to sign any physical portion of the PDF

ﬁle, any number of independent signatures are supported. Moreover, since a signature

is contained within an object (the signature dictionary) that can be in turn signed, PDF

supports countersignatures too.

Signatures-documents relationships. PDF supports only enveloped signatures.

Multi-part documents and dossiers relationships. PDF signatures are applied only to

the content of the ﬁle containing the signature itself.

3.4 ETSI e-signature formats

ETSI has deﬁned two speciﬁcations for “Electronic Signature Formats” fully equivalent

from the functional point of view: one [5] uses the DER encoding and is based upon

CMS, while the other [18], called XAdES, uses the XML encoding and it is based upon

XMLdsig.

The DER-encoded formats don’t offer any additional feature for multiple signatures

and documents over the ones already provided by CMS. Instead, in order to be equiv-

alent to the DER-based format, the XAdES speciﬁcation supports new structures and

functions, as the unsigned attributes and speciﬁcally the countersignature one, not na-

tively provided by XMLdsig. This is caused by the fact that CMS and XMLdsig are

structurally different and XMLdsig is at a lower functional level than CMS.

4 Proposals

4.1 Cryptographic Message Syntax

To give CMS the capabilities to manage signatures on multiple document, we exploit

the fact that the data being signed can be a MIME object with multipart/mixed media

type. Each document to be signed can be included within a part of the MIME object. By

signing this object, a signature over several documents is applied, either as enveloped

or detached signature, depending if encapContentInfo includes the MIME object or is

empty.

This proposal can be improved to implement features similar to the ones of Mani-

fest in XMLdsig.

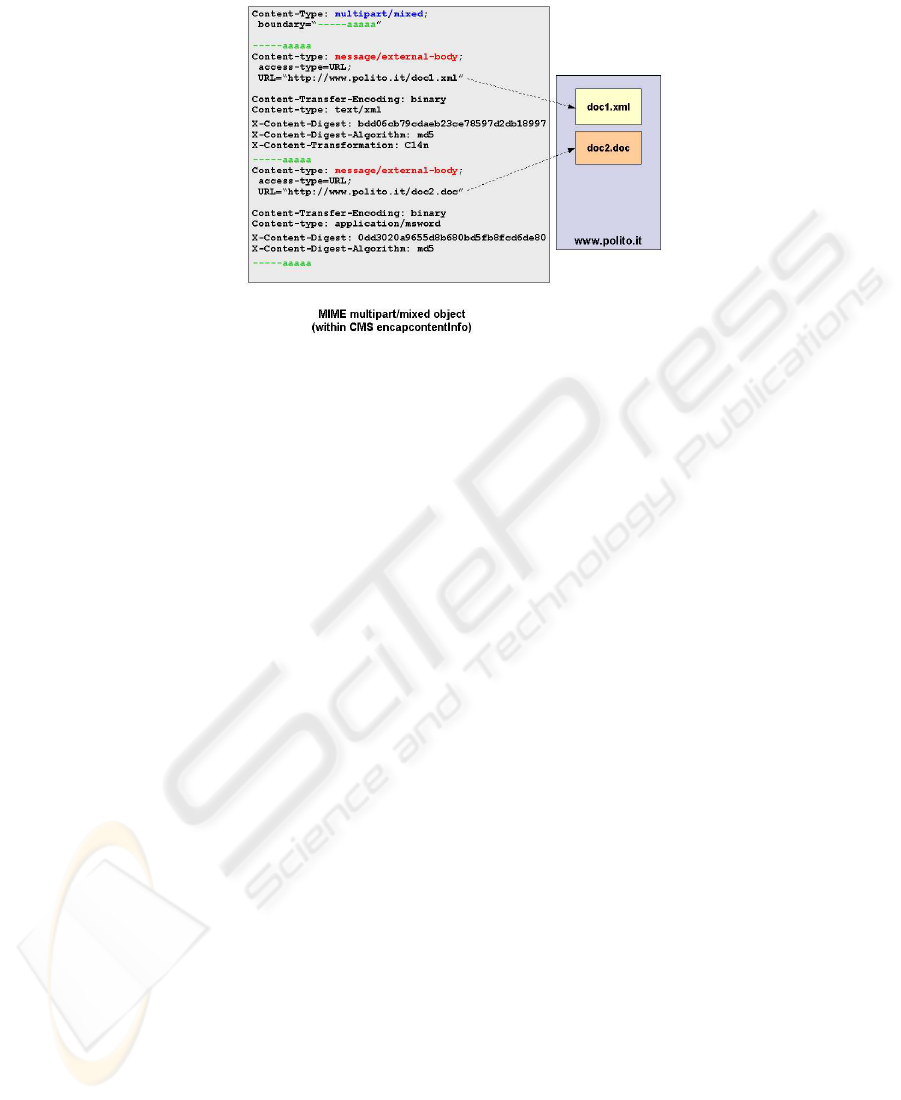

Fig. 7. Proposal for multi-part MIME object

Each part of the MIME multi-part object can be of type message/external-body

to reference the documents rather than including them. By using the URL Access Type

[19] it is possible to refer to the external documents through the URIs. Moreover, if the

format of the documents supports a method compliant with the URI syntax to identify

the document fragments (as occurs with HTML, XML and XHTML) it is also possible

to sign document fragments.

To complete the proposal, three header ﬁelds should be deﬁned to be used within

each message/external-body envelope: X-Content-Digest, X-Content-Digest-Algorithm

and X-Content-Transformation (optional). In this way it is possible to specify the di-

gest computed over each document being signed, after having optionally transformed

it via the X-Content-Transformation. The MIME object should be transformed into

a canonical form as described in [20] before being signed. The CMS signature com-

puted over the described MIME object implements an indirect signature over multiple

documents. The signature veriﬁcation would be similar to the one done over the XMLd-

sig <Manifest>: the veriﬁcation of the references to the documents and their digests

would be left to the applications while the veriﬁcation of the signature over the MIME

object would be mandatory. An example of the complete proposal is shown in Fig. 7.

4.2 XML Signature

XAdES builds many structures upon XMLdsig to support most of the requirements

given in section 2. Therefore no proposal is given but it would be useful if XAdES

would become a true international speciﬁcation as complement of XMLdsig. This could

be achieved by the future ETSI/W3C joint group.

5 Conclusions

Although many formats for e-signatures are available, this paper shows that, for practi-

cal applications, there are aspects to be further speciﬁed to implement complex schemes

with multiple signatures and documents. Therefore proﬁles should be produced to de-

ﬁne complex schemes in a standardized way. Some proposals (for CMS and XML) have

been given in this paper.

References

1. ISO/IEC 13888 (1997). Information technology - Security techniques - Non-repudiation.

2. EU El-Sign Directive (1999). Directive 1999/93/EC of the European Parliament and of the

Council of 13 December 1999 on a Community Framework for Electronic Signatures.

3. CEN/ISSS CWA 14171 (2004). CWA 14171 - General Guidelines for Electronic Signature

Veriﬁcation.

4. RFC-3369 (2002). Cryptographic Message Syntax (CMS).

5. ETSI TS 101 733 (2004). Electronic Signature Formats.

6. RFC-2633 (1999). S/MIME Version 3 Message Speciﬁcation.

7. RFC-2046 (1996). MIME Part Two: Media types.

8. ITU X.680 (2002). Information technology - Abstract Syntax Notation One (ASN.1): Spec-

iﬁcation of basic notation.

9. ITU X.690 (2002). Information technology - ASN.1 encoding rules: Speciﬁcation of Basic

Encoding Rules (BER), Canonical Encoding Rules (CER) and Distinguished Encoding Rules

(DER).

10. RFC-3275 (2002). XML-Signature Syntax and Processing.

11. W3C Recommendation XMLSchema (2001). XML Schema.

12. W3C Recommendation DOM (2004). Document Object Model (DOM) Level 3.

13. W3C Recommendation C14n (2001). Canonical XML Version 1.0.

14. W3C Recommendation XSLT (1999). XSL Transformations (XSLT) - Version 1.0.

15. RFC-2854 (2000). The “text/html” Media Type.

16. RFC-3236 (2002). The “application/xhtml+xml” Media Type.

17. Adobe PDF v. 1.5 (2003). PDF Reference, fourth edition - Adobe Portable Document For-

mat.

18. ETSI TS 101 903 (2004). XML Advanced Electronic Signatures (XAdES).

19. RFC-2017 (1996). Deﬁnition of the URL MIME External-Body Access-Type.

20. RFC-2049 (1996). MIME Part Five: Conformance criteria and examples.
