SIP VULNERABILITIES TESTING IN SESSION

ESTABLISHMENT & USER REGISTRATION

Peter Qi Qiu, Ostap Monkewich and Robert L. Probert

School of Information Technology and Engineering

University of Ottawa, Ottawa, Canada K0J 1L0

Keywords: VoIP, signaling, authentication, vulnerability, session establishment, user registration, VOCAL, replay,

spoofing, hijacking

Abstract: This paper describes an attack-directed approach to test SIP authentication vulnerabilities in session

establishment and user registration. This approach aims to exercise the known areas of weakness including

the inherent vulnerabilities in SIP specification and the implementation vulnerabilities caused by

programmers’ negligence. By using this approach and a self-made testing tool, we have successfully

identified a number of vulnerabilities in a popular open source SIP implementation, namely VOCAL. This

effective approach can also be used to test any other SIP implementations.

1 INTRODUCTION AND BASIC

CONCEPTS

Voice over IP (VoIP), also known as packet

telephony, permits the introduction of advanced user

features difficult to provide over traditional

telephony networks, for example, text, pictures,

audio and video over the Internet. Suppliers such as

Nortel Network and Cisco Systems are now selling

networks with such capabilities.

SIP (Session Initiation Protocol) is the leading VoIP

protocol for enabling such features. Before carrier-

grade VoIP networks can supplant traditional

telephony networks as revenue generators, it is

essential that security issues associated with VoIP

are resolved. One problem is that SIP signalling for

call setup and authentication schemes are clear-text

based, thus making eavesdropping by simple

network sniffing a very effective type of attack.

Encryption cannot be applied to all aspects of SIP

messaging since SIP routers, or proxies, must

understand SIP headers to perform the routing. This

is one of the challenges we consider in this paper.

In fact, the Internet is the foundational service used

by Voice over IP (VoIP), and the Internet itself can

be considered a hostile environment from the

security point of view. All Internet users must

protect their transmissions from potential attackers,

and SIP users are no exception. This is true for both

security of SIP-enabled sessions and also for SIP

signaling security. This paper will focus on

authentication issues in Session Establishment and

User Registration rather than on media security.

Authentication is a security feature which ensures

that access is given only to users who are permitted

access. During a call involving SIP user-agent and

server, an attacker could masquerade as a user,

forging the real identity of the sender.

Authentication provides a mechanism to verify that a

request sender and/or receiver are legitimate.

In a SIP-based network, the authentication can take

place between the user agent and the server (proxy,

registrar, and user agent server), where the server

requires a user agent to authenticate itself before

processing the request. Similarly, a user agent can

request authentication of a server (known as Mutual

Authentication).

2 CURRENT SECURITY

SERVICES

Since SIP borrows its authentication mechanism

from HTTP (Franks et al.,1999) (Fielding, R et

al.,1999), it uses the basic and digest schemes for

authentication (the basic scheme (Handley, M. et

al.,1999) has been deprecated in RFC3261

(Rosenberg, J. et al., 2002)). In the basic scheme, the

223

Qi Qiu P., Monkewic O. and L. Probert R. (2004).

SIP VULNERABILITIES TESTING IN SESSION ESTABLISHMENT & USER REGISTRATION.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 223-229

DOI: 10.5220/0001405402230229

 SciTePress

client provides a user ID and password sent in clear

text – a clear vulnerability. In the

digest scheme,

password is encrypted in MD5 (by default)

algorithm (Rivest, R. et al., 1992); the server sends a

response including a checksum of the nonce value,

and the client returns it to the server. This scheme

also represents a vulnerability since a replay attack

can still succeed by simply re-sending whatever

request that the attacker captures.

An important feature in aid of authentication is

message integrity. Message integrity is based on an

e-mail transport mechanism that transports

Secure/Multipurpose Internet Mail Extensions

(S/MIME) (Dusse, S. et al., 1998). Messages are

signed using a public-key encryption mechanism. A

SIP implementation may be tested whether or not

encryption is being used regardless of the encryption

quality.

Confidentiality, another related security feature, is

commonly based on using encrypted-only format for

messages. Signed-only and encrypted-only formats

can be combined to provide authentication, message

integrity and confidentiality (D. Comer, 2003).

To carry out SIP routing, end-to-end and hop-by-hop

security is needed. However, proxies need to

examine certain headers in order to route. Headers

cannot be encrypted end-to-end, but they can be

encrypted hop-by-hop. End-to-end encryption is

essential because some session description protocols

such as SDP used with SIP carry keys for encrypting

the media. This is another area of vulnerability.

3 SUMMARY OF RELATED

STUDIES

Mini-simulation (PROTOS, http://www.ee.oulu.fi-

/research/ouspg/protos) is a functional method for

assessing protocol implementation security. The

method is designed for robustness testing that test

the robustness of IUT in the face of unexpected and

exceptional input. A protocol implementation that

improperly handles the unexpected or malformed

message may leave a security hole to some attacks.

For example, a buffer overflow is possible because a

programmer wrote lines of code that do not properly

check the size of the destination area or buffer. A

malicious user can launch a buffer overflow attack

to cause the program to crash or hang.

The mini-simulation method provides a relatively

simple and effective means for syntax-based

robustness testing. But it is too limited to detect

buffer overflow and Denial-of-Service, and it is

syntax based, not checking the semantic meaning of

the request/response.

In the next section, we give our approach for

investigating vulnerabilities related to Session

Establishment and User Registration, particularly

with respect to Authentication.

4 OUR APPROACH

We use a systematic manual method for testing a

SIP system for related security vulnerabilities. Our

approach aims to exercise the known areas of

weakness including the inherent vulnerabilities in

SIP specification and the implementation

vulnerabilities caused by programmers’ negligence.

Attack request messages are injected into the

Implementation Under Test (IUT) and the system

response observed. Note that our approach is not

syntax-based, so the attack messages are in well

form. Any response tolerating the attack request is

an indicator of one or more security vulnerabilities

in the IUT implementation. We have developed a

test tool to inject the attack requests. By using the

attack-directed test cases and test tool, we

successfully identified a number of vulnerabilities in

a popular open source SIP implementation, namely

VOCAL (VOCAL, August 2003).

5 SECURITY THREATS AND

ATTACKS

The SIP system is deployed in the Internet, a hostile

environment, in which SIP elements and messages

may be exposed to a variety of security threats and

attacks. A threat is, by definition, a vulnerability

available to a motivated and capable adversary

(Bellovin, S., 1998).

This section now presents and analyses some threats

that could be used to exploit the SIP implementation

for the authentication aspect of security. Threats

and attacks attempting to breach the lower layer

encryption protection (e.g. TLS and IPSec (Dierks,

T. et al., 1999) (S. Kent et al.,1998)) are not

discussed in this document.

• Replay Attack

Replay attack involves a malicious user

retransmitting a genuine message in order to

establish authorized communication with the entity

receiving the message. Replay attack is a common

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

224

threat to the client-server systems that use messages

as communication means.

• Registration Hijacking

A Registration Hijacking Attack is a sort of replay

attack conducted during the registration process. If

an attacker can capture the legitimate REGISTER

messages, then modify and resend a new

period set in the original timestamp, he can fool the

registrar in many ways. For example, the attacker

can de-register the existing registration by

modifying the Expires header field with the value of

0. In this case, the original registrant (victim) cannot

send or receive any calls; and cannot register his/her

own device as the appropriate contact address,

thereby redirecting all requests for the affected user

to the attacker's device.

• Request Spoofing

Request Spoofing is used to impersonate the identity

of a message sender to fool the legitimate recipient

for various reasons (e.g. cheating or billing). By

changing the message headers, the malicious person

can send a forged request that makes the recipient

believe that he/she is communicating with another

entity.

Request spoofing can happen on any requests such

as REGISTER and INVITE.

• Session Tear-down

This attack is to tear down a normal conversion

session between the legitimate users by sending a

BYE message to either user. To launch this attack,

the attacker has to somehow learn the parameters

(i.e. From, To, Call-ID, Cseq, etc.) of the previous

call control requests, then build his own BYE

message.

Vulnerability to this type of attack is caused by the

lack of authentication mechanism for the BYE

request in the SIP standard

6 STRATEGY OF TEST CASE

SELECTION

The high-level view of the test architecture is meant

to capture the type of “attack” architecture which is

common to many of the attacks experienced by

networks and network services.

In order to specify the attack test cases, the test

configuration shown in Figure 1 was chosen to

define the relationship between the test components

interconnected on a Local Area Network. The

relationships of the participating components in

Figure 1 were used to define a set of test scenarios

and a set of test cases.

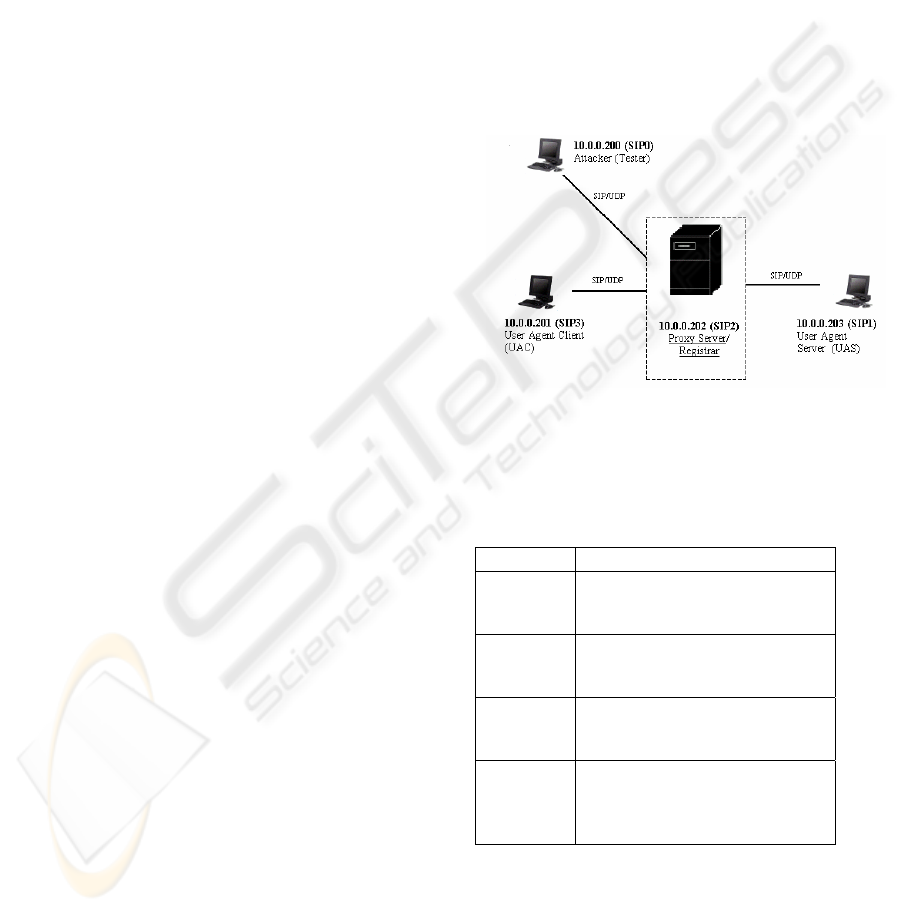

Figure 1: Test Architecture for SIP Security

The participants shown in Figure 1 are defined as

follows:

Table 1: Participates in Security Testing

Computer

Role

SIP1 Legitimate user agent that

registers with SIP2 and

establishes a dialog with SIP3.

SIP2 Implementation Under Test

(IUT), including Registrar and

Proxy server.

SIP3 Legitimate user agent that

registers with SIP2 and

establishes a dialog with SIP1.

SIP0 Attacker (tester) who can

capture, modify, and re-send

the SIP messages exchanged

among the above participants.

SIP VULNERABILITIES TESTING IN SESSION ESTABLISHMENT & USER REGISTRATION

225

• Otherwise, the test case is inconclusive. In

this case, the tester usually receives no

responses.

Our strategy of selecting test cases is attack-directed

and based on the SIP specification RFC3261. This

means that each test case imitates an attacker’s

behavior and aims to exploit the known

vulnerabilities existing in RFC3261 and its

implementation. The next section gives several

concrete examples to illustrate our test case design

and execution.

7 EXAMPLE TEST CASES AND

RESULTS

Following this strategy, we developed some attack

test cases to exercise the areas of weakness in the

SIP specification and implementation with the

particular interest in the aspect of authentication.

Note that, though these test cases by no means give

an exhaustive list of the threats against SIP

implementation, they represent the typical threats in

authentication. These attacks include replay attack,

registration hijacking, session teardown, and request

spoofing.

In this section, we use four example attacks (one for

each type of attack) to illustrate how vulnerable the

VOCAL registrar and proxy server are. All test cases

(attacks) succeeded against VOCAL. The test cases

are described in Table 2, and the test results for

VOCAL is shown in Table 3. To help readers better

understand the attack scenario, a message sequence

diagram for the first test case (replay attack) is

displayed in Figure 2.

For the first and second test cases, the results

revealed the vulnerability of using a nonce value –

the attacker can re-use the nonce value in the attack

scenario. SIP uses a challenge/response mechanism

to protect against replay attack: the server sends a

nonce value to the client; the client resends the

request including this nonce back to the server.

Obviously, if a nonce value is only allowed to be

valid in a single challenge/response transaction (also

known as a one-time nonce), the replay attack will

not have chance to succeed. However, the

implementation of nonce value is vendor dependent,

which means that vendors may choose to use the

same nonce value repeatedly in the subsequent

transactions in the period before the time-stamp

expires. In practice, one-time nonce is rarely used

due to its high cost in terms of performance. Hence,

re-using nonce values opens a hole to replay attack if

the attacker is able to capture and use the nonce

value that has not expired yet.

The test cases are executed by using a self-made

testing tool, namely SIP Injector. SIP Injector can

send and receive SIP messages across network

connections, using UDP protocol. It acts as a SIP

user agent client to test other SIP entities such as SIP

Registrar, Proxy, and user agent server.

In our testing, we used SIP Injector to send the IUT

malicious requests such as REGISTER, INVITE,

CANCEL and BYE, and to observe the response(s)

from the IUT. Based on the response(s), we assign

the test verdicts accordingly:

• If the IUT tolerates the malicious request,

the test case is failed, meaning that the

attack succeeds.

• If the IUT rejects the malicious request, the

test case is passed, meaning that the attack

is failed.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

226

Table 2: Example Test Case Description

Index Description Attack Type Targeted vulnerability Expected Result

1 An attacker records an

authenticated INVITE

message; then changes the

Via and Contact headers to

point to the attacker phone;

the attacker sends the

modified INVITE message

to attempt to communicate

with the callee.

Replay Attack Weak nonce value in

digest authentication

header

Proxy rejects the

INVITE message

2 An attacker records an

authenticated REGISTER

message; then modifies the

Expires header to value 0.

The attacker re-sends the

attempt to de-register the

legitimate registrant.

Registration

Hijacking

Weak nonce value in

digest authentication

header

REGISTRAR

rejects the

message

3 An attacker who is also a

registered user, uses his user

ID and password to pass the

authentication, and uses

another user’s ID to make

calls for various reasons

(e.g. billing). A common

form of such attack is to

spoof the “From” header

field.

INVITE

Request

Spoofing

A SIP server

implementation does

not compare the user ID

in the From header field

to the username in the

Authorization or Proxy-

Authorization header

field.

Proxy rejects the

INVITE message

4 An attacker tears down a

conversation between two

users by sending his own

BYE request to either of the

users.

Session Tear-

down

SIP standard does not

define authentication

mechanism for BYE

request.

Proxy rejects the

BYE message

SIP VULNERABILITIES TESTING IN SESSION ESTABLISHMENT & USER REGISTRATION

227

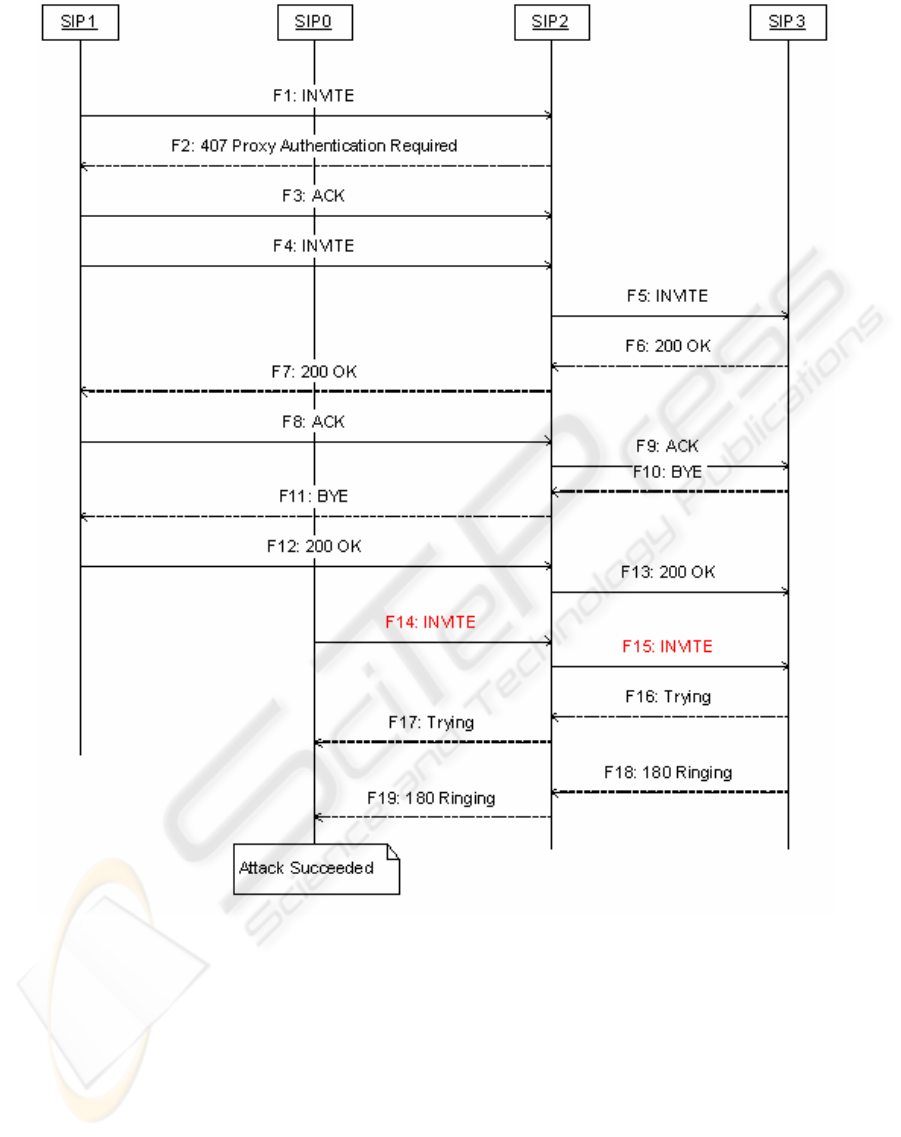

Figure 2: Message Sequence Diagram for Test Case 1 - Replay Attack

The vulnerability exploited in the third test case

showed how the programmer’s negligence could

easily open security holes. A common form of such

attack is to spoof the “From” header field in an

INVITE message, or the To header field in a

The fourth test case proved that a session tear-down

attack is so easy to succeed due to the lack of

authentication scheme for BYE request in SIP

standard. The same problem exists in CANCEL

request.

By following the strategy of test case selection, a

tester can develop as many as test cases as desired to

meet his/her test needs.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

228

Table 3: Test Results Against VOCAL

Index Response Verdict

1 180 Ringing Failed

2 200 OK Failed

3 180 Ringing Failed

4 200 OK Failed

8 CONCLUSIONS

In this paper, we have presented the common threats

for SIP security and an attack-directed approach to

test the authentication feature in SIP

implementations. More specifically, we used

several examples to illustrate the vulnerabilities of

authentication in VOCAL with respect to session

establishment and user registration.

Although the digest authentication scheme provided

with SIP can reduce the risk of attacks, there are

some limitations that may open security holes to

attacks. For example, replay attacks can easily

succeed by simply play back the authenticated

request even if the password is encrypted and a

nonce value is used.

Our testing results for VOCAL demonstrated how

vulnerable a SIP implementation could be if the

protocol specification designers and programmers do

not take precaution on security.

The next step of our testing is to execute the attack

test cases on more SIP implementations. This will

help us summarize the best practice and

recommendations about the security services for the

future SIP standard and implementation.

REFERENCES

Rosenberg, J, Schulzrinne, H, Camarillo, G, et al. SIP:

Session Initiation Protocol, RFC3261, June 2002.

Handley, M., Schulzrinne, H., Schooler, E. and J.

Rosenberg. SIP: Session Initiation Protocol, RFC

2543, March 1999.

Franks, et al. HTTP Authentication: Basic and Digest

Access Authentication. RFC

2617, June 1999.

Dierks, T., Allen, C. The TLS Protocol, Version 1.0 RFC

2246, January 1999.

Michael Thomas, SIP Security Framework, draft-thomas-

sip-sec-framework-00.txt. July 12, 2001

B. Campbell, J. Rosenberg, H. Schulzrinne, C. Huitema,

D. Gurle. RFC 3428 - Session Initiation Protocol (SIP)

Extension for Instant Messaging, December 2002.

H. Schulzrinne, AMinimalist Security Framework for SIP,

draft-schulzrinne-sip-security-00.txt. November 18,

2001.

J. Undery, S. Sen, V. Torvinen. SIP Digest Authentication:

Extensions to HTTP Digest Authentication, draft-

undery-sip-auth-00.txt. January 2002.

Bellovin, S., "Report of the IAB Security Architecture

Workshop",

RFC 2316, April 1998.

Dusse, S, et al. "S/MIME Version 2 Message

Specification", RFC 2311, March 1998.

S. Kent, R. Atkinson. Security Architecture for the

Internet Protocol, RFC2401. November 1998.

Cisco whitepaper: Security in SIP-Based Networks.

http://www.cisco.com/warp/public/cc/techno/

tyvdve/sip/prodlit/sipsc_wp.pdf. Accessed in Nov.

2003.

D. Comer, Computer and Networks with Internet

Applications, Pearson Prentice Hall, 2003.

I. Dalgic, H. Fang. Comparison of H.323 and SIP for IP

Telephony Signaling,

http://www.nostech.co.kr/reference/data/voip/Compari

son%20of%20H.323%20and%20SIP.pdf

. Accessed in

December 2003.

Fielding, R., Gettys, J., Mogul, J., Frysyk, H., Masinter,

L., Leach, P. and T. Berners-Lee, "Hypertext Transfer

Protocol -- HTTP/1.1", RFC 2616, June 1999.

W. Stallings. Cryptography and Network Security:

Principles and Pratices, 2

edition. Prentice-Hall, June

1998.

http://www.linuxsecurity.com/docs/Hack-

FAQ/cryptology-04.shtml

. Accessed in December

2003.

Rivest, R., “The MD5 Message-Digest Algorithm”, RFC

1321, April 1992.

"PROTOS - Security Testing of Protocol

Implementations". University of Oulu.

http://www.ee.oulu.fi/research/ouspg/protos

VOCAL: http://www.vovida.org/. accessed in August

2003.

SIP VULNERABILITIES TESTING IN SESSION ESTABLISHMENT & USER REGISTRATION

229
