ON VULNERABILITY TESTING OF VOIP SOFTWARE

The Megaco/H.248 System as an Example

Son Vuong, Xiaojuan Cai, Ling Yun, Wing Keong Woo

Department of Computer Science, University of British Columbia

2366 main mall, Vancouver Canada

Keywords: VoIP, Megaco, Vulnerability, Mutation, Syntax Testing, Vulnerability testing

Abstract: The ever increasing quantity of newly discovered computer security holes makes many network-based

service including especially Voice over IP (VoIP) system vulnerable, hence impose a heavy impact on

business development. Megaco or H.248 is a recent emerging VoIP protocol which will promote carriers to

move into VoIP applications. In this paper, we present the vulnerability testing of Megaco protocol, with a

focus on the mutation-based syntax testing approach. We discuss the process of vulnerability test suite

generation for Megaco, which is based on parameter variation and a TTCN-3 based framework. The result

of a demonstrated testing of a commercial Megaco product is also presented

1 INTRODUCTION

Computer or software vulnerability can be defined

as a weakness or flaw in a system that can be

exploited to violate its intended behavior. With the

fast developing of the internet, the number of newly

discovered vulnerabilities reported to CERT

continues to more than double each year, and the

existence of vulnerabilities is quickly becoming a

fact of life for many network-based services, among

which Voice over IP (VoIP) system is a typical

example.

VoIP systems – as they operate on top of

stan

dard IP technology – are susceptible to the same

problems as all other IP-based services. These

problems include the unverifiability of the origin of

data packets, the ability for third parties to capture

and modify data packets by intercepting them en

route, and the general inability to guarantee timely

delivery of data.

The trend of ever increasing quantity of newly

iscovered vulnerabilities, the rise in frequency of

major Internet-based attacks, and VoIP's

fundamental exposure to these attacks, are causes for

concern as VoIP technology begins to replace

traditional phone systems while attempting to

provide the same privacy, performance, and

reliability characteristics. Hence the vulnerability

testing of VoIP system is a very important issue in

the way to promote the VoIP business.

Vulnerabilities can be categorized into two

erspectives: at application (high) level, including

both the protocol’s design and implementation, and

at the underlying system environment (low) level.

Vulnerability testing is a process of identifying the

security holes and weaknesses in the networked

systems by various techniques such as injecting

faults into the software, analyzing the current state

of the system and searching for anomalies. In this

paper we focus on the vulnerability testing of the

protocol implementation and we choose Megaco

protocol as an example for testing since this is a

VoIP protocol that will promote carriers to move

into VoIP applications. We employ the vulnerability

testing methodology in which the test generation is

based on a parameter variation scheme and the

testing process is based on testing tools applied to

TTCN-3 test specification.

Not including this section, the paper is organized

as fo

llows. Section 2 provides a brief introduction to

the Megaco protocol and the potential vulnerabilities

that may exist in the Megaco system. Mutation

based vulnerability testing methodology, being the

core of the paper, is presented in Section 3. In

Section 4, we discuss the vulnerability test suite

generation for Megaco and the result of its

application to a sample Megaco product. Finally, in

Section 5 we present concluding remarks and offers

suggestions for future work.

216

Vuong S., Cai X., Yun L. and Keong Woo W. (2004).

ON VULNERABILITY TESTING OF VOIP SOFTWARE - The Megaco/H.248 System as an Example.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 216-222

DOI: 10.5220/0001406102160222

 SciTePress

MGC MGC

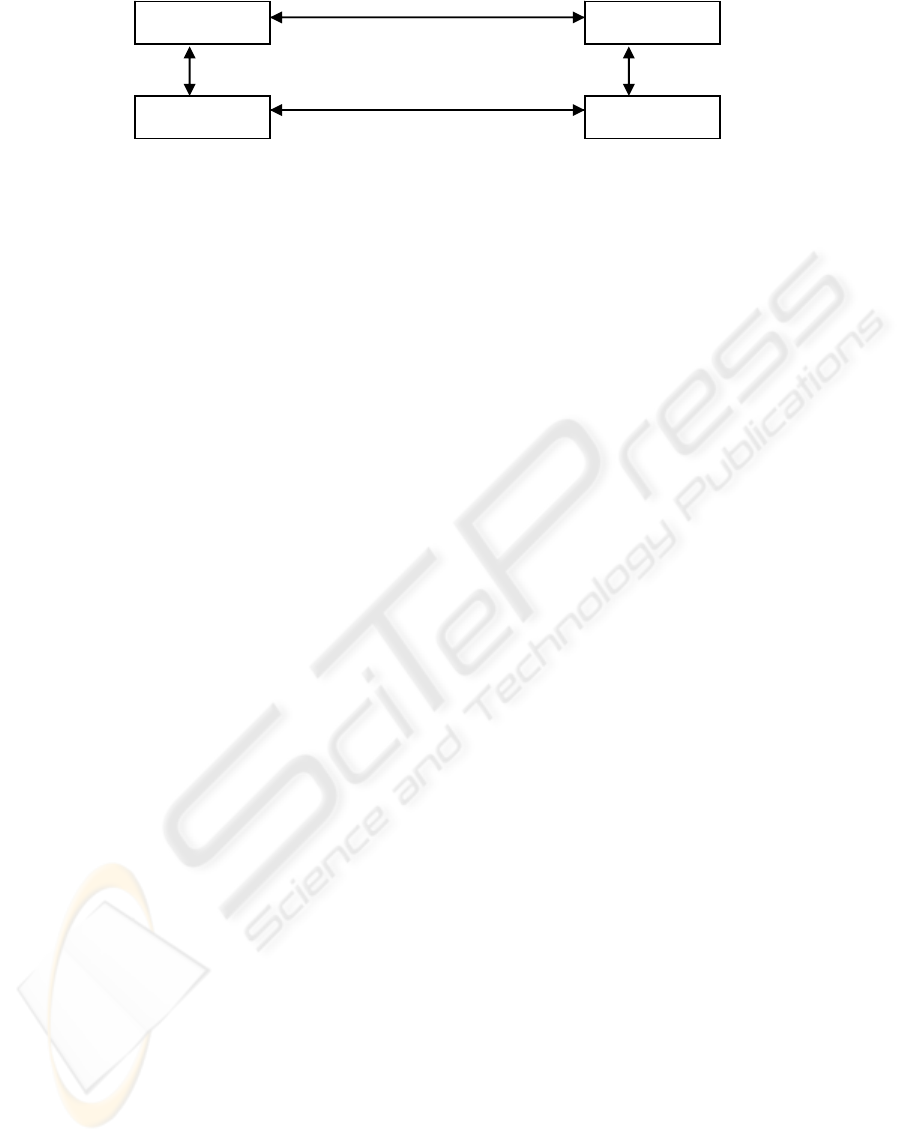

Figure 1: Megaco Protocol between the MG and MGC

2 MEGACO/H.248 SYSTEM AND

POTENTIALVULNERABILITIES

Before discussing the vulnerability testing

methodology and the testing of Megaco, a brief

introduction of the Megaco protocol would be in

order.

2.1 Brief Introduction of Megaco

Media gateway control protocols were born out of

the need for IP networks to interwork with

traditional telephony systems and enable support of

large-scale phone-to-phone deployments. Media

gateway control protocol decomposes signaling part

from the media connection so that the media

gateways can work more efficiently. Megaco stands

for “Media Gateway Control”. Megaco/H.248 is a

collaborative effort of the ITU and IETF. Reference

for Megaco is available in RFC 3015 (Rfc3015,

2000). Megaco/H248 addresses the relationship

between Media Gateways (MG) and Media Gateway

Controllers (MGC) as shown in Figure 1. This

relationship has a master/slave structure where

masters are MGCs (sometimes called call agents or

softswitches) and slave devices are MGs which

execute commands sent by master devices.

2.2 Megaco Security Features and

Potential Vulnerabilities

The Megaco specification requires that the control

connection between MG and MGC be protected by

IPSec, or in case the underlying operating system

does not support IPSec, an interim AH solution

should be employed. Despite this protection, if there

exists software bugs in the implementation, it is still

possible for an attacker to break into a MG from the

user end and exploits the software bugs to bring the

MGC down. There also exist some insider attacks.

Furthermore, infrastructure vulnerabilities that cause

the DoS attacks on MGs or misbehaving MGCs are

unavoidable. For example, a DoS attack to a MGC

could occur when the attacker sends a large amount

of UDP packets to the protocol’s default port 2944

or 2945, thereby keeping the target MGC busy

processing illegal messages, and thus preventing it

from using its resources to offer normal service.

Aside from the aforementioned security

problems in signalling control, media security is

another issue which refers to the prevention of

eavesdropping or the altering of a voice stream

between caller. In this paper, we only focus on the

testing of the software implementation bugs

3 VULNERABILITY TESTING

METHODOLOGY

Our purpose of vulnerability testing is to identify

software bugs that may cause security problems,

such as buffer overflow, that an intruder could

exploit by carefully crafting the input data in an

attempt to compromise the security of the system.

We are taking a black box testing approach based on

syntax testing. The errors to be injected are

generated based on parameter mutation. Details are

described in the subsequent sections.

3.1 The Testing Methodology

Our testing methodology is shown in Figure 2. The

general idea is to use syntax testing with parameter

variation (mutation) to create error sentences.

We start from the specification of the protocol,

then model the protocol in a formal description

language such as SDL or use formal grammar

notation such as BNF to describe the protocol

exchange. The abstract test cases for vulnerability

testing are derived from the formal description, but

with the parameter mutation to generate errors as in

the syntax testing. This will be detailed in the next

section. We describe the abstract vulnerability test

suite (VTS) in Testing and Test Control Notation

version 3 (TTCN-3).

MEGACO

H 323, SIP, Q. BICC

RTP, AAL 1/2/5

ON VULNERABILITY TESTING OF VOIP SOFTWARE - The Megaco/H.248 System as an Example

217

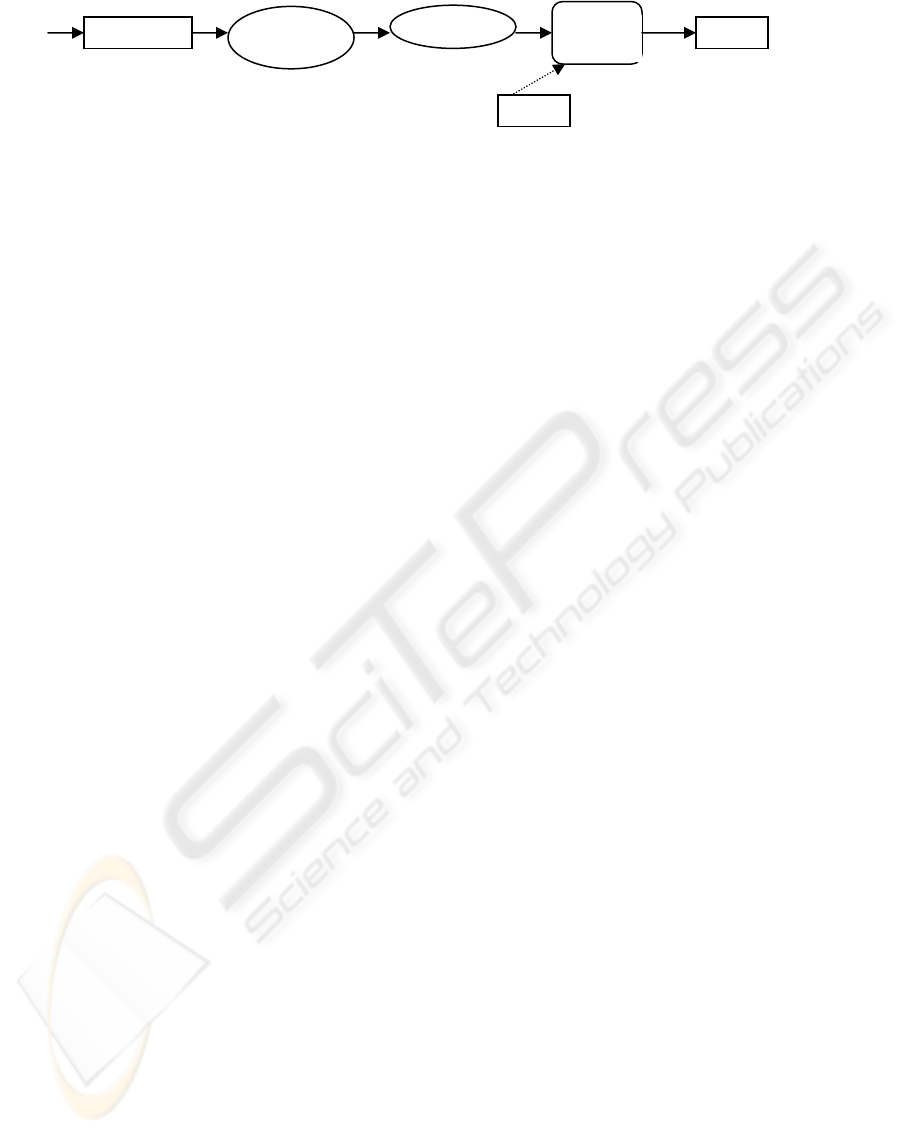

Figure 2: Vulnerability Testing Process

The reason we choose TTCN-3 for vulnerability

test specification is that, unlike TTCN-2 which is

specifically designed for conformance testing,

TTCN-3 has been developed with the objective of

being a flexible and powerful test specification

language applicable for all types of testing,

including robustness testing. Although TTCN-3 is

conceptually extended from TTCN-2, it is

syntactically very different from TTCN-2, and is

therefore named differently. Being a standard, the

use of TTCN-3 will ensure wide portability and

understandability, and the generated test suite will

be shared with the community for verification

without any modification required.

After the vulnerable test suite (VTS) is specified,

we need to use TTCN-3 tools to convert the VTS to

Executable Test Suite (ETS). Then we can feed the

ETS into the test tool (test execution module) to

execute against the implementation under test (IUT),

and finally we obtain the test verdicts. The process

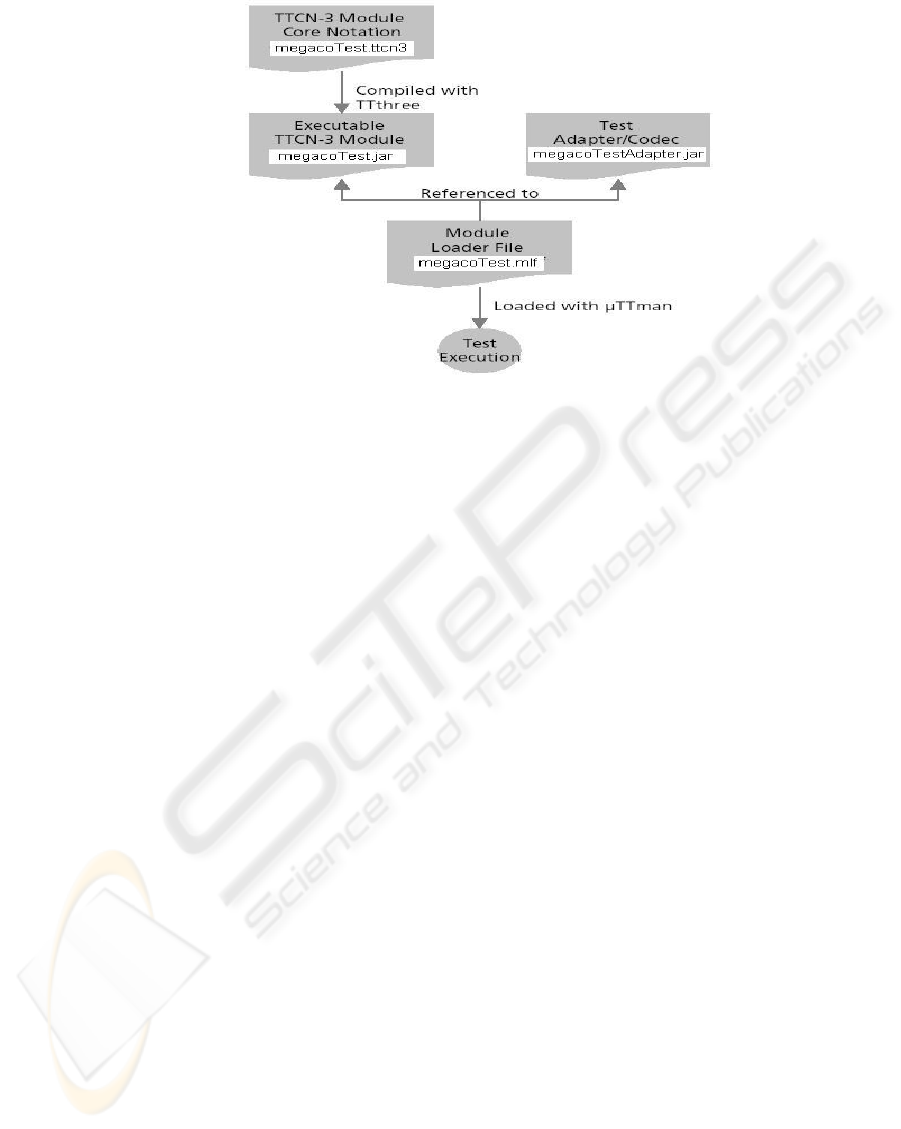

of ETS translation and execution using a toolset (e.g.

TTthree and µTTman) is illustrated in Figure 3. This

process was applied to a real-life Megaco product

IUT. First, the VTS is generated via some creative

parameter variation heuristics and specified in

TTCN-3, and the VTS specification is stored in the

file megacoTest.ttcn3. The abstract VTS

specification in TTCN-3 is then transformed into an

ETS (via the TTthree tool) for actual application in

the vulnerability testing of the IUT (via µTTman

tool).

First, the VTS specification in TTCN-3 is

compiled into a programming language, e.g. Java or

C/C++. We are using the TTthree tool developed by

Testing Technologies™ to compile the VTS into

Java, specifically from megacoTest.ttcn3 to

megacoTest.jar. Next, we develop a test adapter,

written in Java, to map the abstract test system

interface referred to in TTCN-3 into a real test

system connected to the IUT. An example is the

mapping of an abstract port in TTCN-3 into a real

TCP or UDP port opening. In addition, we develop

an encoder, also written in Java, to map TTCN-3

data structures into real messages for injecting the

test messages, and a decoder to map real messages

into TTCN-3 data structures for receiving the

responses. For convenience, the above three java

programs are compiled into a single file:

megacoTestAdapter.jar.

To facilitate the testing, it is desirable to have a

test manager to inject the test cases in sequences,

receive the responses, and display the results. We

are using the µTTman tool, also developed by

Testing Technologies. The µTTman tool uses a

Module Loader File written in XML to reference the

test suite, the test adapter and the codec (voice

encoder/decoder) to be used, which in our case, are

the megacoTest.jar and megacoTestAdapter.jar.

3.2 VTS Generation – Mutation

Method

We adopt syntax testing method to identify software

bugs. Syntax testing is a way to test system

robustness. In a sense, if a system is very robust,

then it is really hard to be broken into, hence more

secure. In syntax testing, the test cases, i.e. the input

to the software, are created based on the

specifications in languages understood by the

interface software (Beizer, 1990). The motivation

for syntax testing springs from the fact that each

interface has a language, whether it is hidden or

open, from which effective tests can be created with

a relatively small effort (Kaksonen, 2000). The

communication protocol between two entities is a

perfect interface language.

The syntax for the interface language is usually

represented by formal grammars such as "Backus

Naur Form" (BNF). Following the rules of the

grammar, the defined formal language will produce

a right sentence which is basically sequences of

bytes. The selection of test cases in syntax testing

could start with single-error sentences that follow

the defined syntax. By single-error, we mean only

one grammar element in the right sentence is

replaced with some error or exceptional value. An

exceptional element value is an input that has been

designed to provoke undesired behavior in the

implementation, and we regard these as parameter

mutation (or parameter variation) from the normal

valid value. An example would be to replace a valid

integer value by a float number in the sentence. The

exceptional input is usually not considered seriously

Protocol Spec

VTS

Generation

VTS Æ ETS

Test

Execution

Verdict

IUT

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

218

Figure 3: Tools for VTS-to-ETS Translation and ETS Execution

by most software developers during the developing

process, thus easily leading to havoc when being

exploited. The provocation knowledge is often

acquired by experience and may be protocol

specific. Single-error testing is likely to reveal most

faults assuming the faults are mutually independent

and a fault is triggered by one error in a sentence.

After all the sentences with one error are tried, the

testing proceeds to pairs of errors, three error

combinations, and so on. The number of test cases

grows exponentially by the number of combined

errors (Beizer, 1990).

4 VULNERABILITY TESTING OF

EXAMPLE MEGACO/H.248

SOFTWARE

Based on the mutation concept and syntax testing

approach, we design test suite and test a sample

Megaco system in this section. At the current stage

of the testing process, we have not covered the test

suite generation for the whole protocol yet and our

test focuses only on the Megaco command

“ServiceChange”.

4.1 VTS Generation for Megaco

To perform vulnerability testing using the syntax

testing approach, first we need to obtain the formal

grammar that defines the protocol syntax. We can

find the complete augmented BNF (ABNF)

specification for Megaco in RFC 3015. A sample

excerpt of the ABNF specification for

“ServiceChangeRequest” that we employ in the

vulnerability testing is shown below:

megacoMessage = LWSP [authenHeader SEP ] message

message = MegacopToken SLASH Version SEP mId SEP

messageBody

mId = ((( domainAddress / domainName )[":"

portNumber]) / mtpAddress / deviceName)

messageBody = ( errorDescriptor / transactionList )

transactionList = 1 * ( transactionRequest /

transactionReply /transactionPending /

transactionResponseAck )

transactionRequest = TransToken EQUAL TransactionID

LBRKT actionRequest *(COMMA actionRequest) RBRKT

serviceChangeRequest = ServiceChangeToken EQUAL

TerminationID LBRKT serviceChangeDescriptor RBRKT

An example of a valid and typical

“ServiceChange” Megaco message that the protocol

grammar should be able to generate is given below:

MEGACO/1 [192.168.1.101]

Transaction = 9998 { Context = - {

ServiceChange = ROOT {Services {

Method=Restart,

ServiceChangeAddress=44445,

Profile=ResGW/1}}}}

We choose the command “ServiceChange”

sending from MG to MGC for registration as our

starting point of the vulnerability testing process. By

analyzing the grammar component in this command

and following the guideline of the PROTOS project

(PROTOS, 1999), we designed the exceptional

element categories, partially shown in Table 1.

ON VULNERABILITY TESTING OF VOIP SOFTWARE - The Megaco/H.248 System as an Example

219

Table 1: Exceptional element categories

Name Description

ipv4-ascii

Malformed IPv4 addresses in ASCII

and special purpose addresses

overflow-general

“a“ (0x61) character overflows up to

128KB

utf-8 Malformed UTF-8 sequences

overflow-space Overflows of “ “ up to 128KB

fmtstring Format strings

megaco-version Malformed ”MEGACO/1”

Injecto

Injector

IUT

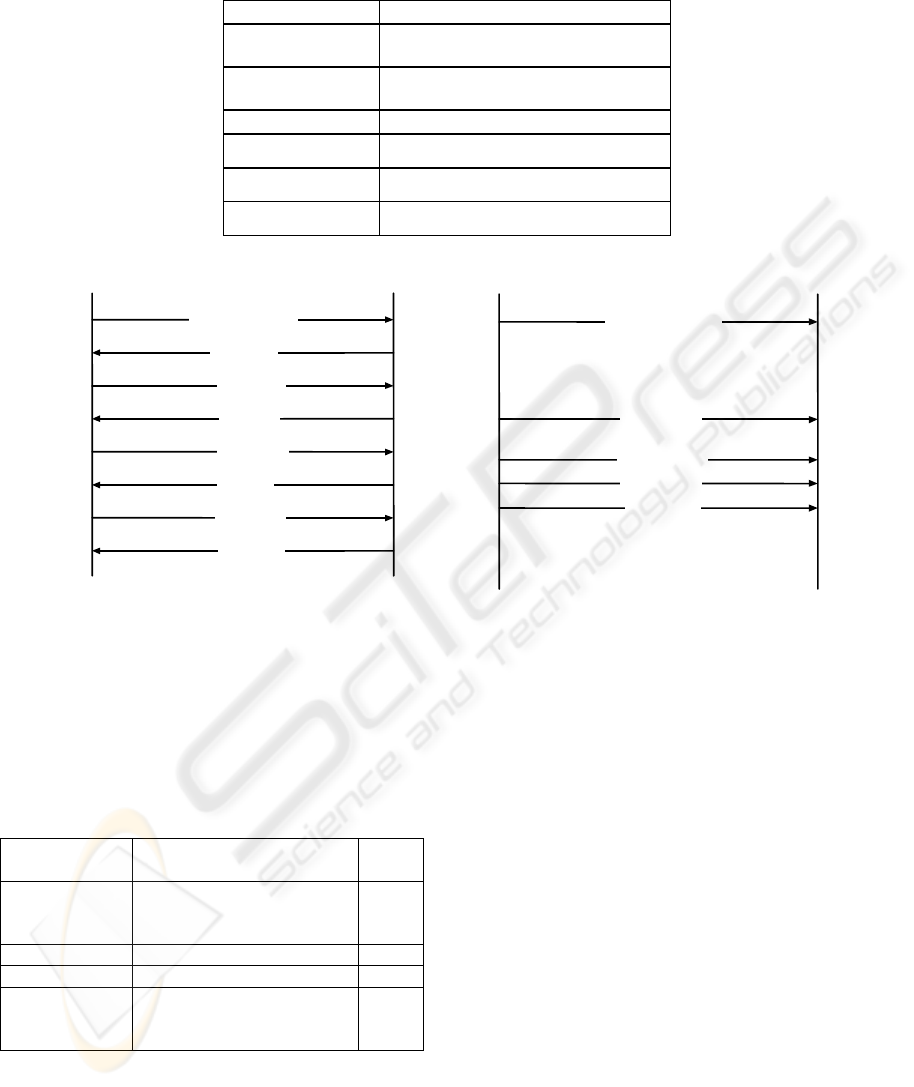

Figure 4: Vulnerability Test Sequence Diagram

Our test cases can be categorized in groups

according to which element (parameter) in the

sentence (command) that we want to fill it with the

exceptional value. A total of 1771 test cases are

generated with some groups listed in Table 2.

Table 2: Megaco Vulnerability Test Groups

Name Exceptional Elements

Test

Cases

MegacopToken

Empty, overflow-general,

overflow-space, fmtstring,

utf-8, ansi-escape

193

Version megaco-version 75

DomainName ipv4-ascii 106

TransToken

Empty, overflow-general,

overflow-space, fmtstring,

utf-8, ansi-escape

193

An example test case in the test group

“TransToken” with the exceptional element category

of “overflow-general” will replace the valid value in

the “TransactionToken” field with a string

containing variable length of character ‘a’ so that we

can use it to test whether the IUT will have buffer

overflow problem.

4.2 Test Execution on an Example

IUT

We have compared the implementations available to

us that include the Megaco Erlang toolkit, a test

equipment that has Megaco function implemented

and an evaluation version of a viable commercial

Megaco software. In the initial stage of our testing

development, the evaluation version of the

commercial software was chosen as a sample

implementation to help us create a test suite for

vulnerability testing.

The vulnerability test sequence diagrams are

shown in Figure 4 with the left side being for passed

cases and the right side for failed ones. Forced

command in the chart serves the purpose of tearing

down the Megaco connection. For the passed cases,

the test packet is first sent to the IUT. Then, if a

reply is returned by the IUT, it is treated as a passed

Test Case N

Injector

Forced

(b) Failed case - causing IUT crash

Restart

Forced

Restart

Forced

Test Case N

(a) Passed case with connection teardown

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

220

case and it is the reply is disregarded by the tester.

After a certain period of time, a valid case is sent to

the IUT to verify if the IUT still functions normally.

On the other hand, when a failed test case is

applied, we expect that it will crash the IUT or make

the IUT non-functional. This can be verified by three

consecutive retries without receiving a response,

thus indicating that the service is no longer

available. All the test results are logged in a log file

for further analysis or visualization. A failed test

case is shown in the appendix.

All the 1771 of test cases have been tested with

the sample MGC via UDP and TCP transport. The

partial result is summarized in Table 3. Altogether,

we found 10 failed test cases when conducting test

over TCP and 5 over UDP transport, both in the test

group of “DomainName”.

Table 3: Vulnerability Test Result

Test Group UDP Result TCP Result

MegacopToken Passed Passed

Version Passed Passed

DomainName

Failed Failed

TransToken Passed Passed

5 CONCLUSION AND FUTURE

WORK

We generated vulnerability test suite for the Megaco

protocol based on the method of robustness testing

in which heuristically derived exceptional elements

are used to produce mutations of the correct

behaviour to create the vulnerability test suite. Since

TTCN-3 is a standard test specification language for

various types of testing, including robustness testing,

the generated vulnerability test suite (VTS) for the

Megaco protocol is specified in TTCN-3 and TTCN-

3-based tools (e.g. TTthree and µTTman) are used in

the vulnerability testing process. The result of

applying the generated VTS to a sample IUT

demonstrated well the effectiveness of the testing

approach.

What we have done so far is simply to test a

single command (Service) with a single error (a

single parameter variation) while the program (IUT)

is at a certain state. It is reasonable to expect that the

protocol behaviour and thus IUT behaviour in

response to a certain input is state sensitive even

from a vulnerability point of view. Not all sentences

are acceptable in every possible state of a software

component. A state-dependent error can be

generated by inputting a correct sentence in an

incorrect state. Therefore, the next step of our plan

will be to consider the protocol Finite State Machine

(FSM) and perform a state-dependent mutation for

vulnerability test suite generation, and to consider

multiple errors (i.e. muti-mutations) in a single

vulnerability test case.

ACKNOWLEDGEMENTS

This research is supported in part by Industry

Canada - Directorate of Telecom Engineering and

Certification. We would like express our gratitude to

Peter Chau, Colman Ho, Os Monkewich, Jinmei

Yang, Ardashir Bahi, Yan Bai and Sergio Gonzalez

for the fruitful discussions and comments that led to

the improvement of earlier drafts of the paper.

REFERENCES

RFC3015, 2000: http://www.ietf.org/rfc/rfc3015.txt

Kaksonen, R., Laakso, M., Takanen, A., 2000,

Vulnerability Analysis of Software through Syntax

Testing, Available:

http://www.ee.oulu.fi/research/ouspg/protos/analysis/

WP2000-robustness/index.html

Beizer B., 1990, Software Testing Techniques, Second

Edition, ISBN 0-442-20672-0

PROTOS, 1999-2003, "PROTOS - Security Testing of

Protocol Implementations". University of Oulu.

http://www.ee.oulu.fi/research/ouspg/protos.

APPENDIX

Sample Vulnerability Test Cases for Megaco

# A passed test case:

MEGACO/1 [aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa]

Transaction = 9998 {

Context = - {ServiceChange = ROOT

{Services { Method=Restart}

}

# Failed test case: long string of “a” IP_addr

MEGACO/1

[aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa]

Transaction = 9998 {

ON VULNERABILITY TESTING OF VOIP SOFTWARE - The Megaco/H.248 System as an Example

221

Context = - {ServiceChange = ROOT

{Services {Method=Restart}

}

# Reply received from MGC

MEGACO/1 [142.103.10.92]

Reply=9998{

Context=-{ServiceChange = ROOT

{Services{ServiceChangeAddress=2944}

}

# Forced command message to disconnect

MEGACO/1 [192.168.1.101]

Transaction = 9998 {

Context = - {ServiceChange = line/1

{Services {Method=Forced, Reason="905

Termination taken out of service"}

}

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

222
