SUPPORTING KNOWLEDGE REUSE DURING THE

SOFTWARE MAINTENANCE PROCESS THROUGH AGENTS

Aurora Vizcaino, Juan Pablo Soto, Mario Piattini

Alarcos Research Group,Computer Science Department, Universidad de Castilla-La Mancha, Ciudad Real, Spain

Keywords: Knowledge management,

agents, software maintenance, software engineering

Abstract: Knowledge management has become an important topic as organisations wish to take advantage of the

information that they produce and that can be brought to bear on important decisions. This work describes a

system to manage and reuse the information (and knowledge) generated during the software maintenance

process, which consumes a large part of the software lifecycle costs. The architecture of the system is

formed of a set of agent communities. Each community manages different types of knowledge. The

communities’ agents have the goal of encouraging the reuse of good solutions and taking advantage of

information obtained from previous experience. In consequence, the software maintenance is made easier

and there are less costs and effort. To achieve this goal, agents use several reasoning techniques such as case

based reasoning or decision tree based algorithms which allow them to generate new knowledge from the

information that they manage.

1 INTRODUCTION

Software engineering in general, and software

maintenance in particular, are activities that generate

important amounts of knowledge. This knowledge

comes not only from the expertise of the

professionals involved in the processes, but is also

intrinsic to the product being maintained and in the

case of software maintenance, to the reasons that

motivate maintenance (new requirements, user

complaints, etc.), processes, methodologies and tools

used in the organization. Moreover, software

maintenance is a constantly changing process since

maintenance results from the necessity of adapting

software systems to an ever changing environment

(Oliveira et al, 2003).

On the other hand, many people are involved in

soft

ware development and maintenance. These

people often work in different phases, activities and

projects and nowadays it is common that they act

from geographically distributed sub-units. For all

these reasons, maintenance organizations frequently

have problems identifying their resources,

localizations and use of knowledge. As a

consequence, companies recurrently spend time,

effort and money searching for solutions to problems

that have already been solved in their own

organization.

On many occasions, organizations had

doc

uments or people with the information or

knowledge necessary to support or help other

colleagues in their activities but either the former did

not know what the latter was working on or the latter

did not know that other documents or people could

have helped them.

Techniques and tools are need

ed to help software

practitioners apply past knowledge to current

projects (Henninger, 2003).

A plausible technique is to store good solutions

problems or lessons learned thus avoiding

repeating mistakes and increasing productivity and

the likelihood of further success (Rus and Lindvall,

2002).

To implement this technique, we used the

expe

rience-based approach, which proposes that

software maintenance draws on past experiences as a

resource for planning and executing software

development and maintenance efforts (Basili and

Rombach, 1988; Henninger et al. 1995).

An experience-based approach to software

aintenance involves using an organization’s

accumulated knowledge of the development and

maintenance processes and application domains as

the basis for planning and performing the different

397

Vizcaino A., Pablo Soto J. and Piattini M. (2004).

SUPPORTING KNOWLEDGE REUSE DURING THE SOFTWARE MAINTENANCE PROCESS THROUGH AGENTS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 397-402

DOI: 10.5220/0002596303970402

 SciTePress

types of maintenance. Analysing and structuring the

necessary knowledge to achieve this goal is a

difficult process that can only be accomplished in

well-understood domains (Fischer and Lemke,

1988).

First of all, the experience-based knowledge

lifecycle should be considered: Knowledge creation

is a spiral where new ideas are built on existing

knowledge, made explicit so it can be communicated

to others (these are the lessons learned or experience

packages), then routinized to become part of

everyday practices that serve as the basis for future

knowledge creation (Nonaka and Takeychi, 1995).

According to this definition, a new problem arises:

how to communicate or share knowledge and to

foster its reuse and decide who should be in charge

of it.

Basili et al. (1994) propose a solution to this

problem «the Experience Factory approach». This

approach separates the responsibilities of developing

projects or maintaining them, (in the case of

software maintenance), from capturing experience.

The Experience Factory unit is in charge of

developing, updating and providing reusable

experience that can be utilized by product

development teams (Henninger, 2003).

This approach is currently starting to be used in

experience management tools (see Seaman et al.,

2003) and it is that which is used in our work since it

makes knowledge management possible without

overloading maintainers with new tasks or

responsibilities. Therefore, it is supposed that

organizations have an experience factory to carry out

all activities necessary to store, manage and share

previous experience.

Besides using a software experience based tool

we consider how to deal with the different types of

knowledge generated during the software

maintenance process. Agents were the solution

chosen because they can specialize in monitoring

specific knowledge. Another advantage of using

agents is that they can take advantage of other

agents’ knowledge by consulting or asking for help

from others. Therefore, they reuse and share their

own knowledge.

The rest of the paper is structured as follows:

Section two describes what type of knowledge

should be taken into account to develop an

experience-based knowledge management tool for

the software maintenance process. Section three is

focused on describing the multi-agent architecture,

designed to foster knowledge reuse in software

maintenance companies. Finally, conclusions are

outlined.

2 SOFTWARE MAINTENANCE

KNOWLEDGE

There are several proposals of mental models to

describe how software engineers go about carrying

out maintenance (Rugaber and Tisdale, 2000; Briand

et al, 1994). However, these works focus on the

process of doing maintenance rather than on the

knowledge generated or used during this process.

Kitchenham et al (1999) designed an ontology of

software maintenance. In this ontology all the

concepts relevant to the classification of empirical

studies in software maintenance were identified.

Kitchenham’s ontology is structured in several

partial subontonlogies:

Products ontology: This represents how the

software product is maintained and how it evolves

over time.

Activities ontology: This describes how to

organise activities for maintaining software and

what kinds of activities they may be.

Processes ontology: This is divided into two

different focuses, defining a sub-ontology for each

one:

• Procedures sub-ontology: This defines how

the methods, techniques and tools can be applied to

the activities and how the resources are used in order

to carry out these activities.

• Process Organization sub-ontology: This

focuses on how the support and organizational

processes are related to the software maintenance

activities, how the maintainer is organized, and what

his/her contractual obligations are.

Peopleware ontology: This describes what skills

and roles are necessary in order to carry out the

activities, what the responsibilities of each person

are, and how the organizations that intervene in the

process (maintainer, customer and user) relate to

each other.

Oliveira et al. (2003) present an ontology where

the knowledge useful to software maintenance is

determined. Their ontology is inspired by

Kitchenham’s ontology. They propose five aspects

instead of the four described above, although four of

them are similar to the sub-ontologies previously

cited. The aspects considered by Oliveira et al

(2003) are: Knowledge about the software system

itsef which corresponds to the product ontology.

Knowledge about the maintainer’s skills, which

corresponds to the peopleware ontology. Knowledge

about the maintenance activity which corresponds to

the activities ontology. Knowledge about the

organization structure which corresponds to the

Process Organization sub-ontology. And knowledge

about the application domain which is not

considered in Kitchenham’s ontology.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

398

Ruíz et al. (2003) propose a semi-formalised

ontology where Kitchenham’s ontology has been

extended and focused on the management of

Software Maintenance Projects. This is the ontology

that has been used in the design of our experience

based tool since it is that which is best adapted to

our necessities in exactly defining the software

maintainance projects domain.

Our experience-based tool is currently focused

on knowledge directly related to the maintenance

problems. Therefore, storing the application domain

was not considered convenient, at least in the first

step. Moreover, it is more likely that organizations

obtain experience about what activities are most

performed, or about the processes that should be

followed to carry them out than about the

application domain itself.

Therefore, the tool manages information related

to the products to be maintained, the activities that

are performed during the software maintenance

process, and of course, the methods, techniques and

tools used to carry out the different activities.

Moreover, the tool monitors the work that each

person has done and in which project and activity

s/he is working at this moment. Thus, different kinds

of knowledge should be taken into account and it is

for this reason that we have designed a multiagent

architecture.

3 THE MULTI-AGENT

ARCHITECTURE

There are several reasons why agents are

recommendable for managing knowledge (see Tacla

and Barthès, 2002). First of all, agents are proactive.

This means they act automatically when it is

necessary. Moreover, agents can manage both

distribute and local information. This is an important

feature since the software maintenance information

is generated by different sources and often from

different places.

Another important issue is that agents can learn

from their own experience. Consequently, the

system is expected to become more efficient with

time since the agents have learnt from their previous

mistakes and successes.

On the other hand, each agent may utilize

different reasoning techniques depending on the

situation. For instance, they can use ID3 algorithms

to learn from previous experiences and use case-

based reasoning to advise a client how to solve a

problem.

Having explained the convenience of using

agents let us describe the multi-agent architecture.

We followed MESSAGE, a Methodology for

Engineering Systems of Software Agents (Evan et

al., 2001) to design the architecture.

MESSAGE proposes different levels of analysis.

At level 0 the system to be developed is considered

as a black box focusing on its relationships with the

entities in its environment (eg. users, stakeholders,

and resources).

Figure 1 shows the level 0 of our design, where

there are three entities: the experience based tool, the

maintainers’ team and the experience factory

organization. As Figure 1 indicates the experience

based tool is updated by the members of the

experience factory. However, they need to obtain

experience from the maintainers’ teams. This means

that the activities of the experience factory and those

of the maintainers’ team should be perfectly

integrated (Rus and Lindvall, 2002). A feedback

between them is indispensable to assure the success

of the experience factory approach.

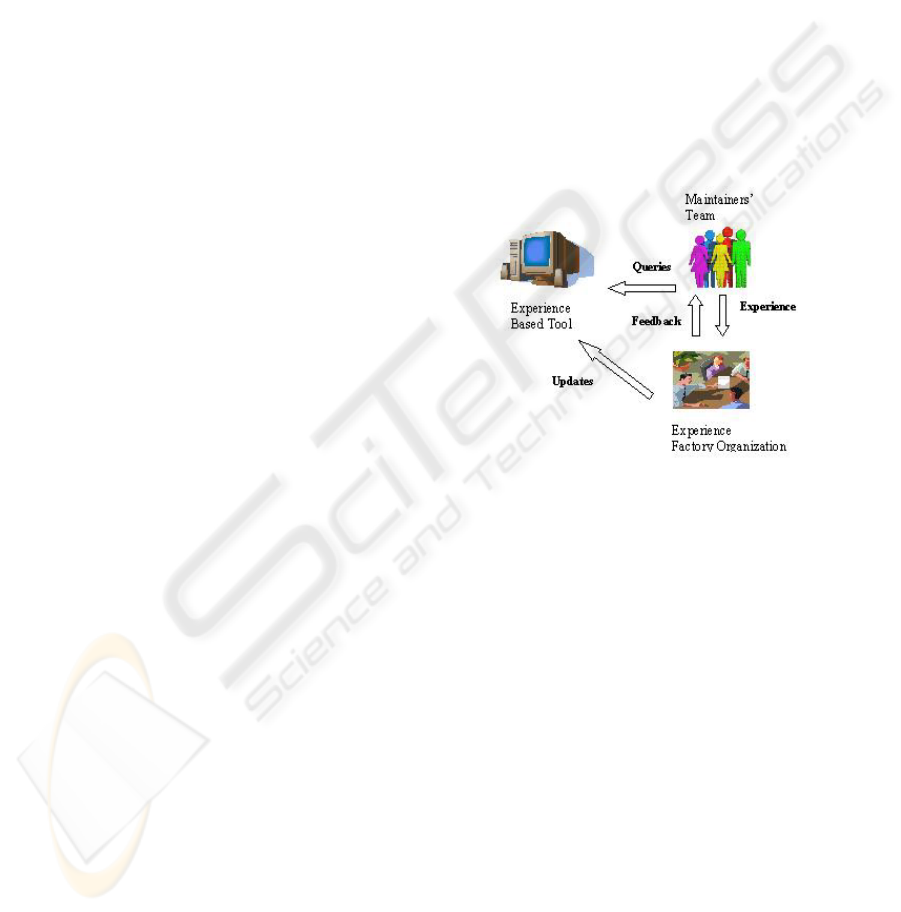

Figure 1: Organisation Diagram

Moving from level 0 to level 1, analysis focuses

on the system itself, identifying the types of agents

and roles. The tool has different types of agents.

They are groups in three communities. The product

community is formed of product agents in charge of

monitoring information related to the products to be

maintained. The activity community has activity

agents, which control all information, related to a

specific activity such as the process where it is used,

the tool/s necessary to perform the activity and the

best methods to carry it out.

The third community is called the peopleware

community. This community has three different

agents, one per type of profile involved in the

software maintenance process (Polo et al., 1999).

One is the “staff agent” in charge of managing

information related to the members of the staff.

Another type of agent, called client agent, is in

charge of the information received from the clients

and of their data. And the last agent, the user agent,

manages users’ information. Following the

MESSAGE methodology we have developed an

Agent/Role schema for each agent, which as its

SUPPORTING KNOWLEDGE REUSE DURING THE SOFTWARE MAINTENANCE PROCESS THROUGH AGENTS

399

name suggests, describes the features and roles of

each agent. Following the product agent/role schema

is presented:

Table 1: Product agent/role schema

Role Schema Product Agent

Goals Predicting future changes. Looking

for similar features in other products.

Capability Case-Based reasoning

Knowledge Initial requirements of the product.

Product’s features. Changes

performed in the product.

Agent

requirements

This role is played by the agent that

each product has.

Table 1 summarizes the fact that by using case-

based reasoning the product agents try to predict

future changes, since similar software projects often

require similar maintenance demands. This role is

very relevant as studies show that the incorporation

of new requirements is the core problem for

software evolution and maintenance and supposes,

along with the adaptive maintenance, around 75% of

the maintenance effort. As Bennet and Rajlich

(2000) claim, if changes can be anticipated they can

be built in by some form of parameterisation. In this

way costs and efforts are decreased.

The activity agent/role schema is now shown and

commented on.

Table 2: Activity agent/role schema

Role Schema Activity Agent

Goals To advise the best way to perform an

activity.

Capability Induction and decision trees based

algorithms to learn from previous

experience.

Knowledge Methods, techniques and resources to

use for performing an activity.

Lessons learned.

Agent

requirements

This role is played by the agent that

represents each activity.

In order to carry out suitable maintenance it is

advisable to follow a specific methodology. In our

case MANTEMA (Polo et al., 1999), a complete

methodology designed for software maintenance, is

used.

When an organization uses our tool for the first

time, the activity agents contain MANTEMA’s

indications about when to use an activity, or what

methods and resources to use. However, while the

tool is used agents are learning what techniques are

the most appropriate for each activity and also

learning which mistakes are often made in each

activity. Thus, the more the tool is used the better it

will work. With this role the aim is to reuse lessons

learned and avoid the repetition of mistakes.

The following paragraphs describe the

agent/role schema for the agents belonging to the

peopleware community. They are the staff agent, the

client agent and the user agent.

The staff agent is in charge of monitoring the

employees’ work in order to determine in which task

each person has more experience or where a person

obtained better performance. Therefore, the staff

agent has enough information to be able to

recommend the most suitable person to perform a

task attempting to decrease time, cost or effort or to

obtain the best performance.

Table 3: Staff agent/role schema

Role Schema Staff Agent

Goals To follow the performance of

each employee in order to

recommend the most suitable

person to carry out a task.

Capability Statistics techniques that indicate

the time that an employee took to

perform a task or calculate the

performance graph of each

member.

Knowledge Personal data of the employees,

in which activities they have

worked, and which product they

have maintained.

Agent

requirements

This role is played by one agent

in charge of all the members of

the staff.

On the other hand, as was mentioned before,

similar products often demand similar changes. The

same often happens with the clients. Clients with

frequent analogous features have similar needs.

Thus, the client agent searches for analogies among

clients in order to predict future demands or to use

the knowledge obtained from previous experience to

help clients to make a decision.

When more knowledge and experience is

managed it is easier to identify problems, to develop

different alternative solutions and to select the best

option (Gnyawali et al., 1997).

For example, let us consider that a client wants

to change two modules of the same product.

However, he wonders whether it is more suitable to

carry out the two changes at the same time or order

one change first, and after a time request the second

change. The client agent can check whether similar

changes were demanded previously and calculate

statistics in order to advise him/her which method is

most suitable to follow in order to obtain the best

performance and price.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

400

Table 4: Client agent/role schema

Role Schema Client Agent

Goals To help to make decisions.

Capability Analogy reasoning techniques.

Knowledge Profile of each client and their

requirements (including the

initial requirements if they are

available).

Agent

requirements

This role is played by one agent

in charge of monitoring clients’

demands.

Finally, the user agent schema shows that the

user agent plays a role similar to that of the client

agent. The reason for having two different agents is

that the clients are frequently not the users of the

software to be maintained. For this reason it is

necessary to monitor the information of both parts.

For a software maintenance organization it is very

useful to know the users’ opinion of the software

and of the changes that have been performed.

Organizations can use this information to evaluate

their work and to study how the users’

characteristics influence the maintenance of the

product. In order to illustrate how the user agent

works let us imagine that an accounting department

requests a change in its software because a new tax

has appeared.

Table 5: User agent/role schema

Role Schema User Agent

Goals To predict new requirements

Capability Analogy reasoning techniques

Knowledge Necessities of the users of each product,

their background and also their

complaints and comments about the

products.

Agent

requirements

This role is played by one agent in

charge of monitoring users’ features.

The user agent sends an email to other users,

whose jobs are related to accounting, warning them

of the possibility that their software should be

modified and updated because of the new tax. A

budget of the cost of the change could even be

attached to the email. Thus, users can plan the

changes in advance.

To conclude this section some considerations

related to the implementation of the system are

explained. The platform chosen to implement the

multiagent system is JADE which is an FIPA

compliant agent platform (Bellifemine et al., 2001),

implemented in Java and developed as an open

source project.

This platform provides a Java API which

simplifies the development of agents that run in the

environment of the platform. The language used for

the agents’ communication is ACL.

Moreover, the experience and information

managed by the system are represented in the

experience repository as XML documents which are

managed by TAMINO, a database created especially

for XML documents.

4 CONCLUSIONS

Software maintenance is one of the most important

stages of the software life cycle. This process

involves a lot of time, effort, and costs. It also

generates a huge amount of different kinds of

knowledge that must be suitably managed. This fact

is more visible in big companies since the larger the

product the more likely it is that product knowledge

will be spread among the maintenance staff, making

it more difficult to find the cause of problems.

Furthermore, the more people working together the

more opportunities there are for misunderstandings

that may lead to quality problems.

This paper presents a multiagent system, based

on the experience-based approach, which stores

information and generates knowledge with the

finality of encouraging the reuse of previous

information and knowledge in software maintenance

organizations. Thus costs and effort are decreased.

ACKNOWLEDGEMENTS

This work is partially supported by the TAMANSI

project (grant number PBC-02-001) financed by the

Consejería de Ciencia y Tecnología of the Junta de

Comunidades de Castilla-La Mancha and the MAS

project (grant number TIC2003-02737-C02-02,

Ministerio de Ciencia y Tecnología, SPAIN).

REFERENCES

Basili, V. R. , Caldiera, G., and Rombach, H. D. (1994).

The Experience Factory. Encyclopedia of Software

Engineering (pp. 469-476). Marciniak, J.J.; Wiley, J.

(Eds.).

Basili, V. R., and Rombach, H.D. (1988) The TAME

Project: Towards Improvement-Oriented Software

Environments. IEEE Transactions on Software

Engineering, 14 (6), pp 758-773.

Bellifemine, A., Poggi, G., and Rimassa, G. (2001).

Developing multi agent systems with a FIPA-

SUPPORTING KNOWLEDGE REUSE DURING THE SOFTWARE MAINTENANCE PROCESS THROUGH AGENTS

401

compliant agent framework. Software Practise &

Experience, 31: 103-128.

Bennet K.H., and Rajlich V.T.(2000). Software

Maintenance and Evolution: a Roadmap, in

Finkelstein, A. (Ed.), The Future of Software

Engineering, ICSE 2000, June 4-11, Limerick, Ireland,

pp 75-87.

Briand, L. C., Basili, V., Kim, Y., Squier, D. R. (1994). A

Change Analysis Process to Characterize Software

Maintenance Projects. In Proc. of The International

Conference on Software Maintenance. ICSM'94, pp.

38-49, September 1994, Victoria, British Colombia,

Canada.

Evans, R., Kearney, P., Stara, J., Caire, G., Garijo, F.J.,

Gomez Sanz, J.J., Pavon, J., Leal, F., Chainho, P.,

Massonet, P. (2001). MESSAGE: Methodology for

Engineering Systems of Software Agents.

http://www.eurescom.de/~pub-deliverables/P900-

series/P907/TI2/p907ti2.pdf

. Consulted on 6th August

2003.

Fischer, G., Lemke, A.C., (1988). Construction Kits and

Design Environments: Steps Toward Human Problem-

Domain Communications. Human Computer

Interaction, 3 (3), pp 179-222.

Gnyawali, D.R., Stewart, A.C., and Grant J.H. (1997).

Creating and Utilization of Organizational

Knowledge: An Empirical Study of the Roles of

Organizational Learning on Strategic Decision

Making. Academy of Management Best Paper

Proceedings, pp. 16-20.

Henninger, S. (2003). Tool Support for Experience-Based

Software Development Methodologies.

To Appear in

Advances in Computer, 59, 29-82.

Henninger, S. (1995) Supporting the Domain Lifecycle.

IEE Seventh International Workshop on Computer-

Aided Software Engineering-CASE’95, Toronto,

Canada. IEEE Computer Society Press, pp 10-19.

Kitchenham, B.A., Travassos, G.H., Mayrhauser, A.,

Niessink, F., Schneidewind, N.F., Singer, J., Takada,

S., Vehvilainen, R. and Yang, H. (1999). Towards an

Ontology of Software Maintenance. Journal of

Software Maintenance: Research and Practice. 11, pp.

365-389.

Nonaka, I., and Takeychi, H. (1995). The Knowledge-

Creation Company: How Hapanese Companies Create

the Dynamics of Innovation. Oxford Univ. Press,

New York

Oliveira, K. M., Anquetil, N., Dias M.G, Ramal, M., &

Meneses, R. (2003). Knowledge for Software

Maintenance. Fifteenth International Conf. on

Software Engineering and Knowledge Engineering

(SEKE'03) 61-68

Polo, M., Piattini, M., Ruiz, F., and Calero, C. (1999):

MANTEMA: A complete rigorous methodology for

supporting maintenance based on the ISO/IEC 12207

Standard. Euromicro Conf. on Software Maintenance

and Reengineering (CSMR’99). Amsterdam

(Netherland). IEEE Computer Society, , pp. 178-181.

Rugaber, S., and Tisdale, V.G. (1992). Software

Psychology Requirements for Software Maintenance

Activities. Software Engineering Research Center,

Georgia Institute of Technology.

Ruiz, F., Vizcaíno, A., Piattini, M. y García, F. (2003). An

Ontology for the Management of Software

Maintenance Projects. Sent to the International Journal

of Software Engineering and Knowledge Engineering.

Rus, I., and Lindvall, M. (2002). Knowledge Management

in Software Engineering. IEEE Software, May/June,

26-38.

Seaman, C., Mendonca, M. G., Basili, V. R., and Kim, Y-

M. (2003). User Interface Evaluation and Empirically-

Based Evolution of a Prototype Experience

Management Tool. IEEE Transactions on Software

Engineering, Vol. 29, No. 9.

Tacla, C., and Barthès, J-P. (2002). A Multi-Agent

Architecture for Knowledge Management System.

Second IEEE International Symposium on Advanced

Distributed Computing Systems. ISADS.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

402
