IDENTIFYING CLONES IN DYNAMIC WEB SITES USING

SIMILARITY THRESHOLDS

Andrea De Lucia, Giuseppe Scanniello, and Genoveffa Tortora

Dipartimento di Matematica ed Informatica - Università di Salerno - Via S. Allende - 84081 Baronissi (SA)

Keywords: Dynamic Web site maintenance,

Web engineering, Web site analysis, source code clone analysis

Abstract: We propose an approach to automatically detect duplicated pages in dynamic Web sites and on the analysis

of both the page structure, implemented by specific sequences of HTML tags, and the displayed content. In

addition, for each pair of dynamic pages we also consider the similarity degree of their scripting code. The

similarity degree of two pages is computed using different similarity metrics for the different parts of a web

page based on the Levenshtein string edit distance. We have implemented a prototype to automate the clone

detection process on web applications developed using JSP technology and used it to validate our approach

in a case study.

1 INTRODUCTION

In the recent years the industry and academic

researchers have been showing great interests in the

engineering, maintenance, reverse engineering,

restructuring, and reuse of Web sites and

applications (Bieber & Isakowitz, 1995; Conallen,

2000; Ginige & Murugesan, 2001; Ricca & Tonella,

2001; Aversano et al., 2001). Similarly to legacy

systems, Web applications are subject to continuous

evolution (Boldyreff et al., 1999): internal and

external factors generate new or modified system

requirements, so they inevitably changes. Moreover,

Web applications change much more quickly than

traditional software systems; therefore, their

maintenance absorbs considerable efforts if

developers do not use methodologies that anticipate

changes and evolutions (Bieber & Isakowitz, 1995;

Ginige & Murugesan, 2001; Conallen, 2000).

Unfortunately, the current s

tate of practice of

Web application development is far from using

consolidated methodologies; Web applications are

typically obtained by reusing the fragments of

existing pages and without explicit documentation.

This approach augments the code complexity and

the effort to test, maintain and evolve these

applications. Although in some case this is done in a

disciplined way (Aversano et al., 2001), the main

problem is the proliferation of duplicated Web

pages.

Code cloning is one of the factors that make

soft

ware maintenance more difficult (Baker, 1995;

Balazinska et al., 1999; Baxter et al., 1998; Kamiya

et al., 2002). A code clone is a code portion in

source files that is identical or similar to another. It

is common opinion that code clones make the source

files very hard to modify consistently. Clones are

introduced for various reasons such as lack of a good

design, fuzzy requirements, undisciplined

maintenance and evolution, lack of suitable reuse

mechanisms, and reusing code by copy-and-paste.

Thus, code clone detection can effectively support

the improvement of the quality of a software system

during software maintenance and evolution.

Recently, researchers have extensively studied

clo

ne detection for static Web pages, written in

HTML, or dynamic ones, written in ASP (Di Lucca

et al., 2002; Lanubile & Mallardo, 2003). Lanubile

and Mallardo (2003) extend the metric-based

approach and the classification schema proposed by

Balazinska et al. (1999). Their approach exploits a

pattern matching algorithm to compare scripting

code fragments and is based on two steps: automatic

selection of potential function clones based on

homonym functions and size measures and visual

inspection of selected script functions. This

approach does not consider the problem of

identifying cloned pages, as it does not take into

account neither the structure of web pages nor their

content.

Different authors have tackled the problem of

identifying cloned

web pages. Di Lucca et al. (2002)

encode the sequences of tags of HTML and ASP

pages into strings and identify pairs of cloned pages

391

De Lucia A., Scanniello G. and Tortora G. (2004).

IDENTIFYING CLONES IN DYNAMIC WEB SITES USING SIMILARITY THRESHOLDS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 391-396

DOI: 10.5220/0002597303910396

 SciTePress

at structural level by computing the Levenshtein

string edit distance (Levenshtein, 1966) between the

corresponding strings. Pages are considered clones if

their Levenshtein distance is zero. They also use

metrics, such as lines of code and complexity

metrics, to identify clones at the scripting code level.

Ricca and Tonella (2003) enhance the approach

based on Levenshtein distance with hierarchical

clustering techniques to identify clusters of

duplicated or similar pages to be generalized into a

dynamic page. Unlike the approach proposed by Di

Lucca et al. (2002), the distance of cloned pages

belonging to the same cluster is not zero. Each page

is initially inserted into a different cluster and at

each step clusters with minimal distance are merged

thus producing a hierarchy of clusters. The clusters

of cloned pages are selected by the software

engineer, by choosing a cut level in the hierarchy.

In this paper we propose an approach to

automatically detect duplicated pages in dynamic

and/or static Web sites. Similarly to previous

approaches (Di Lucca et al., 2002; Ricca and

Tonella, 2003) we also use Levenshtein string edit

distance as basic metric to identify clones. Unlike

previous approaches, besides the distance at

structural level, we also consider the distance of

cloned pages at the content and scripting code levels.

In particular, starting from the Levenshtein edit

distance, we define similarity measures for

structural, content, and scripting code of two

dynamic pages and use thresholds on the similarity

measures to establish whether two pages are clones.

The approach has been tailored for web

applications developed using JSP technology,

differently from the approaches above. However, it

can be also used on web applications developed

using other technologies, such as ASP. We have

implemented a prototype to automate the clone

detection process. The tool compares pairs of HTML

and JSP pages and computes the similarity degree of

each pair. The prototype enables independent tuning

of the thresholds for the similarity metrics of

structure, content, and scripting code of pairs of JSP

pages; this feature enables to adapt the tool to

different contexts and to refine results on particular

subsets of a Web application. We have assessed the

validity of the approach and the tool by analyzing

the official Web site of the 14th International

Conference of Software Engineering and Knowledge

Engineering (SEKE, 2002).

The paper is organized as follows: in Section 2

we present the clone detection method, while in

Section 3 we describe the system prototype and its

architecture. The case study and the experimental

results are discussed in Section 4. Finally, we give

conclusions and future works in Section 5.

2 CLONE DETECTION

We propose three classification levels for clone

analysis in dynamic web pages:

Structure - the basic property which is exploited

to determine the matching of two pages is the

syntactic structure, defined by the HTML tags.

Content – at this level also the text information

associated with HTML tags of two web pages is

compared.

Scripting code – at this level the server-side

and/or the client/side scripting code of two web

pages is compared. It is worth noting that this

comparison can range from a simple string matching

(in this case this is similar to content level clone

analysis) to a more complex syntactic or semantic

pattern matching.

The first two levels also apply to HTML pages,

while the scripting code level is only used for

dynamic web pages.

2.1 The Clone Identification Process

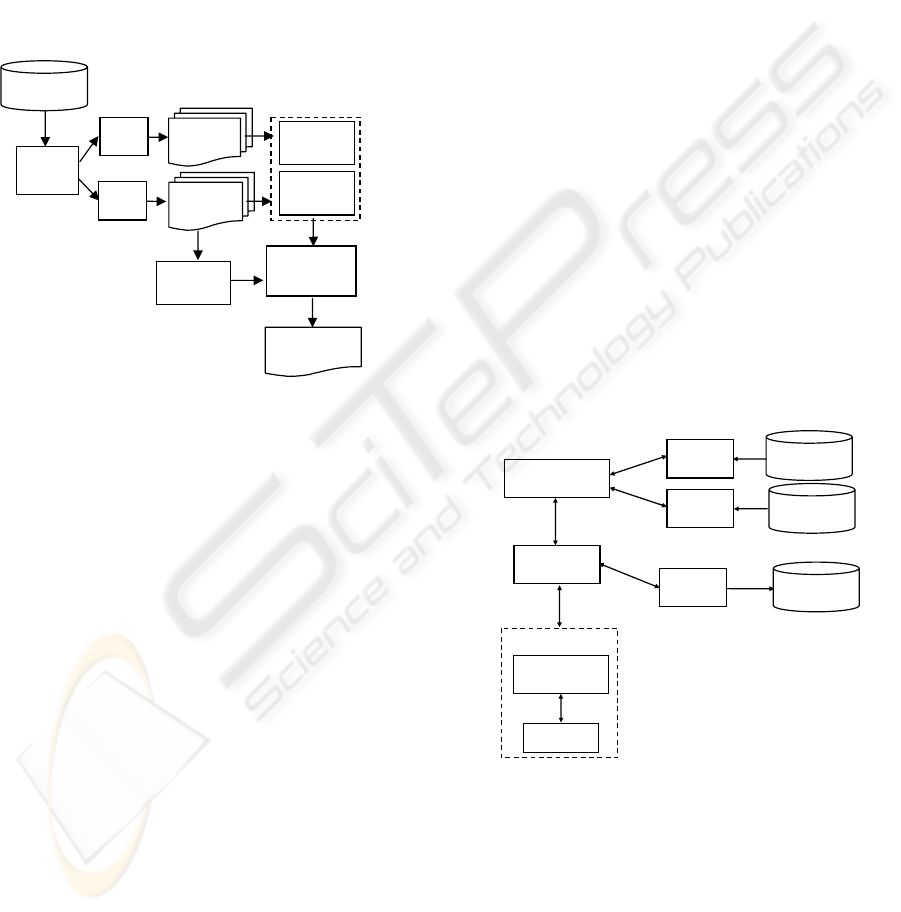

Figure 1 shows the underlying process of our clone

analysis approach. Although our approach is

general, in the following we will refer to dynamic

web sites developed using JSP technology. In the

first phase of the process the files of a web

application are separated in two subsets: JSP and

HTML pages. This step is performed because

scripting level clone analysis is only performed on

the JSP pages.

The HTML parsing produces string

representations for the HTML pages corresponding

to their structure and content. The strings are

produced visiting the abstract syntax tree of the

pages. For the JSP pages the process is similar, but

also string representations of the java code is

produced. There are basically two ways to produce

the string representations for structure, content, and

scripting code of a web page. The first way, used in

the current implementation of the prototype,

computes separate strings for the different clone

analysis levels. In this way, the comparison of the

different strings at the different levels can be

performed independently of the other levels.

An alternative to this approach consists of

linking each content and java code string to the

corresponding HTML/JSP tag. In this case, the

content and java source code fragments of

corresponding tags in the structure can be compared

while performing the structure level analysis. A

disadvantage of this approach is that we are not able

to identify content and java source code similarity,

whenever the similarity degree at the structure level

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

392

of the two pages is low. For example, two web pages

could have the same java code distributed in

different ways across the page structure.

The produced strings are used to compute the

similarity degree of two web pages at structure,

content and scripting code level. The similarity

degree is based on the computation of the

Levenshtein string edit distance (Levenshtein, 1966)

and its comparison with a threshold. The thresholds

are dynamically computed based on the size of the

two strings and can be separately tuned for the

different clone analysis levels.

2.3

Figure 1: The clone identification process

2.2 Levenshtein Distance Model and

Similarity Relation

The similarity degree of the strings encoding

structure, content and java code of a web page is

based on the Levenshtein edit distance model

(Levenshtein, 1966), which is one of most important

models for string matching. The Levenshtein

distance is defined as the minimum cost required to

align two strings: given two strings x and y the

Levenshtein distance is defined as the minimum

number of insert, delete, and replace operations

required to transform x into y. Generally, the

approach assumes that the insert and delete

operations have cost 1, while the replacement has

cost 2 (it is equivalent to a sequence of delete and

insert operations). We use these costs as default

values, although our approach can be parameterized

with respect to the costs of the operations.

Whenever the Levenshtein distance is 0 the pairs

of strings constitute perfect or identical clones (Di

Lucca et al., 2002). However, perfect clones in web

applications are rare; more interesting is the case of

nearly-identical or similar clones (Ricca and

Tonella, 2003). In our approach two web pages can

be considered clones if the distance of the

corresponding strings is lower than a given threshold

t. This threshold can be dynamically computed from

the minimum percentage of similarity p required to

consider the two strings as clones and the maximum

of the length of the two strings. Therefore, given two

strings x and y, let D(x, y) be their distance and

S(x, y) be their similarity degree. The two strings are

clones if S(x, y) ≥ p, or equivalently D(x, y) ≤ t,

where t = f(p, maxlength(x, y)).

In the current implementation, the threshold is

computed in the following way:

t = 2 maxlength(x, y) (1 – p

)

It is worth noting that whenever p is 1 (100%

minimum similarity required) the clone analysis will

only identify perfect clones.

3 PROTOTYPE

The effectiveness of a clone detection process may

significantly depend on the tools used to support it.

The proposed prototype has been implemented in

Java, and integrates several software components

needed during the clone analysis of a web

application. The system architecture is shown in

Figure 2, its main modules are the Graphical User

Interface (GUI) and the Engine.

Figure 2: Prototype architecture.

The GUI enables the user to select the files of

the Web site and display the results of the clone

analysis. Web site files can be locally or remotely

stored. When the files are remotely stored on the

Web Server, the prototype establishes a FTP

connection with the remote file system, through the

FTP client module.

The Engine implements the core clone analysis

functionality and includes the computation of the

SP/HTML

File

aration

Page

Similarity

Com

utation

Java Code

Similarity

Computation

Content

Similarity

Computation

Structural

Similarity

Computation

String

representation

JSP

Parsing

String

representations

HTML

Parsing

Clone Analysis

Report

Sep

Graphic User

Interface (GUI)

FT P

Client

File

Sel ec to r

HT ML /JSP

parser

Report

Module

Prototype

Engine

Web Server

Fil

System

User File

System

User File

System

Page Transformer

JSP / H TML

ages Converter

IDENTIFYING CLONES IN DYNAMIC WEB SITES USING SIMILARITY THRESHOLDS

393

Levenshtein distance. It partitions the files into two

sets of HTML and JSP pages to be analyzed by the

Page Transformer to produce the strings encoding

the page structure, content, and the scripting code.

The Engine can be configured to enable the

comparison of HTML and JSP pages together, by

excluding the analysis of the java source code.

The parser has been implemented by modifying

the open source HTML parser written in Java

(HTMLParser ver. 1.2), available under GPL license

from http://sourceforge.net/projects/htmlparser. This

software component has a flexible architecture,

which has allowed us to easily enhance its

functionality and configure it. The parser is a very

important component of the prototype; it has a

double function: analyzing the page correctness and

retrieving the information useful for the approach.

For optimization reasons, the page structure is

encoded into a string constructed on a different

alphabet than the HTML/JSP tags. Indeed, the

computation of the Levenshtein algorithm on strings

of HTML/JSP tags would have been very expensive

and in some cases impracticable. Thus we have

defined and used a different alphabet, where each

alphabet symbol codifies an HTML/JSP tag.

The Engine identifies the clones by computing

the Levenshtein edit distance of each pairs of strings

encoding the structure, the content, and the java

code, and using different dynamic thresholds for

different clone analysis levels, as defined in the

previous section. The thresholds are computed

according to the minimum similarity percentage

required, chosen by the user through the GUI.

The Report Module enables to assess and

analyze the results of the clone analysis. The

information concerning the analyzed pages and the

identified clones are stored into files; these results

can be also visualized through the GUI.

4 CASE STUDY

The method and tool presented in the previous

sections have been validated in a case study. We

have used the official site of SEKE 2002, the

fourteenth International Conference on Software

Engineering and Knowledge Engineering

(http://www.scienzemfn.unisa.it/seke/index.html), a

web application developed in JSP and used to

support the organizers and the academic community

for paper submission, refereeing, and conference

registration. Two joint workshops on Web

Engineering and Software Engineering Decision

Support, respectively, also used this application. As

our research group periodically organizes scientific

conferences, we are going to reuse, and enhance the

SEKE Web application. To this aim, it has been

necessary to analyze and restructure the system.

The case study consists of 157 files distributed in

one directory. The static pages are implemented by

52 files with html extension, while 107 files with

extension jsp implement the dynamic pages. The site

contained some other files, such as images, a Java

applet, java classes, logos, etc., which were used in

the analyzed pages. The files that implement the

static and dynamic behavior of the SEKE site were

stored in a single folder, so the pages have been

grouped without any meaningful classification.

The Web application was grown in an

uncontrolled way. The main reason, for this was the

lack of software requirements and development

methodology. In fact, the requirements were

incomplete and fuzzy. The development process was

not documented, so the design rationales were not

evidenced. Moreover, no configuration and

versioning management was used during the

development of the Web application. These factors

have produced dead code, i.e. some unreachable

pages that were sometimes also grouped. As a result,

the general navigational schema of the SEKE Web

application appears as set of disconnected graphs.

Typically, each sub-graph represents an event of the

conference, for example paper submission deadline,

acceptance notification, or camera-ready paper due.

The first step of the case study consisted of

tuning the similarity thresholds. We have tried

different thresholds for the HTML and JSP pages

and evaluated the obtained results using two well

known metrics of the information retrieval and

reverse engineering field, namely precision and

recall. In our case, the recall is the ratio between the

number of actual pairs of cloned pages identified by

the tool over the total number of actual pairs of

cloned pages in the web application; the precision is

the number of actual pairs of cloned pages identified

by the tool over the total number of identified pairs.

Some results of this tuning step are shown in Table 1

and Table 2 for HTML and JSP pages, respectively,

and discussed in the following subsections.

4.1 HTML pages

For the HTML pages the best results have been

achieved using 90% as threshold for structural

similarity. The prototype detected 229 pairs of

structural clones. The number of pairs of clones is so

high because the developers have used the same

graphical layout for each page. We have applied

different thresholds for content similarity to the

results achieved with the structural similarity

threshold above. This has been used to identify

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

394

(a)

(b)

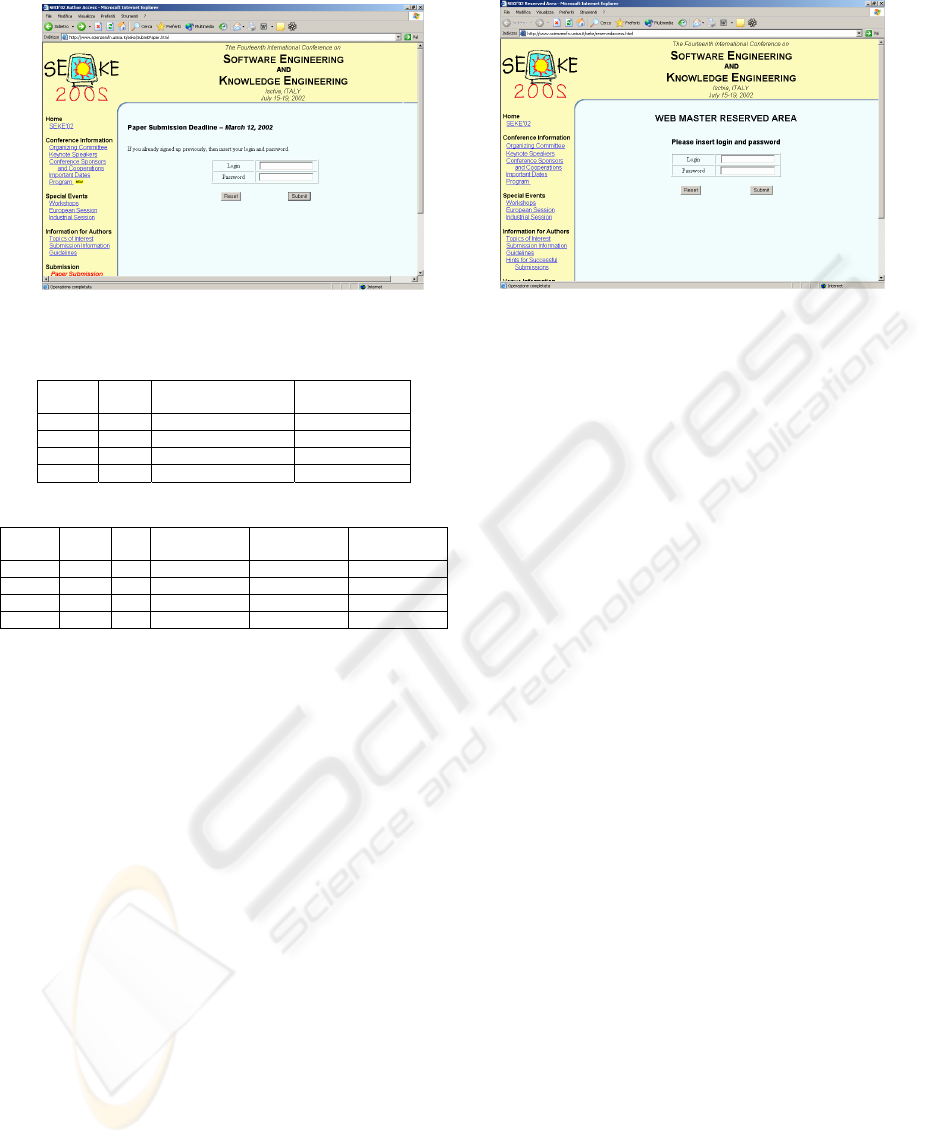

Figure 3: A pair of HTML cloned pages

Table 1: Precision and recall for HTML pages.

Structure Content

Recall-Precision for

Structure

Recall-Precision

for Content

75% 70% 100% - 25% 85% - 35%

90% 60% 95% - 75% 95% - 25%

90% 80% 95% - 75% 60% - 70%

95% 70% 90% - 80% 65% - 65%

Table 2: Precision and recall values on JSP pages

Structure Content Code

Recall-Precision

for Structure

Recall-Precision

for Contents

Recall-Precision

for Java Code

90% 80% 80% 90% - 43% 90% - 60% 65% - 82%

90% 90% 80% 90% - 43% 80% - 65% 65% - 82%

95% 80% 80% 60% - 80% 70% - 70% 60% - 85%

95% 90% 95% 60% - 80% 65% - 85% 50% - 95%

groups of pages with different content similarity.

The minimum content similarity threshold that

maintains the same 229 pairs recovered with the

structural similarity analysis is 50%. This means that

all recovered pages have at least 50% content

similarity. In our case this was due to the fact that all

pages have a column including the same

navigational menu on the left side and the

conference name and logo on the top (see the two

sample pages in Figure 3). It is worth noting that the

precision values for the content similarity are not

very high. This is normal as in HTML pages we do

not expect to find many pages with the same

content. However, using higher thresholds for the

content similarity, we were able to prune pairs of

pages with more differences in the text content in the

middle area of the page. Pairs of pages recovered

with higher thresholds have very little text in the

middle or are very similar (nearly perfect clones).

For example, the two pages in Figure 3 are still

recovered with a 97% structural similarity threshold

and content similarity 95% threshold. This means

that pages with high content similarity are also likely

to have high structural similarity and therefore

content similarity can help to improve the results

achieved with structural similarity towards the

identification of nearly perfect clones.

4.2 JSP Pages

On the other hand, the results for structural

similarity for the JSP pages are not so good as for

the HTML pages. The best results are achieved

between 90% and 95% thresholds. However, in this

case we are not able to achieve high values of recall

and precision with the same threshold. This is

because the web application includes pages with a

very structured layout and pages with very poor

layout, developed to enable the organization to

achieve statistics about the conference. In the case of

pages with very structured layout the number of tags

of the middle area is marginal with respect to the

number of tags of the layout. For these pages both

precision and recall are very high even with high

structural similarity thresholds. On the other hand,

small differences in the tags of two pages with poor

layout results in lower structural similarity values.

This means that higher recall values are achieved

with lower thresholds, but this also results in lower

precision values.

In the case of JSP pages most of the content is

dynamically generated and very few is included in

the pages. This justifies the better results of

precision and recall for content similarity for the JSP

pages with respect to the HTML pages. The results

for the clone analysis at the code level are also very

interesting. Very good precision values are achieved

using high code similarity thresholds, still

maintaining good recall values. Better results might

be achieved using a different approach to code clone

analysis than the Levenshtein string edit distance.

The clone analysis results have demonstrated

that there are some cases of nearly identical pages.

Therefore, we used higher thresholds to identify the

nearly identical pages, in particular 100% for

structural and content similarity and 99% for

scripting code similarity. The results were 15 pairs

of clones corresponding to 22 different files. We

IDENTIFYING CLONES IN DYNAMIC WEB SITES USING SIMILARITY THRESHOLDS

395

tried to understand the real difference between each

pair of cloned pages and we have observed that this

difference only consisted on their SQL code.

Moreover, the references to the database tables often

were the only difference in the SQL queries. It is

worth noting that the file names of these pages are

also very similar, meaning that there are groups of

different pages that actually implement the same or

very similar functionality for the different events

(main conference and workshops). Indeed, these

files might be clustered into groups of clones in a

similar way to the approach by Di Lucca et al.

(2002). In general, clustering is possible if the

similarity threshold required is very high, otherwise

our experience has demonstrated that clustering does

not produce meaningful results.

5 CONCLUSION

In this paper an approach to clone analysis for Web

applications has been proposed together with a

prototype implementation for JSP web pages. Our

approach analyzes the page structure, implemented

by specific sequences of HTML tags, and the

content displayed for both dynamic and static pages.

Moreover, for a pair of JSP pages we also consider

the similarity degree of their java source. The

similarity degree can be adapted and tuned in a

simple way for different web applications.

We have reported the results of applying our

approach and tool in a case study. The results have

confirmed that the lack of analysis and design of the

Web application has effect on the duplication of the

pages. In particular, these results allowed us to

identify some common features for the SEKE

conference and the collocated workshops that could

be integrated, by deleting the duplications.

Moreover, the clone analysis of the JSP pages

enabled to acquire information to improve the

general quality and conceptual/design of the

database of the web application. Indeed, we plan to

exploit the results of the clone analysis method to

support web application reengineering activities

(Antoniol et al., 2000).

REFERENCES

Antoniol, G., Canfora, G., Casazza, G., and De Lucia, A.,

2000. Web Site Reengineering using RMM. Proc. of

International Workshop on Web Site Evolution,

Zurich, Switzerland, pp. 9-16.

Aversano, L., Canfora, G., De Lucia, A., and Gallucci, P.,

2001. Web Site Reuse: Cloning and Adapting. Proc. of

International Workshop on Web Site Evolution,

Florence, Italy, IEEE CS Press, pp. 107-111.

Baker, B. S., 1995. On finding duplication and near

duplication in large software systems. Proc. of 2

Working Conference on Reverse Engineering,

Toronto, Canada, IEEE CS Press, pp 86-95.

Balazinska, M., Merlo, E., Dangenais, M., Lague, B. and

Kontogiannis, K., 1999. Measuring Clone Based

Reengineering Opportunities. Proc. of 6

International Symposium on Software Metrics, Boca

Raton, Florida, IEEE CS Press, pp. 292-303.

Baxter, I. D., Yahin, A., Moura, L., Sant’Anna, M., and

Bier, L., 1998. Clone Detection Using Abstract Syntax

Trees, Proc. of International Conference on Software

Maintenance, IEEE CS Press, pp. 368-377.

Bieber, M. and Isakowitz, T., 1995. Special issue on

Designing Hypermedia Applications. Communications

of the ACM, 38(8).

Boldyreff, C., Munro, M., and Warren, P., 1999. The

evolution of websites. Proc. of 7

International

Workshop on Program Comprehension, Pittsburgh,

Pennsylvania, IEEE CS Press, pp. 178-185.

Conallen, J., 2000. Building Web application with UML,

Addison Wesley.

Di Lucca, G. A., Di Penta, M., and Fasolino, A. R., 2002.

An Approach to Identify Duplicated Web Pages. Proc.

of 26

Annual International Computer Software and

Application Conference (COMPSAC’02), Oxford, UK,

IEEE CS Press, pp. 481-486.

Ginige, A. and Murugesan, S., (eds.) 2001. Special issue

on Web Engineering. IEEE Multimedia, 8(1-2).

Kamiya, T., Kusumoto, S., and Inoue, K., 2002.

CCFinder: A Multilinguistic Token-Based Code Clone

Detection System for Large Scale Source Code. IEEE

Transactions on Software Engineering, 28(7),

pp. 654-670.

Lanubile, F. and Mallardo, T., 2003. Finding Function

Clones in Web Application. In Proc. of 7

European

Conference on Software Maintenance and

Reengineering, Benevento, Italy, IEEE CS Press,

pp. 379-386.

Levenshtein, V. L., 1966. Binary codes capable of

correcting deletions, insertions, and reversals,

Cybernetics and Control Theory, 10, 707-710.

Ricca, F. and Tonella, P., 2001. Understanding and

Restructuring Web Sites with ReWeb. IEEE

Multimedia, 8(2), 40-51.

Ricca, F. and Tonella, P., 2003. Using Clustering to

Support the Migration from Static to Dynamic Web

Pages. Proc. of 11

International Workshop on

Program Comprehension, Portland, Oregon, IEEE CS

Press, pp. 207-216.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

396
