ACME-DB: AN ADAPTIVE CACHING MECHANISM USING

MULTIPLE EXPERTS FOR DATABASE BUFFERS

Faizal Riaz-ud-Din, Markus Kirchberg

Information Science Research Centre, Department of Information Systems,

Massey University, Private Bag 11-222, Palmerston North, New Zealand.

Keywords: Database caching, adaptive

caching, buffer management

Abstract: An adaptive caching algorithm, known as Adaptive Caching with Multiple Experts (ACME), has recently

been pres

ented in the field of web-caching. We explore the migration of ACME to the database caching

environment. By integrating recently proposed database replacement policies into ACME’s existing policy

pool, an attempt is made to gauge ACME’s ability to utilise newer methods of database caching. The results

suggest that ACME is indeed well-suited to the database environment and performs as well as the best

currently caching policy within its policy pool at any particular moment in its request stream. Although

execution time increases by integrating more policies into ACME, the overall processing time improves

drastically with erratic patterns of access, when compared to static policies.

1 INTRODUCTION

One of the key factors affecting a database’s

performance is its ability to effectively and

efficiently cache frequently requested data. Main

memory access is approximately 170,000 times

faster than disk accesses (Ramakrishnan and Gehrke,

2000). The challenge in main memory caching is to

determine which page of data to replace (the

‘victim’) from the buffer pool once it is full, to make

space for future data pages to be read in from

secondary storage. The selection of victims is

performed by a cache replacement algorithm, which

chooses victims according to certain criteria based

on past access patterns.

This paper attempts to trial and evaluate a

recently pres

ented adaptive cache replacement

algorithm, known as ACME, or Adaptive Caching

with Multiple Experts (Ari et al., 2002). ACME uses

machine learning to dynamically select the cache

victim from a number of policies, or experts, during

the cache replacement process. Whilst ACME was

originally presented for the web-caching

environment, this paper describes the evaluation of

the adaptation of ACME to the database

environment. The rigidity and robustness of ACME

is also tested by its ability to integrate more complex

policies in its policy pool, including optimizations

achieved in terms of overall processing time.

The remainder of this paper is presented as

llows: Section 2 presents related work, including

adaptive caching algorithms, with a focus on

ACME. Sections 3 and 4 respectively, detail the way

in which ACME has been adapted to the database

environment and the issues concerned with

implementation. Section 5 analyses the results

obtained from driving the database-adapted ACME

(referred to as ACME-DB in this paper) with live

and synthetic traces. Finally, section 6 presents

conclusions.

2 RELATED WORK

The main task of a buffer manager is to retrieve the

data from secondary storage into main memory, thus

allowing the data in the main memory to be accessed

by the transactions that request information from the

database. There are two purposes for accessing data

in this manner: firstly it ensures that subsequent

192

Riaz-ud-Din F. and Kirchberg M. (2004).

ACME-DB: AN ADAPTIVE CACHING MECHANISM USING MULTIPLE EXPERTS FOR DATABASE BUFFERS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 192-201

DOI: 10.5220/0002598101920201

 SciTePress

accesses to the same data are much faster in future

references (since they are now in the main memory

and do not need to be accessed from secondary

storage again), and secondly, it ensures that the data

is presented to the database in a synchronous

manner, resulting in data consistency. Any data in

the main memory that has been changed by a

transaction is written back to where it was retrieved

from on the secondary storage device.

This process of using the main memory area as

an efficient data delivery mechanism is known as

caching, whilst the main memory cache is also

known as the buffer pool. A cache replacement

algorithm is often referred to as a buffer replacement

policy, and its function is to select a victim from the

buffer pool.

Ideally, secondary storage devices would have

I/O speeds at least as fast as main memory.

However, because there is a latency issue involved

with reading from secondary storage (

Sacco and

Schkolnick, 1986

), and main memory is far more

costly than secondary storage, the need to find an

optimal practical buffer replacement policy still

exists.

A number of buffer replacement policies have

been presented in the literature in the quest for that

optimal replacement policy. The more well-known

amongst them have been FIFO (First-In-First-Out),

LIFO (Last-In-First-Out), MRU (Most Recently

Used), LRU (Least Recently Used), and LFU (Least

Frequently Used), as well as others (Effelsberg and

Haerder, 1984).

More recently, LRFU (Least Recently /

Frequently Used), has been presented, which is a

policy that attempts to combine the benefits of LRU

and LFU (Lee et al., 1999). Whilst LRU-K (O’Neil

et al., 1993) has succeeded in achieving a higher hit-

rate than LRU, implementation is more difficult and

execution time is higher. Even more recently,

policies such as LIRS (Low Inter-reference Recency

Set) (Jiang and Zhang, 2002), 2Q (Johnson and

Shasha, 1994), and W

R (Weighing Room / Waiting

Room) (Jeon and Noh, 1998) have been presented.

Whilst these recent policies suggest a marked

improvement over their predecessors,

implementation is not as simple as for LRU.

Adaptive caching algorithms go one step

further by using two or more policies, in the attempt

to reap their benefits, whilst avoiding their pitfalls

(Castro et al., 1997).

Hybrid Adaptive Caching (HAC) is an

adaptive caching algorithm presented by Castro et

al. (Castro et al., 1997) within the environment of

distributed objects. It combines the benefits of both

page and object caching, whilst at the same avoiding

their respective disadvantages. It behaves like a page

caching system when spatial locality is good, and

when spatial locality degrades, it behaves like an

object caching system, thereby adapting to the

different access patterns in the request stream.

Adaptive Caching with Multiple Experts

(ACME) is another adaptive caching algorithm

presented recently by Ari et al. (Ari et al., 2002)

within the context of the web-caching environment.

ACME makes use of a policy pool that consists of a

number of different static replacement policies

(‘experts’). Each of these experts has its own cache

(known as a Virtual Cache). The request stream is

processed by each of the experts and each performs

its own caching independent of the others. When the

actual cache that holds the data (the Real or Physical

Cache) is full, and a page needs to be replaced, the

experts are queried to see if they would have held

the requested page in their virtual caches. If so, they

are awarded a vote, otherwise they are penalised.

The votes that each expert gains over time are used

to determine its probability in choosing the next

replacement victim.

ACME also possesses a machine-learning

algorithm and it ‘learns’ to use the current best

policy over time, based on the past successes and

failures of the individual experts in the policy pool

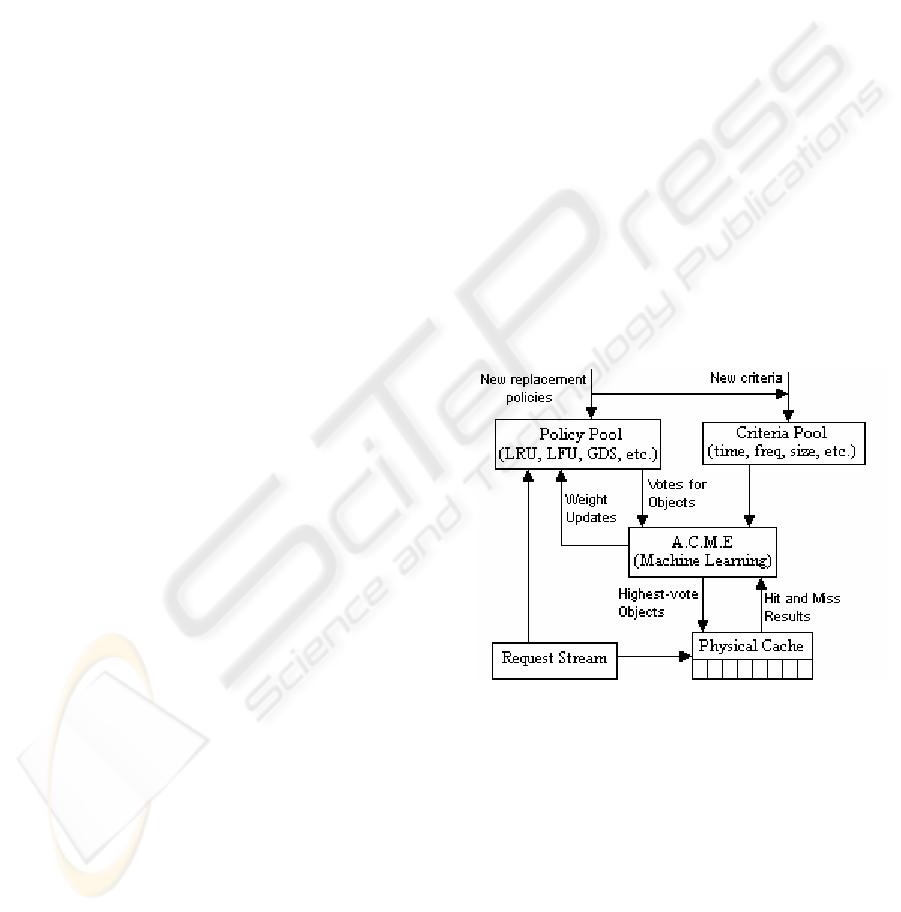

(Ari, 2002). The architecture of ACME is illustrated

in Figure 1 below for clarity.

Figure 1: ACME architecture (Ari, 2002)

ACME is used as the basis of this research

because it readily allows the incorporation of other

policies within its architecture. Not only does this

mean that ACME has the ability to use many

different criteria when selecting a victim, but

importantly, it provides the flexibility required to

adapt it to the database environment (Ari et al.,

2002). However, it should be noted that adding

more policies increases the memory usage, and

increases processing time. For detailed information

on ACME, please refer to (Ari et al., 2002).

ACME-DB: AN ADAPTIVE CACHING MECHANISM USING MULTIPLE EXPERTS FOR DATABASE BUFFERS

193

3 ADAPTING ACME FOR

DATABASE CACHING

ACME was originally designed for use within a

web-cache and as such, it includes certain features

not necessarily required in a database-caching

environment. With regard to the target database

cache simulation in mind, ACME needed to be

modified (Riaz-ud-Din, 2003).

3.1 Required modifications

The original implementation of ACME allows for

objects of different sizes to be cached. This ability is

removed with the assumption that the pages that

exist in memory are of the same size, thereby

removing the need to correlate the sizes of the pages

and freeing buffer space. This makes it easier to

predict the number of I/O operations on the buffer

pool.

The other modification required was to

remove those policies from the ACME buffer pool

that used the sizes of the objects to determine the

object’s priority in the cache. Since the size of all

objects is the same in the database environment,

these policies are redundant in that one of the criteria

(the object size) used to determine the object’s

priority is no longer an issue. New policies have

been added to the buffer pool, with an emphasis on

using policies applicable to the implemented cache

simulation.

3.2 Additional demands

The additional demands of adapting ACME to the

database environment include adding policies to the

policy pool which are intrinsically dissimilar to the

policies in the original ACME policy pool. The

original ACME policies are based on single priority

queues, and objects are assigned priorities based on

pre-defined functions that use parameters such as

time, size, and so on. However, the new policies that

have been added to the policy pool for ACME-DB

include policies that use more than one priority

queue or divide the main buffer pool into a number

of buffers. Using such policies requires more

sophisticated buffering operations for caching and

uncaching, and requires careful considerations to be

made before integrating them into the ACME-DB

buffer pool.

In addition, release mechanisms now need to

be defined for each policy using more than a single

queue or stack to manipulate the buffer pool. The

literature that details the multi-buffer policies that

have been added to the policy pool only describe the

caching and uncaching operations of the respective

policies. Consequently, the release mechanisms

(described in Sub-Section 4.2) on arbitrary pages

needed to be designed based on the heuristic

analysis of the intrinsic behaviour of these policies.

4 IMPLEMENTATION

This section discusses issues related to

implementing the additional database policies within

the framework of the original ACME architecture,

after applying the necessary adaptations as described

in the previous section.

4.1 Release Mechanisms

In addition to being able to cache and uncache

pages, each of the policies also needs to know how

to release pages arbitrarily when required. The

release functionality is invoked by each policy when

one of the policies has selected a replacement victim

to expel from the Real Cache. At this point the other

policies would also need to expel the reference to the

replacement victim from their physical caches as

well. However, the replacement victim is not

necessarily the same page that would be selected by

each of the other policies’ uncaching rules.

This process of releasing an arbitrary page

from the physical cache of each policy requires a

release mechanism that discards the selected page

from cache. Discarding a page with the original

ACME required removing a page from a priority

queue. However, in the ACME-DB implementation,

the release mechanisms are more complex since they

affect more than one queue or stack for the new

policies that have been added to the policy pool.

The release mechanisms have been determined

based on the way in which the buffers are used by

each of the policies concerned. In the same way that

the caching and uncaching functionality needs to be

separated from each other for the purposes of being

able to integrate them into the overall ACME

architecture, the release mechanism for each policy

needs to be defined separately so that it can be

invoked independent of caching and uncaching.

4.2 Choice of policies

Random, FIFO, LIFO, LRU, LFU, LFUDA, MFU,

and MRU were the only policies that were re-used

from the original ACME implementation, and their

release mechanisms simply evict victim pages from

a priority queue. Six new policies were also added to

the policy pool. These new policies are aimed more

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

194

specifically to work in a database-specific

environment, and have more complex behaviour that

the other existing policies in the policy pool. The

respective release mechanisms for each of the six

policies that have been added as part of ACME-DB

will now be described.

LIRS. This policy is described in (Jiang and

Zhang, 2002). In the case of uncaching a page from

the buffer, the page at the front of the List Q queue

is ejected, creating space for a new page in the

buffer pool. However, when releasing the page

arbitrarily some other factors need to be taken into

account.

(i) In the case that the page to be released

exists in List Q, that is, the page is a resident HIR

page, the page is released from List Q (wherever in

the queue it may be). This case is identical to the

case of uncaching, except that instead of replacing

the page at the front of the queue, any page in the

queue could be potentially replaced.

(ii) In the case that the page to be replaced

exists in the LIR page set, that is, the page is an LIR

page, the page is released from the LIR page set.

This creates a space in the LIR page set, which

needs to be filled in before normal caching /

uncaching processes can proceed on the buffers. The

space in the LIR page set is filled by ejecting the

resident HIR page at the tail of List Q, and pushed

onto the top of the LIR page set (the implementation

employs a LIR page set to hold LIR pages). If this

page was not in Stack S, it is pushed onto Stack S,

and flagged as a resident LIR page.

The release mechanism is designed in this

manner because it is presumed that the HIR page at

the tail of List Q is the HIR page that had the least

recency out of all the other resident HIR pages. In

releasing one of the LIR pages from the LIR page

set, it is considered that the HIR page in List Q with

the least recency should be added to the LIR page

set to fill the space left by the released page. Due to

the fact that a resident HIR page is therefore turned

into an LIR page, it needs to be added to Stack S, if

it is not already there, and flagged as a resident LIR

page. (Note: All pages are flagged as either resident

or non-resident in the implementation).

LRFU. This policy is described in (Lee et al.,

1999). The release mechanism in this case simply

removes the page from the priority queue.

LRU-K. This policy is described in (O’Neil et

al., 1993). The release mechanism in this case

simply removes the page from the priority queue.

SFIFO. This policy is described in (Turner and

Levy, 1981). The release mechanism in this policy

checks the primary buffer for the page to be

released, and releases it from there if found. If not,

then the secondary buffer is checked for the page to

be released, and is released from there. The release

mechanism design in this policy reflects the fact that

pages are not cached to the secondary buffer until

the primary buffer is full, thereby enabling the

arbitrary removal of pages from either buffer.

2Q. This policy is described in (Johnson and

Shasha, 1994). The release mechanism in this policy

checks to see whether the page to be released exists

in the Am buffer, and releases it from there if found.

If not, then the page to be released is searched for in

the A1in buffer, and released from there if found.

The release mechanism was designed in this manner

so that the sizes of each of the A1in and A1out

buffers are checked when uncaching occurs, thereby

enabling the arbitrary release of a page from either

the Am or A1in buffer.

R. This policy is described in (Jeon and Noh,

1998). The release mechanism in this policy checks

the Weighing Room buffer for the page to be

released, and releases it from there if found. If not,

the Waiting Room buffer is checked for the page to

be released, and is released from there. The

Weighing Room is implemented as a simple LRU

queue, and the Waiting Room as a FIFO queue,

enabling the simple arbitrary removal of a page from

either queue, without needing any extra queue

adjustments.

5 EVALUATION

This section describes the evaluation environment

for which ACME-DB was implemented, the

methodology used to design the experiments, the

results of those experiments, and an analysis of the

results.

5.1 Evaluation environment and

traces

The ACME-DB simulation was implemented using

C++, compiled and tested on Microsoft Windows

XP, Linux RedHat 6.2 and Linux Debian. The

execution time tests were performed on a Pentium

IV 2GHz PC with 256 MB of RAM.

Two traces were used to simulate request

streams. These traces are the DB2 and OLTP (On-

Line Transaction Processing) traces used by Jeon

and Noh (Jeon and Noh, 1998), Johnson and Sasha

(Johnson and Shasha, 1994) and by O’Neil et al.

(O’Neil et al., 1993). The DB2 trace was originally

obtained by running a DB2 commercial application

and contains 500,000 page requests to 75,514

distinct pages. The OLTP trace contains records of

page requests to a CODASYL database for a

ACME-DB: AN ADAPTIVE CACHING MECHANISM USING MULTIPLE EXPERTS FOR DATABASE BUFFERS

195

window of one hour. It contains 914,145 requests to

186,880 distinct pages.

Further to these two live traces, five synthetic

traces were also created to simulate well known

susceptibilities in replacement policies, and to

simulate request streams that would not favour any

particular policy in the policy pool.

5.2 Experimental methodology

This sub-section provides details on the experiments

used to test and evaluate ACME-DB. Unless

otherwise stated, all the experiments that tested hit

rates in relation to the request stream were based on

a cache size of 1000 pages. This cache size was

chosen in an attempt to make comparisons with

other experiments that used cache sizes of 1000 as

well.

5.2.1 Combined effect of all policies

This experiment involved running ACME-DB across

the two live traces with all fourteen policies enabled.

This was to determine the combined effect of all the

policies on the Real Cache hit rate, and to show the

hit rates achieved by the virtual caches of the

individual policies.

5.2.2 Real Cache adaptation to the current

best policy

The second part of the experiment involved running

ACME-DB with the best policy and an average-

performing policy to determine the extent to which

the Real Cache adapted to the best policy in terms of

hit rate. The purpose of this test was to examine the

switching of the current best policy and how this

would affect the Real Cache in terms of hit rate.

5.2.3 The adaptive nature of ACME-DB

This experiment involved running ACME-DB with

Synthetic Trace A to determine the behaviour of

ACME when one of the policies switched from one

performance extreme to the other and to illustrate

how the presence of another policy in the policy

pool has a stabilising effect during the performance

degradation of the first policy.

5.2.4 Different cache sizes

ACME-DB was tested with all of its policies in the

policy pool using cache sizes of between 100 and

10000 pages. The objective of this test was to

determine the effect of the cache size on the cache

hit rate.

5.2.5 Average time loss for each additional

policy

It is well known that the different replacement

policies used in ACME-DB vary in performance

with regard to time complexity. It is possible that

the addition of certain policies to the policy pool

could increase the overall time complexity of

ACME-DB, and thus detract from the benefits of

using policies that perform well in terms of hit rate.

5.2.6 Investigation of susceptibilities to well-

known weaknesses

Replacement policies were run using synthetic traces

designed to expose the commonly known

weaknesses of particular policies. This aimed to

expose the susceptibility of other policies in the

policy pool, and observe the effect on the Real

Cache.

5.2.7 The effect of disk reads on the total

execution time

This experiment gauged the effect of disk reads on

total execution time, and whether the ability of the

Real Cache to adapt to the current best policy would

result in improved or poorer performance. The

results of this test would provide the best value

practically, since disk accesses are taken into

account.

5.3 Simulation results

This sub-section presents the main results and

corresponding analyses. For the purposes of this

paper, in most cases, only the results for the DB2

trace have been shown. For more details, please

refer to (Riaz-ud-Din, 2003).

5.3.1 Relative performance of policies.

Figure 2 below shows the hit rates with all policies

in the policy pool using the methodology given in

Sub-Section 5.2.1.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

196

Figure 2: Requests vs. Hit rates

The graph above clearly defines three distinct groups

of policies that are poor, average, and good in their

relative performance. This reflects the relative

strengths and weaknesses inherent in the heuristics

that have been used to drive the victim selection

processes of these policies. MRU and MFU

performed poorly whilst 2Q and LFUDA performed

particularly well.

5.3.2 The performance of the Real Cache

In order to test the desired adaptive behaviour (that

is, the Real Cache always stays closer to the best

policy), only 2Q and FIFO were used in the policy

pool (see Sub-Section 5.2.2 for methodology).

Experiments in (Riaz-ud-Din, 2003) have

shown that even when only two policies are in the

policy pool, the Real Cache attempts to stay with the

best performing (in terms of its cache hit rate)

expert. Here the Real Cache is using the 2Q policy

to do the majority of its caching, so its hit rates are

similar to 2Q’s hit rates. So if 2Q performs so well,

is there any benefit in having other policies in the

policy pool? Do the policies act synergistically to

improve the Real Cache hit rate?

Results from tests performed in (Riaz-ud-Din,

2003) show no significant differences between the

Real Cache hit rates where only 2Q and LFUDA are

used, and where all the policies are used. Thus,

having a large number of policies in the policy pool

seems to neither help nor hinder the Real Cache hit

rate. However, this would affect execution time and

memory, which will be examined later in this paper.

Tests in (Riaz-ud-Din, 2003) also show that

the Real Cache can only perform as well as the

current best performing policy, which may not

always have high hit rates. This shows the

importance of finding the best mix of the minimum

number of policies for inclusion in the policy pool.

5.3.3 The adaptive behaviour of ACME

0 100 200 300 400 500 600

Request Number (thousands)

RealCache

LIRS

LRFU

SFIFO

WWR

LRU

LFU

RANDOM

LFUDA

MRU

LIFO

FIFO

MFU

LRU2

Real Cache

FIFO

MRU

LRU

LFUDA

WWR

RANDOM

LIFO

LRFU

LFU

SFIFO

MFU

LIRS

LRU2

Whilst 2Q has so far performed the best for the live

requests, there may be other request patterns for

which it may not do as well (refer figure 7). The

methodology given in Sub-Section 5.2.3 is used to

highlight this fact and Figure 3 below displays the

results.

Figure 3: Request vs. Hit rate (2Q and LRU only)

It illustrates how LRU starts off with a higher hit

rate than 2Q and at this point in time, the Real Cache

adapts to LRU’s caching behaviour. However, when

the processing reaches the part of the trace that

inhibits the performance of LRU, 2Q continues to

climb the ‘hit rate chart’, while LRU’s performance

starts to degrade significantly. At this point, the Real

Cache does not drop with LRU, but rather adapts to

the new best policy (2Q) to clearly illustrate

ACME’s adaptive nature.

This is an important point because it indicates

that having other policies should result in a ‘safer’

policy pool. Therefore, if at any particular moment,

the performance of the current best policy degrades

due to a known or un-known weakness, other

policies in the policy pool would ensure that the

Real Cache hit rate would not degrade as well, or at

least not to the same extent.

In all of the relevant figures, it can be seen that

the Real Cache hit rate starts with individual policy

hit rates from one point and then starts to converge

on the best policy as the number of requests

increases. As more requests are made, the machine

learning adjusts the weights until the best

performing policies have a greater probability of

being selected for performing caching and

uncaching actions on the Real Cache, which then

starts resembling the current best policy with respect

to its hit rate.

Hit Rate (%)

100

0 5 10 15 20 25 30 35 40 45

Request Number (thousands)

RealCache

LRU

Real Cache

LRU

Hit Rate (%)

ACME-DB: AN ADAPTIVE CACHING MECHANISM USING MULTIPLE EXPERTS FOR DATABASE BUFFERS

197

5.3.4 The effect of having different cache

sizes

Live traces were driven using different cache sizes

to show the effect of cache size on the Real Cache

with Figure 4 below showing hit rate versus the

cache size for the DB2 trace.

Figure 4: Cache Size vs. Hit rate, DB2 Trace

The effect of cache size on the Real Cache hit rate is

summarised for each of the live traces in Table 1

below.

Table 1: Real Cache hit rates for different cache sizes

Real Cache Hit Rates (%) Cache

Size

DB2 OLTP

Value % Increase Value % Increase

100 39.5 -- 7.1 --

200 47.8 20.9 13.9 94.9

300 52.2 9.3 17.1 23.0

400 55.2 5.7 21.7 27.5

500 57.1 3.5 24.9 14.6

800 60.5 5.9 33.7 35.2

1,000 61.6 1.8 33.9 0.7

2,000 67.0 8.7 40.0 17.9

3,000 69.1 3.3 45.8 14.5

5,000 71.11 2.9 50.1 9.5

10,000 73.27 3.0 55.3 10.4

The choice of cache sizes shown above were

determined by the cache sizes that have been used to

test the new policies that have been added to the

policy pool, in their respective papers. Doing so

provides a basis for comparison with the other

policies using similar cache sizes.

Figure 4 cumulatively shows that increasing

the cache size also increases the individual policies’

hit rates, and therefore the Real Cache hit rate (since

the Real Cache follows the best policy at any time

regardless of cache size). However, the major

sacrifice for achieving better hit rates as a result of

larger cache sizes is that the time required to process

the requests also increases (since there are more

pages to search through). This is largely due to the

fact that processing time is positively correlated to

the number of policies in the policy pool (as each of

the virtual caches also perform their own caching).

5.3.5 Effect of replacement policies on time

performance

0 500 1000 1500 2000 2500 3000 3500

Cache Size (pages)

RealCache

LIRS

LRFU

SFIFO

WWR

LRU

LFU

RANDOM

LFUDA

MRU

LIFO

FIFO

MFU

Real Cache

LIRS

LRFU

SFIFO

WWR

LRU

LFU

RANDOM

LFUDA

MRU

LIFO

FIFO

MFU

Just as replacement policies vary in performance

with regard to hit rates, so too do they vary with

regard to their time complexities. Figure 5 below

illustrates this point by showing the additional time

each policy adds to the total time it takes for ACME-

DB to process a request stream of 50,000 requests as

described in the methodology outlined in Sub-

Section 5.2.5.

Figure 5: The increase in time by adding each policy

In the above figure, all policies (except LRU-2)

increase the total time for ACME to process the

request stream in similar magnitude (around 300 to

500 seconds) for 50,000 requests. Of this subset,

LFUDA increased the time the most - by around 600

seconds (10 minutes). However, to put this in

perspective, LRU-2 increased the total time by over

8000 seconds (more than 2 hours), which is 13 times

slower than LFUDA. Thus, LRU-2’s performance

in this respect does not warrant its inclusion in the

policy pool.

2Q, which has been shown to perform

relatively on par with LFUDA using the live traces,

only adds half as much time (around 300 seconds) as

LFUDA does to the overall running time and

therefore would arguably make it better for request

streams similar to the DB2 or OLTP traces. Once

again, this shows the importance of reducing the

number of policies, and of finding a good mix of

policies.

Hit Rate (%)

1000

2000

3000

4000

5000

6000

7000

8000

9000

LIR

UDA

Replacement Policy

Additional time to execute (seconds)

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

198

5.3.6 Effect on all policies by introducing

well-known susceptibilities

Figure 6 below shows the effect of sequential

flooding. Specifically, a synthetic trace was used to

highlight the sequential flooding patterns to which

LRU is susceptible.

Figure 6: The effect of sequential flooding

As Figure 6 above shows, the hit rates for all of

the policies dramatically change at 10,000 requests

(this is where the sequential flooding patterns are

introduced into the request stream). As expected, the

hit rates for LRU, and W

R (which is based on LRU

in this implementation) significantly degrade. SFIFO

also shows a similar weakness to this susceptibility,

and this is because the primary and secondary

buffers in SFIFO combine to act in a similar manner

to LRU.

The remaining policies improve upon

encountering the sequential flooding because most

of them have been designed specifically to avoid this

susceptibility. The erratic behaviour of the FIFO

policy is due to the fact that the partial DB2 Trace

that is included at the start of the synthetic trace used

here has already referenced the same pages that are

referenced in the sequential flooding part of the

trace. Thus, the contents of the buffer pool upon

encountering the sequential flooding includes some

of those pages to be referenced, and when these

pages are referenced during the sequential flooding

part, the hit rates of the FIFO trace increases

temporarily, and when other pages are not found the

hit rates decrease again.

Introducing sequential scanning patterns in the

request stream shows an immediate degradation of

performance in terms of hits for all policies. Some

policies recover, whilst others continue to degrade,

but the Real Cache stays with the better policies.

Please see (Riaz-ud-Din, 2003) for the details of this

experiment.

Figure 7 below shows the effect of skewed high

reference frequencies on the policies in the policy

pool. A synthetic trace was designed to highlight the

frequency patterns to which LFU is susceptible.

100

0 5 10 15 20 25 30

Request Number (thousands)

RealCache

LIRS

LRFU

SFIFO

WWR

LRU

LFU

RANDOM

LFUDA

MRU

LIFO

FIFO

MFU

LRU2

RealCache

FIFO

MRU

LRU

LFUDA

WWR

RANDOM

LIFO

LRFU

LFU

SFIFO

MFU

LIRS

LRU2

Figure 7: The effect of skewed high reference frequencies

The skewed high reference frequency patterns

were introduced at 15,000 requests, as shown by the

immediate degradation of hit rates for all policies.

Interestingly, 2Q, which has performed the best with

all of the tests so far, is the worst performing policy

for this trace and along with other policies it

continues to decline upon encountering the skewed

high reference frequency patterns. This indicates

that 2Q is susceptible to skewed high frequency

patterns in request streams and once again confirms

that having other policies results in a ‘safer’ policy

pool than if just one policy, such as 2Q, was relied

upon.

So far, it would seem that a good choice of

policies for the policy pool would include 2Q and

LRU in particular because 2Q performs very well

with most of the request streams, and for those that it

does not, LRU performs very well. Thus, they

complement each other well and neither has a

significant overhead in terms of execution time, in

comparison to other policies such as LFUDA or

LRU2.

The question of which policies and how many

policies to use, is one that is well worth answering.

However, this cannot be addressed by studying the

effects of running through only two traces, but needs

more in-depth examination across a wide range of

live access patterns. It would depend highly on the

databases expected access patterns.

5.3.7 The effect of misses on the total

processing time

Until now the discussion of processing time with

regard to the time taken to find a victim and the

additional time added per policy has only dealt with

the time taken for ACME-DB to do the processing

required to perform the caching, uncaching, release

and other activities within the scope of the

implementation. The time taken to read from disk,

which occurs in the event of a miss, has until now

been ignored. However, the time that is taken to

100

0 5 10 15 20 25 30 35 40 45

Request Number (thousands)

Hit Rate (%)

RealCache

LIRS

LRFU

SFIFO

WWR

LRU

LFU

RANDOM

LFUDA

MRU

LIFO

FIFO

MFU

LRU2

RealCache

FIFO

MRU

LRU

LFUDA

WWR

RANDOM

LIFO

LRFU

LFU

SFIFO

MFU

LIRS

LRU2

ACME-DB: AN ADAPTIVE CACHING MECHANISM USING MULTIPLE EXPERTS FOR DATABASE BUFFERS

199

read from disk is significant, and forms a major part

of the latencies concerned with the overall database

performance. As noted, the time needed to read

from disk is some 170,000 times greater than

reading from memory and each read from disk takes

around 10 milliseconds.

To gauge the effect on the total time required for

processing requests (including the time for disk

reads), the methodology given in Sub-Section 5.2.7

was used. The trace used was intended to induce the

best and worst behaviour of SFIFO and 2Q at

opposite ends of the spectrum. The results are

presented in Table 2 below.

Table 2: Execution times with and without disk reads

Policies in

Policy Pool

Time to

execute

without

disk

reads

(seconds)

Number

misses

Time to

execute

including

disk reads

(seconds)

2Q 12 28,197 293.97

SFIFO 8 58,196 589.96

2Q & SFIFO 18 4,852 66.52

The above table shows the time taken to execute

the trace, the number of misses on the Real Cache,

and the time to execute including disk reads, for the

two policies. The column to note is right-most,

which shows that the performance was significantly

better by introducing two policies in the policy pool,

each of which contributed to the hit rate when the

other was susceptible to the pattern in the request

stream. Overall a gain of 227.45 seconds (almost 4

minutes) over 96,000 requests is made.

The above experiment has shown that when

ACME-DB encounters a request stream where the

current best policy changes, the overall execution

time (when accounting for the disk reads avoided by

maintaining a higher hit rate) decreases

substantially.

However, what if the current best policy is the

same policy over a long period of time (or even the

entire request stream), as with the live traces used

here? In this case, what would the eventual loss in

performance be by using ACME-DB, rather than the

policy just by itself? In order to answer this all

important question, the above experiment was run

once again, but this time with the first 100,000

requests from the DB2 trace, which has shown to

favour 2Q over all the other policies. The results are

presented in Table 3 below.

Table 3: Execution times with and without disk reads

Policies in

Policy Pool

Time to

execute

without

disk reads

(seconds)

Number

misses

Time to

execute

including

disk reads

(seconds)

2Q 15 367,020 382.02

SFIFO 4 392,900 396.9

2Q & SFIFO 34 371,170 405.17

Running 2Q by itself results in the fastest

execution time overall, whilst the slowest is when

running SFIFO and 2Q together. The loss in time by

adding SFIFO is 23.15 seconds over 100,000

requests, compared to the 227.45 seconds gained in

the previous experiment. This time loss is only a

small fraction of the time that is potentially gained

by using ACME-DB should a request pattern to

which 2Q is susceptible be encountered.

Furthermore, if 2Q continues to be the current best

policy, the Real Cache’s hit rate will continue to

move closer to 2Q’s hit rate. Consequently, the Real

Cache’s misses will be more or less the same as

2Q’s misses, resulting in fewer disk reads, and

ultimately faster execution times.

These experiments confirm that the net gain by

introducing both policies would indeed result in

better overall performance, especially where the

request stream exhibits differing patterns of access

with time.

6 CONCLUSIONS

The work described in this paper examines the

implementation of a recently proposed adaptive

algorithm, known as Adaptive Caching with

Multiple Experts (ACME), within the database

environment. The results indicate that ACME works

well with single-sized page caches and with

replacement policies that are readily applied to the

database buffer pool. It has also been shown that

ACME maintains its adaptive behaviour when

caching database pages, and stays with the current

best policy. Most significantly, it has also been

shown that whilst adding more policies to the policy

pool increases the execution time, the overall

processing time is dramatically reduced due to a

greater number of hits. The results are based on an

implementation that is efficient, can be readily

integrated into the real world environment, and

should provide great incentive for further database

research. The results of this work provide an

excellent platform for further research in the field of

database buffer replacement.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

200

ACKNOWLEDGEMENTS

We would like to thank Ismail Ari for the original

ACME source code and Xiaodong Zhang, Song

Jiang, Sam H. Noh, and Heung Seok Jeon for the

live traces.

REFERENCES

Ari, I. (2002). Storage Embedded Networks (SEN) and

Adaptive Caching using Multiple Experts (ACME),

Ph.D. Proposal.

Ari, I., Amer, A., Miller, E., Brandt, S., and Long, D.

(2002). Who is more adaptive? ACME: Adaptive

Caching using Multiple Experts. Workshop on

Distributed Data and Structures (WDAS 2002).

Castro, M., Adya, A., Liskov, B., and Myers, A. C.

(1997). HAC: Hybrid Adaptive Caching for

Distributed Storage Systems. In Proceedings of the

16th ACM Symposium on Operating Systems

Principles (SOSP), 102–115.

Effelsberg, W. and Haerder, T. (1984). Principles of

Database Buffer Management. In ACM Transactions

on Database Systems, 9 (4), 560 – 595.

Jeon, H. S. and Noh, S. H. (1998). A Database Disk Buffer

Management Algorithm Based on Prefetching. In

Proceedings of the ACM Conference on Information

and Knowledge Management (CIKM '98), 167-174.

Jiang, S. and Zhang, X. (2002). LIRS: An Efficient Low

Inter-Reference Recency Set Replacement Policy to

Improve Buffer Cache Performance. In Proceedings of

the ACM SIGMETRICS Conference on Measurement

and Modeling of Computer Systems, 31-42.

Johnson, T. and Shasha, D. (1994). 2Q: A Low Overhead

High Performance Buffer Management Replacement

Algorithm. In Proceedings of the 20th International

Conference on Very Large Databases, 439 - 450.

Lee, D., Choi, J., Kim, J. H., Noh, S. H., Min, S. L., Cho,

Y. and Kim, C. S. (1999). On the Existence of a

Spectrum of Policies that Subsumes the Least

Recently Used (LRU) and Least Frequently Used

(LFU) Policies. In Proceedings of ACM

SIGMETRICS'99 International Conference on

Measurement and Modeling of Computer Systems, 134

- 143.

O’Neil, E. J., O’Neil, P. E., and Weikum, G. (1993). The

LRU-K Page Replacement Algorithm for Database

Disk Buffering. In Proceedings of ACM MOD

International Conference on Management of Data,

297 – 306.

Ramakrishnan, R. and Gehrke, J. (2000). Database

Management Systems, McGraw Hill, USA.

Riaz-ud-din, F. (2003). Adapting ACME to the Database

Caching Environment. Masters Thesis, Massey

University.

Sacco, G. M. and Schkolnick, M. (1986). Buffer

Management in Relational Database Systems. In ACM

Transactions on Database Systems, 11, 473 – 498.

Turner, R. and Levy, H. (1981). Segmented FIFO Page

Replacement. In Proceedings of ACM SIGMETRICS,

48 – 51.

ACME-DB: AN ADAPTIVE CACHING MECHANISM USING MULTIPLE EXPERTS FOR DATABASE BUFFERS

201
