USING INTERACTION PROTOCOLS IN DISTRIBUTED

CONSTRUCTION PROCESSES

Santtu Toivonen, Tapio Pitk

aranta

VTT Information Technology

P.O.Box 1203, FIN-02044 VTT, FINLAND

Heikki Helin

TeliaSonera Finland

P.O.Box 970, FIN-00051 Sonera, FINLAND

Jung Ung Min

Stanford University, CIFE, Terman Engineering Center

Stanford, CA 94305-4020, USA

Keywords:

Interaction protocols, software agents, adaptability, construction process.

Abstract:

We present an interaction protocol based approach for facilitating distributed construction processes. In our

approach, software agents represent various participants of a construction project. Examples of such are

contractor, subcontractor, and supplier. These agents are supposed to communicate according to predeﬁned

interaction protocols. Should an agent be unaware of some protocol needed in the process, it beneﬁts from

adopting it. We approach this problem with interaction protocol descriptions serialized in a commonly agreed

upon format and design our agents so that they can adapt to the descriptions. We present a scenario in the ﬁeld

of construction industry, where the project participants do not know in advance how to communicate with each

other. However, by adapting to the interaction protocol descriptions provided by the respective parties they are

eventually able to interact.

1 INTRODUCTION

Internet’s emerging era is that of Web Services. Like

HTML pages of the current web, also Web Services

are distributed across the Internet and addressable

with URIs. The most evident difference is the inclu-

sion of intelligent computer programs in addition to

human beings as the consumers of web content. This

calls for providing material in the web with formal

and machine-understandable descriptions, i.e., creat-

ing the Semantic Web.

This paper discusses a case of business-to-business

collaboration in the domain of construction industry.

More speciﬁcally, we outline a framework for intelli-

gent software agents representing various participants

of a construction project to collaborate. Collabora-

tion is based on interaction protocol descriptions pro-

vided by the participants. In order to enable dynamic

collaboration, the descriptions conform to mutually

agreed upon interaction protocol ontology we intro-

duced in (Toivonen and Helin, 2004).

Motivation for the chosen case stems from the con-

tractor’s need to keep track of the progress of a project

it has initiated. This presupposes direct interaction

between the contractor’s expeditor and other partic-

ipants. The expeditor agent, if unaware beforehand

how to communicate with a participant, can down-

load interaction protocol descriptions provided by the

participant and adapt its behavior accordingly.

In addition to the above motivation to facilitate in-

formation ﬂows between construction process partic-

ipants, we also have a technological objective. Our

intention is to investigate software agents adapting

according to interaction protocol descriptions. Even

though the sample scenario is focused to a particular

phase of a construction process, our approach is suit-

able to virtually any distributed application with inde-

pendent parties interacting via software agents. How-

ever, expediting process as a real world problem pro-

vides us with interesting proof-of-concept material.

The rest of the paper is organized as follows: In

the next section we describe a scenario for applying

our approach in certain parts of a construction pro-

cess. Section 3 summarizes the interaction protocol

344

Toivonen S., Pitkäranta T., Helin H. and Ung Min J. (2004).

USING INTERACTION PROTOCOLS IN DISTRIBUTED CONSTRUCTION PROCESSES.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 344-349

DOI: 10.5220/0002599503440349

 SciTePress

ontology, how to describe interaction protocols based

on it using RDF, and how to adapt to the descriptions.

Finally, Section 4 presents some concluding remarks.

2 DISTRIBUTED

CONSTRUCTION PROCESS

2.1 Sample Scenario

Supply chain management in the construction indus-

try can at a general level be divided into two separate

processes: procurement and expediting (Williams,

1995). This paper deals with the expediting pro-

cess. Traditionally, performing an expediting process

means paying visits to the premises of project partic-

ipants, making phone calls, or exchanging emails for

checking the status. There are previous attempts, such

as the one described in (Kim et al., 2000), for apply-

ing software agents in construction processes. A dis-

tinctive property in our approach is that we automate

parts of the expediting process by applying interaction

protocols to the work performed by the contractor’s

software agent that acts as an expeditor.

Typically the contractor wants to keep track of the

project it has initiated, and therefore expects to re-

ceive status reports of the project from the subcontrac-

tor(s) regularly. That helps the contractor to identify

and avoid possible risks involved in the project such

as schedule delays and cost overruns (Barrie and Paul-

son, 1992). However, often the contractor cannot rely

solely on the information the subcontractor(s) provide

in the status reports. A subcontractor can either inten-

tionally conceal that the project is behind schedule,

or some important piece of information might unin-

tentionally be out of date in a status report.

For verifying the information in a status report, the

contractor’s expeditor contacts the other participants

directly. Thereby, in addition to interacting with the

subcontractor, we add functionalities for the expedi-

tor agent to interact with the rest. Figure 1 depicts

the states of the expediting process from the expedi-

tor’s point of view. The expeditor acts somewhat as

a detective trying to dig up information from various

sources and incorporate it into a complete picture.

With many project participants involved, direct in-

teraction between the contractor and the rest can also

help to avoid problem ampliﬁcation. Consider a case

where a supplier delivers raw material to a manufac-

turer, who is supposed to fabricate bulk products from

that material and deliver them to another manufac-

turer. That manufacturer, in turn, is supposed to build

a more reﬁned product from them and again deliver

it to yet another participant. Suppose further, that a

problem of some kind happens at an early stage of the

Request Status Report

Extract Supplier URI

Extract Carrier URI

Extract Order ID

Query For Delivery ID

Request Delivery Report

Compare Information

Take Actions

[failure]

[success]

[failure]

[success]

[failure]

[ok][not ok]

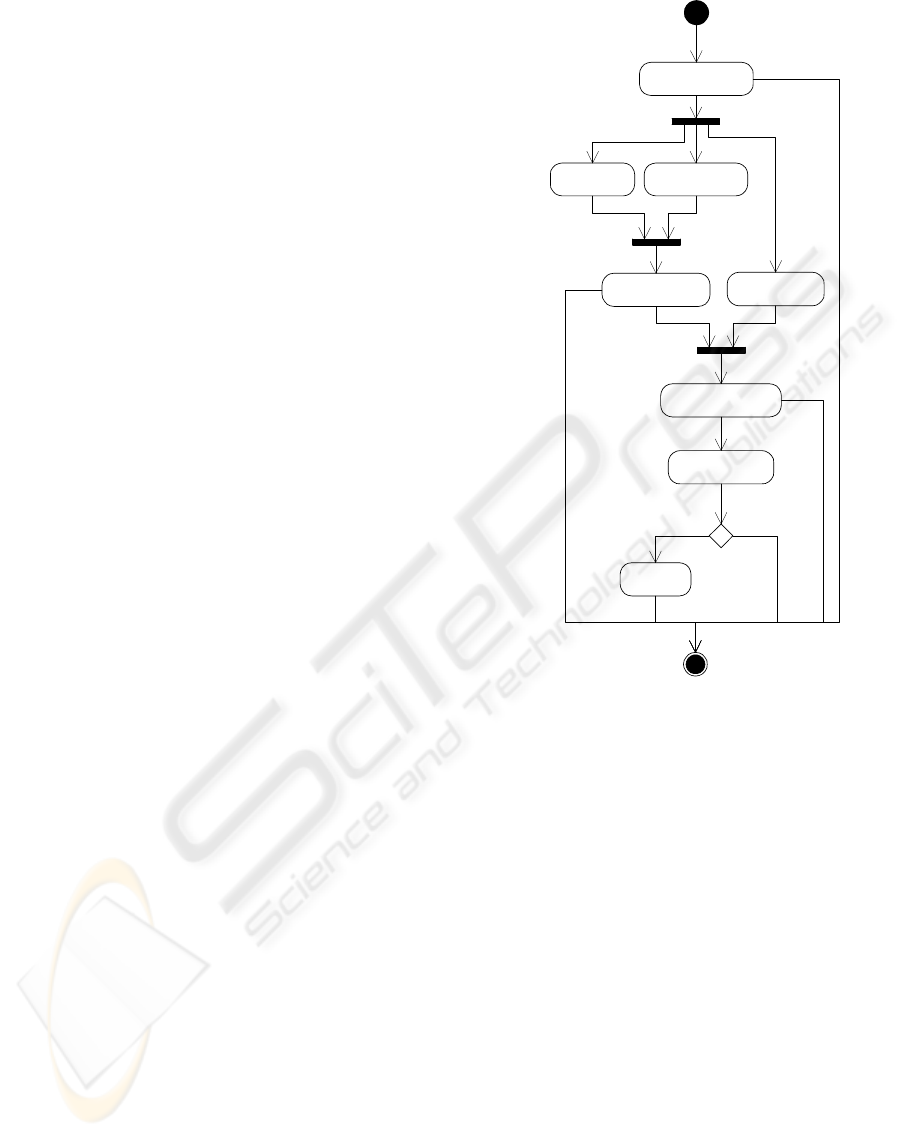

Figure 1: Progression of the expediting process from the

contractor’s point of view

process—say the delivery of raw material goes to a

wrong address. Unless there is frequent direct interac-

tion between the contractor and all these participants,

reacting to this misfortune most likely takes longer

time. Direct interaction, instead, can fasten the infor-

mation exchange. That, in turn, can help in avoiding

the “bullwhip effect” (Lee et al., 1997) and the project

will likely not fall as much behind the schedule.

In our scenario, the expeditor knows initially only

how to interact with the subcontractor, and therefore

it has to learn how to do so with other participants.

We approach this problem by deﬁning interaction pro-

tocol descriptions, and design the expeditor agent so

that it can process the descriptions, and adapt its be-

havior accordingly.

2.2 Interaction Protocol Based

Collaboration

We model the interaction between the contractor and

the subcontractor using FIPA Request (Foundation for

USING INTERACTION PROTOCOLS IN DISTRIBUTED CONSTRUCTION PROCESSES

345

Intelligent Physical Agents, 2000c) interaction proto-

col. The contractor requests the subcontractor to send

the status report. The subcontractor then tries to per-

form the requested action. In the successful case the

subcontractor informs the contractor that the action is

performed. Should something go wrong, the subcon-

tractor sends a failure message instead.

Assume the subcontractor has ordered a steel deliv-

ery from the supplier with the help of an external car-

rier, but the delivery has not yet arrived. It neverthe-

less includes the order in the status report before send-

ing it to the contractor. In our scenario the contractor

wants to keep track of the whole process. Thereby it

contacts the supplier and the carrier to check the status

of the order and the delivery. The contractor ﬁrst re-

quests the subcontractor to send the status report. By

examining it as depicted in Figure 1, it ﬁnds out the

addresses (URIs) of the agents representing supplier

and carrier, as well as the ID of the steel order. Note

that this examination, i.e., how the contractor extracts

the desired information from the status report, is not

in the focus of our current research, and it could be

performed by the software agent itself, or by a hu-

man being. In any case, after retrieving this informa-

tion the contractor queries the supplier for the ID of

the steel delivery with the order ID as the parameter.

The supplier provides the contractor with it, and the

contractor uses it next as a parameter for requesting a

delivery report from the carrier.

Since the contractor has not collaborated with the

supplier and the carrier before, being able to do so at

this time presupposes adaptability. In the next section

we present interaction protocol descriptions in more

detail. We start with the interaction protocol ontol-

ogy, then move on to the actual descriptions, and after

that discuss how the contractor’s expeditor agent can

process the information found in the descriptions and

adapt its behavior accordingly.

3 DESCRIBING INTERACTION

PROTOCOLS WITH SEMANTIC

WEB TECHNOLOGIES

3.1 Interaction Protocol Ontology

Interaction protocols specify ordered sets of messages

to be exchanged between conversating agents. We

describe the interaction protocols using RDF (Lassila

and Swick, 1999), a language designed for describing

any resources in the Semantic Web. As mentioned,

interaction protocol descriptions conform to an inter-

action protocol ontology (Toivonen and Helin, 2004).

Core concepts of that ontology are depicted in Fig-

ure 2.

InteractionProtocol

Class

Agent

Class

Initiator

Class

Participant

subClassOf

Class

State

Class

Progress

Restriction

subClassOf

minCardinality

ObjectProperty

hasState

onProperty

range

Restriction

subClassOf

cardinality

ObjectProperty

hasProgress

onProperty

Restriction

subClassOf

cardinality

ObjectProperty

hasInitiator

onProperty

Restriction

subClassOf

minCardinality

ObjectProperty

hasParticipant

onProperty

range

ObjectProperty

follows

Class

PredThing

range

sendBy

ObjectProperty

recvBy

ObjectProperty

range

choices

ObjectProperty

range

hasTimeout

ObjectProperty

TimeOut

Class

range

Message

Class

Exception

Class

subClassOf

hasMessage

ObjectProperty

range

Option

Class

subClassOf

domain

domaindomain

domain

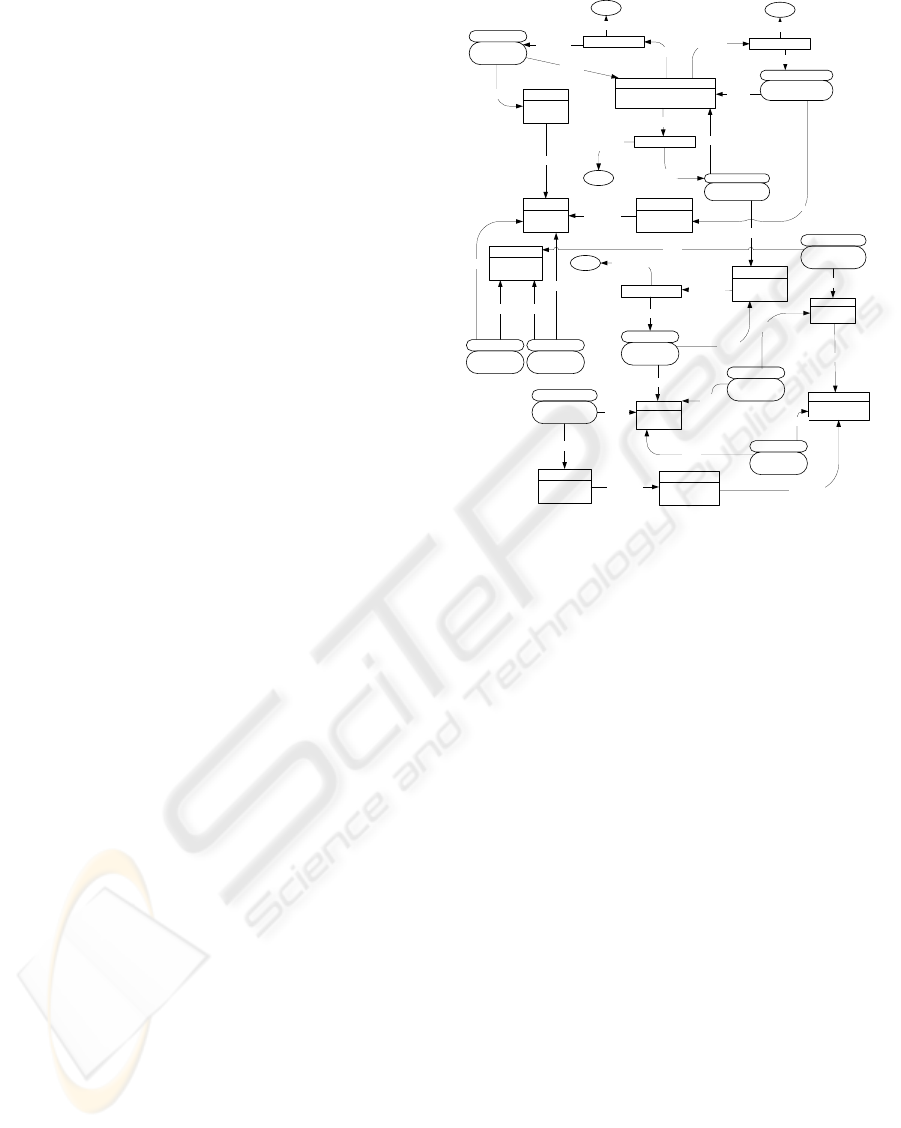

Figure 2: Core concepts of the interaction protocol ontology

Basically all interaction protocols have one initiator

and one or more participants. Progress of the proto-

col is deﬁned with states following each other. More

speciﬁcally, states have options to choose from, and

the chosen option determines which state to shift to.

Options can have messages associated with them that

are sent between the participating agents.

3.2 Describing Interaction Protocols

Among other interactions, the supplier knows how to

respond to queries for selected things. In our sce-

nario, the contractor asks the supplier for the ID of

the steel delivery using the order ID found in the sta-

tus report as a parameter. In order to do so, it adapts

to FIPA Query (Foundation for Intelligent Physical

Agents, 2000b) interaction protocol. This serializa-

tion is provided by the supplier. The following ex-

cerpts of the serialization do not capture the entire

protocol, but some pivotal points. Using our ontol-

ogy, description of the interaction protocol class is as

follows:

<rdf:Description rdf:about="&this;queryDelivId">

<rdf:type rdf:resource="&ip;IP" />

<ip:hasInitiator

rdf:resource="&this;contractor" />

<ip:hasParticipant

rdf:resource="&this;supplier" />

<ip:hasProgress

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

346

rdf:resource="&this;queryProgress" />

</rdf:Description>

The abbreviation &ip; refers to the ip-namespace

containing the interaction protocol ontology. The

interaction protocol class IP contains properties

called hasInitiator, hasParticipant, and

hasProgress, which are in this serialization given

values denoting to RDF-descriptions appearing in the

same ﬁle. The agents taking part in the protocol are

deﬁned in the following way:

<rdf:Description rdf:about="&this;contractor">

<rdf:type rdf:resource="&ip;Initiator" />

</rdf:Description>

<rdf:Description rdf:about="&this;supplier">

<rdf:type rdf:resource="&ip;Participant" />

</rdf:Description>

The agents have to comprehend the interaction pro-

tocol ontology in order for the adaptation of the indi-

vidual protocol descriptions to take place. For exam-

ple, the agents have to understand the basic difference

between the Initiator and the Participant,

i.e., that it is the Initiator that starts the proto-

col by sending the ﬁrst message. Deﬁnition of the

queryProgress class is serialized as follows:

<rdf:Description

rdf:about="&this;queryProgress">

<rdf:type rdf:resource="&ip;Progress" />

<ip:hasState rdf:resource="&this;start" />

<ip:hasState

rdf:resource="&this;replySupplier" />

<ip:hasState rdf:resource="&this;end" />

</rdf:Description>

Of the three states of this protocol, start and

end are found in every protocol instance and knowl-

edge of their semantics is presupposed of the agents

adapting to the protocol descriptions. The agent has

to know, for example, that the ﬁrst state of the proto-

col is start. Below are serialized two of these three

states, namely start and replySupplier.

<rdf:Description rdf:about="&this;start">

<rdf:type rdf:resource="&ip;State" />

<ip:choices rdf:resource="sendDelivquery" />

</rdf:Description>

<rdf:Description

rdf:about="&this;replySupplier">

<rdf:type rdf:resource="&ip;State" />

<ip:choices

rdf:resource="&this;sendSupplInform" />

<ip:choices

rdf:resource="&this;sendSupplFailure" />

</rdf:Description>

Every state has one or more options. These

are denoted by ip:choices tags. The only

option of start is sendDelivQuery, while

replySupplier has two options. The actual

choice between these depends on the success of the

supplier’s ability to answer to the query. Moving

on, the options have their own serializations, which

contain the possible messages to be sent, as well as

the target states for the protocol to shift to. Be-

low are two options, namely sendDelivQuery re-

sulting from the activation of the start state and

sendSupplInform resulting from the positive re-

sponse by the supplier to the initial query.

<rdf:Description

rdf:about="&this;sendDelivQuery">

<rdf:type rdf:resource="&ip;Option" />

<ip:hasMessage

rdf:resource="&this;delivqueryRef" />

<ip:follows

rdf:resource="&this;replySupplier" />

</rdf:Description>

<rdf:Description

rdf:about="&this;sendSupplInform">

<rdf:type rdf:resource="&ip;Option" />

<ip:hasMessage

rdf:resource="&this;supplInform" />

<ip:follows rdf:resource="&this;end" />

</rdf:Description>

The target state is denoted by the ip:follows

tag. For example, sendDelivQuery has the

above-serialized replySupplier as its target

state. It also entertains one message, namely

delivQueryRef, which is presented below.

sendSupplInform, instead, has end as its target

state, and supplInform as the message associated

with it. The message serializations contain the infor-

mation on who sends and who receives the messages,

as well as references to the possible message contents.

<rdf:Description

rdf:about="&this;delivqueryRef">

<rdf:type rdf:resource="&fipa;queryRef" />

<ip:sendBy rdf:resource="&this;contractor" />

<ip:recvBy rdf:resource="&this;supplier" />

<fipa:hasContent

rdf:resource="&this;queryContent" />

</rdf:Description>

<rdf:Description rdf:about="&this;supplFailure">

<rdf:type rdf:resource="&fipa;Failure" />

<ip:sendBy rdf:resource="&this;supplier" />

<ip:recvBy rdf:resource="&this;contractor" />

</rdf:Description>

The above message deﬁnitions contain the senders

and the receivers of the messages, denoted by the re-

spective sendBy and recvBy tags. Additionally,

a new namespace called fipa is introduced. It de-

notes a location containing the FIPA extension to the

interaction protocol ontology, which is described in

detail in (Toivonen and Helin, 2004). Among other

things speciﬁc to FIPA ACL (Foundation for Intel-

ligent Physical Agents, 2000a), the extension allows

USING INTERACTION PROTOCOLS IN DISTRIBUTED CONSTRUCTION PROCESSES

347

Get next state

Get options Decide from options

Execute an option

Send message

Wait for an answer

[communicative]

[non-communicative]

[non-directive]

[directive]

[message received]

[directive]

[non-directive]

[State == END] [State != END]

[to self]

[to others]

If the original directive implicated an

action performed by the agent itself,

such as "May I open the door?", the

agent does not continue to wait after

a non-directive message such as "Yes",

but instead moves on to the next state.

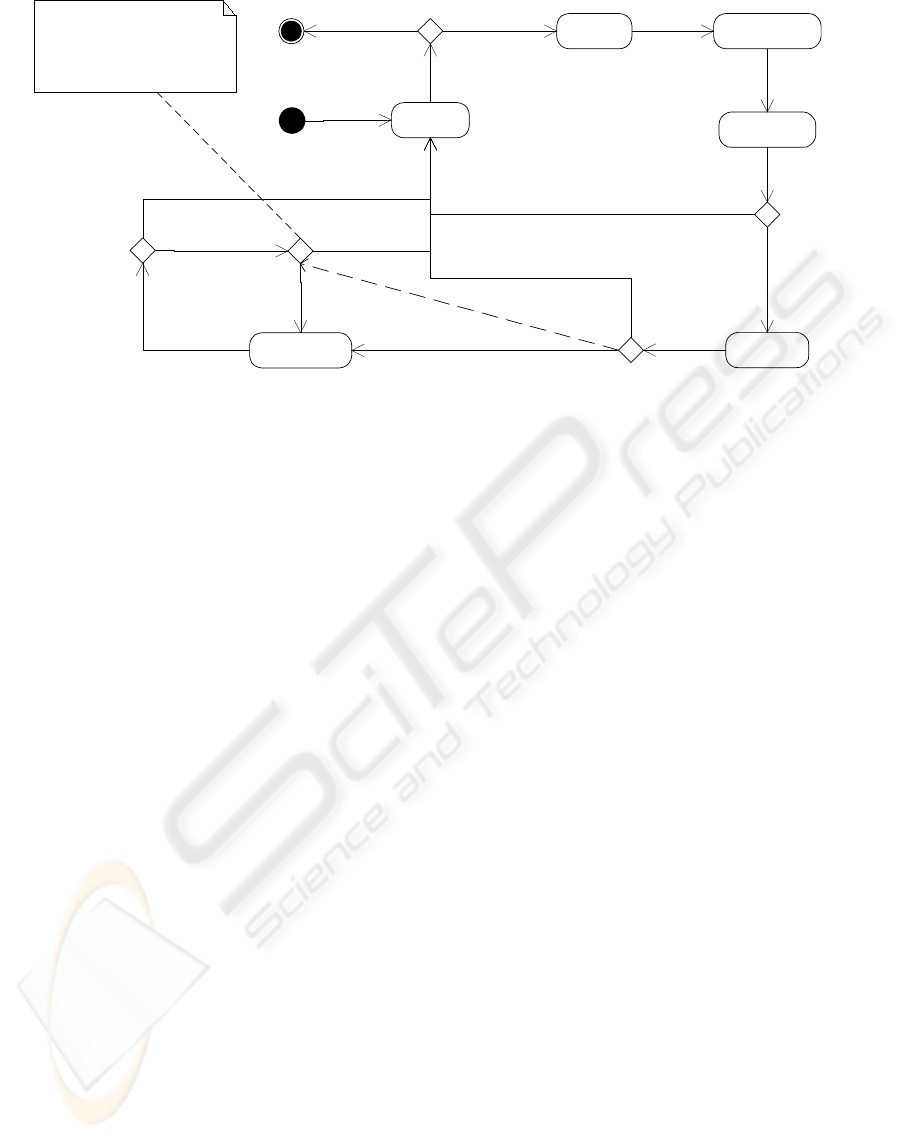

Figure 3: Flow of a protocol from the initiator’s point of view

expressing message contents. Below is serialized the

queryContent class, which expresses the thing to

be queried, in this case the ID of the delivery report.

<rdf:Description rdf:about="&this;queryContent">

<rdf:type rdf:resource="&fipa;Content" />

<fipa:expression>

String

ORDER_ID = "http://www.sscompany.com/"

+"orderReports#steelOrd123";

String query = "SELECT ?x"

+" WHERE (?y, <rdf:type>,"

+" <report:orderReport>),"

+" (?y, <report:deliveryReport>, ?x)"

+" AND ( ?y eq <" +ORDER_ID +">)"

+" USING " +nameSpaces;

</fipa:expression>

</rdf:Description>

The message content is expressed inside the

fipa:expression tag. This phrase expresses the

RDQL (Seaborne, 2002) query for a delivery ID (?x)

with the order ID (?y) as the parameter. Order ID, as

depicted in Figure 1, is found in the initial status re-

port received from the subcontractor. Here we assume

that the agents share a supply chain reports ontology,

denoted by the report namespace, which captures

the general structures of order and delivery reports.

For example, the contractor knows that the order re-

port can contain information about the delivery and

thereby has reason to perform the above query.

With the delivery ID that the contractor receives as

a reply to the above query it proceeds to request the

delivery report from the carrier. The protocol is de-

scribed in the similar manner as the query and not

included here. Eventually, once the contractor has re-

ceived the delivery report, it can compare the informa-

tion in it with the information in the original status re-

port received from the subcontractor. Should the two

reports contain conﬂicting information, it can take

appropriate actions (see Figure 1). Software agents

could take part in performing the comparison, for ex-

ample by notifying their owner about mismatches be-

tween the reports. However, considering these details

is outside the scope of this paper.

3.3 Adapting to Interaction Protocol

Descriptions

The only agent adapting to the interaction protocol

descriptions in the above scenario is the contractor’s

expeditor. Other agents of the scenario have knowl-

edge of the interaction protocols beforehand. Fig-

ure 3 depicts how a protocol progresses. Knowledge

of start and end states is assumed to be known by ev-

ery agent—also by the adaptable expeditor—as men-

tioned above. Being the initiator of the protocol, the

expeditor ﬁrst searches for the start state. From that

state it extracts different options. Based on its cur-

rent goals, it chooses one option and executes it. Note

that agents’ goals having effect on the decision are

excluded from interaction protocol descriptions.

Executing an option that does not entail message

sending is called a non-communicative option. A

communicative option, instead, entails sending a mes-

sage. If such message is directive, the sender of that

message expects a reply to that message. Addition-

ally, with directive messages the sender aims to get

the receiver to do something, such as perform an ac-

tion or answer a question (with the exception of direc-

tives “directed” to oneself). As an example consider

FIPA Request; after sending the request message

the initiator waits for an answer to it from the partici-

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

348

pant before the protocol shifts to the next state. For a

non-directive message, instead, there are no answers

and the protocol moves immediately to the next state.

Examples are all the other messages in FIPA Request,

namely refuse, agree, failure, and inform.

Unlike agree, all other non-directive messages in

FIPA Request protocol are followed by the end state.

Instead, agree is followed by the one where (after

trying to perform the requested action and based on its

results) the participant sends the appropriate message

to the initiator. Note that excluded from Figure 3 are

canceling and exception handling mechanisms. An

agent participating in a protocol has the possibility of

canceling the protocol at any point. Also, exceptions

can arise at any point of the protocol.

Contractor’s expeditor agent is able to adapt its

behavior to conform to the interaction protocols de-

scribed and provided by other process participants by

combining the following information: Knowledge of

the interaction protocol ontology; knowledge of the

ﬂow of a protocol as depicted in Figure 3; knowl-

edge of utilized domain ontologies such as the above-

mentioned supply chain reports ontology.

4 CONCLUSION

In this paper we considered applying adaptable agents

in an expediting process of a distributed construction

project. In our scenario a software agent representing

a contractor acted as an expeditor. It had the inten-

tion of contacting other project participants directly

for verifying information in a status report received

earlier from the subcontractor.

Since the expeditor agent did not know in advance

how to interact with other project participants, it

adapted to interaction protocol descriptions provided

by them. These interaction protocol descriptions were

serialized in RDF, and followed an interaction pro-

tocol ontology. Such shared ontology specifying the

general structure of conversations between the agents

brings ﬂexibility in multi-agent systems. So long as

the agents are aware of the ontology, modifying ex-

isting protocols or launching new ones is straightfor-

ward. Note that our intention was not to contentu-

ally solve problems related to expediting processes,

but instead to present an application area for agents

adapting to interaction protocol descriptions.

Our future work around the area includes further

developing functionalities of the agents. Progress of

an interaction protocol could be more dependent on

the contents of the messages than it is at the mo-

ment. The agents could also have the functionality of

composing protocol descriptions themselves and stor-

ing them in RDF. At the moment the descriptions are

hand-written by humans. In addition, we are planning

on applying software agents adapting to interaction

protocol descriptions in wireless networks. In such

networks, should all the client devices entertain an

agent capable of adapting to interaction protocol de-

scriptions, the client devices could inform the server

about their capabilities (screen sizes, memory capac-

ities, etc.), connection types (WLAN, GPRS, Blue-

tooth, etc.), as well as user proﬁles and contextual de-

tails. The server side agent could provide them with

appropriate interaction protocol descriptions for con-

necting with the services.

REFERENCES

Barrie, D. and Paulson, B. C. (1992). Professional

Construction Management: including C.M., design-

construct, and general contracting. McGraw-Hill,

Inc, New York.

Foundation for Intelligent Physical Agents (2000a). FIPA

ACL Message Structure Speciﬁcation. Geneva,

Switzerland. Speciﬁcation number XC00061.

Foundation for Intelligent Physical Agents (2000b). FIPA

Query Interaction Protocol Speciﬁcation. Geneva,

Switzerland. Speciﬁcation number XC00027.

Foundation for Intelligent Physical Agents (2000c). FIPA

Request Interaction Protocol Speciﬁcation. Geneva,

Switzerland. Speciﬁcation number XC00026.

Kim, K. et al. (2000). Compensatory negotiation for agent-

based project schedule coordination. In Proceedings

of The Fourth International Conference on Multiagent

Systems (ICMAS-2000), pages 405–406. IEEE Com-

puter Society Press.

Lassila, O. and Swick, R. (1999). Resource De-

scription Framework (RDF) Model and Syn-

tax Speciﬁcation. W3C. Available at:

http://www.w3.org/TR/1999/REC-rdf-syntax-

19990222/.

Lee, H. et al. (1997). The bullwhip effect in supply chains.

Sloan Management Review, 38(3):93–102.

Seaborne, A. (2002). Jena Tutorial: A Program-

mer’s Introduction to RDQL. Available at:

http://www.hpl.hp.com/semweb/doc/tutorial/RDQL/.

Toivonen, S. and Helin, H. (2004). Representing interac-

tion protocols in DAML. In van Elst, L., Dignum,

V., and Abecker, A., editors, Agent-Mediated Knowl-

edge Management: Selected Papers from AAAI 2003

Spring Symposium, volume 2926 of Lecture Notes in

Artiﬁcial Intelligence, pages 310–321, Berlin, Ger-

many. Springer.

Williams, G. (1995). Fast track pros and cons: Considera-

tions for industrial projects. Journal of Management

In Engineering, 11(5):24–32.

USING INTERACTION PROTOCOLS IN DISTRIBUTED CONSTRUCTION PROCESSES

349
