CONSTRAINT-GUIDED ENTERPRISE PORTALS

Christopher J. Hogger, Frank R. Kriwaczek

Department of Computing, Imperial College London, London SW7 2AZ, United Kingdom

Keywords: enterprise portal, finite-domain constraints, multi-agent system, plan revision, role management.

Abstract: It is shown how an enterprise portal, supporting a community

of users discharging roles expressed as

combinations of plans and constraints, can be usefully guided by a constraint processor. In particular,

constraint logic programming on finite domains provides the users with useful insights regarding their

possible work schedules. Constraints assist also in shaping the electronic artefacts created and transmitted

by the users. The implementation is supported by mechanisms for assigning and updating roles and for

assisting the search for remedies in the case of constraint failure

1 INTRODUCTION

This paper describes recent work in the e-DoC

Project which investigates the applicability of

computational logic to enterprise portal

architectures. Its main testbed exemplar is an

academic department of computing. It shares some

aims of the Java Architectures Special Interest

Group whose open-source uPortal is used in several

universities (Gleason, 2000). Our interest, however,

is in exploiting the power of logic programming and

finite-domain constraints to imbue portals with

intelligence and flexibility. Portals able to acquire,

sift and interpret knowledge can construct and self-

embed new tools into the portal interface

(McCallum, 2000; Hogger, 2003) or re-structure that

knowledge to suit their users’ interests, as does the

ontology-driven KA2 system (Staab, 2000). Portals

able to control the logical cohesion of users’

activities enhance the collaborative functions of the

enterprise (Ahmad, 2001).

We have built and implemented a conceptual

odel

that uses CLP(FD)—constraint logic

programming over finite domains—to guide and

regulate the actions of a community of portal users.

As they follow their various individual plans, the

constraint processor helps determine their possible

work schedules and the shaping of the electronic

artefacts that they create and share. This form of

constraint processing can contribute significantly to

the development of predictive and anticipatory

enterprises, owing to its generality of application

and the powerful algorithms on which it relies.

The model employs formulations of user roles

com

rising plans mediated by constraints. It is

designed to be simple, transparent, of general

applicability and uncluttered by implementation

details. It can be used either as a standalone

application, driving its own web-based portal

interface, or as a tool embedded in an existing portal.

It can be operated in various modes according to

whether constraints are evaluated lazily, on-the-fly

or eagerly.

Section 2 describes, with an example, our

rep

esentation of a role. Section 3 explains how the

implementation interprets plans, manages artefacts

and evaluates constraints. Section 4 presents a more

detailed example, in which several users with inter-

dependent roles experience but recover from a

constraint failure. Section 5 discusses the work

undertaken so far and the further work required.

2 ROLE STRUCTURE

The core construct in the model is a user’s role,

which has two main components: a procedural

component — the plan — expresses actions that a

role-holder (user) intends to perform, whilst the

declarative component — a constraint set —

expresses requirements upon the timing and the

consequences of those actions. Together, they

capture the essential logic of the role; aggregating

such components over all users gives the essential

logic of the enterprise. The procedural commitments

in the plans can be viewed as compiled outcomes of

411

J. Hogger C. and R. Kriwaczek F. (2004).

CONSTRAINT-GUIDED ENTERPRISE PORTALS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 411-418

DOI: 10.5220/0002599804110418

 SciTePress

some portion of that logic, leaving the residual

portion in the form of declarative constraints.

The actions can be designed for any purpose,

but in the e-DoC project they deal chiefly with the

manipulation of electronic artefacts, such as text

documents, emails and database tables. These reside

variously in private (local) user workspaces or in

public (enterprise-wide) repositories.

An important species of artefact is the script,

which describes a role or role update. It enables

users to create and transmit roles just as they can

with other kinds of artefact.

Figure 1 outlines a script for a user

ttr working

as a timetabler, as viewed in the portal interface.

Written in a logic programming syntax, it is

arranged into several groups: ontology declarations,

action declarations, constraint declarations and

CLP(FD) programs. This particular script describes

how

ttr assembles a timetable artefact named timtab

from a set of

requests and stores it in a database tt_db,

whilst aiming to satisfy various constraints upon

timing and attribute values.

2.1 Ontology Declarations

The arguments timtab, requests, st1, et1, etc. occurring

in Figure 1 are examples of ontological variables.

The script for a role

R must declare each such

variable within some ontology declaration of the

form

ontology(R, origin, list_of_variables).

This declares that

R makes use of the variables in the

given list, and also declares their origin. If the origin

own then R devised them. If it is public then the

variables are enterprise-wide, that is, accessible to

all users. If it is the identifier of some other user

then the variables were devised by

R2. Any number

of such declarations can occur in

R’s script.

Ontological variables mostly denote time-

points, artefacts and artefact attributes. Each one is

named by a constant, e.g.

st1, to ensure that its

occurrences in separate script statements share the

same denotation. (By contrast, logical variables in

separate script statements would be unrelated,

whether quantified or not.) In the implementation,

each declared name var is mapped to an underlying

logical variable Var that is uniformly associated with

all occurrences of var in any script, so that correct

referencing is established throughout all scripts.

Then, if Var is subsequently bound to some value

val, var also is effectively bound to it by making a

binding-pair (var, val), as in (

et1, 7/6/2004) or (name,

‘c:/MyDocs/timtabs/timtabs-2004’)

. Typically, such a

binding arises either as a direct response to a user

selection (e.g. from a menu) in the portal interface or

as a result of constraint evaluation.

2.2 Plan Structure

A role typically contains a number of separate,

though possibly related, tasks, each one consisting of

action declarations arranged into blocks. The block

structure serves only to facilitate the expression of

some simple control constructs. Given this, we can

view each task as a program, and the aggregate of all

these programs as the overall plan for the role.

For each task in a role, the script must contain

a unique task entry-point declaration of the form

entry_point(role_id, task_id, block_id).

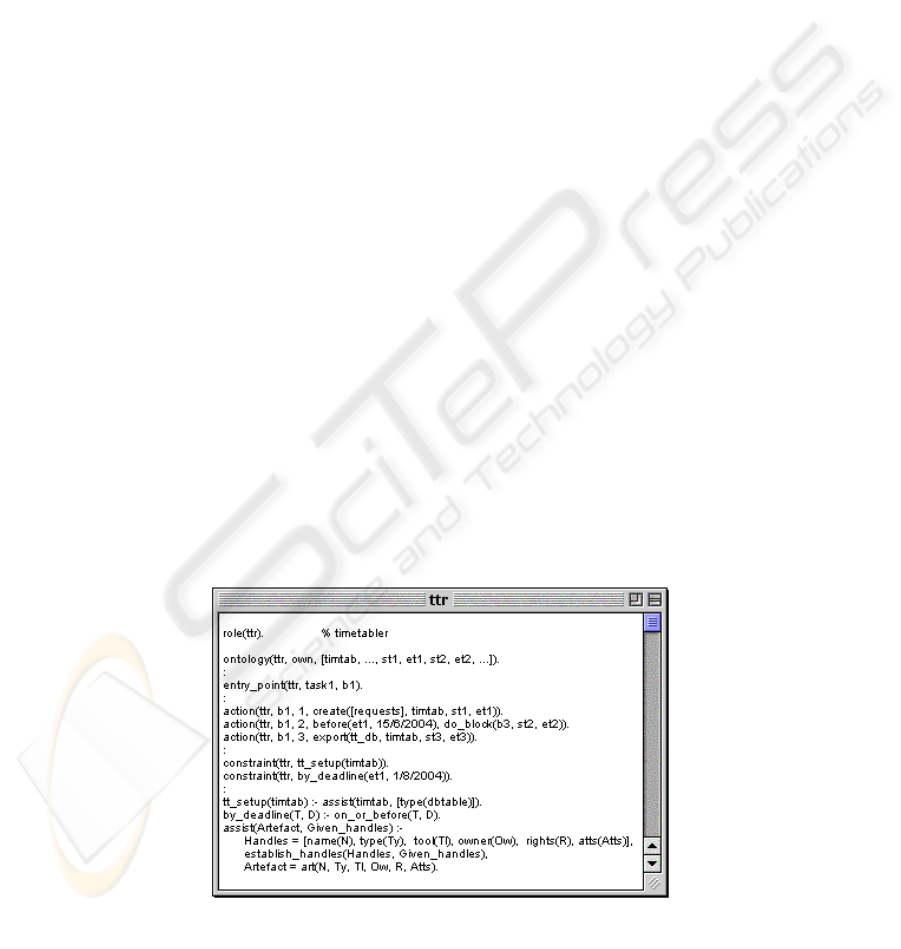

Figure 1: Outline view of the timetable

’s script

Its purpose is to identify some particular block as

that in which execution of the task is to begin. In

Figure 1 the entry-point for a task

task1 is declared to

be the block

b1. All the action declarations appearing

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

412

there belong to this block, although one refers to

some other block

b3 not revealed in the figure.

Each action declaration has the basic form

action(role_id, block_id, index, action_predicate).

which identifies the role to which it belongs, the

block that contains it, its index within that block and

its action predicate.

Every action predicate contains two time-point

arguments

st and et denoting the action’s start-time

and end-time. The species of action intended is

determined by the predicate symbol, most often

create, import or export. These three are used for

creating and transmitting artefacts. A slightly more

elaborate form of declaration is

action(role_id, block_id, index, pre, action_predicate).

in which

pre is a precondition The action declaration

having index 2 in Figure 1 contains a precondition

requiring that the previous action shall have been

completed by June 15th 2004. Only if this holds will

the (control) action

do_block(...) be executed, in

which event control will branch to some other block

b3 within task1. Other kinds of control action are

available to specify conditional branching and

while-iteration.

Although such action-based plans have a

procedural character, they can be viewed as partial

solutions of declarative constraints relating their

start and end times, as explained in the next

subsection.

2.3 Constraint Declarations

Each user’s role is generally subject to constraints

expressing requirements. Some of these constraints

may relate his own variables to other users’

variables. Communal cohesion therefore requires

that, however constraints be devised and whatever

they may constrain, in operation they must be treated

as applying globally across the enterprise.

The expression of a constraint consists of two

parts. One is a call to a relation required on some

tuple of ontological variables and/or constants. The

other is a program for evaluating that call. The call is

declared in a constraint declaration of the form

constraint(origin, call)

where origin identifies the user who devised it. Figure

1 shows two such declarations, one constraining

attributes of the

timtab artefact and the other

constraining the completion-time

et1 of task1’s first

action. In the lower region of the script are various

CLP(FD) programs defining the called relations. In

practice, many such programs only test inequalities

of time-point variables, but constraint-supporting

programs may in principle be arbitrarily complex.

Figure 1 is a limited view of the script, revealing

only the constraints devised by

ttr. In the full portal

interface a user

R can apply options to a script

window to reveal just those constraints devised by

or all those that depend upon

R’s own variables or

all constraints in the enterprise. The script itself

consists, technically, of the ontologies and plans

used by

R together with a pointer to the enterprise’s

current constraint set.

Besides the user-declared constraints, the

system uses further constraints implicit in the

‘physics’ of the model. Thus, the end-time of an

action must succeed its start-time; its start-time must

succeed the end-time of any action with lower index

in the same block; an artefact cannot be acted upon

until it has been created. These simple conditions are

established automatically as constraints whenever a

plan is created or revised. Expression of intended

control flow in the plan would be unnecessary if the

user declared all these constraints explicitly and

allowed the constraint engine to determine possible

schedules for the actions. However, expressing some

control flow avoids the need to declare large

numbers of these physics-based constraints and

enables the user to commit a priori to particular sets

of scheduling solutions.

3 OPERATIONAL MODEL

Our implementation deploys two closely-coupled

engines, one being a plan interpreter and the other a

constraint evaluator. These, together with the users’

interactions through their portal interfaces,

ultimately determine the bindings made to the

ontological variables, and hence the character and

scheduling of the artefacts manipulated. Besides

this, there are also system components for managing

artefacts, script assignments and constraint failures.

3.1 Plan Interpreter

The function of the Plan Interpreter is to exhibit to

the users, via selected views in their interfaces, their

states of progress through their plans. For instance, a

task view window highlights actions recognized by

the interpreter as ready to begin or (if begun) waiting

to be completed.

Users pursue their tasks concurrently,

following initiation from the declared entry-points.

Within any block, actions are required to be

performed in order of increasing index. A group of

CONSTRAINT-GUIDED ENTERPRISE PORTALS

413

actions may, however, have a common index,

indicating that they can be performed concurrently,

that is, with no plan-imposed ordering upon their

time-points.

Once an action has been indicated as ready to

begin, the user can begin it at a time of his choosing.

He commits to this by clicking in a displayed cell for

the relevant start-time variable; the interpreter then

binds the action’s start-time argument

st to the

current time on the portal clock, and updates the

interface accordingly.

Work entailed in performing the action itself is

invisible to the interpreter except to the extent that it

may bind ontological variables; in effect, it is treated

as off-line activity. For example, activity to create a

text document may involve the user entering textual

content, but the details of that content are of no

concern to the portal; however, activity that binds

ontological variables denoting the document’s

attributes is recognized and acted upon by the portal.

When the user considers that an action has

been completed, he formally signals this by another

click in the interface; this binds the action’s end-

time

et to the clock value and again updates the

interface and the state of the interpreter.

In Section 4 we will present a more detailed

view of these interface episodes and their

consequences, using a multi-user example. That

example will also show how the plan’s execution

affects, and is affected by, the concurrent operations

of the constraint evaluator.

3.2 Artefact Manager

A new artefact is produced whenever a user

performs a

create action. This takes the form

create(As, A, st, et)

Here,

A names the artefact to be created. The

argument

As supplies the names of any other

artefacts that the user expects to use in preparing

The plan interpreter requires these to be already

residing in the user’s local workspace when the

create action is begun; otherwise, it suspends at that

point in the plan and informs the user of the reason.

The first action in Figure 1 requires

ttr to create

an artefact named

timtab that depends on the

availability of another named

requests. The latter

could have been imported by an earlier action in this

task, but our present example assumes it to be

created or imported by some other task in

ttr’s plan.

The portal’s Artefact Manager constructs

abstract terms representing such artefacts, and

maintains pointers between them and their concrete

instances. Each abstract artefact term has the form

art(Name, Type, CrTool, Owner, Rights, Atts)

whose arguments hold the primary attributes — the

artefact’s name (with full location), type, creator

tool, owner, the owner’s rights and a set Atts of any

secondary attributes appropriate to the type. The

main types supported in our implementation are

script, txt (text document), email and dbtable (database

table). Examples of artefact terms are

art(‘c:/MyDocs/ timtabs/timtabs-2004’, dbtable,

‘MSExcel’, ttr, [read, write], atts(schema1, view1))

art(‘c:/MyDocs/ notice’, txt, notepad, ttr, [read], null)

The attribute values are determined, in general,

partly by the user in the course of creating the

artefacts and partly by the evaluation of constraints

upon ontological variables. Knowing these values,

the artefact manager invokes appropriate

mechanisms in the host system to store each artefact

in an appropriate workspace substructure,

integrating it with the correct infrastructure for its

use. A text document, for instance, will be stored in

some standard file-oriented directory, whilst an

email will be stored in some email-client mailbox.

Once created, copies of artefacts may be

transmitted between local workspaces and

communal repositories. An action

import(Rep, A, st, et)

requires the user to import into his workspace a copy

of artefact

A from repository Rep. An action

export(Rep, A, st, et) transmits a copy of A in the

converse direction. The plan interpreter will suspend

either action if

A is not currently available in its

specified source.

3.3 Constraint Evaluator

As users pursue their plans, the Constraint

Evaluator attempts to solve conjointly the calls cited

in all constraint declarations, testing or determining

values for the ontological variables occurring as

arguments within them. It behaves effectively as an

assistant, displaying to the users their future

possibilities and alerting them to constraint failure.

The evaluator can be operated under various

regimes controlling the timing of constraint-

checking. It is possible to simulate, prior to real-time

user activity, the future performing of plans: eager

constraint-checking can then compute, for instance,

feasible schedules (if any) that the users might

adhere to in practice. Another possibility is that

users perform their plans but with inessential

constraint-checking deferred until all plans have

been completed; in that case they discover only

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

414

afterwards whether their activities satisfied their

intentions. The standard regime, however, checks

constraints incrementally in step with the plan

interpreter, informing the users of their remaining

scheduling opportunities and readying those tools

they will need to manipulate their artefacts. Under

this regime the evaluation of temporal constraints is

similar to conventional critical path analysis.

The CLP(FD) formalism has the flexibility to

support these various regimes. For an ontological

variable that is declared (or is by default) a CLP

domain variable, the evaluator holds at any instant a

current subset of that domain as the potential

solution-set for that variable, as determined by the

given constraint-defining programs and the current

solution-sets of any other variables upon which it

depends. User actions in the portal interface that

themselves bind any variables cause the algorithms

to restrict further the solution-sets. Restriction also

arises from each advance of the portal clock, which

deletes the previous clock value from the domains of

all temporal variables. If the domain of any variable

becomes void this implies that the constraints upon

that variable have no feasible solution. The

solvability or otherwise of the constraints is

independent of when the constraints are checked.

In our implementation CLP(FD) is applied

chiefly to the temporal variables, though it is

applicable in principle to finite domains of artefact

attribute values. In practice, however, we find it is

usually more practical to deal with these by a form

of Query-the-User driven by an interactive

conventional logic program. This program is

designed to evaluate a call of the form

assist(A, Given_handles)

which associates with artefact

A a set Given_handles

specifying already-chosen attribute values for

This call may be placed in the body of any user

constraint program. When it is executed, the user is

invited by dialogues in the portal interface to choose

values for any so-far-undetermined attributes. The

net result of this interaction is to bind

A to some

ground term

art(...) that the Artefact Manager then

associates with the concrete stored artefact.

Figure 1 contains an example of this call being

used to help

ttr complete the attribute determination

for

timtab, whose type has been already prescribed in

the given handles as

dbtable. The assist program will

invite

ttr to choose the full path-name, the creator

application tool and so forth. Although viewable in

ttr’s script window, this program is not devised by ttr

but is instead one of many supportive resources

shared by all users.

3.4 Script Manager

Like any other artefact, a script can be created,

transmitted or modified by a user. A user performing

a role

has a copy of its associated script in his own

local workspace and can view it in his interface.

Although some roles may be entirely self-

defined, our system enables a user

U1, having

appropriate authority, to assign a role (or a role-

update)

R to another user U2. (We impose a

simplifying restriction whereby no user has more

than one role.) This is achieved by

U1 performing

within his own plan an action of the form

assign(R, U2, st, et)

This assumes that R is a script artefact already

residing in the workspace of

U1. If U2 currently has

no role then the

assign action invokes a Script

Manager to create for

U2 a new interface whose

workspace contains a copy of

R. Alternatively, if U2

already has a role then

R is some update to it, in

which case the Script Manager copies

R to U2’s

existing workspace and alerts

U2 to the need to

incorporate the update into his existing script.

A key presumption is that

U2 cannot reject the

requirements in any script content assigned to him,

but may further detail it on his own initiative and

may later (if suitably authorized) re-assign it to

someone else. So in general the script for a user may

contain accumulated contributions from other users

besides himself. With these arrangements we can

model the circumstance whereby requirements posed

by some level of authority can be elaborated but not

revoked by lower levels of authority.

3.5 Failure Manager

It is easy to detect when a constraint violation occurs

but by no means always easy to determine the best

way to explain or resolve it. A CLP(FD) failure

occurs when some domain variable’s feasible

solution-set is empty. Unless the constraint engine

holds an accessible history of the internal constraint

simplifications it has made in the course of reaching

this situation, there is relatively little information on

which to isolate a specific cause of the failure. In

particular, the variable(s) now found to have no

solution may be common to multiple source

constraints variously sensitive to multiple roles.

Thus, the responsibility for the failure may in

general be communal, rather than individual.

Sometimes it may be possible to detect that a

particular individual’s recent activity, such as

starting an action too soon or choosing an artefact

attribute inappropriately, is the sole cause of the

CONSTRAINT-GUIDED ENTERPRISE PORTALS

415

problem. If they can backtrack on that action and try

again then the problem may be remedied,

demanding no revision of plans or constraints. It

will, however, require garbage-collecting artefact

operations undertaken by them prior to backtracking.

Otherwise, the Failure Manager tracks down

those constraints that impact, directly or indirectly,

upon the problematic variables, and further identifies

their originators, that is, those who have the

authority to revise that material. They are alerted to

their need to review, in the light of the current

failure, the requirements they posed and to agree

upon suitable revisions sufficient to alleviate the

failure — for instance, by extending deadlines. The

revisions are conveyed to the affected role-holders

for assimilation into their scripts.

4 CASE STUDY

This example illustrates an episode involving

academic role-holders in a college’s Computing

department. The college’s Rector wishes to be

supplied, by October 10th 2003, with a report on this

department’s student drop-out rate from its Head

(

hod). The latter requests his Head of Studies (hos) to

supply that report directly to the Rector. He poses

this request by assigning to her the role update

shown in Figure 2a, whose anonymous slots (“_”)

she instantiates when assimilating this material into

her role.

The department runs five degree courses each

with its own tutor, and

hos requests these tutors to

supply reports on drop-out rates for their courses but

sets no deadlines for them. She believes it will take

her just 1 day to consolidate their reports into her

full report

consrep for the Rector. Each tutor

estimates of how long it will take to produce his

report. The tutor (

tmac) for the MSc in Advanced

Computing course estimates it will take 2 days to

create his report

rep3.

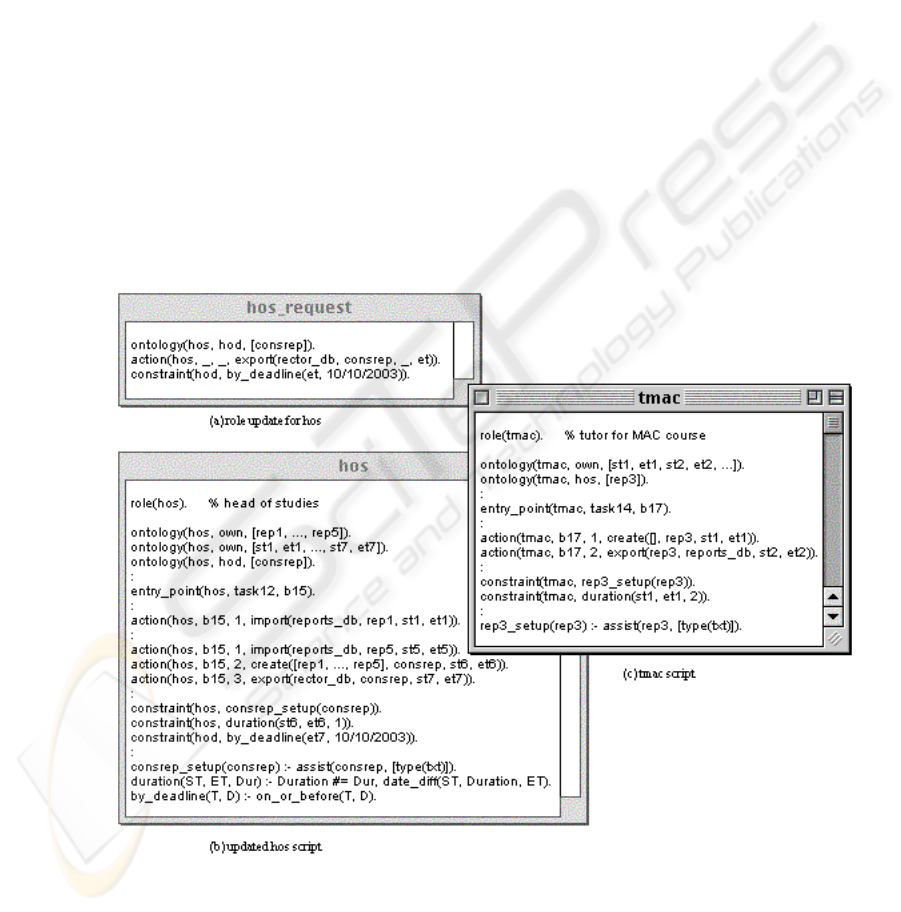

Figure 2: Role scripts in the computing department

Figures 2b and 2c show the scripts of

hos and

tmac after assimilating hos’s requests. In her script,

hos has put the assigned export action into a new

task12 and can view its deadline constraint in her

script window. She has substituted her own variable

et7 in place of the et variable used in the role-update

request that

hod assigned to her. She has elaborated

that request with constraints to help set up

consrep

and to restrict the duration of its creation process.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

416

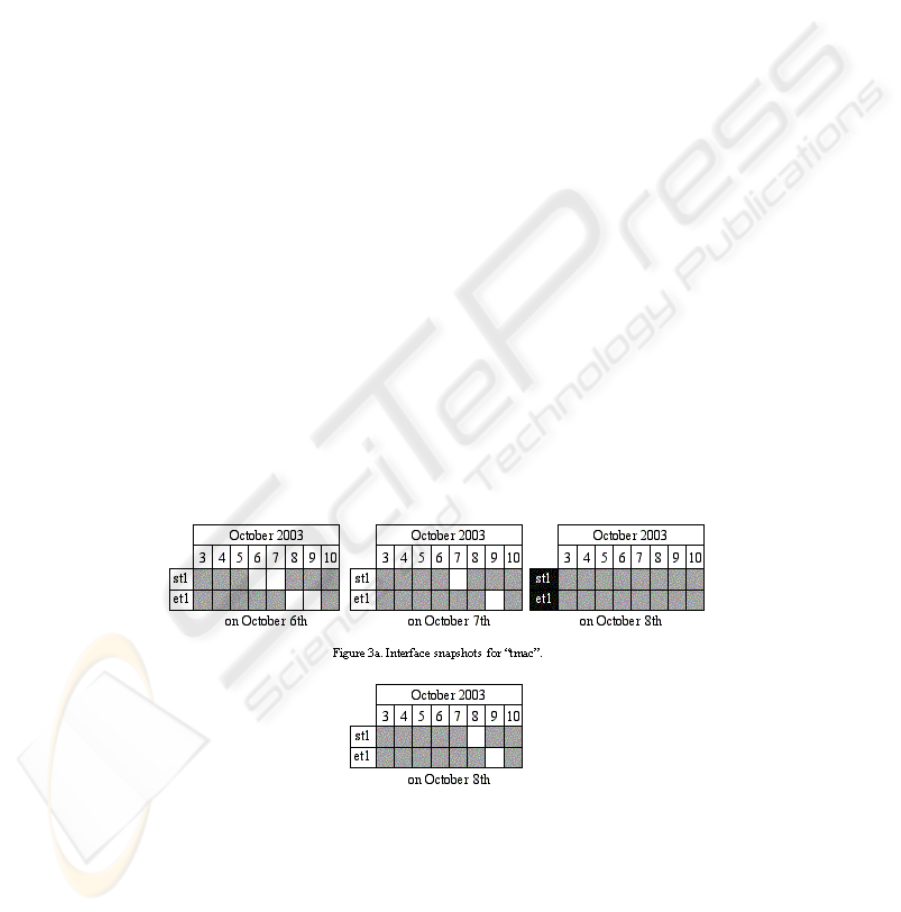

Figure 3a shows snapshots from the interface

tmac taken on October 6th, 7th and 8th. Each of

his variables has a row of cells variously filled grey

or white. White cells indicate the current domain,

i.e., the time-points (dates) that the constraint engine

has calculated as admissible solutions. So on the 6th

tmac sees that he can start his create action only on

that day or the next, and complete it only on the 8th

or 9th. However, his teaching obligations prevent

him creating his report that day. By the 7th the portal

clock has advanced one day and so eliminated the

6th from the domain of

st1, whose value tmac can

now choose only as the 7th. Unfortunately he misses

that opportunity also, so that by October 8th no

choice at all remains to him. The domains of

st1 and

et1 are now void, signifying constraint failure. Their

cells have turned black, signifying that they are

implicated in that failure.

The Failure Manager must now locate the

failure. It identifies the constraint calls referring to

st1 and et1 and constructs the transitive closure of

this set under the relation of two calls sharing a

domain variable. It thereby traces the dependencies

between variables. It extracts the originators of the

calls in this closure, being those in whose hands it

lies to remedy the failure. Here, they are

hod, hos,

tmac and the other tutors.

tmac may reduce his report-creation’s expected

duration, or

hos may decide she can complete her

consolidation on the same day she begins it, but her

deadline is assumed to be rigid. It is decided that

tmac must create rep3 faster than he had estimated.

He accordingly revises his own call to

constraint(tmac, duration(st1, et1, 1)).

so that his interface on the 8th changes to that in

Figure 3b. He clicks in

st1’s white cell for the 8th

and begins working on his report. He finishes it the

next day and so clicks in

et1’s white cell for the 9th,

then immediately exports the report. This leaves

hos

enough time to consolidate all five reports, provided

the other tutors supply their reports on time too.

We showed how the constraint engine presents

feasible schedules as users commit to time-points.

However, the interface also supports a “what-if?”

mode permitting experimentation with non-

committed time-points to further explore the options.

The episode above need not have entailed a

constraint failure, as

tmac could foresee on October

6th his scope for completing

rep3. The displayed

domains of his variables enabled him to anticipate

solutions. Moreover, because all solutions were

visible, it was predictable that failure would occur if

he did not begin his report before October 8th.

5 CONCLUSION

The model has been applied experimentally in the e-

DoC domain for simulating real roles among college

staff, as a stand-alone portal. As a prototype under

development, quantitative evaluation of it in a

context of serious scale is not yet available.

Figure 3: Updated interface for the “tmac”

We employ a Sicstus CLP(FD) engine fast

enough to solve realistic constraints in the intervals

separating user actions. It uses the Pillow package to

construct web pages displaying the users’ interfaces.

CLP(FD) was chosen for its flexibility in knowledge

representation, its support of user-defined evaluation

schemes and, in particular, its simplicity compared

with other proprietary systems such as ILOG Rules

(ILOG, 2002).

In our academic domain we use finite-domains

mainly to compute temporal variables. However,

actions and artefacts can have attributes measuring

resources such as diskspace allocations or

administrative overheads. These can be processed

CONSTRAINT-GUIDED ENTERPRISE PORTALS

417

likewise by CLP(FD) if they are discrete-valued. For

other domains, action and artefact types can be

implemented without altering the core model. In

particular, domains concerned with assembling

industrial artefacts, with constraints upon component

supply and workflow, can be represented.

A key priority is to enhance the intelligence of

the Failure Manager which currently identifies only

source constraints upon void-domain variables. It

cannot trace back its evaluation to identify where

failure-disposing events occurred. Standard logic

programming engines can deliver traces showing

which instances of source statements led to a

computed outcome, so facilitating debugging and

showing how the computation might be backtracked

to try other instances. The constraints within a

CLP(FD) engine, by contrast, are some arbitrary

transformation of the source ones and may have

attained that state using a mix of several algorithms.

Using the record of users’ instantiations in their

plans could compensate to some degree for these

difficulties, whilst the treatment of purely temporal

failures could usefully exploit scheduling analysis.

Recent development of abductive constraint solvers

such as A-system (Kakas, 2001), which is itself

written in Sicstus Prolog, may point to ways of

enhancing the ability of the Failure Manager to

further localize the origins of constraint failure and

to infer and rank suitable constraint revisions for the

relevant originators, assisting their collaborative

recovery. These aims share common ground with

work on constrained workflow management, as in

(Hwang, 2003) and (Wainer, 2003a) and (Wainer

2003b) who variously employ procedural constraints

or standard logic programming integrity constraints

but not CLP(FD). We also intend partly to re-

implement our model in the multi-agent formalism

Go! (Clark, 2003) whose multi-threaded

communication inherently reduces the number of

temporal constraints required.

REFERENCES

Ahmad M.S., Hogger C.J. and Kriwaczek F.R., 2001.

Implementing a Collaborative Agent System using

Prolog. In ICIMu-2001, Int. Conf. on Information

Technology and Multimedia, Kuala Lumpur.

Gleason B.W., 2000. Boston College University-Wide

Information Portal — Concepts and Recommended

Course of Action. JA-SIG Portal Framework Project

White Paper.

Hogger C.J. and Kriwaczek F.R., 2003. Abstracting

Wizards from Portal Observations. In WITSE-2003,

Workshop on Intelligent Technologies for Software

Engineering, 9th European Software Engineering

Conference and 11th ACM SIGSOFT Symposium on

the Foundations of Software Engineering, Helsinki.

McCallum A.K., Nigam K., Rennie J. and Seymore K.,

2000. Automating the Construction of Internet Portals

with Machine Learning. Information Retrieval, Vol. 3,

Issue 2.

Staab S., Angele J., Decker S., Erdmann M., Hotho A.,

Maedche A., Schnurr H.-P., Studer R. and Sure Y.,

2000. Semantic Community Web Portals. Computer

Networks, Vol. 33.

Hwang G.-H., Lee Y.C. and Wu B.-Y., 2003. A New

Language to Support Flexible Failure Recovery for

Workflow Management Systems. In CRIWG-2003, 9th

International Conference on Groupware, Grenoble.

Wainer J. and Bezerra F., 2003a. Constraint-based

Flexible Workflows. In CRIWG-2003, 9th

International Conference on Groupware, Grenoble.

Wainer J., Barthelmess P. and Kumar A., 2003b. W-R-

BAC - A Workflow Security Model Incorporating

Controlled Overriding of Constraints. To appear in Int.

Journal of Cooperative Information Systems.

Clark K.L. and McCabe F.G., 2003. Go! for Multi-

Threaded Deliberative Agents. In DALT-03, AAMAS

Workshop on Declarative Agent Languages and

Technologies, Melbourne.

ILOG, Inc., 2002. Business Rules: ILOG Technical White

Paper. At

www.ilog.com.

Kakas, A.C. and Van Nuffelen, B., 2001. A-system:

Programming with Abduction. In Logic Programming

and Nonmonotonic Reasoning. Lecture Notes in

Artificial Intelligence, Vol. 2173, Springer Verlag.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

418
