ALIGNING BUSINESS PROCESS MODELING AND SO

FTWARE

SPECIFICATION IN A COMPONENT-BASED WAY

The advantages of SDBC

Boris Shishkov, Jan L.G. Dietz

Faculty of El. Engineering, Mathematics and Comp. Science, Delft University of Technology,The Netherlands

eywords: SDBC; Business modeling; Software specification; Component-based alignment

Abstract: This paper introduces the SDBC approach. It aligns business process modeling and software specification.

They are aligned in a component-based way. In particular, business components are identified and reflected

in the software specification. The business components are identified considering the rich semantic and

language/communicative expressiveness of current business systems. This is claimed to have a definite

value in building a complete and realistic business model. The component-based alignment on the other

hand is claimed to have sound theoretical background and promising practical perspective.

1 INTRODUCTION

The current software development practices need

improvement. This is shown by a number of

examples of software project failures (Liu, 2000),

most of which clearly indicate mismatch between

stated business requirements and the actual

functionality of a delivered software application.

Therefore, it can be claimed that the software

development methods, widely used today, do not

adequately bridge the consideration of the target

business system and the specification of the

corresponding software artefact(s).

Besides the alignment itself, it is considered

useful also improving the business modeling by

addressing not only the business system’s structure

and dynamics but also semantic/language aspects.

This is motivated by the fact that great deal of the

activities within any organization are about

coordination/communication (as opposed to

production). For example, considering shoe

repairing, the repair of a shoe brought by a client, is

just one issue within the set of activities actually

taking place. First the client explains his/her request

– what exactly (s)he needs to be done. The

shoemaker might accept the request or might not

accept it. It is possible that further negotiations are

needed about the request. Also, after the shoemaker

has repaired client’s shoe(s), it is possible that the

client does not accept the work, claiming that the

repair is of low quality, and so on. Hence,

overlooking the communicative/coordination aspects

would lead to building an incomplete business

model.

These mentioned issues are approached through

two promising research perspectives: the

Component-Based (system) Development (CBD) as

a background for aligning business modeling and

software specification, and the Language-Action

Perspective (LAP) as a theory that contributes to

properly grasping the communicative aspects

characterizing a business system.

CBD and LAP are discussed in (Shishkov &

Dietz, 2004). They are of essential importance for

the proposed SDBC approach (SDBC stands for

oftware Derived from Business Components). It

aligns business process modeling and software

specification in a component based way and

considers not only the structural and dynamic

aspects but also the communicative aspects of the

target business system. Some issues which are

foundational for SDBC have already been

introduced (Shishkov & Dietz, 2004).

This paper elaborates on the SDBC, positioning

it within the software engineering task (Section 2),

and concludes about some strengths of SDBC

compared to other existing methods (Section 3).

103

Shishkov B. and L.G. Dietz J. (2004).

ALIGNING BUSINESS PROCESS MODELING AND SOFTWARE SPECIFICATION IN A COMPONENT-BASED WAY - The advantages of SDBC.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 103-108

DOI: 10.5220/0002600001030108

 SciTePress

2 THE SDBC APPROACH

The development of SDBC has been motivated by

the following definite conclusions (Shishkov &

Dietz, 2004): 1>. It is necessary to consider the

semantic/communicative aspects in order to build a

sound and complete business model. 2>. Further

studies are required towards aligning business

modeling and software specification. 3>.

Considering business and software systems as well

as their alignment, it is worthwhile applying the

principles of CBD, benefiting in this way from the

undisputable advantages of object-orientation,

among which: re-usability, modifiability, design

flexibility.

On this basis, it has been considered crucial that:

SDBC allow for grasping the semantic and

language business systems expressiveness, and

also aligning business process modeling and

software specification in a component-based way.

SDBC is positioned as a software specification

approach within the software engineering task

(IEEE-Std.’610’ 1990). This is illustrated on Figure

1. Going as deep as the specification is claimed to

be sufficient for SDBC to properly place the

software model under development on a sound

business modeling background.

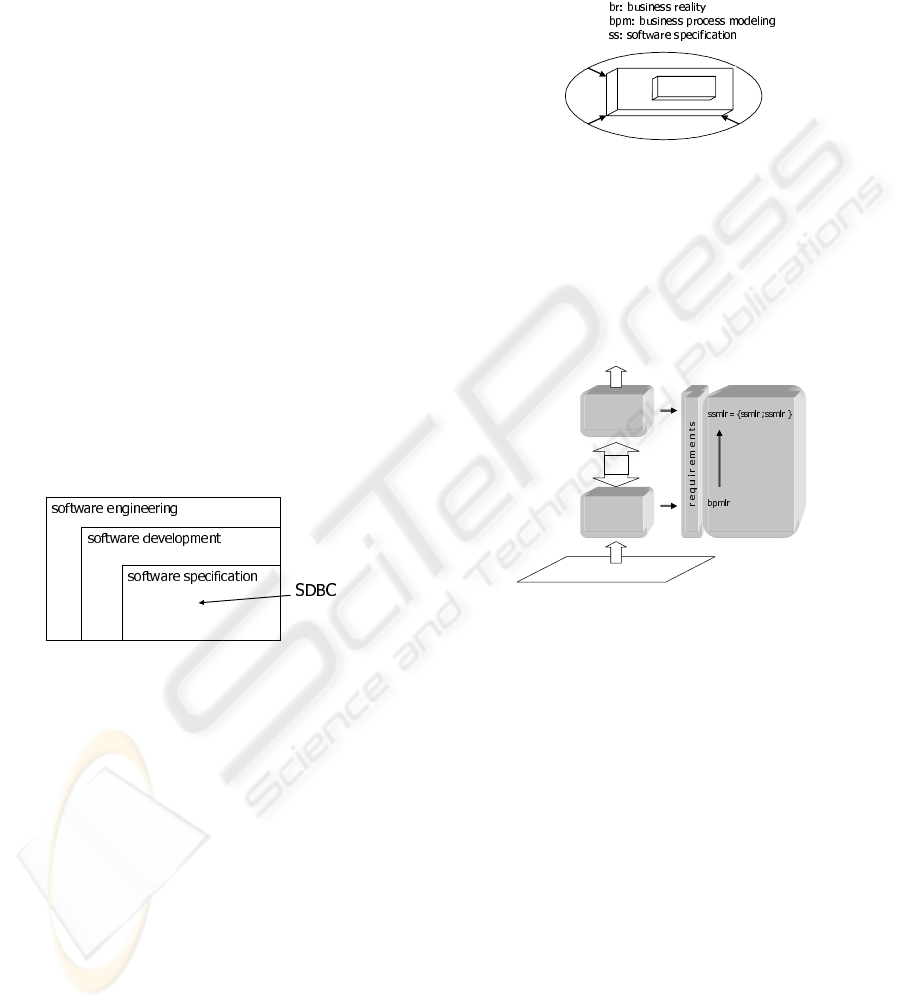

Figure 1: The positioning of SDBC within the software

engineering task

Being an approach for specifying software on the

basis of business modeling, SDBC is based on: 1)

Integrated view over business modeling and

software specification; 2) LAP – founded

Transaction concept; 3) Alignment based on

components; 4) Re-use requirements. These four

fundaments are elicited further on in this section.

INTEGRATED VIEW OVER BUSINESS

MODELING AND SOFTWARE SPECIFICATION

The current software development practices are

characterized by lack of sound alignment between

business modeling and software specification. Small

software companies usually rely on an arsenal of

“know-how”. They try to adapt it to the user’s case.

Bigger companies, however, spend more time and

energy for getting insight about the target business

system. Anyway, the process of getting such an

insight plays just a supportive role for the system

specification, without being integrated with it. A

value of SDBC is that it integrates business

modeling activities and software specification ones

(as shown on Figure 2).

2. ss

1. bpm

Figure 2: Integrated view over business process modeling

and software specification

A business process model is to be built up from

the studied business reality. This model is to be

reflected in the derivation of a software specification

model. This would be the viable link that should

business

process

model

software

specification

model

map

business reality

realization and integration

′ ″

Figure 3: Specifying requirements

guarantee the proper consideration of the original

business requirements in the specification of the

software’s functionality. The derived software

specification model should further undergo

realization and integration, in building the software

system. All this is illustrated in Figure 3. Hence, a

crucial issue in this regard is the proper mapping

between the two models. Next to that, both the

business process model and the software

specification model serve as sources for extraction

of requirements.

The built business model should represent a

source for completely discovering the so called

bpmlr (bpmlr stands for business process modeling

level requirements). The bpmlr characterize the

system reflected in the business process model and

do not directly refer to the functionality of the

software application to be developed. Extracting a

particular sub-set of bpmlr, in particular those

requirements which concern the functionality of the

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

104

software application to be developed and adding to

them the requirements additionally discovered

throughout the software specification phase, we

would come to the ssmlr (ssmlr stands for software

specification model level requirements). The ssmlr′

(ssmlr″) stands for the first (second) group of

requirements mentioned in the current paragraph.

Therefore, in general, the following statement

should be true:

ssmlr′ ⊆ bpmlr,

although it is considered possible that a requirement

belonging to the ssmlr′ set might appear to be a

refined version (not an exact copy) of a requirement

belonging to the bpmlr set.

LAP-

FOUNDED TRANSACTION CONCEPT

As mentioned before, the essential SDBC goal of

grasping the rich semantic and language

expressiveness of a considered business system

could be accomplished by founding the business

system study on LAP. DEMO (www.demo.nl) offers

a useful interpretation of some essential aspects of

this theoretical orientation (Shishkov & Dietz,

2004). Valuable in this regard is the relation of

DEMO also to two other sound and relevant to the

mentioned goal theories, namely Organizational

Semiotics (Liu, 2000) and Philosophical Ontology

(Bunge, 1979). The LAP Transaction and, in

particular, the DEMO interpretation of it, is adapted

and adopted within SDBC as an elementary business

modeling unit. Considering any structural of

Transactions (a starting transaction and a tree of

transactions triggered by it), a Business process is

defined as: the set of transactions realized in order

to fulfill a starting transaction. A Business

component is a complete business process model, as

specified in (Shishkov & Dietz, 2004). In this way

(through the Business component concept) SDBC

allows for placing a specification of software on a

business model that is elaborated also in terms

…

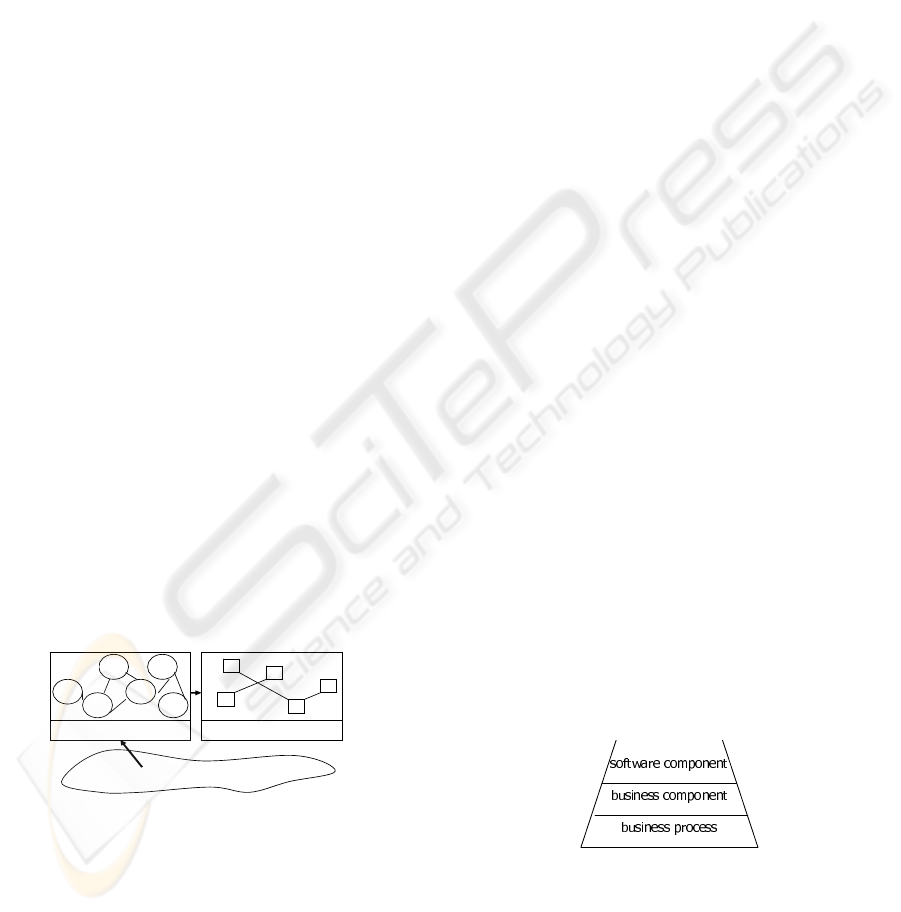

Figure 4: The importance of the transaction concept for

SDBC

of communicative action issues, not only in terms of

structural and dynamic issues what is the case with

the current popular business modeling methods. The

relation of SDBC (realized through the Business

component concept) to the mentioned semantic and

language related theories is illustrated in Figure 4.

SDBC interprets the Transaction concept as

centered around a particular Production fact

(following the DEMO Production fact definition).

The reason is that the actual output of any business

system represents a set of Production facts related to

each other. They actually bring about the useful

value of the business operation to the outside world

and the issues connected with their creation are to be

properly modeled in terms of structure and

dynamics, as in the popular current business

modeling methods. However, the already justified

necessity of considering also the corresponding

semantic and language aspects is important.

Although they are not directly related to the

Production facts, they are to be positioned around

them. As stated already, SDBC realizes this through

its interpretation of the Transaction concept, as

depicted in Figure 5.

P-act

input

out

put

r(R) p(E)

d(E)

compromise

found?

s(E) a(R)

d(R)

compromise

found?

P-fact

Legend

r: request R: requestor

p: promise E: executor

s: state

a: accept

d: decline

cancel

Yes

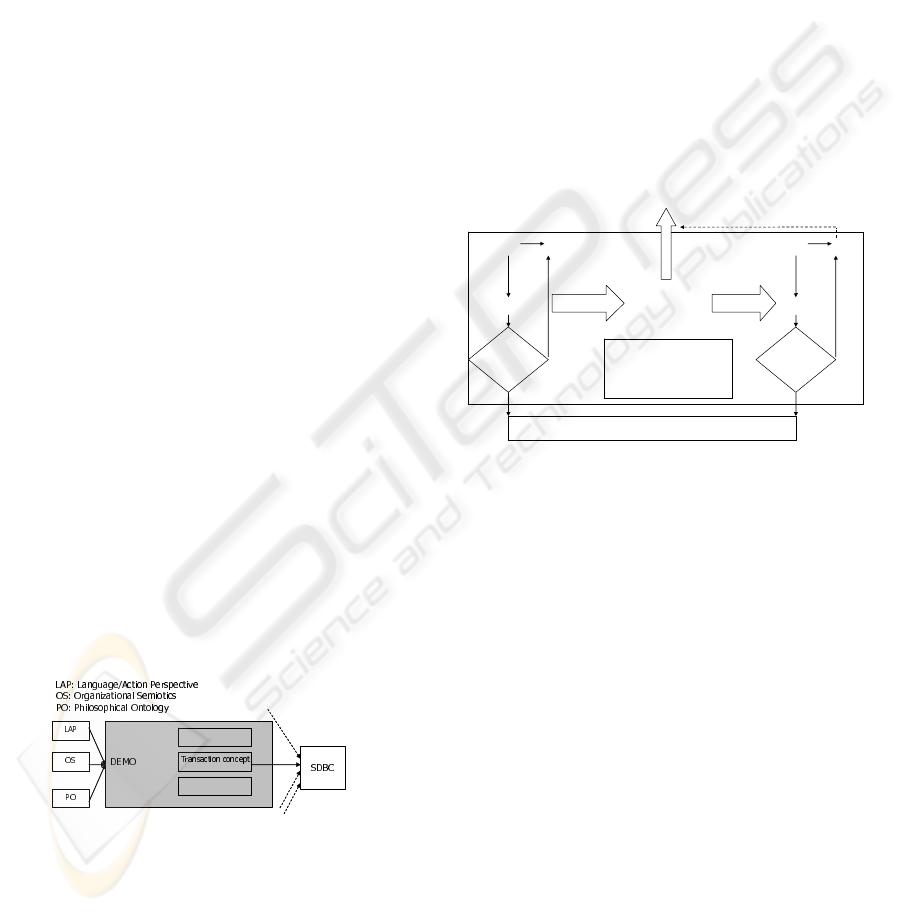

Figure 5: The SDBC interpretation of the transaction

concept

As seen from the figure, the classical LAP-

DEMO Transaction concept has been adopted, with

a particular stress on the transaction’s output – the

Production fact. There is a proposition (for example,

a shoe to be repaired by a particular date and at a

particular price, and so on). First, anybody should

express a request towards the particular proposition

(we call him a Requestor). Such a request might

trigger either acceptance or rejection – the other

party (we call him an Executor) might either

promise to produce the requested product (or

service) or decline it. A decline actually triggers a

discussion (negotiation), for example: “I cannot

repair the shoe today, is tomorrow fine? … and so

on”. The discussion might result (or might not

result) in a compromise. A compromise means that

the Executor promises to produce an updated version

of the discussed proposition. After a promise, a

Production act takes place and afterwards – a

statement from the Executor that the requested

product or service is produced. Then, analogously,

the Requestor might accept (or might not accept) the

ALIGNING BUSINESS PROCESS MODELING AND SOFTWARE SPECIFICATION IN A COMPONENT-BASED

WAY, THE ADVANTAGES OF SDBC

105

production result; a discussion (negotiation) might

take place. The transaction is considered to be

successful and the corresponding Production fact

could be considered successfully created only if the

Requestor has accepted the production result (this is

indicated by the dashed line on the figure).

Based on the LAP-DEMO theory and its SDBC

interpretation, it might be concluded that applying

the Transaction concept, SDBC achieves: a realistic

position to the issues belonging to a business

system; a granularity level (considered) which is the

right one as long as the atomic business (process)

issues are of interest; a sound theoretical

justification.

The Transaction concept directly relates to the

Business component one which is fundamental for

the SDBC approach and is considered in the

following paragraphs.

ALIGNMENT BASED ON COMPONENTS

The perspective of realizing the alignment

between the two significant SDBC tasks (business

modeling and software specification) on the basis of

components is a crucial issue within the SDBC

approach. The proposed component-based alignment

has been justified (Shishkov & Dietz, 2004) by the

undisputable and well proven in practice advantages

of the object-orientation theory – a sound theory that

allows for representing any system (a

software/business one, for instance) in terms of

objects/components. Thus, identifying business

components and reflecting them in (sets of) software

components would be well founded theoretically.

Next to that, components could be re-used. As it is

well-known, re-use is an essential advantage for any

system development method. Re-use will be

discussed further on, as a foundational issue within

the SDBC approach. The component-based

alignment between business modeling and software

specification is illustrated in Figure 6.

Software Components (sc)

…

Business Components (bc)

bc bc

…

Business Reality

Figure 6: From business components to software

specification

As depicted on the figure, the target business

reality is to be reflected in a set of identified

business components (these are business process

models as already mentioned). Based on them, a

(component-based) software model is to be

specified. The business and software components are

not to be necessarily mapped one to one. The bottom

line in building up the business process model

(through the identification of business components)

should be a purely business-oriented study that has

nothing to do with the specification of software and

related issues. On the other hand, the software

specification (and integration), though based on the

business components, is to be realized from the

perspective of the functionality of the software

system under development. Thus, it is possible that

more than one software components are derived

based on a business component, for instance.

Hence, following the principles of component-

based system development brings all the advantages

associated with this type of system development to

both the business modeling phase and the software

specification one. The component-based perspective

makes it doable to easily trace a relation between a

designed (or even implemented) software

component and its originating business process

model. Adding corrections and/or modifications

further on would be easy as well. Even entire

models/components could be inherited and

developed in a new context, for example. Therefore,

the mapping itself (between business modeling and

software specification) could be significantly

facilitated. Next to that, re-use would be possible

and easily realizable at different levels. A (specified)

software component could be used for the

development of different software artefacts as this is

successfully done currently. Also the business

components could be re-used – if some (business)

requirements change, it would be possible to replace

a business component with another one without

affecting the entire model of the business system.

RE-USE REQUIREMENTS

As mentioned before, the re-use options are

essential for SDBC. The approach benefits from

them both in the business modeling phase and in the

software specification one. SDBC allows for reuse

of business processes – if they are abstractly

described and also for reuse of components

(business and software components). This is

depicted in Figure 7.

Figure 7 : Levels of re-use

Re-using a Business process within SDBC

includes describing a business process at a general

level, making such a description abstract enough so

that it could be applied in a number of cases. An

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

106

example: ARRANGE A SERVICE (this is the

transaction which is the starting one); PAYMENT;

REDUCTION APPROVAL… This general

description could easily be made more specific, for

example: ARRANGE A HOTEL RESERVATION

SERVICE; DEPOSIT PAYMENT; EARLY

BOOKING REDUCTION OFFER…

Re-using a Software component is considered

to be also an option within SDBC, especially in tune

with the latest software re-use practices associated

with distributed computing environments like EJB,

CORBA, and .NET (Atkinson & Muthig, 2002).

As long as software components and their re-

usability are concerned, the existing knowledge

(Atkinson & Muthig, 2002), is considered to be

sufficient. It is reflected in developing SDBC.

The component-based software development

differs from traditional approaches by splitting the

development process into two distinct activities:

• Development for reuse – creating high-

quality, specialized components which

concentrate on doing a specific job well; they

should be of use in multiple applications.

• Development with reuse (called also

“Integration”) – creating new applications (or

possible larger components) by assembling

prefabricated components.

Re-using a Business component is of

significant importance for SDBC and the approach

introduces ideas in this regard.

If we consider the building up of a system (in

general) out of some building blocks and want to re-

use some of them, we have two solution directions –

we could have either a core unit that we should build

further on, in order to specify a building block, or

we could have a “multiple function” unit that we

should adjust in order to create a particular building

block. An analogy for the first case is a wagon

platform – it could be further developed either into a

passenger wagon or into a cargo one. An analogy for

the second case is a universal plug adaptor – it has

(in it) a number of functionalities that might be

adjusted in one way or another depending on the

particular purpose of use (for example: use in

Europe, USA, or Japan).

Following the classical Object-orientation

terminology, it is suggested that the first (second) of

the mentioned types of re-usable units is called a

general (generic) unit. Returning to the system that

is made up of building blocks, we could, therefore,

distinguish between two types of re-usable units:

General building blocks and Generic building

blocks. This is illustrated on Figure 8.

re-usable building block

general building block

generic building block

Figure 8: Re –usable units.

These basic principles could be applied to the

Business component concept within the SDBC

framework, bringing about possibilities of re-using

Business components. If general or generic business

components are identified, they could be re-used in

the specification of different software artefacts; this

could be realized either by extending a general

business component or by parameterizing a generic

one, as depicted in Figure 9.

…

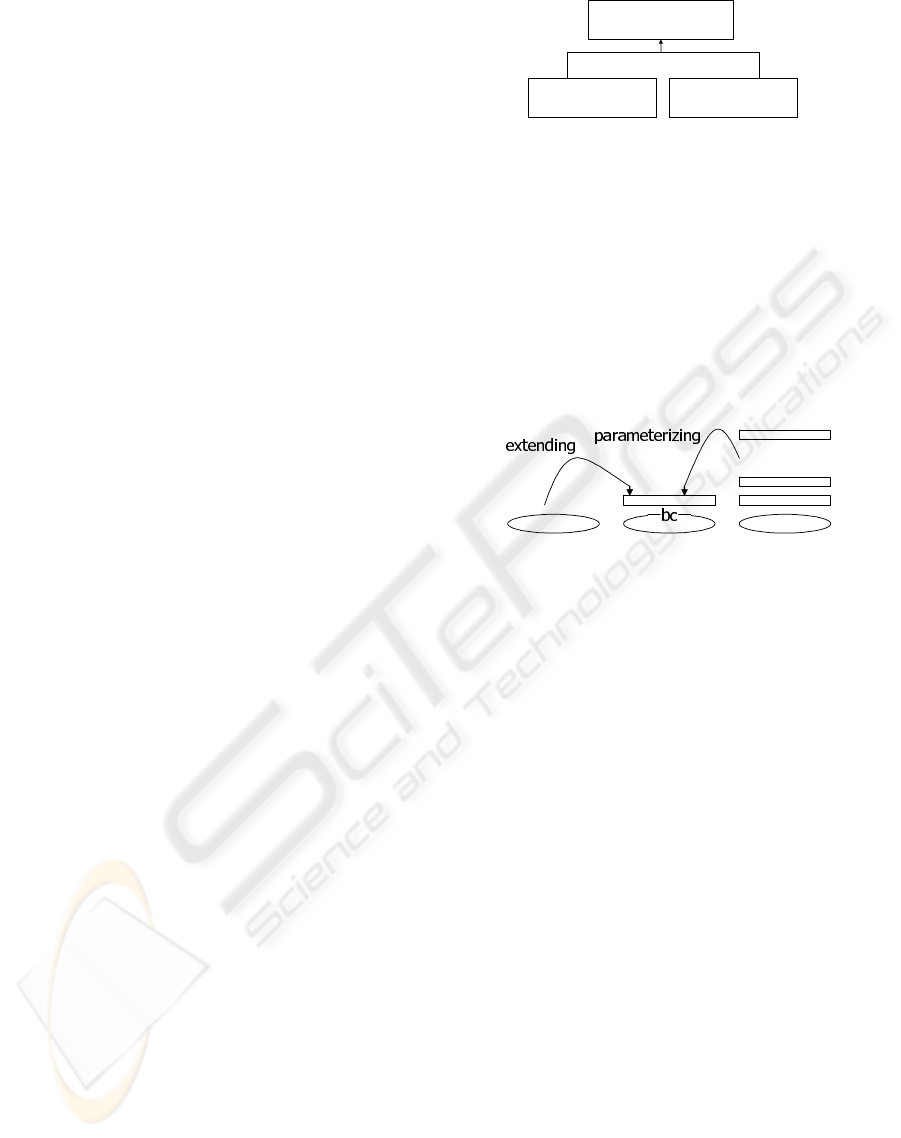

Figure 9: Extending a general business component or

parameterizing a generic one

General business components (bc) are models

which reflect core issues and can be extended in a

number of directions. For example, a general

brokerage model could be further developed: in one

way for building an e-trade system and in another,

for building a hotel reservations system. Hence, the

particular extension of a general business component

is motivated by the purpose of use. On the contrary,

a generic business component should contain in

itself several optional functionalities. Through

parameterization, such a component could be

adjusted depending on the aimed purpose of use.

In summary, it is possible within SDBC, to

derive a business component by developing a model

of a business process (the trivial way) or by re-using

general/generic business components (Figure 10).

ALIGNING BUSINESS PROCESS MODELING AND SOFTWARE SPECIFICATION IN A COMPONENT-BASED

WAY, THE ADVANTAGES OF SDBC

107

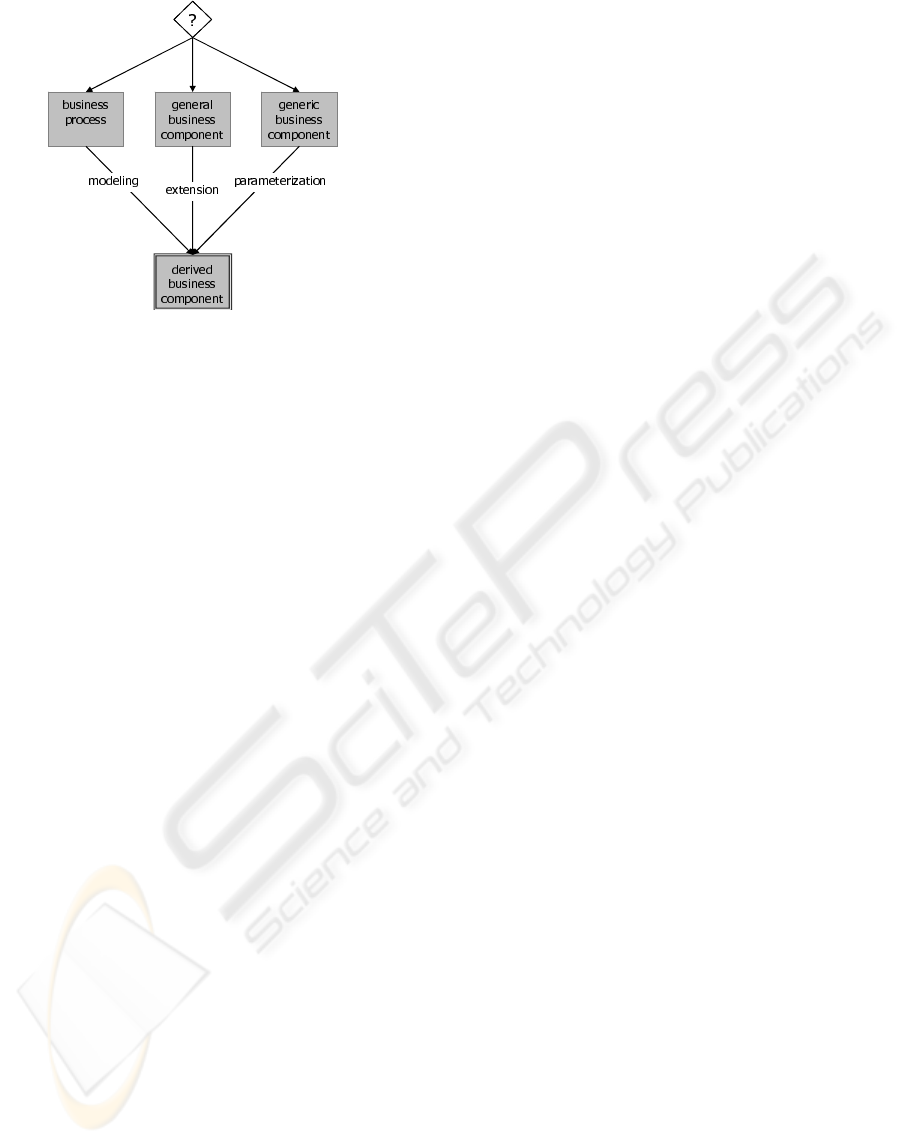

Figure 10: Deriving a business component

OUTLINE OF SDBC

Since the essential goal of the current paper is to

elaborate on the foundational issues behind the

SDBC approach and due to the limited scope of the

paper, the information on the outline of the approach

is omitted. However, this information is to be found

in (Shishkov & Dietz, 2004).

3 ADVANTAGES OF SDBC

SDBC’s innovative features relate primarily to its

allowing for a more complete business modeling (in

comparison to the widely used business modeling

tools) and especially for alignment between this

modeling and the specification of software. The

allowance for a component-based alignment

between the mentioned two aspects is a definite

value of the SDBC approach.

In order to justify the advantageous features of

SDBC, it is essential to approach through it real-life

problems and also compare SDBC to other relevant

modeling tools. The fundamental SDBC aspects

have been validated through case studies and some

of this information has been reported to (Shishkov &

Dietz, 2004). As for the comparison with other tools,

it is of no use considering either pure business

modeling tools or pure software design ones because

the essential goal behind SDBC is the alignment

between business modeling and software

specification. Hence, only tools that relate to these

both aspects have been considered. Among them,

KobrA (Atkinson & Muthig, 2002), Catalysis

(www.catalysis.org), and Tropos

(www.troposproject.org) are much popular and

successfully applied in practice.

Among the key characteristics of KobrA are:

architecture-centricity; systematic COTS component

re-use; integrated quality assurance. The major

strengths of KobrA are its overall consistency, the

embracement of the component concept in all phases

of the software life-cycle, and the UML-based

graphical specification of components. The main

limitation is that there are no clear guidelines how to

relate the specification of software to prior business

studies. Catalysis provides well-defined consistency

rules across models and powerful mechanisms for

composing different views to describe complex

systems. However, the method does not offer a solid

mechanism for reflecting the (business)

requirements in the specification of the software’s

functionality. Tropos approaches the requirements

elicitation and specification in a sound way, offering

mechanisms for transformation of this output into an

input for the further software design phases.

However, this transformation is neither sufficiently

formal nor completely founded on object-

orientation.

Therefore, the current popular methods

(including the most significant ones among which

are KobrA, Catalysis, and Tropos) related to the

considered research problem, have particular

limitations either in the pre-specification phase or in

the specification one. These limitations are an

obstacle for soundly aligning business modeling and

software specification.

4 CONCLUSION

The SDBC approach is based on the innovative idea

of aligning business modeling and software

specification in a component-based way. Next to

that, SDBC offers particular improvements in the

business modeling task, associated mainly with the

consideration of the communicative aspect in

approaching a business system.

REFERENCES

Atkinson, C. and D.Muthig, 2002. Enhancing component

reusability through product line technology. In

ICSR’02, 7th Int. Conf. on Software Reuse.

Bunge, M.A., 1979. Treatise on Basic Philosophy, Vol. 4,

Reidel Publishing Company, Dordrecht.

Liu, K., 2000. Semiotics in Information Systems

Engineering, Cambridge University Press.

Shishkov, B. and J.L.G. Dietz, 2004. Design of software

applications using generic business components. In

HICSS’04, 37th Hawaii International Conference on

System Sciences. IEEE’04.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

108
