DELEGATING AUTHORITY IN A DISTRIBUTED

INFORMATION MANAGEMENT SYSTEM

Kareem S. Aggour, Barbara J. Vivier, Janet A. Barnett

GE Global Research, One Research Circle, Niskayuna, NY, 12309, USA

Keywords: distributed administration, delegate authority

, LDAP, information management, community management,

identity management, Single Sign On

Abstract: The need to manage large information repositories in a secure, distributed environment increases with the

growth of the Internet. To address this need, a system capable of managing the contents of an LDAP

directory over the Web has been designed and developed. This system allows for the directory’s data to be

divided into communities and supports the delegation of administrative authority over those communities to

a distributed set of administrators. The communities may be subdivided recursively into subgroups, and

rights over those subgroups also may be restricted. Thus, system administrators can dynamically delegate

subsets of their permissions over a subset of their managed data, allowing for the flexible and effective

control of permissions over the data within distributed organizations. The system solves the delegated

administration problem for managing the contents of an LDAP directory in a distributed environment.

Today, it supports the administration of over 20 production directories by well over 2000 distributed

administrators.

1 INTRODUCTION

The objective of this research was to design and

develop a distributed information management

system capable of remotely managing the

information in a Lightweight Directory Access

Protocol (LDAP) database, utilizing a flexible model

of delegation and permission control. LDAP is a

hierarchical database optimized to execute fast data

reads, even across extremely large volumes of data

(Weltman & Dahbura, 2000). One of the key

capabilities of the system is that it facilitates the

division of the LDAP data into logical groups

(communities).

The system also allows for the delegation of

ministrative authority over those communities to

the experts most capable of managing each portion

of the data, regardless of their location. The solution

is responsible not only for giving users access to the

data they need to administer, but also for preventing

users from viewing or modifying information they

are not authorized to view or edit.

Another key capability is that the system operates

ndependently of the underlying LDAP schema (data

structure) and, therefore, is capable of managing any

LDAP directory. Similarly, the system functions

without having to modify the data structure of the

managed directory in any way. Finally, as it

operates in a distributed environment, it operates

over the Internet utilizing only standard Internet

protocols such as Hyper Text Transfer Protocol

(HTTP).

Today, the system allows for millions of records

istributed across multiple disparate directories to be

administered by thousands of globally distributed

administrators.

This paper describes the design and

plementation of the Community Management

Tool (COMET), a distributed information

management system. Section 2 provides a

background explaining the need for COMET and

describes prior art. Section 3 describes the COMET

approach for creating communities and for

delegating authority to users. Section 4 provides

some implementation details. Section 5 gives some

results of this effort; Section 6 presents future

opportunities; conclusions are given in Section 7.

155

S. Aggour K., J. Vivier B. and A. Barnett J. (2004).

DELEGATING AUTHORITY IN A DISTRIBUTED INFORMATION MANAGEMENT SYSTEM.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 155-162

DOI: 10.5220/0002602801550162

 SciTePress

2 BACKGROUND

Many businesses have adopted the Web as a vehicle

for delivering both information and services to

customers, suppliers, and employees. By moving

internal business processes and external service

offerings to the Web, businesses can achieve

operating efficiencies and cost reductions.

Businesses that efficiently provide applications to

customers or suppliers via the Web can increase the

number of customers they serve without appreciable

increases in operating costs.

As the number of such applications grows, it is

desirable to both the business and to its application

users to provide a single login to each user. For the

user, access to multiple applications is simplified.

For the business, access to applications can be

controlled and monitored more readily.

General Electric (GE) has digitized many of its

internal processes for its hundreds of thousands of

employees worldwide. Most of GE’s businesses

also provide Web-based products and services to

their global customers and suppliers. Because of the

size of its user community and the large number of

applications, GE established a Single Sign On (SSO)

initiative across the company (Loshin, 2001).

The goal of SSO is to have all Web-based

applications share the same data repository for user

IDs, passwords, and other common information.

SSO benefits GE in that application programmers no

longer have to worry about collecting and managing

the common information. The cost and time to

develop Web applications is reduced, as is the cost

of maintenance and help desk support. GE’s SSO

solution, while achieving the intended benefits, had

its drawbacks, however. Millions of global

employee and customer records are located in a

single repository. Therefore, shared administration

is necessary to manage the information effectively.

Compounding the problem, the administrators who

are most capable of managing the data are as

distributed as the end users. Thus, a distributed

information management system is required to

distribute authority to a global community of

administrators responsible for managing this huge

volume of information.

At the same time as the SSO initiative, some of

GE’s businesses began to offer Web-based services

to communities of customers. For example, a GE

business may contract with a customer to provide a

suite of Web services for the customer’s staff. The

management of a user community requires

capabilities in addition to those for Single Sign On.

A community-based service compounds the

challenge of managing the user directory because the

knowledge of the users in the community resides

within the community, rather than at the GE

business. Therefore, GE must provide a mechanism

to allow communities of users to be established

within GE’s repository but maintained externally.

2.1 Prior Art

While the use of LDAP is growing, the number and

sophistication of LDAP administration tools have

not grown at the same rate. Two commercial tools

were found in an attempt to address this need;

however, each provided only a partial solution to the

problem.

Oblix’s Secure User Management Solution (now

a part of Oblix’s NetPoint product) (Oblix NetPoint,

2003) is capable of delegating the administration of

subsets of data and also supports specifying

attribute-level permissions on the data for

administrators. (An LDAP entry is comprised of a

set of ‘object classes’ that have corresponding

‘attributes.’ An entry has any number of these

associated attributes, which may be single or multi-

valued (Weltman & Dahbura, 2000).) However,

Oblix does not support arbitrary levels of delegation,

i.e., administrators cannot subdivide their world and

give other users part of their administrative

authority. Oblix also does not support dynamic

assignment of users to groups. Oblix’s group model

assumes that the organization is using LDAP groups

to arrange its user communities, an assumption that

restricts the structure of the customer’s directory.

LDAP groups are objects comprised of a list of

members.

At the time, Netegrity’s Delegated Management

Services (DMS) system was in the early phases of

being released as version 1.0. Offering less

capability than the Oblix solution, it did not support

a sophisticated model of attribute-based

authorization, supported only one level of

delegation, and enforced restrictions on the LDAP

group structure. Companies with an existing LDAP

infrastructure would have difficulty using

Netegrity’s DMS system. Netegrity has since

released the product IdentityMinder to replace DMS

(Netegrity IdentityMinder, 2003). IdentityMinder

supports role-based access control, although it still

lacks the flexibility GE requires.

While there are now more vendors in the

emerging area of identity management, these

vendors focus on access control and Single Sign On

to enterprise applications rather than on the

challenge of distributing administration of a large

directory (Senf, 2003). Identity management does

not provide a flexible delegation model to support

multiple overlapping or nested or isolated

communities of users. Identity management across a

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

156

large set of applications also requires, but does not

typically provide, administrative access control at

the attribute level. To date, no commercial product

satisfies all of the requirements for distributed

directory administration met by COMET.

3 SOLUTION DESIGN

COMET is a Web-based delegated administration

information management system used to maintain

the data within an LDAP directory in a distributed

environment. Two concepts are key: Domains and

Authority. COMET allows LDAP data to be divided

into groups and subgroups. Specific administrative

permissions over those groups may then be defined

and limited. This combination of a logical subset of

data combined with permissions over that data is

referred to as a domain.

User accounts within the LDAP directory may be

assigned administrative authority over the domains.

Administrative authorities come in two flavors:

Delegate and Edit. An administrator with delegate

authority may divide an existing domain into sub-

domains and may assign (delegate) authority over

those sub-domains to other users. An administrator

with edit authority may edit user information within

a given domain, subject to the domain’s permissions.

COMET also allows users to edit their own account

information (within configurable limits). A

complete delegated administration information

management system, COMET enables the creation

and management of groups (communities) of LDAP

data.

COMET was designed to function with any

LDAP directory schema. Everything that COMET

knows about a directory is discovered

programmatically. COMET can determine what

object classes are defined in a directory, what

attributes are defined for those object classes, and

whether each attribute is single or multi-valued.

This flexibility allows users to specify the directory

information to be managed. The user can select the

object classes and the attributes of interest. If the

attribute is multi-valued, the user can also opt to

make the attribute appear single-valued to COMET.

This ability to discover the underlying schema of an

LDAP directory is critical to COMET’s functioning;

it allows COMET to manage arbitrary LDAP

directories.

COMET was also designed with the ability to

manage multiple disparate directories with a single

software installation. This functionality allows

customers to have a common graphical user

interface and a single point of executable code to

manage very different directories. For example,

companies can manage their internal employee

information, external customer data, and product

catalog information all with one COMET

installation. The term configuration refers to that

subset of a particular LDAP directory managed by

COMET. A COMET configuration contains all of

the users in a managed directory and identifies an

end-user’s view, edit, and delete permissions over

his or her own data; whereas a COMET domain

defines an administrator’s view, edit, and delete

permissions over the data for users that fall within

the domain.

3.1 Domains

Domains are used to divide the directory into

manageable groups and subgroups. The properties

of a domain are described in Table 1.

Table 1: Domain Attributes

Required Attributes

DomainID Unique ID of the domain

DomainName Display name of the domain

QueryRule Defines the domain user

community

ParentDomainDN DN of the parent domain

Optional Attributes

AttrDeleteable List of deleteable attributes

AttrEditable List of editable attributes

AttrViewable List of viewable attributes

DomainDescription Text description of the domain

In the domain hierarchy, there is a single root

domain for each configuration called the Super

Admin Domain. All subsequent domains are

descendants of this domain. The Super Admin

Domain contains all users in the configuration. This

domain can be divided into sub-domains that have

fewer (or the same number of) users and fewer (or

equal) administrative permissions. No domain can

contain a user or administrative permission not

found within its parent domain. However, two

separate domains can have overlapping groups of

users associated with them, as well as overlapping

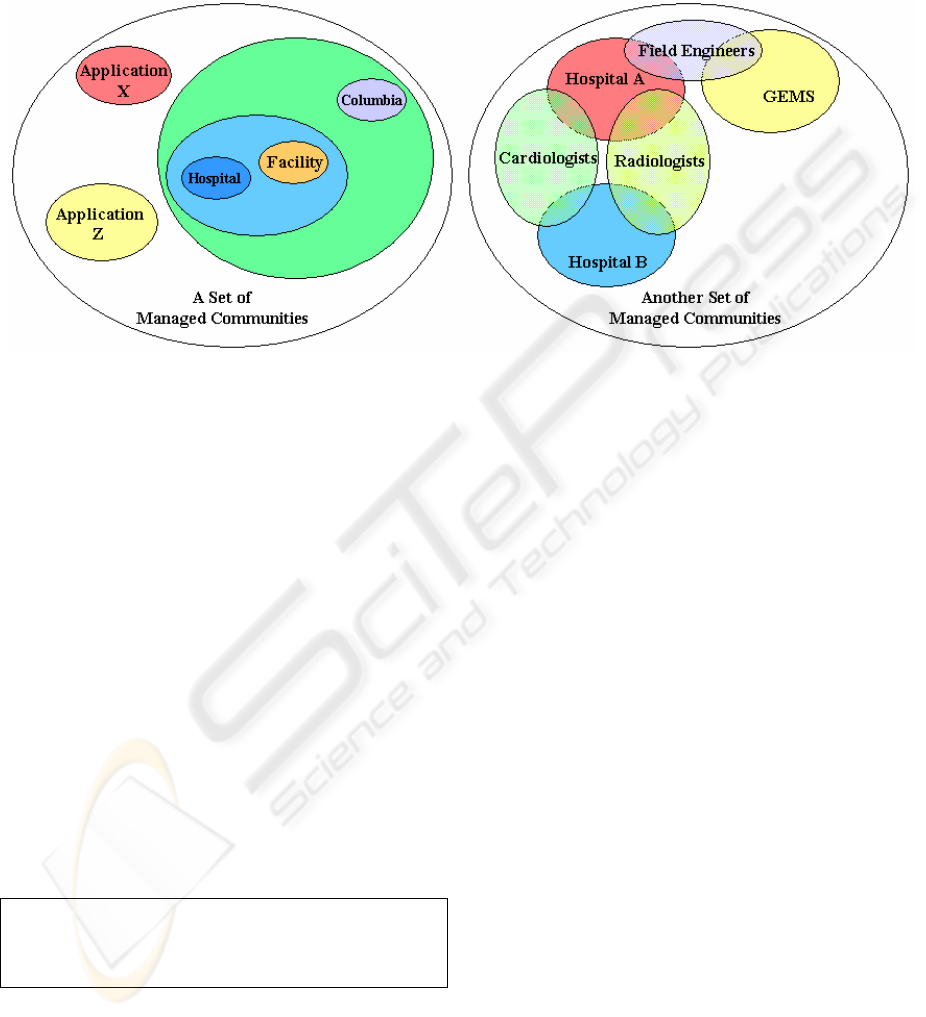

permissions. Figure 1 shows two example Venn

diagrams of possible user group structures; each oval

represents a community.

Since domains are hierarchical, deleting a domain

first results in the recursive deletion of all of its child

domains and the removal of all administrative

permissions over the domain. Any administrator

records that reference the domain are removed.

DELEGATING AUTHORITY IN A DISTRIBUTED INFORMATION MANAGEMENT SYSTEM

157

3.1.1 Community Definition

An LDAP search pattern identifies the users within a

domain; the pattern returns all users who satisfy the

search criteria. In COMET this pattern is referred to

as a Query Rule. The example shown in Figure 2

can be read as: “Select all users whose Company

Name is ‘GE’ or ‘General Electric’.”

COMET query rules are in prefix notation,

consistent with standard LDAP notation (Weltman

& Dahbura, 2000). Also in keeping with LDAP

notation, query rules utilize the character ‘|’ to

represent an OR conjunction and the character ‘&’ to

represent an AND conjunction.

By using query rules to establish domain

membership as opposed to listing individual users

(as is the case with standard LDAP groups),

COMET allows domain memberships to change

dynamically as the data in the directory change. As

employees join and leave the General Electric

Company, their Company Name will change and

they will automatically be added to or removed from

the ‘GE Employee Domain’ defined by the query

rule in Figure 2. This group definition model

requires the least effort for administrators to describe

and control the membership of a user community.

( | (companyname=GE)

(companyname=General Electric) )

Figure 2: Example COMET Query Rule

for a ‘GE Employee Domain’

When an administrator executes a search for

users within a domain, it is important to ensure that

the users returned from the query are constrained by

the hierarchy of domains. Therefore, the

administrator’s search rule is concatenated with a

query rule formed by recursively concatenating the

query rule of the current domain with that of each of

its ancestor domains, up to the Super Admin

Domain. This recursive concatenation, using an

AND operator, guarantees that no user will be found

in a sub-domain without being in the parent domain.

Figure 1: Sample Domain Venn Diagrams

Query rules can be created in two ways in

COMET. A Query Rule Wizard tool supports the

definition of a query consisting of no more than six

rules joined using the conjunctions AND and OR.

The query rule wizard concatenates the individual

rules such that the final query is of the form

(x(x(x12)3)4) where ‘1’ through ‘4’ are the rules and

‘x’ are the conjunctions. Each rule is defined in the

form: ‘(attribute operator value)’. The ‘operator’ is

a comparison operator such as ’=’ (equals), ‘!=’ (not

equals), etc. The 'value' supports pattern matching

and may include ‘*’ for wildcard matching. A

screen capture of the Query Rule Wizard user

interface is shown in Figure 3.

COMET also provides an interface for entering

custom query rules that must be standard LDAP

queries but can be of arbitrary form.

3.1.2 Permission Definition

A domain contains sets of permissions describing an

administrator’s rights to view, edit and delete user

attribute values. Attributes that are available to be

assigned to a domain are only those available to that

domain’s parent domain. This prevents assigning

rights to a child domain that are not available to the

parent. The Super Admin Domain has no ‘parent

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

158

domain’ so the list of editable attributes is obtained

from the list of all managed attributes in the

configuration. All view, edit, and delete attribute

permissions are available to the Super Admin

Domain by default.

3.2 Administrators

The administrator attributes are shown in Table 2.

An administrator record in COMET contains the DN

of the user who is an administrator, the DN(s) of the

domain(s) over which they have edit authority and,

separately, the DN(s) of the domain(s) over which

they have delegate authority.

There are several types of administrative

capabilities within COMET. The Master Domain

Administrator (MD Admin) is the UNIX-style ‘root’

user of COMET. The MD Admin has complete

authority over COMET across all configurations and

is the only administrative account with the right to

create and delete configurations (i.e., add and

remove references to managed LDAPs). It is a

separate account defined during installation, whereas

all other administrative permissions are delegated to

users within the managed LDAPs. A Configuration

Administrator has the same root-like power as the

MD Admin but limited to a single configuration.

Only the MD Admin and Configuration Admin can

adjust the LDAP fields that can be managed within

an entire configuration.

The Super Administrator has authority to manage

the Super Admin Domain and any sub-domains

within the configuration. For this reason, the Super

Admin is distinguished from a regular administrator.

An administrator with Delegate Authority has the

ability to divide an existing domain into sub-

domains, as well as the ability to delegate

administrative authority over those sub-domains to

other users.

Edit Authority permits an administrator to edit

user information in a given domain, within the

bounds defined by the domain constraints. Edit

authority may be granted by an administrator with

delegate authority over the domain.

End users have no assigned authority but may

view and edit their own account information, within

limits set in the configuration. It is possible to

define a configuration such that end users may be

denied the ability to view or edit any of their own

information. Users can view their most direct

administrators, i.e., the administrators with edit

authority over the lowest-level domains within

which the user belongs. This allows users to contact

their administrators and request changes to their

accounts.

Figure 3: Query Rule Wizard User Interface

Table 2: Administrator Attributes

Required Attributes

AdminID Unique ID of the administrator entry

UserDN DN of the administrator

Optional Attributes

EditAuthority List of domain DNs with expiration

timestamps

DelegateAuthority List of domain DNs with expiration

timestamps

3.3 Delegation of Authority

Delegating administrative authority is the

mechanism for establishing which administrators

can manage which communities of users. Every

delegated administrator has authority over at least

one domain. An administrator can be granted

delegate authority, edit authority, or both. A user

can be an administrator for several different

domains, and also can have different authorities in

those different domains.

A typical delegate administrator can grant

authority only over the sub-domains of the domain

over which they have delegate authority.

Alternatively, an MD Admin, Configuration Admin,

or Super Admin is able to delegate authority over

any domain in the configuration. The MD Admin

and Configuration Admin can also delegate

Configuration Admin capabilities to users. When a

user’s existing authorities are displayed, as seen in

Figure 4, the delegate administrator can view only

those authorities he or she has the ability to grant or

revoke.

As seen in Figure 4, four columns are displayed

on the COMET delegate authority user interface.

The first column indicates that the row is active.

Switching a ‘Yes’ to a ‘No’ and submitting the form

will revoke the user’s authority over the specified

domain. The next column is a drop-down of the

domains that can be delegated, only one of which

may be selected in each row. The third column

DELEGATING AUTHORITY IN A DISTRIBUTED INFORMATION MANAGEMENT SYSTEM

159

contains the type of authority to be delegated. Three

options are available: ‘Edit’, ‘Delegate’, and ‘Both’.

The ‘Both’ option simply grants both authorities at

once. The final column allows the administrator to

specify whether or not the authority being granted is

permanent or temporary (‘Never Expires’ or

‘Expires at Midnight On:’). If the expires option is

selected, then a month, day, and year must be

selected from the corresponding drop-downs. A

user may have multiple authorities, but each has its

own expiration date (and some may not expire).

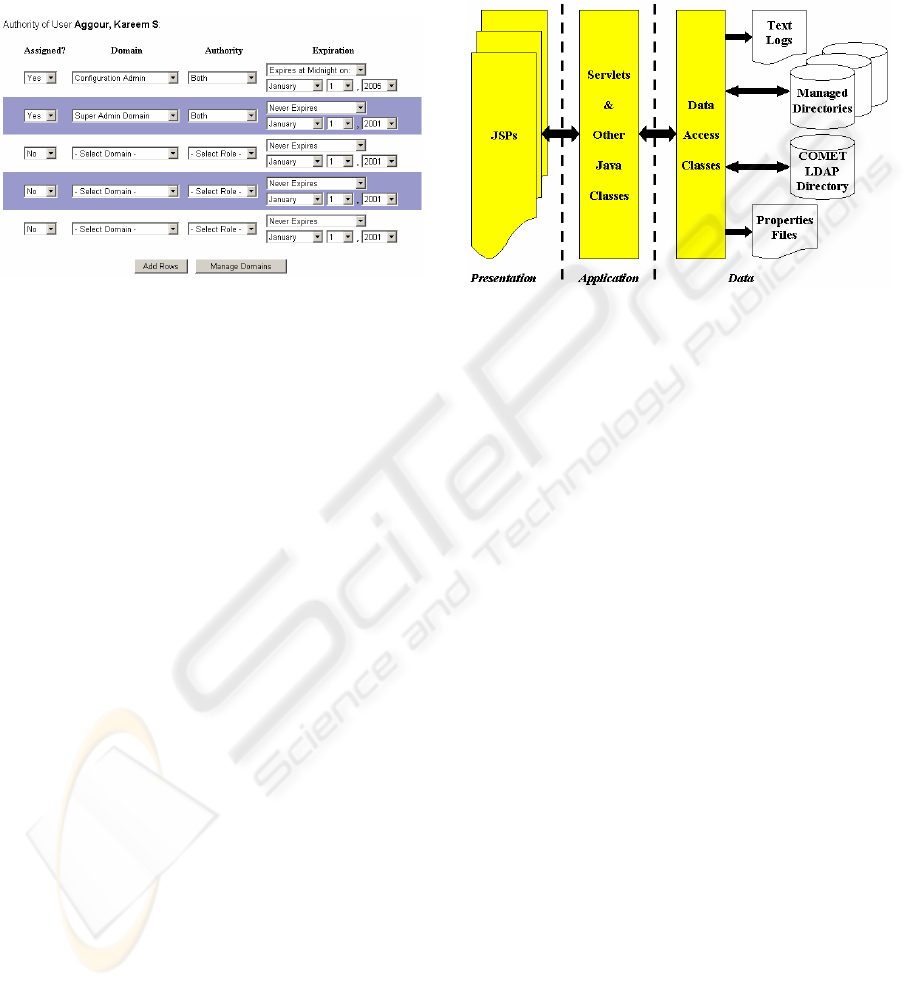

Figure 4: Delegate Authority User Interface

4 SYSTEM ARCHITECTURE &

IMPLEMENTATION

A three-tiered, component-based architecture using

object-oriented design paradigms was used to

manage a large volume of administrators and

directories in COMET. COMET is written entirely

in Java 1.2. JavaServer Pages (JSPs) handle the

presentation layer. Servlets and Java classes

comprise the application/business logic layer.

Finally, Java classes, LDAP directories, properties

files, and text logs act as the data layer.

4.1 Data Storage

All COMET information is stored separately from

the LDAP data being managed. For example,

assigning a user an administrative authority will not

modify that user's account information. Figure 5

shows a clear separation between the “COMET

LDAP Directory” and the “Managed Directories.”

COMET stores most of its information in a

COMET-specific branch of an LDAP directory.

Therefore, the COMET data can be stored within the

same physical directory as the data being managed

or it may be stored in a completely separate LDAP

instance; either way, COMET information will not

intermingle with the managed information. This

allows for the easy installation and removal of

COMET. By not requiring any COMET

information to be stored with the managed data, the

managed data structure does not have to be modified

in order to be managed by COMET.

Figure 5: Three-Tiered Architecture

There are also a number of properties files in the

data layer. The critical property file contains the

information that allows COMET to connect to the

COMET LDAP directory, including the host name,

port, user ID, and password. This file also contains

the user ID and password of the MD Admin account

stored as a one-way hash so they cannot be

recovered. All other security-related information,

such as user IDs and passwords used to connect to

the managed LDAP directories are encrypted and

stored directly in the COMET directory.

LDAP is a hierarchical data structure, so all

objects are placed at specific locations in the

directory ‘tree’ (Weltman & Dahbura, 2000).

Almost all system information is stored in the

COMET LDAP directory beneath the special

COMET branch. There is a branch for each

configuration within the hierarchy as seen in Figure

6. The root of each configuration branch contains

the configuration information. Beneath each

configuration branch are two branches, one each for

domains and administrators. Additional branches

support functionality not described in this paper.

4.2 Additional Functionality

COMET is a complete, secure, distributed

information management system; it provides a

whole host of functionality. Additional functionality

includes a security mechanism responsible for user

authentication and authorization, session

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

160

management, LDAP group management, and

logging.

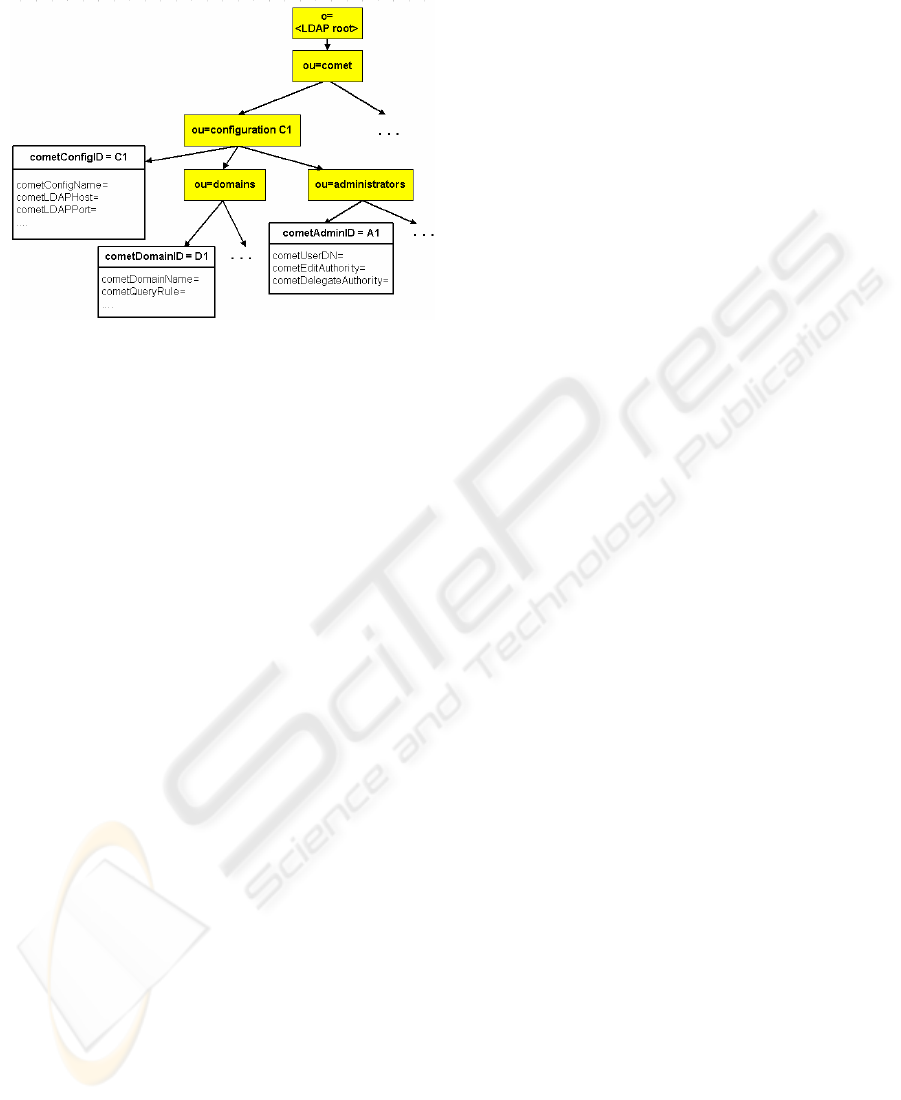

Figure 6: LDAP Tree Structure for Configurations

For authentication, COMET features a login page

to which unauthenticated users will be automatically

redirected when they attempt to access any secure

COMET page. A session class maintains data

including what configurations the user may access

and if the user is an administrator in the current

configuration. A temporary browser cookie maps

each user to his or her COMET session. Static

LDAP group management is also supported.

COMET enables the addition and removal of users

to and from LDAP groups, including a sophisticated

method to identify and select which users to add or

remove from a particular group.

COMET logs messages (from inconsequential

‘debug’ to system ‘critical’ messages) in a text log

file, and also logs all changes to each LDAP

directory. The LDAP change logging stores the

previous and new values whenever an object is

changed through COMET. This enables system

administrators to track who makes what changes.

This is just a small taste of the additional

functionality available in COMET, existing in order

to ensure COMET’s practical applicability to the

distributed information management problem.

5 RESULTS

COMET has been running in production for over

two years and is used extensively across GE for

managing LDAP directories containing both internal

employee and external customer records. The

ability to manage directories of arbitrary structure by

dynamically learning about the underlying schema

has been critical to its broad acceptance within GE.

Another key component is its ability to manage a

directory without having to modify the directory’s

data structure. These features allow each GE

business to maintain a unique schema while using

the same COMET installation.

The GE businesses’ Help Desk organizations are

the principal users of COMET as they field support

calls. COMET is the first tool used by the staff

when they answer an internal support call, and has

thus become central to their work. COMET’s ability

to assign administrator permissions at the attribute

level within a domain enabled the creation of Help

Desk Domains with limited access to view and edit

attributes.

Several GE businesses are also using COMET to

manage communities of their customers. The ability

to define communities of users and to separate edit

authority and delegate authority over those

communities is critical to these GE businesses, as

they delegate and distribute limited authority to

different internal and external organizations.

Because of these benefits, there are now well over

2,000 administrators managing hundreds of

thousands of user records for both internal

employees and external customers and suppliers.

These administrators use COMET extensively.

COMET averages about 600 logins per day and can

reach over 900 logins per day.

COMET has been installed in production at

several locations within GE. Together, these

installations are currently managing over 20

different LDAP directories, demonstrating

COMET’s ability to manage multiple, disparate

directories with a single installation.

One of the primary benefits of COMET is its

flexible approach to the LDAP schema. Since

COMET makes no assumption about the schema,

any LDAP data structure can be managed.

However, this flexibility requires that the user have a

fairly solid understanding of LDAP in order to

configure the system most efficiently. The

configuration manager must be knowledgeable about

the underlying information repository.

Unlike many identity management packages,

COMET cannot assign administrators based on their

attributes, i.e., groups of users cannot be assigned

authorities. In COMET, authorities are delegated to

specific individuals. While maintaining strong

control over authority, this approach is less flexible

than other role-based approaches.

COMET is most beneficial when the community

of administrators is highly distributed and when

flexibility is needed regarding who can view and/or

edit what attributes. If there is a single administrator

or a small set of administrators who know LDAP,

who are centrally located, and who have the same

privileges over the data, then COMET may not be

necessary. COMET would still provide an effective

DELEGATING AUTHORITY IN A DISTRIBUTED INFORMATION MANAGEMENT SYSTEM

161

graphical user interface to view the data, but it may

not provide a measurable benefit.

6 FUTURE OPPORTUNITIES

COMET could be extended in several directions,

most especially for: manipulating LDAP schema,

incorporating LDAP static groups, and addressing

non-LDAP data. COMET currently manages the

data within a directory. COMET could be expanded

to be an LDAP data definition tool to manipulate

object classes and attributes within the underlying

directory schema. Current methods for Sun ONE

Directory Server (Sun ONE Directory Server, 2003)

schema manipulation involve either modifying the

LDAP properties files by hand or using Sun ONE’s

LDAP Management Console graphical user

interface, which we have found to be cumbersome.

COMET currently identifies user groups through

the use of query rules. LDAP supports the notion of

static groups to which users are individually added.

This enables groups of users to be formed that have

no common attribute values. It would be useful if

COMET could also use LDAP groups to identify the

user community within a domain. COMET already

supports managing LDAP groups, so this would be a

natural next step.

COMET’s architecture is independent of the

underlying directory structure. COMET has been

developed as an LDAP information management

system; however, it could be expanded to manage

databases other than LDAP directories. If COMET

could also manage relational databases, it could

become a general delegated administration

information management system capable of

managing many types of repositories.

7 CONCLUSIONS

COMET enables GE’s businesses to manage

customer and employee data globally and effectively

by allowing the delegation of authority to local

administrators at customer sites, thereby enabling

those customers to manage a subset of their own

data.

A growing number of GE businesses are using

COMET for GE’s Single Sign On initiative. Despite

the many disparate directories being managed, no

business has required any customizations to

COMET. COMET is simultaneously delegating the

management of multiple, disparate directories in a

distributed environment.

COMET has enabled GE Help Desk personnel to

better handle support calls, increasing their

efficiency while reducing maintenance costs.

Similarly, GE businesses are able to improve their

customer’s online experiences by offering

functionality to communities of users without

burdening GE to manage all of the records in each

community. Through COMET, the most capable

administrators are able to manage portions of the

data regardless of their location.

ACKNOWLEDGEMENTS

We appreciate the support of our management,

especially Andy Deitsch, and the technical

collaboration of Mark Kornfein, David Mehring,

Osman Öksoy, and Wayne Uejio.

REFERENCES

Loshin, P. (2001). Single Sign-on. Retrieved January 19,

2004, from, http://www.computerworld.com/security

topics/security/story/0,10801,57285,00.html

Netegrity IdentityMinder: Overview. (n.d.). Retrieved

October 9, 2003, from,

http://www.netegrity.com/

products/products.cfm?page=IMoverview

Oblix NetPoint. (n.d.). Retrieved October 9, 2003, from,

http://www.oblix.com/products/netpoint/index.html

Senf, D. (2003). Identity Management: Securing Your

E-Business Future

. Retrieved January 19, 2004,

from, http://www2.cio.com/ analyst/report940.html

Sun ONE Directory Server 5.2. (n.d.). Retrieved October

9, 2003, from,

http://wwws.sun.com/software/

products/directory_srvr/home_directory.html

Weltman, R. & Dahbura, T. (2000). LDAP Programming

with Java, Addison-Wesley, Reading, MA

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

162
