CABA

L A BLISS PREDICTIVE COMPOSITION ASSISTANT FOR

AAC COMMUNICATION SOFTWARE

Nicola Gatti

Dipartimento di Elettronica e Informazione, Politecnico di Milano

Piazza Leonardo da Vinci 32, I-20133, Milano, Italy

Matteo Matteucci

Dipartimento di Elettronica e Informazione, Politecnico di Milano

Piazza Leonardo da Vinci 32, I-20133, Milano, Italy

Keywords:

AAC languages, accessibility to disabled users, hidden Markov model, intelligent user interface, symbolic

prediction.

Abstract:

In order to support the residual communication capabilities of verbal impaired peoples softwares allowing

Augmentative and Alternative Communication (AAC) have been developed. AAC communication software

aids provide verbal disables with an electronic table of AAC languages (i.e. Bliss, PCS, PIC, etc.) symbols in

order to compose messages, exchange them via email, or vocally synthetize them, and so on. A current open

issue, in thins kind of software, regards human-computer interaction in verbal impaired people suffering motor

disorders. They can adopt only ad-hoc input device, such as buttons or switches, which require an intelligent

automatic scansion of the AAC symbols table in order to compose messages. In such perspective we have

developed CA BA

L an innovative composition assistant exploiting an user linguistic behavior model adopting

a semantic/probabilistic approach for predictive Bliss symbols scansion. CABA

L is based on an original

discrete implementation of auto-regressive hidden Markov model called DAR-HMM and it is able to predict

a list of symbols as the most probable ones according to both the previous selected symbol and the semantic

categories associated to the symbols. We have implemented the composition assistant as a component of

BLISS 2003 an AAC communication software centered on Bliss language and experimentally validated it with

both synthetic and real data.

1 INTRODUCTION

Nowadays, millions of verbal impaired people live

in the world (Bloomberg and Johnson, 1990); their

communication capabilities are permanently or tem-

porarily corrupted and, for this reason, most of them

suffer a condition of social exclusion. Verbal im-

paired people can not adopt canonic communicative

media (Fodor, 1983), such as natural language, and,

as the clinical experience evidences, their primary

need is to try alternative ways, according to their

residual capabilities, to communicate. In 1983 the

International Society for Augmentative and Alterna-

tive Communication (ISAAC, 1983) has been estab-

lished in USA with the aim to develop alternative in-

struments to allow verbal impaired people to com-

municate. ISAAC has been involved in developing

both languages, namely, Augmentative and Alterna-

tive Communication languages (AAC) (Shane, 1981),

and aids in order to support residual communicative

capabilities in verbal disables. AAC languages are

usually based on symbols and exploit peculiar com-

position rules simple enough to be learnt and used by

verbal disables. Among the AAC languages we can

cite: Bliss, PCS, PIC, PICSYMB, CORE, and Rebus.

Currently, disables adopt paper tables (see Fig-

ure 1) containing their most used AAC symbols and

point in such tables the symbols related to what they

want to communicate. In the AAC ﬁeld other AAC

aids exist, such as VOCAs (i.e. smart tablets that

associate vocal inputs to speciﬁc symbols), but they

evidence severe limitation with respect to effective

verbal disables needs since they present a limited set

di predeﬁned sentences. Given this scenario, infor-

mation technology plays a relevant role by providing

the verbal disabled people with aids, such as AAC

software applications, to support their communica-

tion. In fat, AAC software applications provide ver-

bal impaired people with an electronic table of sym-

bols where they can select AAC symbols to compose

messages adopting canonical or ad-hoc AAC devices

(e.g. joystick, tablet, switch, etc.). In addition, they

offer other features, such as email message exchange

and vocal synthesis.

Gatti N. and Matteucci M. (2004).

CABA2 L A BLISS PREDICTIVE COMPOSITION ASSISTANT FOR AAC COMMUNICATION SOFTWARE.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 89-96

DOI: 10.5220/0002606600890096

 SciTePress

A current open issue concerning AAC communi-

cation software aids regards human-computer inter-

action in disables with motor disorders (Lee et al.,

2001), that represent about the 60% of verbal im-

paired people. Motor disordered people are not able

to use canonical input devices, such as keybord and

mouse, but they can use only ad-hoc devices, such as

buttons or switches according to their residual motor

capabilities. Such devices operate providing the AAC

software aid with an on/off input, so, in order to select

AAC symbols from a table, it is required an automatic

scansion of such table underlining the symbols they

can select. The intelligent scansion mechanisms cur-

rently adopted in AAC software do not assure a rele-

vant reduction of the time spent by verbal disables to

compose messages: in fact person evidencing motor

disorders can spend few minutes to compose a sim-

ple sentece. In such perspective we have developed

CA BA

L (Composition Assistant for Bliss Augmen-

tative Alternative Language) an innovative composi-

tion assistant that performs a predictive scansion of

Bliss symbols and reduces up to 60% the time re-

quired to compose a message. CABA

L is based on

a discrete implementation of auto-regressive hidden

Markov model (Rabiner, 1989) called DAR-HMM

and it predicts a list of symbols as the most prob-

able according to both the last selected symbol and

the semantic categories associated to symbols. More-

over, the predictive model embedded in C ABA

L can

be adapted to the speciﬁc disable user to better match

his/her peculiar linguistic behavior.

The paper is structured as follows. In Section 2, we

introduce current scansion mechanisms for verbal dis-

ables and underline prediction issues. Section 3 intro-

duces Bliss symbolic prediction issues and probabilis-

tic prediction techniques. Section 4 describes DAR-

HMM and its implementation. Section 5 reports the

experimental results we have obtained. Finally, Sec-

tion 6 concludes the paper.

2 SENTENCE COMPOSITION IN

PEOPLE WITH MOTOR

DISORDERS

Currently some AAC software aids provide people

suffering motor disorders with an automatic scansion

of the symbol table (see Figure 1). A generic scan-

sion mechanism can be described as follows: an high-

light moves autonomously on an AAC symbol table

according to a speciﬁc strategy, when the requested

symbol is highlighted the user can select such symbol

activating the device, then the highlight starts to move

again. Each scansion mechanism is characterized by a

speciﬁc ad-hoc input device and the scansion strategy.

Ad-hoc input devices allow the verbal disable to

Figure 1: An AAC symbols table

start the scansion, select symbols, close the sentence,

and activate features such as vocal synthesis. Each

user adopts the device that best matches with his/her

residual motor capabilities. The alternative/residual

motor capabilities used are usually: blowing with the

mouth, closing the eyes, pushing big buttons.

The scansion strategy determines what is the next

symbol to highlight. In literature several automatic

scansion strategies for AAC communication aids can

be retrieved (Higginbotham et al., 1998) and each one

of them exhibits advantages and drawbacks. Such

strategies can be classiﬁed in (Swifﬁn et al., 1987):

• linear scansion: the symbols are presented sequen-

tially from the ﬁrst symbol of the table to the last

one;

• row-column scansion: at ﬁrst the rows are scanned,

once the disable has selected a row, its columns

are scanned (or vice versa) (Simpson and Koester,

1999);

• scansion at subgroups: the symbols are presented

in groups fewer and fewer up to only one symbol;

• predictive scansion: it predicts the most probable

symbols the user will use to continue the sentence

according to a model of the user, and it presents the

most probable ones.

The choice of the most adequate scansion strategy

for the peculiar user depends on several factors, such

as the mental and motor residual capabilities, the

adopted AAC language and the size of the user sym-

bols table. With respect to the user mental capa-

bilities, both scansion at subgroups and row-column

scansion require the user to remember exactly the

place of the desired symbol, so they can not be used

ICEIS 2004 - HUMAN-COMPUTER INTERACTION

by disables evidencing severe mental impairments.

With respect to the size of the symbol table linear

scansion, row-column scansion and scansion at sub-

groups do not offer good performance if the number

of symbols is elevate (50 symbols and more). Hence,

current non predictive scansion strategies do not allow

to verbal disables suffering motor disorders a relevant

reduction in the time spent to compose sentences (Lee

et al., 2001).

Although predictive scansion strategies could as-

sure better performance (Koester and Levine, 1994),

they are currently adopted in a small number of AAC

assistitive technology aids. In particular symbolic pre-

diction is currently adopted only in VOCAs, but it evi-

dences severe limitations: it predicts symbols accord-

ing to a strict set of sentences previously registered

and do not exploit a linguistic behavior model of the

user. In such a way such prediction system allows the

user to compose a ﬁxed number of messages and it

is not able to generalize allowing the composition of

new messages (Higginbotham et al., 1998). In litera-

ture numerous predictive techniques have been devel-

oped, but they have been applied mainly in alphabet-

ical prediction. In such context the main prediction

techniques (Aliprandi et al., 2003) employ a statisti-

cal approach (based on hidden Markov models and

Bayesian networks), a syntactic and strong syntac-

tic approach (based on linguistic models), a semantic

approach (based on semantic networks), and hybrid

approaches. To the best of our knowledge, currently

symbolic predictive models do not exist.

The main issue with alphabetical predictive tech-

niques, that prevents their use for symbolic predic-

tion, is related to the size of the dictionary of items

to be predicted and their composition rules. In fact,

alphabetical prediction operates on a limited num-

ber (about 20) of items, the alphabetic signs, that

can be organized in words known a priori. Con-

versely, symbolic prediction operates on a set of sym-

bols variable in number that can be organized in dif-

ferent sequences according to the peculiar user lin-

guistic capabilities. In addition alphabetical predic-

tion techniques do not match with the symbolic pre-

diction issue. On the other side, a pure statistical ap-

proach does not keep into account the peculiar AAC

language structure, in fact each verbal impaired user

adopts/develops an own syntactic model according to

his/her residual mental capacities. This is also the rea-

son for which the utilization of a pure syntactic ap-

proach for any user can not be achieved, and a pure

semantic approach does not address the variability re-

lated to the residual user capacities.

We consider an ad-hoc hybrid approach as the right

choice in this context; in the following sections of the

paper we focus on the description of this prediction

model since it represents the most original part of our

work.

3 BLISS SYMBOLS PREDICTION

AND GRAPHICAL MODELS

In our work we focus on the Bliss language (Bliss,

1966), since it is the most adopted and expressive

among AAC languages. In the design of a composi-

tion assistant to predicts Bliss symbols, a set of pecu-

liar requirements regarding both the human-computer

interface and the prediction model can be established.

The composition assistant should suggest a lim-

ited number of symbols (around 4-5) not to confuse

the disable user (Koester and Levine, 1994), the pre-

diction must be accomplished in real time, and the

scansion rate must be adaptable with the user needs

(Cronk and Schubert, 1987). This last aspect ad-

dresses issues due to the high variability of residual

mental and motor capabilities, in fact the composition

assistant should be able to adapt the scansion rate ac-

cording to the time required by the speciﬁc disable

to read and select the highlighted symbol. With re-

spect to the prediction model, a verbal impaired user

can adopt all the Bliss symbols (about 2000), even

if he/she usually adopts only a part of them (usually

from 6-7 to 200), and it should be taken into account

that the symbol to be predicted depends in some ex-

tents on the symbols selected previously.

We have adopted a semantic/probabilistic approach

to model the user language behavior and we use this

model in order to predict the most probable symbols

to be suggested by an automatic scansion system. We

have used the semantic approach to take advantage of

a Bliss symbols categorization and the probabilistic

approach both to take into account for uncertainties

in the user language model and to give a reasonable

estimate of the reliability of the proposed prediction.

In CABA

L we have used a graphical model based

on a variation of a classical Hidden Markov Models

(HMM). Classical HMMs involve states and symbols,

in particular they relate the probability that a particu-

lar symbol is emitted to the probability that the system

is in particular state. Moreover they use a stochas-

tic process to deﬁne the transition from a state to the

other (see Figure 2).

In HMM a particular sequence of observation (i.e.

observed symbols) is generated by choosing at time

t = 0 the initial state s

∈ S according to an ini-

tial probability distribution π(0), a symbol v

is gen-

erated from a multinomial probability distribution b

associated to state s

, and the system move from the

present state s

to the next state s

of the sequence

according to a transition probability a

to generate

the next symbol. States in this model are not directly

observable; symbols represent the only information

that can be observed, and this is the reason for the

term hidden in the model name. Notice that classical

HMMs consider symbols as independent from each

CABA2L A BLISS PREDICTIVE COMPOSITION ASSISTANT FOR AAC COMMUNICATION SOFTWARE

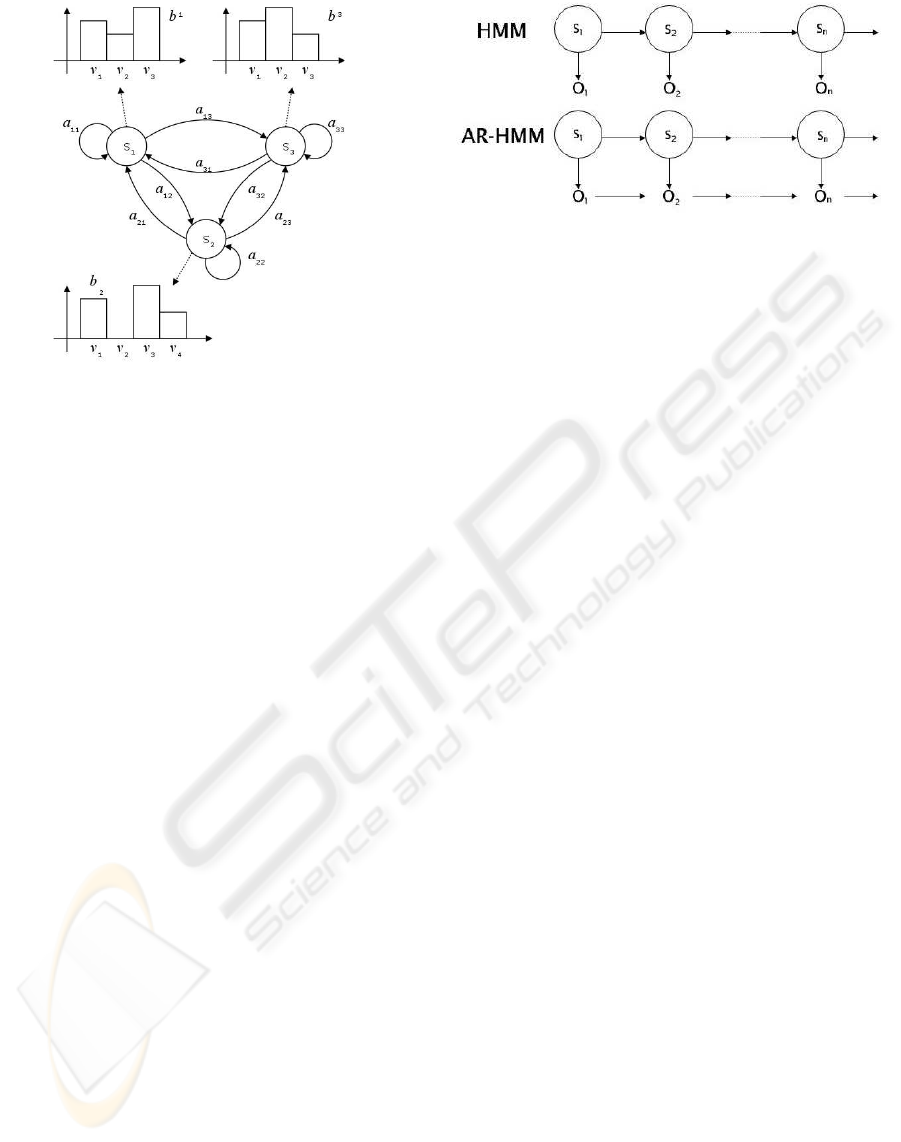

Figure 2: An example of Hidden Markov Model

other given the present state; thus probability of ob-

serving symbol v

at time t in a sequence of sym-

bols does not depend on the symbol observed at time

t − 1, but it depends only on the present state s

and,

implicitly, the previous one s

through the transition

probability a

(Ghahramani, 2001).

HMMs could be adopted to implement a predictive

models for Bliss symbols if we could assume that a

symbol is predictable given the corresponding Bliss

symbol category as the hidden state. However, this

approach oversimplify the user language model de-

scribed previously: it does not relate the emission of a

symbol with the symbol previously emitted due to the

independence assumption in HMMs. To face this is-

sues we have adopted a particular extension of HMM,

called AR-HMM (Auto-Regressive Hidden Markov

Model) that relate the emitted symbol both to the ac-

tual state (as canonical HMM) and to the previous

emitted symbol (Figure 3 illustrates the differences

between canonical HMM and AR-HMM). In such a

way we have a model that keeps into account the pre-

vious emission and it is still computationally tractable

as described further on.

In order to identify the possible hidden states of

an ad-hoc AR-HMM for the Bliss language, sym-

bols have been divided into six categories according

to their grammatic role, and, later, each category has

been divided into a number of subcategories adopt-

ing the semantic networks formalism (Quillian, 1968)

to keep into account the semantic of the symbols and

the logic connection among two subcategories. This

subcategories identiﬁcation process has been accom-

plished in collaboration with experts in verbal reha-

bilitation to obtain subcategories not excessively spe-

ciﬁc that would have complicated the model without

any reason (e.g., we have a substantive subcategory

Figure 3: Comparison between HMM and AR-HMM

‘food’ because it connects the verb subcategory ‘feed-

ing’, we have not a substantive subcategory ‘animal’

because it does not connect a speciﬁc category). We

report such subcategories and the number of symbols

assigned to each subcategory (note that a symbol can

belong more than one category).

• Verbs: people movement (23), objects movement

(15), body care (16), description (3), everyday (10),

servile (7), emotional (7), feeding (33), other (180).

• Adverbs: time (67), exclamatory (12), place (28),

quantity (17), holidays (12), color (23), other (20).

• Adjectives: opinion (29), character (18), physical

description (33), food description (17), quantity

(13), feeling (29), other (52).

• Substantives: food (141), cloth (38), body (47), ev-

eryday (26), people place (110), things place (22),

other (600).

• People: possession (16), relation (47), job (38),

other (51).

• Punctuation: question (13), other (36).

4 DISCRETE

AUTO-REGRESSIVE HIDDEN

MARKOV MODEL

AR-HMMs are commonly used in literature for pre-

diction in continuous systems and they usually de-

scribe the emission probability of an symbol/value

according to a Gaussian distribution; the emission of

Bliss symbol, however, is a discrete event that can be

described adopting a multinomial probability distri-

bution. In CABA

L, to overcome this problem, we

have implemented a Discrete Auto-Regressive Hid-

den Markov Model (DAR-HMM) where the emis-

sion probability for a symbol is described using a bi-

variated multinomial distribution. In fact, we intro-

duced the DAR-HMM as a ﬁrst order extension of a

ICEIS 2004 - HUMAN-COMPUTER INTERACTION

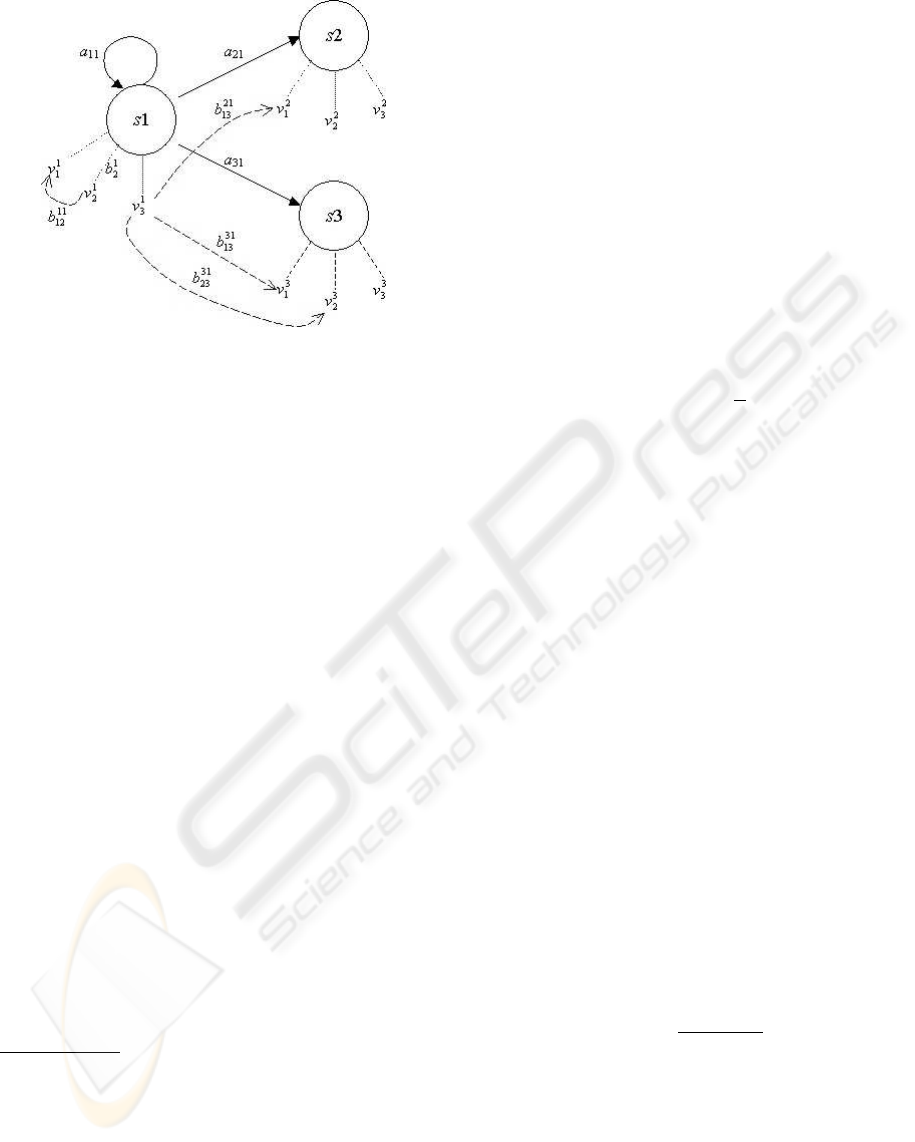

Figure 4: Symbols emission in DAR-HMM; s

is the state

(symbol subcategory), v

are the observed symbol

classical HMM where the symbol emission probabil-

ity depends on the present state and the last observed

symbol as depicted in Figure 4.

DAR-HMM for symbolic prediction can be de-

scribed using a parameter vector λ =< Π

, A, B >,

where Π

[N] is the vector of inital subcategory prob-

ability π

(0), A[N][N ] is the matrix with subcategory

transition probabilities a

, and B[N ][M ][M + 1] is

the emission matrix

with symbol probabilities b

and b

(see Appendix A for details). In CABA

this λ vector has been estimated using a dataset of

Bliss sentences. To do that, we have adopted a

variation of the Baum-Welch algorithm, an iterative

algorithm based on the Expectation-Maximization

method (Bilmes, 1998; Dempster et al., 1977), adapt-

ing this technique to the speciﬁc case of DAR-HMM

(see Figure 5).

Since the Baum-Welch algorithm is a greedy algo-

rithm that can be trapped in local minima, the ini-

tialization estimate of λ parameter vector is a fun-

damental aspect. In literature a theoretical solution

that addresses such issue does not exist; in practice,

the adoption of a random or uniform distributed ini-

tialization for A and Π

has been veriﬁed to be ad-

equate. In particular we adopt an uniform distribu-

tion as initial estimate for Π

, and a distribution based

on the knowledge about the phenomenon for A. Only

From an implementation point of view matrix B could

represent the main issue of this model (i.e., with N = 30

subcategories and M ' 2000 symbols the cells number

amount is of the order of 10

, about 400MBytes). How-

ever B can be considered a sparse matrix since from each

subcategories only a part of symbols can be emitted, so the

cells number is, approximately, lower than 10

and ad-hoc

data structure such as heap or priority queue and optimized

algorithms can be used to overcame memory occupancy and

speed access issues.

arcs connecting subcategories in the semantic model

of the language (see Section 3) should have a proba-

bility a

6= 0. However, we have assigned to the arcs

between symbols and states that are not connected in

the semantic network a very low probability, not to

preclude the training algorithm to eventually discover

unforeseen correlations.

The initial estimation for the B matrix is more crit-

ical so we have used the Segmental k-Means (Juang

and Rabiner, 1990; Juang et al., 1986) technique

to obtain a more conﬁdential estimate. Such pro-

cess considers a sub set of sentences composing the

dataset, and, for each one, it looks for the best se-

quence of subcategories using the Viterbi algorithm

to upgrades the symbols emission probabilities.

Given the initial values λ

for the model param-

eters, we use a modiﬁed Baum-Welch algorithm to

estimate, from a real dataset, the model parameters

through a sequence of temporary

λ model parameters.

As in any learning algorithm, the main issue is avoid-

ing the overﬁtting phenomenon (Caruana et al., 2001),

so we would like to stop the training phase according

to the generalization error (i.e., the error on new sam-

ples) and not just observing the training error (i.e., the

error on the training set). To do this, we have used

the K-fold cross-validation technique (Amari et al.,

1995); it consists in dividing the whole set of sen-

tences into K similar subsets to use at each iteration

K − 1 subsets for parameter estimation and the re-

maining validation set is used to valuate the conver-

gence of model generalization error. In other words,

we calculate the errors of the model in predicting the

sentences of the validation set it has never seen, and

we analyze the validation error function during train-

ing iterations of the Baum-Welch algorithm until it

reaches its minimum.

In order to terminate the iteration at which the error

function reaches its minimum, several practical tech-

niques can be adopted, but none of them assures the

achieving the global minimum. We have chosen to

adopt a termination criterion based the generalization

loss method (Prechelt, 1996). Given:

Err

Opt

(t) = min

≤t

Err

V al

)

the minimum error is obtained at time t; consider

GL(t) , 100

Err

V al

(t)

Err

Opt

(t)

− 1

which represents the last increment in comparison

with the minimum. The training phase is stopped

whenever the generalization loss GL becomes bigger

than a given threshold τ :

GL(t) > τ.

In this approach, the error function could stabilize af-

ter a local minimum, without GL(t) rising the thresh-

old. In order to face such issue we have added to

CABA2L A BLISS PREDICTIVE COMPOSITION ASSISTANT FOR AAC COMMUNICATION SOFTWARE

Figure 5: The training process

the stop criterion two condition relating the maximum

number of iterations and the minimum improvement

during learning.

5 EXPERIMENTAL RESULTS

DAR-HMM has been implemented in CABA

L and,

ﬁnally, integrated in BLISS2003, a communication

software centered on Bliss language. CA BA

L re-

ceives from BL IS S2003 the last selected symbol, cal-

culates the most probable four symbols according to

the established requirements, and scans them in an ad-

hoc panel in the graphical interface before scanning

the full table.

In order to validate DAR-HMM, we are interested

in giving an estimated training error and general-

ization error in several user scenarios characterized

by symbols, symbols subcategories, user residual lin-

guistic capabilities, and user needs; we are also inter-

ested in evaluating the time required both for learning

and prediction process. To accomplishing this val-

idation, we have strictly collaborated with two Ital-

ian clinics for verbal impairments (PoloH and SNPI

of Crema

) evaluating the prediction performance in

different scenarios; in this paper we report just two

scenarios as the most signiﬁcant ones:

1. a dataset of 20 sentences with 4 sub-categories and

7 symbols representing a verbal impaired person

unskilled in Bliss utilization or suffering deep men-

tal deﬁciency;

2. a dataset of 80 sentences with 18 sub-categories

and 120 symbols representing a verbal impaired

person skilled in Bliss use and without deep mental

deﬁciency.

We have shufﬂed the sentences of each dataset in or-

der to achieve a homogeneous dataset not affected by

PoloH is a information technology center that support

AAC aids adoption. SNPI is the neuropsychiatric adoles-

cent and infancy local service associated to the hospital of

Crema, Italy.

Table 1: Training error: probability that the requested sym-

bol is in the ﬁrst four predicted symbols according to the

datasets adopted to train the DAR-HMM

Predictions Scenario 1 Scenario 2

Mean Std. Dev. Mean Std. Dev.

1 symbol 0.343 0.055 0.250 0.017

2 symbols 0.563 0.074 0.299 0.028

3 symbols 0.778 0.067 0.319 0.033

4 symbols 0.908 0.056 0.345 0.042

not suggested 0.092 0.056 0.655 0.042

time correlation. In addition we have divided each

dataset into two parts, respectively 80% of sentences

in the ﬁrst part and 20% of sentences in the second

one. We have adopted the ﬁrst part to training the

model computing the training error. We have adopted

the second one to evaluate the generalization error.

The training error expresses the effectiveness of the

learning and it is obtained comparing the suggestion

proposed by CA BA

L during the composition of sen-

tences it has learnt. To estimate the correct predic-

tion’s probability, we have carried out over 800 simu-

lations where we compare the suggested symbols and

the one chosen by the user. In Table 1 mean and stan-

dard deviation for both the two scenarios are showed,

they evidence a training error of about 9.2% for the

ﬁrst scenario and 65.5% for the second one taking into

account a number of proposed symbols equals to 4 as

suggested by therapist and according to the require-

ments from Section 3.

The generalization error expresses the effectiveness

of the prediction system, and it is obtained compar-

ing the suggestions proposed by CABA

L during the

composition of sentences that exhibit the same prob-

ability distribution with respect to the sentences it has

learnt, but were not presented to the system during

the training phase. To estimate the correct predic-

tion’s probability, we have carried out over 200 simu-

lations where we compare the suggested symbols and

the one chosen by the user. In Table 2 mean and stan-

dard deviation for both the two scenarios are showed,

ICEIS 2004 - HUMAN-COMPUTER INTERACTION

they evidence a generalization error of about 11.3%

for the ﬁrst scenario and 64.3% for the second one

taking again into account a number of proposed sym-

bols equals to 4 before. The values of mean and stan-

dard deviation evaluated in generalization error are

very close to the values evaluated in training error,

thus DAR-HMM evidences high generalization abil-

ity. Although the training and generalization errors

are in the second scenario high we are conﬁdent to

get better result just having a bigger dataset.

Time spent by verbal disables that collabo-

rated with us in order to compose messages using

BL IS S2003 with respect to the time spent with adop-

tion of a traditional scansion system has been reduced

up to 60%. Tests have evidenced that the training

phase requires few minutes depending on the size of

the dataset and the number of symbols and subcat-

egories, but this does not affect BLISS2003 perfor-

mance, because it can be run on background. Con-

versely, these tests have proved that the symbols pre-

diction is immediate (<1 second) and can be per-

formed in real time.

6 CONCLUSIONS

In this paper we have analyzed the AAC symbols

scansion issues for motor disordered persons estab-

lishing requirements according to literature and the

experiences of several clinics for verbal disables that

have collaborated with us. In particular we described

prediction models currently adopted in AAC context

and we designed an ad-hoc prediction model (DAR-

HMM). We described DAR-HMM peculiarities: its

formalism, ad-hoc emission rules, parameters initial-

ization, training processes, stopping criterion, and im-

plementation issues. We have applied DAR-HMM to

the case of Bliss language introducing semantic cate-

gories for Bliss symbols. In addition, we integrated

CA BA

L into BLISS2003 an AAC communication

software based on Bliss, and experimentally validated

it with real data in collaboration with two Italian clin-

ical centers for verbal impaired people proving its ef-

fectiveness for reduction of the time spent to compose

Bliss messages.

In future the performance of the prediction will be

improved reﬁning the prediction model. Moreover we

would like to achieve on-line adaptation of the DAR-

HMM to the linguistic behavior of the user and to take

into account the evolution of the user linguistic capa-

bilities, and to support other AAC languages with re-

spect to Bliss, particularly PCS. Finally we will ana-

lyze the learnt semantic/probabilistic model of the lin-

guistic behavior of the user in order to study relation-

ships between disabilities and verbal impairments.

Table 2: Estimated generalization error: probability that

the requested symbol is in the ﬁrst four predicted symbols

according to the datasets not adopted to train the DAR-

HMM

Predictions Scenario 1 Scenario 2

Mean Std. Dev. Mean Std. Dev.

1 symbol 0.202 0.082 0.185 0.089

2 symbols 0.438 0.146 0.252 0.073

3 symbols 0.666 0.181 0.304 0.070

4 symbols 0.887 0.067 0.357 0.077

not suggested 0.113 0.067 0.643 0.077

REFERENCES

Aliprandi, C., Barsocchi, D., Fanciulli, F., Mancarella, P.,

Pupillo, D., Raffaelli, R., and Scudellari, C. (2003).

AWE, an innovative writing prediction environment.

In Proc. of the Int. Human Computer Conf., Crete,

Greece.

Amari, S., Finke, M., Muller, K. R., Murata, N., and Yang,

H. (1995). Asymptotic statistical theory of overtrain-

ing and cross-validation. Technical Report METR

95-06, Dep. of Math. Eng. and Inf., Physics, Uni. of

Tokyo, Tokyo.

Bilmes, J. (1998). A gentle tutorial of the EM Algorithm

and its application to parameter estimation for Gaus-

sian Mixture and Hidden Markov Models. Technical

report, Dep. of Electrical Eng. and Comp. Sci. at Uni.

of California, Berkeley.

Bliss, C. K. (1966). Semantography. Semantography Blis-

symbolic Communication, Sidney, Australia.

Bloomberg, K. and Johnson, H. (1990). A statewide demo-

graphic survey of people with severe communication

impairments. Augmentative and Alternative Commu-

nication, 6:50–60.

Caruana, R., Lawrence, S., and Giles, C. L. (2001). Overﬁt-

ting in neural networks: Backpropagation, conjugate

gradient, and early stopping. In Advances in Neural

Information Processing Systems, Denver, Colorado.

Cronk, S. and Schubert, R. (1987). Development of a real

time expert system for automatic adaptation of scan-

ning rates. In Proc. of the Conf. on Rehabilitation

Technology, RESNA, volume 7, pages 109–111, Wash-

ington, DC, USA.

Dempster, A., Laird, N., and Rubin, D. (1977). Maxi-

mum likelihood from incomplete data via the EM al-

gorithm. Journal of Royal Statistical Society B, 39:1–

38.

Fodor, J. (1983). The modularity of mind. MIT Press, Cam-

bridge, USA.

Ghahramani, Z. (2001). An introduction to hidden markov

models and bayesian networks. International Journal

of Pattern Recognition and Artiﬁcial Intelligence, 1:9–

42.

CABA2L A BLISS PREDICTIVE COMPOSITION ASSISTANT FOR AAC COMMUNICATION SOFTWARE

Higginbotham, D. J., Lesher, G. W., and Moulton, B. J.

(1998). Techniques for augmenting scanning commu-

nication. Augmentative and Alternative Communica-

tion, 14:81–101.

ISAAC (1983). Int. Soc. for Augmentative and Alterna-

tive Communication, Internet site. http://www.isaac-

online.org. Last accessed October 1th, 2003.

Juang, B. and Rabiner, L. (1990). The segmental k-means

algorithm for estimating parameters of hidden markov

models. In IEEE Trans. on Acoustics Speech and

Signal processing, ASSP-38, pages 1639–1641. IEEE

Computer Society Press.

Juang, B., Rabiner, L., and Wilpon, G. (1986). A segmental

k-means training procedure for connected word recog-

nition. AT&T Technical Journal, 65:21–31.

Koester, H. and Levine, S. (1994). Learning and perfor-

mance of ablebodied individuals using scanning sys-

tems with and without word prediction. Assistive

Technology, page 42.

Lee, H.-Y., Yeh, C.-K., Wu, C.-M., and Tsuang, M.-F.

(2001). Wireless communication for speech impaired

subjects via portable augmentative and alternative sys-

tem. In Proc. of the Int. Conf. of the IEEE on Eng.

in Med. and Bio. Soc., volume 4, pages 3777–3779,

Washington, DC, USA.

Prechelt, L. (1996). Early stopping-but when? In Neural

Networks: Tricks of the Trade, pages 55–69.

Quillian, M. (1968). Semantic memory. In Minsky ed.

Semantic Information Processing. MIT Press, Cam-

bridge.

Rabiner, L. (1989). A tutorial on hidden markov models and

selected applications in speech recognition. In Proc. of

the IEEE, 77, pages 257–286. IEEE Computer Society

Press.

Shane, B. (1981). Augmentative Communication: an intro-

duction. Blackstone, Toronto, Canada.

Simpson, R. C. and Koester, H. H. (1999). Adaptive one-

switch row-column scanning. IEEE Trans. on Reha-

bilitation Engineering, 7:464–473.

Swifﬁn, A. L., Pickering, J. A., and Newell, A. F. (1987).

Adaptive and predictive techniques in a cammunica-

tion prosthesis. Augmentative and Alternative Com-

munication, 3:181–191.

APPENDIX A

In this appendix, we brieﬂy describe the DAR-HMM ac-

cording to the formalism adopted by Rabiner in (Rabiner,

1989) to specify classical hidden Markov models:

• S , {s

}, subcategories set with N = |S|;

• V , {v

}, predictable symbols set with M = |V |;

• V

(i)

= {v

(i)

}, set of symbols predictable in subcategory

i with M

(i)

= |V

(i)

| and V =

(i)

;

• O(t) ∈ V , observed symbol at time t;

• Q(t) ∈ S, state at time t;

• π

(t) = P (Q(t) = s

), probability that s

is the actual

subcategory at time t;

• a

= P (Q(t + 1) = s

|Q(t) = s

), transition proba-

bility from s

to s

;

• b

= P (O(0) = v

(i)

|Q(0) = s

), probability of ob-

serving v

(i)

from subcategory s

at t = 0;

• b

= P (O(t) = v

(i)

|Q(t) = s

, O(t − 1) = v

)

probability of observing v

(i)

from the subcategory s

having just observed v

)

DAR-HMM for symbolic prediction can thus be described

using a parameter vector λ =< Π

, A, B >, where

[N] is the vector of inital subcategory probability π

(0),

A[N][N] is the matrix with subcategory transition probabil-

ities a

, and B[N][M ][M + 1] is the emission matrix with

symbol probabilities b

and b

. Given λ the vector of pa-

rameters describing a speciﬁc language behavior model, we

can predict the ﬁrst observed symbol as the most probable

one at time t = 0:

O(0) = arg max

(i)

P (O(0) = v

(i)

|λ)

= arg max

(i)

(P (O (0) |Q (0) , λ) P (Q(0)))

= arg max

(i)

· π

(0)

Then mimicking the DAR-HMM generative model, to pre-

dict the t

symbol of a sentence we want to maximize the

symbol probability in the present (hidden) state given the

last observed symbol:

O(t) = v

(i)

, Q(t) = s

|O(t − 1) = v

)

, λ

Recalling that we can compute the probability of the current

(hidden) state as:

P (Q(t)) =

P (Q(t)|Q(t − 1)) P (Q(t − 1)) =

(t − 1)a

= π

(t),

we obtain a recursive form for symbol prediction at time t:

O(t) = arg max

(i)

(t − 1)a

ICEIS 2004 - HUMAN-COMPUTER INTERACTION
