VIEW VISUALISATION FOR ENTERPRISE ARCHITECTURE

From conceptual framework to prototype

Maria-Eugenia Iacob, Diederik van Leeuwen

Telematica Instituut, Drienerlolaan 5, 7500AN Enschede, The Netherlands

Keywords: Enterprise architecture, View, Viewpoint, Model, Graph layout, Visualisation

Abstract: In this paper we address the problem of visualisation

of enterprise architectures. To this purpose a

framework for the visualisation of architectural views and the design of a visualisation infrastructure are

presented. Separation of concerns between storage, internal representation and presentation is the main

requirement for setting up this framework, since it will allow us to select and subsequently present

differently the same content (models) to different types of stakeholders. Our approach has resulted in an

operational prototype that has been tested in a pilot case, also presented in what follows.

1 INTRODUCTION

Enterprise architecture (EA) is a coherent whole of

principles, methods and models that are used in the

design and realisation of the enterprise’s

organisational structure, business processes,

information systems, and infrastructure (Bernus et

al., 2003). However, these domains are not

approached in an integrated way, which makes it

difficult to judge the effects of proposed changes.

Every domain speaks its own language, draws its

own models, and uses its own techniques and tools

for visualisation. Communication and decision

making across domains is seriously impaired.

One of the goals of the ArchiMate (see the

acknowledgement) p

roject is to provide the

enterprise architect with instruments that support

and improve the disclosure and visualisation of

enterprise architecture without being obstructed by

the narrowness of specific domains.

Views and viewpoints are essential elements of

e disclosure of enterprise architecture descriptions.

Following (IEEE, 2000), viewpoints are templates

for view creation that define the addressed

stakeholder, his concerns and the information he

needs for understanding the enterprise from his

perspective and for taking responsibility for his

decisions.

This paper presents the creation of a viewpoint-

dri

ven visualisation prototype. Starting point for this

prototype is the ArchiMate conceptual framework

for enterprise architecture visualisation, which

establishes the integration of heterogeneous content

(models) and the differentiation of this content

towards stakeholders (Section 2). From the

conceptual framework a visualisation infrastructure

is derived (Section 3), which realises the desired

integration and differentiation. Finally the

visualisation infrastructure serves as a template for a

visualisation prototype (Section 4).

2 CONCEPTUAL FRAMEWORK

In this section we present a framework for the

disclosure and visualisation of enterprise

architectures. Separation of concerns (Dijkstra,

1976) between storage, internal representation and

presentation is the main requirement for setting up

this framework, since it will allow us to select and

subsequently present the same information (models)

to different types of stakeholders. The challenge for

such a framework is to facilitate the visual

presentation without having to change the

underlying infrastructure every time a new type of

stakeholder is added or the information need of an

existent stakeholder changes.

Visualisation of enterprise architecture is

conce

rned with the presentation of views that may

contain models, text and other types of content to

different types of stakeholders. Figure 1 expresses

the conceptual architecture that underlies our

approach to visualisation (based on ideas from

Schönhage, B. & A. Eliëns, 1997). We assume the

existence of a repository of models, describing the

architecture. The view content is a selection from the

629

Iacob M. and van Leeuwen D. (2004).

VIEW VISUALISATION FOR ENTERPRISE ARCHITECTURE - From conceptual framework to prototype.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 629-634

DOI: 10.5220/0002610606290634

 SciTePress

Presentation

Viewpoint

Models

Model

View

presentation

View

content

select

derive

select

derive

visualise

updateupdate

update

content

space

presentation

space

ViewpointViewpoint

Architect

Stakeholder

Architect

Stakeholder

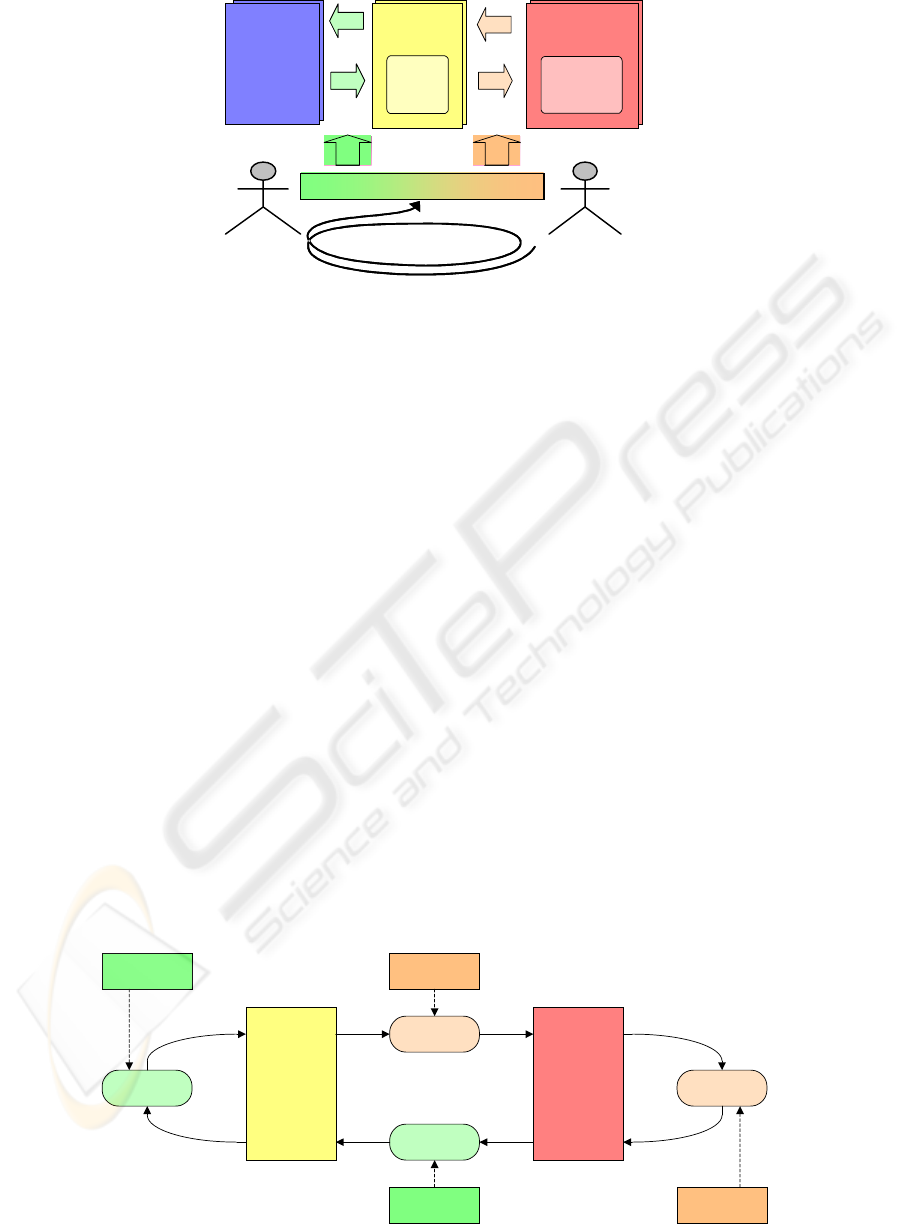

Figure 1: Information objects in the viewpoint architecture.

models stored in this repository, possibly augmented

with analysis results and subjected to operations

such as abstraction and refinement.

The view content is expressed in terms of

modelling concepts, stakeholders, and concerns. The

view content can be presented in different ways.

This presentation is expressed in terms of a

presentation space, containing e.g. edges, nodes,

text and/or charts and tables.

Editing operations on this presentation can lead

to updates of the view content and consequently of

the underlying model.

The separation between content and visualisation

is essential to obtain an easily adaptable architecture.

Arguments sustaining this statement one can also

find in the Model/ View/ Controller design pattern

of Gamma et al., 1995, and the work of Pattison et

al. 2001 and Schönhage et al. 1998. Thus, if the set

of model concepts is changed, or if a new form of

presentation is added, the impact of these changes

can be kept local. Only the relations between model

concepts and visualisation concepts need to be

updated.

2.1 Viewpoints

According to the IEEE-1471 standard, the

architecture stakeholders have viewpoints that result

in views containing models that feed the

stakeholders’ information presentation needs. A

viewpoint establishes the purposes and audience for

a view and the techniques or methods employed in

constructing the view (IEEE, 2000). We have

adopted this approach as basis for the understanding

and use of the viewpoint concept in our visualisation

infrastructure. Furthermore, we do not strive for a

fixed set of viewpoints. Instead, we assume that the

architect and stakeholder should be provided with

the means to construct their own viewpoints from

basic elements. Since the idea of viewpoints

revolves around selecting the right content from a

set of (possibly large) models and choosing a

suitable presentation for this selection, we opt for a

rule-based solution. Viewpoint rules are the basic

building blocks of a viewpoint. First, they describe

which content is selected (according to selection

rules) from the model (or another view) and how it

is presented (according to presentation rules), and

secondly, they are used to map (according to

interpretation rules) edit operations (executed

according to interaction rules) on the view

presentation back into the model.

In Figure 1, things were simplified a bit. In

practice, a viewpoint consists of different types of

rules, governing the content and presentation of

View

presentation

Presentation

rules

Interaction

rules

Present

Interact

View content

Selection

rules

Interpretation

rules

Interpret

Select

ure 2: View data flow.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

630

views, and controlling the interaction with and

interpreting changes to the view presentation.

Furthermore, a view might itself be based on another

view, leading to a chain of views instead of a single

step from a model to the view content. Since this

view content is expressed in the same concepts as

the model (Figure 1), the distinction between model

and view content is immaterial. This leads us to the

data flow picture of Figure 2, which basically

describes the cyclic process behind the interaction of

a user (or stakeholder) with models (or views).

3 VISUALISATION

INFRASTRUCTURE

In this section the conceptual ideas of Figure 1 and

2, are translated into a more concrete visualisation

infrastructure design. In doing so, we distinguish

between the specification and the use of viewpoints.

As opposed to the conceptual view, a tool

infrastructure requires a distinction between models

and view content. Although models and view

content are expressed using the same concepts, they

may be stored differently (in terms of location,

duration and format). Models, view content and

view presentations serve different purposes and have

different life durations and cycles. While models

preserve, describe and document the architecture at

several moments in its existence, the generation of

view content is used as a work instrument.

Whenever an architectural change or architecture

information retrieval is needed view content that can

be altered or annotated is generated out of the

models. This does not necessarily mean that the

original models will be also altered. Sometimes the

purpose is to interactively change or analyze data.

Sometimes the purpose is just to look at an overview

or a cross-section of complex data. Therefore,

compared to models, view content has a provisional

existence. In what concerns view content

visualisations the perishable character is even more

obvious. Multiple visualisations of the same view

content can be created to serve the visual

preferences of one individual or the information

needs of various stakeholders.

Therefore, all these different purposes and uses

impose different tools for their presentation,

manipulation or query. Because of the variety of

tools on the content side and of tools on the

presentation side, a monolithic tool bringing together

all functionality would harm the reusability and

extensibility of the visualisation infrastructure.

Therefore we propose a component-based

infrastructure with clear interfaces between

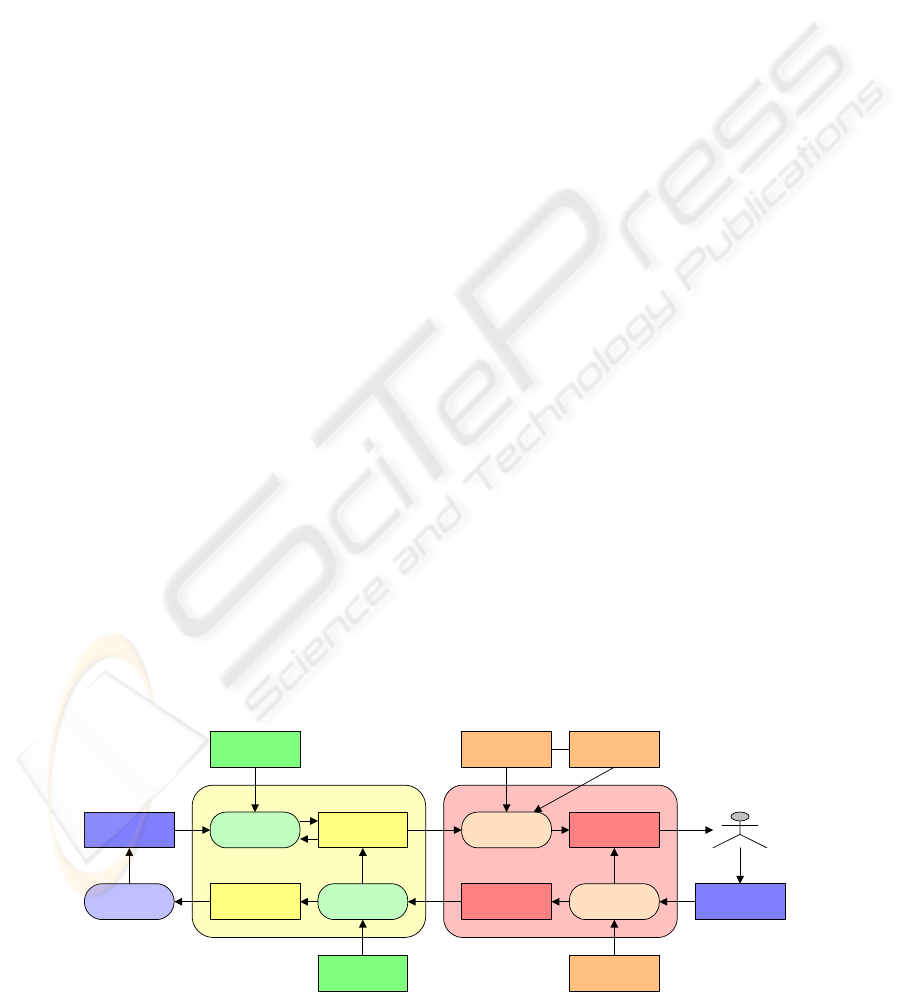

components (Figure 3).

The shapes outside the view content manager

and the view presentation manager in Figure 3 (e.g.

model, model manager, user, user interactions)

represent things that are assumed to be already

present. This includes the selection rules,

presentation rules, interaction rules and

interpretation rules, which together embody the

viewpoint specification.

In order to allow both data retrieval and data

manipulation, the infrastructure provides two main

flows: from model to user and from user to model.

Not all user interactions need to be translated back to

the model. Temporary changes serving an impact

analysis might propagate back no further than to the

view content. Personal preferences concerning the

layout of a presentation may even cause user

interactions to propagate no further then the

presentation itself. Note that this behaviour induces

the creation of different view content versions and

view presentation versions that need to be managed.

To allow content tools and presentation tools to

operate independently, we divide the infrastructure

into two main parts: the view content manager and

the view presentation manager.

The view content manager incorporates two

components:

Selector – The selector uses selection rules from

View presentation manager

View

presentation

Presentation

rules

Interaction

rules

Presenter

Interactor

View content manager

View content

Selection

rules

Interpretation

rules

Model

manager

Interpreter

User

interactions

View content

operations

Model

operations

Selector

Symbol

Library

ure 3: Visualisation infrastructure desi

VIEW VISUALISATION FOR ENTERPRISE ARCHITECTURE - From conceptual framework to prototype

631

a viewpoint specification to select and/or transform

data from either a model or view content into view

content.

Interpreter – The interpreter uses interpretation

rules from a viewpoint specification to interpret view

content operations and update a model or view

content accordingly. This is where ambiguous

operations like ‘decrease the average value of …’

may be translated into unambiguous operations like

‘decrease all values with a percentage equal to …’.

The view presentation manager incorporates

again two components:

Presenter – The presenter uses presentation

rules from a viewpoint specification to present view

content into a view presentation. This is where

symbols are associated with view content items and

where layout is associated with view content

structure. To associate symbols with content items,

the presentation rules may use a symbol library.

Interactor – The interactor uses interaction rules

from a viewpoint specification to translate user

interaction into view content operations and/or

changes to the view presentation. This is where user

actions like ‘add’, ‘update’ and ‘delete’ are

translated into view content operations.

The view content manager and the view

presentation manager are no all-embracing tools, but

they should rather be seen as super-types of different

realisations serving different purposes. For instance

the selector or interpreter could be specifically

developed for a single repository (e.g. ASG Rochade

or Oracle); a presenter or interactor could be

specifically developed for a single graphical editing

environment (e.g. Microsoft Visio or Rational Rose).

4 VISUALISATION PROTOTYPE

In this section the visualisation infrastructure is

partially validated by means of a case study

performed within a large Dutch financial institution

(DFI). For the sake of confidentiality this institution

will be left anonymous here. First the case essentials

are introduced. Then the visualisation prototype is

discussed.

4.1 Case essentials

One of the domains at DFI is the operational system

architecture, which describes all of the operational

software components and their dependencies (e.g.

input-output dependencies and hierarchical

dependencies). DFI already has a complete

description of their operational system architecture

stored as a database and even has built a web portal

on top of it, but what’s missing is a graphical

presentation of the systems and their dependencies.

Such presentations were created in the past

manually. However this requires considerable effort,

and therefore DFI has recognised their need for a

tool that automatically generates these graphical

presentations. Besides, DFI has formulated a number

of quantitative requirements: thousands of diagrams

(i.e. view visualisations), some of them containing

hundreds of objects, must be generated and

published on the web portal on a daily base.

DFI requested two viewpoints: (1) a viewpoint

focusing a system’s (internal) hierarchy and (2) a

viewpoint focusing a system’s (external) context.

Furthermore, DFI wants to be able to add other

viewpoints or other presentations of the same

viewpoints with minimal effort. All viewpoints are

examples of information retrieval do not incorporate

information manipulation.

4.2 Prototype

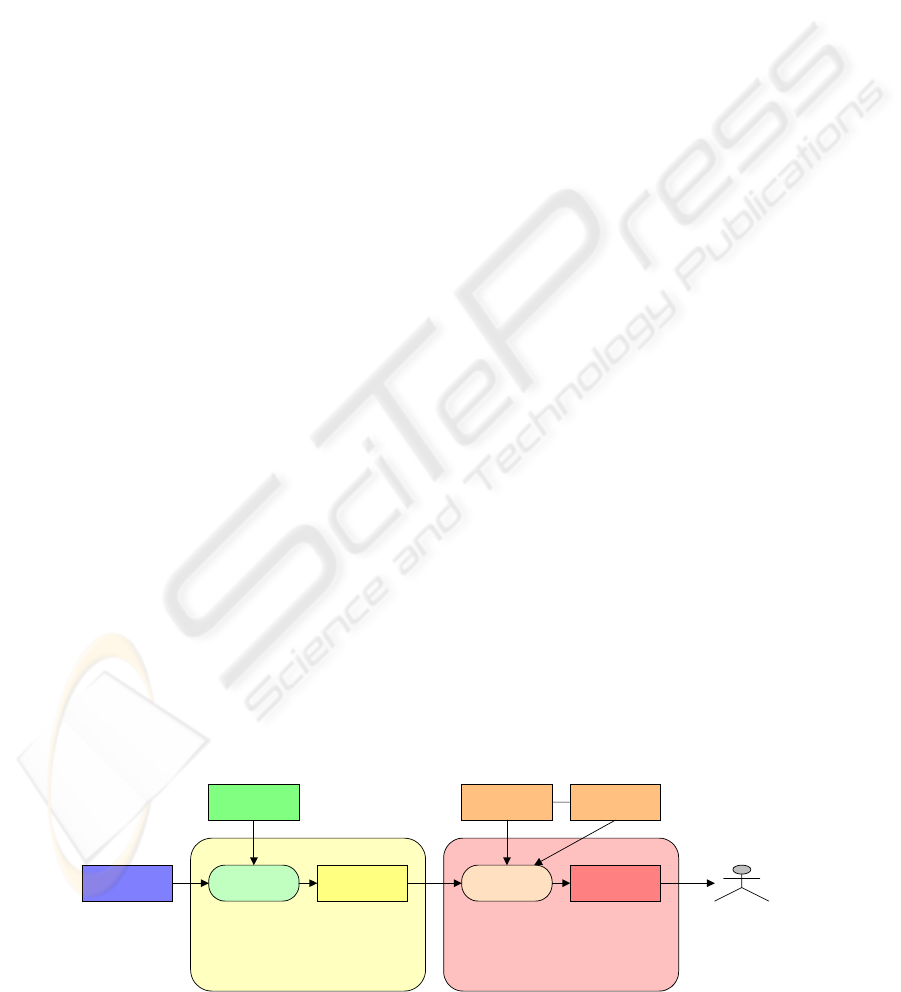

The visualisation infrastructure presented in Section

3, distinguishes two main processing flows.

However, since the requested viewpoints only

concern information retrieval, the prototype only

implements the flow from the model to the user

(Figure 4).

The prototype consists of 2 components: the DFI

selector and the DFI presenter. The prefix DFI

illustrates that these realisations are DFI-specific.

DFI’s operational architecture description is

stored in a relational database called system

Microsoft Visio 2002

Visio drawing

Presentation

rules in XML

DFI Presenter

Microsoft Visual Basic

View content

in XML

System

Architecture

DFI Selector

DFI Symbols

Visio stencil

ure 4: Protot

e desi

SQL Views

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

632

architecture. The DFI selector uses a set of SQL

views to select view content from that relational

database. The view content is expressed using a

simple but generic XML format designed to store

objects and relations between them:

<?xml version="1.0" encoding="UTF-8"?>

</viewContent>

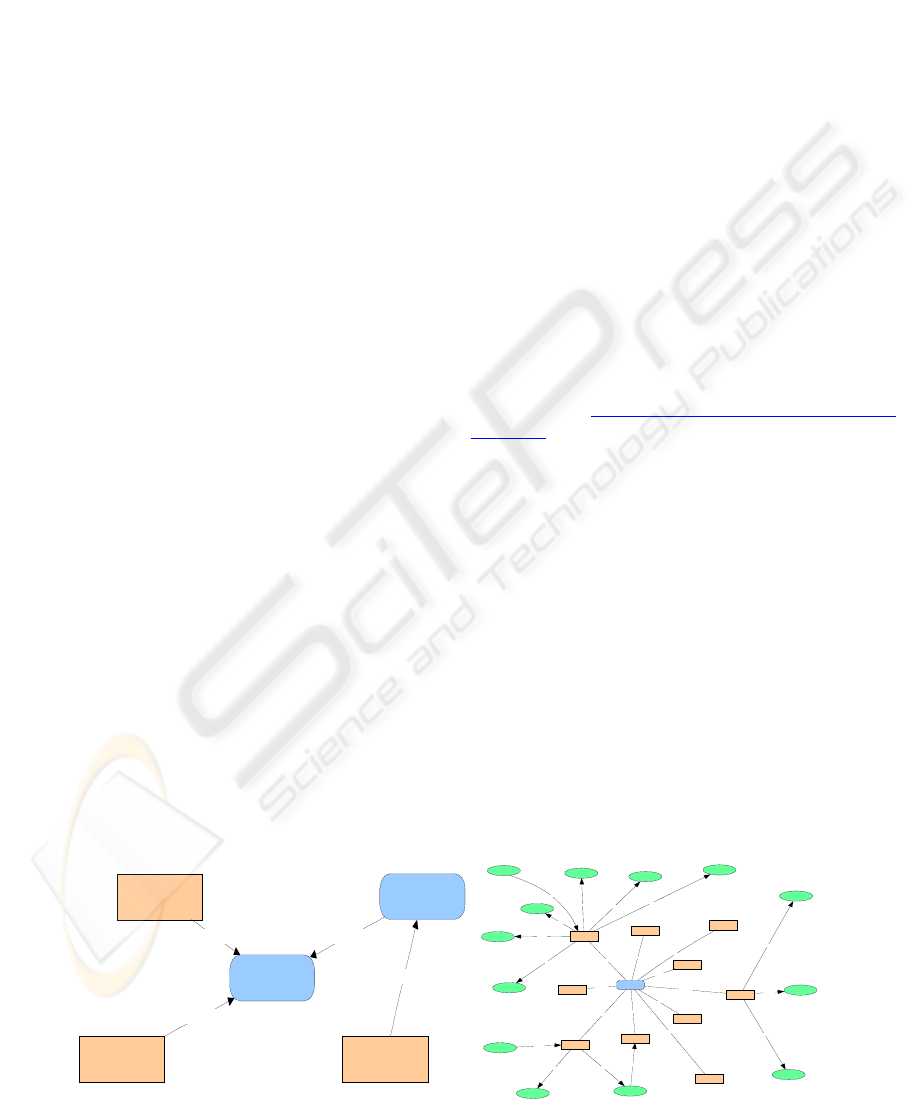

Subsequently the DFI presenter takes this view

content and uses the presentation rules to generate

the Visio Drawing depicted in Figure 5 (left). The

DFI Presenter uses Microsoft Visio to create the

drawings. The argument for selecting Visio was its

powerful API. However, any other similar

environment can fulfil this role.

The presentation rules are expressed using a

simple XML format designed to specify a symbol

library, a layout algorithm and a mapping between

object types and symbols:

<?xml version="1.0" encoding="UTF-8"?>

</presentationRules>

The symbol library specified in these

presentation rules refers to the DFI Symbols Visio

stencil. This Microsoft Visio Stencil contains

symbols that are already used by DFI to manually

express their operational system architecture.

At DFI, visualisation of views boils down to

drawing graphs, using special shapes for the nodes

or edges. Therefore, the final display of an

architectural view can be very well controlled with

appropriate graph layout algorithms. The selection

of a particular layout technique is essential because

it ensures the visual specificity of the view content:

For the particular situation of DFI, our choice was to

use a force-directed layout algorithm (Figure 5,

right), which is currently supported by the DFI

presenter. Such algorithms use a physical model to

determine the final drawing. The graph is seen as a

system of forces acting on the vertices. The aim is to

find a drawing where the net force acting on each

vertex is zero. Heuristics are used to bring them to a

state of equilibrium. These algorithms produce very

good layouts for most of the graphs and reveal

symmetries (see the Spring Embedder Model -

Eades, 1984, Kamada and Kawai, 1989,

Fruchterman and Reingold, 1991). We refer to

Herman et al., 2000 and Di Battista et al., 1999 for

extensive surveys of graph drawing algorithms and

other related results. The DFI presenter uses

GraphViz (

http://www.research.att.com/sw/tools/

graphviz/) to layout graphs. GraphViz is an open

source toolkit, which supports a wide range of graph

layout algorithms. Nevertheless, like the choice for

Visio, the choice for GraphViz is arbitrary.

5 CONCLUSION

We have presented a conceptual framework and an

infrastructure for visualization of architecture views.

The main idea behind our framework is the

separation of the visualisation of a view from the

internal representation of its content in such a way

that retrieval and update of models can be

accommodated through arbitrary visualisations. The

separation has two directions. The forward direction

from models to user is straightforward, however the

backward direction from user to models is highly

nontrivial and therefore subject to further research.

DUAS

DUAS_ALGEMEEN

DUAS_BASISREGIST

RATIE

DUAS_BRUTO/NETTO

DUAS_EIV

DUAS_FINANCIEEL_A

FHANDELEN

DUAS_INFO.VOORZIE

NING

DUAS_MIS

DUAS_RDH

DUAS_STANDAARD_

QUERIES

DUAS_ZIE_CLUSTER

AANLEVERING_VAN_

VC_ZOETERMEER

CLIENTGEGEVENS_M

_INKOMST EN_V_U

CLIENTGEGEVENS_T

BV_NICOS

EIGEN_BEDRIJF/

FREELANCE_GEGEVE

FB01_/

_INTERFACE_NAAR_S

AP-R3

GEG._OVER_AANGEM

AAKTE_INFO._FO

INTERFACE_NAAR_S

INTERFACE_NSP

NEVENINKOMSTEN_G

EGEVENS_TBV._N

SPONTANE_MELDER

S_NR_V CZ

SPONTANE_MELDER

S_VCZ

VCG-TBV-CVS-

REGULIER_RIJK

ZOETERMEER__-_BIV

EIGENAAR

UITVOER

INVOER

UITVOER

INVOER

UITVOER

INVOER

UITVOER

ure 5: Two view

resentations.

Subsystem 1Subsystem 2

System B

System A

Subsystem 1

ChildParent

InputOutput

VIEW VISUALISATION FOR ENTERPRISE ARCHITECTURE - From conceptual framework to prototype

633

The visualisation infrastructure that we have adopted

assumes that the view presentation manager is

ignorant of modelling concepts and semantics; when

it receives events that indicate modifications of the

view content, it will propagate these events to the

view content manager on the basis of a viewpoint’s

interpretation rules. On this foundation and in order

to validate our ideas in an operational environment

we have built a visualisation prototype. This

prototype allows easy adaptations to the view

presentations that have been realised: specifying a

different symbol library, a different layout algorithm

or a different mapping between objects and symbols

results in a completely different view presentation.

Furthermore, adding a new viewpoint does not

involve changes to the prototype infrastructure: the

prototype only needs a new set of SQL views, a new

file containing the presentation rules and a Visio

stencil containing the desired symbols.

In the near future we will extend the prototype to

present views based on more than one domain.

Nevertheless, a complete validation of the

visualisation infrastructure requires further

investigation, especially into the flow from user to

models.

At this point of our research we foresee a

number of issues that need further investigation:

– Viewpoint specification language – A viewpoint

specification language is needed to be able to

express selection rules, presentation rules,

interaction rules and interpretation rules.

– Automatic layout – Automatic layout of views and

diagrams is essential for generation of views for

different types of stakeholders. In the future

versions of the prototype, presentation rules will

support choosing layout algorithms and strategies

from a library.

– Multi-modal presentations - How can the view

presentation manager generate and manage view

presentations that contain multiple modalities (e.g.

an important combination is that of diagrams and

explaining text or comments)? How are relations

between modalities specified in presentation and

interaction rules?

ACKNOWLEDGEMENT

This paper is supported by the ArchiMate project

(

http://archimate.telin.nl/), a research initiative that

aims to provide concepts and techniques to support

enterprise architects in the visualisation,

communication and analysis of architectures. The

ArchiMate consortium consists of ABN AMRO,

Stichting Pensioenfonds ABP, the Dutch Tax and

Customs Administration, Ordina, Telematica

Instituut, Centrum voor Wiskunde en Informatica,

Katholieke Universiteit Nijmegen, and the Leiden

Institute of Advanced Computer Science.

REFERENCES

Bernus, P., Nemes, L. and Schmidt, G., 2003. Handbook

on Enterprise Architecture, Springer.

Dijkstra, E.W., 1976, A Discipline of Programming,

Prentice-Hall.

Di Battista, G., Eades, P., Tamassia, R. and Tollis, I.G.,

1999, Graph Drawing: Algorithms for the

Visualization of Graphs, Prentice Hall, 1999, ISBN: 0-

13-301615-3.

Eades, P., 1984, An Heuristic for Graph Drawing,

Congressus Numerantium, vol. 42, 149-160, 1984.

Fruchterman T.M.J. and. Reingold, E.M., 1991, Graph

Drawing by Force-Directed Placement, Software -

Practice & Experience, 21, pp. 1129-1164, (1991).

Gamma, E., R. Helm, R. Johnson and Vlissides, J., 1995,

Design Patterns – Elements of Reusable Object-

oriented Software, Addison-Wesley, 1995.

Herman, I., Melaçon, G. and Marshall, M.S., 2000, Graph

Visualisation and Navigation in Information

Visualisation: A Survey, IEEE Transactions on

Visualization and Computer Graphics, 6(1), pp. 24-43,

2000.

IEEE, Architecture Working Group, 2000. IEEE Std 1471-

2000, IEEE Recommended Practice for Architectural

Description of Software-Intensive Systems. IEEE.

USA.

Kamada, T. and Kawai, S., 1989, An Algorithm for

Drawing General Undirected Graphs, Information

Processing Letters, 31, pp. 7-15, (1989).

Pattison, T., Vernik, R. and Phillips, M. 2001. Information

visualisation using composable layouts and visual

sets. Research Report DSTO-RR-0216, Defence

Science & Technology Organisation,

www.dsto.defence.gov.au/corporate/reports/DSTORR

-0216.pdf.

Schönhage, S.P.C., Bakker, P.P. and Eliens, A., 1998, So

Many Users - So Many Perspectives. In Proceedings

of "Designing effective and usable multimedia

systems", 9-10 September 1998, Fraunhofer Institute

IAO, Stuttgart, Germany. IFIP.

Schönhage, B. & Eliëns, A., 1997, A flexible architecture

for user-adaptable visualization, in D. S. Ebert & C.

K. Nicholas (eds.), Workshop on New Paradigms in

Information Visualization and Manipulation ’97,

Conference on Information and Knowledge

Management, 1997, Las Vegas, USA, ACM Press.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

634
