A TOOL INTEGRATION WORKBENCH

FOR ENTERPRISE ARCHITECTURE

Integrating heterogeneous models and tools

Diederik van Leeuwen, Hugo ter Doest, Marc Lankhorst

Telematica Instituut, P.O. Box 589, 7500 AN, Enschede, The Netherlands

Keywords: Enterprise architecture, Tool

integration, Model-based integration, View, Viewpoint, Model

Abstract: Enterprise architecture incorporates the specification of relations between different domains, each speaking

its own languages and using its own tools. As a consequence, the enterprise architecture asks for the

integration of existing modelling tools. This integration has both technical and conceptual aspects. On a

technical level, models in different formats managed by dedicated tools need to be related. On a conceptual

level, models are expressed in different modelling languages or conceptual schemas, making the integration

of these models complex. In this paper we present the design of a workbench for enterprise architecture that

serves as a tool integration environment and a modelling tool at the same time: it supports both technical

integration of existing modelling tools and conceptual integration of modelling schemas. The workbench is

a viewpoint-driven environment that provides the means to bring together and elaborate upon existing

heterogeneous content, as well as to break down existing content into more specific content managed by

dedicated tools. This viewpoint-driven environment serves as a starting point for report generation for

stakeholders more remote to the architecture design process. Moreover, re-use of architectural assets is

supported in straightforward manner by a transparent disclosure of existing design artefacts in one

integrated environment.

1 INTRODUCTION

Enterprise architecture (EA) is a coherent whole of

principles, methods and models that are used in the

design and realisation of the enterprise’s

organisational structure, business processes,

information systems, and infrastructure (Bernus et

al., 2003). However, these domains are not

approached in an integrated way, which makes it

difficult to judge the effects of proposed changes.

Every domain speaks its own language, draws its

own models, and uses its own techniques and tools.

Communication and decision making across

domains is seriously impaired.

One of the goals of the ArchiMate project is to

rovide the enterprise architect with instruments that

support and improve the architecture design process.

Although some commercially available tools provide

the comprehensive functionality needed to develop

and maintain enterprise architecture (Handler, 2003),

in general tools provide partial support, do not

integrate with other tools and can be insufficiently

configured for the enterprise’s context (Iacob et al.,

2002).

Moreover, most organisations are already using a

num

ber of modelling tools and maintain a significant

number of architecture descriptions and models,

which they cannot simply convert to a new

language. This is the motivation for developing an

integration environment that allows to keep using

these tools while adding an environment in which

existing models can be loaded and integrated, and

missing elements at higher abstraction levels can be

transparently added.

This paper presents the design of the ArchiMate

rkbench for enterprise architecture: a workbench

that serves as a tool integration environment and a

modelling tool at the same time: it supports both

technical integration of existing modelling tools and

conceptual integration of modelling languages or

conceptual schemas.

Technical integration o

f tools can be

characterised by the following aspects (Schefstroem

and van den Broek, 1993):

470

van Leeuwen D., ter Doest H. and Lankhorst M. (2004).

A TOOL INTEGRATION WORKBENCH FOR ENTERPRISE ARCHITECTURE - Integrating heterogeneous models and tools.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 470-478

DOI: 10.5220/0002610804700478

 SciTePress

– Data integration addresses the issue of sharing

data between tools and the storage of diagrams,

models, views and viewpoints.

– Control integration addresses the issue of

communication and coordination between tools

(and the integration framework, if existent).

– Presentation integration concerns the user

interaction with the integrated set of tools. Some

frameworks completely wrap the existing

interfaces whereas others keep original interfaces

intact and offer integration through a repository

(model integration).

In most cases, the integration environment

encapsulates individual tools with so-called

wrappers that expose data, control and presentation

in a predefined way.

Conceptual integration can be obtained in two

ways (Creasy and Ellis, 1993). One possibility is to

define a direct mapping between each pair of

modelling languages to facilitate direct relations

between models expressed in arbitrary languages.

The other possibility is to use a core conceptual

language as an intermediary language, which would

require only O(n) mappings instead of the O(n

)

mappings required with direct mappings. In

ArchiMate, the latter approach is adopted, which has

resulted in a conceptual language for EA

descriptions (Jonkers et al., 2003).

Views and viewpoints are essential elements of

architecture descriptions. Following (IEEE, 2000),

viewpoints are templates for view creation that

define the stakeholder addressed, his concerns and

information he needs for understanding the

enterprise from his perspective and for taking

responsibility for his decisions. Tools for enterprise

architecture must be able to support viewpoint

definition and view creation from viewpoints.

According to (Kramer and Finkelstein, 1991),

viewpoints can be seen as configurations of the tool

integration framework for a specific stakeholder.

This line of thinking is the basis for the use of

viewpoint in the ArchiMate workbench.

This paper zooms in on the static structure of the

ArchiMate workbench in Section 2. Then the

workbench dynamics are illustrated in Section 3.

Related work is discussed in Section 4 and the paper

concludes with an evaluation of the workbench and

an outlook on its future in Section 5.

2 WORKBENCH ARCHITECTURE

This section presents the software architecture for

the ArchiMate workbench. First, a number of design

principles is identified that guided the design, then

we show the workbench architecture.

The most essential design principle behind the

ArchiMate workbench is that the workbench

integrates existing modelling schemas. The

workbench does not integrate existing modelling

languages one-to-one, but brings them to the

abstraction level of enterprise architecture, by

translating them to one general modelling language

as advocated by Creasy and Ellis (1993).

A second important design principle is that the

workbench is viewpoint-driven. The workbench

serves as an instrument to construct views on

existing or future models, and a modelling tool at the

same time. Starting point of each workbench session

is a viewpoint definition that specifies how to

visualise and model a view. Furthermore, the

workbench is transparent and extensible. The

workbench can open architectural constructs in their

native modelling tools. In addition, new modelling

languages and associated modelling tools can easily

be integrated with the workbench.

The following subsections zoom in on model

integration, viewpoint definition, transparency and

extensibility, the workbench architecture, and finally

exchange formats.

2.1 Model integration

To integrate existing models expressed in

heterogeneous modelling languages, the ArchiMate

modelling language (Jonkers et al., 2003) is used.

The ArchiMate modelling language is not ‘just

another modelling language’, but should rather be

seen as an integration of existing, more specific

modelling languages and their conceptual schemas.

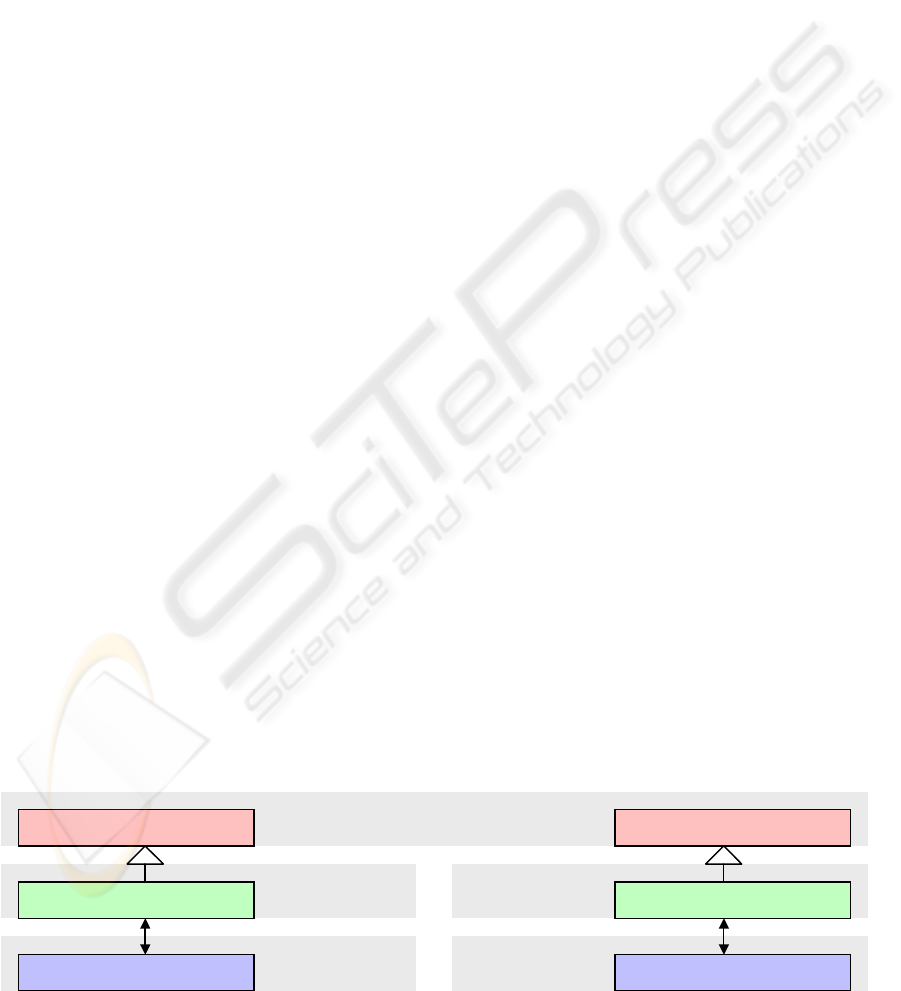

Figure 1: Specialised ArchiMate constructs for UML and Amber (Eertink et al., 1999)

ApplicationComponent

ArchiMate modelling schema

BusinessProcess

UmlApplicationComponent AmberBusinessProcess

Component

UML Amber

Block

UML - ArchiMate

content schema

Amber - ArchiMate

content schema

A TOOL INTEGRATION WORKBENCH FOR ENTERPRISE ARCHITECTURE - Integrating heterogeneous models and

tools

471

To fully integrate a specific modelling language

with the workbench, both a bottom-up and a top-

down transformation are required between that

language and the ArchiMate language. Due to the

potentially different abstraction levels between a

specific language and the ArchiMate language, a

bottom-up transformation is likely to loose details

and a top-down transformation is likely to be

incomplete. In extreme cases a top-down

transformation may only produce a template.

To reduce the abstraction mismatch, ArchiMate

constructs may be specialised by means of ‘isa’-

relations. The workbench may still treat these

constructs as native ArchiMate constructs, while at

the same time the transformations to and from these

constructs can be made more exact. For example, the

ArchiMate construct application component may be

specialised to UML application component in order

to better match the UML construct component

(Figure 1).

2.2 Viewpoint definition

According to IEEE (2000), a viewpoint is a pattern

or template from which to construct individual

views. A viewpoint establishes the purposes and

audience for a view and the techniques or methods

employed in constructing a view.

The ArchiMate workbench adopts an operational

interpretation of IEEE’s viewpoints: A viewpoint

consists of different types of rules, governing the

selection and presentation of view content, and

controlling the interaction with, and interpreting

changes to, the view presentation. Furthermore, a

view might itself be based on another view, leading

to a chain of views instead of a single step from a

model to a view. Ultimately the distinction between

model and view is rather arbitrary.

As the workbench aims to support the

architecture design process, it will focus on so-called

design viewpoints that are dedicated to the design

process. Such viewpoints consist of straightforward

selection, presentation, interaction and interpretation

rules: In the context of the workbench, a design

viewpoint simply defines which modelling

constructs are allowed, with which symbols these

constructs are presented and which connections

these constructs are allowed to have. Nevertheless

the workbench may well serve as a starting point for

more complex viewpoints that are based on more

complex rules and designed to consult models rather

than to manipulate models.

2.3 Transparency and extensibility

To allow easy integration of new modelling tools,

the workbench will adopt a tool adapter pattern, i.e.

an adapter pattern (Gamma et al., 1995) with the

motivation that modelling tools should be made to

integrate by means of ‘plug and play’.

The workbench prescribes the tool adapter

interfaces. The workbench trusts each adapter to be

capable of bottom-up and top-down transformations,

between the adapter’s associated modelling language

and the ArchiMate modelling language.

To obtain transparency, the workbench uses the

tool-specific adapter associated with a modelling

construct to open that modelling construct in its

associated modelling tool.

The ArchiMate workbench also contains a tool

adapter to connect to itself. This may seem trivial,

but is still very useful: Though transformations may

resolve into identity operations, such an adapter will

allow ArchiMate models to be built on top of each

other, realising a chain of views as mentioned in the

previous subsection.

2.4 Architecture

The workbench architecture consists of three tiers: a

workbench tier, an integration tier and a tool tier

(Figure 2). The main component in the workbench

tier is the ArchiMate workbench: The workbench

allows the manipulation of ArchiMate models. Each

ArchiMate model conforms to an ArchiMate

viewpoint that defines which modelling constructs

are allowed, with which symbols these constructs

are presented and which connections these

constructs are allowed to have.

In the tool tier a modelling tool may be used to

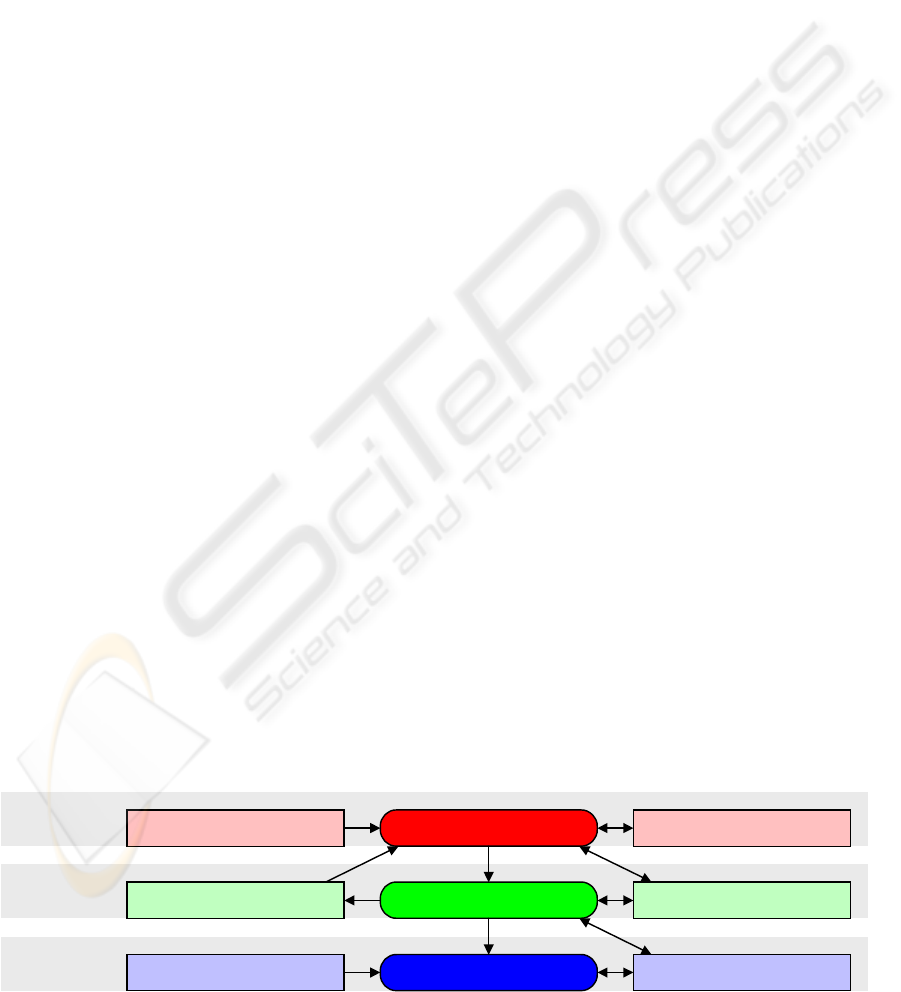

Figure 2: The 3-tier workbench architecture

ArchiMate workbench

ArchiMate model ArchiMate viewpoint

Workbench

tier

Integration content Integration schema

Integration

tier

Tool-specific model

Tool

tier

Modelling schema

controls

Tool-specific adapter

Modelling tool

controls

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

472

Figure 3: A specific set of modelling tools integrated into the ArchiMate workbench

ArchiMate workbench

Workbench

tier

Integration

tier

Tool

tier

controls

Testbed-specific adapter

Testbed Studio

controls

Custom repository Rational Rose

Custom adapter Rose-specific adapter

controls controls

design tool-specific models according to a specific

modelling language.

To allow ArchiMate models to elaborate upon or

break down into tool-specific models, the integration

tier glues modelling tools into the ArchiMate

workbench. The glue used is a tool adapter specific

to each modelling tool: a tool-specific adapter. This

adapter can perform transformations between tool-

specific models and integration content. Along with

integration content, a tool-specific adapter provides

the workbench with an integration schema

describing the underlying modelling language in

terms of possibly specialised ArchiMate constructs.

The ArchiMate workbench controls the tool-

specific adapter: The workbench dictates when to

transform what models or what content and tells

when to open a model in its native modelling tool.

In practice, the workbench architecture typically

integrates a specific set of modelling tools, for

example, Rational Rose, Testbed Studio and a

custom repository (Figure 3).

2.5 Exchange formats

ArchiMate models and integration content are stored

and exchanged using standard XML-based (W3C,

2000) formats. These formats not only prescribe the

way content should be formatted, but also provide a

meta-language to express meta-information about

the content, which helps to interpret that content.

When a tool-specific adapter provides integration

content in XML, it uses this meta-language to

express the integration schema, i.e. what modelling

constructs that content uses. For example, a Rose-

specific adapter (Figure 3) would use the meta-

language to specify a schema with a UML-specific

version of the ArchiMate concept Application

Component.

Examples of XML-based exchange formats that

come with meta-languages are XML itself, XMI

(OMG, 2003a) and OIFML (ODMG, 2000).

Corresponding meta-languages are XML Schema

(W3C, 2001), XML Schema and ODL (ODMG,

2000) respectively. At this point we opt for XMI,

because it is alive and has already been widely

adopted for the exchange of models.

3 WORKBENCH AT WORK

Before the requirements of the workbench dynamics

are illustrated with some scenarios, a short

introduction into the workbench GUI is presented.

The workbench GUI divides the application window

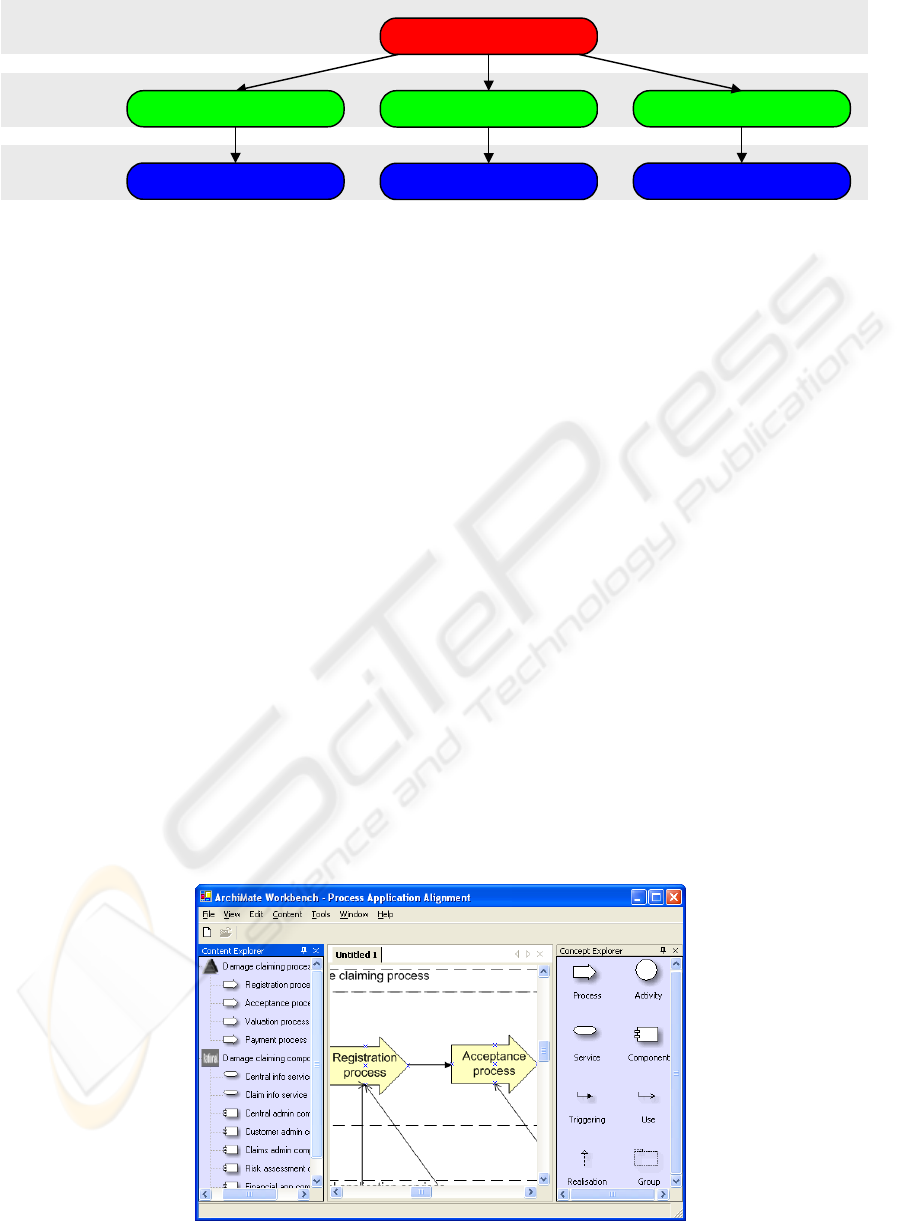

Figure 4: Workbench user interface

A TOOL INTEGRATION WORKBENCH FOR ENTERPRISE ARCHITECTURE - Integrating heterogeneous models and

tools

473

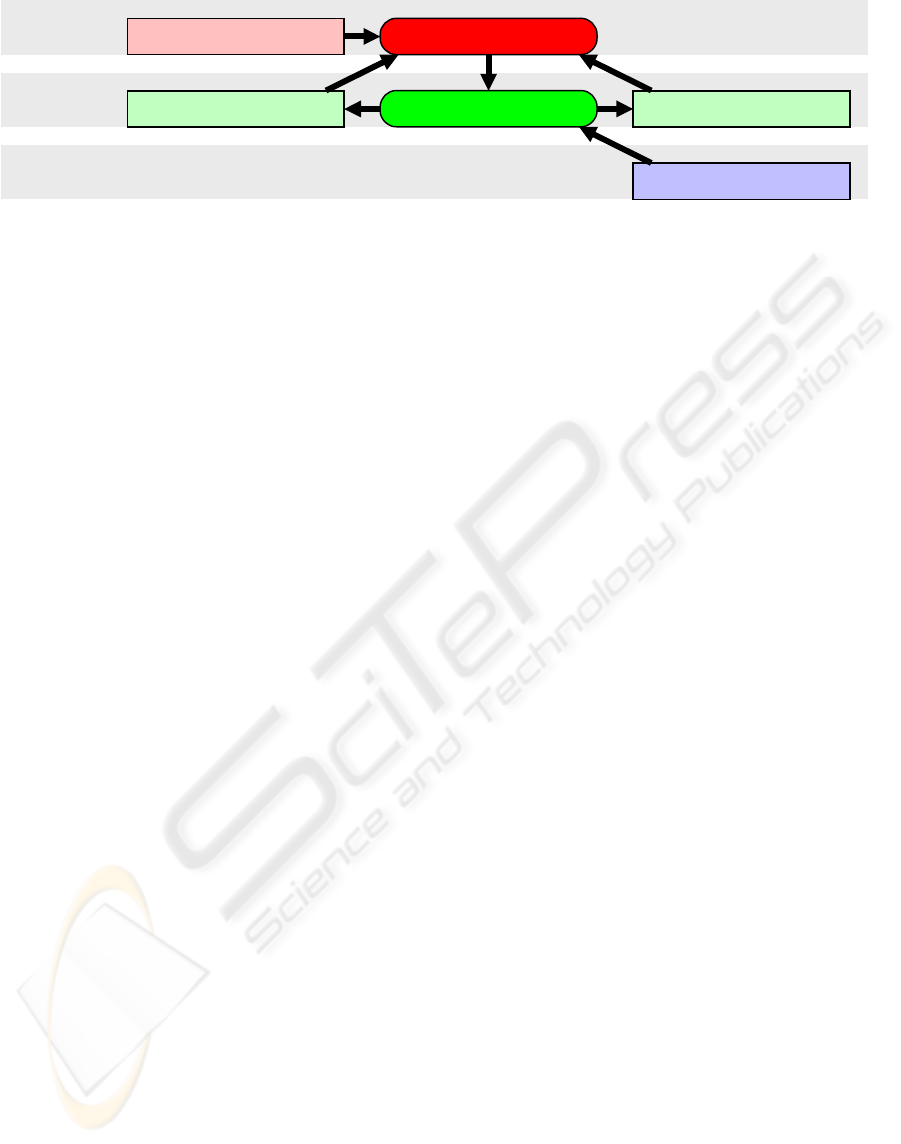

Figure 5: Bottom-up design

ArchiMate workbench

ArchiMate viewpoint

Workbench

tier

Integration content Integration schema

Integration

tier

Tool-specific model

Tool

tier

Tool-specific adapter

2 2

in 3 frames (Figure 4): A content explorer, a canvas

for modelling and a concept explorer.

The concept explorer shows the ArchiMate

modelling constructs, or actually their symbols,

specified by a certain viewpoint, e.g. a viewpoint

focusing the relation between software components

and business processes.

The content explorer shows hierarchical

representations of the tool-specific models upon

which the currently open ArchiMate model is based.

These tool-specific models have been translated into

(possibly specialised) ArchiMate constructs. Only

constructs relevant to the viewpoint are shown in the

content explorer. Examples of ArchiMate constructs

relevant to the relation between business processes

and software components are: business process,

application service, application interface,

application component, use and realisation.

The canvas shows the currently opened

ArchiMate model. Objects may be added to the

model in 2 ways: 1. Objects from the content

explorer may be dragged and dropped onto the

canvas. These objects are in fact references to

objects in the underlying tool-specific models. 2.

Constructs from the concept explorer may be

dragged and dropped onto the canvas. This way,

newly created instances of those constructs are

added to the model.

The GUI serves as a starting point for 4

scenarios, each focusing different aspects of the

workbench at work:

– Getting started – Start an ArchiMate model

from an ArchiMate viewpoint.

– Bottom-up design – Embed content from a tool-

specific model in an ArchiMate model.

– Tool start-up – Open an object associated with a

tool-specific model in its native modelling tool.

– Top-down design – Specialise an object in a

newly created tool-specific model.

3.1 Getting started

According to the IEEE 1471 conceptual model,

viewpoints are used to cover concerns that

stakeholders have. Therefore, the workbench

provides the user with a wizard to determine what

type of stakeholder the user is and what concerns the

user has. The wizard uses this information to lead

the user to a set of possible viewpoints in which he

or she might be interested. Choosing a viewpoint

opens a new ArchiMate model having an empty

content explorer, an empty canvas and a concept

explorer containing symbols representing the

constructs specified by the viewpoint. The user may

now drag and drop constructs from the concept

explorer onto the canvas. Subsequently, the user

may relate objects wherever the viewpoint allows

relations.

3.2 Bottom-up design

ArchiMate models may elaborate upon and integrate

existing tool-specific models allowing models to be

designed in a bottom-up fashion. To embed existing

content into an ArchiMate model, the user selects a

model for which a tool-specific adapter has been

registered with the workbench. Choosing a model

creates a tree-representation of that model in the

content explorer. To achieve this, the workbench

performs the following steps (Figure 5):

The workbench uses the adapter to translate the

tool-specific model into integration content. Along

with the integration content, the adapter provides the

workbench with an integration schema.

The workbench uses the integration schema to

retrieve constructs from the content. Subsequently,

the workbench uses the ArchiMate viewpoint that

was used to create the ArchiMate model, to select

only those constructs that are part of the viewpoint

and to find symbols for them.

The user may now drag and drop objects from

the content explorer onto the canvas.

3.3 Tool start-up

Once the user has used objects from the content

explorer, or more precisely, has created references to

objects in the underlying tool-specific models, the

user may open the referred objects in their native

modelling tool: The workbench allows the user to

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

474

Modelling tool

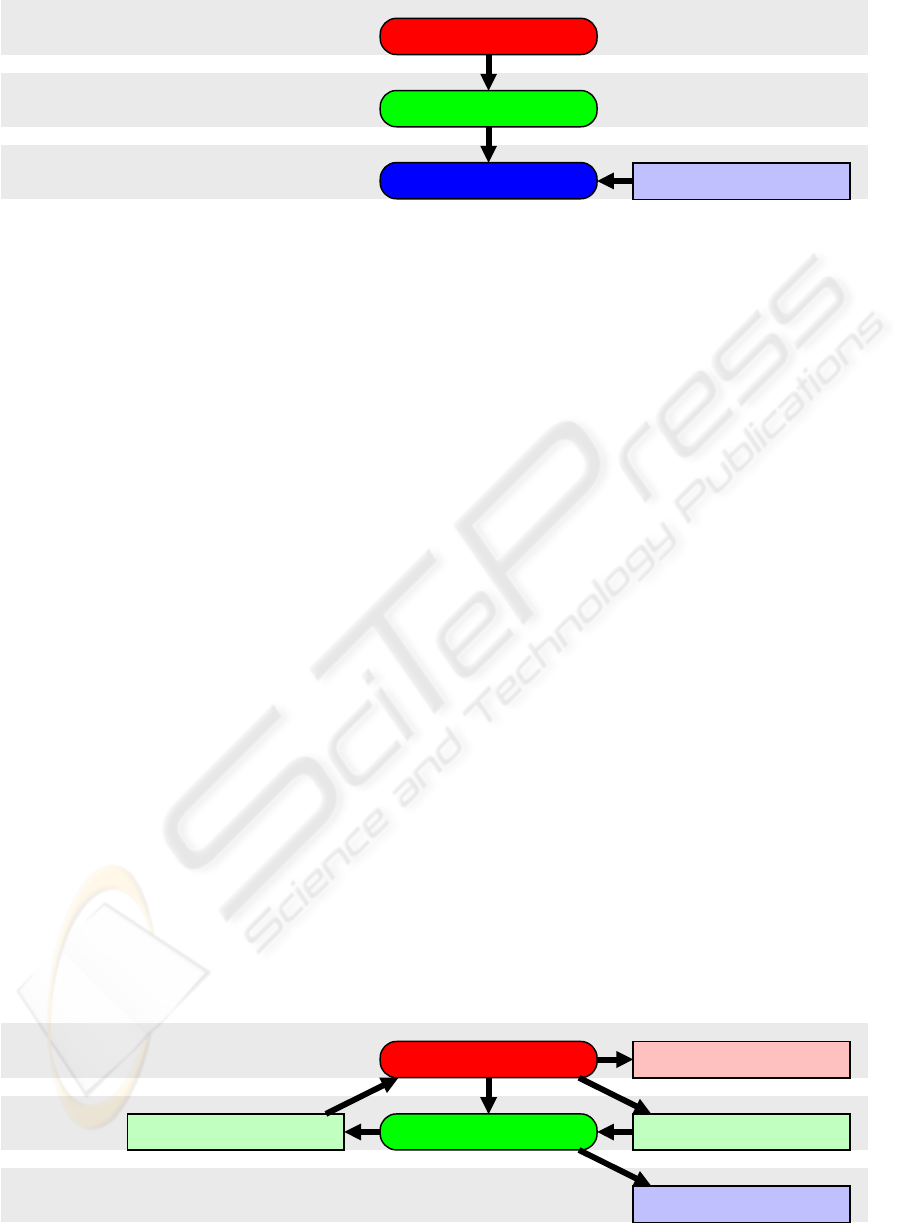

Figure 6: Tool start-up

ArchiMate workbench

Workbench

tier

Integration

tier

Tool-specific model

Tool

tier

Tool-specific adapter

select an object in the model. If the selected object is

associated with a tool-specific adapter, or in other

words, if the object has a tool-specific counterpart,

the workbench allows the user to open the model

containing the tool-specific counterpart in its native

modelling tool.

Because the workbench wants to abstract from

tool-specific knowledge, the workbench does not

start-up associated tools itself, but uses the

associated adapters to do that instead (Figure 6).

3.4 Top-down design

The user may not only extend existing models, but

may break down abstract ArchiMate models into

more specific models as well. Thus, the workbench

allows a top-down design approach.

Again, the workbench allows the user to select a

set of objects in the canvas. If the objects are not

already associated with a tool-specific adapter, i.e.,

if the objects do not have a tool-specific counterpart,

the workbench allows the user to specialise the

selected objects. Choosing this option triggers the

first step in the top-down design process (Figure 7):

1. For each registered tool-specific adapter, the

workbench retrieves the tool-specific integration

schema and checks the availability of the

constructs to be specialised. This way, the

workbench produces a list of modelling tools that

support the constructs at issue.

The workbench presents the list of modelling

tools to the user. The user chooses a modelling tool

after which the workbench continues as follows:

2. The workbench passes the object, or actually the

integration content to be specialised, to the

adapter associated with the elected modelling

tool.

3. The adapter generates a tool-specific model and

translates the integration content into this model.

4. Finally, the workbench transforms the object in

the ArchiMate model into an object that is a

reference to the newly created tool-specific

content.

The user may now open the referred objects in

their native modelling tool.

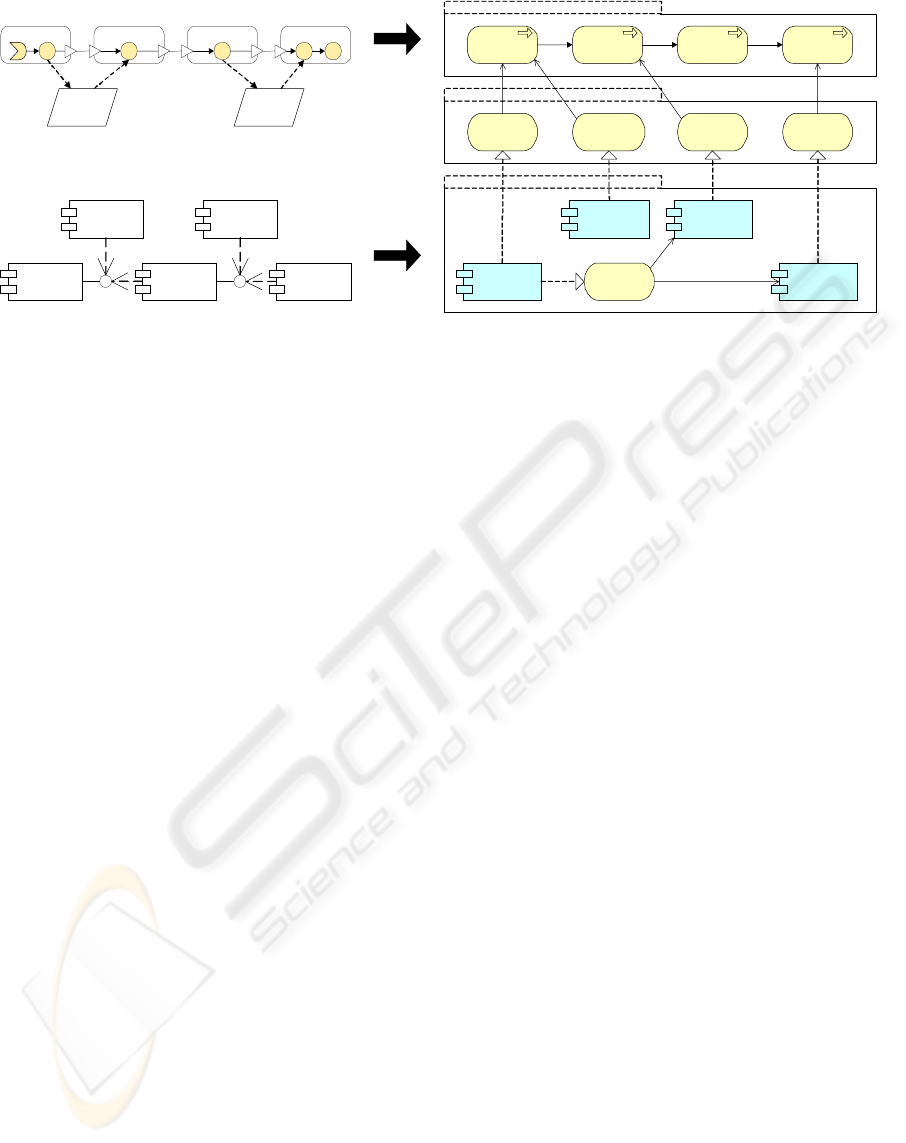

3.5 Example

To illustrate the value of the workbench an example

is presented: An existing UML model and an

existing Amber model (Eertink et al., 1999) are

integrated in an ArchiMate model (Figure 8).

The UML model depicts a number of application

components that are used by the imaginative

insurance company ArchiSurance. The components

are translated to ArchiMate components in a

straightforward way. The Amber model represents a

number of process blocks that realise claim handling

from registration to payment. This model is

translated to ArchiMate concepts as well. Now, the

workbench can be used to order the objects and

define relations between them. In this case a layered

architecture is created with services that are realised

by components and provided to business processes.

This results in a view relating business processes to

IT components by means of service concepts. The

following operations are applied in the creation of

the integrated model:

Figure 7: Top-down design

ArchiMate workbench

ArchiMate model

Workbench

tier

Integration content Integration schema

Integration

tier

Tool-specific model

Tool

tier

Tool-specific adapter

1 2

A TOOL INTEGRATION WORKBENCH FOR ENTERPRISE ARCHITECTURE - Integrating heterogeneous models and

tools

475

Valuation

Acceptance

Registration

Registration Acceptance Valuation

Payment

Claims

administration

service

Customer

administration

service

Risk

assessment

service

Payment

service

Claims

administration

Customer

adminstration

Risk

assessment

Financial

application

Claim

information

service

Damage claiming process

External application services

Application components and internal services

Payment

Claims

administration

Customer

administration

Risk

assessment

Financial

application

Formal

claim

Policy

(contract)

Central

administration

Figure 8: An ArchiMate model (right) based on an Amber model (top left) and a UML model (bottom left)

– Translation: The interface offered by the Claims

administration component is translated to the

Claim information service. UML dependency

relations are translated to ArchiMate use

relations.

– Selection: Mainly processes and components are

selected. Most interfaces, data items, business

activities are left out. The Central administration

component is left out.

– Extension: services offered by components to

processes are added; concepts are grouped using

ArchiMate grouping constructs.

4 RELATED WORK

This section gives a short overview of the literature

on tool integration. It presents an overview of tool

coordination frameworks and model integration

approaches without going into details of general

low-level mechanisms like middleware,

broadcasting and message passing.

4.1 Tool coordination frameworks

In tool coordination frameworks each tool is

wrapped with a piece of software that exposes the

characteristics of the tool in a standardised way to its

environment. The environment consists of other

(wrapped) tools and a management component that

coordinates the communication and coordination

between the tools. The degree to which the tool’s

functionality is published by a wrapper may differ.

METAFRAME (Claßen et al., 1997) is an advanced

tool integration framework that allows integration of

data, control and presentation. Furthermore, it offers

a coordination language for programming the

coordinated behaviour of integrated tools. ToolBus

(Bergstra and Klint, 1998) is another example of

coordination: It is a programmable software bus that

coordinates the cooperation of a number of tools by

running scripts. Another characteristic of ToolBus is

the strict separation between coordination (done by

the ToolBus), computation (control) and

representation (presentation). Wrappers are used to

decouple computation from representation and wrap

them in order to disclose them to the ToolBus. The

Manifold language described by Arbab et al. (1993)

is a parallel programming language that can be

applied to manage the coordination between tools.

The UniForm Workbench (Karlsen, 1998) is

based on existing standards of which the Portable

Common Tool Environment (PCTE) specification of

ECMA (ECMA, 1997) had the most influence on the

architecture. The environment is an open-ended tool

integration framework for developing (formal)

software development environments from the basis

of Commercial-of-the-Shelf (COTS) development

tools. The integration framework provides support

for data, control and presentation integration as well

as utilities for wrapping Haskell interfaces around

existing development tools. Entire software

development environments are then glued together

on the basis of these encapsulations using

Concurrent Haskell as the integration language.

Nuseibeh and Finkelstein (1992) propose to use

viewpoints as the basic concept for method and tool

integration. A development method is defined as a

collection of viewpoints each of which is supported

by a tool. An implementation is described that

manages and integrates viewpoint as SmallTalk

objects. In (Kramer and Finkelstein, 1991)

viewpoints are treated as configuration items in an

approach based on software configuration.

4.2 Model integration

In model integration heterogeneous models

expressed in domain-specific modelling languages

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

476

are related and/or integrated. In general two

approaches exist here:

– Direct model integration: Direct relations

between concepts in heterogeneous languages

are established. An ontology may be used to

define what concepts semantically are the same,

and which relations may exist between concepts.

A drawback of direct model integration is that

each language that must be added requires O(n)

relations to the n other languages.

– Integrated metamodels: Based on the

metamodels of heterogeneous languages an

integrated metamodel is created synthesised with

mappings to and from the domain-specific

languages. Creasy and Ellis (1993) proposed to

use conceptual graphs of Sowa as language for

the specification of the integrated metamodels.

This is similar to the ArchiMate approach

(Jonkers et al., 2003) in which a rich metamodel

is developed for enterprise architecture models

with mappings to/from domain-specific

modelling languages like UML (OMG, 2003b)

and BPML (BPMI, 2003).

Grundy and Venable (1995) present an

integration environment in which different

modelling languages have their own repository and

editor while changes in one model are propagated

through a central repository based on an integrated

data model to the other models.

Karsai (2000) describes an integration

framework based on model integration. The

architecture proposed is based on tool wrappers that

translate tool-specific models to a syntactic

modelling language resembling ER, after which a

semantic interpreter interprets these models and

stores them in a central repository. The framework

assumes that the presentation layer of tools is left

untouched.

The WOTIF (WOTIF) project aims at

developing an open framework for integrating

design tools for embedded system development.

Design flows today are realized using different,

proprietary design tools, whose integration is a

complex problem. WOTIF provides a meta-model

driven infrastructure for design tool integration,

which facilitates the semantic interoperability across

the elements of a tool chain. WOTIF is implemented

on the basis of Eclipse, an open extensible Integrated

Development Environment (IDE).

5 CONCLUSION

In this paper we have presented the design of a tool

integration workbench that is able to integrate

existing modelling tools. It shows that it is possible

to practice enterprise architecture while at the same

time keeping existing modelling artefacts.

Leaving existing modelling environments intact,

the workbench allows the concurrent design of

enterprise architecture domains: each domain may

still be designed using its own languages, tools and

techniques. More importantly, with the ability to

reason across domain boundaries the workbench

introduces an instrument for collaborative design.

By adopting the ArchiMate modelling language,

the workbench not only allows the integration of

existing modelling languages, but provides a

language to communicate across domain boundaries

as well. Moreover, the workbench serves as a

starting point for the analysis of enterprise

architectures using generic analysis techniques that

rely on the ArchiMate modelling language.

An important success factor left unaddressed in

this work is the mechanism responsible for the

synchronisation of models that share objects. This

subject requires further investigation.

Another key factor in the success of the

workbench architecture is the feasibility of

transformations between tool-specific content and

ArchiMate content. The semantic soundness of such

transformations is particularly nontrivial and thus

requires further exploration.

One of the goals of the ArchiMate project is to

stimulate innovation in the market of tools for the

enterprise architecture design process. The ideas

presented should challenge vendors of such tools to

(1) provide interoperability services, e.g. tool-

specific adapters, such that their tool can be

integrated in environments like the one presented

here, (2) create commercial versions of tool

integration environments and (3) create graphical

modelling tools that allow relating and integrating

existing models.

In the near future, ArchiMate will create

prototype versions of the environment in order to

show that the workbench approach is feasible and

can be turned into commercial products. Attention

will be paid to transformations, synchronisation of

models that share objects, and the analysis of

enterprise architectures. Furthermore, the workbench

will be validated in pilot projects running at the

companies involved in ArchiMate.

ACKNOWLEDGEMENT

This paper results from the ArchiMate project

(

http://archimate.telin.nl/), a research initiative that

aims to provide concepts and techniques to support

enterprise architects in the visualisation,

communication and analysis of integrated

A TOOL INTEGRATION WORKBENCH FOR ENTERPRISE ARCHITECTURE - Integrating heterogeneous models and

tools

477

architectures. The ArchiMate consortium consists of

ABN AMRO, Stichting Pensioenfonds ABP, the

Dutch Tax and Customs Administration, Ordina,

Telematica Instituut, Centrum voor Wiskunde en

Informatica, Katholieke Universiteit Nijmegen, and

the Leiden Institute of Advanced Computer Science.

Special thanks go to Andries Stam of Ordina,

who offered his profound reviewing skills.

REFERENCES

Arbab, F., I. Herman and P. Spilling, 1993. An overview

of Manifold and its implementation.

Concurrency:

Practice and Experience

5(1), pp. 23-70.

Bergstra, J.A. and P. Klint, 1998. The discrete time

ToolBus -- a software coordination architecture.

Science of Computer Programming 31(2-3), pp. 205-

229.

Bernus, P., Nemes, L., Schmidt, G., 2003.

Handbook on

Enterprise Architecture

, Springer.

BPMI, 2003.

Business Process Modeling Language

(BPML), Proposed Recommendation

. Business

process Management Initiative (BPMI). URL:

http://www.bpmi.org.

Claßen, A., Steffen, B., Margaria, T., and Braun, V., 1997.

Tool Coordination in METAFrame.

Technical Report

MIP9707

. Universität Passau, Germany.

Creasy, P. N. and Ellis, G., 1993. A Conceptual Graph

Approach to Conceptual Schema Integration. In Proc.

ICCS’93, Conceptual Graphs for Knowledge

Representation: First International Conference on

Conceptual Structures

. Quebec, Canada.

ECMA, 1997. Portable Common Tool Environment

(PCTE) – Abstract Specification.

Standard ECMA-

149

. ECMA Standardizing Information and

Communication Systems. URL:

http://www.ecma-

international.org/.

Eertink, H., Janssen, W., Oude Luttighuis, P., Teeuw, W.

and Vissers, C., 1999. A Business Process Design

Language. In Proc.

1st World Congress on Formal

Methods

. Toulouse, France.

Gamma, E., Helm, R., Johnson, R. and Vlissides, J., 1995.

Design Patterns: Elements of Reusable Object-

Oriented Software

. Reading Mass., Addison Wesley.

USA, 1

edition.

Grundy, J.C. and Venable, J.R., 1995. Providing

Integrated Support for Multiple Development

Notations. In Proc.

Conference on Advanced

Information Systems Engineering

, pp. 255-268.

Handler, R., 2003.

Selecting Architecture Modeling Tools:

2003. EPAS, META Group.

Iacob, M.

et al., 2002. State of the Art in Architecture

Support

. ArchiMate deliverable D3.1. Telematica

Instituut, Enschede, The Netherlands. URL:

https://doc.telin.nl/dscgi/ds.py/Get/File-27882/.

IEEE, Architecture Working Group, 2000.

IEEE Std 1471-

2000, IEEE Recommended Practice for Architectural

Description of Software-Intensive Systems

. IEEE.

USA.

Jonkers, H.

et al., 2003. Towards a language for coherent

enterprise architecture descriptions. In

EDOC’03, 7th

IEEE International Enterprise Distributed Object

Computing Conference

, pp. 28-37. Australia.

Karlsen, E.W., 1998. The UniForM WorkBench – a

Higher Order Tool Integration Framework.

International Workshop on Current Trends in Applied

Formal Methods (AFM’98)

. Boppard, Germany.

Karsai G., 2000. Design Tool Integration: An Exercise in

Semantic Interoperability.

Proceedings of the IEEE

Engineering of Computer Based Systems

. Edinburg,

UK.

Kramer, J. and Finkelstein, A., 1991. A Configurable

Framework for Method and Tool Integration. In

Software Development Environments and CASE

Technology

, pp. 233-257.

Nuseibeh, B. and Finkelstein, A., 1992. View Points: A

Vehicle for Method and Tool Integration.

Proceedings

of the Fifth International Workshop on Computer-

Aided Software Engineering

. IEEE Computer,

Montreal, Canada.

ODMG, 2000.

Using XML as an Object Interchange

Format

. Object Data Management Group. URL:

http://www.odmg.org/.

OMG, 2003a.

XML Metadata Interchange (XMI), v2.0.

Object Management Group. URL:

http://www.omg.org/cgi-bin/doc?formal/03-05-02.

OMG, 2003b.

Unified Modelling Language, v1.5, Object

Management Group. URL:

http://www.omg.org/cgi-

bin/doc?formal/03-03-01.

Schefstroem, D. and van den Broek, G., 1993.

Tool

Integration: Environments and Frameworks

. John

Wiley & Sons, New York.

W3C 2000.

XML 1.0. World Wide Web Consortium.

URL:

http://www.w3.org/XML/.

W3C 2001.

XML Schema 1.0, World Wide Web

Consortium. URL:

http://www.w3.org/XML/Schema.

WOTIF.

Web-based Open Tool Integration Framework.

Institute for Software Integrated Systems. URL:

http://www.isis.vanderbilt.edu/Projects/WOTIF.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

478
