MANAGING INFORMATION FLOW DYNAMICS WITH AGILE

ENTERPRISE ARCHITECTURES

Nancy Alexopoulou, Panagiotis Kanellis, Drakoulis Martakos

Department of Informatics and Telecommunications, University of Athens, Athens, Greece

Keywords: Enterprise systems, integration, information flow, flexibility

Abstract: New organization forms and ways of conducting business require architectures for enterprise s

ystems that

can support and not hinder entrepreneurial activities. Primarily this means that the information flow between

both internal as well as cross-enterprise processes must be managed by underlying systems that offer a high

level of automation as well as being highly flexible and integrated. In this respect, we present an agile

architecture that offers a coherent and high level conceptualisation of the above properties that enterprise

information systems should display, consider a number of technologies as potential implementation

candidates and demonstrate how the architecture addresses node density, velocity, viscosity and volatility as

parameters for managing and controlling the dynamics of information flows.

1 INTRODUCTION

Enabled via the utilization of the new technologies,

companies in the electronic marketplaces of the new

economy are able to form partnerships only for the

duration of the transaction, as opposed to long-term

hierarchical supply chain collaborations of the

yesteryear (Hammer, 2001; Yang and Papazoglou,

2000). “On demand” partner relationships can be

formed with enterprises that have published their

profiles on the web and best satisfy ones’ own

requirements, regarding price, quality standards,

delivery schedules and other attributes. As firms

continuously sense opportunities for competitive

action in their product-market spaces, it is agility

which underlies firms’ success in continuously

enhancing and redefining their value creation

(Sambamurthy et al., 2003). It follows that agile

enterprise infrastructures that can meet the

performance criteria in terms of efficiency required

for the execution of both inter and intra-

organizational processes are a prerequisite. By

‘efficiency’ we mean smooth business process

execution that does not suffer from delays or errors

and, ease in altering the business logic of a process

and adjusting it to the needs of the moment. In turn,

both of the above need seamless integration of

internal enterprise processes (private processes) with

external ones (public processes).

According to Krovi et al

(2003), to attain such

levels of performance, it is imperative to enable and

manage agility in terms of the flow of information in

an organization. These parameters that affect

directly the information flow, namely node density,

velocity, viscosity and volatility should be taken into

consideration when designing enterprise system

architectures.

The purpose of this paper is to present, primarily

at a concept

ual level, such an enterprise systems

architecture that offers the required flexibility whilst

enabling full automation and high integration. Its

design caters for the criteria set by the information

flow parameters as defined by Krovi et al. (2003)

and, is based on a Business Process Engine (BPE)

that acts as a coordinator for end-to-end processes.

The term ‘end-to-end’ is used in a holistic manner to

denote processes that comprise both internal

enterprise activities, as well as external Business-to-

Business (B2B) transactions between one or more

trading partners. The paper proceeds as follows. In

the next section we provide a brief discussion on

information flow parameters whilst in the section

that follows we present the architecture. In section 4,

we propose a number of enabling technologies as

possible candidates for the implementation of the

architecture. In section 5 we demonstrate how

flexibility, automation and integration as provided

by the architecture can help in the management of

454

Alexopoulou N., Kanellis P. and Martakos D. (2004).

MANAGING INFORMATION FLOW DYNAMICS WITH AGILE ENTERPRISE ARCHITECTURES.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 454-459

DOI: 10.5220/0002612204540459

 SciTePress

the enterprise information flow in terms of node

density, velocity, viscosity and volatility. Section 6

offers our conclusions.

2 INFORMATION FLOW

PARAMETERS

The brief discussion in this section is based on the

work of Krovi et al. (2003) where the reader is

referred for a detailed description and explanation of

the parameters affecting information flow dynamics.

Node density denotes the number of intermediate

nodes in the information processing channel, where

a node is used to describe an entity or a group of

entities capable of altering the properties of

information flow.

Velocity refers to the speed of incoming

information at a node. It is inferred that architectures

which are designed to facilitate fully and not

partially the automation of information exchange,

help to streamline the organisational processes and

thus increase efficiency in this respect.

Viscosity refers to the degree of conflict that can

be observed at a node. The conflict arises due to the

presence of contradictory information components.

In such cases, viscosity appears in the form of

multiple values of information that must be resolved

before the node can begin processing.

The uncertainty in information content, format

and/or timing is expressed by the value of volatility.

External forces having their roots in industry or

economy-wide factors can impact the degree of

volatility creating in terms of transaction volume

either laminar or turbulent information flows.

3 AN AGILE ARCHITECTURE

FOR ENTERPRISE SYSTEMS

In this section we present an architecture for

enterprise information systems that enables

flexibility, full automation and high integration.

Flexibility, in general, means the ability to make

changes easily, i.e. in a timely and cost-effective

manner. Full automation means that the flow of

information between activities, processes and nodes

is carried out electronically with no manual

intervention. Integration is the process whose

ultimate aim is to create an infrastructure where

different entities (applications, databases, etc.) can

communicate efficiently with each other.

Integration, as well as flexibility, can be approached

at three different levels: business processes, data and

application components. Integration at business

process level means that business processes can span

multiple applications, whether these applications

belong to a single or to different companies.

Integration at data level means that data reside in

any data source anywhere and can be used by any

application or system anywhere. Integration of

application components means that components can

communicate efficiently with each other as well as

with legacy applications. A system that is integrated

at all three levels is a highly integrated system.

Flexibility at business process level means that a

business process definition (activities, roles, routes

and rules) can be altered without requiring

modification of the application components.

Flexibility at the data level denotes the efficient

transformation of data from one format to another

that can be realised at run-time. Finally, at

application components level, flexibility means that

new components can be easily embodied into the

existing architecture and also that components can

be re-used across multiple business scenarios.

Based on the above and the discussion on

information flow parameters in the previous section,

we derive that a flexible architecture can satisfy

performance criteria associated with node density

and volatility, while a fully automated and integrated

system can satisfy criteria associated with velocity

and viscosity. The former stands because with a

flexible infrastructure, alterations in the number of

nodes within a business process can be performed

fast and easily. Similarly, any operational changes

imposed by external factors can be accommodated in

a timely and cost effective manner. Automation and

integration on the other hand, mean that information

is not error-prone, keeping thus the value of

viscosity low at nodes. In terms of velocity, it means

the ability to accommodate variances in the flow of

information without bottlenecks.

Our proposed architecture is presented in figure

1. At the heart of the architecture is the Business

Process Engine (BPE), which interacts through the

exchange of messages with (a) users via a

Document-based Worklist Browser, (b) customers

via a Web Browser, (c) trading partners via the B2B

engine, and (d) applications and components via the

Component Management Service (CMS).

The BPE acts as a coordinator of activities

spanning across the enterprise entities (users,

applications, trading partners, etc.) invoking for each

activity the entity that is responsible for performing

it. The BPE reads and executes business logic

defined in process definition documents. This

implies that the process definition is expressed in a

business process definition language that is

machine-readable.

MANAGING INFORMATION FLOW DYNAMICS WITH AGILE ENTERPRISE ARCHITECTURES

455

The role of the document-based worklist browser

is to inform the user about the tasks that need to be

accomplished within the context and sequence of a

specific business process. In general, it provides a

graphical user interface that helps the user with his

everyday tasks.

The B2B engine (Bussler, 2002) is responsible

for handling communication (transport, security,

etc.) with trading partners and other external entities

(financial institutions, insurance agencies, etc.)

through the implementation of any open B2B

protocol.

Finally, the CMS finds and invokes the

appropriate application components that deliver the

requested business service. The components can

intercommunicate over a common communication

infrastructure. Legacy applications can be connected

to the communication infrastructure via adapters. In

essence, the CMS together with this infrastructure

constitute an Enterprise Application Integration

(EAI) implementation that follows some of the

principles of the NGOSS (New Generation

Operations Systems and Software) framework

(TMF, 2001). NGOSS is an initiative of the

TeleManagement Forum set to develop a framework

for rapid and flexible integration of operations and

business support systems in telecommunications, but

it can be equally applied to other business areas as

well. NGOSS defines a service-oriented system

framework, which is based on a collection of loosely

coupled, re-usable components that perform

business services.

Finally, we should mention that whenever

messages sent by the BPE need to be transformed

into another format, a transformation mechanism is

used. For example, if a message is to be directed to a

worklist browser, it must be first transformed into

HTML. Likewise, at the application components

level, if for example Common Object Request

Broker Architecture (CORBA) is used, then the

messages sent by the BPE will have to be

transformed into CORBA IDL messages. Overall,

the B2B engine will have to transform them into the

format required by the protocol used in the specific

business collaboration.

Based on the above description, it becomes clear

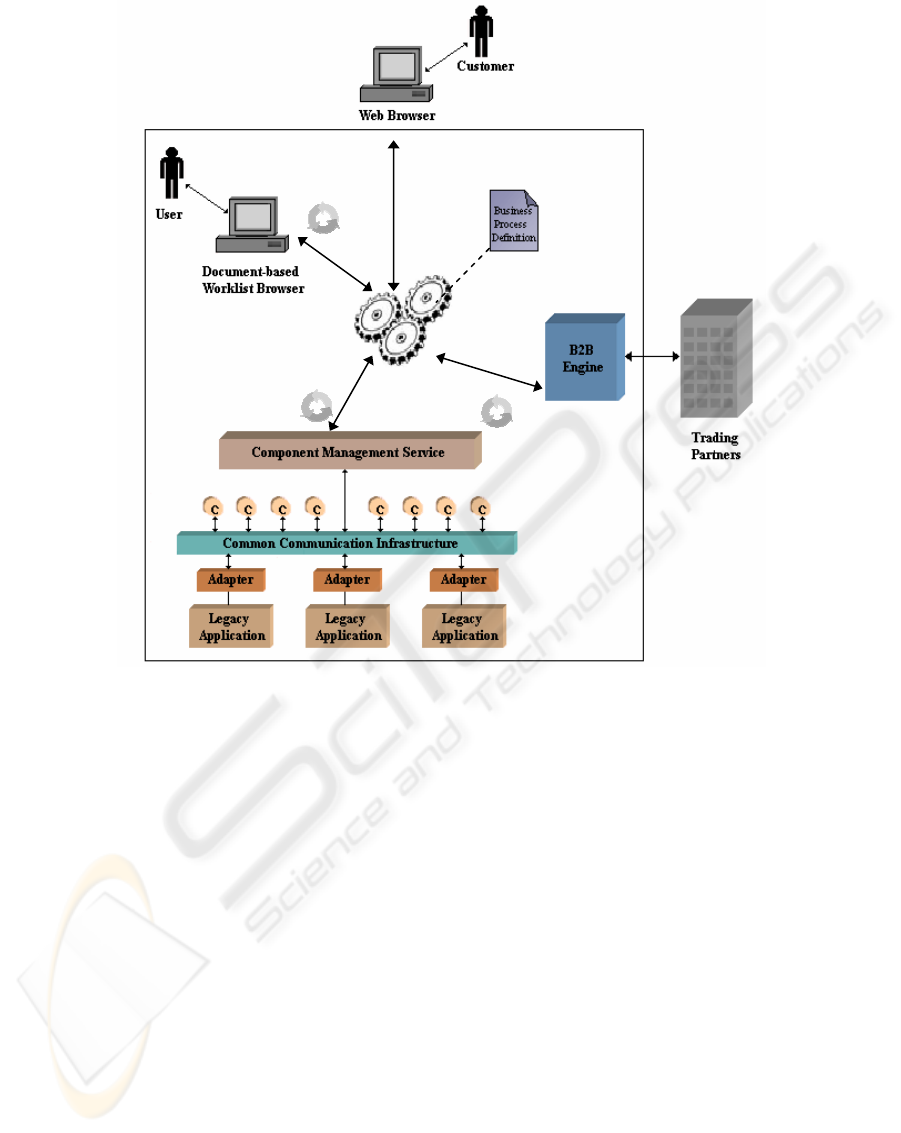

Figure 1: Architecture for Enterprise Systems

Transformation

Business

Process

Engine

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

456

how the architecture enables full automation;

business processes are described in a machine-

readable document, which is executed by the BPE.

The machine-readable document is generated at

build time through a process definition tool. Of

course, there are cases at this level that human

intervention may be inevitable, hence the inclusion

of the document-based worklist browser as an

element of the architecture.

Integration at business process level is attained

because of the fact that the BPE operates with users,

applications and trading partners in a transparent

manner. This is feasible due to the existence of the

CMS that is responsible for invoking the necessary

applications for the accomplishment of a business

process, as well as the existence of the B2B engine

that hides the communication and B2B protocol

details from the BPE. As a result, the BPE can

efficiently execute end-to-end processes, since the

B2B transactions are integrated with the internal

enterprise activities. Also, regarding integration at

the application component level, it is reminded that

this is addressed in the architecture by an EAI

implementation based on the principles of the

NGOSS framework. As far as data integration is

concerned, this is achieved through the

transformation mechanism described above.

Flexibility at process level ensues from the

abstraction of the business process flow into an

entity separate from the components themselves. As

a result, business process steps can be easily

rearranged or altered, since the only action required

is to update the process definition document. The

underlying component interactions will be

automatically reconfigured. As far as data format

transformations are concerned, the transformation

mechanism we mention in the next section enables

also run time transformations. Finally, in a NGOSS

infrastructure, new components can be easily

embodied into the infrastructure and communicate

with the already existing applications via the

common communication vehicle. Due to this

abstraction, components can also be re-used across

multiple business scenarios.

4 ENABLING TECHNOLOGIES

The key enabling technology for the architecture

presented in the previous section is the eXtensible

Markup Language (XML) (Bray et al, 2000). XML

can help (a) to automate the execution of business

processes, and (b) to form the foundation for both

EAI and B2B integration.

Automation of business process execution is

enabled by the fact that XML-based business

process definitions are machine-readable and thus

can be executed by a BPE. More specific, XML acts

as the bridge between the human-readable versions

required for modeling activities and the machine-

readable versions required by the run time

environment, filling thus the gap between business

processes and application components. Currently,

there are various XML-based business process

definition languages, such as the Business Process

Modelling Language (BPML) (BPMI, 2001), Web

Services Flow Language (WSFL) of IBM

(Leymann, 2001) and XLANG of Microsoft (Satish,

2001). Also, ebXML (2001b) has defined a Business

Process Specification Schema (BPSS) (ebXML,

2001a) that provides a shared view of the

interactions between trading partners regardless of

the actions that lead to any particular interaction.

The issue here is whether each of the three business

process definition languages suffices for the

description of an end-to-end process or they will

have to include BPSS for the implementation of

B2B collaborations. As a matter of fact, BPML,

WSFL and XLANG do not support basic business

notions such as mutual non-repudiation and

authentication between parties. Nickull et al (2001)

present how BPSS can be bound to each of the three

leading business process specification languages

(BPML, WSFL and XLANG).

During the execution of the business process, the

BPE communicates with the CMS, which in turn

invokes the appropriate components. At the

application components level, messages sent by the

BPE are transformed into an appropriate format, for

example into CORBA IDL. An efficient

transformation mechanism that can be used for such

transformations is XSLT (Clark, 1999). XSLT is

used for the transformation of an XML format to

another XML format, to aware non-XML or to any

arbitrary format (Holman, 2000).

As far as integration is concerned, XML is not an

integration solution in itself – it is just a definition

language, as explained earlier. For XML messages

to be interpreted by other companies, both trading

parties need to agree on common XML-based B2B

standards, which will specify the document

structures and the process descriptions. Such

standards have already been developed by various

B2B initiatives. Two major B2B initiatives are

RosettaNet and ebXML (2001b). Hence, the B2B

engine must be able to support any B2B protocol so

as to provide for more flexibility.

For EAI, a candidate XML-based technology is

Web Services (Fremantle et al., 2002). Web

Services enable interoperability via a set of open

standards such as WSDL (Web Services Description

Language), SOAP (Simple Object Access Protocol)

and UDDI (Universal Description Discovery and

Integration).

MANAGING INFORMATION FLOW DYNAMICS WITH AGILE ENTERPRISE ARCHITECTURES

457

5 MANAGING INFORMATION

FLOW DYNAMICS

We have used the terms ‘agility’ and ‘agile’ to

denote enterprise system architectures that offer the

flexibility, integration and level of automation

necessary for the management and control of

information flow dynamics and, in particular via

node density, velocity, viscosity and volatility. In

this section we further elaborate on the ways that our

proposed architecture addresses those parameters.

5.1 Node Density

Node density, according to Krovi et al., (2003),

refers to the number of nodes included in a business

process, where a node is used to describe an entity or

a group of entities capable of altering the properties

of information flow. In the proposed architecture,

both internal entities and external constituencies are

regarded as nodes within an end-to-end process and

the BPE interacts with them without discrimination.

The abstraction of business process flow into an

entity (BPE) separate from the application

components themselves allows an easier and more

flexible way to adjust node density, i.e. to add or

remove nodes from business process sequence,

whenever new circumstances arise or a modification

is needed. The only action required in such a case is

a reconfiguration in the business process definition

that is executed by the BPE, while no modification

is needed at the application component level.

Separating process control removes the need for

individual components to have knowledge of the

business logic associated with process operation.

When invoked by process control, a component

simply performs the service offered through its

interface.

5.2 Velocity

The decoupling of business process flow from

application components leads also to easier system

integration. A highly integrated system, in turn,

allows for high velocity, as all its entities can

intercommunicate fast and in a seamless manner.

Moreover, in the proposed architecture, the control

of information flow is completely automated, since

the BPE has the overall ‘supervision’ of business

processes and is always aware of where to forward

the information. In effect, the execution of business

processes is much faster. All necessary information

is available at the respective edge (user, application,

and partner) in a timely manner. The information

flow is smooth and conflicts, discontinuities or

unnecessary delays, are prevented.

In addition, the fact that the BPE does not

discriminate in the way it handles operations

between internal and external entities helps in the

integration of internal processes with B2B

transactions. As a result, the internal enterprise

activities are synchronised with the B2B transactions

and therefore any temporal misalignment between

them is eliminated ensuring at the same time the

accommodation of high velocity levels. At another

level, open communication protocols implemented

internally through Web Services or externally via the

B2B engine, ensure a high level of integration

providing thus for the accommodation of high

velocity levels in the flow of information.

5.3 Viscosity

The high level of automation and integration offered

by the proposed architecture helps also in the

attainment of low viscosity, since it leads to more

accurate and streamlined information and ensures

lower probability of error occurrence. As a result,

conflicts that may arise at the nodes due to the

arrival of contradictory information particles are

avoided. Since the BPE offers a high level of

automation and ensures that the correct routes will

be followed for the required information when this is

needed by the various nodes along the value chain,

the appearance of errors and contradictory

information particles will ultimately depend on how

well the business process has been designed by the

business process engineer.

5.4 Volatility

Volatility denotes the associated uncertainty in

information content, format and/or timing (Krovi et

al., 2003). Generally speaking, to cope with

volatility in system terms means to develop a

flexible system that can be easily adjusted so as to

accommodate the extent of turbulence. This

turbulence is of a polymorphous nature and one

cannot claim without the benefit of hindsight that

any enterprise architecture or system could by

design accommodate all its manifestations.

However, as far as content and format are

concerned, we believe that both the design and the

underlying implementation technologies as

described in the previous section provide the highest

possible flexibility. For example, nodes can be

added easily, new application components can be

embodied into the infrastructure and communicate

with existing applications via the common

communication bus, etc.

In addition the architecture can help manage

volatility as it enables connectivity with a large

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

458

number of external entities, which may themselves

be sources of change. This is feasible because the

BPE is scalable due to the existence of the B2B

engine, which enables BPE to handle all equivalent

relationships with a single business process

definition. More specifically, the use of the B2B

engine provides for the decoupling of the business

process definition from the communication and

business protocol details.

6 CONCLUSIONS

Contemporary architectures for enterprise systems

should enable and not hinder the management of

information flow dynamics. In this paper, we

proposed an architecture that caters for the above by

offering the necessary flexibility for the

management and control of node density and

volatility and enabling automation and high

integration needed for accommodating variances in

velocity and viscosity. Beyond conceptualisation

we also outlined a number of implementation

technologies for the key parts of the architecture. We

must note however that high agility requires a

revisiting of the ways enterprises develop and handle

their capabilities to organise and manage agile

system infrastructures. ‘Organizational Emergence’–

“a theory of social organization that does not assume

that stable structures underpin organizations” (Truex

et al, 1999) (p. 117) can aid in this respect. This

means that an extended number of organisational

capabilities is required to enable the successful

institutionalisation of agile IT architectures. Further

research is urgently needed towards this direction.

ACKNOWLEGDEMENTS

We would like to thank the partners of EURESCOM

P1106 and in particular Derrick Evans of British Telecom

whose input gave form to a number of ideas presented

herein. We are also grateful to Nikos Korres of the

University of Athens for his valuable assistance in the

preparation of this paper.

REFERENCES

Assaf Arkin, 2002. Business Process Modeling Language

(BPML). Business Process Management Initiative,

http://www.bpmi.org/.

Christoph Bussler, Oracle Corporation, 2002. The Role of

B2B Engines in B2B Integration Architectures.

SIGMOD Record, Vol. 31, No. 1, pp. 67-72.

David Raymer, Steve Afrin and Raghav Trivedi, 2001.

NGOSS Architecture Technology Neutral

Specification. TeleManagement Forum,

http://

www.tmforum.org

Duane Nickull, Jean-Jacques Dubray, Colleen Evans, Pim

van der Eijk, Vivek Chopra, David A. Chappell, Betty

Harvey, Marcel Noordzij, Jan Vegt, Tim McGrath,

Bruce Peat, 2001. Professional ebXML Foundations.

WROX Press Inc. 1

edition.

ebXML 2001. Business Process Specification Schema

v1.01. ebXML,

http://www. ebxml.org/.

ebXML, 2001. ebXML Technical Architecture

Specification v1.0.4. ebXML,

http://www.ebxml.org/.

Frank Leymann, 2001.Web Services Flow Language

(WSFL 1.0). IBM Software Group,

http://www-

3.ibm.com/software/

G. Ken Holman, 2000. What is XSLT? XML.com,

http://www.xml.com/.

James Clark, 1999. XSLT Transformation Version 1.0.

W3C Recommendation,

http://www.w3.org/ TR/xslt.

Jian Yang, Mike P. Papazoglou, 2000.

Interoperation

Support for Electronic Business

. Communications of

the ACM, Vol. 43, No. 6, pp.39-47.

Michael Hammer, 2001.

The Superefficient Company.

Harvard Business Review, September, pp.82-91.

Paul Fremantle, Sanjiva Weerawarana and Rania Khalaf,

2002. Enterprise Services. Communications of the

ACM, Vol. 45, No. 10, pp. 77-82.

Ravindra Krovi, Akhilesh Chandra and Balaji

Rajagopalan, 2003. Information flow parameters for

managing Organizational Processes. Communications

of the ACM, Vol. 46, No. 2, pp. 77-82.

Sambamurthy, V., Bharadwaj, A., Grover, V. 2003.

Shaping Agility through Digital Options:

Reconceptualizing the Role of Information

Technology in Contemporary Firms. MIS Quarterly,

Vol. 27, No. 2, pp. 237-263.

Satish Thatte, 2001. XLANG Web Services for Business

Process Design. Microsoft Corporation,

http://www.gotdotnet.com/team/xml_wsspecs/xlang-

c/default.htm

Truex, D., Baskerville, R. and Klein, H. 1999. Growing

Systems in Emergent Organizations. Communications

of the ACM, Vol. 42, No. 8, pp. 117-123.

MANAGING INFORMATION FLOW DYNAMICS WITH AGILE ENTERPRISE ARCHITECTURES

459
