AUTOMATIC INTEGRATION OF INTER-ENTERPRISE

PROCESSES WITH HIERARCHICAL BROKER FRAMEWORK

Shun-Fa Chang , Li-Chen Fu, and Ming-Yu Tsai

Department of Computer Science and Information Engineering,

National Taiwan University, Taipei, Taiwan, R.O.C.

Keywords: B2B E-commerce, workflow, Inter-Enterprise, Broker, Adapter

Abstract: In recent years, the manufacturing technologies are more and more complex. Almost all production

processes need cooperation among multiple enterprises. It is true that today’s manufacturing process is a

complex workflow forming a supply chain. Each enterprise provides their services to accomplish

professional processes. With the growth of Internet usage, there are more and more services able to be

processed on the web. Web-service is one of the applications on Internet and it can help enterprises

cooperate with one another in their services easily. In this paper, we propose a Hierarchical Broker

Framework to provide an advanced broker function for enterprises’ cooperation. In this framework, we can

classify all services to keep searching easier, to present the relations between two enterprises more flexibly,

to match buyers and sellers more precisely, and to cut down broker’s loading. On the ride of an enterprise

client, we do not have to modify any existing enterprise architecture. Beside, we will also design an adapter

to connect the broker server and the existing enterprises. By these designs, we try to find an automatic way

to integrate these enterprise processes to improve efficiency and reduce their transaction overheads.

1 INTRODUCTION

With the progress of computers, information

technology and Internet, people find a new way to

undertake business by electronic media that reduce

the time barrier and distance between sellers and

buyers. For enterprises, they need to respond to the

demands of customers quickly to gain an

advantageous position as global competition and

market pressures rise. They are seeking a new way

to decrease cycle time and to make operation more

productive. So far, there are many services that can

improve workflow efficiently on the internet. How

we can automatically and efficiently integrate these

services in the workflow is an important issue that

we need to cope with. In this paper, we propose a

new framework, Hierarchical Broker Framework, to

deal with this problem efficiently and elegantly.

Hierarchical Broker Framework is applied to

replace the existing marketplace and to add efficient

matching mechanism to it. In this framework, all

services will be clearly classified, and thus

customers can find their required services more

easily. The broker provides useful matching

mechanism to help buyers or sellers to find the

suitable partners very conveniently. By the

automating function, the integration and automation

of business processes will be simpler and more

efficient.

With the integration of inter-enterprise processes,

enterprises will have no difficulties to outsource

some processes to complement their own weakness

and to reduce some unnecessary overhead. This

framework allows enterprises to focus on their core

technology while relying on partners to perform

other critical activities. In order to have all

enterprises easily join this Hierarchical Broker

Framework, we design an Adapter Agent to help

every one of them to be free of removing legacy

operating systems.

The remainder of the paper is structured as

follows. Section 2 summarizes the relation work. In

section 3, we propose a new business framework,

called the Hierarchical Broker Framework, to

replace the existing marketplace. Based on this

framework, we can successfully establish an

Intelligent Broker for matching buyers and sellers

and an Adapter Agent for connecting the new

framework and the legacy operating system in every

joined enterprise. We will introduce how these

different enterprise parties shall communicate with

one another in section 4. The implementation of this

Chang S., Fu L. and Tsai M. (2004).

AUTOMATIC INTEGRATION OF INTER-ENTERPRISE PROCESSES WITH HIERARCHICAL BROKER FRAMEWORK.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 62-69

DOI: 10.5220/0002613500620069

 SciTePress

framework is discussed in section 5. Finally, section

6 makes a conclusion of the paper.

2 RELATED WORKS

The term “workflow” originated in the mid-1980s

and became popular in the early 90’s. Since then,

many service providers have offered

general-purpose workflow management systems

(IBM, WebSpere MQ Workflow). We used these

workflows in two ways. One is to lead ERP

(Enterprise Resource Planning) systems to adopt a

workflow component. Another one is to include

workflow functionality in the enterprise application.

WISE (Workflow based Internet SErvices) is a

project conducted at Swiss Federal Institute of

Technology (Alonso et al., 1999). The goals of

WISE are to develop and deploy the software

infrastructure necessary to support business to

business electronic commerce in the form of virtual

enterprises. The idea is to combine the tools and

services of different companies as building blocks of

a higher level system in which a process acts as the

blueprint for control and data flow within the virtual

enterprise. From this idea, the final goal is to build

the basic support for an Internet trading community

where enterprises can join their services to provide

added value processes.

CrossFlow is a European research project for

supporting cross-organizational workflow

management in virtual enterprises (Grefen et al.,

1999). Its goal is to develop and implement a

mechanism for connecting WfMS and other

WfMS-Like systems of different organizations in

cross-organization workflows and electronic

commerce settings. Crossflow defines a

service-oriented model for cross-organizational

workflows. In their service-oriented model, a service

provider of each service can be either an internal

resource (internal service) or an external

organization (external service). For an external

service, service selection at run-time will be based

on the QoS parameters given in service

specifications.

Sangam is a universal interoperation protocol for

e-service broking communities using private UDDI

nodes (Helal et al., 2002) (Jagatheesan et al., 2003).

It aims to achieve more relevant and interoperable

brokering of e-services in a highly scalable and

dynamic environment of e-services.

3 HIERARCHICAL BROKER

FRAMEWORK

3.1 Architecture and Technology

Hierarchical Broker Framework is a framework

which connects every service and marketplace on

the internet. The main idea of this framework comes

from the “domain name mechanism” on the internet

and the “inheritance concept” on object-oriented

programming. The former can help us create this

framework more uniformly, whereas the latter can

keep sellers to enter this framework with little

efforts.

The traditional marketplace provides a place

where sellers can publish their services or products,

and buyers can search in this online catalog for those

services which they need. The marketplace owner

needs to maintain this online catalog. It has many

different domains and different presenting methods

in each marketplace, and it may be difficult for

buyers to find the desired services, thus the matching

mechanism is very important.

The main idea of Hierarchical Broker Framework

is to connect each special marketplace by a

classified framework. There are only two kinds of

components in this framework, Intelligent Broker

and Adapter Agent. Each Intelligent Broker can

independently be extended to a sub-marketplace, and

the Adapter Agent is a member in this

sub-marketplace.

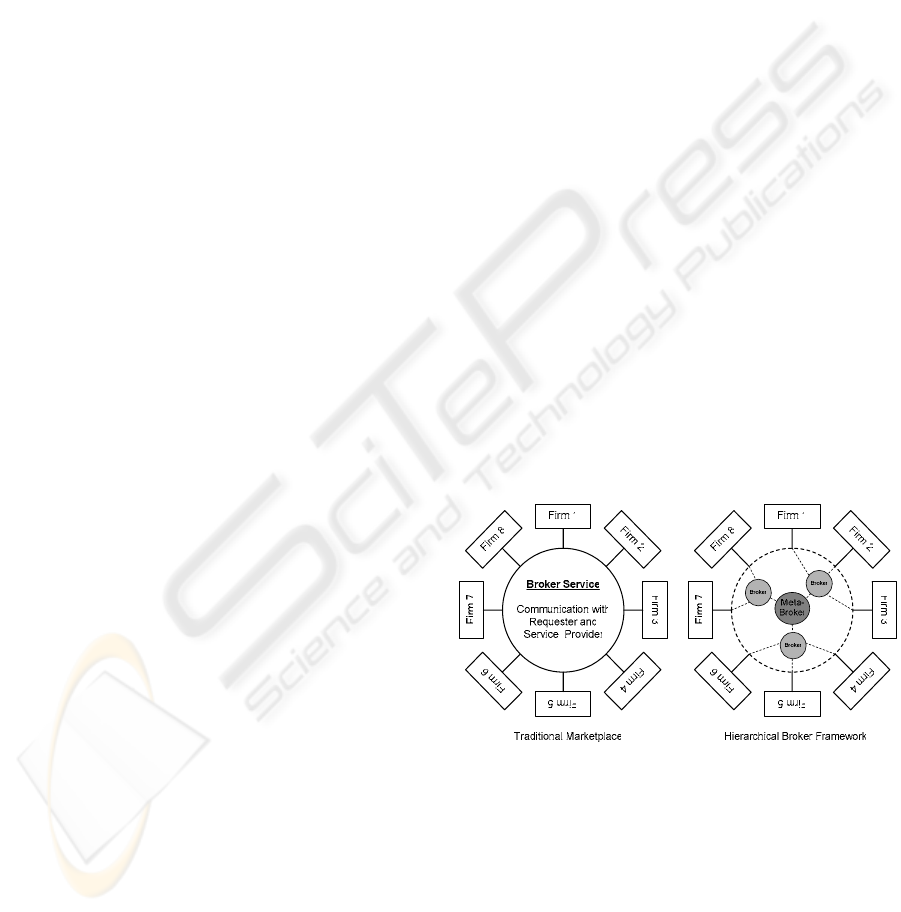

Figure 1: Traditional Marketplace & Hierarchical Broker

Frameworks

In this framework, an Intelligent Broker is

mapped to a sub-marketplace, whereas an Adapter

Agent is mapped to a service. In Figure 2, we can

see how this framework integrates these specific

Intelligent Brokers. By this framework, not only

services but also Intelligent Brokers have a unique

place in this classified framework. The unique place

stands for the position of this service and its relation

with other services in this framework.

AUTOMATIC INTEGRATION OF INTER-ENTERPRISE PROCESSES WITH HIERARCHICAL BROKER

FRAMEWORK

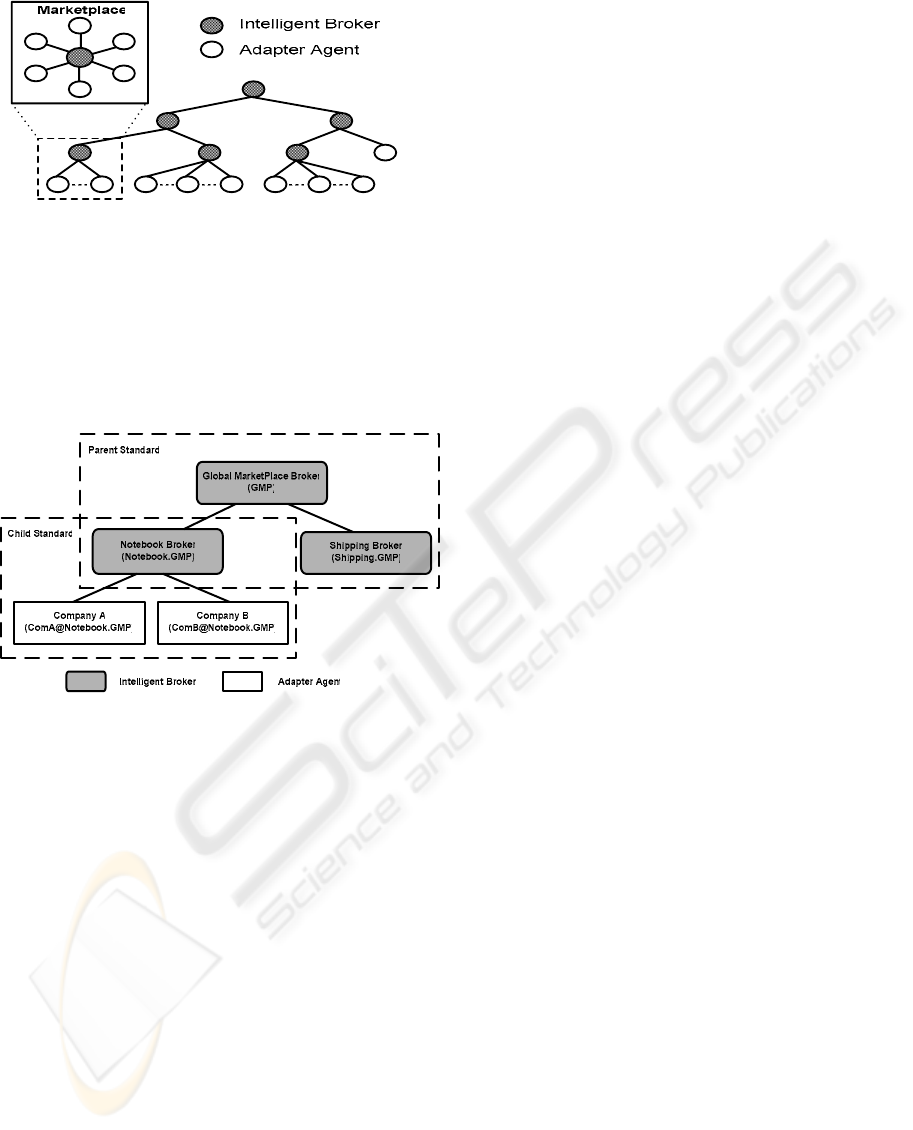

Figure 2: Hierarchical Broker Framework

In Figure 3, it presents another aspect in this

framework. Components in the area surrounded by

the dotted line use the same standard to

communicate. One broker server can serve service

providers and other broker servers only if all of them

follow the same standard.

Figure 3: Part of Hierarchical Broker Framework

Each Intelligent Broker must build a special

marketplace into it, and hence an Intelligent Broker

stands for one specific marketplace. After this broker

is created, service providers can publish their

services on it. Each broker server has another

mission that it is responsible to manage all services

and sub-brokers under it. It must check regularly if

the services remain available or not. This

maintenance will require large efforts in a one-tier

traditional marketplace, but they will be handled by

each specific broker in the Hierarchical Broker

Framework.

This design keeps each standard more stateless.

The child Broker Server Standard is able to flexibly

describe the specific domain in detail, and the Parent

Broker Server Standard is less domain-dependent

and can be generally used in any domain.

3.1.1 Broker Standard Inheritance Relation

Although in Hierarchical Broker Framework each

tier may have different standards, we use inheritance

concept to create the relations. By this idea, the

distributed broker standard will have some norms to

normalize it. This idea is from OOP (object-oriented

programming). The Child Broker Server Standard

will inherit from the Parent Broker Server Standard.

In this way, we can define a new child standard

easily by referring to the parent-broker standard.

3.1.2 Service Naming Mechanism

The other concept used in the Hierarchical Broker

Framework is the domain name mechanism on the

internet. This mechanism arises because most people

cannot remember 32-bit IP address and a mapping

from the pure-digits address to natural language

phrases is very helpful for us to memorize. Domain

name mechanism uses a tree structure to describe the

location on the internet. When we name a domain,

we try to make this name more representative. We

will name all Intelligent Brokers in this framework

so that each service will have a unique name. This

unique name mechanism will help workflow

designers to design the business workflow more

easily.

3.2 Definition of Data Unit

In this paper, we design several data units to help

these components to communicate with one another.

There are three kinds of data units: order, process,

and task.

The order is a fundamental unit that companies

will use to execute business actions. It is a unit used

to ask a provider to offer a complete service or

product. The process unit is used to dispatch this

action according to whether it is going to be finished

in a local place or needs to invoke a service in other

places. The task is an elementary action in this

framework, which connects this framework and the

legacy operating system within an enterprise. One

task is mapped to one traditional process in the

legacy operating system.

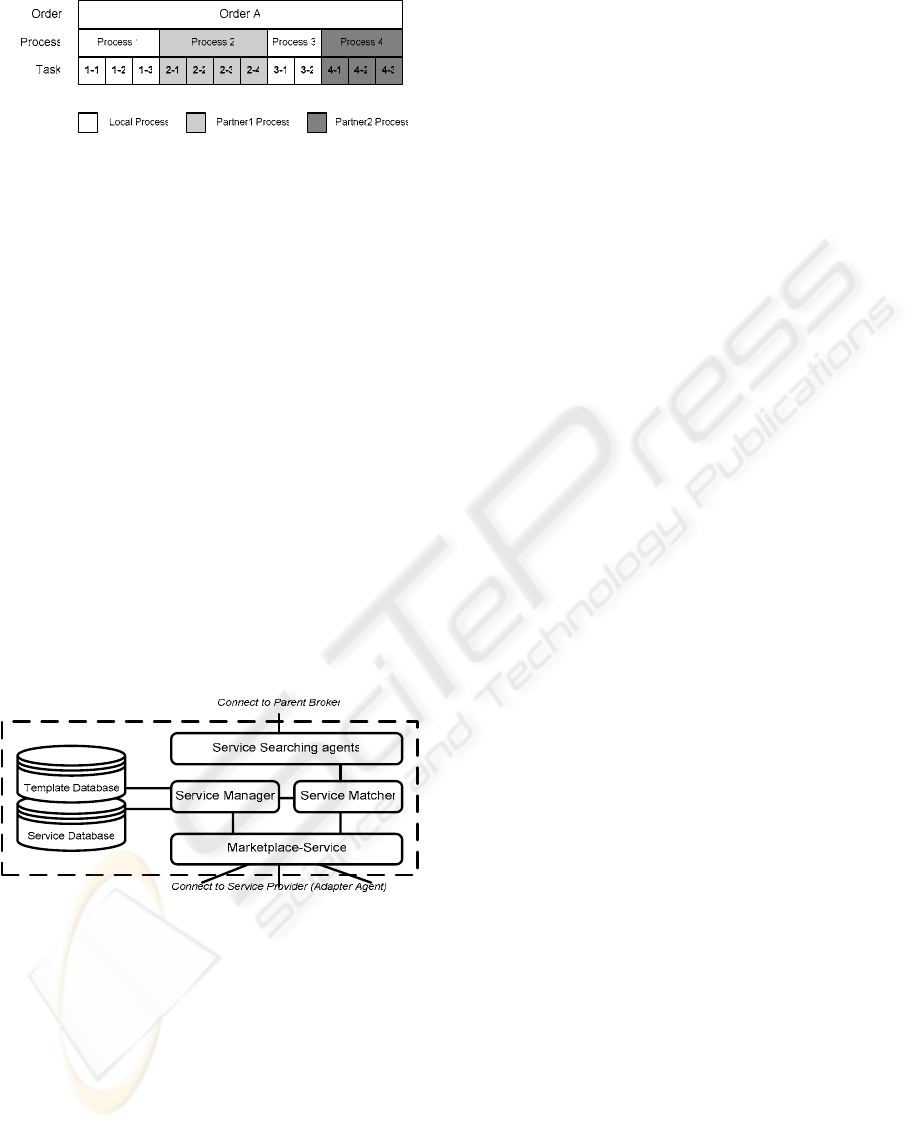

In Figure 4, we see the relations among orders,

processes, and tasks. It is clear that workflow is

constructed by tasks. These tasks directly

communicate with the legacy operating system,

maybe a manufacturing system. A sequence of tasks

can form a meaningful process, and a sequence of

processes stands for a complete workflow of a

product or a complete service.

Figure 3.4 Workflow

data unit

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

Figure 4: Workflow data unit

3.3 Basic Components Architecture

3.3.1 Intelligent Broker Node Architecture

The Intelligent Broker plays the role as a manager in

the framework. It is used to manage every service

under it. Besides, it manages sub-brokers under it,

too. A broker server has the following functions:

z Manage provider registry system;

z Store each service and maintain the service

table;

z Store each template and maintain the template

table;

z Provide the interface for inquiring services;

z Provide the matching mechanism;

z Provide a function to communicate with upper

and lower brokers.

All broker architectures look like that is shown in

the following figure:

Figure 5: Intelligent Broker Architecture

Marketplace-Service provides a basic

marketplace function. It can receive members’

requests of registrations and it can query members’

services actively. There are three kinds of actions

that a Marketplace-Service will receive from the

Adapter Agent. They are “register” action, “match”

action and “order” action. Service Manager Agent

is a bridge between the database and the main

program in the Intelligent Broker. All data including

broker information, service and template

information, service provider information, and

child-broker information will be loaded by the

Service Manager Agent. Service Manager Agent is

an information center in the broker. Service

Matching Agent is the control center in the

Intelligent Broker. All matching and ordering action

will pass through it. The Service Matching Agent

function is used to match the providers and buyers.

Template & Service Database explicitly store all

services and templates that belong to this broker.

Template is a kind of service specification, which

defines standard input, output and all variables. A

real process set is provided by a provider and

follows a template specification. So, one template

may have many services, and one service must have

one service provider associated with it. Searching

Agent is a component which is responsible for

communications with the Parent broker. It is a finder

because it finds other brokers in different domains.

Sometimes we need this component when one

broker can not find another broker and this target

broker is not under the inquired broker.

3.3.2 Adapter Agent Node Architecture

The Hierarchical broker framework is used to

connect all services on the Internet and to assist to

coordinate the service partners. In fact, each firm

generally has its own legacy operating system, so it

is a challenge to pass information to other systems.

Legacy operating systems generally invoke older

mainframe and minicomputer systems to manage the

key business processes in a firm covering a variety

of functional areas from manufacturing, logistics,

finance, and human resource, etc. Generally, it is

very costly and time-consuming to convert these old

systems to new systems.

The Adapter Agent has two kinds of interfaces,

one for the Intelligent Broker and the other for

legacy operating systems. The Adapter Agent rule

translates all actions between the Intelligent Broker

and the legacy operating system. There are many

necessary functions in the Hierarchical broker

framework. If the legacy operating system fails to

support some of those functions, our Adapter Agent

must provide it. The goal of the Adapter Agent is to

provide a complete interface to let enterprises

successfully join this framework.

AUTOMATIC INTEGRATION OF INTER-ENTERPRISE PROCESSES WITH HIERARCHICAL BROKER

FRAMEWORK

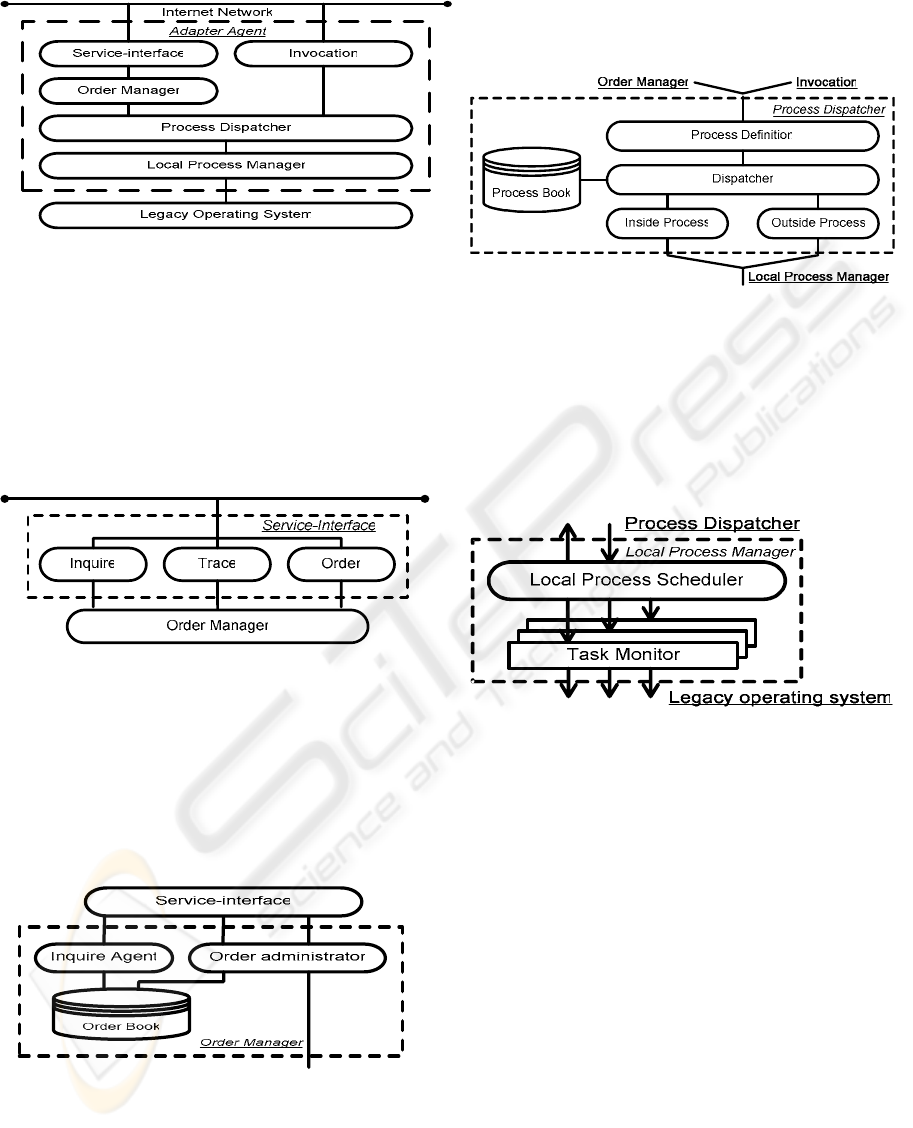

Figure 6: Adapter Agent Architecture

We decompose this agent into many components.

The Service-Interface provides an interface that

allows outside users to inquire services, make orders,

and trace the order’s progress. It must follow

communication standard in the framework. After

receiving a request, it translates the request and then

invokes the Order Manager inside the Adapter

Agent.

Figure 7: Service-Interface

The Order Manager is a component to manage

all orders received from the Service-Interface. When

the order manager gets a new order, it will create a

unique order name and store the order in the order

book. It will also send the order to the Process

Dispatcher to classify and to dispatch each work.

Figure 8: Order Manager

The Process Dispatcher receives order from the

order manager, and the main mission is process

definition and process dispatching. When an order

enters this dispatcher, the first job for Process

Dispatcher is to define all processes in the order. In

other words, it will decompose the order to many

processes.

Figure 9: Process Dispatcher

The Local Process Manager is the only

component which actually invokes legacy operating

systems. It is used to connect the Adapter Agent and

the legacy operating systems. Because there are

many different legacy systems, the local process

manager must be designed case by case.

Figure 10: Local Process Manager

4 INTEGRATION OF

ENTERPRISE PROCESSES

There are three kinds of elementary actions in this

framework. In Figure 11, it can be seen that all these

actions are communications between the Broker and

the Enterprise.

(1) Publish / unPublish: Service providers

advertise (publish) their e-services to one or more

broker servers. They may also unpublish the

advertisements of services from the registry.

(2) Match request: A buyer needs a seller. He can

set some requirements and send it to the broker to

request a matching list of suitable sellers.

(3) Match result: The broker will return a suitable

result for the buyer.

(4) Invoke: After matching the suitable provider

and verifying its quality, this service will be

invoked.

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

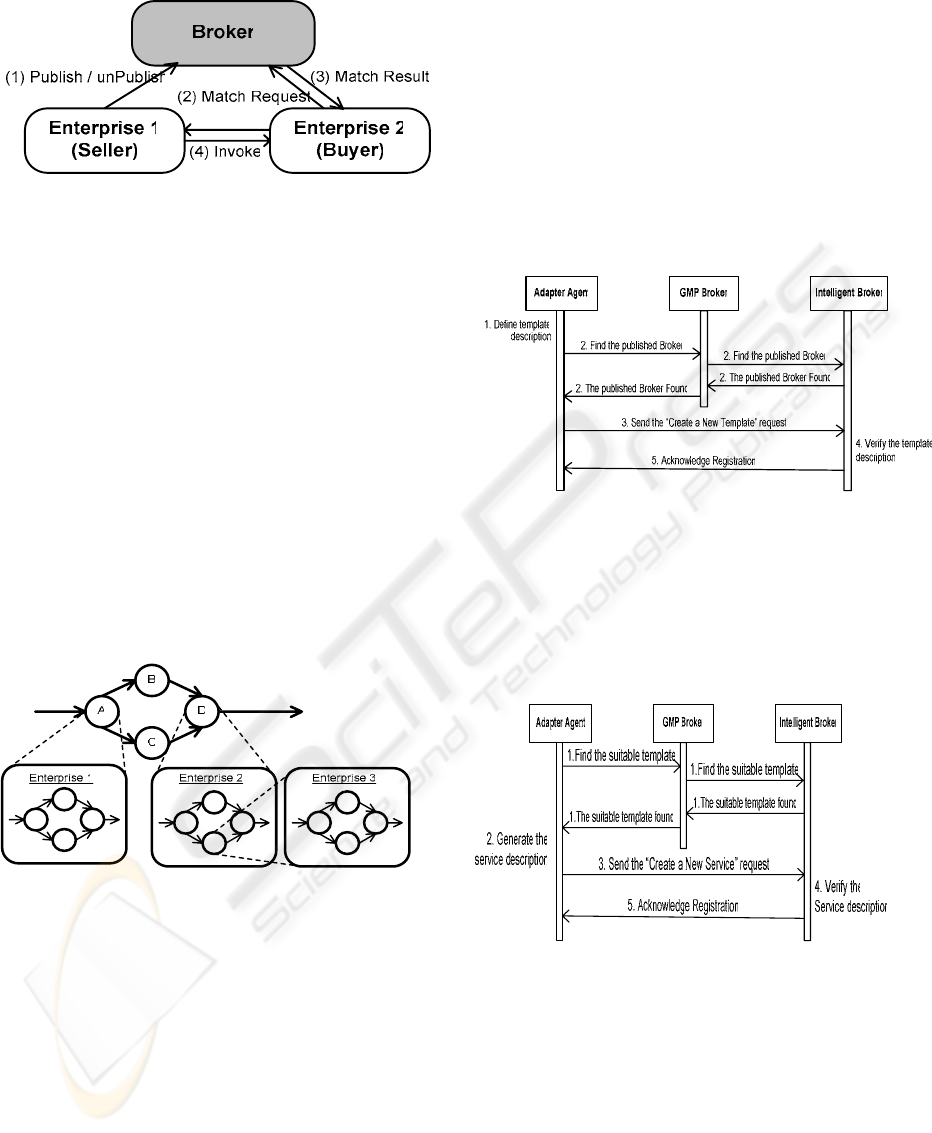

Figure 11: Elementary Broker Mechanism

Generally, an enterprise can publish its services

on the brokers, and these brokers will collect these

services and make an online catalog. If a buyer, not

only an individual customer but also an enterprise,

needs some services or products, he can ask the

broker to search for a suitable enterprise that can

provide the service. After matching, the buyer can

invoke these services that he needs.

Actually, these elementary actions can construct

more complex processes to present the real situation.

These buyer-seller relations connect enterprises to be

a chain. Production of a product may need cooperate

with many company’s processes, and

accomplishment of one company’s process may also

need coordination with more other companies’

processes. Under this concept, each enterprise will

play more than one role given one order

simultaneously.

Figure 12: Integrated Inter-Enterprise Process

Figure 12, we aims to explain relations among

different enterprises in this integrated

inter-enterprise process from the process perspective.

We know that each complete service involves many

enterprises, and the Intelligent Broker and the

Adapter Agent will help us to create this

coordination process more easily.

4.1 Publication Mechanism

The publication mechanism gives the enterprise the

ability to publish their services on the internet to

wait for being invoked. There are two kinds of

information that will be published, templates and

services.

In the Intelligent Broker, some service providers

will cooperate to design a standard template for

some designated services. It is a general

specification, and any service should follow so that

it will be easier to be used by buyers. When the

company has a new service, it will check if there is a

suitable template to use. If the Intelligent Broker

does not have a suitable template, the provider must

create a new one. The creating action is show below.

Figure 13: Template Publishing Action

In order to keep buyers able to find the service,

the enterprise must publish their services on the

broker. Before publishing services, the enterprise

must choose a suitable broker and a suitable

template to store their services. These are the steps

that a provider needs to take to publish a service.

Figure 14: Service Publishing Action

4.2 Locating Broker Mechanism

In the one-tier marketplace, each service is

published on the same online marketplace. If a user

needs to find the service, he just needs to search only

one catalog in the broker. In the Hierarchical Broker

Framework, in order to use the tree-like framework,

we separate one main broker from other sub-brokers.

The Locating Broker Mechanism is used to help

users to find the broker they need.

AUTOMATIC INTEGRATION OF INTER-ENTERPRISE PROCESSES WITH HIERARCHICAL BROKER

FRAMEWORK

4.3 Matching Mechanism

The Matching Mechanism is used to help a buyer to

match a suitable seller (service provider). Different

industries or even the different services may need

different Matching Mechanisms to achieve more

precise matching. A suitable Matching Mechanism

can let the broker find the service provider while

satisfying the buyer’s constraints more precisely.

In Figure 15, we show a complete flow that

matches and invokes a service. First we will use the

matching method to find a service and then invoke it.

As for the invocation mechanism, we will introduce

in it in the next sub-section. When a user needs a

service, first he needs to find a suitable broker, and

then he can ask it to create a matching session. The

Intelligent Broker will invite the providers to join

the matching session and help the user to find a

suitable provider.

4.4 Invocation Mechanism

The Invocation Mechanism is the most important

mechanism in integrating inter-enterprise processes.

The automatic integration includes matching and

invoking of the services automatically.

Sometimes, the Invocation Mechanism is used

after the matching mechanism. The matching

mechanism provides a suitable service provider and

a suggested workflow. If the buyer accepts this

workflow, the mechanism will submit it and invoke

subsequent actions.

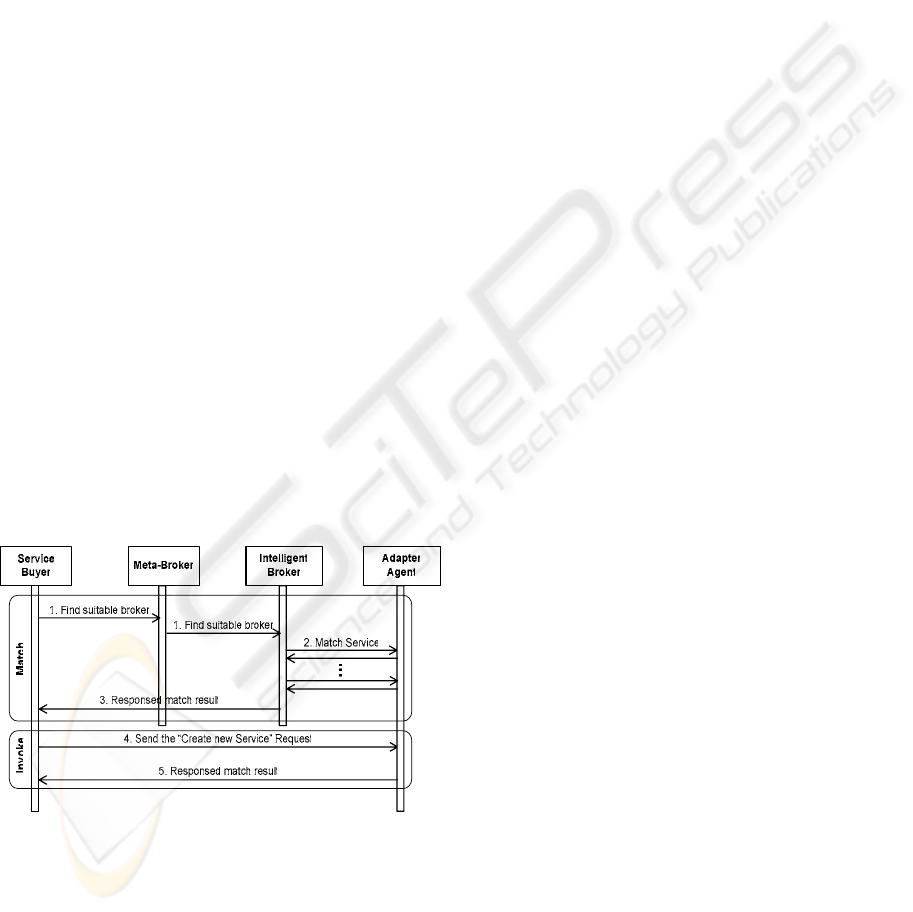

Figure 15: Matching & Invocation mechanism

5 IMPLEMENTATION

We use the Java programs and the web-service

technology to accomplish the hierarchical broker

framework. The former can execute in any platforms

and the later is adopted by many organizations and

enterprises. On the strength of these characteristics,

clients and servers do not have special requirements

in your legacy system. The hierarchical framework

will be operated very easily and successfully. In

summary, the major advantages of our Hierarchical

Broker Framework to perform the automatic

integration workflow are listed here.

The Intelligent Broker and the Adapter Agent are

built as basic components. If we want to add a new

broker/adapter, we just need to reuse these existing

basic components to design a new broker/adapter to

join the Hierarchical Broker Framework.

z Because of using the browser as the

communication tool, users can manage and

monitor processes in an easy and friendly way.

z The Web-service standard (SOAP, WSDL and

UDDI) are open standards supported by W3C

and OASIS, adopting these standards reduces

the interoperability problems between

different systems that follow the standards.

6 CONCLUSION

Nowadays, producing a complex product needs

cooperation with many enterprise processes. How to

find suitable service providers to establish a perfect

workflow is a critical issue and is solved in this

paper. In order to provide more efficient matching

environment to deal with automatic integration of

processes, we designed a Hierarchical Broker

Framework. In this framework, we provide many

useful functions that a traditional broker can not

provide. It decomposes a main broker to many

sub-brokers and provides a tree-like framework. The

decomposition method uses a domain concept like

DNS on the Internet. It also provides for each

sub-broker a very flexible environment where the

sub-broker can design suitable data format and

matching method in its marketplace. The buyer and

the seller in the Hierarchical Broker Framework will

find each other more precisely. In the hierarchy, the

parent broker has the responsibility to validate the

child-brokers’ specification.

Then, based on this Hierarchical Broker

Framework, we established two main components,

the Intelligent Broker and the Adapter Agent. The

Intelligent Broker is a broker node in the framework.

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

It not only matches sellers and buyers, but also

manages sub-brokers and member providers. The

Adapter Agent is used to help some legacy operating

systems to be integrated into this framework more

easily. By these mechanisms, connecting business

processes between enterprises are more convenient

and efficient. Furthermore, enterprises have more

opportunities to find suitable partners in

net-marketplace.

REFERENCES

[1] IBM, WebSphere MQ Workflow (formerly MQSeries

Workflow),

http://www-3.ibm.com/software/integration/wmqwf/.

[2] G. Alonso, U. Fiedler, C. Hagen, A. Lazcano, H.

Schuldt, N. Weiler: WISE: Business to Business

E-Commerce. 9th International Workshop on

Research Issues on Data Engineering (RIDE-VE'99).

Sydney, Australia, March 23-24, 1999.

[3] P Grefen, Y Hoffner, CrossFlow -

Cross-Organizational Workflow Support for Virtual

Organizations, Proceedings of 9th International

Workshop on Research Issues on Data Engineering,

Information Technology for Virtual Enterprises,

Sydney, Australia, March, 1999.

[4] Sumi Helal, Stanley Su, Jie Meng, Raja Krithivasan,

and Arun Jagatheesan, The Internet Enterprise, IEEE

Applications and the Internet, 2002. (SAINT 2002).

Proceedings. 2002 Symposium on , Page(s): 54 -62

[5] A. Jagatheesan and A. Helal, Sangam: Universal

Interop Protocols for E-service Brokering

Communities using Private UDDI Nodes, Submitted

to the IEEE Symposium on Computers and

Communications - ISCC'2003, to be held in

Kemer-Antalya, Turkey, Hune/July 2003

[6] Kenneth C. Laudon and Carol Guercio Traver,

E-Commerce business. Technology. Society , Addison

Wesley, 2002.

[7] IDEF Family of Methods,

http://www.idef.com/default.html

[8] M. Wahl, T. Howes, and S. Kille. "Lightweight

Directory Access Protocol (v3)," IETF RFC 2251,

December 1997. http://rfc-editor.org/rfc/rfc2251.txt

[9] K. W. Edwards. Core Jini. Prentice Hall.

[10] Roy, J. and Ramanujan, A., Understanding Web

services, IT Professional , Volume: 3 Issue: 6 ,

Nov/Dec 2001 Page(s): 69 -73

[11] Curbera, F., Duftler, M., Khalaf, R., Nagy, W.,

Mukhi, N.and Weerawarana, S., Unraveling the Web

services web: an introduction to SOAP, WSDL, and

UDDI, Internet Computing, IEEE , Volume: 6 Issue:

2 , Mar/Apr 2002, Page(s): 86 -93

[12] Simple Object Access Protocol (SOAP) 1.1,

http://www.w3.org/TR/SOAP/

[13] Web Services Description Language (WSDL) 1.1,

http://www.w3.org/TR/wsdl

[14] Universal Description, Discovery and Integration of

Web Services, http://www.uddi.org/

[15] Weiming Shen;, Distributed manufacturing

scheduling using intelligent agents, Intelligent

Systems, IEEE [see also IEEE Expert] , Volume:

17 Issue: 1 , Jan.-Feb. 2002 Page(s): 88 -94

AUTOMATIC INTEGRATION OF INTER-ENTERPRISE PROCESSES WITH HIERARCHICAL BROKER

FRAMEWORK
