AN EFFICIENT B+-TREE IMPLEMENTATION IN C++ USING THE

STL STYLE

Jingxue Zhou, Bin Nie, Greg Butler

Department of Computer Science, Concordia University

1455 de Maisonneuve Blvd. West, Montreal, Quebec, H3G1M8, Canada

Keywords:

B+-tree, STL style, design patterns, database index

Abstract:

Database indexes are the search engines for database management systems. The B+-tree is one of the most

widely used data structures and provides an efﬁcient index. An efﬁcient implementation is crucial for a B+-

tree index. Our B+-tree index is designed to be a container in the style of the C++ Standard Template Library

(STL) and implemented efﬁciently using design patterns and generic programming techniques.

1 INTRODUCTION

A database is any organized collection of informa-

tion. An index is an auxiliary data structure intended

to help speed up the retrieval of information in re-

sponse to certain search conditions. To achieve this

goal, a specialized handcrafted index is a good way

to support a speciﬁc database application in a spe-

ciﬁc domain using domain-speciﬁc access methods.

However, these specialized access methods are usu-

ally hand-coded from scratch. A specialized index

may have better code efﬁciency and performance but

the tradeoffs are development time and cost. The ef-

fort required to implement and maintain them is high.

Another choice is to develop a framework for a

family of indexes, and reuse it to develop different

indexes for different applications. A framework is a

software infrastructure that may be tailored for build-

ing domain-speciﬁc applications, typically resulting

in increased productivity and faster time-to-market.

Therefore, an index framework should largely reduce

the cost of providing a new index.

The Generalized Index Search Tree (GiST) (Heller-

stein et al., 1995) is an existing framework of a gener-

alized index system. It can be adapted to different key

types and access methods. However, GiST has tried

to satisfy all the possible needs of the future members

of a family of applications, so it leads to code that

is larger and less user-friendly. In addition, the source

code itself is largely inﬂuenced by the C programming

language and has poor object-oriented style.

As the framework development methodologies im-

prove, these problems are being recognized and ad-

dressed. The Know-It-All Framework (Butler et al.,

2002) is an object-oriented framework for database

management systems. The Tree Index Framework is

a subproject. It is being developed in C++ to con-

form to the style of the Standard Template Library

(STL) collections and iterators. The index subframe-

work covers tree-based indexes which include multi-

dimensional trees and similarity-based retrieval. It

also covers sequential queries, exact match queries,

range queries, approximate queries, and similarity

queries.

The B+-tree Index is designed to be a container that

provides an iterator to its contents. The only way to

interact with the container is through its iterator. Allo-

cators are responsible for the memory management is-

sues, and the Proxy mechanism is used to load a page

from disk on demand and maintain the reference to

the loaded page.

The index subframework (Nie, 2003) covers tree-

based indexes such as B+-tree, R-tree, X-tree, SS-tree

and their variants (Gaede and G

unther, 1998). In the

future we plan to include hash indexes and inverted

ﬁle indexes as well. We report only the inital work on

B+-trees (Zhou, 2003).

The main sections of the paper cover the design of

the B+-tree, the implementation of the B+-tree, and

the testing of the B+-tree and its performance. Be-

fore those main sections we present the background

material, and after the main sections we conclude.

163

Zhou J., Nie B. and Butler G. (2004).

AN EFFICIENT B+-TREE IMPLEMENTATION IN C++ USING THE STL STYLE.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 163-168

DOI: 10.5220/0002613901630168

 SciTePress

2 BACKGROUND

2.1 B+-tree

A database management system (Garcia-Molina

et al., 2000) is a set of programs that allow users to

deﬁne the type of data they want to store and manages

that data by providing efﬁcient retrieval. Efﬁcient re-

trieval is done by using appropriate data structures

such as B-tree, B+-tree or hash ﬁles as indexes within

the database. An index is “a data structure that allows

for random access to arbitrary data within a ﬁeld, or

a set of ﬁelds. In particular, an index lets us ﬁnd a

record without having to look at more than a small

fraction of all possible records.” (Garcia-Molina et al.,

2000) From this deﬁnition, we can see that an index

(Bayer and McCreight, 1972) consists of “index ele-

ments which are pairs (x, a) of ﬁxed size physically

adjacent data items, namely a key x and some asso-

ciated information a. The key x identiﬁes a unique

element in the index, and the associated information

is typically a pointer to a record or a collection of

records in a random access ﬁle.” All indexes are based

on the same basic concept — Key and Reference to

Data.

The B-tree and its variant B+-tree are efﬁcient data

structures that are widely used as tree-based multi-

level indexes in database systems. They had already

become so widely used (Comer, 1979) that “the B-

tree is, de facto, the standard organization for indexes

in a database system”. However, B+-trees can support

true indexed sequential access as virtual trees, and

possibly compress separators and potentially produce

an even shallower tree than B-trees (Folk and Zoel-

lick, 1992). A B-tree (Bayer and McCreight, 1972) is

a multi-way search tree designed to solve how to ac-

cess and maintain efﬁciently an index that is too large

to hold in memory, so the index itself must be exter-

nal and is organized in pages that are blocks of infor-

mation transferred between main memory and backup

storage like hard disks. The power of B-trees lies in

the following signiﬁcant advantages:

1. Storage utilization is guaranteed to be at least 50%

and should be considerably better in the average

(Bayer and McCreight, 1972).

2. The balance is maintained dynamically at a rela-

tively low cost. No overly long branches exist, and

random insertions and deletions are accommodated

to maintain balance (Folk and Zoellick, 1992).

The B+-tree retains the search and insertion efﬁ-

ciencies of the B-tree but increases the efﬁciency of

searching the next record in the tree from O(log N) to

O(1).

The B+-tree supports equality queries and range

queries efﬁciently. Range queries use the forward

or backward pointers in the leaf nodes to get all the

records in the requested range.

2.2 The STL Style

The Standard Template Library (STL) (Stepanov and

Lee, 1995) is a template-based C++ library of generic

data structures and algorithms that work together in

an efﬁcient and ﬂexible fashion. “The Standard Tem-

plate Library provides a set of well-structured generic

C++ components that work together in a seamless

way. Special care has been taken to ensure that all the

template algorithms work not only on the data struc-

ture in the library, but also on built-in C++ data struc-

tures.”

There are six components in the STL organization.

Three components, in particular, can be considered

the core components of the library: template-based

container classes, iterators and generic algorithms

(template functions). The remaining three compo-

nents of the STL are also fundamental to the library

and contribute to its ﬂexibility and portability: alloca-

tors, adapters and functors (function objects).

We adopt the STL style to design and implement

B+-tree index because the STL supports good pro-

gramming practices and addresses several problems

with previous C++ container libraries in a new and

innovative way. There are a number of advantages to

using the STL:

1. “Standard” and “template”: The STL is made

up of “standard components”. Each of them has a

clear standard interface and a well-deﬁned function-

ality. This makes all the components easy to under-

stand and to reuse. Also new components may be

added with the same look as standard ones. Program-

ming with “templates” is a compiler-supported mech-

anism to take generic data structures, such as arrays

and lists, and generic algorithms, such as sort and bi-

nary search, and make them independent of the type

of data being manipulated.

2. Reuse: The STL supports the generic programming

paradigm, whose goal is to design algorithms so they

are fundamentally independent from the types they

act upon. The STL provides reusable components

to achieve code reuse based on templates, rather than

class inheritance. A large number of components al-

ready exist with a complete implementation on hand.

This dramatically reduces the time needed for the im-

plementation for many large systems where a great

percentage of the code is simply imported from the

STL.

3. Smaller source codes: The STL is easy-to-learn

because the library is quite small owing to the high

degree of generality.

4. Flexibility: The use of generic algorithms allows

algorithms to be applied to many different structures.

Furthermore, the STL’s generic algorithms also work

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

164

on native C++ data structures such as strings and ar-

rays. The STL framework has a ﬂexible design by

adopting a complete component replacement policy.

No component is made mandatory to the design. In

other words all the components that make up the sys-

tem are replaceable.

5. Efﬁciency: The STL is efﬁcient because “Much ef-

fort has been spent to verify that every template com-

ponent in the library has a generic implementation

that performs within a few percentage points of the

efﬁciency of the corresponding hand coded routine”

as described by Alexander Stepanov and Meng Lee in

the STL speciﬁcation. STL containers are very close

to the efﬁciency of hand-coded, type-speciﬁc contain-

ers. The STL has been already written, debugged, and

tested.

2.3 Design Patterns

“Design patterns are descriptions of communicating

objects and classes that are customized to solve a gen-

eral design problem in a particular context” (Gamma

et al., 1994). The purpose of design patterns is to

reuse solutions and establish common terminology.

Patterns are an attempt to describe successful solu-

tions to common software problems by experts in

software architecture and design.

We introduce the design patterns in our design of

the B+-tree index.

1. Casting-method: The intent of the Casting-method

pattern (Meyers, 1992) is to dynamically and quickly

obtain a type-safe reference to a subclass in an inher-

itance hierarchy. The Casting method pattern uses in-

heritance to allow subclasses to return references to

themselves. This pattern is applicable when there is

a need to obtain a downcasted class reference from

a base class and when real-time constraints require a

fast and safe solution.

2. Composite: The intent of the composite pat-

tern (Gamma et al., 1994) is to compose objects into

tree structures to represent whole-part hierarchies in a

manner that lets clients treat atomic objects and com-

positions uniformly. As a consequence this simpliﬁes

the Client and makes changes or the additions to the

component very simple.

3. Proxy: The intent of the Proxy design pattern

(Gamma et al., 1994) is to provide a surrogate or

placeholder to control access to an object. Proxies

provide a level of indirection to speciﬁc properties of

objects, so they can restrict, enhance or alter these

properties. Proxy is applicable whenever there is a

need for a versatile or sophisticated reference to an

object.

Smart pointers (Alexandrescu, 2001) are objects

that look and feel like pointers, but are smarter. It

is an application of the Proxy design pattern. To look

and feel like pointers, smart pointers need to have the

same interface that pointers do: they need to support

pointer operations like dereferencing (operator *) and

indirection (operator ->). To be smarter than regular

pointers, smart pointers need to do things that regular

pointers do not. Probably the most common bugs in

C++ (and C) are related to pointers and memory man-

agement: dangling pointers, memory leaks, allocation

failures, locking and others.

4. Singleton: The intent of the Singleton design pat-

tern (Gamma et al., 1994) is to ensure a class has only

one instance and provide a global point of access. The

Singleton class hides the operation that creates the in-

stance behind a static member function. This mem-

ber function, traditionally called Instance(), returns a

pointer to the sole instance. Clients access the sin-

gleton by calling the static instance function to get a

reference to the single instance and then using it to

call other methods

3 DESIGN

The B+-tree index is designed to be an associative

container like multimap in the C++ STL. The index

container will be composed of pairs (Key, DataRef),

where the Key is the access key type and DataRef is

a reference to the true location of data. Both Key and

DataRef are passed to the index as template param-

eters. A B+-tree index index pages and leaf pages,

but they are invisible for users. What users operate on

are not pages but pairs. The index and leaf page are

also containers on a smaller scale. The elements of a

leaf page container are pairs (Key, DataRef). The ele-

ments of an index page are pairs of the form (separa-

tor, child-pointer) where a child-pointer is the address

of a lower page and a separator provides information

about the boundaries between the two pages in the se-

quence set of a B+-tree, so child-pointers have one

more than separators. A separator may be a preﬁx

from page key or an exact copy of the page key of the

lower page that the child pointer points to. In our de-

sign, the page key of a leaf page is the ﬁrst key but

the page key of an index page is the page key of the

leftmost leaf page if the child pointer is treated as the

root of a subtree.

While a B+-tree index typically resides on hard

disk, a page is small enough to ﬁt in memory. When-

ever a page is needed, it is retrieved from the hard

disk into memory through a proxy. At this point the

page can perform its tasks of searching for a key in

its contents, accepting new entries, and deleting some

existing ones.

The major classes are BplusTree, which represents

the B+-tree as a whole, the abstract class Page and

its concrete subclasses IndexPage and LeafPage. Fig-

ure 1 shows the main interface of B+-tree index. It

AN EFFICIENT B+-TREE IMPLEMENTATION IN C++ USING THE STL STYLE

165

is important for the BplusTree, Page, IndexPage, and

LeafPage containers to conform to a set of abstract

concepts provided by the STL.

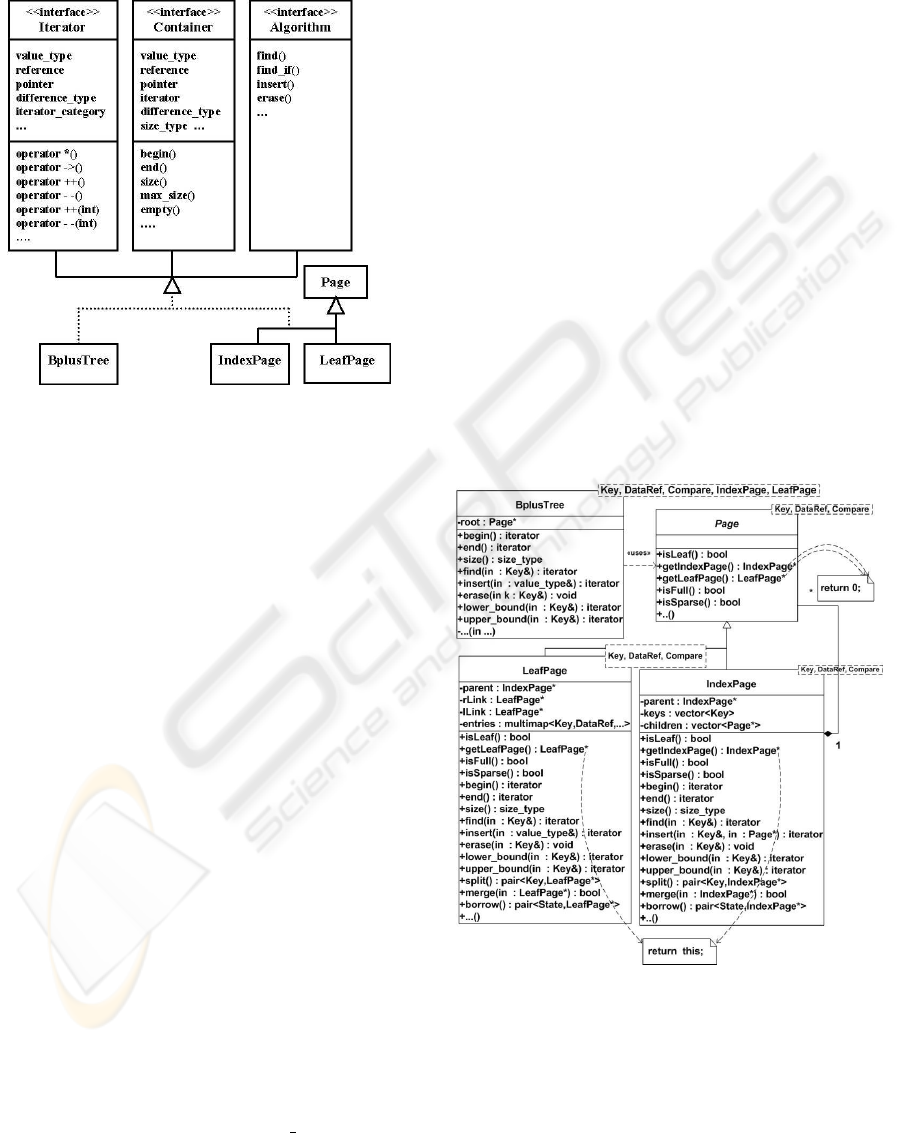

Figure 1: STL Interfaces for the B+-Tree Index.

4 IMPLEMENTATION

The design of the major classes is shown in Fig-

ure 2. We investigated several designs in order to

cleanly and uniformly treat all pages the same, in-

cluding the issue of loading pages from disk. This

design here combines the composite pattern with the

casting-method pattern to resolve the issues.

4.1 Page Class

Page is an abstract class which deﬁnes an interface for

its subclasses: IndexPage and LeafPage. This base

class uses casting methods to obtain a type-safe refer-

ence of an object in the class. As a result, BplusTree

only holds a pointer to a Page but it can get references

to the index page and leaf page through this pointer,

and then can invoke the class-speciﬁc functions such

as begin(), end() and insert() through these references.

IndexPage and LeafPage are designed to be tem-

plate container classes in the spirit of the STL, so they

must conform to all STL interface characteristics. All

containers provide their own public functions (built-

in algorithms like ﬁnd() ). They also provide public

iterators and type deﬁnitions to allow for interaction

with external STL algorithms like ﬁnd if() or any new

user deﬁned algorithm.

4.2 LeafPage Class

The LeafPage class is an associative container that

supports elements with duplicate keys. Many STL

containers can be used, but we use multimap because

it has efﬁcient retrieval, and bidirectional iterators.

4.3 IndexPage Class

An index page is also designed to be an associative

container. The IndexPage container is invisible to

applications. It is created and managed by the tree.

There is a mismatch in number between the separa-

tors (keys) and the child pointers that make up the

pairs for an IndexPage: there is one more child pointer

than separator. This complicates our view of an In-

dexPage as a container of pairs. In our implemen-

tation, two vectors are needed: one for keys (called

the key container), and the other for child pointers

(called the child pointer container). There are two

kinds of iterators provided by two vectors respectively

but the index page container uses the iterator of the

child pointer container as its external iterator. The it-

erator of the key container is only used as an internal

iterator.

Figure 2: Main Classes of B+-Tree Index.

4.4 B+-Tree

The implementation of the B+-tree index container is

based on Leaf Page and Index Page containers. The

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

166

B+-tree index is initialized from an empty LeafPage

container. However, the index will dynamically grow

or shrink with insertions or deletions. The B+-tree

index container is designed and implemented to be

an associative container, so it supports equality and

range-searches efﬁciently.

The B+-tree index container only holds a pointer to

a root page. In the operations of B+-tree index, the

required pages are loaded on demand through a proxy

mechanism.

4.4.1 Iterator

An iterator is the only way to access to elements

within B+-tree index containers. The Iterator is a

nested class deﬁned within a B+-tree index container

class and is a friend to this container. A B+-tree index

container is a doublely-linked list of leaf pages, but

the elements that B+-tree iterators are iterating over

are pairs of key and data reference. Therefore, a B+-

tree iterator should point to a pair: a leaf page pointer

to the page where the pair is stored, and the leaf page

iterator that points to this pair.

4.4.2 Proxy

The B+-tree index uses a Proxy mechanism to man-

age access to the storage of the index. Only the root

of a B+-tree is loaded initially, and resides in memory

until the B+-tree is destroyed. Each access to a non-

root page checks if the page is in memory. If yes, the

Proxy returns a smart pointer to the tree. Otherwise,

the Proxy will check if the Cache has a reference to

the page. If the page reference is in the Cache, the

tree algorithm can quickly get a smart pointer to the

page. If not, the Proxy needs to read the page object

from the storage.

4.4.3 Cache

The global cache management consists of two pro-

cessing components (Huang and Stankovic, 1990):

allocation and replacement. Allocation distributes

global buffer space among concurrent transaction and

replacement is responsible for accessing of the global

buffer and page replacement operations. The life span

of a page, except the root, in memory depends on the

replacement strategy of the Cache. When a page is

removed from the cache, it will be destroyed in the

memory heap. In our B+-tree index, we use a Least

Recently Used (LRU) replacement strategy.

4.4.4 Storage and Serialization

The Storage class is mainly responsible for manag-

ing and controlling accesses to the index ﬁles on disk.

In the B+-tree index, a block is the basic unit for I/O

operation. When a new page object is needed, Stor-

age allocates a block for it on the physical storage.

When a page object is deleted from the ﬁles, Storage

garbage-collects the block used by the page and real-

locates it.

Serialization is used to read or write a page to or

from the index ﬁles. The basic idea of serialization is

that a page should be able to write its current state to

persistent storage. Later, the page object can be re-

created by reading, or deserializing, the object’s state

from the disk.

5 TESTING

5.1 Correctness Testing

Correctness testing of the B+-tree index focuses on

testing the insert, delete and ﬁnd operations. We use

the Berkeley DB (Olson et al., 1999) test suite which

is a complete test suite for relational databases, not

just indexes. Besides the existing test cases for B-tree

index testing in this test suite, we also create some

special test cases for illegal inputs, large inputs, and

values smaller or larger than the speciﬁed range.

5.2 Performance Testing

Performance is always a great concern for database

indexes. The goal of performance testing can be

performance bottleneck identiﬁcation for code tun-

ing and optimization, or for performance compari-

son and evaluation. We did both. We used a bench-

mark dataset from GiST, as well as randomly gener-

ated datasets.

Our platform for performance testing was a Sun-

Fire 280R with two UltraSparc-III+ CPUs running at

900MHz, 4GB memory, using the Solaris 9 operat-

ing system and the GNU g++ 3.2 compiler. The ﬁles

were on a Network Appliances ﬁle server accessed via

a Gigabit Ethernet.

The ﬁrst dataset was a dataset provided with GiST.

The dataset contains 10,000 random integers as keys.

For the test, we set the size of a page to be 8KB, which

is is the size of a block on the test platform; and we

set the buffer (cache) to hold at most 16 pages. Then

we recompiled GiST v1.0 and our KIA B+-tree index.

For this set up, a page will contain at least 500 keys

and at most 1000 keys if the Data Reference is treated

as an integer. The B+ tree should have at least 21

pages in two levels. The test performed each of the

following three tasks and timed them for ten separate

runs, reporting the average of the ten repetitions.

1. Insert each (key, pointer) pair in the dataset;

2. Find the ﬁrst position with a key ≥ 20000; and

AN EFFICIENT B+-TREE IMPLEMENTATION IN C++ USING THE STL STYLE

167

Table 1: Performance Comparison (Time in µsecs)

KIA Gist Ratio

B+-tree B+-tree KIA:Gist

Time Time

10,000 keys, GiST dataset

Insertion 260,385.9 626,468.4 0.4

Search 25.3 64.5 0.4

Deletion 734.4 2,389.1 0.3

100,000 keys, random dataset

Insertion 2,250,000 223,362,386 0.1

Search 35 4,095 0.008

Deletion 2,270,000 297,000 7

3. Delete all the elements where the key < 20000.

The second dataset contained 100,000 keys which

were random integers in the range 0..32767. We set

the buffer to hold 128 pages, with the page size still

set at 8KB.

Table 1 shows the test results that are the average

time (microseconds) of 10 tests under the same condi-

tions. Except for the anomaly of the deletion time for

the second dataset (which we still do not fully under-

stand), our implementation is signiﬁcantly more efﬁ-

cient than that of GiST. We did attempt a comparison

using one million keys: our B+-tree worked ﬁne, but

we could not repeat the test using the GiST imple-

mentation.

6 CONCLUSION

In this paper we describe how to build a B+-tree index

using C++ template mechanisms, design patterns, and

the STL style in order to achieve ﬂexibility and efﬁ-

ciency. The index can easily handle arbitrary keys and

data references. The index is extremely efﬁcient.

The adoption of the STL style promotes code reuse,

increases readability and user friendliness, and re-

duces time and cost overheads incurred during the ap-

plication development process. Design patterns sim-

plify the design complexity by separating design con-

cerns at the micro-architecture level. The combina-

tion of the STL style and design patterns makes our

B+ tree index general and reusable. Several design

patterns such as Composite, Casting method, Proxy,

and Singleton were used because they provided a

model of how to solve our design issues, many of

which dealt with introducing extensibility into the de-

REFERENCES

Alexandrescu, A. (2001). Modern C++ Design: Generic

Programming and Design Patterns Applied. Addison

Wesley Professional, London, 2nd edition.

Bayer, R. and McCreight, E. (1972). Organization and

maintenance of large ordered indexes. Acta Informat-

ica, 1(3):173–189.

Butler, G., Chen, L., Chen, X., Gaffar, A., Li, J., and

Xu, L. (2002). The Know-It-All project: A case

study in framework development and evolution. In

Domain Oriented Systems Development: Perspectives

and Practices, pages 101–117. Taylor and Francis

Publishers.

Comer, D. (1979). The ubiquitous B-tree. Computing Sur-

veys, 11(2):121–137.

Folk, M. J. and Zoellick, B. (1992). File Structures. Addi-

son Wesley.

Gaede, V. and G

unther, O. (1998). Multidimensional access

methods. ACM Computing Surveys, 30(2):170–231.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1994). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley.

Garcia-Molina, H., Ullman, J. D., and Widom, J. (2000).

Database System Implementation. Prentice-Hall.

Hellerstein, J. M., Naughton, J. F., and Pfeffer, A. (1995).

Generalized search trees for database systems. In Pro-

ceedings of the 21st International Conference on Very

Large Data Bases, pages 562–573.

Huang, J. and Stankovic, J. A. (1990). Buffer management

in real-time databases. COINS Technical Report 90-

65, University of Massachusetts.

Meyers, S. (1992). Effective C++. Addison-Wesley.

Nie, B. (2003). A tree index framework for databases. Mas-

ter’s thesis, Concordia University.

Olson, M. A., Bostic, K., and Seltze, M. (1999). Berkeley

DB. Software.

Stepanov, A. and Lee, M. (1995). The Standard Template

Library. Hewlett-Packard.

Zhou, J. (2003). A B+-tree index for the Know-It-All

database framework. Master’s thesis, Concordia Uni-

versity.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

168
