WEB USAGE MINING WITH TIME CONSTRAINED

ASSOCIATION RULES

Johan Huysmans, Christophe Mues and Jan Vanthienen

Dept. of Applied Economic Sciences, K.U.Leuven, Naamsestraat 69, 3000 Leuven, Belgium

Bart Baesens

School of Management, University of Southampton, Southampton, SO17 1BJ , United Kingdom

Keywords: web usage mining, association rules, market basket analysis, time constraints

Abstract: Association rules are typically used to describe what items are frequently bought together. One could also

use them in web usage mining to describe the pages that are often visited together. In this paper, we propose

an extension to association rules by the introduction of timing constraints. Subsequently, the introduced

concepts are used in an experiment to pre-process logfiles for web usage mining. We also describe how the

method could be useful for market basket analysis and give an overview of related research. The paper is

concluded by some suggestions for future research.

1 INTRODUCTION

In Agrawal et al.(1993) the problem of mining

association rules was first outlined. The concept was

applied on the data of a supermarket. An example of

an association rule in that context is “90% of the

transactions that contain bread and butter also

contain milk.” Afterwards the approach of

association rules was also adopted for the analysis of

web site traffic. The resulting association rules

indicate which pages are often requested together.

With this information it is possible to forecast the

next pages a visitor will frequent. (Mobasher et al.,

2002)

A disadvantage of association rules however is

that they don’t take into account the sequential

information that is available in some data. For

example, it is interesting to know that pages A and B

are often visited together but it might be even more

interesting to know that page B is always visited

immediately after page A. In this paper, we propose

an extension to association rules that takes the

timing information of the data into account.

This paper is organized as follows. In the next

section a brief introduction to association rules is

given. Afterwards, we extend the concept of

association rules to take into account timing

constraints. In the third section of this paper, a

practical application of the proposed extension is

discussed. Finally, we compare this extension with

some other suggested approaches for sequential

mining.

2 ASSOCIATION RULES

Let D be a database of transactions. Each

transaction consists of a transaction identifier and a

set of items {i

, i

, …,i

} selected from the universe

I of all possible descriptive items. In Table 1 an

example database is shown containing four

transactions.

What the items represent depends on the application.

For example, the items could be the different

products bought by a customer or, as in this paper,

the web pages that someone visited. An association

Table 1: Database with 4 transactions

Transaction Items

1 A, B, C

2 A, C

3 A, D

4 B, E, F

343

Huysmans J., Mues C., Vanthienen J. and Baesens B. (2004).

WEB USAGE MINING WITH TIME CONSTRAINED ASSOCIATION RULES.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 343-348

DOI: 10.5220/0002614803430348

 SciTePress

rule is an expression of the form:

YX ⇒

where X

⊂ I, Y ⊂ I and X ∩ Y = ∅. Each association rule is

characterized by means of its support and its

confidence defined as follows:

nstransactioofnumbertotal

containingnstransactioofnumber

)(sup

∪

=⇒

()

)sup(

sup

)(conf

⇒

=⇒

For the example database, it can be verified that

the rule

CA ⇒ has support 50% and confidence

66.7%. According to the above definitions, the

support measure can be considered as the percentage

of database transactions for which (X ∪ Y)

evaluates to true. Equivalently, the confidence

measure is understood to be the conditional

probability of the consequent given the antecedent.

Association rule mining essentially boils down to

discovering all association rules having support and

confidence above user-specified thresholds, minsup

and minconf, for respectively the support and the

confidence of the rules.

In this paper, we propose an extension to the

association rule framework by introducing time

constraints. Suppose we have the following database

D which is similar to the one in Table 1 but with

every item is a time stamp associated. As only the

timing within a transaction is considered of

importance, the time stamp of the first item in every

transaction is set equal to 0.

Table 2: Database containing 7 transactions

Transaction Items Time Stamp

A B C

B A

A B D G

A B G

A D

B D

A B G

0 4 5

0 100

0 4 4 67

0 2 4

0 6

0 8

0 5 10

Now consider the following definitions where

=∩∈ YXandIYX,Ø

ons transactiofnumber total

)time(Yime(X) whereby tYX containing trans.ofnumber

)(supforward

≤∪

=⇒ YX

)sup(

)(supforward

)(confforward

⇒

=⇒

For the example database it can be verified that

the forward support of rule BA ⇒ corresponds to

4/7=57% and the forward confidence equals 66.7%.

In contrast with the calculation of the normal

support and confidence, the second transaction is not

counted because B proceeds A. By using the timing

information that is available in the database it is

possible to give more meaning to the association

rules. For example, from the 100% confidence of the

rule AG ⇒ we can conclude that page G is always

visited in combination with page A. As the forward

confidence of this rule is 0% we can deduct that

page A is always visited before page G. Combining

these two measures gives us a better insight into the

data. It is possible to define backward support and

confidence in a similar way:

ons transactiofnumber total

)time(Y ime(X) whereby tYX containing trans.ofnumber

)(sup backward

>∪

=⇒ YX

We can

generalize these definitions to:

whereby t

and t

are integers and t

. We can see

that these definitions are generalisations of the

association rule framework.

For t

=- and t

=+ the foregoing definitions

correspond to the normal definitions of support and

confidence. For t

=0 and t

=+ (t

=- and t

=0)

these definitions correspond to the definitions of

forward (backward) support and confidence.

Properties

From the definitions of timesupport and

timeconfidence we can easily derive two associated

measures, which we call support ratio and

confidence ratio.

)sup(

Y)sup(X backward

Y)conf(X backward

⇒

=⇒

sup(X)

Y))(X

t(ttimesuppor

Y))(X

timeconf(t

ons transactiofnumber total

ttime(X)-time(Y)

whereby tYX containing trans.ofnumber

Y))(X

t(ttimesuppor

⇒

=⇒

<≤∪

=⇒

)())(,(timeconf))(,(timecon

)())(,(timeconf))(,(timeconf

)sup())(,(timesup))(,(timesup

YXconfYX

tYX

YXconfYX

tYX

YXYX

tYX

YXYX

tYX

then

tif

⇒≤⇒≤⇒

≤∀

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

344

As the timesupport (timeconfidence) of a rule is

always smaller or equal than normal support

(confidence), it is easily derived that each ratio lies

in the range of 0 to 1. Furthermore, for a given

association rule, both ratios are equal and express

the conditional probability of X and Y occurring in

the time window defined by t

and t

given the fact

that X and Y appear in the transaction.

In the example database, every item appears only

once in every transaction. In many real-life

applications this is obviously not the case. For

example, in web usage mining, a user can visit some

pages more than once. In that case, there are

multiple ways to calculate the time difference

between two items. Consider the transaction in

Figure 1. In this transaction, items A and B appear

several times. To calculate timesup(t

)( BA ⇒ )

we need to know if t

time(B)-time(A) t

is valid

for this transaction. If some items appear more than

once, the time difference can be defined in many

ways. It is possible to count a transaction only if t

time(B) - time(A)

is valid for all occurrences of

A and B. A second approach could be to count a

transaction only if the equation is valid for at least

one occurrence of A and B. A third approach could

consist of calculating the average time difference

between the items. If this average time difference

falls between the limits imposed by t

and t

the

transaction is counted. Many other approaches that

give different results could be proposed. For our

research, we subtracted the time stamps of the first

occurrences of A and B. For the example transaction

this results in a time difference of 4.

In the next section we discuss a practical

application of the proposed extension to the

association rules framework.

3 PRACTICAL APPLICATION

Web usage mining is defined as the application of

data mining techniques to discover usage patterns

from web data. (Srivastava et al., 2000). In other

words, the goal of web usage mining is to extract

useful knowledge from the data that webservers

store about the behaviour of the customers. It is

generally agreed that web usage mining consists of

three main phases: preprocessing, pattern discovery

and pattern analysis.

In this section, the focus lies on the first phase:

preprocessing. During the preprocessing phase all

the necessary operations to transform the data in a

form suited for the chosen type of analysis are

performed. As we have opted to mine for association

rules, we will transform our raw logfiles in a form

similar to Table 1. In Cooley et al. (1999), a survey

is given of the different operations one must perform

in the preprocessing phase. We only consider the

first step of the preprocessing phase, namely data

cleaning. Raw logfiles contain a lot of lines that are

irrelevant for web usage mining. These lines must be

deleted before applying the mining techniques. The

principle hereby is that with every action of the

visitor -usually a click of the mouse- should

correspond one line in the logfiles. When a visitor

requests a page, this request will be logged, but it is

not the only request that will appear in the logfiles.

The HTML-code of the page indicates which

pictures the browser should show. When the browser

analyzes the HTML-code, it will send requests for

these pictures. So if there are four pictures on the

requested page, there will appear five lines in the

logfiles: one for the HTML-page and one for every

picture. These requests for pictures must be deleted

from the logfiles because the user did not explicitly

ask for them. Cleaning the logfiles from pictures and

photos is quite easy. It suffices to examine the

extensions of the requested files and extensions that

correspond with pictures, such as .jpg and .gif,

should be deleted. For a similar reason requests for

directories and stylesheets are deleted.

)sup(

))(

(timesup

))(

(ratiosupport

YXtt

⇒

=⇒

A B C A B

0 4 6 10 11 16

Figure 1: Transaction with multiple items

)(

))(

(timeconf

))(

(ratio confidence

YXconf

YXtt

⇒

=⇒

WEB USAGE MINING WITH TIME CONSTRAINED ASSOCIATION RULES

345

All of the preceding steps are independent of the

analyzed logfile and can be performed by a standard

program. However, sometimes there are additional

steps required that are specific for the analyzed data.

For example, if a visitor types the address of the

home page of the site we studied, he is transferred

several times to other pages before he finally sees

the real homepage. These transfers happen

automatically and are almost imperceptible for the

users, but they can be seen in the logfiles. Only one

of these requests should be kept in the logfiles

because the user performed only one action.

It was also noticed that many requests occurred

for the page http://www.oursite.com/showit.htm.

This page was used as a script to retrieve images

from a database. Requests for this page were

embedded in the HTML-code of other pages.

Because users did not explicitly ask for showit.htm,

all requests for this page were eliminated. We found

several other ways of how a user could generate

multiple lines in the logs with only one click of the

mouse. We show how the proposed extension of

association rules is capable of detecting these cases.

The removal of these double requests results in

fewer but more interesting association rules as the

evident ones are left out. This facilitates

considerably the analysis of the rules.

For the analysis, we used one month of logdata

from an online European wine shop. Requests for

pictures were deleted from these data. Afterwards

the heuristic proposed by Cooley et al. (1999) was

used to identify the different visitors. The requests

from a visitor were divided into multiple sessions

whenever a time-out of more than 30 minutes

occurred between two successive requests. (Catledge

et al., 1995). After performing these operations, the

data were in a form similar to Table 2. On these data

a slightly modified version of the Apriori-algorithm

was executed several times with different values for

and t

. For minsup and minconf, we opted for

respectively 2% and 30%. This resulted in the

detection of 208 rules with one item in both

antecedent and consequent. For each of these rules it

was checked manually if both the pages from head

and body of the rule could be requested with one

single action of the visitors. In the rest of this paper

we will call these rules artificial. An example from

such an artificial rule is: /poll/submitpoll.htm

⇒

/poll/resultspoll.htm. Every time a user submits a

poll, he is automatically transferred to the page with

the results of the poll. From the 208 discovered

rules, 52 were found to be artificial. For t

=-25 and

=25 the confidence ratio of all the rules was

calculated. An overview is given in Table 3 and

Figure 2.

All of the rules with a confidence ratio of more

than 60% are artificial. Rules with a lower

confidence ratio on the other hand are mostly non-

artificial. By using 50% as a cut-off only 9 rules are

incorrectly classified. Hence, the confidence ratio

can be used to separate the artificial rules from the

others. Mild variations of t

and t

made little

difference in the outcome of the experiment.

A drawback of the above method is that it relies

on the response time of the server. Most of the

misclassifications in our experiment occurred

because it took the server a long time to generate an

automatically requested page. In that case, the

confidence ratio will become small and a

misclassification is likely to occur. The opposite

case was also observed. Pages with only little text

and one possible link, for example a page with a poll

on, may also result in wrong classifications as the

confidence ratio is high although the page is not

requested automatically.

We have shown that the proposed extension of

association rules is capable of detecting the rules

that are generated automatically. Because these rules

are not affected by the browsing behaviour of the

visitors, they are of no value for the business.

Moreover, pages that are requested automatically

could be deleted from the logs. Their removal results

in less but more interesting association rules. This

facilitates considerably the burden of post-

processing.

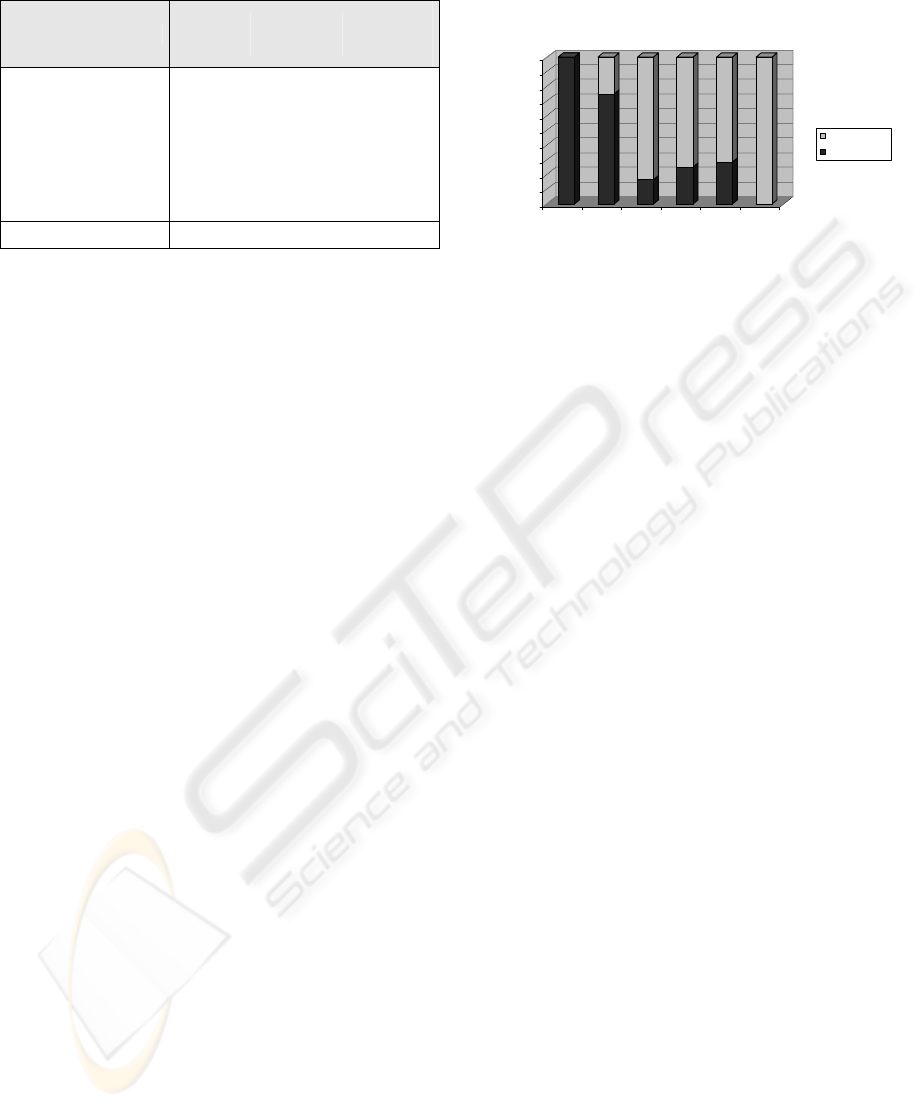

Table 3: overview

Conf. ratio(-25,25) Rules

Artificial

rules

Non-

artificial

rules

>0,6 39 39 0

0,5-0,6 8 6 2

0,4-0,5 6 1 5

0,3-0,4 8 2 6

0,2-0,3 14 4 10

<0,2 133 0 133

total 208 52 156

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

>0,6 0,5-0,6 0,4-0,5 0,3-0,4 0,2-0,3 <0,2

conf ratio(-25,25)

% non-artificial

% artificial

Figure 2: overview

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

346

The proposed extension could also be used for

recommendation purposes. Rules with a high

forward confidence indicate possible future requests.

However, to be useful for recommendation

purposes, it is needed to expand the proposed

concept by allowing more than one item in the

antecedent of the rules.

Market basket analysis was the first application

field of association rules. There was no ordering of

the items within a transaction because all the items

bought were placed in a basket and then finally paid.

It was impossible to detect the order in which the

customer took the products from the shelves.

Nowadays, a large number of supermarkets are

doing experiments with self scanning devices. The

customers scan the code of every product they buy

and when finished shopping they go with the

scanner and products to the counter. At the counter

the payment is done and no clerks are needed to scan

all the products again. However, some random

checks are performed to prevent fraud from the

customers. This method not only reduces the amount

of employees needed or the waiting times but also

creates a lot of worthwhile information. The

marketeers can see how customers wander through

the shop and adopt the layout of the shelves to

improve sales. It can be expected that ordinary

association rules will not suffice to analyse this kind

of sequential data. It is for example impossible to

detect with association rules if customers go mostly

from shelf A to shelf B or vice versa. It can not be

seen why diapers and beer are frequently sold

together. Were diapers the first objective and was

the beer only picked up when passing by? The

proposed extension might prove useful for

answering some of these questions.

4 RELATED RESEARCH

The paper by Agrawal et al.(1995) is probably the

most-cited work concerning sequence analysis. They

assume a database similar to Table 2 but instead of

having time stamps associated with every item, they

associate only one time stamp with every

transaction. Also, their problem of finding sequential

patterns is concerned with finding patterns among

items of multiple transactions, whereas our problem

concerns finding patterns among items within one

transaction. In the successor of their successful

paper (Agrawal et al., 1996), some generalizations to

sequential patterns are made. These generalizations,

such as the introduction of time constraints, are quite

similar to the extension that we proposed but their

problem remains a search for inter-transactional

patterns while our problem concerns the detection of

intra-transaction patterns.

In Mannila et al. (1995), another approach to

analyse sequential data is suggested. Their goal is to

find frequent episodes. These are collections of

events occurring frequently together. The search for

these frequent episodes is performed within an event

sequence. An event sequence can be compared with

one single transaction from Table 2. We on the

contrary are interested in finding patterns that occur

in many transactions.

Many other approaches to find patterns in

sequential data have been suggested. Many of them

differ only in a few aspects. Therefore some

attempts have been made to unify these different

approaches. A detailed discussion is out of the

context of this paper but can be found in Joshi et al.

(1999).

5 CONCLUSION

In this paper, we presented an extension of the basic

association rule framework that is capable of

analyzing sequential data. The concept was tested on

the log data of an online wine shop and it was shown

how it helped filtering out the interesting rules. It

was also suggested to use the proposed extension for

the analysis of data generated by self-scanning

devices. Finally, a short overview of related research

was given.

In future research, the introduced concept will be

used to analyze the logs from other web sites and it

will be expanded to allow more than one item in the

body of the rules.

REFERENCES

Agrawal R., Imielinski T. & Swami A., 1993. Mining

Association Rules between Sets of Items in Massive

Databases. In Proceedings of the ACM SIGMOD

International Conference on Management of Data,

Washington D.C., USA. pp. 207-216.

Agrawal, R., & Srikant, R,. 1995. Mining sequential

patterns. In Proceedings of the 11th International

Conference on Data Engineering. pp. 3-14.

Catledge L. & Pitkow J., 1995. Characterizing Browsing

Strategies in the World-Wide Web. Journal of

Computer Networks and ISDN systems, Volume 27,

nr. 6. pp. 1065-1073.

Cooley R., Mobasher R. & Srivastava J., 1999. Data

Preparation for Mining World Wide Web Browsing

Patterns. Knowledge and Information Systems,

volume 1. pp. 5-32.

WEB USAGE MINING WITH TIME CONSTRAINED ASSOCIATION RULES

347

Cooley R., 2000. Web Usage Mining: Discovery and

Application of Interesting Patterns from Web Data.

PhD. Thesis. University of Minnesota.

Joshi M.V., Karypis G. & Kumar V., 1999. Universal

formulation of sequential patterns. Technical report,

University of Minnesota, Department of Computer

Science.

Mobasher B., Dai H., Luo T. & Nakagawa M., 2002.

Using Sequential and Non-Sequential Patterns for

Predictive Web Usage Mining Tasks. In Proceedings

of the IEEE International Conference on Data Mining.

pp. 669-672.

Srikant R. & Agrawal. R., 1996. Mining sequential

patterns: Generalizations and performance

improvements. In Proceedings of the 5th International

Conference on Extending Database Technology. pp 3-

17.

Srivastava J., Cooley R., Deshpande M., Tan P-N., 2000.

Web Usage Mining: Discovery and Applications of

Usage Patterns from Web Data. Web Data, SIGKDD

Explorations, Vol. 1, Issue 2. pp. 12-23.

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

348
