A PROTOTYPE TOOL FOR USE CASE REFACTORING

Shengbing Ren

Central South University

Changsha, Hunan, 410083 P.R.China

Greg Butler, Kexing Rui, Jian Xu, Wei Yu, Renhang Luo

Concordia University

Montr

eal H3G 1M8,Canada

Keywords:

reuse, software evolution, use case, refactoring tool

Abstract:

Use cases are widely used in software engineering. It is important to improve the understandability and

maintainability of use case models. We propose the approach of refactoring use case models. This paper

describes a prototype tool for the refactoring process. We introduce the use case metamodel and its XML

document type deﬁnition (DTD) used in the tool. Based on the Drawlets framework, we implement the

functionality for drawing and viewing use case models. We propose the refactoring framework and implement

some use case refactorings. Our experience shows that the tool greatly facilitates the process to reorganize use

case models.

1 INTRODUCTION

Use cases and scenarios play an important role in

object-oriented software engineering. A use case rep-

resents a series of transactions between the actor and

the system. An actor represents a certain user type

or a role played by users. A scenario is a speciﬁc

and bound realization of a use case. Use cases and

scenarios not only elicit requirements from stakehold-

ers to construct object-oriented software systems, but

also are essential for understanding existing object-

oriented software systems. Furthermore, many soft-

ware artifacts, such as state chart, test cases, can be

derived from them (Uchitel, 2003) (Ryser, 2000).

It is a challenge to manage use case models effec-

tively during software evolution. In our research we

extend the concept of refactoring from source code

to use case models. Our work attempts to show how

refactoring as a concept can be broadened to apply

to use case models to improve their understandability,

changeability, reusability and traceability. This pa-

per describes a prototype tool for refactoring use case

models. It is organized as follows. In section 2, we in-

troduce some related work in refactoring. We present

our use case metamodel in section 3 and describe the

design and implementation of the tool in section 4.

We summarize this paper and discuss the future work

in section 5.

2 RELATED WORK

2.1 PROGRAM REFACTORING

Refactoring is a program transformation approach

for iterative software development. W. F. Opdyke

(Opdyke, 1992) coins the term refactoring to stand for

the program restructuring operation that preserves the

program behavior for object-oriented applications. In

(Fowler, 2002), M. Fowler describes refactoring prin-

ciples and its uses. A comprehensive list of refactor-

ings are described with motivation, mechanics, and

examples. D. Roberts presents a weaker and more

practical deﬁnition for refactoring in (Roberts, 1999).

There are many tools available for source code

refactoring. The Refactoring Browser is the ﬁrst

commercial-grade refactoring tool (Roberts, 1997)

(Roberts, 1999) for Smalltalk. It implements most of

the standard class, method and variable refactorings.

It has become an essential tool for the Smalltalk pro-

grammer. JFactor (Instantiations) is the most com-

plete refactoring tool for Java. It is a plug-in for

IBM Visual Age. There are three kinds of refactor-

ings: ﬁeld refactorings, method refactorings and class

refactorings. Transmogrify (McCormick) is a frame-

work to parse and modify Java programs. It has im-

plemented several refactorings, such as rename vari-

able or method, extract method, replace temp with

query, inline temp, and pull up ﬁeld.

173

Ren S., Butler G., Rui K., Xu J., Yu W. and Luo R. (2004).

A PROTOTYPE TOOL FOR USE CASE REFACTORING.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 173-178

DOI: 10.5220/0002615401730178

 SciTePress

2.2 USE CASE MODEL

REFACTORING

As a concept, refactoring can be used not only for pro-

gram transformation, but also for the whole software

life cycle. G. Sunye et al (Gogolla, 2001) deﬁne some

refactorings to restructure the class diagram and state

chart. S. Stepney et al (Stepney, 2002) show that

refactoring concepts can be applied to Z speciﬁcation

upgrades. J. Philipps et al believe that the core con-

cept of refactoring can be applied for a large num-

ber of modeling techniques beyond mere program-

ming languages, and list a set of refactorings to trans-

form system structure model and state machine model

(Philipps, 2001). In (Butler, 2001), G. Butler et al ex-

tend the concept of refactoring to the whole range of

models used to describe a framework: feature model,

use case model, architecture, design, and code. Cas-

caded refactoring relates the set of refactorings across

the set of models through change impact analysis with

the trace maps.

A use case refactoring preserves the set of the di-

alogues of the target system (Butler, 2001). A use

case is a description of a cohesive set of dialogues that

the primary actor initiates with a system. Those dia-

logues are related to the same task, or form part of the

same transaction. They deﬁne the functionality of the

system. Hence, they are the only appropriate things

to preserve upon restructuring. The use case model

is factored by introducing abstract use cases, and re-

arranging responsibilities. This allows the use case

model to reﬂect the commonality/variability analysis.

Through refactoring, the quality of use cases and sce-

narios, such as reusability, conciseness, maintainabil-

ity, and readability, is improved. The following ex-

ample will show how to improve the quality of the

use case model.

There is a simple ATM system. Figure 1 shows the

use case model. Through the following steps, the use

case model becomes more reusable, concise, main-

tainable, and readable. Figure 2 shows the result.

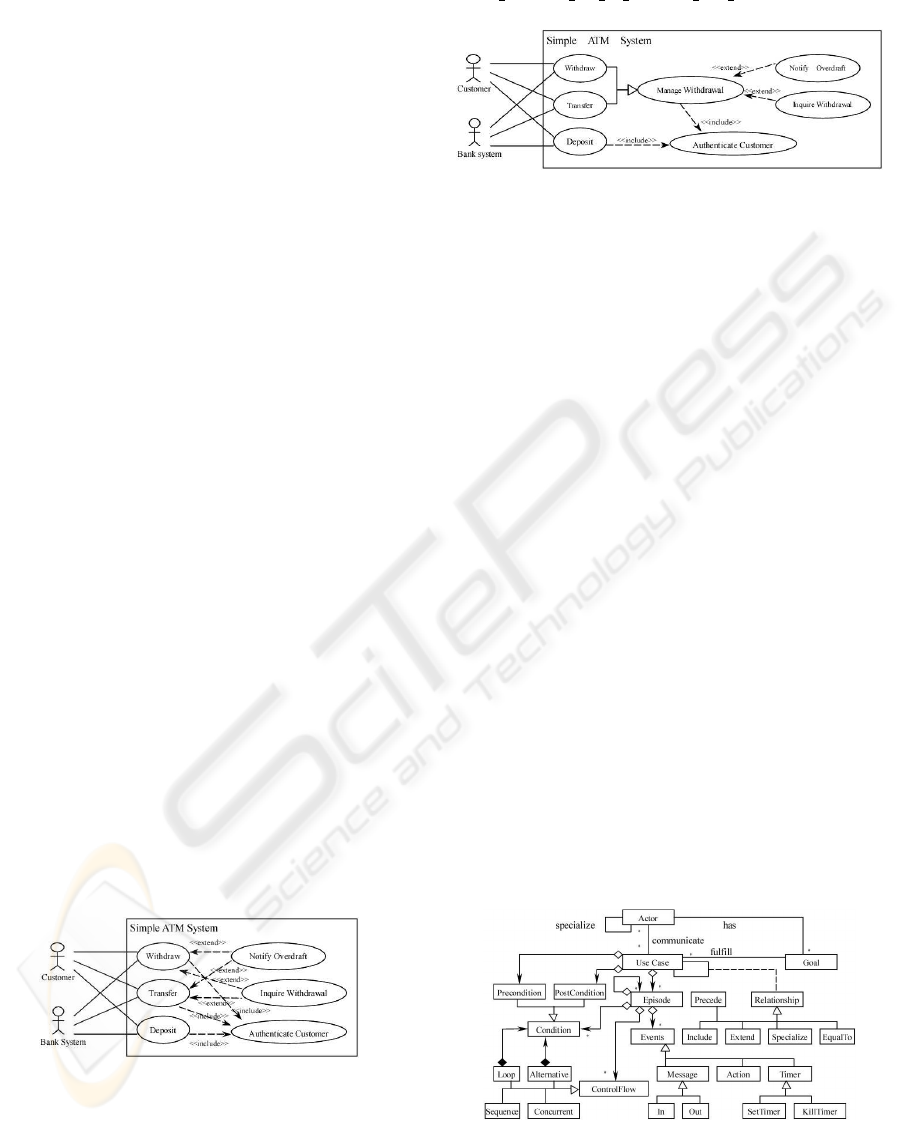

Figure 1: Simple ATM System Use Case Model.

a)Create an empty use case ”Manage Withdrawal”.

b)Make ”Manage Withdrawal” a super use case of

”Withdraw” and ”Transfer” using inherit refactoring.

c)Move the common description between ”With-

draw” and ”Transfer” to ”Manage Withdrawal” using

push episode up to general use case refactoring.

Figure 2: Refactored Simple ATM System Use Case Model.

Just like source code refactoring, the automatic tool

support for use case model refactoring is very impor-

tant to efﬁciently refactor use case model. During

the refactoring, many conditions should be checked,

such as push refactoring. Some times, the refactor-

ings which are done previously should be cancelled

for some reasons. For the manual refactoring, these

things may be very complicated. Our work is to try

to construct a use case refactoring tool to support use

case modeling.

3 USE CASE METAMODEL

There is a strong debate about the semantics of use

cases. Different methods interpret the semantics of

use case related concepts differently (Regnell, 1999).

In (Cockburn, 1997), A. Cockburn identiﬁed 18 dif-

ferent deﬁnitions of use cases that he encountered.

Although UML represents some efforts in use case

formalization, there is still a lot of debate on this is-

sue.

In order to implement use case refactorings, we

have to deﬁne use case semantics clearly. We do not

intend to deﬁne a formal use case semantics. Our fo-

cus is to provide good support for requirements engi-

neering. The metamodel should be suitable for auto-

matic refactoring, checking and synthesizing. Figure

3 shows our use case metamodel.

Figure 3: Use Case Metamodel.

There are four major components in our use case

metamodel: actor, use case, episode, and event. An

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

174

actor, which represents a category of external users,

communicates with the system, i.e. use cases, to ful-

ﬁll its goals. Goals represent functionality required of

the system, which can be used to categorize users into

actors. Between two actors, there is only one rela-

tionship: specialization. Each use case has a precon-

dition and postcondition, which demarcates the scope

of the use case. A use case is a description of a cohe-

sive set of dialogues that actor communicates with the

system. There are ﬁve kinds of relationships between

two use cases, and two kinds of relationships are dif-

ferent from the UML (OMG, 2002). The Precede re-

lationship deﬁnes that one use case is sequenced (ap-

pended) to the behavior of the preceding use case. It

is very useful in some application. The EqualTo re-

lationship deﬁnes that one use case’s behavior is the

same as the other use case. It can be very useful for

requirement eliciting. Episode can be used to struc-

ture use case. It represents a coherent part of the use

case. Episode can be referenced by different use cases

or other episodes. The control ﬂow is added to de-

scribe more complex dialogues. Condition is used to

describe the status of actor or the property of the en-

vironment and the target system that needs to be ful-

ﬁlled in order to invoke dialogues. There are three

kinds of events: message, action, and timer. The ”In”

message and ”Out” message always appear as a pair.

The ”Out” message is earlier than the correspondent

”In” message. The action event is an internal event of

actor. The timer events: SetTimer and KillTimer, are

used to describe time constraints.

Our use case metamodel incorporates B. Regnell’s

work (Regnell, 1999) as well as other people’s work

in use case modeling. There are three different lev-

els of abstraction. At the use case level, use case

is related to the external entities, i.e. actors. At the

episode level, the internal episode structure of the use

case is described together with its different variants

and parts by deﬁning sequences, alternatives, loops,

and concurrencies. At the event level, episode is de-

scribed in further detail in term of events that occurred

in each episode.

4 TOOL DESIGN AND

IMPLEMENTATION

4.1 OVERVIEW

In our use case refactoring tool, there are two subsys-

tems (see Figure 4): the refactoring framework and

the prototype tool. The refactoring framework is inde-

pendent to the prototype tool. Two subsystems com-

municate through the Facade design pattern (Gamma,

1994).

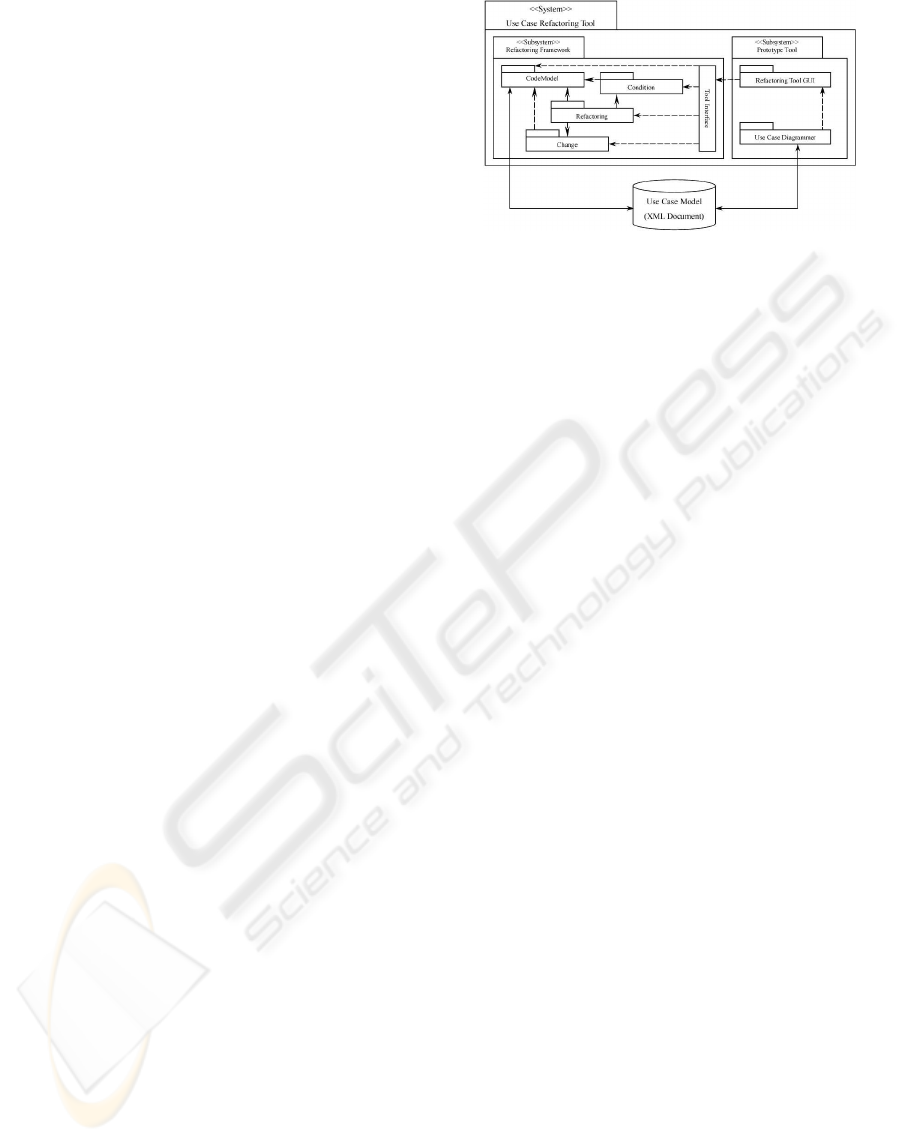

Figure 4: Overview Of Use Case Refactoring Tool.

In the refactoring framework, the Refactoring pack-

age conducts the whole refactoring process. Each

refactoring has a precondition, which is an object of

the Condition package. At the beginning of the refac-

toring, the precondition is checked. During the check-

ing process, the condition object communicates with

the code model object. The code model object an-

alyzes the use case model, and determines whether

the precondition is met or not. If the precondition is

met, the refactoring object generates a change object

to modify the use case model. The change object will

communicate with the code model object to complete

the corresponding change, and return a change object

which is used to undo the change. The Tool Interface

package is utilized to communicate with the proto-

type tool subsystem. We will describe these packages

in detail in following sections.

We also use the prototype tool to evaluate the

refactoring framework. It contains two packages: a

Refactoring Tool GUI and a Use Case Diagrammer.

Through the Refactoring Tool GUI, user can initi-

ate a refactoring and input corresponding information.

Then Refactoring Tool GUI will send the requirement

to the refactoring framework Tool Interface package

to complete the refactoring. After refactoring, user

can view the result through the Use Case Diagram-

mer.

4.2 STORAGE

XML is widely accepted for storage and information

exchange (Yamane, 2000). It provides a number of

positive attributes, such as tractability, extensibility,

structure, openness, and independence between data

and style. Document Type Deﬁnition (DTD) provide

a grammar for creating XML document structure. We

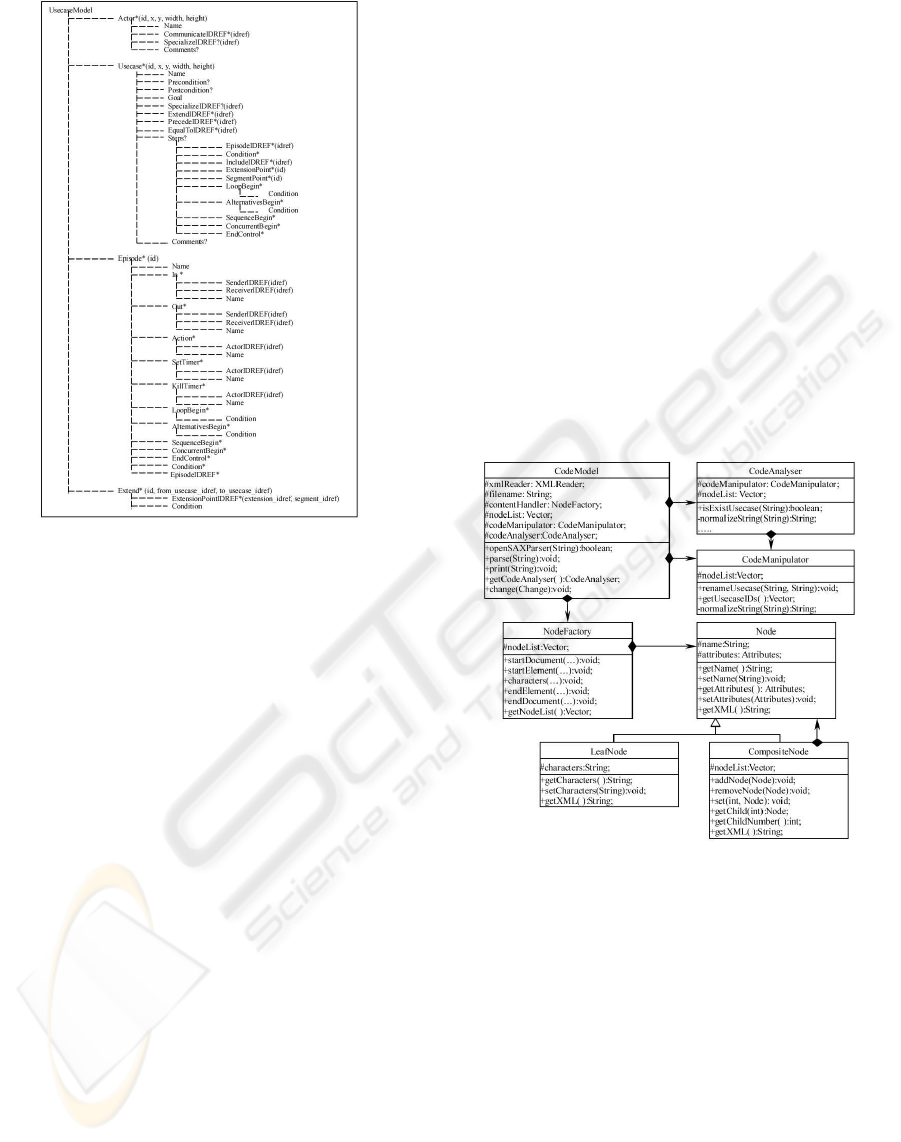

store use case model using the XML format. Figure

5 shows the DTD that is used to structure the storage

of our use case model.

In our DTD, there are four major entities: Actor,

Usecase, Episode, and Extend. An Actor entity con-

tains the actor information, such as name, communi-

A PROTOTYPE TOOL FOR USE CASE REFACTORING

175

Figure 5: The Structure Of The Use Case Model DTD.

cating use case, parent actor, and so on. The id at-

tribute of an Actor entity identiﬁes the actor. Other

attributes: x, y, width and height, are used by the

use case diagrammer to store the position and size of

the actor ﬁgure. A Usecase entity stores the use case

information. Each Usecase entity has an identiﬁca-

tion attribute id. Other attributes are used by the use

case diagrammer, just like those of the Actor entity.

The relationships between two use cases are stored

respectively by SpecialIDREF, ExtendIDREF, Pre-

cedeIDREF, EqualToIDREF and IncludeIDREF. The

idref attribute in the relationship entity refers to the

id value of the corresponding use case. An EpisodeI-

DREF entity stores the information of the referenced

episode. An Episode entity keeps the episode infor-

mation, such as message event, action event and timer

event with some control ﬂow elements and condi-

tions. Extend entity stores the extend relationship in-

formation, such as the extension point, segment point

and the extension condition. Other entities are self ex-

planatory. Owing to the paper size, we do not discuss

them here.

4.3 REFACTORING

FRAMEWORK DESIGN

There are ﬁve packages in the refactoring framework:

Code Model, Refactoring, Condition, Change, and

Tool Interface. The Code Model represents the use

case model within the framework. The Refactoring

package is one of the core components. Each refac-

toring class represents a refactoring itself. The Condi-

tion package is used to describe the precondition and

postcondition of refactoring. It is very easy to test

equality between any two conditions using condition

class. Modiﬁcations which the refactoring makes to

the code model are represented using change classes

within Change packages. The Tool Interface pack-

age provides various methods to communicate with

the previous four packages that act as a facade.

The Code Model package provides two categories

of classes. One includes the NodeFactory class, Node

class, LeafNode class, and CompositeNode class. It

is used to parse the XML document which stores the

information of the use case model. The other includes

the CodeModel class, CodeAnalyser class, and Code-

Manipulator class. It is used to process the use case

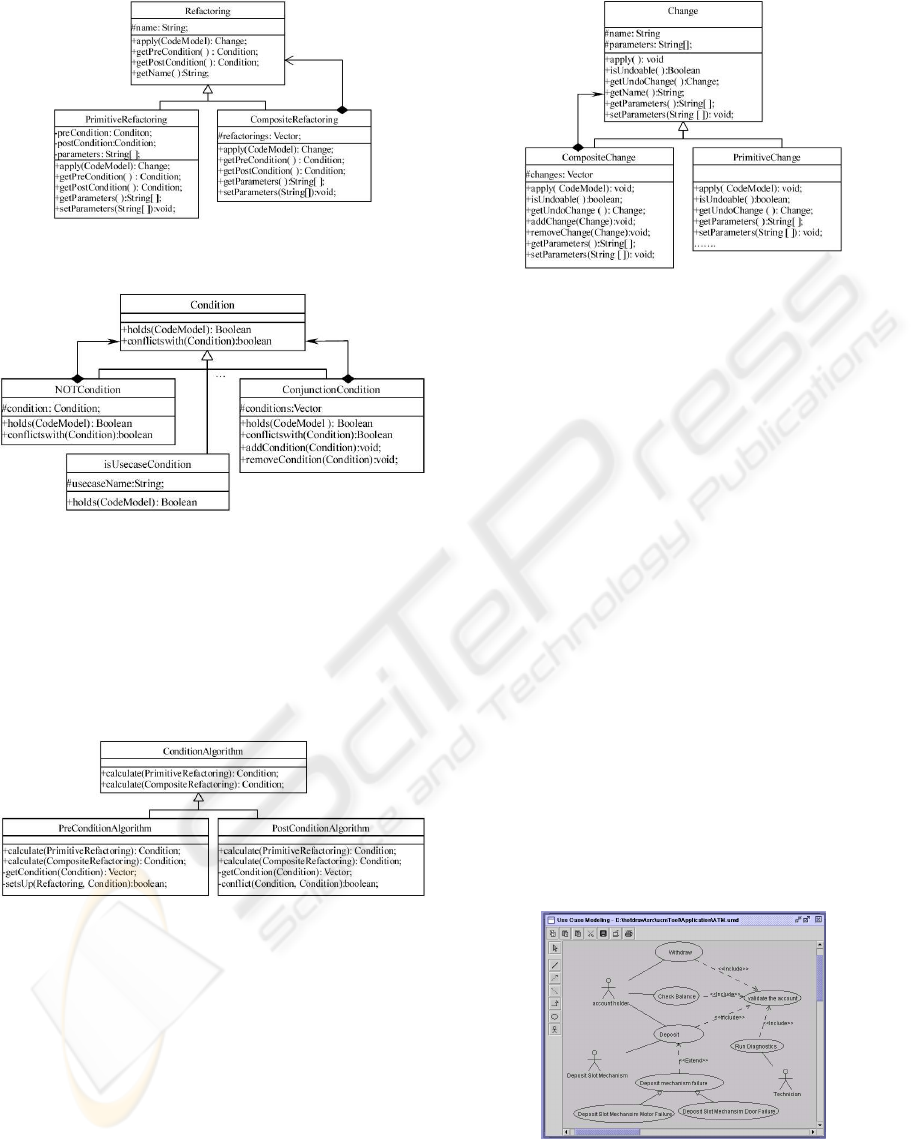

model to complete a refactoring operation. Figure 6

shows the class diagram of the Code Model package.

Figure 6: The Code Model Package.

There are two kinds of refactorings in the Refac-

toring package: primitive refactorings and composite

refactorings. It is convenient to describe a refactoring

using the Composite pattern (Gamma, 1994), with

one subclass for each primitive refactoring and an-

other for composite refactorings. Figure 7 shows the

class diagram of the Refactoring package.

The condition classes within the Condition package

are organized by the Composite pattern as shown in

Figure 8. The name of the condition class is the name

of the analysis function within the precondition and

postcondition of the refactorings. For example, isUse-

caseCondition represents isUsecase analysis function.

There are no explicit pre- and post-conditions in

composite refactorings. They can be calculated ac-

cording to the algorithms proposed by D.B.Roberts

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

176

Figure 7: The Refactoring Package.

Figure 8: The Condition Package.

(Roberts, 1999) and M.O.Cinneide (Cinneide, 2000)

from the stored primitive refactorings. The Condi-

tionAlgorithm class is used to calculate the pre- and

post-conditions of the composite refactoring. Figure

9 shows the class diagram.

Figure 9: The ConditionAlgorithm Class.

The change classes within the Change package are

organized using the Composite pattern to allow multi-

ple changes to be represented. Each refactoring is re-

lated to a change class. The getUndoChange method

returns another change object to undo the change.

Figure 10 shows the class diagram.

The tool interface is a facade class. There are var-

ious methods which are related to the refactorings in

tool interface class, such as renameUsecase, extract-

IncludedUsecase, getUsecases, parse, print and so on.

It delegates the tool GUI requests to appropriate sub-

system classes. In so doing, it minimizes the commu-

nication and dependencies between subsystems.

Figure 10: The Change Package.

4.4 TOOL IMPLEMENTATION

At present, there are two packages within the proto-

type tool: a Refactoring Tool GUI and a Use Case Di-

agrammer. The Refactoring Tool GUI interacts with

the tool interface class within the refactoring frame-

work to complete the refactoring requirements. The

Use Case Diagrammer is used to draw the use case

model. Refactoring results can be viewed through the

Use Case Diagrammer.

In our project, the Use Case Diagrammer is im-

plemented based on the Drawlets framework (Role-

Model Software). Several classes, such as Simple-

DrawingCanvas, SimpleDrawing and BasicObserv-

able, are modiﬁed. We add some new shapes such

as actor, use case, and so on, based on the original

shapes. Furthermore, we implement the attribute pane

for some shapes, such as actor and use case, to de-

ﬁne attributes of shapes. In order to store the use

case model in the XML format, some classes are also

added to the framework to parse and print the use

case model. Figure 11 shows the screen shot of use

case diagrammer which is implemented based on the

Drawlets framework.

Figure 11: A Screen Shot Of Use Case Diagrammer.

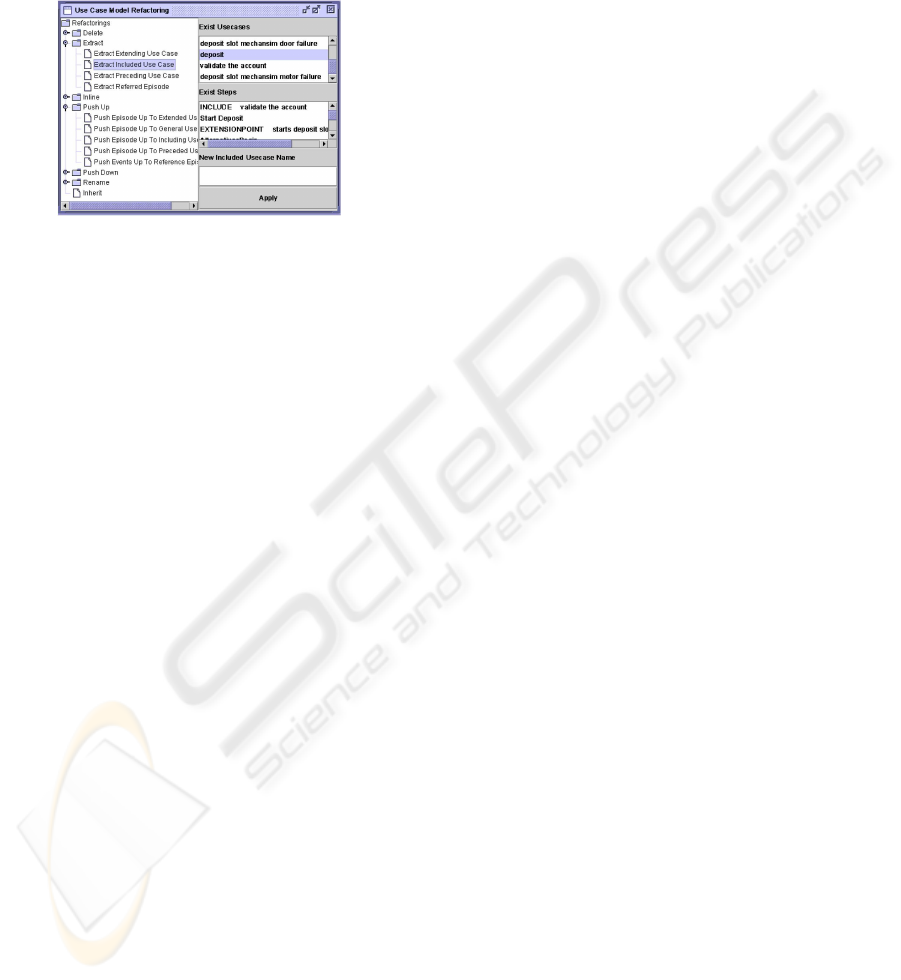

The Refactoring Tool GUI provides various refac-

toring panes. Figure 12 shows a screen shot of the

A PROTOTYPE TOOL FOR USE CASE REFACTORING

177

Refactoring Tool GUI. At the left side, a list of refac-

torings are displayed through a tree structure. When

user selects a refactoring, a corresponding input pane

is displayed at the right side. The developer can input

the required input and then click the Apply button to

start the refactoring.

Figure 12: A Screen Shot Of Refactoring Tool GUI.

5 CONCLUSION

This paper introduces our practice in designing and

implementing a tool for refactoring use case mod-

els. We present our refactoring framework, which is

tool independent and ﬂexible owing to the utilization

of software design patterns. Currently, twenty-four

refactorings have been implemented, such as rename

refactorings, extract refactorings, inline refactorings,

push up refactorings, push down refactorings, and so

on. With the tool support, we can conduct use case

refactorings easily and effectively. Based on our ex-

perience, the tool has achieved its initial success. As

the next step, we will implement more use case refac-

torings into the tool. We will also conduct several

case studies to evaluate the tool as well as our use case

refactorings. Our refactoring framework is also sub-

ject to further evaluation. We will investigate compos-

ite refactorings and use case pattern (Adolph, 2002)

functionality.

REFERENCES

S. Uchitel, J. Kramer, and J. Magee. (2003). Synthesis of

Behavior Models from Scenarios. IEEE Transactions

on Software Engineering, 29(2), pages:99-115.

J. Ryser, M. Glinz. (2000). SCENT: A Method Employing

Scenarios to Systematically Derive Test Cases for Sys-

tem Test. Tech. Report, University of Zurich, Swizer-

land.

OMG. (2002) Uniﬁed Modeling Language Speciﬁcation.

A.Cockburn. (1997). Structuring Use Cases with Goals.

Journal of Object-Oriented Programming, Sept/Oct,

pages:35-40, and Nov/Dec, pages:56-62.

B.Regnell. (1999). Requirements Engineering with Use

Cases — A Basis for Software Development. Ph.D.

thesis, Lund University.

W. F. Opdyke. (1992). Refactoring Object-Oriented Frame-

works. Ph.D. thesis, University of Illinois.

M.Fowler. (2002). Refactoring: Improving the Design of

Existing Code. Addison-Wesley.

D.B.Roberts, J.Brant, and R.E.Johnson. (1997). A Refactor-

ing Tool for Smalltalk. Journal of Theory and Practice

of Object Systems, 3(4):253-263, 1997.

Instantiations. JFactor.

http://www.instantiations.com/jfactor.

T.McCormick et al. Transmogrify.

http://transmogrify.sourceforge.net.

J.Philipps and B. Rumpe. (2001). Roots of Refactoring.

In Proc. 10th OOPSLA Workshop on Behavioral Se-

mantics: Back to Basics, Tampa Bay, Florida USA,

pages:187-199.

G. Butler and L. Xu. (2001). Cascaded refactoring for

framework evolution. Proceedings of 2001 Sympo-

sium on Software Reusability, ACM Press, pages:51-

57.

S. Stepney, F. Polack, and I. Toyn. (2002). Refactoring

in Maintenance and Development of Z Speciﬁcations

and Proofs. Electronic Notes in Theorectical Comput-

ers Science, 70 No. 3, pages:1-20.

RoleModel Software. http://www.rolemodelsoft.com

/drawlets /index.htm.

D.Roberts. (1999). Practical Analysis for Refactoring.

Ph.D. thesis, University of Illinois.

M. Gogolla and C. Kobryn. (2001). UML 2001-The Uni-

ﬁed Modeling Language (Eds.) LNCS2185. Springer,

Berlin.

Y. Yamane, N. Igata, I. Namba. (2000). High-performance

XML Storage/Retrieval System FUJITSU Sci. Tech.

J.,36(2), pages:185-192.

E. Gamma, R. Helm, R. Johnson, and J. Vlissides.

(1994). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison Wesley.

M.O.Cinneide. (2000). Automated Application of Design

Patterns: A Refactoring Approach. Ph.D. thesis, Uni-

versity of Dubin.

S. Adolph, P. Bramble, A.Cockburn, and A.Pols. (2002).

Patterns for Effective Use Cases. Addison-Wesley.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

178
