AN APPROACH FOR SCHEMA EVOLUTION IN ODMG

DATABASES

Cecilia Delgado, José Samos

Universidad de Granada

Manuel Torres

Universidad de Almería

Keywords: Schema Evolution, Object-Oriented Databases, External Schemas, Schema Changes.

Abstract: Schema evolution is the process of applying changes to

a schema in a consistent way and propagating these

changes to the instances while the database is in operation. However, when a database is shared by many

users, updates to the database schema are always difficult. To overcome this problem, in this paper we

propose a version mechanism for schema evolution in

ODMG databases that preserves old schemas for

continued support of existing programs running on the shared database when schema changes are produced.

Our approach uses external schema definition techniques and is based on the fact that if a schema change is

requested on an external schema, rather than modifying the schema, a new schema, which reflects the

semantics of the schema change, is defined.

1 INTRODUCTION

Schema evolution is the process of applying changes

to a schema in a consistent way and propagating

these changes to the instances while the database is

in operation.

However, when a database is shared by many

users

, updates to the database schema are difficult

and often prohibited because there is a risk of

making existing application programs inoperative

when they run against the modified schema.

To overcome this problem, in this paper we

opose a version mechanism for schema evolution

ODMG databases that preserves old schemas for

continued support of existing programs running on

the shared database. To achieve this, we use external

schema definition techniques, particularly the

methodology presented in Torres (2002). The basic

principle of our approach is that, given a schema

change request on an external schema, rather than

modifying the schema, a new schema, which reflects

the semantics of the schema change, is defined. The

new schema is assigned to the user, while the old

one is maintained for other application programs.

In our mechanism, unlike in other systems (Kim

et al., 19

88; Monk et al., 1993), the scope of a

schema version (external schema) is not confined to

the objects which have been created under this

particular version, but rather any object in the

database can be accessed and modified through any

version, whenever the classes of the objects are

included in the external schema associated with it.

Thus, each object can be directly shared by different

versions of the schema without having to version the

object at the instance level. There are two reasons

for carrying out schema changes in this way: (i) all

objects are associated with a single conceptual

schema; (ii) each version of the schema is

implemented via an external schema defined on the

conceptual schema.

In this work we propose an approach that is not

mited to capacity-reducing or capacity-preserving

schema changes and which only requires a

conventional external schema definition mechanism.

Furthermore, to facilitate reutilization and to offer a

common definition framework for all schemas, we

propose the use of the repository.

This paper is organized as follows: section 2

provides a s

ummary of the

ODMG object model, the

external schema definition mechanism and other

basic concepts; in section 3, a methodology for

ODMG schema evolution is proposed; in section 4, a

136

Delgado C., Samos J. and Torres M. (2004).

AN APPROACH FOR SCHEMA EVOLUTION IN ODMG DATABASES.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 136-141

DOI: 10.5220/0002617901360141

 SciTePress

mechanism to propagate schema changes is showed;

in section 5, a brief review of the related research is

given; in section 6, conclusions are exposed.

2 BACKGROUND

ODMG Object Model. In the ODMG object model,

the basic modelling primitives are the object and the

literal. The difference between the two concepts is

based on the notion of identity. Objects have a

unique identifier whereas literals do not have an

identifier. Objects and literals can be categorized by

their types. The types are classified as object types, if

their instances are objects, and as literal types if

their instances are literals. The state of an object is

defined by the values it carries for a set of

properties. These properties can be attributes or

relationships with other objects. The behaviour of an

object is defined by the set of operations executed on

or by the object. One aspect to be taken into account

in the definition of a type is its external

specification. The specification of an object type (or

simply specification) can be carried out in two ways:

an interface is a specification that defines only the

abstract behaviour of an object type; a class is a

specification that defines the abstract behaviour and

state of an object type. Objects cannot be created

from an interface but must be created from a class.

In the

ODMG object model, the inheritance is

based on the subtype relationship, and there exist

two kinds of inheritance: behaviour inheritance

(

ISA) and state and behaviour inheritance

(

EXTENDS). The ISA relationship is a multiple

inheritance relationship between specifications of

type that allows us to create more specialized types

(subtypes) from existing types (supertypes). This

relationship only defines inheritance between the

behaviour of object types. The

EXTENDS relationship

is a simple inheritance relationship between two

classes where the subordinate class inherits the state

and the behaviour of the class that it is extending.

In the

ODMG object model, a schema can be

defined as a rooted directed acyclic graph, where the

finite set of vertices correspond to the specifications

of types (interfaces and classes) and the finite set of

directed edges correspond to the inheritance

relationships between specifications. The root of the

graph is an interface called

Objects.

A formal definition for the

ODMG object model is

proposed in Delgado et al. (2003).

External Schema Definition Mechanism. Current

specifications of the

ODMG 3.0 standard (Cattell,

2000) do not include explicit support to define

external schemas. However, the possibility of

defining external schemas would allow

ODMG

databases to be adapted to the

ANSI/SPARC three-

level architecture, which could provide them data

independence and functions of integration.

The mechanism proposed in Torres (2002)

integrates the derived specifications of type in the

repository using the derivation relationship, but to

avoid extending the object-oriented paradigm, the

external schemas do not use this relationship. The

definition of an external schema is a three-step

process: first, selection of specifications of type that

will form the external schema; second, closure of the

schema; in this step it is checked that there are no

external references to specifications of types not

included in the schema; if there are, the referenced

specifications are replaced by derived specifications

that eliminate these references; third, generation of

the external schema; in this step, existing inheritance

relationships between specifications of type are

obtained. The definition of external schemas is

carried out in the repository.

Information Capacity. According to Miller et al.

(1993), the information capacity of a schema is

defined as the set of all valid instances of the

schema. Intuitively, a schema has an information

capacity that is larger than or equal to that of another

if every instance of the first can be mapped onto an

instance of the second without loss of information.

Schema Transformations. Schema changes can be

implemented by schema transformations (Delgado et

al., 2003). A schema transformation is a total

mapping between sets of schemas. A schema

transformation is information capacity augmenting if

it induces a total, injective mapping between the

family of the instances of the original schema and

the family of instances of the transformed schema. A

schema transformation occurs when it induces a

bijection between the family of the instances of the

original schema and that of the transformed schema.

A schema transformation is information capacity

reducing if it induces a functional, surjective

mapping between the family of the instances of the

original schema and that of the transformed schema.

3 A METHODOLOGY FOR

SCHEMA EVOLUTION

According to the ANSI/X3/SPARC (1986) schema

definition framework, external schemas are derived

from the database conceptual schema. Each external

schema describes the part of the information of the

conceptual schema that is appropriate to the group of

users to whom it is addressed.

In the

ODMG model, the information contained in

a schema is represented by specifications of type.

External schemas may include non-derived

specifications and derived specifications, directly or

indirectly defined on the basis of conceptual schema

AN APPROACH FOR SCHEMA EVOLUTION IN ODMG DATABASES

137

specifications (Samos et al., 1997); this means that

the information contained in derived specifications

is already represented in the conceptual schema.

Derived specifications are defined and included

in the repository. Specifications from which a

derived specification is directly defined are called

base specifications and they can be derived or non-

derived. Each derived specification is related to its

base specifications by a derivation relationship.

Users sometimes request new information that

cannot be derived from the database. When an

external schema with non-derived information has to

be defined, the conceptual schema must be modified

to include this information, and thus the external

schema can be derived from the conceptual schema.

Adding new information might either require the

definition of new non-derived specifications or the

modification of previously existing specifications.

Depending on the kind of change, a specification

can evolve in two ways: (1) if the change is

information capacity-preserving or reducing, then

the specification is transformed into a derived

specification, independently of whether the

specification, before change, was derived or non-

derived; (2) if the change is information capacity

augmenting, the specification is transformed into a

partially derived specification described below.

However, when changes are applied on an

external schema, this always evolves to a new

external schema, independently of the kind of

change. The main difference with respect to the

evolution of specifications is that if the change

applied on an external schema is information

capacity augmenting, the generation of the new

external schema cannot be carried out until the

conceptual schema has been modified.

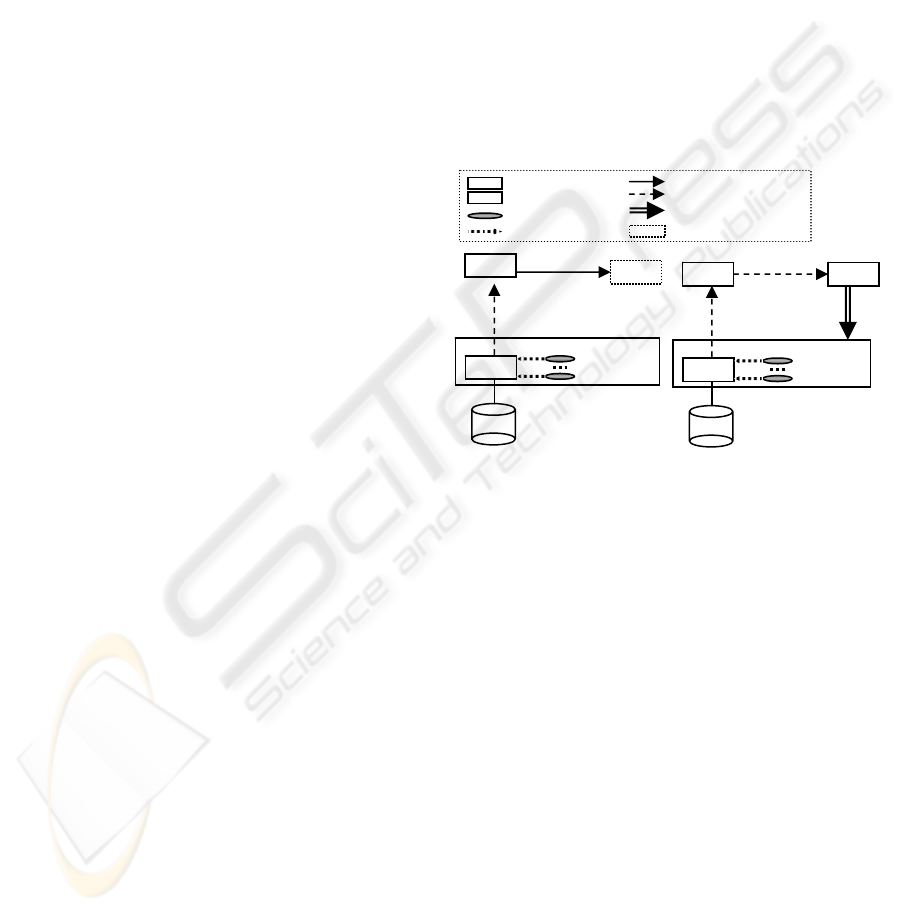

3.1 Partially Derived Specifications

Conceptually, a solution for supporting schema

evolution by information capacity augmenting

transformations consists of allowing derived

specifications of type that may contain non-derived

information, i.e., partially derived specifications of

type. The non-derived information is added to the

information obtained from the base specifications, so

that the need to modify the definition of other

specifications is avoided.

The base specifications and the partially derived

specifications share the information that may be

contained in both specifications. The additional

information that cannot be contained in the base

specifications will be contained exclusively in the

non-derived part of partially derived specifications.

The capability to define partially derived

specifications simplifies the execution of operations

that represent information capacity augmenting

changes in a specification of type.

3.2 Test Environment

In the design process of an external schema, it is

possible that new non-derived information may be

required, which can be subsequently rejected; this

means that a conceptual schema has to be

continually modified until a final version of the

external schema is achieved.

In order to avoid the continous modification of

the conceptual schema, it may be very useful to have

a test environment in which provisional external

schemas can be defined. These schemas can include

non-derived information without having to modify

the conceptual schema.

The transformation of a provisional external

schema with non-derived information into an

external schema is a two-step process:

1. The conceptual schema is modified in order to

include the non-derived information.

2. The external schema is derived from the new

conceptual schema; thus the non-derived

information contained in the provisional

external schema becomes derived information.

The existing external schemas are not affected

by the modification of the conceptual schema or,

what amounts to the same thing, taking into account

the concept of data independence established in the

ANSI/X3/SPARC report (1986), conceptually, a change

in a schema must not affect other schemas of the

database. However, in some cases, the logic ligature

must be re-established, i.e., it is necessary to repeat

the transformation between the external schema and

the new conceptual schema.

For example, if an external schema includes a

non-derived specification and, as a result of a change

in another external schema (e.g., a new property is

added to the specification) the conceptual schema is

modified, the specification may become derived. In

this case, the external schema is not modified, but

the ligature between the external schema and the

new conceptual schema has to be established; the

establishment of this ligature is an updating of the

information stored in the repository.

Moreover, if a specification of the conceptual

schema, which is the base specification of a derived

specification or is included in an external schema,

has to be modified, then a new specification is

defined and the rest of existing specifications are not

affected by this modification. The only thing that

can change is its definition, i.e., it may become a

derived specification, so that if the specification is

no longer included in the conceptual schema it will

still remain in the repository.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

138

4 A MECHANISM FOR

PROPAGATING CHANGES

When a schema change is requested, it is necessary

to determine the impact of such a change on the

existing application programs. If the schema change

affects existing programs, we have two choices: (i)

we can rewrite all affected programs to work with

the new schema, or (ii) we can reject the update of

the schema. The former would be extremely

laborious, while the latter option is not suitable,

since it may result in a system not being able to

incorporate new information needs.

The mechanism that we propose overcomes

these problems. After constructing an initial

conceptual schema, each developer defines his own

external schema on the shared database and if they

subsequently consider a change of schema to be

needed, they specify it on their own schema. The

database system computes a new external schema,

which reflects the semantics of the change; it then

replaces the old schema with the new one. Thus,

rather than directly modifying the old schema, the

schema change is simulated by generating a new

external schema. This process is transparent to users,

i.e., the simulation of the change is indistinguishable

from direct schema modification, since the user

perceives a real schema change.

Although the schema change is simulated,

sometimes the conceptual schema must be

restructured in order to generate an external schema

with a different semantics. In this case, the database

must be reorganized at the instance level, especially

when the change is information capacity-

augmenting. When a change to an external schema is

required, for example, the addition of a new

attribute, the conceptual schema has to be

augmented with new stored data. However, when a

deletion is requested, this change results in a

removal from the external schema (and its associated

data), but there is no deletion from the conceptual

schema nor any deletion of values from the database.

4.1 Information Capacity-Reducing

or Preserving Schema Changes

The essential principle of our approach is that

information capacity-reducing or preserving schema

changes are achieved by constructing an external

schema that reflects the semantics of the change (see

Figure 1 for an illustration of the mechanism).

For an information capacity-reducing or

preserving schema change C

, the mechanism

computes the change by creating a new external

schema ES

that reflects the intention of the

operation. The generation of an external schema

from the conceptual schema or from another external

schema is called a schema derivation operation

(DS). Then, if the change C

is specified on an

external schema ES

(Figure 1.a), the new schema

is obtained as ES

= DS

(ES

) (Figure 1.b).

The old schema ES

remains intact for continued

support of existing applications, while the new

schema ES

provides a more appropriate interface for

new application programs. Moreover, ES

can be

viewed as if it was directly derived from the

conceptual schema (CS), i.e., ES

= DS

◦ DS

(CS) is the sequence of schema derivations that

obtains ES

from CS, where DS

is the schema

derivation that generates ES

from CS. This ensures

that all external schemas ES

and ES

operate on the

same conceptual schema and data.

Legend

a. Before schema change b. Application of the change

Figure 1: Mechanism for Capacity-Reducing/Preserving

Schema Changes

As a result of an information capacity-reducing or

preserving schema change, some new derived

specifications can be defined. Therefore, in addition

to including the definition of the new external

schema in the repository, it will have to include the

definition of the new derived specifications (Figure

1.b) since, as mentioned previously and unlike other

systems (Ra et al., 1997; Rundensteiner et al., 1998),

the derived specifications are not included in the

conceptual schema.

4.2 Information Capacity-

Augmenting Schema Changes

Information capacity-augmenting schema changes

cannot be carried out in the same way as that of

information capacity-reducing or preserving schema

changes due to the inherent limitation of the external

schema definition mechanism not being able to

augment the information capacity of the database.

We therefore propose a solution based on a two-step

Conceptual Schema

Derived Specification

Derivation

Repository

Data

External Schema

Request of Change

Schema Derivation

Update of the Repository

Undefined Schema

Repository

Data

AN APPROACH FOR SCHEMA EVOLUTION IN ODMG DATABASES

139

process that uses the same external schema

definition mechanism presented in section 2.

First, the conceptual schema augmentation step

translates the schema change request C

specified on

the external schema ES

(Figure 2.a) into an

operation C

’ to be executed on the conceptual

schema CS in order to restructure CS, denoted by

<1> in Figure 2.b. After this step is executed, the

conceptual schema CS no longer exists in its initial

form, but has been modified by augmentation with

information that is possibly irrelevant to many

applications. For this reason, the schema derivations

specified upon it may have become undefined (DS

in Figure 2.b), although the external schema ES

still

exists. Furthermore, the data is associated with the

new schema CS’ instead of with the former CS.

a. Before schema change b. Conceptual schema

augmentation

c. Application of change

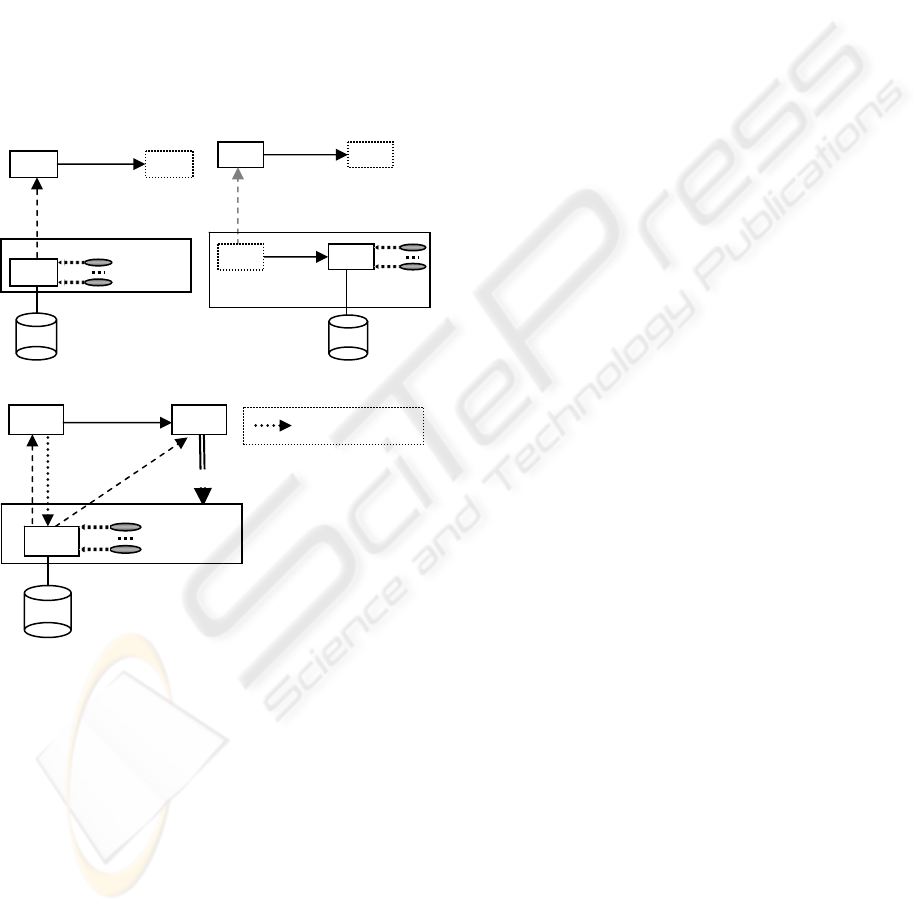

Figure 2: Mechanism for Capacity-Augmenting Schema

Changes

Second, the new external schema generation step,

denoted by <2> in Figure 2.c, generates the new

schema ES

as if the change C

had been performed

on the external schema ES

directly. Given that the

information capacity of the conceptual schema CS

has been appropriately augmented by the first step,

the schema derivation can always be carried out.

Since the original conceptual schema CS no longer

exists, for continuing support of all the existing

external schemas (and thus all applications) defined

on CS, in this second step, all schema derivations

that had become undefined in the previous step are

restored on CS’ and new logic ligatures are

established. As a result of the change, new derived

specifications can be defined or non-derived

specifications may become derived; therefore, in

addition to including the definition of the new

external schema in the repository, it will have to be

updated to add the definition of the new derived

specifications or to modify existing definitions

(Figure 2.c).

4.3 Characteristics of the Mechanism

The fundamental characteristics of our mechanism

are the following:

1. The schema change applied to an external

schema does not affect to any of the existing

external schemas. This ensures that earlier

applications can still work properly. Besides,

this feature allows users to restructure their

external schema independently from other users

working on the same conceptual schema.

2. Both old and new versions of the schema are

able to share the same (persistent) data,

independently of the version with which the

data was originally created.

3. Schema changes are transparent to the external

schema users, since the fact that the schema

change is simulated is not apparent to them.

Taking into account these characteristics, the

mechanism presents the following advantages:

1. It allows all instances to be directly shared by all

schemas. Maintaining separate copies of the

instances makes it difficult and expensive to

propagate the update of an instance of one

schema version to all copies of the instance

under other schema versions. In our mechanism,

because all instances are associated with a single

conceptual schema, instances are directly shared

by all versions of the schema, i.e., there exists

only one copy of each instance.

2. It integrates the restructuring power of external

schemas and schema evolution. This provides

many advantages, because external schemas

enable programs to use data representations

adapted to their needs and the evolution of the

schema makes it possible to incorporate new data

requested by applications.

3. Version merging. The version merging process is

very complicated because all instance versions

with the same object identity must be merged

into a single instance, and schema versions must

be combined into one consistent schema. This

process can be easily solved in our mechanism,

because instances of different external schemas

are never duplicated, and all the specifications

derived are defined in the repository.

CS’

Repository

Data

<2>

Establishment of ligature

Repository

Data

Repository

CS’

’

<1>

Data

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

140

5 RELATED WORK

In Tresch et al. (1993) it is stated that schema

changes can be simulated using external schemas

(views) if they are not information capacity

augmenting. In this work, some examples are

presented and it is mentioned that for information

capacity-augmenting schema changes the meta-

database must be dynamically accessible at run time.

Bertino (1992) presents a view mechanism that

can be used to simulate schema evolution. The

mechanism proposed is information capacity-

augmenting in the sense that new stored attributes

are added to views. However, the paper focuses on

the evolution of individual classes rather than on

schemas.

In Ra et al. (1997), an extension of conventional

view definition mechanisms to simulate information

capacity-augmenting schema changes is proposed.

This mechanism, unlike that of Bertino, is directed

toward schema evolution. However, commercial

object-oriented database systems do not support

such information capacity-augmenting views.

In Rundensteiner et al. (1998), a methodology to

achieve transparent schema changes and that does

not require information capacity-augmenting views

is presented. In this methodology, when it is

necessary to modify the base schema because an

information capacity-augmenting schema change is

required, the former base schema is reconstructed as

a view schema from the augmented base schema in

order to continue supporting all the existing view

schemas. However, we believe this reconstruction to

be unnecessary, since earlier view schemas can be

derived from the new base schema.

Some version systems (Kim et al., 1988; Monk et

al., 1993; Lautemann, 1997) build new versions of

schemas and instances, so that every instance of the

old schema is copied and converted into an instance

of the new schema version. The main differences

between these systems and our proposal are: (i)

duplicates of the objects are created, which produces

serious limitations when modifications are

propagated; (ii) updates via newer schema versions

are often not propagated to older versions; (iii) data

inconsistencies between different versions of an

object may arise over time. For these reasons, true

interoperability between old and new applications is

not achieved.

6 CONCLUSIONS

In this paper, we present a solution for the problem

of schema evolution in

ODMG databases based on

external schema definition techniques. The basic

principle of our solution is that when a change to an

external schema is requested, instead of modifying

the schema, a new one is defined, reflecting the

semantics of the schema change. The new schema is

assigned to the user, while the old one is maintained

for other application programs.

Moreover, in order to avoid the continuous

modification of the conceptual schema, when

information capacity-augmenting schema changes

are requested, we propose the use of a test

environment in which provisional external schemas

can be defined. These schemas can include non-

derived information without having to modify the

conceptual schema. If necessary, the conceptual

schema will be modified when the provisional

external schema is accepted by the users.

ACKNOWLEDGMENTS

This work has been supported by the CICYT under

project TIC2000-1723-C02-02.

REFERENCES

ANSI/X3/SPARC, 1986. Database System Study Group,

“Reference Model for DBMS Standardisation”.

SIGMOD RECORD, 5, pp.19-58.

Bertino E., 1992. A View Mechanism for Object-Oriented

Databases. In EDBT'92, LNCS 580, pp136-151.

Cattell R.G.G, 2000. The Object Data Standard: ODMG

3.0. Morgan Kaufmann.

Delgado C. et al., 2003. Primitive Operations for Schema

Evolution in ODMG Database. OOIS’03, LNCS 2817,

pp. 326-337.

Kim W. and Chou H., 1988. Versions of Schema for

OODBs. In VLDB’88, pp. 148-159.

Lautemann S.-E, 1997. A Propagation Mechanism for

Populated Schema Versions. In IEEE Int. Conf. on

Data Engineering, pp. 67-78.

Miller, R. et al., 1993. The Use of Information Capacity in

Schema Integration and Translation. In VLDB’93, pp.

120-133.

Monk S. and Sommerville I., 1993. Schema Evolution in

OODBs Using Class Versioning. In SIGMOD

RECORD (22), pp. 16-22.

Ra Y.G. and Rundensteiner E.A., 1997. A Transparent

Schema Evolution System Based on Object-Oriented

View Technology. In IEEE TKDE, pp. 600-624.

Rundensteiner E. et al., 1998. Capacity-Augmenting

Schema Changes on Object-Oriented Databases. In

OOIS'98, pp. 349-366.

Samos J. and Saltor F., 1997. External Schemas in a

Schema-Evolution Enviroment for OODBs. In

DEXA’97, pp. 516-522.

Torres M., 2002. Definición de Esquemas Externos en

Bases de Datos ODMG. PhD Thesis, Univ. of

Almería, Spain.

Tresch M. and Scholl M.H., 1993. Schema Transformation

without Database Reorganization. In SIGMOD

RECORD, pp. 21-27.

AN APPROACH FOR SCHEMA EVOLUTION IN ODMG DATABASES

141
