A REQUIREMENT FOR A XML WEB SERVICES SECURITY

ARCHITECTURE

Luminita Vasiu, Cristian Donciulescu

Middlesex University, London, UK

Key

words: XML Web Services, Internet security, Web Services Architecture

Abstract: Lately, XML Web Services are emerging as a dominant platform in the computing world. At the moment,

the web has evolved into an active medium for providers and consumers of services. One of the major

problems for XML Web Services is the related with security. The paper describes a comprehensive XML

Web Services Management Architecture that supports, integrates and unifies several security models,

mechanisms and technologies in a way that enable a variety of systems to securely interoperate in a

platform independent, comprehensive manner.

1 SECURITY ISSUES SPECIFIC

TO XML WEB SERVICES

In order to provide a comprehensive security model

for Web services, it is required to integrate the

currently available processes and technologies with

the evolving security requirements of future

applications. There are a big number of similarities

between security issues raised by a normal web

environment and those posed by a XML Web

Services Environment. However, due to the

particular nature of XML Web Services, some of

these issues are more complex and new problems

arise. As the technology becomes adopted on the

market on a wider scale, there will be a need to

integrate more and more services under the same

environment. This integration, which has to be

seamless in order to take advantage of what XML

Web Services have to offer, poses the biggest

security problem. Different security contexts must

be able to talk to each-other without any security

compromise.

The XML Web Services environment has the

following defining characteristics (Yang, 2002):

• It is highly decentralised in architecture and

administration;

• It is implemented in different technologies,

from different vendors and with different

tools;

• It is spread over multiple enterprises,

contexts, etc;

• It must have parts that are accessible to

everybody on the Internet and parts that are

restricted to authenticated users. These parts

often collaborate with one-another;

In the recent period, there have been many

malicious attacks on several high-profile Web

servers, hosting applications used by millions of

computers throughout the world. Attacks like those

performed by Nimda, Code-Red, MSBlaster and

Sobig have produced huge damages and there are

fears that due to their specific nature, XML Web

Services will become favourite targets for such

attacks if they will not be properly protected.

As with regular web applications, major areas

that have to be addressed to achieve a secure

environment are authentication, access control, data

privacy (encryption), non-repudiation, etc. In each of

these areas there are specific problems to be

addressed when dealing with XML Web Services

(Stencil Group, 2003). The main issues are discussed

briefly below:

• Authentication. In regular web applications,

usually clients have to be authenticated

when requesting to use a service. This is

usually done using passwords, certificates or

infrastructures like Kerberos and LDAP.

However, in the case of a XML Web

Service, the server has to be identified to the

client as well, considering that in a SOAP

request/response pair, both messages

(including the request) can contain very

sensitive information. That would require

Vasiu L. and Donciulescu C. (2004).

A REQUIREMENT FOR A XML WEB SERVICES SECURITY ARCHITECTURE.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 60-66

DOI: 10.5220/0002619400600066

 SciTePress

the XML Web Service to have a security

certificate attached to its contract that can be

interrogated by a client before sending a

request, to prevent talking to a spoofed

XML Web Service.

• Access control. With XML Web Services,

controlling authorisation rights is a difficult

task, because not only the client has to have

access to the specific service, but also to the

specific operations that service performs.

There can be instances where different

levels of access to a service’s functions must

be assigned to users. It is also difficult to

monitor attempts of illegal use of the

service, since usually these types of

applications serve other applications, so

there is no human involvement in the entire

process. The administration of such an

environment with multiple types and levels

of access rights is not an easy task. There

are issues here as well (Yang, 2002),

considering that having a single

administrator over the entire web service

environment is a security threat in itself.

Having multiple administrators with

different privileges is an option, but this

triggers the need for an administrative

platform for XML Web Services. And due

to the very diverse nature of XML Web

Services, such a platform should be very

open, allowing for all kinds of security

policies to be integrated in it, as well as

multiple and diverse administrative

schemes.

• Data privacy. A SOAP message between a

client and a service can be encrypted to

protect its content, however, unlike regular

web applications, where usually a client and

a server communicate with each-other and

the client trusts the server, with XML Web

services, the trust has to be reciprocal. Also,

although a client may trust a service and

send sensitive encrypted content to it, the

service may act as a client to other services.

How can a client trust that a service will

protect their information properly while

communicating to other services?

• Digital signatures. To ensure data integrity

between clients and web services digital

signatures have to be employed.

Fortunately, the XML Signature standard

has been designed exactly for that purpose.

Digital signatures also provide a

non-repudiation mechanism, to verify that

an action really took place.

2 CURRENT SECURITY

STANDARDS

The expectations of the developer community with

regard to XML Web Services technology and its

implications on the development of the Internet were

very big when the WS specification was first made

public two years ago. There were voices that argued

XML Web Services to be the “biggest step forward

in the development of the Internet since the advent

of the browser”(Iona Software, 2001).

However, although there is still great enthusiasm

in the developer community and there are attempts

made by big companies to use the technology, the

development expected in the beginning is far behind

what was imagined. That is mainly because the

original XML Web Services standard did not include

any security specification; so serious projects using

XML Web Services were not undertaken. Web

Services have been used until now mainly in small

undertakings and in applications designed to run

behind company firewalls and intranets. The few

examples where big companies used Web Services

for their commercial (such as British Telecom in the

UK) products rely on custom security

implementations. Out of experience, custom security

implementations are much more subject to errors

and security holes than standardised security

platforms.

To cover the lack of security specifications in the

original Web Services platform, several important

companies are working together, trying to develop a

security specification for XML Web Services. The

results are several standards that are either in the

final stages of development or have been recently

approved by organisations such as OASIS or W3C.

However, as key personalities involved in the

development of these standards readily admit, “the

implementation of a particular spec will [not] make

everything completely interoperable and secure”

(Maler, 2003). In order to have a (reasonably)

complete secure XML Web Services environment,

several standards must be implemented. This shows

the need for the development of security

architectures that combine the standards into a

comprehensive security framework.

• WS-Security: The main security

specification that deals with the security of

XML Web Services is WS-Security,

developed by a collaboration between

Microsoft Corporation, IBM and Verisign

Inc., under the coordination of OASIS.

WS-Security is the most comprehensive

security standard to-date defining how to

manage and coordinate aspects such as

message integrity, authentication and

A REQUIREMENT FOR A XML WEB SERVICES SECURITY ARCHITECTURE

confidentiality and specifying how to

include features such as digital signatures

and encryption in SOAP documents

(Stanton, 2003). Although dealing with

many important aspects in defining how

security architecture should work, the

specification fails to address other vital

issues with XML Web Services, such as

fail-over, backup, redundancy, etc.

However, this standard is the basis for a

security infrastructure that is being

developed by the same organisation. This

security infrastructure contains other

developing standards, such as: WS-Policy,

WS-Trust, WS-Privacy,

WS-SecureConversation, WS-Federation,

WS-Authorisation. These standards are now

in a drafting stage and are not yet being used

in security implementations.

• Shortcomings of current standards. With

all the standards being proposed, drafted and

approved, there are many people that feel

that developers will soon face another

hurdle: making all of them work together

smoothly. And still, there are unanswered

questions regarding many issues with

security. How will and outside, potentially

weak, system be integrated within an

already secured environment? How do you

perform a security audit, to test that a XML

Web Services environment is secure, when

it is spread over different networks and

administrative domains? (Yang, 2002) What

happens to its clients when a Web Service is

offline, either for maintenance or due to a

malicious action? How will the applications

using that particular service work around the

problem? How does someone prevent

malicious clients from initiating attacks on a

XML Web Service? There are fears that

XML Web Services, in particular

high-profile ones, will become favourite

targets for attackers. There is no way at the

moment to discover a XML Web Service

dynamically and there is also no way of

identifying web services that perform

identical tasks. It becomes obvious that an

attack on a XML Web Service, which might

very well serve thousands or millions of

clients, would become much more damaging

that present-day attacks on web application

servers, which only have the potential to

take down applications running on that

particular server. To address these particular

issues, related specifically to XML Web

Services, a specific kind of security

architecture would have to be designed.

3 ATTACKS ON WEB SERVICES

The main benefit of the XML Web Services

technology is that it exposes functionality,

sometimes critical functionality through standard

HTTP protocols. XML Web Services traffic usually

flows through port 80, such as regular HTTP traffic.

However, as opposed to HTML and regular web

sites, the functionality exposed by a XML Web

Service is much more sensitive. Firewalls can be

configured to intercept SOAP traffic, but most of

them can only block it. If you allow SOAP traffic

through the firewall, there is no way to interpret the

contents of the SOAP messages outside of the XML

Web Service itself, thus a malicious request can

easily go undetected.

Also, and even more dangerous, XML Web

Services are self-descriptive. The contract (WSDL)

file of the service contains detailed information

about the behaviour of the service, from which an

attacker can know exactly what the vulnerabilities of

the service are. This makes attacks much more likely

to succeed than on regular web applications.

Unencrypted or poorly encrypted, SOAP

messages can easily be intercepted and tampered

with. For these reasons, until now, there are no

big-scale implementations using XML Web

Services. The following types of attacks are most

likely to be performed on XML Web Services:

• Denial of service. This is a common attack

on a regular web server that will take the

server down immediately. An attack on a

XML Web Service will take down the Web

Service and the applications that use it. Such

an attack on a XML Web Service is

obviously much more damaging than on a

web server. The problem is even bigger than

it seems (Yang, 2002), because in the case

of Web Services a firewall cannot always

handle the problem. Due to the fact that a

XML Web Service might work a lot to

satisfy a single request, the service can be

easily overwhelmed by legitimate and not

fake requests. This will still take down the

service and the firewall cannot prevent it

without denying legitimate users from

accessing the service.

• Replay attack. A replay attack consists in

recording legitimate requests to the XML

Web Service and then transmitting them

over and over again to the service. However,

this kind of attack can be detected easier by

analyzing and denying identical requests to

the XML Web Service inside a safety time

interval. Still, this attack, combined with a

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

distributed denial of service attack will be

very difficult to contain.

• Buffer overflow. A buffer overflow attack

consists of sending a request longer in size

than the service is expecting. This can cause

the service to crash, or, worse, allows the

attacker to execute code on the server

machine, with disastrous results. Due to the

fact that XML Web Services are ideal to

expose functionality offered by old legacy

systems that do not have any protection to

this kind of attack, there might be a big

problem with protecting such systems using

XML Web Services from it.

4 THE XML WEB SERVICES

MANAGEMENT

ARCHITECTURE (WSMA)

XML Web Services are very complex and they have

unlimited application areas. In this context, it is very

difficult to create a comprehensive management

architecture that should be easy to administer and

maintain throughout multiple domains, security

policies and administrative rights (Stencil Group,

2002).

A Web Services Management Architecture

(WSMA) should be able to handle administrative

tasks without any need for customizing it for

specific clients or web services:

Some of the requirements imposed for the

WSMA are:

• To control authorisation of incoming

requests;

• To maintain access rights for clients;

• To verify the identity of a client;

• To allow the deployment of a XML Web

Service without any downtime;

• To manage situations where a Web service

may become unavailable;

• To manage data integrity tasks such as

encrypting and signing outgoing messages;

• To maintain information about the

functionality of managed Web services;

• To be able to inherit permissions and

settings from other trusted environments and

have the possibility to trust other

environments.

The WSMA architecture will create a sort of a

“bubble” around the XML Web Services managed.

It will be able to isolate them from the outside world

and act as a kind of intermediary between the clients

and the managed services. This could be

accomplished by a mechanism similar to a firewall

that intercepts all incoming SOAP requests. When

receiving a message, the WSMA will perform the

following steps:

• Decrypt the message using a private key

(assuming the client had the message

encrypted);

• Verify the identity of the client;

• Identify the service for which the client

made the request. If the service resides

within the current context, verify if the

client has the rights to access that service (or

even the particular method within the

service).If the service is not found within the

current context the architecture should pass

the SOAP request to all the other trusted

contexts;

• Allow the service to run or wait for the other

contexts to return a response and grab the

result (the response SOAP message);

• Encrypt the response for the client if

necessary;

• Send the response back;

The above sequence of events is based on the

following assumptions:

• There is a possibility to administer the

individual local security context completely

independent from the others;

• The local context can inherit all or some

security settings from another context and

from only one other context;

• The local context can trust any number of

other contexts and can lend some or all its

settings to those contexts;

• There is a mechanism that allows a client to

address a request for a service to a parent

context that will redirect it to its destination.

Such a mechanism is possible to be

established by providing each context with

the possibility to publish the WSDL

contracts of the XML Web Services

managed on its parent.

The architecture described above is in fact a tree

of contexts that trust their parents and can be

managed locally by independent administrative

entities. Each context can manage any number of

XML Web Services. A context has total control over

all the services it manages. The administrative entity

of a context it is able to manage at least the

following aspects for the services it controls:

• Two configurable levels of authentication

for clients: at the XML Web Service’s level

and at the method level for each particular

XML Web Service;

• Whether or not the SOAP requests should

be accepted unencrypted for each particular

managed XML Web Service;

A REQUIREMENT FOR A XML WEB SERVICES SECURITY ARCHITECTURE

• Whether the SOAP responses should be sent

encrypted all the time, only on request, only

to specific clients or never

• the possibility to build contingency plans for

the situation when a XML Web Service

becomes unavailable.

These plans could include a standard SOAP

response that the client can handle within the

parameters expected for each request or the

possibility to specify alternative hosts for the same

XML Web Service or even alternative services

performing the same task. This could be taken

forward in the future by creating a possibility to

specify equivalence between different XML Web

Services that perform similar tasks. For now,

specifying alternative services could be

accomplished by building interfaces between them.

An interface language based on XML of course

could be beneficial at this point. The context should

allow adding, removing or modifying information

about the managed XML Web Services on-the-fly,

without the need to take the context down at any

time.

A possible solution for allowing contexts to trust

one-another thus allowing for a trust tree to be built

is based on providing each management context with

the possibility to build a proxy XML Web Service

for itself or for each of its managed XML Web

Services. These proxy XML Web Services would

have to be automatically published by the WSMA

on the parent context, without any outside

intervention. At the moment, the second alternative

seems more feasible. Each proxy service would just

be a skeleton of the original service and it would be

under the total control of the parent context.

Therefore, apart from the XML Web services

each context manages, it would also manage a

number of special Web Services that represent the

trusted (“child”) contexts’ XML Web services.

Because each of these particular Web Services are

part of the “parent” context, the administrative entity

has close control upon the activity of each “child”,

thus on the level of trust each “child” is allowed to

have. This in turn allows for a unified management

scheme both for the XML Web Services managed

and for the other web management contexts. Such

architecture is presented in Figure 1.

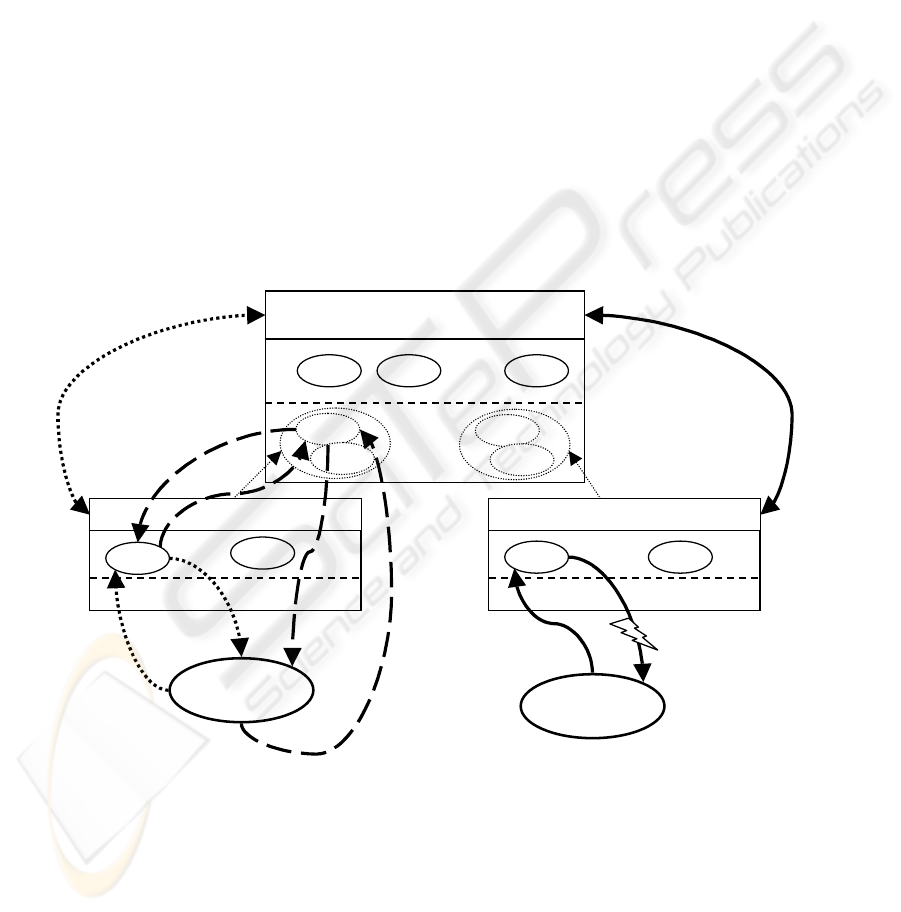

The architecture presents three management

contexts with their managed XML Web Services

represented by ovals. WSMA 2 and 3 trust WSMA

1. Each WSMA has an access control list (ACL)

with the permissions specified in parenthesis. Thus,

ACL 1 gives full access to Client 1 and ACL 2

allows full access to Client 2.

There are three scenarios (A, B, C) depicted in

the diagram. Each scenario is represented by a set of

different styled arrows and the associated actions are

numbered with the scenario letter followed by a

number representing the order in which the action

takes place.

•

Scenario A: Client 1 makes a request to

a Web Service (A1) located in WSMA

2. However, the client addresses the

request through WSMA 1 to which it

has full access rights given by ACL 1. The

client is therefore authenticated via ACL1

e 1 - Web Services Mana

ement Architecture

(

WSMA

)

Client 1

WSMA 1 + ACL1 (Client 1)

WSMA2 + ACL2 (Client 2, ACL1) WSMA 3 + ACL (ACL1)

Client 2

A2 A

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

and its request is allowed to go to the

destination Web Service. The service it

requested is only a proxy in WSMA 1, so

the proxy will call the corresponding Web

Service in WSMA 2 (A2). Since the request

comes from WSMA 1, that WSMA 2 trusts,

the request is let through and the business

process executes. The response is relayed

back to the proxy in WSMA 1 (A3). The

proxy responds to the client with the SOAP

message expected (A4).

• Scenario B: In this case, Client 1 has called

directly the service running in WSMA 2

(B1). However, Client 1 has no local rights

specified in ACL 2, therefore the request

cannot be allowed through. WSMA 2 will

interrogate its parent context (B2) to check

the access rights from ACL 1. ACL 1 gives

full access to Client 1, therefore Client 1 has

full access rights on WSMA 2 (since there is

no other rule that overrides the inherited

ACL1 rule). Client’s 1 request is then

cleared to run in WSMA 2. The Web

Service called will respond to Client 1 (B3).

• Scenario C: Client 2 makes a request to a

Web Service managed by WSMA 3 (C1).

Client 2 has no access rights specified in

ACL 3 so WSMA 3 will interrogate its

parent (WSMA 1). ACL 1 gives no rights to

Client 1 and since WSMA 1 has no other

parent to which to relay the authentication

request, it will answer to WSMA 3 that

Client 2 has not been authenticated (C2). At

this stage, WSMA 3 will refuse to execute

the request placed by Client 2.

Some of the advantages for the WSMA are

presented bellow:

• It allows for complete delimitation of

administrative rights over local XML Web

Services

• It allows the possibility for a client to have

access to an entire environment or business

process rather than having access to each

service that is part of that business process;

• It allows a chain of trust to be built, which

in turn allows a client to have access to

XML Web Services for which specific

security settings have not been specified;

• It is completely separated from the XML

Web Services implementation, thus being

able to handle any service;

• There is no single administrative entity that

manages security issues;

• A service can be easily plugged into a

management context without affecting its

functionality;

• It allows for alternating Web services to be

specified by a management context, thus

creating a way to handle situations where

the main service is unable to respond;

• A load balancing mechanism can be easily

implemented because the SOAP messages

are intercepted by the management

architecture and dispatched to the

destination XML Web Service;

However, there are a few open questions about

the WSMA. It is unclear how WSMA would behave

when the trust tree becomes big. The main problem

is that once the trust tree gets beyond a certain size,

publishing a new XML Web Service in the WSMA

would require a big effort of propagating the new

Web Service contract up the tree. However, it is not

clear now what the procedure for publishing a new

Web Service would be, so it is impossible to

establish what the feasible June 2001 size for a

WSMA is (Stencil Group, 2003).

There is still uncertain whether the XML Web

Services visibility system within management

contexts should be simple (visible externally/not

visible externally) or a more complex one, such

as the one used for setting member visibility in

object-oriented programming

(public/private/protected – with the same

meaning as in OOP).

Further testing will take place to establish various

mechanisms and standards required to implement

the architecture requirements.

5 CONCLUSION

A key benefit of the emerging XML Web Services

architecture is the ability to deliver integrated,

interoperable solutions. Ensuring the integrity,

confidentiality and security of Web services is

crucial both for the organisations and their

customers. By leveraging the natural extensibility

that is the core of the XML Web services model, the

specification build upon functional technologies

such as SOAP, WSDL, XML Digital Signatures,

XML Digital Signatures, XML Encryption and

SSL/TLA allows XML Web service providers and

users to develop solutions that meet the individual

security requirements of their applications. The

paper has presented a XML Web Services

management architecture that is able to handle

administrative tasks without any need for

customizing it for specific clients or Web Services.

The architecture presented has definitely a lot of

advantages such as allowing the complete

delimitation of administrative rights over local Web

services, the possibility of building a chain of trust,

A REQUIREMENT FOR A XML WEB SERVICES SECURITY ARCHITECTURE

the capability to handle any services and so on.

However, further work will be carried on in order to

prove the complete viability of the WSMA.

REFERENCES

Iona Technologies website, 2001, http://www.iona.com

Maler E. inverview, 2003 -

http://java.sun.com/features/2003/03/webservices-

qa.html

Stanton, D., 2003. “The Differentiation Of Web Services

Security” – Web Services Journal

Yang, A., 2002. “XML Web Services Security Issues” –

article,

http://www.xwss.org/articlesThread.jsp?forum=34&th

read=648

The Stencil Group, 2003. “Web Services Rules: Lessons

learned from early adopters”

The Stencil Group, 2002. “Understanding Web Services

management”

Robins B., 2003. “There is no Web Services yellow brick

road”

http://searchwebservices.techtarget.com/originalConte

nt/1,289142,sid26_gci883333,00.html

Thelin, J., 2002. “Web Services and remote references –

an intimidating task?”,

http://www.webservicesarchitect.com/content/articles/

thelin01.asp

Samtani, G, Sadhwani, D, 2003. Web Services and Peer to

Peer computing”,

http://www.webservicesarchitect.com/content/articles/

samtani05.asp

Ozu N., Duckett J., Watt A., Mohr S., Williams K.,

Gudmundson O. G., Marcus D., Kobak P., Lenz E.,

Birbeck M., Zaev Z, Livingstone S., Pinnock J., Visco

K., May 2001. “Professional XML (Programmer to

Programmer)”, Wrox Press, ISBN:1861005059

Jorgansen D, June 2001: “Developing Web Services with

XML”, Syngress, ISBN: 1-928994-81-4

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
