CONV2XML: RELATIONAL SCHEMA CONVERSION TO XML

NESTED-BASED SCHEMA

Angela C. Duta, Ken Barker, Reda Alhajj

Department of Computer Science,University of Calgary,2500 University Drive,Calgary, Canada

Keywords: XML, schema conversion, structural constraints, relationships, nested structure

Abstract: Conversion of relational data to XML is a critical topic in the database area. This approach translates the

rigid tabular structures of relational databases into hierarchical XML structures. Logical connections

between bits of data depicted by relationships are represented more naturally by tree-like structures.

Conv2XML and ConvRel are two algorithms for converting relational schema to XML Schema focusing on

preserving the source relationships and their structural constraints. ConvRel translates each relationship

individually into a nested XML structure. Conv2XML identifies complex nested structures capable of

modelling all relationships existent in a relational database.

1 INTRODUCTION

Most data created over the last several decades has

been stored using the relational model. Recently

XML is emerging as more prevalent in several areas

including business. This is producing an increase in

demand for tools to convert from relational

databases to XML. Much work has investigated

conversion techniques, either by translating the

entire database or only data generated by a query.

Some suggest mapping the database model to an

XML structure either using ad hoc techniques or by

using DTD or XML Schema to govern the process.

In relational databases, relationships establish

logical connections between tables. Participation and

cardinality ratios associated with each relationship

provide additional information about these

connections. This information must be translated to

XML so that the nested structures represent real data

naturally.

This paper details the conversion from the

relational schema to XML Schema (World Wide

Web Consortium, 2001). Relational relationships are

translated into nested XML structures preserving

structural constraints such as cardinality and

participation. The resulted XML structure captures

all connections between various parts of the

relational data and presents data in a suitable way for

Web publishing. The source relational database is

required to be at least in third normal form (Elmasri

and Navathe, 2003).

1.1 Contributions

The contribution of this paper is a conversion

algorithm from relational schema to XML Schema

focusing on translating relationships into nested

structures. Published data using nested structures is

easier to be read and logical connections between

parts of it are easier to be understood by users.

Relational information such as cardinality and

participation ratios of each table participating in a

relationship and how they are represented in XML is

the key element. In addition, our algorithm analyzes

the impact the existence of several relationships has

on a set of relations and how to model them in XML

using nested structures.

1.2 Paper Overview

Following this introduction, the Related work

(Section 2) considers the recent contributions in the

area of relational to XML conversion. Sections 3 and

4 introduce the ConvRel and Conv2XML algorithms

that form the primary contribution of this paper. The

paper concludes by stating conclusions and

proposing future work

210

C. Duta A., Barker K. and Alhajj R. (2004).

CONV2XML: RELATIONAL SCHEMA CONVERSION TO XML NESTED-BASED SCHEMA.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 210-215

DOI: 10.5220/0002619902100215

 SciTePress

2 RELATED WORK

One of the first approaches to make relational data

accessible in XML data files is DB2XML (Turau,

1999). Either the entire database or a portion is

selected through queries for transformation to XML.

SilkRoute (Fernandez, Tan and Suciu, 2000) is

considered a general and dynamic tool for exporting

relational or object-relational data to XML. It is

efficient as it combines the power of the database

query engine and features of the XML-QL query

language.

Lee et al. (Lee, et al., 2001) propose an approach

for creating nesting-based XML structures from flat

relational schema. First, the Flat Translation (FT)

converts each table into a flat element structure.

Secondly, the Nesting-based Translation (NeT)

applies the nest operator to the flat structures. The

output is an unflattened element-oriented or

attribute-oriented DTD. The unflatten process is

applied to a single table at a time and it can create

nested structures only for non-normalized tables or

for an intermediate (dependent) table in normalized

databases. The parent tables in normalized databases

are not guaranteed to have repeatable values for any

column; thus, their translation using this approach is

a flat XML structure. Unfortunately, the nest factor

used in NeT relies on the relational schema and also

the actual data stored in the database, which leads to

inconsistent results so it is somewhat unreliable.

Lee et al. (Lee, et al., 2002) (Lee, Mani and Chu,

2002) have extended the nesting approach to

multiple tables, using the CoT algorithm

(Constraints-based Translation). It is one of the first

approaches that deal with relationships. The source

database contains several interconnected tables and

based on the cardinality of the binary relationships

two types are identified 1:1 and 1:M. A directed

IND (Inclusion Dependency) Graph of tables is

created from which an empirical way to nest XML

structures is identified. A drawback of this approach

is that it includes in a nested structure only one child

relation. If there are more child relations for a

particular parent table, these relationships are

represented using IDREF.

Our approach extends the work done by Lee et

al. (Lee, et al., 2002) (Lee, Mani and Chu, 2002) in

the area of conversion from relational to XML data

by including additional elements in the analysis such

as: (1) all possible combinations of relational

structural constraint ratios; (2) M:N relationships

conversion; (3) use of XML Schema instead of

DTD which implies additional relational information

be transferred in XML; (4) a nested structure can

represent several relationships; and (5) algorithm

formalisation and its implementation in an efficient

tool.

3 THE CONVREL ALGORITHM

ConvRel analyzes each relationship to find a suitable

XML nested and compact structure to represent it. A

nested structure for a binary relationship is defined

as a pair of outer element → inner element that (1)

preserves the cardinality and participation ratios of

the relationship and (2) captures data in a single

XML root element. In addition, a structure is

compact if it uses the minimum number of XML

schema elements to represent a relationship. This

implies there exists a single complex definition for

each table.

If no XML nested and compact structure is found

then ConvRel converts each table separately and

reconstructs their relationship using keyref. Thus, all

tables and relationships from an RDBMS are

guaranteed to be translated into XML.

Several candidate XML structures, we call them

classes, are proposed using the relational

Table 1: Relationship conversion to XML.

PPR = partial participation relation. TPR = total

participation relation.

Relationship XML nested

structure

Preferred

class

(1;1):(1;1)

Parent

→ Child

Class 1

(1;1):(0;1)

PPR

→ [TPR]

Class 1 or 2

(0;1):(0;1)

Grouping

Class 3

(1;1):(1;M)

Parent

→ {Child}

Class 1

(1;1):(0;M)

Parent (PPR)

→ {[Child (TPR)]}

Class 1

(0;1):(1;M)

Child (PPR)

→ [Parent (TPR)]

Class 2

(0;1):(0;M)

Grouping

Class 3

(1;M):(1;N)

Longest Parent

→ {Intermediate

relation}

→ Shortest

Parent

Class 1

(0;M):(1;N)

PPR

→ {[Intermediate

relation]}

→ TPR

Class 1

(0;M):(0;N)

Intermediate relation

→ [Parent A]

→ [Parent B]

Class 2

CONV2XML: RELATIONAL SCHEMA CONVERSION TO XML NESTED-BASED SCHEMA

211

classification of tables in parent and child

(dependant):

• Class 1 designs the Parent → Child nested

structure (the parent table is the outer element);

• Class 2 designs the Child → Parent nested

structure (the child table is the outer element);

• Class 3 designs the XML flat structure using

keyref references;

• Class 4 designs additional Parent → Child

nested structures for the M:N relationships

modeled as a combination between a nested

structure and a keyref reference. The nested

structure models the link between one parent

and the intermediate relation and the keyref

reference models the link between the second

parent and the child.

The ConvRel algorithm converts each

relationship to an XML structure using the following

steps:

1. Identify the relationships from the RDB.

2. For each relationship determine the inner and

outer elements as follows:

a. Determine the candidate XML classes

based on the type of relationship and

structural constraint ratios for the tables

under consideration.

b. If more than one candidate class is

possible, choose the one with a nested and

compact structure; if no class is nested

and compact, transform the tables into

separate elements and restore the

relationship using keyref.

c. If there is more than one candidate class

with a nested and compact structure, then

determine the length of the generated

XML files and choose the one with the

lowest value.

d. If two or more classes have equal length

then we choose arbitrarily the one with

the Parent → Child orientation.

3. Tables not involved in any relationship are

transformed into isolated elements.

Table 1 summarizes the XML structures for each

type of relationship. XML structures are represented

schematically using notation such as: {} for

repetitive element; [] for optional element; →

followed by the inner element for subordination in a

nested structure. Case (1;1):(1;1) allows Classes 1

and 2 to be nested and compact with the same

resulting XML data file length. Arbitrarily, Class 1

is preferred as it has the Parent → Child orientation.

Case (1;1):(0;1) is transformed into Class 1 or 2,

depending on which relation participates partially in

the relationship.

The M:N relationships are between two parents

and a dependant table. Thus, in Class 1 any of the

parents can be the outer element. In Case

(1;M):(1;N), the length of a record translated in

XML from each parent must be evaluated. Case

(0;M):(0;N) considers the participation ratio of each

parent requiring the one that participates partially in

the relationship to be the outer element.

4 THE CONV2XML ALGORITHM

The ConvRel algorithm includes only a single

relationship at a time. In a real relational database

each table is connected to several other tables in a

complex structure. In this section we discuss the

influence this has on creating a nested structure for

the entire database.

For simplicity we discuss only two 1:1

relationships between three tables. First, each

relationship is converted separately to a nested XML

structure using the ConvRel algorithm. An XML

structure is then created that combines the two

previously found to obtain a nested structure, if

possible. This implies that we must identify the

cases when two nested structures combined generate

a valid nested structure.

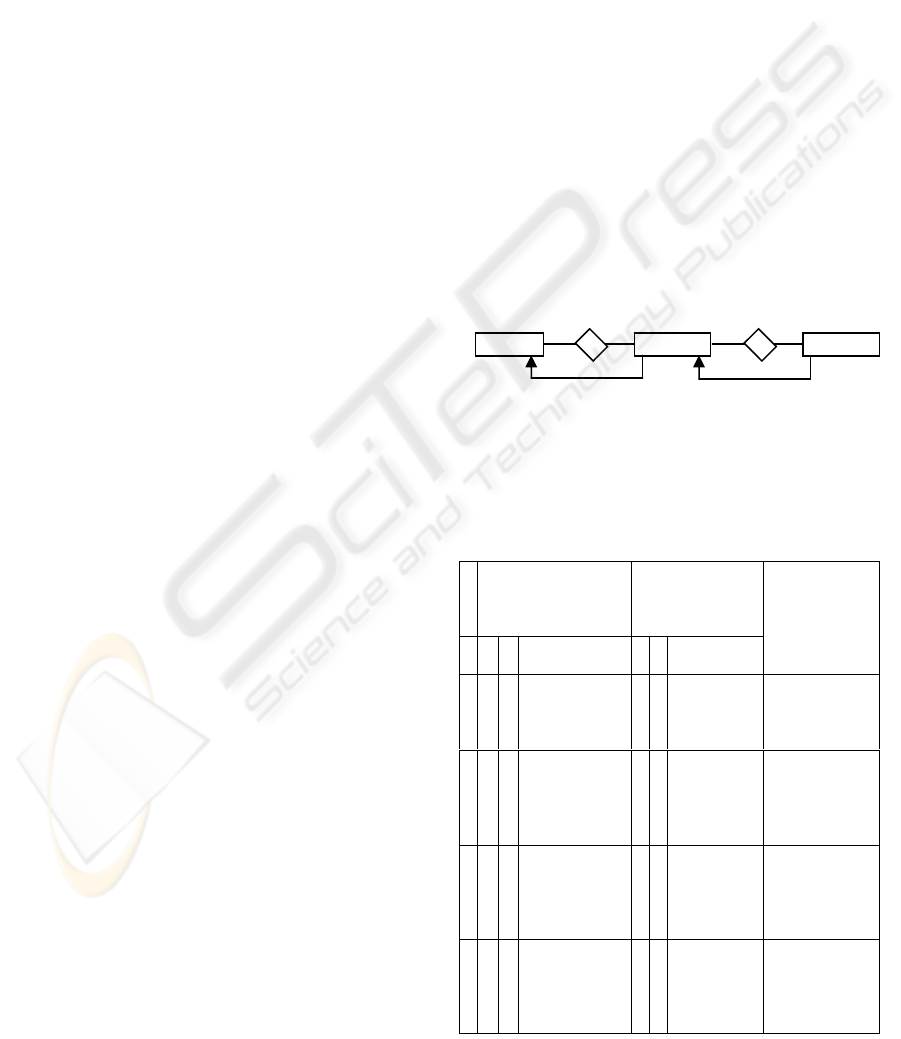

Consider the situation depicted in Figure 1 where

Table A is the parent in the first relationship and

Table B is the parent in the second relationship.

Table 2: Two relationships with a common table.

T = total participation. P = partial participation

Participation ratios in

the relationship A:B

Participation ratios

in the relationship

B:C

AB XML

representation

BC XML

representation

Relationship

A:B:C

XML

representation

1 T T A (parent)

→ B (child)

T T B (parent)

→ C

(child)

→ B

→ C

2 T T A (parent)

→ B (child)

Changes to:

B (child)

→ A (parent)

T P C (partial)

→ [B]

(total)

→ [B]

→ A

3 P T A (partial)

→ [B] (total)

T P C (partial)

→ [B]

(total)

→ [B]

keyref from C to

4 T T A (parent)

→ B (child)

PPB

keyref from C

to B

→ B

keyref from C to

Table A Table B

Table C

Figure 1: Two relationships between three tables

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

212

Table 2 details four cases for this situation. For each

case the resulted structure must capture and preserve

the source functional dependencies. Case 1 from

Table 2 is the nicest case where each relationship

and their combination can be modelled in a nested

XML structure. In Case 2 from Table 2 the total

relationship 1:1 between two relations A and B as

described above can be represented as Parent →

Child or Child → Parent. Both are nested and

compact XML structures and generate the same

length of XML file. We have chosen the first one, as

this is most similar to the relational model.

However, if the relations A and B are also involved

in other relationships that require some changes to

properly model them, then modelling A:B as Child

→ Parent is the preferred approach. Case 3 does not

allow a nested structure to model both relationships,

although there is a nested structure for each

relationship when considered separately. In this case

one of the relationships is represented in XML using

<keyref>. Case 4 depicts a relationship with partial

participation of both relations. In this case, the

relationship in which at least one relation has a total

participation is modelled separately. The third

relation (from the partial relationship – i.e. “C” in

Case 4 of Table 2) is added to the structure and

references are used to reconstruct the partial

relationship.

ConvRel guarantees there is a way to transform

each relationship or table from a relational schema

to an XML Schema (see (Duta, Barker and Alhajj,

2004) for more details).

It is important to analyse the tables’ involvement

in more relationships, which is accomplished by

Conv2XML. Conv2XML uses a graph

representation that combines all structures

discovered by ConvRel. The vertices are tables and

the edges represent connections between tables so

the inner element is the head and the outer element

is the tail of the arc. Note that the arcs are not

necessarily created following the orientation of the

relationships.

Two categories of edges exist in the directed

graph: (1) full edges representing links that are

modelled as nested structures, and (2) dotted edges

representing relationships that are modelled using

keyref. The last type of arc is drawn from the child

to the parent table.

In Figure 2, A is an isolated node, so it represents

a table with no relationships. The edge F→G

represents a loose connection because it can only be

modelled using keyref. The edges B→C, C→D,

E→D, and the bi-directional edge EF are full edges

that represent relationships identified by the

algorithm that can be modelled with nested

structures. This analysis is done for each relationship

separately, so there are situations when not all full

edges are incorporated in a nested structure. In the

example from Figure 2, D is the inner element of

two different elements (C and E) so it is impossible

to model with an XML nested structure without

introducing enormous amounts of redundancy. The

two possible options are: (1) a nested structure for

B→C→D, another one for E and F either as E→F or

as F→E, and a keyref for E→D; (2) a nested

structure for B→C, and a second one for E→D and

E→F (D and F are both inner elements of E). The

connection between C and D is modelled as a loose

relationship using keyref

. Both options are valid and

they are considered equivalent in terms of design.

The ConvRel algorithm is thereby transformed to

a problem of discovering trees in a directed graph.

Identifying a tree in a directed graph is efficiently

solved with the depth-first algorithm (Cormen,

2001). The depth-first algorithm is applied to full

edges only as those could generate conflicts. In the

example from Figure 2, element F has a loose

connection to G, but this does not influence the

decision of how to model other full connections

from F.

The only change to ConvRel applies to a total

relationship of type 1:1. The determining factor in

identifying the orientation for the outer element →

inner element of the relationship is its similarity to

the relational Parent → Child orientation. The Child

→ Parent modelling for this relationship type is

equivalent to the Parent → Child orientation in

terms of the nested and compact structure and the

length of the XML file (Duta, Barker and Alhajj,

2004). Thus, the conversion algorithm of a

relationship to a nested structure is altered in the

following way. If Table A participates in a total 1:1

relationship with Table B and also in other

relationships with other tables, then the graph will

have a bi-directional edge between A and B, which

allows this relationship to be modelled in connection

with other relationships. If Tables A and B are

involved only in this total 1:1 relationship then the

relationship is modelled using the similarity to the

relational orientation Parent → Child. This change

in the ConvRel algorithm creates an additional bi-

directional type of edge in the directed graph.

In summary, the conversion algorithm from

RDBMS to XML Conv2XML includes the

following steps:

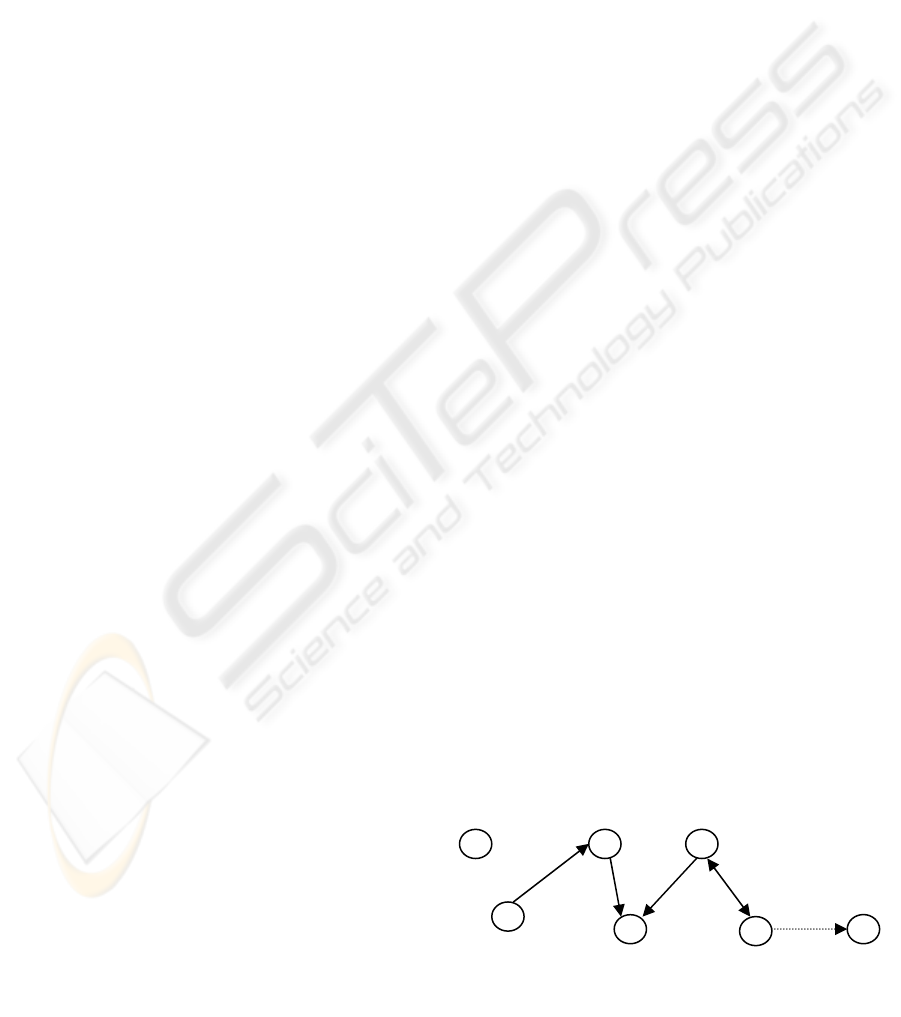

Figure 2: A directed graph representing the links

between tables

CONV2XML: RELATIONAL SCHEMA CONVERSION TO XML NESTED-BASED SCHEMA

213

1. Determine the 1:1, 1:M, and M:N relationships

found in the relational DB.

2. Convert each relationship separately to a nested

structure using ConvRel.

3. Construct the adjacency matrix associated to a

directed graph of the database.

4. Identify the trees in the directed graph.

5. Construct the XML nested-based Schema.

a. Create the XML Schema root.

b. Create XML complex types for each relation,

excluding the foreign keys attributes for

relations represented in a nested structure.

c. Create XML complex elements for each

XML complex type and set minOccurs and

maxOccurs values according to the participation

and cardinality ratios, respectively.

d. Create the primary and unique keys using key

and unique, including only attributes that have

not been eliminated at Step 5.b.

e. Create foreign keys in the XML Schema root

using keyref for the relationships not represented

as nested structures.

XML Schema requires a root element and all

other elements are inner elements of it. There are

multiple situations when more than one nested

structure (tree) results from applying the

Conv2XML algorithm to the directed graph. This

happens for three reasons: (1) some tables are not

connected to any other table, (2) structural

constraints do not permit mapping a relationship to

any nested structure (in Figure 2, the relationship

F→G), or (3) the splitting process creates several

trees from the graph (in Figure 2, the relationships

C→D or E→D).

To ensure the XML Schema has a single root, an

arbitrary root is created using the name of the

database. This root incorporates all elements from

the structure in the same way the database contains

all tables, relationships, constraints, and indexes

from the database. The database in the relational

model and the root element from XML has similar

functions. Thus, the root element in XML Schema

contains definitions for the following elements: (1)

elements that are roots of the trees identified by

applying the depth-first algorithm; (2) isolated

elements that are not connected to any other

elements; (3) semi-isolated elements that are

connected to other elements through keyref

references and are not part of any other nested

structure.

The child table in a relationship includes the

foreign key field, which is a column taken from the

parent table. In a nested structure these foreign keys

are not required and should not appear as they cause

problems in update or delete operations due to

referential integrity constraint enforcement. Thus,

the foreign key field is eliminated from the child

table when it is transformed to an XML element if

the relationship between the parent and child table is

represented as a nested structure.

5 EXAMPLE

Consider a relational database that contains two

relations Employee (EID

, EName) and Dependant

(EID

, DID, DName). Dependant.EID is a foreign

<?xml version="1.0" encoding="UTF-8"?>

<schema xmlns=

"http://www.w3.org/2001/XMLSchema" xmlns:r=

"http://www.cps.ucalgary.ca/~duta/XMLSchema"

targetNamespace="http://www.cpsc.ucalgary.ca

/~duta/XMLSchema">

<element name="emp" type="r:empType"

maxOccurs="unbounded">

</key>

</element>

</sequence>

</complexType>

</element>

</sequence>

</complexType>

</key>

</element>

<element name="dep" type="r:depType"

minOccurs="0"

maxOccurs="unbounded"/>

</sequence>

</complexType>

</element>

</sequence>

</complexType>

</sequence>

</complexType>

</schema>

Figure 3: XML Schema of the relationship Employee

→ Dependant

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

214

key that refers to Employee.EID. The relationship is

of type Employee (1;1) : (0,M) Dependant, thus

Employee participates partially and Dependant

totally in the relationship. A complex type definition

is created for each table similar to the record

definition and is assigned to a complex element. An

additional element with the table name concatenated

with an “s” takes the role of the relation, thus

keeping the “records” grouped. Figure 3 defines two

complex types, empType and depType corresponding

to record definitions of the tables Employee and

Dependant. The complex elements emp and dep are

of the complex types previously created and act as

records within the relation- elements emps and deps.

After the elements are created, additional

constraints (i.e. primary and unique keys) are

included in the XML Schema. For inner elements of

a nested structure the structural constraints of the

former relationships are represented with minOccurs

and maxOccurs restrictions as in Figure 3. The tree

root elements have maxOccurs equal to ”unbound”

regardless of the relation’s cardinality in the

database. This ensures that the tree roots are not

inner elements of any other element, except for the

XML Schema root element. If the eliminated foreign

key column is also part of the primary key of the

child table as in the example from Figure 3, then the

primary key in the XML Schema contains the

balance of the primary attributes and the constraint

is still preserved.

In conclusion, ConvRel and Conv2XML are two

algorithms for conversion of relationships into XML

nested structures focused on preserving their

structural constraints. ConvRel translates each

relationship individually into a nested XML

structure. Conv2XML considers the implications of

relationship interconnections in a relational

database.

6 CONCLUSION AND FUTURE

WORK

This paper introduced a detailed method for

representing relational information in a tree-like

structure in XML. The algorithms use the

advantages of the relational model, such as database

normalization, relationships, cardinality and

participation ratios, exactness of relational data

types, and of the XML Schema, such as a more

natural representation in nested structures. The

method proposed is based on the depth-first

algorithm that efficiently identifies tree structures in

an oriented graph. Thus, the Entity-Relationship

Diagram associated with the relational database is

transformed so that it can model nested structures

and is analysed from the perspective of a directed

graph.

The conversion algorithms presented in this

paper have been implemented in Java version 1.3.1.

It extracts the metadata of a DB2 database and based

on additional user input for certain semantic

cardinality ratios produces a nested XML Schema.

Additional future work includes incorporating

the query metric and the XML structure evolution.

The research community has not yet agreed upon a

standard query method so it has not been included in

our method. XML’s ability to evolve and alter its

structures by adding or subtracting elements,

subelements, and attributes is an interesting feature

that has not been adequately exploited yet.

REFERENCES

Cormen, T. H., 2001. Introduction to Algorithms,

Reading, The MIT Press, 2

edition.

Duta, A., Barker, K., and Alhajj R., 2004. ConvRel:

Relationship conversion to XML nested structures (to

appear). In ACM Symposium on Applied Computing

(SAC’04), Cyprus, March, 2004.

Elmasri, R., and Navathe, S. B., 2003. Fundamentals of

Database Systems, Addison-Wesley, 4

edition.

Fernandez, M., Tan, W.-C., and Suciu, D., 2000.

SilkRoute: Trading between Relations and XML. In

International World Wide Web Conference (WWW),

Amsterdam, Netherlands, May 2000.

Lee, D., Mani, M., Chiu, F. and Chu, W. W., 2002. NeT &

CoT: Translating Relational Schemas to XML

Schemas using Semantic Constraints. In 11th ACM

Int'l Conf. on Information and Knowledge

Management (CIKM), McLean, VA, USA, November

2002.

Lee, D., Mani, M., Chiu, F. and Chu, W. W., 2001.

Nesting-based Relational-to-XML Schema Translation.

In International Workshop on the Web and Databases

(WebDB), Santa Barbara, CA, USA, May 2001.

Lee, D., Mani, M. and Chu, W. W., 2002. Effective

Schema Conversions between XML and Relational

Models. In European Conference on Artificial

Intelligence (ECAI), Knowledge Transformation

Workshop(ECAI-OT), Lyon, France, July 2002.

Turau V., 1999. Making Legacy Data Accessible for XML

Applications. [Internet] Available from

<http://citeseer.nj.nec.com/turau99making.html>

[Accessed January 15th, 2004]

World Wide Web Consortium, 2001. XML Schema Part 0,

1, and 2. [Internet] Available from

<http://www.w3.org/TR

> [Accessed January 19th,

2004]

CONV2XML: RELATIONAL SCHEMA CONVERSION TO XML NESTED-BASED SCHEMA

215
