THE MEETING OF GESTALT AND COGNITIVE LOAD

THEORIES IN INSTRUCTIONAL SCREEN DESIGN

Dempsey Chang

School of Computer Science and Software Engineering, Monash University, Melbourne, Australia

Juhani E. Tuovinen

School of Education, Charles Darwin University, Darwin, Northern Territory, Austarlia

Keywords: Gestalt theory, Cognitive Load theory, interface design, multimedia instructional screen design

Abstract:

Without doubt Gestalt Theory has formed an important basis for many aspects of educational visual screen

design. Despite the familiarity many computer screen designers claim with it, Gestalt Theory is not a single

small set of visual principles uniformly applied to by all designers. In fact, it appears that instructional

visual design literature often deals with only a small set of Gestalt laws. Recently Gestalt literature was

consulted to distil the most relevant Gestalt laws for educational visual screen design, resulting in eleven

laws being identified. In this paper these laws are discussed in terms of the Cognitive Load Theory, (CLT),

which has been used with considerable success to improve instructional design. The usefulness of the

combined perspectives drawn from the Gestalt Theory and CLT for educational visual screen design were

applied to the redesign of an instructional multimedia application, WoundCare, designed to teach nursing

students wound management. The evaluation results were encouraging. Both the new design and the value

of applying the eleven Gestalt laws and CLT principles to improve learning were strongly supported.

However, many aspects of applying this combination of theories to educational interface design remain

unclear and this forms a useful direction for future research.

1 INTRODUCTION

Gestalt theory has been considered as one of the

foundations for instructional screen design. It is

generally accepted Gestalt theory may be used to

improve educational screen design and thereby

improve learning (Preece et al., 1994, p.78-80).

Gestalt laws explain how the individual elements

organise fields from the environment (Koffa, 1935).

Boring (1942) states “in 1933 Helson extracted 114

law of Gestalten. All but half a dozen of these laws

are applicable to visual form.” Many of the laws are

very closely related or overlap, and it is often very

hard to distinguish between them. We have

identified eleven laws that represent the major

aspects of Gestalt Theory for instructional

multimedia interface design (Chang, Dooley &

Tuovinen, 2001).

Cognitive Load Theory has developed over the

last decade and a half (Sweller, 1988; Sweller, van

Merrienboer & Paas, 1998) to be an important

empirically founded theory of instructional design. It

has direct implications for educational computer

screen design, as well as many other aspects of

instruction.

In this paper we present a synthesis of these

formidable theories, seeking to gain a greater

understanding of effective screen design for

education. The combined Gestalt and Cognitive

Load principles were applied to the redesign of an

educational multimedia program, WoundCare, and

we then evaluated the quality of interfaces for

complex learning material in order to achieve

effective learning environments with substantial

educational value. This paper is an account of how

useful these principles were in a particular

multimedia screen design and by extrapolation what

Chang D. and E. Tuovinen J. (2004).

THE MEETING OF GESTALT AND COGNITIVE LOAD THEORIES IN INSTRUCTIONAL SCREEN DESIGN.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 53-62

DOI: 10.5220/0002621700530062

 SciTePress

benefit other designers may gain from using these

design principles.

Table 1: 11 Gestalt Laws for Screen Design

Gestalt Law

Meaning

Law of Balance

A psychological sense of

equilibrium, or balance, is

usually achieved when visual

"weight" is placed evenly on

each side of an axis (Lauer,

1979; Preece et al., 1994, p.79-

80).

Law of Closure

Our minds will tend to close

gaps and complete unfinished

forms (Fisher & Smith-Gratto,

1998-99; Fultz, 1999).

Law of

Continuation

Continuation is the eye’s

instinctive action to follow a

direction derived from the visual

field (Fultz, 1999).

Law of Figure-

Ground

It is natural for humans to

distinguish between a

foreground and background.

Law of Focal

Point

Every visual presentation needs

a focal point, called centre of

interest or a point of emphasis.

This focal point catches the

viewer’s attention and persuades

the viewer to follow the visual

message further (Lauer, 1979).

Law of

Isomorphic

Correspondence

All images do not have the same

meaning to us, because we

interpret their meanings based

on our experiences.

Law of

Prägnanz (Good

Form)

Fultz (1999) defined Prägnanz

(Good Form) as “a stimulus will

be organized into as good a

figure as possible.” Good form

is a simple design or a

symmetrical layout.

Law of

Proximity

Items placed near each other

appear to be part of a group

(Fisher & Smith-Gratto, 1998-

99). Viewers will mentally

organise closer elements into a

coherent object (Fulks, 1997;

Fultz, 1999).

Law of

Similarity

Similar objects will be counted

as the same group, (Fisher &

Smith-Gratto, 1998-99).

Law of

Simplicity

The designer should consider

how to arrange elements and

visual objects in a simple

manner. Complex screen design

will puzzle the learner, and can

lead to misunderstanding,

increasing the difficulty of

learning (Fisher & Smith-Gratto,

1998-99).

Law of Unity

According to Lauer (1979)

“Unity implies that a congruity

or arrangement exists among the

elements in a design; they look

as through they belong together,

as though there is some visual

connection beyond mere chance

that has caused them to come

together.”

2 11 GESTALT LAWS

APPLICABLE TO INTERFACE

DESIGN

In this section, we list the eleven laws of Gestalt

Theory we identified as visual layout rules for

instructional multimedia interfaces (Chang, Dooley

& Tuovinen, 2001; Chang, Wilson & Dooley, 2003),

which have significant implications for multimedia

screen design. Details of each individual law were

described in the paper “Toward Criteria for Visual

Layout of Instructional Multimedia Interfaces”

(Chang, Wilson & Dooley, 2003). A summarised

version is presented in Table 1.

3 COGNITIVE LOAD THEORY

The Cognitive Load Theory takes as its basis the

human cognitive architecture and its implications for

learning and instruction (Sweller, van Merrienboer

& Paas, 1998; Paas, Renkl & Sweller, 2003). The

human cognitive architectures is thought to consist

of three principal components, the sensory memory,

the working memory and the long-term memory. It

is the limited capacity of the working memory (WM)

and the huge capacity of the long-term memory that

provide the basis for the cognitive load theory. With

a very limited working memory the incoming

information can only be dealt with a few items at a

time, but as these items are combined into

knowledge networks, called schemas in the long-

term memory (LTM) they may be recalled and

utilised as either individual elements or clusters of

ICEIS 2004 - HUMAN-COMPUTER INTERACTION

elements, called chunks. It is this combining of

elements for storage in the LTM and later efficient

retrieval and utilisation in the WM that gives

humans the power of the apparently prodigious feats

of intelligence. Combined with automation of many

cognitive processes with extensive practice, which

also will consume minimal WM capacity, schema

development and utilisation provide humans with

our remarkable cognitive capacities.

In studying what the implications of this way of

approaching human learning and instruction might

suggest for better education many significant effects

or principles have been identified in the CLT frame

of reference. Some of the most relevant to

educational screen interface design aspects are listed

in Table 2 (Tuovinen, 2000; Sweller, 1999).

4 SYNTHESIS OF GESTALT AND

CLT

A number of the Gestalt Laws and CLT principles or

aspects are very clearly related together. These are

discussed first in this section. However, there are

some aspects of each theory that do not appear to be

closely linked together and they are identified at the

end of this section.

4.1 Gestalt and CLT theory overlaps

The Law of Closure seems to be very closely related

to a key aspect of CLT, the desirable elimination of

split-attention by integration of multiple relevant

sources of information on a page or a screen. In

Closure multiple individual items are related

together to make sense of the pattern involved, and

in a similar way integration of text and graphics, for

example, in CLT can make the material more

intelligible.

The Law of Continuation depends on

establishing a pattern for the observer to follow in

the visual field. In the CLT context such patterns are

highlighted in principles such as the worked

examples approach to student practice of new

procedural information. The extra guidance involved

in students reading through numerous problems and

their solutions before attempting their own problem

solving has been shown to be far more effective than

problem solving practice alone for novice learners

with minimal prior knowledge in a given field

(Tuovinen & Sweller, 1999).

Table 2: Examples of CLT Principles

CLT

Principle

Meaning

Goal-free

effect

Search in problem solving

practice may be reduced by

changing conventional problems

with specific goals to reach after

many steps, to simpler, more

general explorations of the content

area, leading to better learning,

due to increased capacity in WM

for schema development.

Worked

example

effect

Instead of students immediately

practicing by solving problems

after a lesson, they study the

solutions to many similar example

problems, before attempting own

solutions. Studying the worked

examples reduces the search

involved in means-ends analysis

problem solving practice, leading

to more effective schema

development.

Split-

attention

effect

Difficulties of students needing to

study physically separated

materials, can be overcome by

integrating learning materials,

such as graphics and text.

Redundancy

effect

If an existing presentation, such a

circulatory diagram with arrows

indicating blood flow direction,

already conveys adequate

information, physically integrating

more textual information with the

diagram, such as explanatory text

linked to the graphics, may cause

problems for learning, due to

learner processing of unhelpful

material in limited WM.

Focusing

attention by

flashing

Flashing graphical elements

related to instructional text or

narration have been found useful

in reducing search on an

instructional computer screen.

This method frees added WM

capacity for schema development.

The converse of the Law of the Focal Point is

difficulty of comprehension when no clear focus is

found on a given visual field. In the CLT context

two key effects describe such a situation: the split-

attention effect and the redundancy effect. In the

first case there may be too many or too complex

THE MEETING OF GESTALT AND COGNITIVE LOAD THEORIES IN INSTRUCTIONAL SCREEN DESIGN

items to focus on in disparate locations for the

limited WM to cope with, and the suggested solution

is to integrate the items in close proximity (Chandler

& Sweller, 1992; Mayer & Moreno, 1998),i.e.

focusing on a specific key aspect in the visual field

in Gestalt terms. In the second case attentional

resources are wasted on aspects not salient to the

learning task in hand, and this hinders schema

development. Here the solution is to make the focus

of the critical attention clearer and eliminate

irrelevant detail (Kalyuga, Chandler, Sweller, 1999;

Chandler & Sweller, 1991).

The Law of Isomorphic Correspondence

emphasizes the importance of the observer’s prior

schemas. The importance of the prior knowledge

and schemas has been recognized in the CLT

context for a considerable time (Tuovinen & Swller,

1999; Kalyuga, Chandler, Tuovinen & Sweller,

2001). That is, the schemas in LTM provide an

important context into which new learned items will

be connected. If relevant information is present, new

material will be more easily integrated in to the

existing knowledge network, or schema.

The Law of Prägnanz is another example where

existing LTM schemas are used as the basis of

organizing newly apprehended information as

discussed above. Here the schemas are visual in

nature, whereas many of the cognitive schemas

considered in the CLT framework exist in semantic

format.

A counterpart to the Law of Proximity in the

CLT framework is the contiguous placement of

learning materials (Moreno & Mayer, 1999). This is

in effect a way of stating that the detrimental split-

attention effects may be reduced or eliminated by

the close placement of objects to be considered

simultaneously.

The Law of Similarity suggests that similar

shapes and sizes found among a clutter of other

visual items may be identified as a single entity.

Experiments in the CLT context with flashing

indicate that attention can be focused on the relevant

aspects of a complex visual field that need to be

considered together for developing new schemas

(Jeung, Chandler & Sweller, 1999).

The Law of Simplicity is another clear

illustration of one of the basic principles of CLT, the

need to reduce extraneous cognitive processing to

allow the limited capacity of the WM to be fully

devoted to productive schema development

(Sweller, van Merrienboer & Paas, 1998). In this

case it is sought to reduce the visual search in the

visual field for the salient information by supplying

it in the simplest format possible. Thus this approach

overcomes problems such as the split-attention

effect discussed earlier.

The Law of Unity relies on the existence of

previously developed relevant schemas in the LTM

which can then be utilized to reduce the processing

in WM involved in the construction of the

meaningful context for a set of visual elements.

These schemas may consist of common geometrical

shapes, aspects of the familiar human figure, etc.

Thus when this type of well-known schema is

utilized there is effort required in WM processing

than if the schema had to be developed without a

prior prototype.

4.2 Areas of no Gestalt and CLT

theory overlap

The two Gestalt Laws identified in Table 1 that do

not appear to have strong connections with currently

identified principles CLT are the Law of Balance

and Law of Figure-Ground. This is an interesting

issue that could form the basis for further research

and investigation.

5 INSTRUCTIONAL SCREEN

DESIGN EXAMPLE:

WOUNDCARE

The WoundCare multimedia program was developed

over a number of years for nursing students, but very

little effort had been expended on the program’s user

interface, and so an effort was made to revise the

screen layouts. This allowed us to investigate the

benefits and limitations of applying the merged 11

Gestalt laws and selected CLT principles to the

visual screen design process. Five redesigned

screens are presented in this paper (due to space

limitations) and described in the following sections

to explain how Gestalt theory has been incorporated

with CLT to redesign user interfaces for an

instructional application.

5.1 Screen redesign

As discussed previously, the Law of

Balance/Symmetry states that psychological

equilibrium is achieved by equalizing the visual

weight of on screen components. On a computer

screen, balance can be achieved by adjusting the

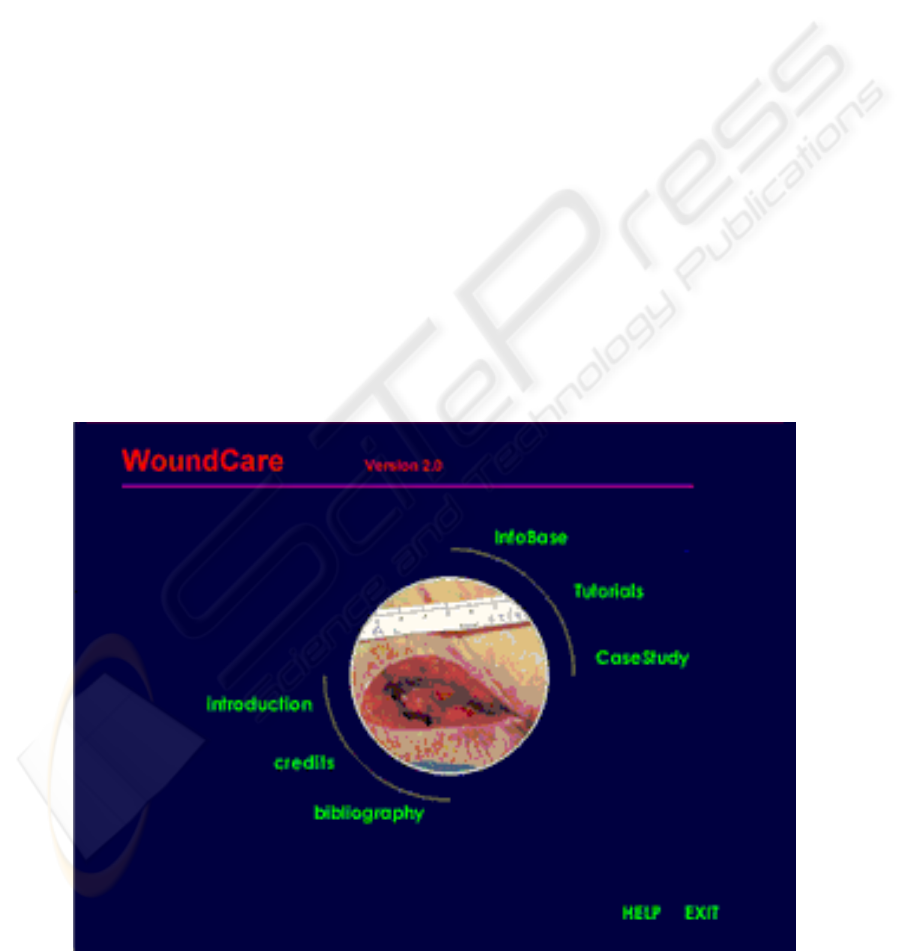

items on the screen to equal visual weight. In figure

1, the animated graphics illustration acts as a visual

pivot for the whole screen in order to achieve visual

ICEIS 2004 - HUMAN-COMPUTER INTERACTION

balance. The left hand and right hand sides of the

text button are balanced with respect to each other

and the red WoundCare title is also balanced with

the right bottom ‘Help’ and ‘Exit’ text/button

elements.

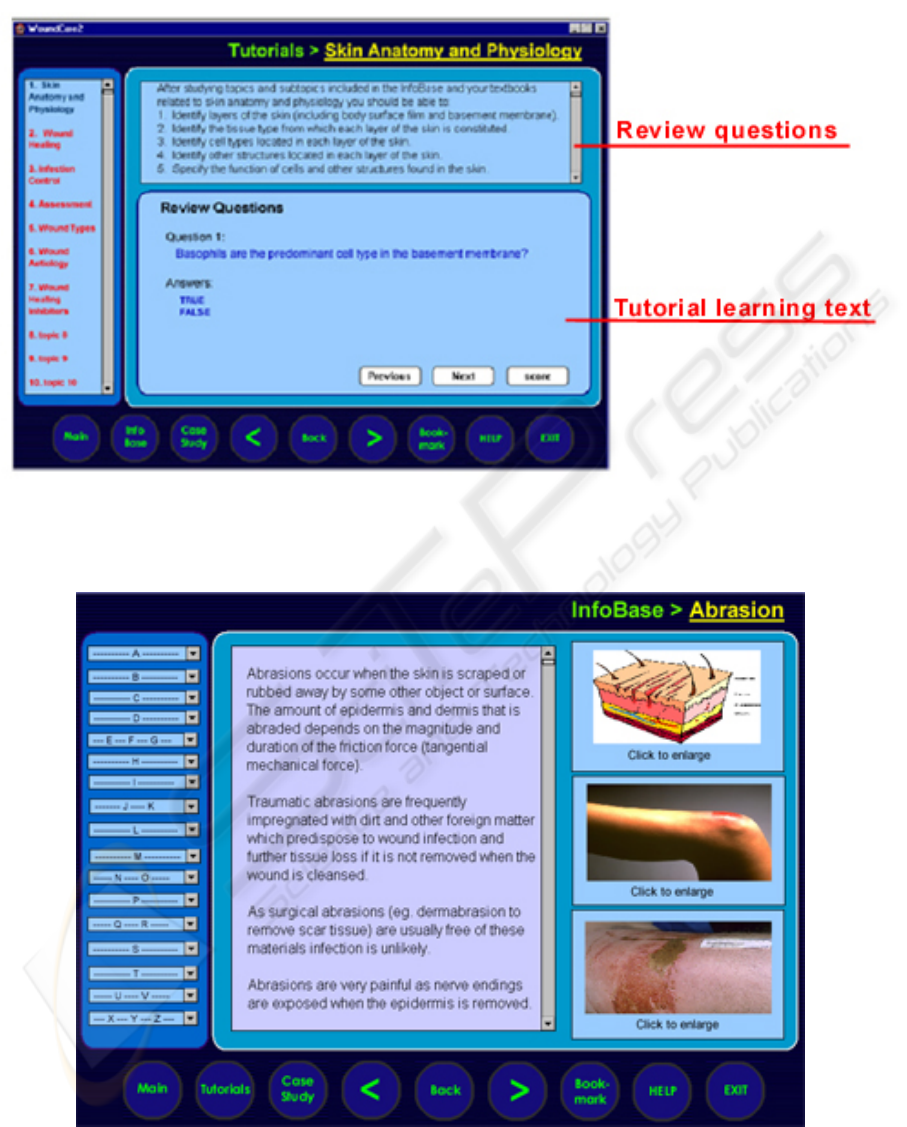

Another example, illustrated in figure 2 shows

that the title (Tutorials > Skin Anatomy and

Physiology) balances the navigation tools on the

bottom of the screen, and the tutorial learning text

balances the review questions.

Another example, shown in figure 3, illustrates

that the left-hand side index menu, the text in the

middle and the three images on the right hand side

integrate together to achieve closure. Note that the

text and images are also grouped to achieve another

closure effect. Here the text and graphics that were

previously on totally different screens were

integrated on a single screen to reduce a huge

extraneous cognitive effort of keeping substantial

quantities of new information in WM, while

searching for complementary graphics or vice versa.

In every screen we used the ‘Continuity’

technique to persuade the learner’s eye to perceive

correctly the whole visual screen. In the revised

screen design of the opening WoundCare screen in

figure 1, the learner’s eyes will follow the placement

of the menu text around the entry point of central

animation that shows the overview of the system, as

it is a logical pathway for a learner’s eyes to follow.

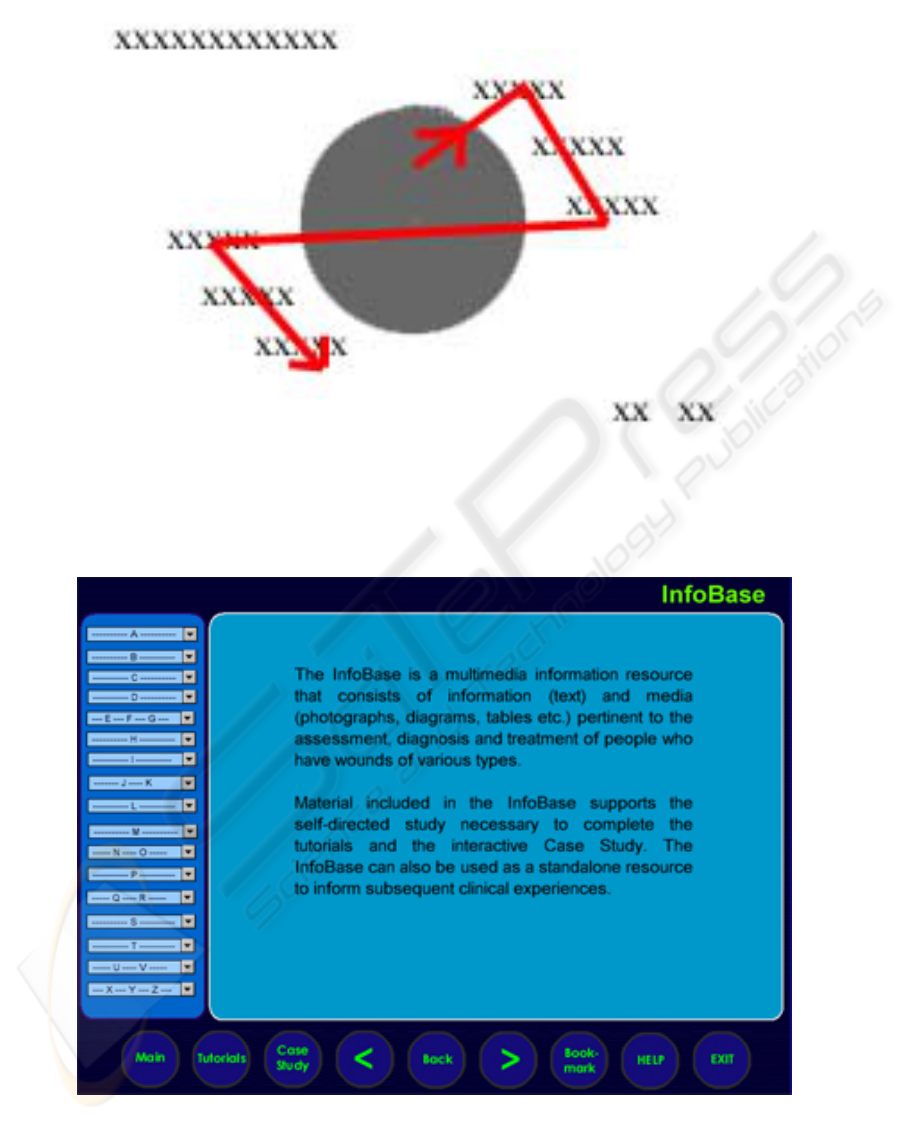

As shown in figure 4, all the menu text has also been

placed in logical order and this reinforces the effect.

In figure 3, the Continuity principle has also

been used, as in the right hand side of the screen the

learner’s eye will be lead from the first image to the

second and following on to the third image. On the

left-hand side of the screen, the index menu has been

designed in alphabetical order to assist the learner to

follow through the menu. The continuity

incorporated in these designs strongly suggests a

pattern for the learner to follow, like in the worked

examples practice mode in the CLT context. Thus

the learner’s search for salient information on these

screens is reduced freeing more WM resources to be

used in schema development.

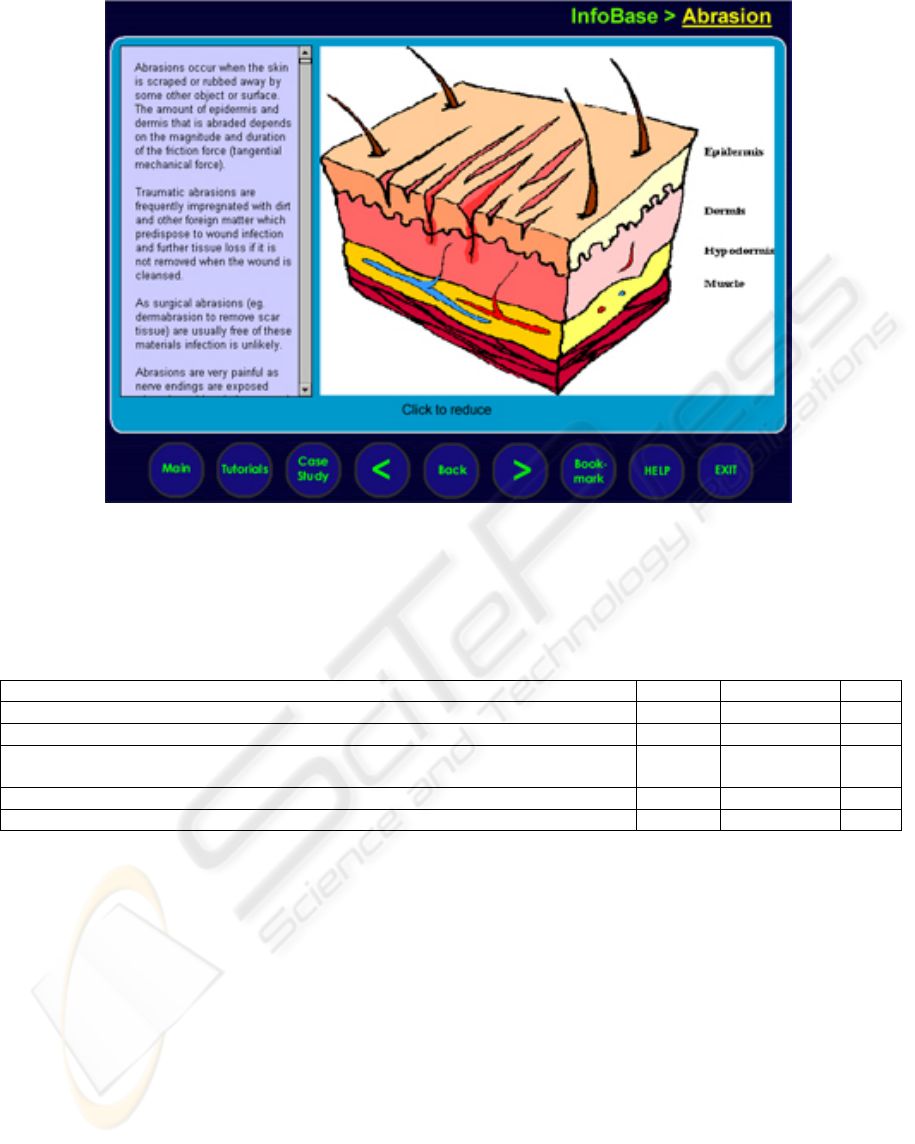

The learner's focal point and attention in figure 3

is in the text area, but the focal point has changed to

an image in figure 6. Another example is shown on

figure 1, whereby the learner's attention will be

caught by a first look at the center of the animation

image. These are again guidance mechanisms

analogous to CLT principles to reduce haphazard

wanderings around a visual space, and thereby

releasing WM resources to attend to the salient

learning tasks.

Good Form been applied to the overall effect of

the redesigned screens, e.g. see figures 1, 2, 3, 5 and

6, gives a sense of Good Form. In CLT terms

existing LTM visual schemas are utilised to reduce

unproductive search and unnecessary construction of

new schemas.

The Law of Proximity can be seen in figure 3,

each element is identified and is clearly placed in its

place, e.g. navigation controls is placed on the

bottom of the screen, index menu is placed on the

left side of the screen. The space and round box

creates a line to identify different groups, leading the

student to directly link each group to its function. As

noted previously, this approach reduces the

detrimental split-attention effect by applying

contiguity, or close placement of relevant learning

elements (Mayer, 2001).

As well as using similarity to group similarly

perceived items together, a reader’s attention may be

drawn to particular features of interest by breaking

similarity, e.g. by borders, graphics/text boundaries,

differences in shading, colour differences,

highlights, underlining or dimmed key words. For

example, in figure 2, 3, 5 and 6, a standard color and

shape been used to group the navigation buttons

together helps learners to learn and easily recognize

the navigation buttons. Learners only need to use

the navigation button once in the first session, and

then they can go on to explore other sessions.

Another example can be observed in figure 3 where

the left index menu for the different InfoBase topics

is contained within a single banded area, and the text

and graphics on the screen are in different banded

areas. These approaches achieve similar effects of

grouping and distinguishing items as found in the

use of flashing to distinguish relevant elements in

the CLT context to reduce extraneous search..

Examples of simplicity of design are shown in

figure 1, 2, 3, 5 and figure 6, where all the items are

clearly displayed and available on the screen.

Although there may be many items on the same

screen for the learner to choose from, it still

represents a much simpler or elegant way to group

them together, which illustrates the principle of

simplicity. As noted previously integration of

learning elements in a single visual space reduces

the split-attention effect in CLT terms.

The challenge of the Law of Unity in design is

how to organize the related objects into the same

form, and how to let learners combine the individual

objects as a whole, when they are first perceived.

Within each section of the program, we used the

same type of transition to jump to the next page, in

order to distinguish different section segments. On

every screen we used the same text font, the left-

hand side was always used for a sub-menu, each

section title was always placed at the top right hand

corner, and the negative button was placed

consistently on the bottom of the screen. This

consistency implements the unity law, and reduces

THE MEETING OF GESTALT AND COGNITIVE LOAD THEORIES IN INSTRUCTIONAL SCREEN DESIGN

the cognitive load in dealing with a variety of

formats.

6 EVALUATION

A pilot version of the redesigned WoundCare

program was evaluated. The representative screens

from each of the three main program sections had

been redesigned, but the revised design was not

applied to the all the screens in each program

section. There were 12 participants in the evaluation,

ranging from university students with previous

experience with the original WoundCare program to

academic staff and people who had not seen the

program previously. Firstly, informal interviews and

observations were conducted where the participants

compared the two programs, then the participants

completed a questionnaire.

6.1 Visual Screen Design Survey

Results

The first five questions of the survey sought

opinions about the quality of the redesigned visual

interface. The results are shown in Table 3.

Overall, the evaluators rated the new interface

design as more effective with better usability than

the original version. In addition to the favorable

survey ratings the student comments were also

positive, e.g. “I found the program is very eye

catching and user friendly.” “This is an excellent

version of the WoundCare program. It is easy to

look at and to work through. As a study tool, it

assists with the basics of WoundCare in an easy to

follow fashion”

6.2 Analysis and discussion

In the redesign of the main WoundCare screens the

Gestalt laws identified and the way the CLT

principles were applied were found to be useful by

an overwhelming number of respondents. Thus it

appears that students and staff, most without special

visual education, can recognise the value of the

Gestalt laws and CLT principles incorporated in the

in the visual interface design and to their own

learning from multimedia designed using such

principles.

7 CONCLUSION

This paper has explored a wider range of Gestalt

laws than is often recommended for visual design of

educational software. The eleven laws distilled from

the Gestalt literature were related to the cognitive

load theory and applied to the visual redesign of a

multimedia educational program, WoundCare, in

order to improve its appearance and educational

effectiveness. The user evaluations indicate all the

Gestalt laws and embodied CLT principles were

beneficial for visual screen design and learning

effectiveness. However, the comparative value of

the Gestalt and CLT contributions to the visual

redesign were not teased out thoroughly enough, so

it will be useful to examine the relative benefits of

these principles in greater detail in subsequent

research, to arrive at better guidance for visual

designers.

REFERENCES

Boring, E. G. (1942). Sensation and perception in the

history of experimental psychology, Appleton Centry

Crofts Inc. New York.

Chandler, P., & Sweller, J. (1991). Cognitive load

theory and the format of instruction. Cognition

and Instruction, 8(4), 293-332.

Chandler, P., & Sweller, J. (1992). The split-

attention effect as a factor in the design of

instruction. British Journal of Psychology, 62,

233-246.

Chang, D., Dooley, L. & Tuovinen, J. (2001) Gestalt

Theory in Visual Screen Design – A New Look at an

Old Subject, Networking the Learner, 7

IFIP World

Conference on Computers in Education, Copenhagen,

Denmark.

Chang, D., Wilson, C. & Dooley, L. (2003) Toward

Criteria for Visual Layout of Instructional Multimedia

Interfaces, Journal of Educational Technology

Systems, 32 (1), 3-29.

Fisher, M., & Smith-Gratto, K. (1998-99). Gestalt theory:

a foundation for instructional screen design. Journal of

Educational Technology Systems, 27(4), 361-371.

Fulks, M. (1997). Gestalt theory and photographic

composition. Available:

http://www.apogeephoto.com/mag1-6/mag2-

3mf.shtml [21.10.2000].

Fultz, J. (1999). Theory of Gestalt Psychology. Available:

http://users.anderson.edu/~jfultz/gestalt.html

[21.10.2000].

Jeung, H. J., Chandler, P., & Sweller, J. (1997). The

role of visual indicators in dual sensory mode

instruction. Educational Psychology, 17(3), 329-

343.

ICEIS 2004 - HUMAN-COMPUTER INTERACTION

Preece, J., Rogers, Y., Sharp, H., Benyon, D.,

Holland, S., & Carey, T. (1994). Human-

computer interaction,

Addison-Wesley Publishing

Company. Wokingham, 1

edition.

Kalyuga, S., Chandler, P., & Sweller, J. (1999).

Managing split-attention and redundancy in

multimedia instruction. Applied Cognitive

Psychology, 13, 351-371.

Sweller, J. (1988). Cognitive load during problem

solving: effects on learning. Cognitive Science,

12, 257-285.

Kalyuga, S., Chandler, P., Tuovinen, J. E., &

Sweller, J. (2001). When problem solving is

superior to studying worked examples. Journal

of Educational Psychology, 93(3), 579-588.

Sweller, J. (1999). Instructional design in technical

areas. Camberwell, Victoria: ACER Press.

Koffa, K. (1935). Principles of Gestalt Psychology,

Routledge & Kegan Paul Ltd. London.

Sweller, J., van Merriënboer, J. J. G., & Paas, F. G.

W. C. (1998). Cognitive architecture and

instructional design. Educational Psychology

Review, 10, 251-296.

Lauer, D. (1979). Design basics, Holt, Reinhart and

Winston. New York.

Mayer, R. E. (2001). Multimedia learning.

Cambridge, UK: Cambridge University Press.

Tuovinen, J. E. (2000). Optimising student cognitive load

in computer education. Fourth Australasian

Computing Education Conference, Melbourne. ACM

publish.

Mayer, R. E., & Moreno, R. (1998). A split-attention

effect in multimedia learning: evidence for dual

processing systems in working memory. Journal

of Educational Psychology, 90(2), 312-320.

Tuovinen, J. E., & Sweller, J. (1999). A comparison

of cognitive load associated with discovery

learning and worked examples. Journal of

Educational Psychology, 91(2), 334-341.

Moreno, R., & Mayer, R. E. (1999). Cognitive

principles of multimedia learning: The role of

modality and contiguity. Journal of Educational

Psychology, 91(2), 358-368.

Paas, F., Renkl, A., & Sweller, J. (2003). Cognitive

load theory and instructional design: recent

developments. Educational Psychologist, 38(1),

1-4.

Figure 1: Revised screen design of the initial WoundCare.

THE MEETING OF GESTALT AND COGNITIVE LOAD THEORIES IN INSTRUCTIONAL SCREEN DESIGN

Figure 2: Redesigned Tutorials screen.

Figure 3: Integrated design of navigation controls, text

and graphics.

ICEIS 2004 - HUMAN-COMPUTER INTERACTION

Figure 4: Logical order.

Figure 5: Redesigned InfoBase introduction screen

with index menu.

THE MEETING OF GESTALT AND COGNITIVE LOAD THEORIES IN INSTRUCTIONAL SCREEN DESIGN

Figure 6: Redesigned integrated design, showing graphics in large scale with associated text and navigation controls.

Table 3:Questions and results about the quality of redesigned visual interface

Question (N= 12) Yes Undecided No

Are the new interfaces better than previous WoundCare version 1.1? 100% 0 0

Was learning easier with new interface? 85% 15% 0

Is there enough detail instruction in the presentation to enable you to carry out the

tasks/exercises?

100% 0 0

Was the navigation easy to follow? 100% 0 0

Are the links between the text and graphics/photographs/tables clear enough? 100% 0 0

ICEIS 2004 - HUMAN-COMPUTER INTERACTION
