PEER-TO-PEER NETWORK SIMULATION

Nyik San Ting, Ralph Deters

Departmentr of Computer Science, University of Sasjatchewan, 57 Campus Drive, Sasktaoon, 5A9S7 Canada

eywords: Peer-to-Peer Networks, Simulation

Abstract: Peer-to-Peer (p2p) networks are the latest addition to the already large distributed systems family. With a

strong emphasis on self-organization, decentralization and autonomy of the participating nodes, p2p-

networks tend to be more scalable, robust and adaptive than other forms of distributed systems. The much-

publicized success of p2p-networks for file-sharing and cycle-sharing has resulted in an increased awareness

and interest into the p2p protocols and applications. However, p2p-networks are difficult to study due to

their size and the complex interdependencies between users, application, protocol and network. This paper

has two aims. First, to provide a review of existing p2p-network simulators and to make a case for our own

simulator named 3LS (3-Level-Simulator). Second, it presents our current view that there is a need for more

realistic/complex models in p2p-network simulation since ignoring the underlying network, topology and/or

the behaviour of applications can result in misleading simulation results.

1 INTRODUCTION

The field of P2P networks is still undergoing major

changes with new applications and protocols

emerging on a nearly monthly basis. However, due

to the difficulties in evaluating them prior to their

large-scale deployments, they are often short-lived –

disappearing as fast as they emerge – normally due

to bad performance. What works well in a controlled

lab environment, using a small number of nodes,

high bandwidth, low latency and highly cooperative

users often fails in real world deployments due to

lack of bandwidth, heterogeneity and uncooperative

users.

Testing a system’s performance prior to its

deployment is a fairly common element in the

software development of applications. Pawlikowski

(Pawlikowski, 2002) identifies two main possible

experimentation streams: experimentation with the

actual system and experimentation with a model

(physical or abstract) of the system.

P2P networks tend to be large, heterogeneous

systems with complex interactions between the

physical machines, underlying network, application

and users. Hence, testing of a “running” p2p-

network or protocol in a realistic environment is

often not feasible. However, it is possible to use a

simulation of a p2p-network to evaluate the

applications and protocols in controlled

environment. Since a simulation requires the

creation/definition of a model that serves as an

abstraction of the real p2p-network, the issues of

model-scope and model-detail arise. What should be

included and what can be ignored? Can the physical

network be ignored? Is the topology of the p2p-

network important? And last but not least, what

workloads should be chosen? Especially with the

emergences of more complex p2p protocols and

applications that emphasize self-organization due to

network, loads or past experiences, this issue is

becoming more important. Consequently, a p2p

simulation model needs to reflect the dependencies

between the users, application, p2p-protocol, p2p-

network topology and physical network.

The remaining part of this paper is structured as

follows. Section 2 reviews existing p2p-network

simulators. Based on the shortcomings of existing

simulators section 3 presents a novel multi-level

simulator called 3LS (3-Level-Simulator). This

simulator is evaluated in section 4 and the paper

concludes with a summary in section 5.

2 P2P NETWORK SIMULATORS

As mentioned earlier, p2p-network simulators are

one option in studying the behaviour of P2P

systems. To date only a few p2p simulators have

been implemented to aid the research on application

and protocols development.

San Ting N. and Deters R. (2004).

PEER-TO-PEER NETWORK SIMULATION.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 84-91

DOI: 10.5220/0002624800840091

 SciTePress

2.1 Evaluation Criteria

There are two necessary conditions for obtaining

credible results from a simulator: using a valid

simulation program and executing a valid simulation

experiment. “A simulation program is valid, if it is a

verified computer program of a valid simulation

model” (Pawlikowski, 2002). A validated simulation

model is a model that is a satisfying accurate

approximation of the system under study.

Table 1 contains the criteria considered important

in evaluating a P2P simulator.

Table 1: Criteria

Criteria Definitions

Usability How easy are the use of the

simulator, preparation of input

data and the extraction of

simulator data?

Extensibility How easy can the simulator be

extended to handle modified/new

models e.g. new p2p protocol?

Configurability How easy is the customization of

the simulation?

Interoperability Can the simulator be used to

interoperate with other

application?

2.2 Serapis

Serapis (Sandberg, Serapis, 2001) is possibly one of

the earliest p2p-network simulators. It was designed

to allow the evaluation of different caching

algorithms for the FreeNet protocol. Serapis has

been extended over time to simulate the Gnutella

protocol, however, the work is halted and the

extension is not yet completed (the latest update was

made in November 2001). Serapis focused on the

“static network designs with different connectivity

patterns and routing algorithms” (Joseph, 2001). It

has been shown that the results of simulations on

FreeNet obtained using Serapis were inaccurate and

that the simulator fails to simulate the actual stresses

and strains of a live deployment in an accurate

manner (Joseph, FreeNet, 2001).

2.3 NeuroGrid Simulator

NeuroGrid (Joseph, 2001) (Neurogrid, 2003) is a

p2p-network simulator designed to study search

operations for FreeNet, Gnutella and the NeuroGrid

protocols. The NeuroGrid simulator is a single-

threaded discrete event simulator that can be

customized using configuration/properties files.

Among the parameters users can control are, the

type of protocol to simulate, the number of searches

to simulate and the preferred user interface. The

simulation data (e.g. number of messages parsed and

the states of the simulation) can be saved into files

for later analysis. NeuroGrid assumes that the

distance between nodes is constant and ignores

latency, congestion and bandwidth issues. After a

search message is sent out, the nodes that received

the messages take turns in forwarding the messages

(due to the single-threaded design of the simulator).

After the current search message has been served is

it possible to launch another new message

(sequential execution of search requests).

NeuroGrid is still very much a work in progress

and efforts are made to improve the level of detail in

the network models. In its most recent form, the

simulator enables the users to specify the number of

nodes to simulate (this is also the number of nodes

to add to the current simulation after a number of

searches is done), the initial number of connections

for each node, the number of searches to be

generated, and the initial network topology (only

ring or at random networks).

Since NeuroGrid is designed to simulate the

searching algorithms of different protocols, it is

necessary to let the user specify the number of

keywords used for the simulation, the number of the

documents used for the simulation, the number of

keywords per document and the number of

documents stored on each node (document and

keyword assignments are all randomized). The latest

release of NeuroGrid (version 0.1.4) has included

the simulation of resource-limited nodes and

introduced the concept of the dishonest node.

The simulator can be customized to needs of a

user-defined p2p-application based on the above-

mentioned protocols by extending the classes

provided.

2.4 FreeNet Simulator

The FreeNet simulator (Pfeifer, 2002) was designed

to analyze different caching algorithms for the

FreeNet protocol. It uses a two-steps mechanism to

support the event handling allowing multiple

messages to be sent at a time. In the first step, the

simulator will move the messages from a temporary

storage space to a queue of the node that will

process them in the next iteration. In the second step,

the simulator will process the messages queued at

each node (previous iteration) and put the newly

generated messages in the temporary storage space.

PEER-TO-PEER NETWORK SIMULATION

With this design, all the nodes act synchronously

without mixing the newly arrived messages and the

old messages. The user can modify the factors for

the simulation by manipulating an interface class

that is implemented by the other classes. This design

requires that the simulator source code be

recompiled each time after the parameters of the

simulation have been changed (!).

The user can adjust the maximum number of

nodes to simulate, the TTL of the messages, the type

of nodes to be simulated (the caching algorithm), the

probability of a request event for a file at each node

and the probability of faulty information insertion by

the node. Unfortunately, the handshaking between

nodes is not implemented in the current version of

the simulator.

In order to initialise a network, the simulator is

started with three connected nodes and new nodes

are added iterative until the user-defined number of

nodes to simulate is reached. The simulator allows

nodes only to be added assuming a static network.

After the network is initialised with the number of

nodes desired, the desired number of files will be

inserted into the network. After this the simulator

will be started with initiating the request events.

Output of the simulator such as number of

attempted and successful actions for file-insertions

and searches are printed onto the command-line.

2.5 FreePastry

FreePastry (FreePastry) is an open-source

implementation of the Pastry protocol in Java that

can be used to emulate a Pastry network. The latest

release of FreePastry (January 28, 2003) includes the

implementation of the PAST (Rowstron, 2001)

archival storage system that is based on the Pastry

protocol and an implementation of the Scribe

(Castro, 2002) group communication infrastructure.

The settings of the FreePastry parameters, such

as the number of nodes to simulate and the number

of events to generate, is done by providing the

values in the command line upon starting the

simulator. The results are displayed on the command

prompt screen as the messages are being processed.

Since the Pastry routing uses proximity metrics, it is

necessity to represent the proximity in the

simulation. Random, Euclidian and sphere are

currently supported in FreePastry. In the Euclidean

network topology the nodes are randomly placed in

a Euclidean plane and the proximity is based on the

Euclidean distance in the plane. Whereas, in the

Sphere Network topology, the nodes are randomly

placed on a sphere, and the proximity is based on the

Euclidean distance on the sphere. However, the

network delay for the message passing is not

simulated, as the simulator is not designed to

simulate time.

2.6 Summary

Current p2p-network simulators are limited in their

use, difficult to customize and generally tend to

ignore the physical network and the user behaviour.

The simulators do not support the customisation of

the initial network state (connections between the

simulated computers and the network delay) and are

limited in the level of detail and the scalability of the

supported models. Furthermore, the simulators are

mostly focusing on the caching algorithms and

ignoring the fact that other activities can also impact

the efficiency of the system.

While the NeuroGrid simulator is providing good

network visualization it does not simulate the user

events, network latency and the processor delay of

the nodes. Hence the simulation does not reflect the

real world situation, especially with the serial

searches functionality. Another tricky issue in using

of FreePastry and NeuroGrid is the serial fashion in

which they execute search events. Due to the

absence of a GUI in the FreeNet and FreePastry

simulators the modification of parameters is

cumbersome. Some of the settings are made through

the command line and some have to be encoded in

the program.

The FreeNet simulator supports synchronous

actions of nodes but fails in providing support for

modeling the network latency and the user’s

behavior. In addition the concept of recompilation

after changing is rather crude and limits the use

significantly.

Adapting the simulator to new or modified

protocols is a question of great practical importance.

NeuroGrid and FreeNet do not simulate the network

overlay, and hence it is hard to extend the simulation

to handle new protocols that need the network

proximity information, e.g. the Pastry protocol.

On the other hand, though FreePastry is focused on

the Pastry protocol, the simulator is more decoupled

and the code can be reused and extended to

implement a different protocol e.g. Gnutella.

However, the serialized event handling and the

absence of simulation time make it difficult to

simulate the network delay and processor delay.

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

Table 2: Evaluating existing P2P Simulators

Neuro-

Grid

FreeNet FreePastry

Event-

processing

Serial Parallel Serial

Usability Very

easy

Medium Hard

Extensibility Medium High Medium

Configurability

(Easiness)

Mid-

High

(High)

Medium

(Medium)

Low

(Mid-Low)

Interoperability Medium Medium High

Level of Detail Medium High High

Build-ability Medium High Very High

Simulating

User behavior

No No No

Simulating

Computer

Hardware

No No No

Simulating

network

overlay

No No Yes

Simulating

time

(Network

delay)

(No)

Yes

(No)

It is therefore our conclusion that none of the

existing simulators are suited for realistic

simulations of different p2p-networks and that the

development of a new simulator is therefore

justified.

3 TOWARDS AN OPEN

MULTILEVEL P2P SIMULATOR

Researchers, who wanted to simulate a p2p system,

tend to avoid the development of a complex

simulator and focus on some selected areas (such as

caching schemes). While some may choose to start

an implementation from scratch, an increasing

number of researchers build their simulators on top

of existing tools, e.g. the agent platform JADE

(Bellifemine, 1999), to speed-up the development.

The general problem of having only special-purpose

simulators is that the results obtained with one

simulator are difficult to validate and often

impossible to achieve with another simulator due to

the many hard-coded assumptions of every

simulator.

This section presents an architecture and

implementation of an open p2p simulator, called

3LS (3-Level-Simulator), designed to overcome the

problems of existing simulators namely,

extensibility, usability and level of detail. Since the

development of a simulator is a complex and time-

consuming activity we haven’t completed all parts of

the simulator and in its current version it supports

only Gnutella-style protocols. The simulator is

currently used to help in the development of

Comtella (Vassileva, 2002) a p2p file-sharing

applications for sharing research papers.

3.1 Design Goals

The criteria used to evaluate the simulators in

section two were used as a guideline for the design

of a more generic and open simulator that will allow

users to define models for the physical network, the

physical machines, p2p-network topology, p2p

protocol, p2p application and user behavior.

3.2 Architecture

Figure 1 shows a high-level view of the 3LS

simulator. 3LS is a time-stepped simulator that uses

a central step-clock. In 3LS the models for network,

p2p protocol and user model are clearly separated.

This separation allows the simulation of various

network topologies, for different protocol,

applications and user models. To achieve this

separation three levels have been defined:

• Network level (bottom),

• Protocol level (middle) and

• User level (top).

Upon starting the simulator it is possible to either

create the models for the three described levels (fig.

2) or to choose among a library the ones most suited

for the simulation run. As the simulation is running,

the events are displayed on the command prompt

screen. After the simulation has been completed, all

simulation data is saved into a file for future

analysis.

As Pawlikowski points out, either general-

purpose languages (such as FORTRAN, Pascal, C

and Java) or simulation languages (such as GPSS,

SIMAN or SLAM II) can be used for the

“translation of the model into a computer program”

(Pawlikowski, 2002). Though simulation languages

provide most of the features needed in programming

a simulation model and the details of the simulation

models can be easily changed, a general-purpose

language was selected to provide “greater

programming flexibility”.

PEER-TO-PEER NETWORK SIMULATION

Since Java is the preferred language of many p2p

programmers it was chosen as the host-language for

the 3LS simulator.

Visualization of the network is done with the aid

of the tool AiSee (AbsInt). AiSee was selected for

its, ease of use, simple installation, availability (runs

under various OS), functionality and performance in

rendering. When screenshots of the p2p-network are

to be visualized, files containing the information of

the graph are created by 3LS using the Graph

Description Language (GDL).

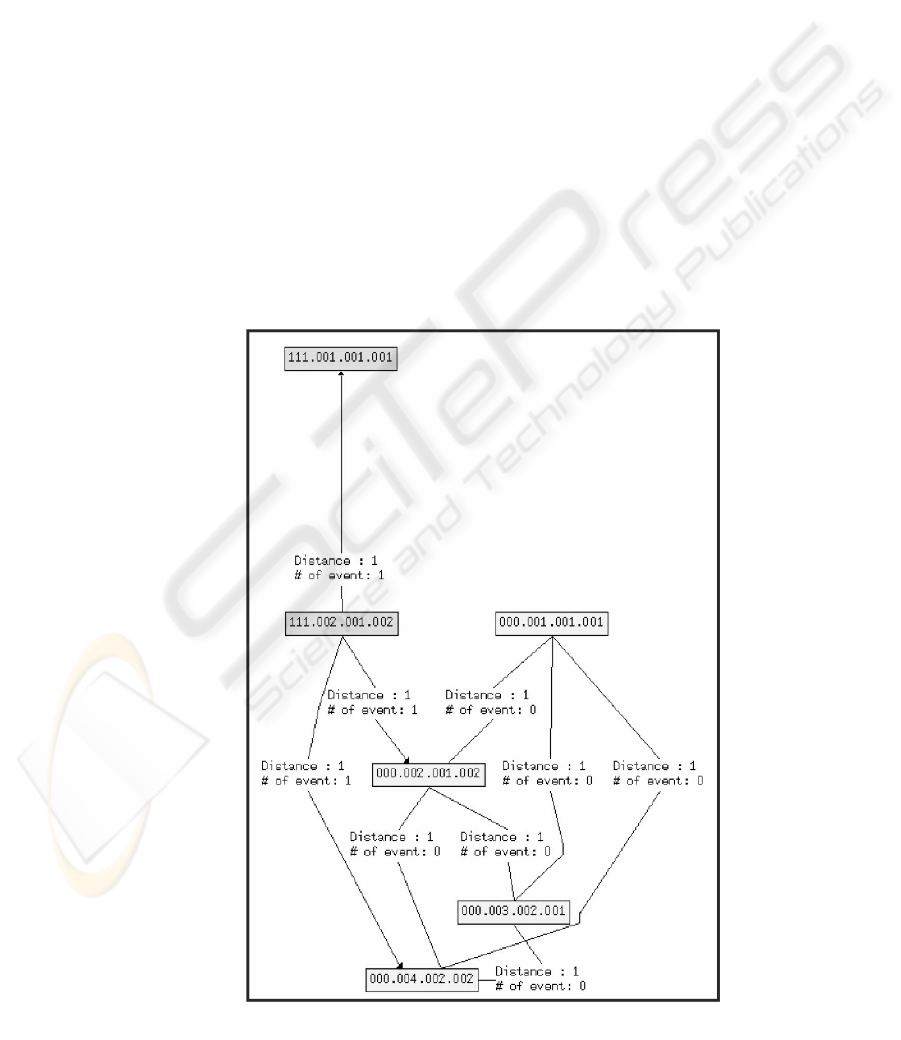

Once the file is created a user can use AiSee to

render an image of the graph (see figure 3).

3.3 Network Level

Using the GUI (fig.3) or predefined scenarios, the

network level creates a two-dimensional matrix

storing the distance values between the nodes. The

network level is responsible for modeling the user-

defined aspects of a physical network e.g. varying

network load due to increased P2P communication.

The network-level also creates a user-defined

number, of computer nodes with a user defined-

number of worker threads associated that take care

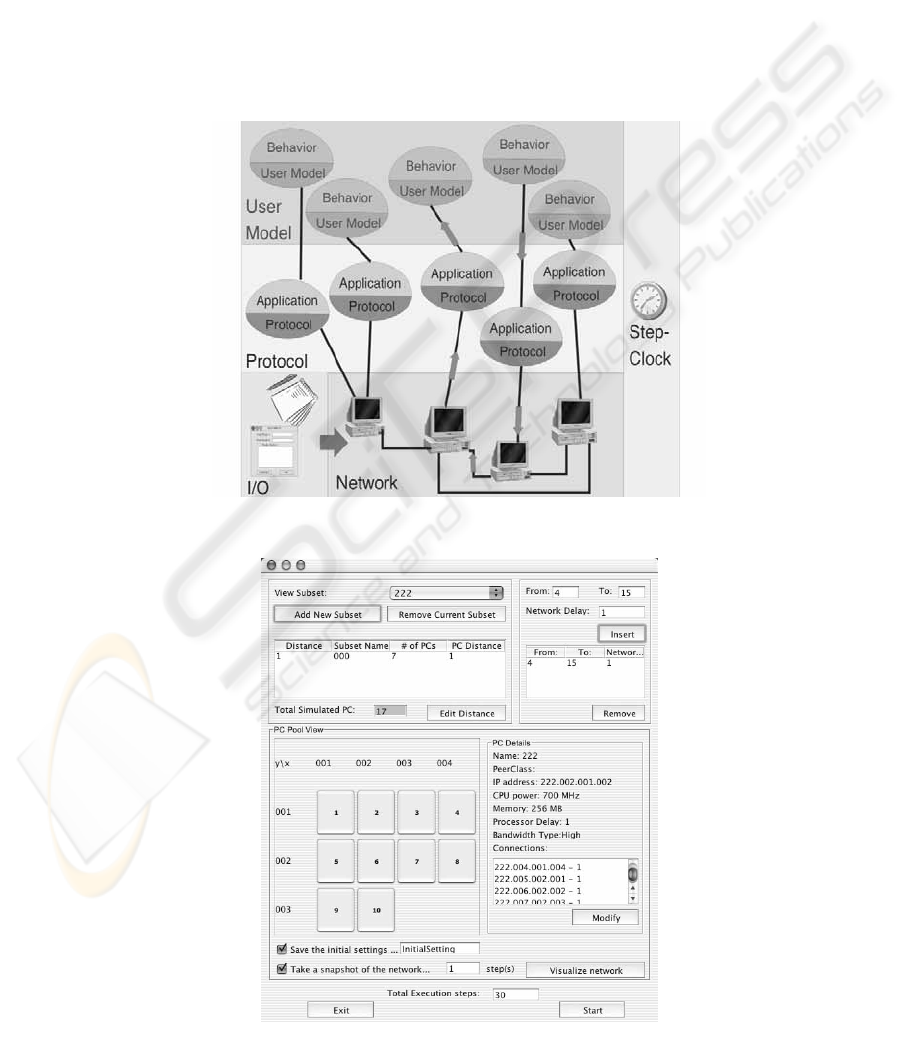

Figure 1: Architecture of the 3LS

Figure 2:

Screenshot of 3LS

–

Network

Model

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

of the messages passing and the processing of the

messages at application node. By varying the

number and the priority of the worker threads the

processor load and simulation speed of the tool can

be adjusted. Each node in the network level

represents a computer with user-defined hardware

specification that is used to simulate in a more

manner accurate individual machines. Interactions

between the network level and the protocol level are

made through referencing the application nodes in

the protocol-level. Each node used four queues for

handling message objects:

• Outbox,

• Inbox-For-Network-Delay,

• Inbox-For-Processor-Delay and

• Inbox.

To illustrate the way the nodes between different

layers work, a simple example of sending messages

between nodes of the protocol layer will be used.

Sending a message from one application node (X) to

another one (Y) is done as follows:

i. A message object is created, time-stamped

and placed by the application node

(protocol layer) in the outbox of the

computer node X (network layer). A

worker thread responsible for checking the

outboxes will detect the message and move

it from the outbox of node X into the inbox-

for-network-delay of node Y.

ii. After checking the outboxes of all nodes

the global simulation clock is incremented

and the worker threads start checking the

message objects in the inbox-for-network-

delay using the 2-D distance matrix and the

congestion network delay data. The goal is

to simulate the delay/latency of the network

by postponing the delivery of message. If

the assumed network delay has been

fulfilled, the message will be stored in the

inbox-for-processor-delay that serves as a

means to simulate the time a node needs for

processing the message.

iii. After the simulation clock is incremented,

the worker threads will look at the

processor delay of the node Y and check

whether the message object in the inbox-

for-processor-delay can be moved into the

inbox for the application node. In case the

processor delay has not been reached, the

message object remains in the inbox-for-

processor-delay.

iv. Once the delay has passed the message

object will be sent to the appropriate

application node. After the application node

processed the received message object, it

will perform user-defined responses. If the

response results in the creation of new

messages they are stored in the outbox and

the process starts again with the step i.

The simulator follows a 2-steps mechanism: for

each unit of user-time, it takes 2 step-times in the

simulation. Figure 5 shows the actions performed at

step t. With this design, the network delay and

processor delay can be simulated, and the message

arriving is simulated in a more realistic manner. In

addition this design enables several tasks (or events)

being carried out at any time. At any moment in time

a user can request that the simulator generates a

visualization of the current network (fig. 3). The

information encoded in the network snapshot

includes the events (messages traversed) during the

step, the status of the computer nodes (variables

such as the memory) and the network connections at

the end of the step.

3.4 Protocol Level

A special class (peer interface class) is used to

provide an interface for the worker threads in the

network level and to enable the sending of messages

from a computer node to an application node. Any

protocol implementation has to implement this

interface class. To create application nodes, the user

needs to specify the IP address and port number of

the peers created. Upon being created, the

application node/peer can use the registration class

provided by the network level to register itself to a

port of the computer node using the IP address

provided. The implementation of the message object

is important in this simulator. The message object

contains the time-stamp, reference to the message

content object, the origin’s IP address and port

number, and the destination IP address and port

number.

3.5 User Level

A user model contains the method signatures for the

decision-making needed from the protocol level and

is linked to a specific peer instance adding tasks into

the task-scheduler of its peer node. The user model

serves as a load-generator and state-based controller

of the peer nodes allowing for a more accurate

modeling of the behavior of peers.

PEER-TO-PEER NETWORK SIMULATION

4 EVALUATION

In its current implementation, the simulator consists

of 29 classes with approximately 3599 lines of code.

There are 10 classes (899 lines of code) for the

platform level, 12 classes (508 lines of code) for the

Gnutella protocol and user task scheduling, and 7

classes (2159 lines of code) for GUI interfaces

including the main method class. Using the Gnutella

0.4 protocol a series of performance and accuracy

tests were conducted to evaluate 3LS. We used

AMD Athlon Processor 800Mhz with 524 MB of

RAM running Microsoft Windows 2000 and a Sun

SunFire3800 with 4 UltraSparc III CPUs running at

750 MHz and 8 GB of RAM running Solaris 8.2.

For each simulation with n nodes, there is a total of

(n-1)+(n-1)*(n-2) number of events (message sent

from a peer to the other).

The test revealed that the simulation of medium-

sized p2p-networks consumes already significant

CPU resources and memory. The memory

consumption increases with the number of events

and is due to the saving of the messages (texts

showing the events occurred in the simulation) in a

hashtable until the simulation is finished upon which

data is saved into a file. To be able to scale up to

higher numbers of simulated peers it is necessary to

distribute the simulation over multiple

processes/host.

5 Future Work

Future work focuses on collecting data for the

various layers e.g. human desktop usage and

network traffic. We are currently testing the

simulator by comparing its results for a Gnutella 0.4

network (Clip2) with the “real data” obtained from

running Gnutella 0.4 clients in a controlled network.

Using Comtella (Vassileva, 2002) clients we are

able to adjust the various parameters of the

simulation and verify the simulation results. Early

results in a small network (less than 20 nodes)

indicate that the simulator works as expected but

more testing is needed.

Figure 4: Example of network view using AiSee

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

6 CONCLUSION

This paper provides an overview of existing P2P

protocols, examines the simulators and proposes a

generic P2P simulation model. The simulator

enables the simulation of P2P networks with

different network topology, user models, and

applications. We hope that by starting the

development of a open java-based p2p-network

simulator the community of p2p developers and

researcher will be able to develop models and loads

that enable the evaluation of current and future

protocols.

7 CODE

The complete code of the 3LS simulator is available

upon request by sending an email to one of the

authors. 3LS requires a Java 1.3.1 or higher version

of the JDK.

REFERENCES

AbsInt. AiSee homepage. http://www.aisee.com/

Bellifemine, F., Poggi, A., Rimassa, G. JADE–A FIPA-

compliant agent framework In Proceedings of

PAAM'99,London, April 1999, 97-108.

Castro, M., Druschel, P. Kermarrec A-M., Rowstron A.

SCRIBE: A large-scale and decentralised application-

level multicast infrastructure. IEEE Journal on

Selected Areas in Communications (JSAC) (Special

issue on Network Support for Multicast

Communications), to appear, 2002.

Clip2. The Gnutella Protocol Specification v0.4.

http://rfcgnutella.sourceforge.net/Development/Gnutel

laProtocol0_4-rev1_2.pdf

FreeNet. http://freenet.sourceforge.net.

FreePastry. The FreePastry homepage.

http://www.cs.rice.edu/CS/Systems/Pastry/FreePastry/

Joseph, S.R.H. Adaptive Routing in Distributed

Decentralized Systems: NeuroGrid, Gnutella, and

Freenet. Proceedings of workshop on Infrastructure for

Agents, MAS, and Scalable MAS, at Autonomous

Agents, Montreal, Canada, 2001.

Joseph, S.R,H. Project:NeuroGrid -P2P Bookmark

Organiser:Mailing Lists. NeuroGrid Simulation

Mailing Archive, Jan 2003

http://sourceforge.net/mailarchive/forum.php?thread_i

d=1593250&forum_id=8271

NeuroGrid. The NeuroGrid homepage.

http://www.neurogrid.net/

Pawlikowski, K. Simulation Modeling and Analysis with

an emphasis on applications in performance evaluation

of telecommunication networks. Course 410,

University of Canterbury, August 2002.

http://www.cosc.canterbury.ac.nz/teaching/handouts/c

osc410/02.410.notes1.pdf

Pfeifer, J. Freenet Caching Algorithms Under High Load.

http://www.cs.usask.ca/classes/498/t1/898/W7/P2/free

net.pdf, 2002.

Rowstron, A., Druschel, P. PAST: A large-scale,

persistent peer-to-peer storage utility. HotOS VIII,

Schoss Elmau, Germany, May 2001.

Sandberg, O. The FreeNet-dev mailing list, March 2001

http://www.ultraviolet.org/mail-archives/freenet-

chat.2001/0354.html

Serapis. The Serapis homepage, cvs. Sourceforge.net.

http://cvs.sourceforge.net/cgi-

bin/viewcvs.cgi/freenet/Serapis/

Vassileva, J. Motivating participation in Peer to Peer

Communities. Proceeding of Workshop on Emergent

Societies in the Agent World, ESAW’02, Madrid, 16-

17 September, 2002.

PEER-TO-PEER NETWORK SIMULATION
