MATCHING ERP FUNCTIONALITIES WITH THE LOGISTIC

REQUIREMENTS OF FRENCH RAILWAYS

A Similarity Approach

Iyad Zoukar , Camille Salinesi

Centre de Recherche en Informatique, Université Paris 1 – Panthéon – Sorbonne

90, rue de Tolbiac 75013 Paris – France

Keywords: ERP, Business Process, Requirements Matching, Meta-Modelling, Similarity Analysis, Requirements

Elicitation.

Abstract: Ensuring the adequacy of Enterprise Resource Planning (ERP) implementations to business requirements is

still an issue that needs to be addressed. One important cause of inadequacy results from the lack of

attention paid to the precise and systematic analysis of how well ERP functionalities match the business

requirements. One well known reason for this is that the language used to define ERPs is different from the

one used to define business requirements, and there is no technique available so far to evaluate

systematically similarities between ERP functionality models and business requirements models. Our

approach to this issue is (i) to materialise with a unified goal/strategy modelling language both the ERP

functionalities and the business requirements, and (ii) to systematically specify using a similarity model how

a given ERP functionality model and a business requirement model should match together. This paper

outlines this matching method and explains how the similarity model was developed in a systematic way.

1 INTRODUCTION

Ensuring the adequacy between an organisation’s

requirements and the Information System (IS)

functionalities represents a major issue of any IS

project. This especially holds with ERP systems in

which functionalities are already designed and built-

in for standard business processes. Our work at

SNCF (the French railways company) consists in

developing a methodology that would help specify

how the functionalities provided by the PeopleSoft

ERP match the requirements of the supply chain

processes that it shall support.

As often in this kind of project, the approach

itially taken in the project was mostly driven by

PeopleSoft functionalities. However, these are only

documented at a very detailed level transactions,

operations and data structures, etc), whereas at

SNCF stakeholders think in terms of their goals,

tasks and outcome. This results in a difficulty for

stakeholders to adapt to the language of ERP

experts, and furthermore, in a difficulty to foresee

how the system will fit to their requirements. This

mismatch exposes the project to a classical and well-

documented danger of failure (Standish, 1995)

(Davenport, 2000).

Our approach was that the relationship between the

stem and the business should be materialised using

a unique language that gathers the business and the

system perspectives (Salinesi, 2003). The formalism

we use, called Map (Rolland, 2001), is built on two

central concepts that are natural to business experts,

goals and strategies: goals are used to identify the

business processes for which the system provides (at

least partial) support; strategies indicate how the

business intends to achieve goals.

Our purpose at SNCF was to establish a way of

work

ing to align the business requirements and

system functionalities. To do that, we adapted the

general IS evolution framework (Salinesi, 2003).

The framework that we developed clearly shows that

an important aspect of matching is the production of

statements about the similarity between the ERP and

the business requirements. A typology of similarity

predicates was thus developed.

The next section introduces the matching

fram

ework. In section 3 the similarity topology is

presented. Examples from the SNCF project are

given in section 4. Related works and conclusions

are respectively presented in sections 5 and 6.

444

Zoukar I. and Salinesi C. (2004).

MATCHING ERP FUNCTIONALITIES WITH THE LOGISTIC REQUIREMENTS OF FRENCH RAILWAYS - A Similarity Approach.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 444-450

DOI: 10.5220/0002628404440450

 SciTePress

Might-Be

As-WishedAs-Is

BM BM

To-Be

SFM

To-Be

SFM

SNCF

Formalism

ERP

Formalism

Map

Similarity

Matched

Map

Fitness Fitness

uses

Evaluate

Matching

Decide

Matching

Matching Process

Might-Be

As-WishedAs-Is

BM BM

To-Be

SFM

To-Be

SFM

SNCF

Formalism

ERP

Formalism

Map

Similarity

Matched

Map

Fitness Fitness

uses

Evaluate

Matching

Decide

Matching

Matching Process

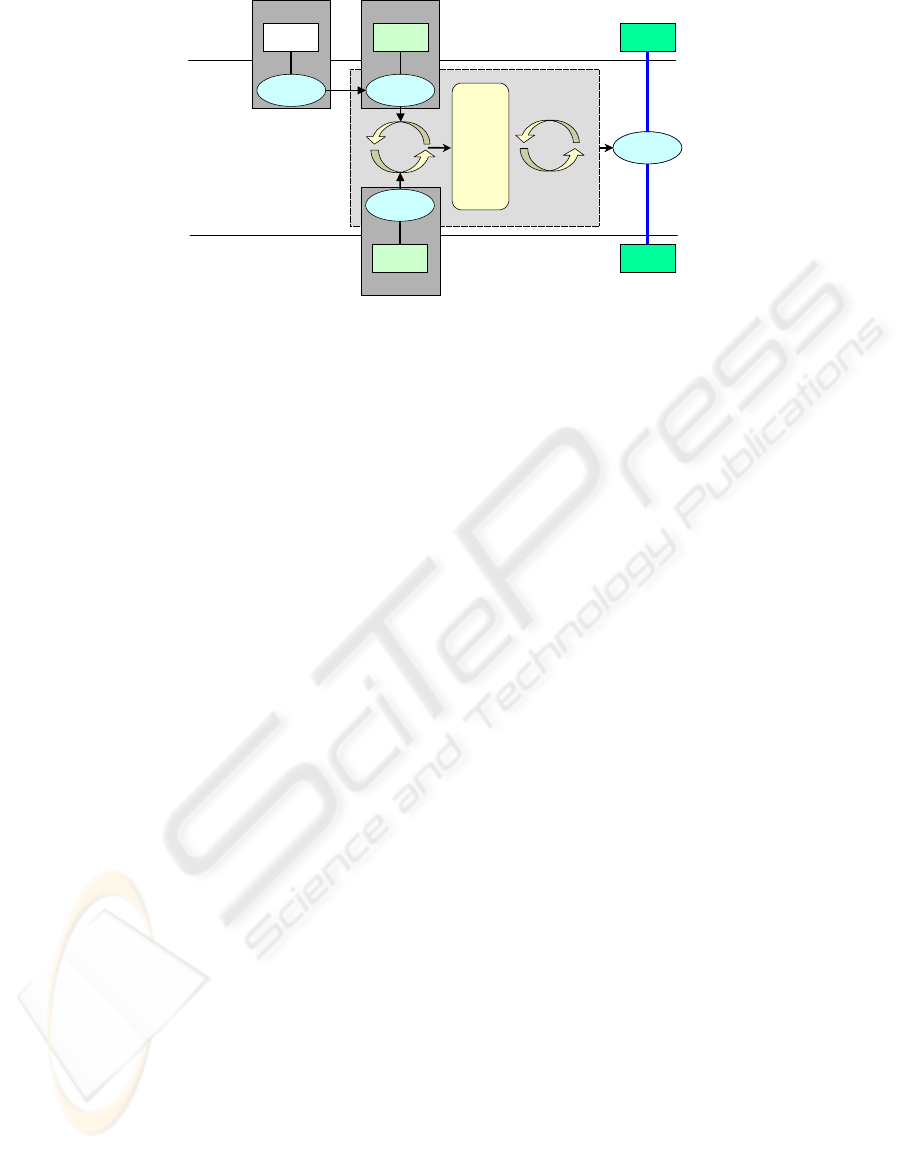

Figure 1: Adapting the Evolution Methodological Framework to the context of the ERP project at SNCF

2 ERP MATCHING FRAMEWORK

As proposed by (Jarke, 1993), a general framework

was defined to situate the different concepts that are

needed in a method dealing with IS evolution.

Besides, there are different contexts of IS evolution;

each context can be characterised with a more

specific framework (Salinesi, 2003).

One of the evolution contexts concerns IS

customisation from a product family. This context is

met in ERP implementation which corresponds to

the SNCF project nature. In the generic

‘customisation from a product family’ framework,

four families of models have to be managed. The

requirements of the organisation are expressed in the

As-Wished BM (Business Model). The Might-Be

SFM (System Functionality Model) reflects the

functional capability of the product family. The To-

Be BM and its counterpart, the To-Be SFM result

from a matching process which searches for the best

fit between the organisational requirements

(expressed in As-Wished BM) and what is proposed

by the ERP, (Might-Be SFM).

We adapted this generic framework in order to take

into account all the kinds of models actually used in

the SNCF project. As shown in figure 1, numerous

kinds of models were used. These are organised in

the four aforementioned families: (1) As-Wished BM

capture the business processes that the organisation

requires for the future. (2) The Might-Be SFM

represent the different functionalities provided by

the ERP. (3) The To-Be BM represent the business

processes after the project. (4) The To-Be SFM

specify the ERP after the project, i.e. after

parameterisation, re-development of existing

functions, and development of new specific

functions.

An important goal of the Matching Process is to

ensure the fitness relationship between the business

and the system at the end of the project, i.e. to make

sure that the delivered system fits to the use of the

future business. On the business level, this calls for

adaptation of the Business Processes; on the system

functionality level, this calls for customisation of the

ERP and of the legacy system.

As illustrated above, the situation at SNCF is a

complex one as different formalisms are used in

each of the four families of models that does not

allow a systematic matching. Besides, the project

managers found that the business processes are too

complex to be defined at once, and therefore chose

to develop them by analysing the current situation.

This choice appears through a fifth family of

models, namely the As-Is BM.

Given this complex situation, our proposal was to

use the map formalism to reflect the existing As-Is

BM, As-Wished BM and Might-Be SFM in a unique

way. Let us notice that, the other way round, the

additional work that was needed to develop these

maps was also useful as it allowed to synthesise the

models at hand in abstract terms and remove

cumbersome details. Last, the matching process was

facilitated as it resulted in producing similarities

between specifications expressed with a unique

meta-model.

3 THE SIMILARITY TYPOLOGY

The central technique used during the matching of

Business Models and System Functionality Models

was the analysis of similarities between them.

Intuitively, a similarity (represented with the “≡”

symbol in Figure 2) expresses a resemblance

between elements from two different models. Our

assumption is that similarities between maps can be

expressed with predicates that can be listed under

the form of a structured typology.

MATCHING ERP FUNCTIONALITIES WITH THE LOGISTIC REQUIREMENTS OF FRENCH RAILWAYS: A

SIMILARITY APPROACH

445

3.1 Towards a generic similarity

typology

Obviously a relevant map similarity typology could

have been defined in an ad-hoc sort of manner.

However, besides the fact that this might be error

prone, the resulting typology would be dependent on

the specific requirements specification formalism

used in this paper, i.e. the map formalism. To

overcome these difficulties, we adopted the

approach developed in (Rolland, 2003) (Etien, 2003)

to specify a typology of gaps between maps. First,

we searched for a generic similarity typology, i.e. a

typology that is independent of the formalism used

to express the As-Wished and the Might-Be models.

Then, the map similarity typology was developed as

an instance of the generic similarity typology. The

instantiation was guided by an accurate definition of

the map models in terms consistent with those of the

generic similarity typology. Using this approach,

other similarity typologies such as a similarity

typology between object oriented models or a Use

Case could be easily generated too.

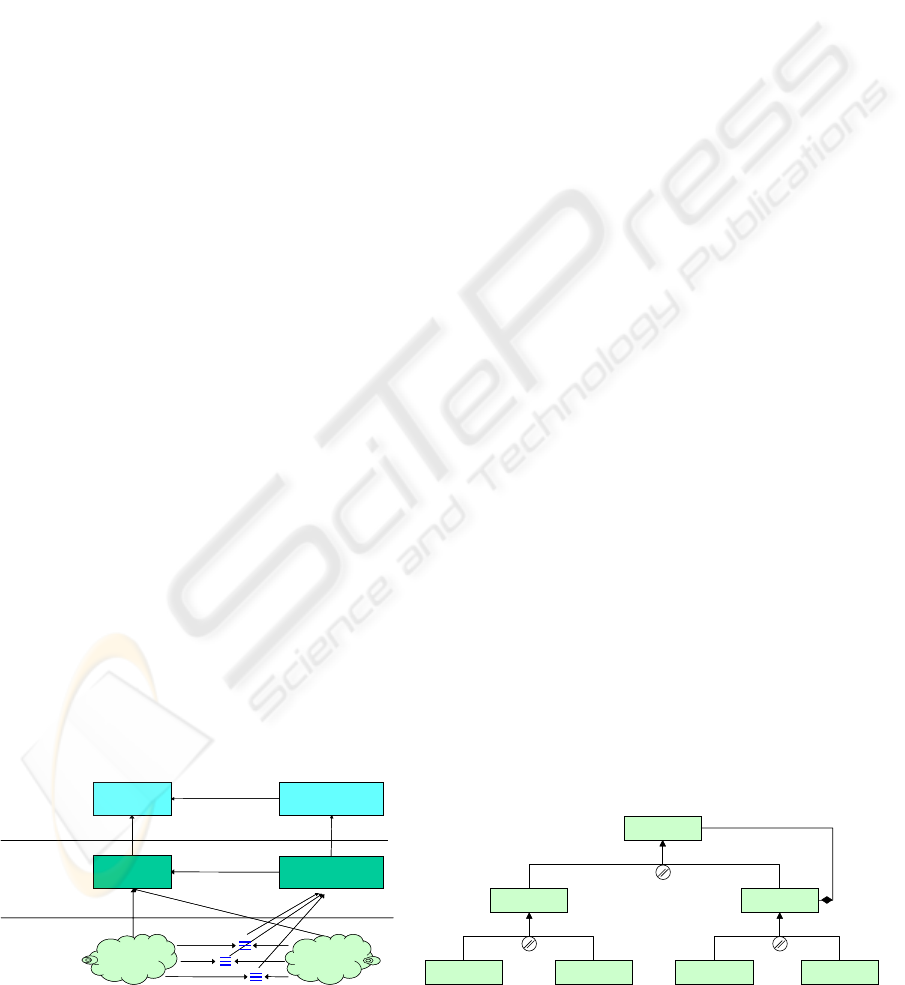

As shown in figure 2, a generic level is first used to

abstract the specific meta models used in ERP

projects. The left part of figure 2 shows that the

generic meta-model is instantiated by specific meta-

models, and that specific similarity typologies are

issued from the generic similarity typology. The

purpose of the former instantiation is to identify the

key elements and structures of the specific meta-

model. The definition of the specific similarity

typology is made systematic by the knowledge of

the link between the similarity typology and meta-

model at the generic level, combined with the

instantiation relationship between the generic meta-

model and the specific meta-model. A description of

the generic Meta-Model can be found in (Etien,

2003).

3.2 The generic similarity typology

Any meta model is composed of elements with

properties. Besides, the structure of meta models is

shown though element composition and through

links between elements. Based on this, the generic

typology of similarity predicates emphasises that

given a pair of elements, (i) their properties can be

similar, and (ii) their structure can be similar. As the

right part of figure 2 shows, there are thus two

classes of similarities, intrinsic similarity and

structural similarity.

A pair of elements has an intrinsic similarity if they

have similar properties. Element properties can be

considered similar if they have a close semantics. In

the first place, intrinsic similarity relates to

synonymy. However, it can also be about the

hyponymy (or the other way round hyperonymy)

relationship.

The structural similarity deals with the composition

of elements and their organisation within models.

There are thus two classes of structural similarity:

compositional similarity, and relational similarity.

Contrary to intrinsic similarity that involves only the

two compared elements, the structural similarities

imply comparisons between other elements that are

related to the two compared ones.

Besides, as shown in figure 2 by the aggregation link

from structural similarity class to the similarity

class, a structural similarity is a complex one and

involves other similarities. For example two

elements have the “same components in a

composition” if each component in one element has

a semantically “same” counterpart in the

composition of the other element.

There are therefore four main similarity classes.

These are defined as follows:

(i) Synonymy is a relationship between two elements

that have either properties or types with a similar or

close meaning. There are two kinds of synonymy:

- Two elements have a synonym type if their types

are equal or have a common super-type (they are

then cousins).

- There are different degrees of resemblance possible

between the properties of a pair of elements: two

elements have the same property when their

properties have exactly the same name and the same

Issued from

Typology of

Similarity

Applies on

elements of

Generic

Meta-model

Issued from

Generic

Meta-model

level

Generic Similarity

Typology

Applies on

elements of

Model

level

Specific

Meta-model

level

Instance of

As-Wished

Model

Might-Be

Model

Instance of

Meta

Model

Similarity

Intrinsic Structural

Hyperonymy/

Hyponymy

Synonymy

Compositional

Relational

The generic similarity typology

Figure 2: Overview of the similarity elicitation approach

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

446

meaning (for example an actor in a Use Case model

and an actor in a sequence model); they have alike

properties when their properties are identified with

different words but have the same meaning (for

example two classes that specify the same business

object in two different ERP modules); or they have a

resembling property when the properties have

different names and values, but they still have a

close meaning (like for example a standard business

object in two different ERPs).

(ii) Hyponymy/Hyperonymy relates two elements

when the meaning of the one subsumes/is subsumed

by the meaning of the other. As with synonymy,

hyponymy/hyperonymy similarity can be defined on

the type and on the properties of elements:

- with respect to type, hyponymy/hyperonymy

comes down to a father or a son relationship

between the types of the involved elements. This is

for instance the case of a UML class in a model that

appears as an abstract class in another model.

- With respect to properties, two elements are in a

hyponymy/hyperonymy relationship if the properties

of the ones includes/extends the properties of the

other. This is for instance the case when the

attributes of one class are included in the collection

of attributes of another class.

(iii) Relational similarities are defined between link

elements that are connected to similar source/targets,

or between elements that are related to the rest of

their models through similar links. As table 1 shows,

there are different kinds of relational structure

similarity predicates.

These include (without being restricted to): same

number of links (when two elements are

source/target of the same number of links), same

number of links entering in a node (when two

elements are source of the same number of links),

same number of links outgoing from a node (idem,

the other way round), same/alike/resembling source,

target, or source and target (when two links have

similar extremities), same depth (same max distance

between nodes and leaves of the trees they belong

to) or same height (same max distance between

nodes and the root of the trees they belong to).

(iv) Compositional similarities deal with compound

elements that are similar in their composition, and

with elements that belong to similar compositions.

Table 1 quotes a number of compositional structure

similarity predicates: same cardinality of a

component (when two compound elements have the

same number of components), same / alike /

resembling components in a composition (when the

compositions of two compound elements are

comparable), same / alike / resembling common

component in a composition (when part of the

compositions are comparable), part of same / alike /

resembling compound (when an element is similar to

a component of another element).

4 EXAMPLES OF APPLICATION

AT SNCF

Three sets of maps were produced as required in the

framework presented in section 2: As-Is, As-Wished

and Might-Be maps respectively representing the

current BP at SNCF, the wished BP at SNCF, and

the BP supported by PeopleSoft. This section reports

examples of use of similarity typology to match

those maps in order to produce the matched maps

that represent the To-Be, i.e. the business and the

system situations after the ERP implementation.

In figure 3 the two extracts of maps represent the

organisation requirements (on the right) and what is

proposed by PeopleSoft (on the left). A number of

similarities can be specified using the typology of

similarity predicates. For example, there are intrinsic

similarities between the As-Wished and Might-Be

maps. Indeed, synonymies with equal types and

equal properties can be defined between the pair of

intentions Build production plan and Solve

production plan and between the two strategies For

items managed with the forecast and For items

managed with orders.

Although their statement

looks very different at first glance, there is a

hyponym/hyperonym similarity between the

Table 1: The generic similarity predicates

Synonymy

Hyperonymy

Hyponymy

Relational Compositional

Type

Type Same number of links Same cardinality of a component

Equal type Father type Same links number entering in a node Same components in a composition

Cousin type Son type Same links number outgoing from a node Alike components in a composition

Same source Resembling components in a composition

Property

Property Alike source Same common component in a composition

Same property Includes property Resembling source Alike common component in a composition

Alike property Extends property Same target Resembling common components in a composition

Resembling property Alike target Part of same compound

Resembling target Part of alike compound

Same source & target Part of resembling compound

Alike source & target

Resembling source & target

Same depth

Same height

MATCHING ERP FUNCTIONALITIES WITH THE LOGISTIC REQUIREMENTS OF FRENCH RAILWAYS: A

SIMILARITY APPROACH

447

By frozen fence and the Based on the first two

months of the planning horizon strategies as the

former proposes a more general solution with more

options than the latter. Besides, looking at the

relational similarities between the two map extracts,

it was found that they have the same depth. This

indicates that they are described at the same level of

abstraction. A closer analysis of the bundles

composed of the pair of goals and the strategies

between them shows that there are however

compositional similarities. As one could expect from

the different number of strategies, the two bundles

do not have the same components. However, the

bundles have an alike common components

similarity as two of the strategies in the As-wished

bundle have an equal in the Might-Be, and one has a

hyperonym in the Might Be. No similarity could be

found by looking at the height with respect to the

refinement links (these links are not shown in the

figure for the sake of space).

This experience showed us that a number of

alternative To-Be solutions could always be

envisaged. This calls for a systematic way to explore

alternatives, i.e. to identify them and to find the best

To-Be solution. Map similarity typology facilitates

the identification and the construction of the

different matching alternatives. Because similarity

predicates are generic, automation of similarities

detection is possible using our generic typology. In

real project size, the number of As-Wished and

Might-Be models can by very great and manual

similarities detection is impossible that why CASE

tools are needed.

Similarities discovered using the generic typology

present an important element of a decision making

process during the matching process to choose the

best solution for the organisation.

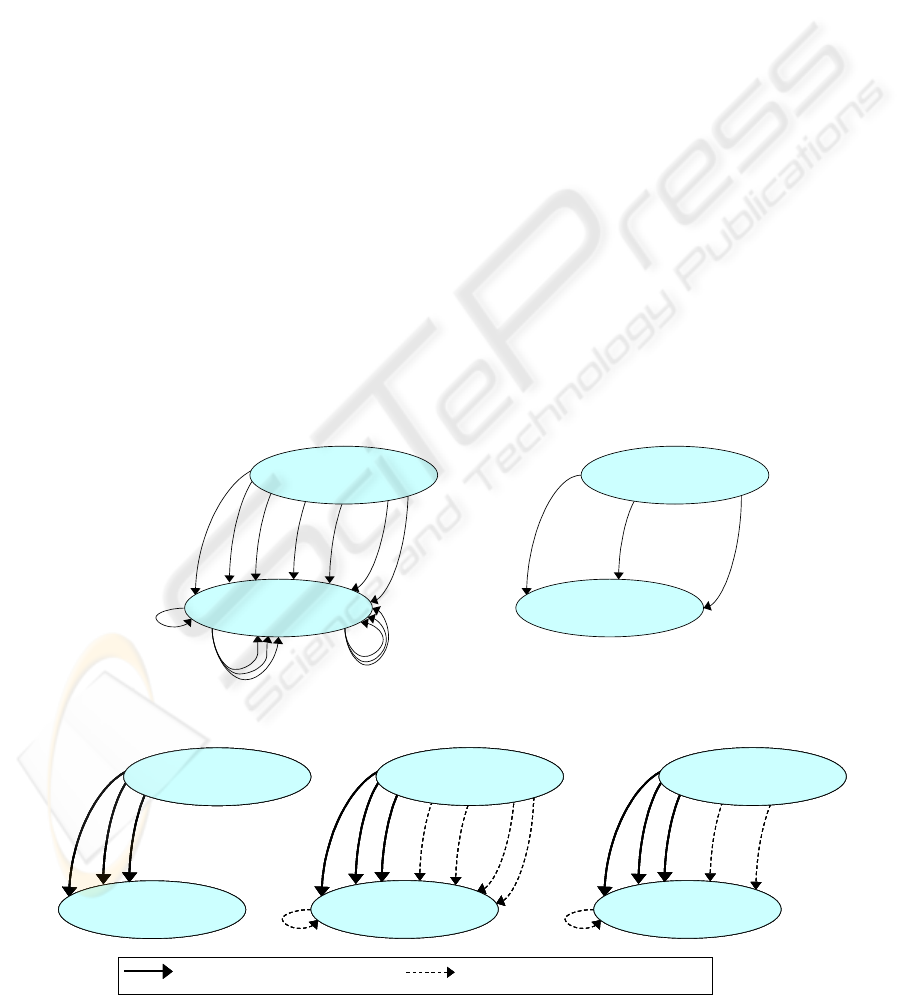

Figure 4 shows an example of situation in which

alternative matchings can be explored. In this

situation a number of wished business strategies and

system functionalities were identified to ‘Solve

production plan’. These are respectively shown by

the right and left map extracts in Figure 3. Matching

these maps using the above leads to at least three

possible To-Be maps as Figure 4 shows it:

Alternative A1 results from an As-Wished driven

matching, i.e. the solution is mostly similar to the

As-Wished BM. Alternative A2 is issued by a

Might-be driven matching. This solution adopts all

the strategies from the Might-Be SFM that can be

useful to SNCF. Alternative A3 can be surfaced by a

Two-way matching.

Discussions were raised for choosing among the

alternatives resulting from the matching process.

Decisions could be made using a number of criteria

such as the percentage of specific development in

the ERP, non-regression, cost, delay, available

competencies, negotiation margins, etc.

Using

pegged

chains

Using

planning

solvers

Using plan summary

Using exception inquiry

Using details inquiry

Revison strategy

By balancing multiple

business constraints

simultaneously

Using

operational

exceptions

By frozen

fence

For items

managed

with orders

Solve production plan

For items

maneged

with the

forecast

By consuming inventory

By using resources

By supplying inventory

Build production plan

Extract from Might-Be Maps

Based on the first

2 months of the

planning horizon

For items managed

with orders

Solve production plan

For items maneged

with the forecast

Build production plan

Extract from As-Wished Maps

Figure 3: Two extracts from As-Wished and Might-Be maps

Common strategies in the As-Wihed

Maps and Might-Be Maps

Strategies selected from Might-Be Maps and which do not

have equivalents in As-Wished Maps

Using

pegged

chains

Using

planning

solvers

Revison strategy

By balancing

multiple business

Constraints

simultaneously

Using

operational

exceptions

By frozen

fence

For items

managed

with orders

Solve production plan

For items

maneged

with the

forecast

Build production plan

By frozen

fence

Solve production plan

For items

maneged

with the

forecast

Build production plan

For items

managed

with orders

Using

pegged

chains

Using

planning

solvers

Revison strategy

By frozen

fence

Solve production plan

For items

maneged

with the

forecast

Build production plan

For items

managed

with orders

Common strategies in the As-Wihed

Maps and Might-Be Maps

Strategies selected from Might-Be Maps and which do not

have equivalents in As-Wished Maps

Common strategies in the As-Wihed

Maps and Might-Be Maps

Strategies selected from Might-Be Maps and which do not

have equivalents in As-Wished Maps

Using

pegged

chains

Using

planning

solvers

Revison strategy

By balancing

multiple business

Constraints

simultaneously

Using

operational

exceptions

By frozen

fence

For items

managed

with orders

Solve production plan

For items

maneged

with the

forecast

Build production plan

Using

pegged

chains

Using

planning

solvers

Revison strategy

By balancing

multiple business

Constraints

simultaneously

Using

operational

exceptions

By frozen

fence

For items

managed

with orders

Solve production plan

For items

maneged

with the

forecast

Build production plan

Using

pegged

chains

Using

planning

solvers

Revison strategy

By balancing

multiple business

Constraints

simultaneously

Using

operational

exceptions

By frozen

fence

For items

managed

with orders

Solve production plan

For items

maneged

with the

forecast

Build production plan

By frozen

fence

Solve production plan

For items

maneged

with the

forecast

Build production plan

For items

managed

with orders

By frozen

fence

Solve production plan

For items

maneged

with the

forecast

Build production plan

For items

managed

with orders

By frozen

fence

Solve production plan

For items

maneged

with the

forecast

Build production plan

For items

managed

with orders

Using

pegged

chains

Using

planning

solvers

Revison strategy

By frozen

fence

Solve production plan

For items

maneged

with the

forecast

Build production plan

For items

managed

with orders

Using

pegged

chains

Using

planning

solvers

Revison strategy

By frozen

fence

Solve production plan

For items

maneged

with the

forecast

Build production plan

For items

managed

with orders

Using

pegged

chains

Using

planning

solvers

Revison strategy

By frozen

fence

Solve production plan

For items

maneged

with the

forecast

Build production plan

For items

managed

with orders

Figure 4: Alternative matching possibilities

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

448

5 RELATED WORKS

Despite the widespread adoption of ERPs by

business organizations (Joseph, 1998), there is still a

lot of academic research need on ERPs from the

engineering perspective (Borell, 2000).

Two families of approaches were developed to

address the matching issue: the management

approaches and the system approaches. In the

management family, research intends to define the

impact of ERP installation on corporate culture

(Krumbholz, 2000), organization (Robey, 2002), or

business processes (Esteves, 2002). In the system

family, the purpose has been to guide the

identification and selection of the most appropriate

ERP (Ncube, 2000), and to elicit requirements to

inform the most adequate customisation of ERPs

(Finkelstein, 2002).

Our approach is in-between the two families. Its

main assumption is that in an ERP project, the issue

of organizational change and system engineering are

intertwined. Therefore, their matching should be

neither driven by the business nor driven by the

system functionality, but both.

Several works have already been achieved on

similarity measure. For example, (Castano, 1993)

proposes to evaluate components reusability through

conceptual schema. (Jilani, 1997) used similarity

measures to select best-fit components. Similarity

metrics for heterogeneous database schema analysis

were introduced by (Bianco, 1999). Our similarity

approach is inspired by Castano and Bianco.

6 CONCLUSION

Our experience in an ERP project at SNCF

confirmed to us the importance of the matching

between the world of business and the one of

systems and the necessity of using similarity

analysis techniques to support this matching. Our

approach to this issue was to use a goal/strategy

model called map as an in-between language on

which the matching process can be achieved in an

efficient way. So far, we have: (i) developed a

specific methodological framework that sets in

context the business models, system functionality

models, and the matching approach, (ii) defined the

issues of matching business models and system

functionality models and (iii) adopted a similarity

typology to systematise the specification of the

result from matching activities.

The next tasks in our research program are: to

further document our methodological framework, to

complete the similarity typology and to develop a

completely guided methodological process model.

REFERENCES

Bianco G. and al. A Markov Random Field Approach for

Querying and Reconciling Heterogeneous Databases.

DEXA’99, Florence, 1999.

Borell A. Hedman J. CVA Based Framework for ERP

Requirement Specification. IRIS 23. Laboratorium for

Interaction Technology, University of Trollhattan

Uddevalla, 2000.

Castano S. De Antonellis V. A Constructive Approach to

Reuse of Conceptual Components. 2

International

Workshop on Software Reusability., Italy, 1993.

Davenport T.H. Mission Critical: Realizing the Promise of

Enterprise Systems. Harvard Business. School Press,

MA, 2000.

Esteves J. Pastor J. Casanovas J. Monitoring Business

Process Redesign in ERP Implementation Projects.

Americas Conference on IS, Dallas, 2002.

Etien A. Salinesi C. Towards a Systematic Definition of

Requirements for Software Evolution: A Case-study

Driven Investigation, EMMSAD Workshop in the

CAISE Conference, Austria, 2003.

Finkelstein A. Bush D. Requirements Elicitation for

Complex Safety Related Systems. London

Communication Symposium. London, 2002

Jarke M. Pohl K. Establishing visions in context: toward a

model of requirements process. 12

International

Conference Information System. Orlando, 1993.

Jilani L.L. Mili R. A. Mili. Approximate Component

Retrieval: An Academic Exercise or a Practical

Concern?. WISR8, Columbus, Ohio, 1997.

Joseph T. Swanson E.B. The Package Alternative in

Systems Replacement: Evidence for Innovation

Convergence, in Information Systems Innovation and

Diffusion. Larsen-McGuire (eds.), 1998.

Krumbholz M. Maiden N.. How Culture might impact on

the Implementation of Enterprise Resource Planning

Packages. CAISE'00, Springer Verlag, 2000.

Ncube C. Maiden N. COTS Software Selection: The Need

to Make Tradeoffs Between System Requirements,

Architectures and COTS/Components. COTS’00

Workshop for ACSE00, Ireland, 2000.

Robey D. Ross J.W. Boudreau M-C. Learning to

Implement Enterprise Systems: An Exploratory Study

of the Dialectics of Change. Journal of Management

Information Systems, 2002

Rolland C. Prakash N. Matching ERP System

Functionality to Customer Requirements. 5

IEEE

Requirements Engineering, Toronto, 2001.

Rolland C. Salinesi C. Etien A. Eliciting Gaps in

Requirements Change. Requirements Engineering

Journal, 2003.

MATCHING ERP FUNCTIONALITIES WITH THE LOGISTIC REQUIREMENTS OF FRENCH RAILWAYS: A

SIMILARITY APPROACH

449

Salinesi C. Rolland C. Fitting Business Models to

Software Functionality: Exploring the Fitness

Relationship. CAISE'03, Springer Verlag (pub), 2003.

Standish. Standish

Group. Chaos. www.standishgroup.com

/sample_research/chaos_1994_1.php, 1995.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

450
