DYNAMIC CHANGE OF SERVER ASSIGNMENTS IN

DISTRIBUTED WORKFLOW MANAGEMENT SYSTEMS

Thomas Bauer

DaimlerChrysler Research and Technology, RIC/ED

P.O. Box 2360, D-89013 Ulm, Germany

Manfred Reichert

University of Ulm, Dept. Databases and Information Systems

James-Franck-Ring, D-89069 Ulm, Germany

Keywords:

Workﬂow Management System, Scalability, Distributed Workﬂow Management, Dynamic Server Assignment

Abstract:

Workﬂow management systems (WfMS) offer a promising approach for realizing process-oriented informa-

tion systems. Central WfMS, with a single server controlling all workﬂow (WF) instances, however, may

become overloaded very soon. In the literature, therefore, many approaches suggest using a multi-server

WfMS with distributed WF control. In such a distributed WfMS, the concrete WF server for the control of

a particular WF activity is usually deﬁned by an associated server assignment. Following such a partitioning

approach, problems may occur if components (WF servers, subnets, or gateways) become overloaded or break

down. As we know from other ﬁelds of computer science, a favorable approach to handle such cases may be

to dynamically change hardware assignment. This corresponds to the dynamic change of server assignments

in WfMS. This paper analyses to what extend this approach is reasonable in such situations.

1 INTRODUCTION

WfMS allow computerized business processes to be

run in a distributed system environment (Leymann

and Roller, 2000). The bottom line for any effec-

tive WfMS is to enable easy development and main-

tainance of large process-oriented application sys-

tems. For this purpose, application-speciﬁc code of

single process steps is separated from the ﬂow logic

of respective business processes. So instead of a large,

monolithic program package, we obtain a set of indi-

vidual activities which represent the application pro-

grams. Their orchestration (i.e., the process logic),

however, is speciﬁed in a separate control ﬂow deﬁni-

tion that sets out the order and conditions according to

which the individual activities are to be executed. At

runtime, the WfMS takes care that activities of a WF

instance are executed according to pre-deﬁned control

ﬂow. When a certain activity becomes executable, it

is inserted into worklists of authorized actors. Ex-

actly which user is authorized to work on this activity

is generally determined by the user role assigned to it.

Generally, it is possible that several actors are allowed

to perform a certain activity.

(Central) WfMS, in general, have the disadvantage

that their single WF server may become overloaded

due to the large number of WF instances it has to

control and due to its numerous tasks (e.g., refresh-

ing worklists, calculating the new state of a WF in-

stance after activity completion, starting activity pro-

grams, etc.). To avoid overload situations, different

approaches for distributed WF management were de-

veloped in the past (Bauer, 2001; Kochut et al., 2003;

Muth et al., 1998; Schuster et al., 1999). All of them

follow the idea to distribute the overall system load to

several servers. In doing so, normally, for each WF

activity they try to choose a well-suited WF server for

the control of this activity. For this purpose, for ex-

ample, the server of the subnet containing the greatest

number of potential actors of the respective activity

may be used. This strategy results in a small distance

between the WF server and the clients with respect to

network topology and, therefore, in a good commu-

nication behavior (short response times and low com-

munication costs) (Bauer, 2001; Bauer et al., 2003).

For approaches dealing with distributed WF man-

agement, usually, the WF server controlling a partic-

ular WF activity is already determined at buildtime

(Bauer, 2001; Muth et al., 1998; Das et al., 1997).

In certain situations (e.g., server overload or break-

down), however, it may be advantageous to deviate

from the pre-planned server assignment during run-

time. A method to deal with such cases, which is

well known from other ﬁelds of computer science, is

Bauer T. and Reichert M. (2004).

DYNAMIC CHANGE OF SERVER ASSIGNMENTS IN DISTRIBUTED WORKFLOW MANAGEMENT SYSTEMS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 91-98

DOI: 10.5220/0002628900910098

 SciTePress

to assign tasks dynamically to the hardware compo-

nents. It has been applied, for example, for scheduling

processes in operating systems (Casavant and Kuhl,

1988; Goscinski, 1991), where the processor execut-

ing a particular operating system process is usually

selected when this process is started. As a second ex-

ample consider CORBA (OMG, 1995) where the ex-

ecution server for a method call is selected at runtime

as well. In both approaches, thereby, the current load

and failure situation may be taken into account.

This commonly used approach may be applied to

distributed WfMS as well. One goal is to compensate

overloading of WfMS components (WF server, sub-

net, or gateway). For example, if a speciﬁc WF server

becomes overloaded, tasks it was originally intended

for may be assigned to another server with lower (cur-

rent) load. As another scenario, in which the dynamic

change of server assignments – in the following called

dynamic server changes for short – is reasonable, con-

sider the breakdown of a WfMS component. In such

a case, a different WF server may be chosen (dynam-

ically) for the control of the affected activities.

At ﬁrst glance, support of dynamic server changes

seems to be advantageous. We, therefore, examine

whether they can be used to solve the overload and

failure problems in distributed WfMS. However, our

analysis will show that dynamic server changes are

not appropriate to solve these problems. The main

contribution of this paper is to explain the difﬁculties,

occurring in this context, in detail. In addition, we

describe ways to counteract overload and breakdown

of WfMS components in a more suitable manner.

The next section shortly introduces important fun-

damentals of distributed WF management. They are

necessary for the further understanding of this paper.

Section 3 examines in which states of a WF instance

the dynamic change of server assignments is possi-

ble and does also make sense. Section 4 addresses

the treatment of overload situations by dynamically

changing server assignments. Section 5 discusses the

breakdown of components. In Section 6, alternatives

to dynamic server changes are presented, which are

more suitable to solve the problems described above.

Related approaches are discussed in Section 7. The

paper closes with a summary of the results.

2 DISTRIBUTED WORKFLOW

MANAGEMENT

We consider both enterprise-wide and cross-

organizational, process-oriented applications in

operative use. For example, (Kamath et al., 1996;

Sheth and Kochut, 1997) deal with applications

leading to a WfMS with more than 10000 users and

a number of currently active WF instances achieving

the same magnitude. Owing to this large number

of users and co-active WF instances, the WfMS

is generally subjected to an extremely heavy load.

Single components of the system, therefore, may

become quickly overloaded.

To avoid overload situations, several approaches

suggest to not only control a WF instance by a sin-

gle WF server. Instead, its WF schema is partitioned

and the resulting partitions are executed by different

WF servers (Bauer and Dadam, 1997) (see Fig. 1).

p a r t i t i o n 1

p a r t i t i o n 2

p a r t i t i o n 3

W F s e r v e r 3

W F s e r v e r 2

W F s e r v e r 1

n o r m a l c o n t r o l f l o w

c o n t r o l f l o w

a n d m i g r a t i o n

A C T I V A T E D

( t h e a c t i v i t y w a s i n s e r t e d

i n t h e w o r k l i s t s )

R U N N I N G

( t h e a c t i v i t y i s c u r r e n t l y

e x e c u t e d b y a u s e r )

C O M P L E T E D

( t h e e x e c u t i o n o f t h e

a c t i v i t y w a s f i n i s h e d )

p a r t i t i o n 1

p a r t i t i o n 2

p a r t i t i o n 3

W F s e r v e r 3

W F s e r v e r 2

W F s e r v e r 1

a )

b )

m i g r a t i o n

A c t i v i t y S t a t e s :

c u r r e n t l y

i n v o l v e d

c u r r e n t l y

i n v o l v e d

c u r r e n t l y

i n v o l v e d

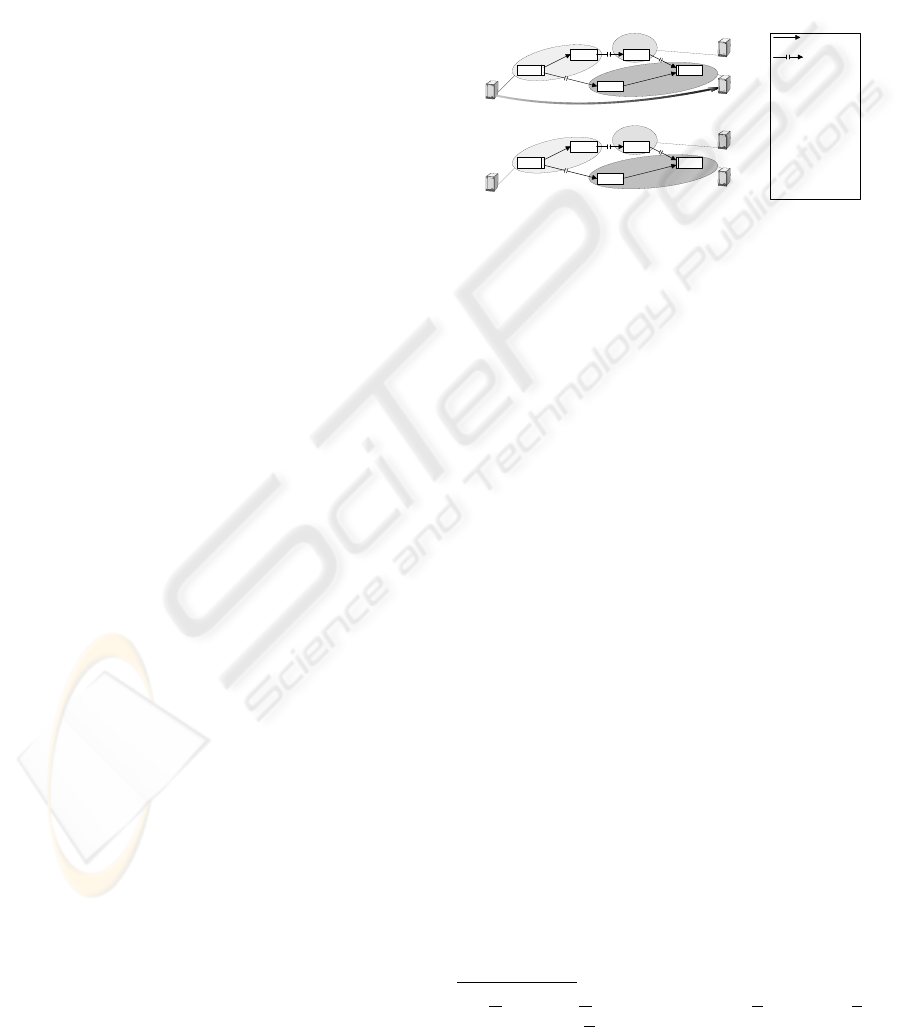

Figure 1: a) Migration of a WF instance (from server 1 to

server 3) and b) the resulting state of the WF instance.

This also applies to ADEPT

distribution

(Bauer,

2001; Bauer et al., 2003), the distributed variant of

the ADEPT

approach (Dadam et al., 2000; Reichert

and Dadam, 1998). When the end of a partition is

reached during runtime, control over the respective

WF instance is handed over to the next WF server.

To perform such a migration, a description of the WF

instance state (current execution state and values of

parameter data of activity programs) has to be trans-

ferred to the target server before it can take over con-

trol (Bauer et al., 2001).

As already mentioned, partitioning of WF schemes

at buildtime and distributed WF control during run-

time have been successfully utilized by other ap-

proaches as well (Casati et al., 1996; Muth et al.,

1998). Some of them also aim at minimizing the over-

all communication costs. The experiences we gained

with legacy WfMS have shown that there is a great

deal of communication between a WF server and its

clients, oftentimes necessitating the exchange of large

amounts of data. This, in turn, may overload the com-

munication system as well. In ADEPT

distribution

for WF activities the controlling servers are automat-

ically calculated at buildtime. This is done in a way

that minimizes the overall communication (Bauer and

Dadam, 1997; Bauer and Dadam, 2000). In doing so,

typically, the WF server selected to control a speciﬁc

activity will reside in that subnet the greatest number

of potential actors belongs to.

pplication Development Based on Encapsulated Pre-

Modeled Process T

emplates.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

3 APPROACHES FOR DYNAMIC

SERVER CHANGES

The way of how to perform dynamic server changes

signiﬁcantly inﬂuences resulting costs and beneﬁts.

In this section, we examine general approaches for

migrating a WF instance to a target server, which is

dynamically selected at runtime (dynamic migration).

Generally, reaction on overload or failure situations

should happen very quickly. For concerned WF in-

stances, this requires to dynamically change the WF

server of currently executed activities. In order to gain

larger impact and to prevent unnecessary migrations,

it is always recommendable to change the assignment

of the whole current partition. A vital aspect, thereby,

is the point in time this happens. Generally, the fol-

lowing possibilities exist (cf. Fig. 2):

Approach 1: Dynamic Server Changes May Hap-

pen at Any Point in Time

Dynamic changes of server assignments are allowed

at any time during WF execution. As a consequence

the originally intended server has to notify all clients

involved in the processing of the current activity about

the change. Otherwise, responses would be directed

to the wrong (namely to the old) WF server. Apart

from this, normally, this approach requires an addi-

tional migration when a server assignment is changed.

Approach 2: Dynamic Server Changes are Prohib-

ited for Activities to be Started

Dynamic server changes are forbidden if the activ-

ity (of the concerned execution branch) has currently

state ACTIVATED (Reichert and Dadam, 1998). Dur-

ing this state, corresponding work items are offered

to all potential actors who may work on this activity.

In case of dynamic migrations at most one client has

to be informed about the server change, namely the

client of that user actually executing this activity.

Approach 3: Dynamic Server Changes are Only

Allowed After Completion of Activities

Dynamic migrations are only performed if a tran-

sition between two consecutive activities currently

takes place. At this time, no client is involved in

processing the corresponding execution branch of the

WF instance. (The completed activity is not contained

in worklists any more, it is currently not executed, and

there are no work items belonging to the subsequent

activity yet.) Clients, therefore, need not be informed

about the server change; there is even no need for

them to know that dynamic server changes are pos-

sible. Using this approach, solely an additional mi-

gration may have to be performed in order to realize

the dynamic server change.

Approach 4: Server Changes are Allowed Only in

Case of Pre-planned Migrations

Dynamic server changes are only possible if a pre-

planned migration currently takes place.

In doing

so, only the target server of a (pending) migration has

to be changed. This approach does not require any

additional migration.

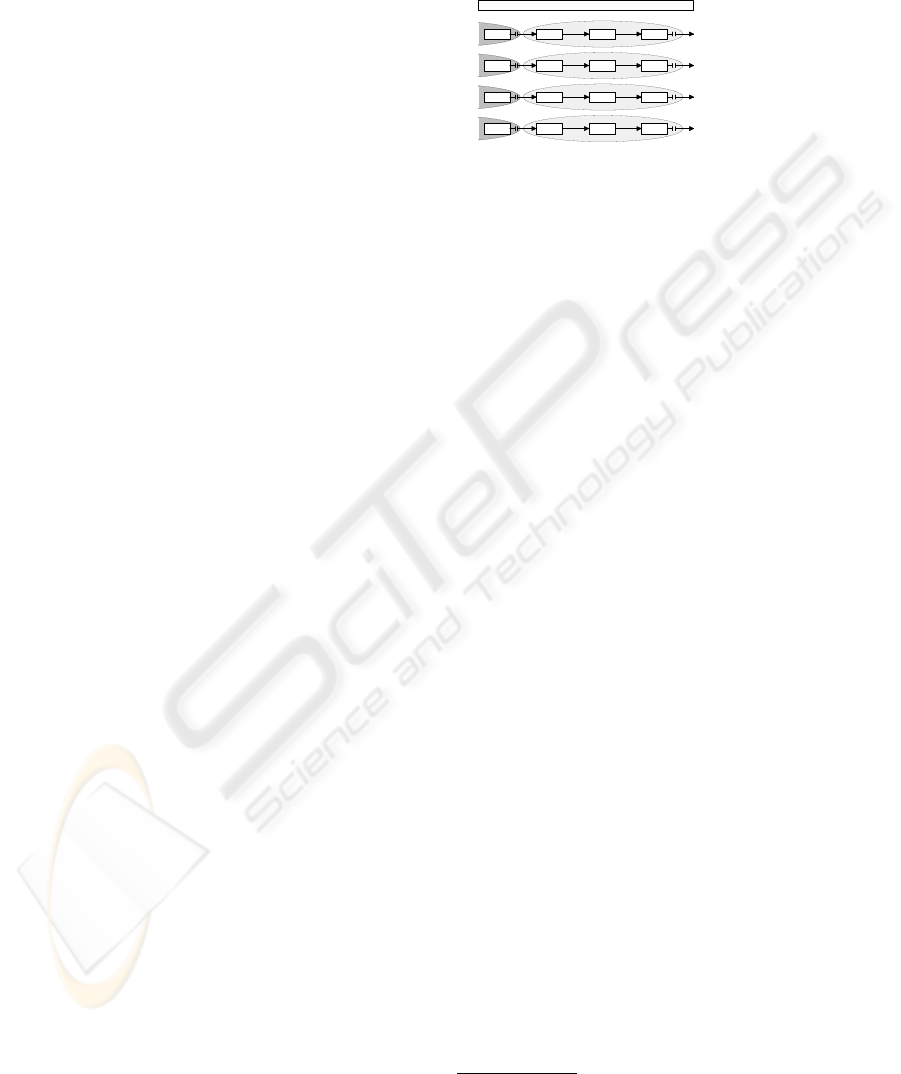

A C T I V A T E D C O M P L E T E D

d y n a m i c c h a n g e o f t h e s e r v e r o f t h e

c u r r e n t p a r t i t i o n x i s p o s s i b l e w i t h A p p r o a c h

p a r t i t i o n x

3 3

p a r t i t i o n x

3 3

p a r t i t i o n x

3 3

R U N N I N G

y e s y e s y e s y e s

y e s y e s y e s n o

y e s y e s n o n o

y e s n o n o n o

a b c d

1 2 3 4

Figure 2: Possibilities for realizing dynamic server changes.

Let us shortly discuss the efﬁciency of these four

approaches: Realization of Approaches 1 and 2 is

very expensive since clients have to be involved in dy-

namic server changes. In addition, they require much

communication effort and are error-prone. Errors may

occur, for example, if a client, which could temporar-

ily not reach its server, tries to transmit the output data

of an activity program to this (already obsolete) WF

server. Approach 3 creates communication load as

well since additional migrations are required for dy-

namically changing a server. Only Approach 4 does

not require additional communication and does not

have any impact on clients. Using this approach, how-

ever, less WF instances may be subject of a dynamic

server change (because of their current state). Reason

is that only such WF instances may be considered,

for which a (pre-planned) migration currently takes

place. Nevertheless, there is still a large number of

WF instances falling into this category. Note that in

enterprise-wide scenarios a WF server controls many

WF instances at each point in time. This is especially

valid for high-performance WfMS as considered in

this paper. It is no good idea, anyway, to migrate

too many WF instances at the same time since this

may lead to the underload of the formerly overloaded

server; i.e., to a “ﬂattering” of the load.

To avoid unnecessary limitations, in the following,

all approaches are considered despite of the weak-

nesses discussed. It is examined, thereby, which ap-

proach is most suited for solving the given problems.

4 TREATMENT OF OVERLOAD

SITUATIONS

In the following, we examine to what extend Ap-

proaches 1-4 are suited to compensate the overload of

WfMS components. At ﬁrst, we consider the overload

The creation of a new WF instance is treated similar to

a migration. Therefore, the ﬁrst partition of a WF instance

may be subject of a dynamic server change as well.

DYNAMIC CHANGE OF SERVER ASSIGNMENTS IN DISTRIBUTED WORKFLOW MANAGEMENT SYSTEMS

of communication system components (subnets, gate-

ways). Then we inspect overloading of WF servers.

Finally, we discuss general issues related to dynamic

server changes in the context of overload situations.

4.1 Overloaded Components of the

Communication System

4.1.1 Overloaded Subnets

Let us assume the scenario depicted in Fig. 3, where

subnet x of the WfMS is currently overloaded. This

overload shall be compensated by assigning WF in-

stances, normally controlled by the WF server of sub-

net x, to another server.

c l i e n t

W F s e r v e r

g a t e w a y

s u b n e t ( L A N )

t r a n s f e r W F

i n s t a n c e s t o t h e

s e r v e r o f a s u b n e t

w h i c h i s c u r r e n t l y

n o t o v e r l o a d e d

s u b n e t x

i s o v e r -

l o a d e d

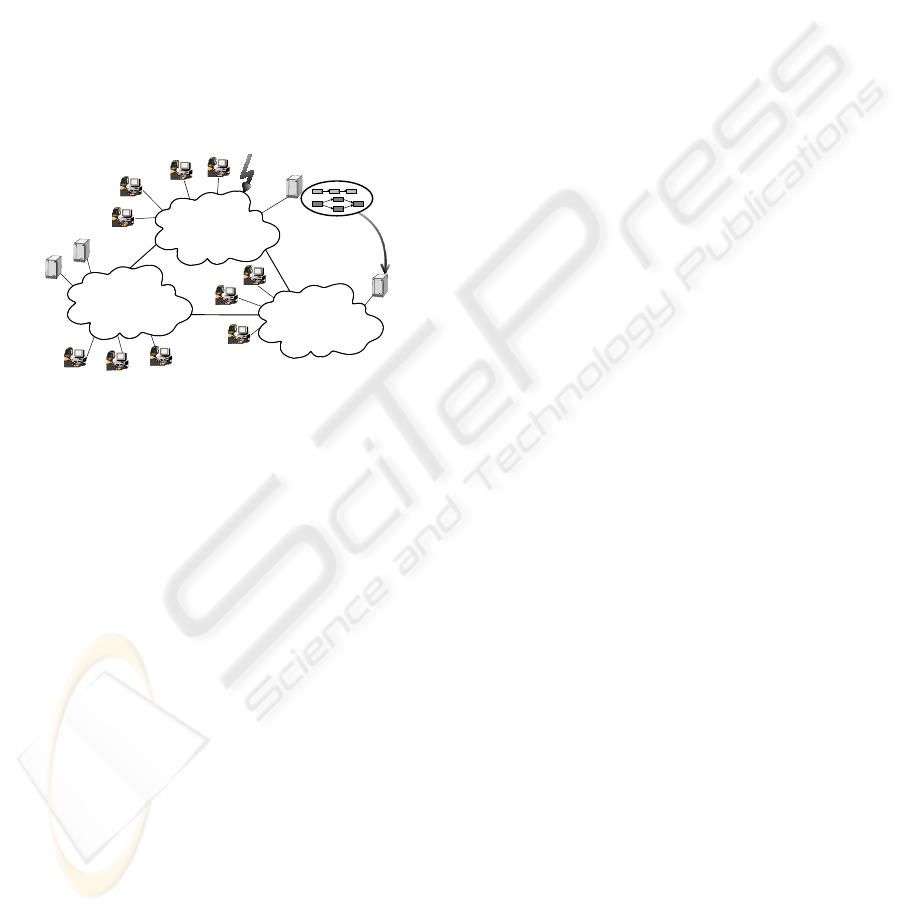

Figure 3: Dynamic change of server assignments in the case

of subnet overload.

Unfortunately, dynamic server changes will not

contribute to reduce the load of subnet x if the ma-

jority of actors who may work on respective activities

belongs to subnet x as well. The communication be-

tween the WF clients of these users and the WF server

will continue crossing subnet x, since the clients will

still be located in this subnet. The overloaded subnet,

therefore, will not be signiﬁcantly unburdened.

However, such an actor distribution is the normal

case, since the majority of potential actors is located

in the subnet of the WF server controlling the current

partition. Note that this server has just been chosen

because of this actor distribution. This makes sense

since such a server assignment contributes to reduce

the overall communication costs (cf. Section 2). The

usage of dynamic migrations, however, has a negative

effect on this goal.

If one of the Approaches 1-3, as described in Sec-

tion 3, is used to realize dynamic server changes, the

total situation becomes even worse due to the addi-

tionally required migration. Such a migration always

burdens the subnet to which the source server be-

longs. The usage of Approaches 1 or 2 makes the

load situation even more worse. For these cases, a

dynamic server change further necessitates additional

communications with clients.

4.1.2 Overloaded Gateways

The overload of a gateway (e.g., a long distance com-

munication link) may be handled in a similar way:

WF instances may be dynamically migrated to a WF

server that belongs to a subnet not connected with

this gateway. Using this method, however, similar

problems as described in the previous section occur.

Therefore, this approach is not recommendable. It is

even less advantageous when compared to treatment

of overloaded subnets since the subnet of the origi-

nally intended WF server may be connected to several

gateways. All of them are unburdened by the dynamic

migration. The load reduction of the overloaded gate-

way, therefore, only happens proportionately.

4.2 Overloaded Workﬂow Servers

The following possibilities exist to reduce the load of

an overloaded WF server: WF instances may be “mi-

grated away” from it or instances, it was originally

intended for, are not transferred to this server.

In this scenario, dynamic server changes more

likely lead to the intended goal because the WF server

has to control fewer WF instances in fact. Using Ap-

proaches 1-3 of Section 3, however, an overloaded

WF server may be further burdened due to the mi-

grations now required. Since the effort necessary to

handle such migrations is larger than for regular activ-

ity executions (because of the larger data volume, cf.

(Bauer et al., 2001)), the suggested method may even

be disadvantageous. With Approaches 1 and 2, in ad-

dition, the WF server has to handle interactions with

clients when performing dynamic migrations. This

results in additional effort. Furthermore, the general

disadvantages of dynamic server changes with respect

to compensation of overload situations have negative

effects on the quality of the presented approach (see

the discussion in the following section).

4.3 Dynamic Server Changes:

General Issues

We have sketched methods for dynamic server

changes in order to handle overload situations of both

the communication system and the WF servers. In

the following, we discuss general difﬁculties arising

in this context.

Just as all methods for load balancing, the pre-

sented approaches require exchange of load informa-

tion (in any kind). First of all, thereby, it is not

relevant which technique is actually used for this

purpose. Numerous variants are known from dis-

tributed scheduling of operating systems processes

(Goscinski, 1991). It is possible, for example, to ex-

change load information periodically between the WF

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

servers. Another possibility is to request the current

load from potential target servers when a dynamic

migration has to be performed. All these methods

have in common that the usage of dynamic server

changes itself burdens the components of the WfMS

and, therefore, increases the risk of an overload.

This disadvantage, however, can be weakened by

using “piggybacking” (Tanenbaum, 1996): The (rela-

tive small) load information to be exchanged is trans-

mitted together with other communications, which

are necessary anyway. If it can be supposed that such

communications (e.g., migrations) occur between all

pairs of WF servers in a sufﬁcient frequency, no ad-

ditional messages become necessary for the exchange

of load information. Only the data volume to be trans-

mitted will be (marginally) increased.

A more crucial disadvantage of load-dependent,

dynamic server changes results from the long

“pauses”, which often occur during WF execution.

On the one hand, they may be caused by the priorities

the users possibly set; on the other hand, long-running

processes may comprise active steps (e.g. medications

in a chemotherapy process) resting for days or weeks,

before they are allowed to be executed. For this rea-

son, a WF instance, which was dynamically migrated

to unburden a component, may rest for a long time. In

such a case, in the short term, we do not achieve any

load reduction at all. Instead the load reduction for

the component happens much later. But then, it may

even be underloaded.

If one of the Approaches 1-3 is used, the situation is

even worse: The migration necessary for the dynamic

server change is performed immediately. This results

in additional effort at a point in time the overload still

exists. With Approaches 1 and 2, the same applies for

the interaction with the clients as well.

4.4 Assessment

Dynamic server changes do not seem to be suitable

to deal with overloaded communication system com-

ponents. Regarding WF servers, a load reduction is

theoretically possible, but occurs with a considerable

delay. If such a method is used, however, it is crucial

that Approach 4 (cf. Section 3) is applied in order to

avoid additional load for the WF server.

5 TREATMENT OF FAILURE

SITUATIONS

To deal with the breakdown of system components the

following method is conceivable:(Partitions of) WF

instances affected by the failure are dynamically as-

signed to another WF server. As we will see, in this

context it does not matter whether the breakdown of

a WF server or a communication system component

has to be compensated. In the following, therefore,

we do not distinguish between these two cases.

5.1 Using Dynamic Server Changes

to Compensate Breakdowns

Assume that the breakdown of a WfMS component

shall be compensated by dynamically changing server

assignments. In this case, the concerned WF instances

cannot be “migrated away” from their current server;

i.e., Approaches 1-3 have to be ruled out. Such a

migration would just require the operativeness of the

failed component. This is obvious for WF servers as

well as for subnets since these components would al-

ways be directly involved in the corresponding migra-

tion.

The breakdown of a gateway is only relevant if this

leads to the fragmentation of the communication net-

work. Otherwise, it would be still possible for the

WF server to reach all of its clients. In case of a net-

work fragmentation, however, a dynamic migration to

the other fragment of the network would be required.

This is the only possibility for the WF server to reach

the clients located there. Such a migration, however,

is impossible due to the breakdown of the communi-

cation link.

For compensating component failures, therefore,

only Approach 4 can be used. With such an approach,

however, it is not possible to improve the situation for

users who have to wait for the processing of their ac-

tions (due to the component failure). Neither they can

start activities offered to them in their worklists nor

they can complete activities they are currently work-

ing on. Reason is that the corresponding WF server

is currently not accessible. These serious problems

are visible to the end user and cannot be solved by

dynamic server changes.

In failure situations, usage of Approach 4 has the

consequence that another target server may be chosen

for a pending migration of a WF instance. This, how-

ever, is not very helpful since in this state no users

are waiting for an action belonging to this WF in-

stance. (Note that the WF instance currently migrates

from one server to another; i.e., the previous activity

was completed and the succeeding activity has not yet

been activated.) The serious problems, described in

the previous paragraph, do not occur in this situation

anyway. In addition, it can be assumed that a failed

component will be repaired early. The delay (that is

not visible to the users), therefore, does not result in

a problem that, in turn, would justify the additional

effort as described.

DYNAMIC CHANGE OF SERVER ASSIGNMENTS IN DISTRIBUTED WORKFLOW MANAGEMENT SYSTEMS

5.2 Assessment

As described above, dynamic server changes are not

well suited to compensate the breakdown of WfMS

components. There are methods, however, which are

much more suitable for this purpose; e.g. the use of

backup servers (Kamath et al., 1996). Corresponding

approaches as well as methods for the treatment of

overload problems are discussed in Section 6.

Since the shortcomings of dynamic server changes

are obvious, we omit a formal presentation of the

sketched methods at this point. The same applies to

the comparison of possible realization variants (e.g.,

techniques for the selection of the target server of a

dynamic migration; i.e., the question, which server

assignment is concretely chosen). It does also not

make much sense to deal with methods for the (ef-

ﬁcient) recognition of component failures. (The same

applies to methods for the efﬁcient realization of the

load information exchange and criteria at which load

and how long one wants to react on overload situa-

tions.) Finally, it is superﬂuous to evaluate the quality

of the corresponding methods by a model calculation

or simulation, because their ﬂaws are obvious.

6 ALTERNATIVE SOLUTIONS

Dynamic server changes have turned out to be unsuit-

able to solve the overload and failure problems com-

ing up with enterprise-wide applications. In the fol-

lowing, we sketch some more promising approaches.

Most of them have been addressed and implemented

within the ADEPT project (Reichert et al., 2003).

In the ADEPT WfMS, the prevention of commu-

nication system overloads has been a crucial aspect

from the very beginning. We developed advanced

methods, which allow reducing the data volume com-

municated in a WfMS. These methods may be used

in combination with each other as well.

We developed a sophisticated method to calcu-

late optimal server assignments already at buildtime

(Bauer and Dadam, 1997). They result in minimized

total communication costs at runtime. For this pur-

pose, we developed algorithms which estimate the

communication costs occurring during WF execu-

tion. This information is used for calculating optimal

server assignments. Our algorithms are based on a re-

alistic cost model and make use of both process and

organization model data (Bauer, 2001).

Variable server assignments can be used to reduce

transmitted data volumes (Bauer and Dadam, 1999)

if concrete actors of an activity depend on preceding

steps (e.g., if an activity shall be performed by the

same user as a preceding one). In such cases, more

ﬂexible server assignments can be used such that the

server to be actually chosen may depend on preceding

activities; i.e., the server for controlling activities of a

certain WF partition needs not always be determined

at buildtime. A detailed description of this approach

can be found in (Bauer and Dadam, 2000).

In (Bauer et al., 2001) we present methods which

can be used to signiﬁcantly reduce the data volumes

transmitted during migrations. In particular, they pre-

vent redundant transfer of WF instance data to the

same server. Such redundant transmissions may occur

in connection with repeated migrations to the same

server (e.g., due to loop backs).

In some cases, even these measures may be insuf-

ﬁcient to prevent communication system overloading.

Then smaller subnets must be created, of which each

has to serve a smaller number of users.

The problem of overloaded servers has been con-

sidered in the ADEPT project as well. In (Bauer

et al., 2003), for example, we present an advanced

method which can be used to prevent overloading of

WF servers. It enables the usage of an arbitrary num-

ber of WF servers in the same subnet. In addition, the

load can be distributed to these servers in an arbitrary

and deﬁnable ratio. Since our method does not re-

quire any additional communication for WF instance

execution, there is no risk for the communication sys-

tem to become overloaded.

If very high availability is required, usage of re-

dundant hardware will be the best way to compensate

server or communication system failures. (Kamath

et al., 1996) presents methods for backup servers.

The information necessary for WF instance control is

continuously transmitted from the processing to the

backup server. In case of server breakdown, there-

fore, the backup server is able to take over control.

Finally, failures of single components of the com-

munication system can be compensated by using re-

dundant communication hardware. This may be im-

plemented, for example, by double communication

rings FDDI (Tanenbaum, 1996).

7 RELATED WORK

Methods which make use of load information have

been applied to the scheduling of operating system

processes for a long time and with great success

(Casavant and Kuhl, 1988; Goscinski, 1991). Based

on current load situation, they determine the pro-

cessor to which a certain process shall be assigned.

This processor, however, is normally determined

when starting an operating system process (non-pre-

emptive scheduling (Casavant and Kuhl, 1988)). Con-

sequently, no running processes have to be trans-

ferred.(This would correspond to a migration.)

In this context, it is important to mention that op-

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

erating system processes do not correspond to WF in-

stances of WfMS. A WF instance consists of activity

instances, which have to be assigned to one or mul-

tiple WF servers. In the same way, an application

consists of operation system processes, which are as-

signed to the processors. Consequently, the operating

system processes correspond to the activity instances.

When assigning activity instances to WF servers, use-

ful information about the activities is available (e.g.,

about actor assignments and distribution of users to

subnets). This, however, is normally not the case for

operating system processes. When scheduling WF in-

stances, therefore, it is possible to select a much more

favorable WF server, with respect to the communi-

cation behavior, as this would be possible by pure

load balancing. The usage of such information cor-

responds to the application of static scheduling meth-

ods (Casavant and Kuhl, 1988) in operating systems,

instead of the usually applied dynamic methods.

In the following, approaches for distributed WF

management are discussed in the context of dynamic

server changes (see also (Bauer, 2001; Bauer and

Dadam, 1999)). Comparable to ADEPT, most of them

determine server assignments for activity instances

based on process and organization model data. Ex-

amples are MENTOR (Muth et al., 1998) and WIDE

(Casati et al., 1996). Both allocate the WF server for

an activity close to its potential actors. The same ap-

plies to MOBILE (Heinl and Schuster, 1996). As op-

posed to the previous approaches, however, in MO-

BILE a WF instance is always controlled by the same

server during its whole lifetime. Consequently, no mi-

grations become necessary. Following this approach,

however, a sub-process may be controlled by another

WF server (Schuster et al., 1999). It is selected at

runtime considering various criteria like access rights

or weights. METEOR

(Das et al., 1997; Kochut

et al., 2003), CodAlf and BPAFrame (both (Schill and

Mittasch, 1996)) always chose the WF server near

to the application that belongs to the current activity.

Finally, there are completely distributed approaches

(e.g., Exotica/FMQM (Alonso et al., 1995) and IN-

CAS (Barbar

a et al., 1996)). For them, usually the

machine of the current actor carries out the server

function. – All these approaches have in common that

the scheduling of activity instances is performed inde-

pendently of the current load and failure situation.

The Exotica/Cluster approach (Alonso et al., 1994)

shows that it is possible to realize scheduling in

WfMS independently of its process and organization

models. Using this approach, the WF server (clus-

ter) of a WF instance is selected randomly at creation

time. The WF instance remains in this cluster dur-

ing its whole lifetime; i.e., no migrations are required.

This approach, however, does also not use any load

information for the selection of the WF server.(But it

can be easily modiﬁed this way.) In addition, (Bauer,

2001) shows that the non-usage of model data results

in an unfavorable communication behavior.

CORBA-based approaches for distributed WF

management have been presented in the literature as

well: WASA

(Weske, 1999) considers activities to

be CORBA objects which signalize state changes to

each other. Since these objects may be allocated

to arbitrary computers, distributed WF management

can be realized this way. The distribution model

of MOKASSIN (Joeris and Herzog, 1999) is similar

to the previous approach: The activity instances are

CORBA objects. They use events to communicate

with each other and they can be placed on arbitrary

computers. With these approaches, in principle, the

CORBA middleware enables the realization of arbi-

trary distribution. It would be possible, thereby, to

realize the distribution in a way that considers load

and failure information. With such a method, how-

ever, the difﬁculties already discussed would occur.

8 SUMMARY

We have analyzed to what extend dynamic changes of

server assignments are useful in order to react to over-

load situations and component failures in a distributed

WfMS. Our analyses have shown that such dynamic

migrations are not suitable to deal with overload sit-

uations. In most cases, they enable almost no load

reduction for subnets and gateways. The required ad-

ditional effort may even have the consequence that the

total situation becomes worse. Only for WF servers,

it is possible to reduce the load, but this reduction is

very limited. For the compensation of WfMS com-

ponent failures dynamic server changes are unsuited

as well. The impacts of such breakdowns, which are

really critical for the end user, cannot be reduced by a

dynamic migration. Reason is that the breakdown of

the WfMS component prevents the execution of the

dynamic migrations. To sum it up, the usage of dy-

namic server changes is not recommendable.

We have sketched alternative methods, which we

realized in the ADEPT project. However, it was not

the goal to discuss them in detail (this happened in

other publications). Instead, we only want to show

that there are alternatives to the usage of dynamic

server changes. With these methods, it becomes pos-

sible to compensate the overload of both the commu-

nication system and the WF servers. In addition, they

can handle failures of these WfMS components.

REFERENCES

Alonso, G., Kamath, M., Agrawal, D., El Abbadi, A.,

unth

or, R., and Mohan, C. (1994). Failure Han-

DYNAMIC CHANGE OF SERVER ASSIGNMENTS IN DISTRIBUTED WORKFLOW MANAGEMENT SYSTEMS

dling in Large Scale WfMS. Technical report, IBM

Almaden Research Center.

Alonso, G., Mohan, C., G

unth

or, R., Agrawal, D., El Ab-

badi, A., and Kamath, M. (1995). Exotica/FMQM:

A Persistent Message-Based Architecture for Dis-

tributed Workﬂow Management. In Proc. IFIP Work-

ing Conf. on Inf. Syst. for Decentralized Organisa-

tions, Trondheim.

Barbar

a, D., Mehrotra, S., and Rusinkiewicz, M. (1996).

INCAs: Managing Dynamic Workﬂows in Distributed

Environments. Journal of Database Management,

7(1).

Bauer, T. (2001). Efﬁcient Realization of Enterprise-wide

WfMS. PhD thesis, University of Ulm. (Tenea-Verlag,

in German).

Bauer, T. and Dadam, P. (1997). A Distributed Execution

Environment for Large-Scale WfMS with Subnets and

Server Migration. In Proc. 2nd IFCIS Conf. on Coop.

Inf. Syst., Kiawah Island.

Bauer, T. and Dadam, P. (1999). Distribution Models for

WfMS - Classiﬁcation and Simulation. Informatik

Forschung und Entwicklung, 14(4).

Bauer, T. and Dadam, P. (2000). Efﬁcient Distributed Work-

ﬂow Management Based on Variable Server Assign-

ments. In Proc. 12th Conf. on Advanced Inf. Syst. En-

gineering, Stockholm.

Bauer, T., Reichert, M., and Dadam, P. (2001). Efﬁ-

cient Transmission of Process Instance Data in Dis-

tributed WfMS. Informatik Forschung und Entwick-

lung, 16(2). (in German).

Bauer, T., Reichert, M., and Dadam, P. (2003). Intra-Subnet

Load Balancing in Distributed WfMS. Int. J Cooper-

ative Information Systems, 12(3).

Casati, F., Grefen, P., Pernici, B., Pozzi, G., and S

anchez,

G. (1996). WIDE: Workﬂow Model and Architecture.

CTIT Technical Report 96-19, University of Twente.

Casavant, T. and Kuhl, J. (1988). A Taxonomy of Schedul-

ing in General-Purpose Distributed Computing Sys-

tems. IEEE Transactions on Software Engineering,

14(2):141–154.

Dadam, P., Reichert, M., and Kuhn, K. (2000). Clini-

cal Workﬂows - The Killer Application for Process-

oriented Information Systems? In Proc. 4th Int. Conf.

on Business Inf. Syst., Posen.

Das, S., Kochut, K., Miller, J., Sheth, A., and Worah, D.

(1997). ORBWork: A Reliable Distributed CORBA-

based Workﬂow Enactment System for METEOR

Technical Report, Department of Computer Science,

University of Georgia.

Goscinski, A. (1991). Distributed Operating Systems: The

Logical Design. Addison-Wesley.

Heinl, P. and Schuster, H. (1996). Towards a Highly

Scaleable Architecture for WfMS. In Proc. 7th Int.

Workshop on Database and Expert Systems Applica-

tions, Zurich.

Joeris, G. and Herzog, O. (1999). Towards Flexible and

High-Level Modeling and Enacting of Processes. In

Proc. 11th Int. Conf. on Advanced Information Sys-

tems Engineering, Heidelberg.

Kamath, M., Alonso, G., G

unth

or, R., and Mohan, C.

(1996). Providing High Availability in Very Large

WfMS. In Proc. 5th Int. Conf. on Extending Database

Technology, Avignon.

Kochut, K., Arnold, J., Sheth, A., Miller, J., Kraemer,

E., Arpinar, B., and Cardoso, J. (2003). Intel-

ligGEN: A Distributed Workﬂow System for Discov-

ering Protein-Protein Interactions. Distributed and

Parallel Databases, 13:43–72.

Leymann, F. and Roller, D. (2000). Production Workﬂow -

Concepts and Techniques. Prentice Hall.

Muth, P., Wodtke, D., Weißenfels, J., Kotz-Dittrich, A.,

and Weikum, G. (1998). From Centralized Work-

ﬂow Speciﬁcation to Distributed Workﬂow Execution.

JIIS, 10(2).

OMG (1995). The Common Object Request Broker: Archi-

tecture and Speciﬁcation. Technical Report Revision

2.0, Object Management Group.

Reichert, M. and Dadam, P. (1998). ADEPT

f lex

– Support-

ing Dynamic Changes of Workﬂows Without Losing

Control. JIIS, 10(2).

Reichert, M., Rinderle, S., and Dadam, P. (2003). ADEPT

Workﬂow Management System: Flexible Support For

Enterprise-wide Business Processes. In Proc. Int’l

Conf. Business Process Management (BPM’03), Eind-

hoven.

Schill, A. and Mittasch, C. (1996). WfMS on Top of OSF

DCE and OMG CORBA. Distributed Systems Engi-

neering, 3(4).

Schuster, H., Neeb, J., and Schamburger, R. (1999). A Con-

ﬁguration Management Approach for Large WfMS.

In Proc. Int. Conf. on Work Activities Coordination

and Collaboration, San Francisco.

Sheth, A. and Kochut, K. (1997). Workﬂow Applications to

Research Agenda: Scalable and Dynamic Work Coor-

dination and Collaboration Systems. In Proc. NATO

Advanced Study Institute on WfMS and Interoperabil-

ity, Istanbul.

Tanenbaum, A. (1996). Computer Networks. Prentice-Hall.

Weske, M. (1999). Workﬂow Management Through Dis-

tributed and Persistent CORBA Workﬂow Objects. In

Proc. 11th Int. Conf. on Advanced Information Sys-

tems Engineering, Heidelberg.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
