A COMPARATIVE STUDY OF EVOLUTIONARY ALGO

RITHMS

FOR TRAINING ELMAN RECURRENT NEURAL NETWORKS

TO PREDICT AUTONOMOUS INDEBTEDNESS

Cuéllar M.P., Navarro A., Pegalajar M.C and Pérez-Pérez R.

Dpto. Ciencias de la Computación e Inteligencia Artificial, ETS Ingeniería Informática, C/. Daniel Salcedo Aranda s.n.

(18071), Universidad de Granada, Granada (Spain)

Keywords: Recurrent Neural Networks, Genetic Algorithms, Niching, CHC, Time Series Prediction

Abstract: This paper presents a training model for Elman recurrent neural networks, based on evolutionary

algorithms. The proposed evolutionary algorithms are classic genetic algorithms, the multimodal clearing

algorithm and the CHC algorithm. These training algorithms are compared in order to assess the

effectiveness of each training model when predicting Spanish autonomous indebtedness.

1 INTRODUCTION

Many techniques have been used to predict a time

series. The use of neural networks applied to this

problem has increased in recent years, and these

have obtained excellent results. Well-known

examples of such networks are the FIR neural

network (Wan, 1993; Cuéllar, 2003) and the

recurrent neural network (Mandic, 2001; Haykin). In

this paper, we shall focus on recurrent neural

networks and in particular, the Elman model.

Traditionally, recurrent neural networks have

been trained with gradient-based algorithms such as

RTRL (Mandic, 2001; Haykin) or BPTT (Wan,

1993). However, one disadvantage of such

algorithms is that they may easily become trapped in

a local minimum. While genetic algorithms may also

become trapped in local optimums, these algorithms

have enough resources to avoid the problem

(Blanco, 2001). Each process consists of two stages:

training a neural network using evolutionary

algorithms (Blanco, 2000, 2001), and predicting the

time series with the trained neural networks.

Section 2 describes the evolutionary algorithms

proposed. In Section 3, we introduce the Elman

recurrent neural network model, and in Section 4,

we explain how this may be trained with

evolutionary algorithms. The results obtained are

shown in Section 5, and the conclusions in Section

2 EVOLUTIONARY ALGORITHMS

Evolutionary Algorithms are optimization, searching

and learning algorithms, based on nature and genetic

evolution processes. In this paper, we work with

three different types of Evolutionary algorithms.

2.1 Genetic Algorithms

Genetic algorithms (GA) (Cuéllar, 2003; Goldberg,

1989; Blanco, 2000, 2001; Back, 1996, 1997) base

the evolution process on the recombination of

individuals from a population of solutions, and also

on the probability that new generated individuals can

mutate to construct non-explored solutions. The

basic scheme of a genetic algorithm is:

0. t= 0; P(t)= population at time t.

1. While stopping condition is not

satisfied, do:

1.1. Selection Operator

1.2. Cross Operator

1.3. Mutation Operator

1.4. P(t+1)= replacement on P(t)

461

M.P. C., A. N., M.C P. and R. P. (2004).

A COMPARATIVE STUDY OF EVOLUTIONARY ALGORITHMS FOR TRAINING ELMAN RECURRENT NEURAL NETWORKS TO PREDICT

AUTONOMOUS INDEBTEDNESS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 461-464

DOI: 10.5220/0002629204610464

 SciTePress

2.2 Multimodal Clearing Algorithm

Mutimodal algorithms (Pétrowski) are very similar

to genetic algorithms. The main difference between

them lies in the fact that multimodal algorithms

evolve different areas (niches) in the search space. A

niche is a set of individuals which can share certain

resources or properties. In the problem explained in

this paper, the property used as a relationship

between individuals is that the Euclidean distance

between their genes must be below a certain

threshold, called the niching ratio. In order to carry

out the cross operation, k best individuals of each

niche are selected, and we allow the N best

individuals among these to be the parents in the

cross operator, where N is the size of the population.

2.3 CHC Algorithm.

Generally, the CHC algorithm (Rawlins, 1991) is

used to solve binary-coded problems. It was one of

the first proposals of evolutionary algorithms that

introduced a balance between diversity and

convergence factors. This algorithm combines an

elitist selection which preserves the best individuals

in the population with a cross operator that generates

descendants which are as different as possible from

the parents. As our problem must be real-coded, we

propose a CHC variation so that we can work with

real-coded solutions.

3 ELMAN RECURRENT NEURAL

NETWORKS

In this paper, we use the Elman recurrent neural

network model. This model has three neuron layers:

one is used as the input data layer, another as the

hidden neuron layer, and the third as the output data

neuron layer. Furthermore, at the current time, the

network saves the values (which previously had

hidden neurons) on a layer called the state neuron

layer. There is the same number of state neurons as

hidden ones. Below, we shall show the equations

which govern the behaviour of the network:

(Eq. 1)

(Eq. 2)

(Eq. 3)

(Eq. 4)

• Y

(t): output of neuron k on the output layer at

time t

• Netout

(t): output of neuron k on the output

layer, while the activation function has not yet

been applied

• Neth

(t): output of neuron k on the hidden layer

when the activation function has not yet been

applied

• S

(t): output of neuron k on the hidden layer

• NHID: number of hidden neurons

• NIN: number of input data neurons

• The net state is defined by the S

(t-1) values for

the NHID hidden neurons at time t

• F(·): activation function for a hidden neuron

• G(·): activation function for an output neuron

• V: weights from the input to the hidden neurons

• U: weights from the state to the hidden neurons

• W: weights from the hidden to the output

neurons

• X(t): net inputs at time t

Values V

, U

, W

are the weights where j

neuron is the source and i neuron is the target.

4 TRAINING MODEL

The architecture of the Elman neural network has

three kinds of weights: input-hidden, state-hidden,

and hidden-output weights. If the input-hidden

weights are labelled V, the state-hidden weights U,

and the hidden-output weights W, then Figure 1

shows the structure to encode an Elman network as a

chromosome (Delgado; Blanco, 2000, 2001).

5 EXPERIMENTAL RESULTS

Having presented the models used in this paper, we

shall compare their performance when used to

predict autonomous indebtedness in Spain.

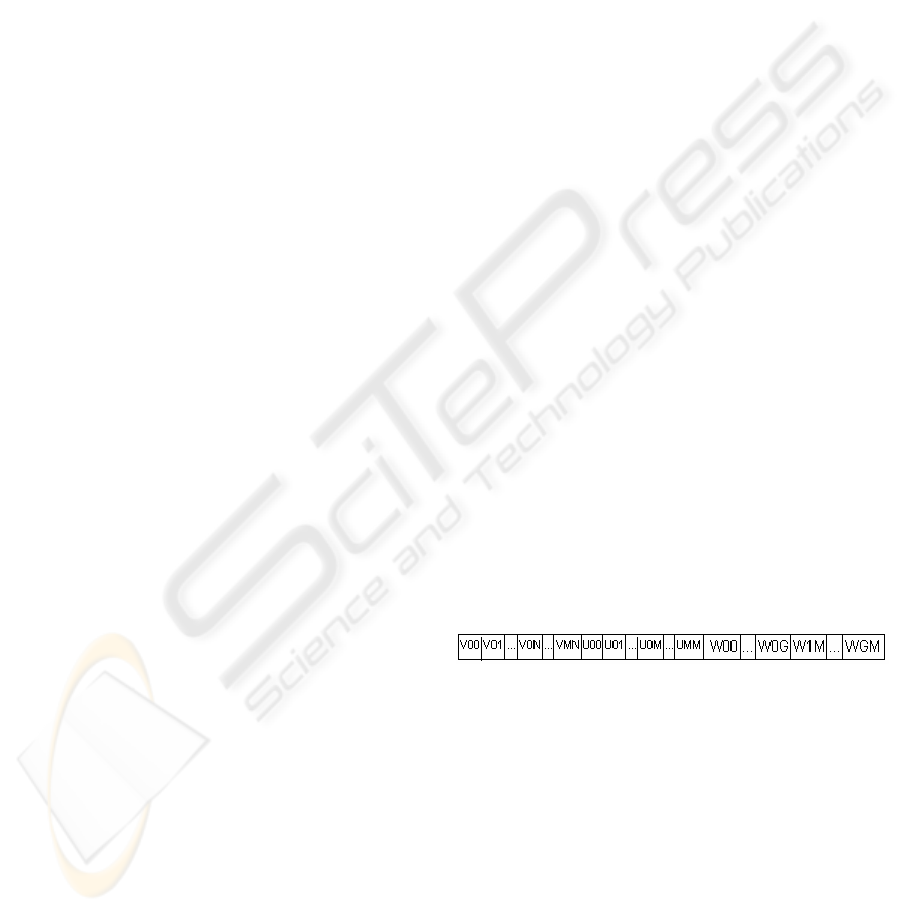

Figure 1: Structure of a chromosome

)()(

netoutgtY =

∑∑

+−=

NHID

NIN

ijihjhh

tXVtSUtneth

)()1()(

))(()( tnethftS

∑

NHID

jkjk

tSWtnetout

)()(

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

462

5.1 Indebtedness Data

We have the GDP data for each autonomous

community in Spain between 1986 and 2000, and we

will attempt to predict the 2001 GDP value.

5.2 Results Obtained

The algorithms has been run four times. The best

results obtained with each algorithm are shown in

Tables 1-3:

Table 1. Mean Square Error and GDP prediction for the

year 2001, obtained with genetic algorithms

COMMUNITY

MSE PREDICTION

Andalucía 8.943364e-03

8.531215

Aragón 6.640314e-03

4.975276

Asturias 4.125895e-03

4.162059

Baleares 5.479581e-03

1,68755

Canarias 2.758203e-02

2,629222

Cantabria 1.949228e-02

3,518876

Castilla y León 9.715380e-03

3,701863

Cataluña 1.417142e-03

8,300801

Extremadura 2.988611e-02

6,285624

Galicia 3.228254e-02

9,140918

Madrid 2.781795e-03

4,556016

Castilla - La

Mancha

3.512358e-04

2,896469

Murcia 2.097112e-03

4,651921

La Rioja 4.581175e-03

2,572255

Valencia 1.904009e-02

10,239502

Table 2: Mean Square Error and GDP prediction for the

year 2001, obtained with a real-coded modification of the

CHC algorithm

COMMUNITY

MSE PREDICTION

Andalucía 4.822338e-04

9.052394

Aragón 9.599990e-04

5.984290

Asturias 5.168292e-04

3.957864

Baleares 1.167222e-06

2.667783

Canarias 1.313612e-03

5.317874

Cantabria 1.152270e-04

5.253256

Castilla y León 8.388055e-05

4.916869

Cataluña 7.945567e-03

9.408566

Extremadura 1.060049e-03

6.441150

Galicia 1.077279e-02

9.140441

Madrid 9.207039e-10

4.770146

Castilla - La

Mancha

4.644942e-04

2.870365

Murcia 1.416471e-02

3.436471

La Rioja 9.128470e-04

1.869554

Valencia 2.499737e-03

7.651457

Table 3: Mean Square Error and GDP prediction for the

year 2001, obtained with the multimodal clearing

algorithm

COMMUNITY

MSE PREDICTION

Andalucía 1.656947e-03

9.429503

Aragón 9.672948e-04

5.605032

Asturias 6.392529e-04

3.955628

Baleares 1.289698e-03

2.772098

Canarias 2.655752e-03

9.388795

Cantabria 1.204943e-03

2.898273

Castilla y León 5.458950e-04

2.783321

Cataluña 3.320007e-03

9.310118

Extremadura 2.619883e-03

6.101216

Galicia 2.769566e-03

8.398488

Madrid 3.640982e-03

6.261248

Castilla - La

Mancha

4.247670e-04

2.868603

Murcia 9.254246e-04

4.655863

La Rioja 6.494098e-03

0.112020

Valencia 2.367001e-05

8.290122

As we can see in the previous tables, the CHC

and the clearing algorithms obtained the minimum

MSE. Nevertheless, these results could be confusing.

For instance, Figure 4 shows that although in the

first data points the adjustment between the

prediction and the real data is excellent, when we

reach the last points, the error increases and the

prediction cannot be trusted. The clearing and the

CHC algorithms obtain a great search depth in the

Autonomous Indebtedness in Spain

13579111315

Andalucía

Aragón

Asturias

Baleares

Canarias

Cantabria

Castilla y León

Cataluña

Extremadura

Galic ia

Madrid

Castilla-La Mancha

Mu r c i a

La Rioja

Valencia

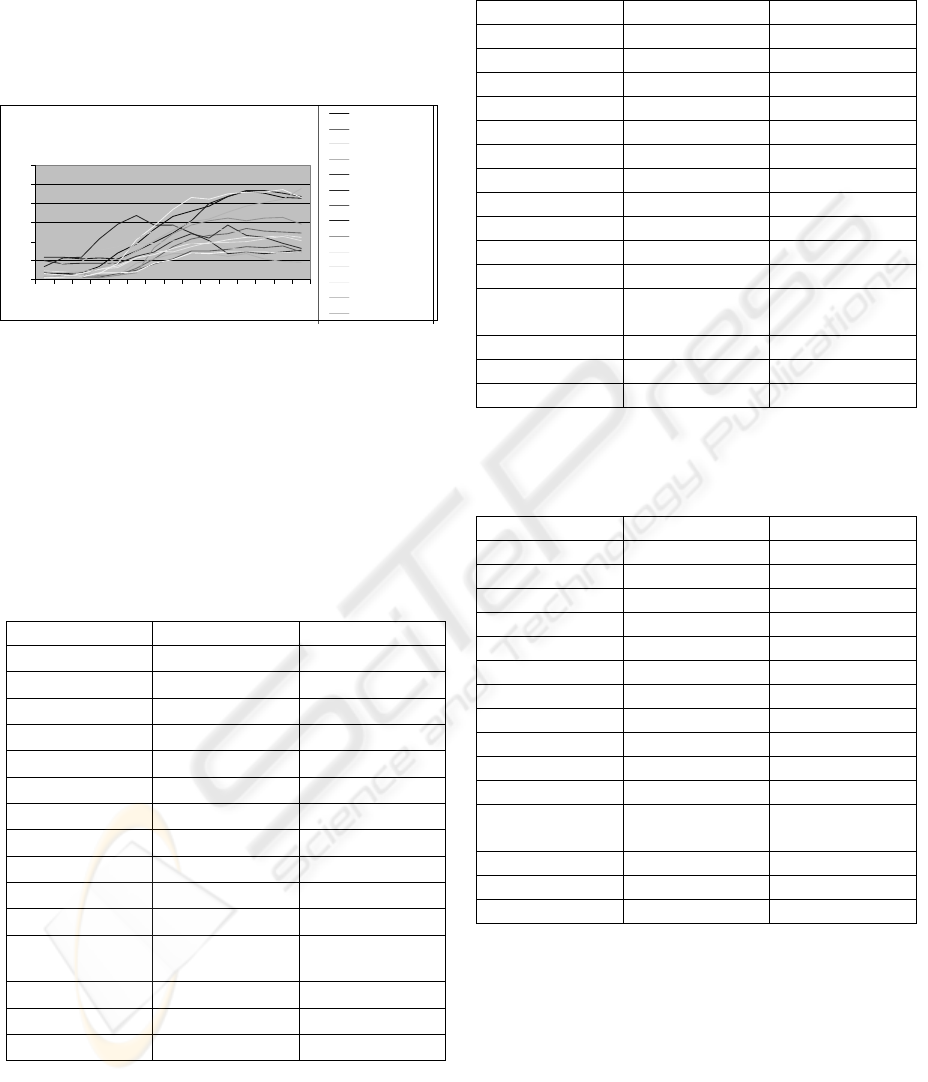

Figure 2: GDP data for each autonomous community

between 1986 and 2000

A COMPARATIVE STUDY OF EVOLUTIONARY ALGORITHMS FOR TRAINING ELMAN RECURRENT

NEURAL NETWORKS TO PREDICT AUTONOMOUS INDEBTEDNESS

463

solution space because of their performance. When

there is a few amount of input data, the CHC and

clearing algorithms overfit the data and the results

are worse than if genetic algorithms were used. This

is what happens in our case: although the mean

square error obtained with genetic algorithms is

worse than that obtained with the other algorithms,

the adjustment of real and prediction data points is

better at a general stage and prediction is therefore

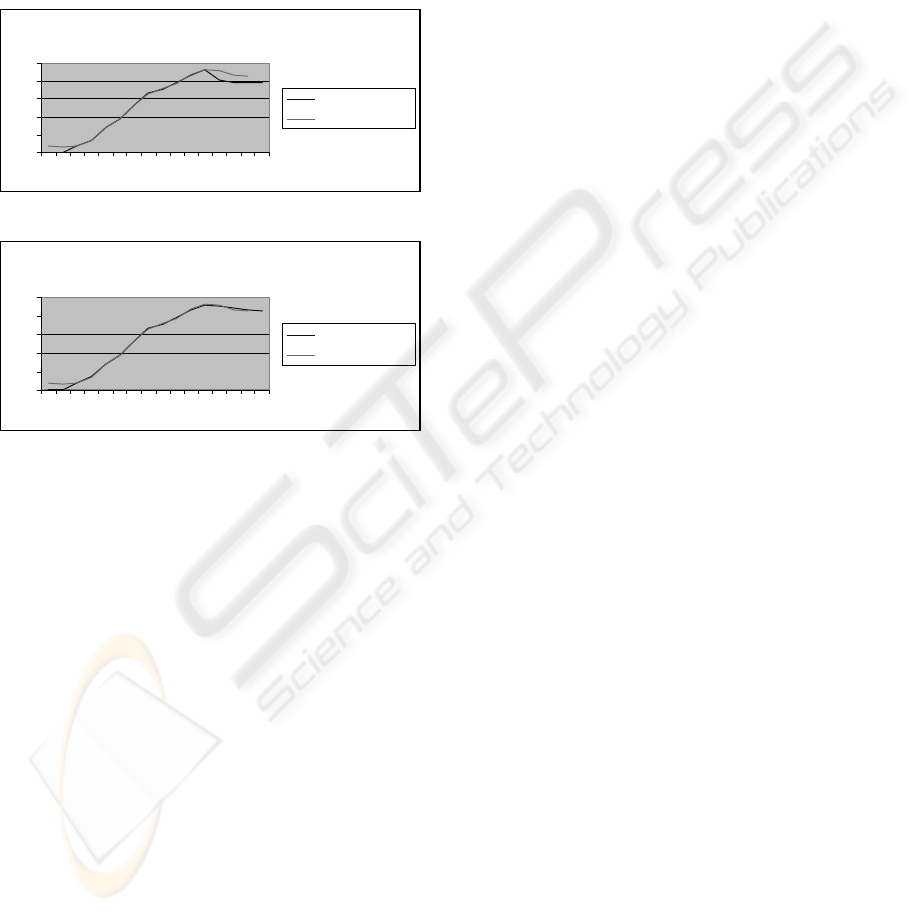

more trustworthy. Figures 3-4 show an example of

GDP prediction with CHC and genetic algorithms,

for the community of Andalucia.

6 CONCLUSIONS

In this paper, we have studied a set of evolutionary

models to train an Elman recurrent neural network,

applied to time series prediction. These models have

proved to be a good tool to predict Spanish

autonomous indebtedness. Furthermore, genetic

algorithms enable Elman networks to be trained

easily, and prediction to be the most approximate

possible. The average MSE obtained between each

community is 0.0116. This means that not only is

prediction good, but also that the model works

uniformly in every community. The standard

deviation of output data is 0.011056, which

corroborates what we have just said.

REFERENCES

Pétrowski A. A Clearing Procedure as a Niching Method

for Genetic Algorithms. In IEEE pp. 798-803. 1996.

Cuéllar M.P., M.A. Navarro, M.C. Pegalajar, R. Pérez. A

FIR Neural Network to model the autonomous

indebtedness In SIGEF’03 Congress, vol I. Leon. Pp.

199-209

Cuéllar M.P., Delgado M., Pegalajar M. y Pérez R..

Predicción del endeudamiento económico español

utilizando modelos bioinspirados. In SIGEF’03

Congress, vol II. Leon Pp.

Danilo P. Mandic, Jonathon A. Chambers; Recurrent

Neural Networks for Prediction. Wiley, John & Sons,

Incorporated. 2001.

Delgado M., Pegalajar M.C.. A Multiobjective Genetic

Algorithm for obtaining the optimal size of a

Recurrent Neural network for Grammatical Inference.

In Pattern Recognition, Special Issue of Grammatical

Interence. (in press)

D.E. Goldberg, Genetic Algorithms in Search,

Optimization, and Machine Learning. Addison

Wesley, 1989

Blanco, Delgado y Pegalajar (2001). A Real-Coded

genetic algorithm for training recurrent neural

networks. In Neural Networks 14, 93-105

Blanco, Delgado y Pegalajar. A genetic algorithm to

obtain the optimal recurrent neural network. In

International Journal of Approximate Reasoning, 23,

pp. 67-83. 2000

Gregory JE Rawlins, Foundations of Genetic Algorithms.

ED. Morgan Kauffman. 1991.

Schmidhuber J.. A fixed Size Storage O(n

) Time

Complexity Learning Algorithm for Fully Recurrent

Continually Running Networks. In Neural

Computation 4, pp. 243-248. 1992.

Simon Haykin, Neural Networks (a Coprehensive

foundation) Second Edition, Prentice Hall

T. Back, D. Fogel, Z. Michalewicz, Handbook of

Evolutionary Computation. Institute of Physics

Publishing and Oxford University Press. 1997.

T. Back, Evolutionary Algorithms in Theory and Practice.

Oxford. 1996.

Wan. PhD Dissertation. Stanford University. Nov. 1993.

Andalucía

1 3 5 7 9 11 13 15

Predicción

PIB Andalucía

Figure 4: GDP prediction for Andalucia with GA

Andalucía

1 3 5 7 9 11 13 15

Predicción

PIB Andalucía

Figure 3: GDP prediction for Andalucia with CHC

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

464
