ATTENUATING THE EFFECT OF DATA ABNORMALITIES ON

DATA WAREHOUSES

Anália Lourenço and Orlando Belo

Department of informatics, School of Engineering, University of Minho

4710-057 Braga, Portugal

Keywords: Data warehousing systems, ETL Processes, Agent-Based Computing, Data Processing.

Abstract: Today’s informational entanglement makes it cruci

al to enforce adequate management systems. Data

warehousing systems appeared with the specific mission of providing adequate contents for data analysis,

ensuring gathering, processing and maintenance of all data elements thought valuable. Data analysis in

general, data mining and on-line analytical processing facilities, in particular, can achieve better, sharper

results, because data quality is finally taken into account. The available elements must be submitted to an

intensive processing before being able to integrate them into the data warehouse. Each data warehousing

system embraces extraction, transformation and loading processes which are in charge of all the processing

concerning the data preparation towards its integration into the data warehouse. Usually, data is scoped at

several stages, inspecting data and schema issues and filtering all those elements that do not comply with

the established rules. This paper proposes an agent-based platform, which not only ensures the traditional

data flow, but also tries to recover the filtered data when an data error occurs. It is intended to perform the

process of error monitoring and control automatically. Bad data is processed and eventually repaired by the

agents, integrating it again into the data warehouse’s regular flow. All data processing efforts are registered

and afterwards mined in order to establish data error patterns. The obtained results will enrich the wrappers

knowledge about abnormal situations’ resolution. Eventually, this evolving will enhance the data warehouse

population process, enlarging the integrated volume of data and enriching its actual quality and consistency.

1 INTRODUCTION

Information systems are the core of any

organization. Every event occurred within

organization’s environment is registered and

eventually processed. Information acts as a key

differentiator. Competing businesses use information

to grant customers’ attention, preserving their

market share. However, the value of information

depends on quality, i.e., data quality sets the trust

one can have on decisions made upon the available

elements (Hipp et al. 2001). In fact, decision support

systems inherited two main goals: to manage and

make available valuable elements for analysis, and

to ensure data quality of their contents through

adequate processing (Naumann 2001)(Guess 2000).

One of the intentions of data warehousing

stems is to provide adequate contents for data

analysis, ensuring gathering, processing and

maintenance of data elements that was considered

relevant. Data analysis, in general, and data mining

and on-line analytical processing facilities in

particular, can achieve better, sharper results,

because data quality is finally taken into account.

Data consistency, integrity and non-volatile are main

premises that are preserved at all cost.

However, the process of extracting, transforming

and l

oading data into the data warehouse is anything

less straightforward. The scenario is inherently

heterogeneous. Gathering every piece of information

that is available and thought useful brings along the

conciliation of different data models and data

schemas, as well as the usual single-source conflicts,

inconsistencies and errors.

This paper presents an agent-based approach to

e traditional Extraction, Transformation and

Loading (ETL) process that populates data

warehousing systems. The proposed platform not

only ensures the traditional data flow, but also

contributes to minimizing the loss of data. It

performs error monitoring and control automatically,

recurring to software agents. The aim was set on

assisting the process, learning from past experiences

411

Lourenço A. and Belo O. (2004).

ATTENUATING THE EFFECT OF DATA ABNORMALITIES ON DATA WAREHOUSES.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 411-415

DOI: 10.5220/0002629604110415

 SciTePress

and thus providing more knowledge to wrappers

about how to deal with abnormal data formats.

In order to accomplish this, a multi-agent

environment was conceived following the

specifications and directives of the Foundation for

Intelligent Physical Agents (FIPA). The intention is

to turn the system as generic, standard, robust and

flexible as possible. Moreover, the system was

developed recurring to Java Agent DEvelopment

Framework (JADE), a FIPA-compliant facility that

delivers all basic features to the creation and

management of a system of this nature. Eventually,

this evolving will enhance the data warehouse

population process, enlarging the integrated volume

of data and enriching its actual quality and

consistency.

2 DATA WAREHOUSING

SYSTEMS: A

HETEROGENEOUS SCENARIO

2.1 An Overview

Data heterogeneity is an unavoidable problem within

data warehousing environments (Lee et al. 1999)

(Jeusfeld et al. 1998). By definition, the purpose of

these systems is to provide the most complete view

of the organization. The available data sources are

quite diverse and can range from conventional

database systems to non-conventional sources like

flat files, HTML and XML documents, knowledge

systems and legacy systems. Thus, reuniting all

distinct, available data elements and building up an

unified content becomes a necessity.

While merging data coming from distinct data

sources, several kinds of problems pump up. Besides

“normal” single-source problems, there are now

different data models and data schemas to take care

of (Rahm & Do 2000). The occurrence of different

categories of errors depends on the intervenient data

sources and, more important, on their heterogeneity.

The data quality of a certain data source largely

depends on the schema and integrity constraints that

control the permissible data values (Fox et al. 1994).

When we are dealing with sources without schema,

like flat files, the probability of occurrence of errors

and inconsistencies is very high as there are not set

any restrictions to the inputs. When sources are

governed by some sort of data model, like it happens

with database systems, part of the damage can be

prevented.

2.2 Abnormal Data Formats

Abnormal data can be classified into the following

categories: incomplete data, incorrect data,

incomprehensible data, inconsistent data and schema

conflicts (both naming and structural).

Records or fields that are missing and that, by

design, are not being filled in, belong to the first

category. Wrong (although valid) codes, erroneous

calculations and aggregations, duplicate records and

wrong information compose the second one.

Incomprehensible data embrace situations like

multiple fields put in one field, weird formatting,

unknown codes and confusing many-to-many

relationships. Inconsistencies may appear at

different levels such as coding, business rules,

aggregations, timing and referential integrity.

Besides, it is not exactly a surprise that, sometimes,

different codes are associated to the same object or

that the same code assumes different meanings or

even, different codes have the same meaning, as

well as, there may be overlapping codes.

On the other hand, there are conflicts that

emerge from the schema rather than from the data

itself. Schema conflicts can be divided into naming

conflicts and structural conflicts (Doan et al. 2001).

Naming issues are related to the use of homonyms

and synonyms, i.e., when the same name is used for

two different concepts and when the same concept is

described by two or more names, respectively.

Structural conflicts appear as a result of a different

choice of modelling constructs or integrity

constraints, arising problems with existing types,

dependencies, keys along with behavioural conflicts.

ETL processes are quite complex. A real-world

system embraces a large number of programs,

temporary data repositories and mapping tables for

data transformation and key generation, among other

items. All these elements have to be very well

conciliated, preventing the occurrence of breaks

along the way and ensuring the data compliance

with the specified requisites. The implementation,

and implantation, of abnormal data situations

detection and control mechanisms demands for more

resources and an additional effort from the system’s

administrator. Typically, most detected error

occurrences have to be worked out by the

administrators themselves. Obviously, their primary

concern is to ensure the non-stopping flow towards

the data warehouse, without putting in risk the

quality and consistency of the repository.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

412

2.3 Relevant Resolution Schemas

Data cleaning (also known as data scrubbing or data

cleansing) is a relative new research field (Maletic &

Marcus 2000) (Marcus & Maletic 2000).

Computationally, the process is very expensive,

requiring leading technology that was not available

till very recently. Researchers are only now

attempting to tackle issues like dealing with missing

data, determining record usability or resolving

erroneous data.

There are still many kinds of problems that have

no solution at sight. Not all kinds of errors can be

eliminated using automated tools and the

development of strategies is most of the times

dependent of the interests of the application areas.

Right now, data cleaning methods take care of five

major error categories: missing values, outliers,

inconsistent codes, schema integration and

duplicates. Missing values can be worked out using

a co-relation with another attribute, i.e., by finding

some rule between the attribute containing missing

values and another one to whom it is somehow

related. Another possibility is to determine an

adequate polynomial model capable of deriving the

missing values. Outliers are an issue a little bit more

complex. Almost all studies that consider outlier

identification are performed within Statistics and

follow one of the following strategies (Knorr & Ng

1997):

Wrapper

Transformer

Scrubber

Integrat or

Extraction Transformation Loading

− the calculation of statistical values (averages,

standard deviation, range), based on

Chebyshev’s theorem and considering the

confidence intervals for each field (Bock &

Krischer 1998) (Barnett & Lewis 1994);

− the identification of the data patterns that apply

to most records, combining techniques such as

partitioning and classification;

− the appliance of clustering techniques based on

the Euclidian distance (Miller & Mayers 2001).

Duplicates make their entrance during the merge

of different sources, and there are three algorithms

considered particularly suitable for large volumes of

data (Hernandez & Stolfo 1998) (Monge 1997)

(Hernandez 1996): the “N-gram sliding window”,

the “sorted-Neighborhood method” and the “domain

independent Priority-Queue algorithm”. Inconsistent

codes can be resolved by using a code repository.

The number of existing codes is quite small when

compared to the overall volume of data. Therefore, it

is feasible to prepare a hash table of codes, checking

each appearing code against the table’s entries and

verifying its correctness.

3 THE AGENT PLATFORM

The proposed platform is intended to perform the

process of error monitoring and control

automatically, recurring to software agents (Jennings

2000) (Wooldridge & Ciancarini 2001). The usual

tasks performed in any given data warehousing

system stay and share now room with abnormal data

formats resolution tasks.

The aim was set on assisting the process, learning

from past experiences and thus, evolving wrappers

knowledge about abnormal situations’ resolution. In

order to accomplish this, a multi-agent environment

was conceived and modelled following the

specifications and directives of the FIPA. By doing

so, it is intended that the system is as generic,

standard, robust and flexible as it is possible.

Moreover, the system was developed recurring to

JADE, a FIPA-compliant facility that delivers all

basic features to the creation and management of a

system of this nature. Eventually, this evolving will

enhance the data warehouse population process,

enlarging the integrated volume of data and

enriching its actual quality and consistency.

Figure 1: The distinct abnormal data processors

As Figure 1 illustrates, each platform embraces

two different processing modules:

− the usual tasks related to the data warehouse

feeding;

− the tasks involved in the abnormal data formats

treatment.

In the particular case of the extraction platform,

there are two main software agent classes: the data

extraction agents and the error analysis and

treatment agents. The first ones are typical wrapping

programs that extract data according to pre-defined

user directives and execute error detection and

classification procedures. The analysis agents are

concerned with the abnormal situations notified by

the extraction agents. They manage these situations,

proposing possible solutions and elaborating reports

about the abnormal situations’ resolution attempts.

ATTENUATING THE EFFECT OF DATA ABNORMALITIES ON DATA WAREHOUSES

413

When a wrapper spots such a situation, i.e.,

detects a given piece of data that does not conform

to the established quality standards, the process is

deployed. If agents are able to recover the affected

data, data will move on to the next ETL stage.

Otherwise, the occurrence will be reported to the

analysis agents and it will be up to them to keep the

treatment process going. If they are able to solve the

error, data will be back on track and if not, data will

be discarded.

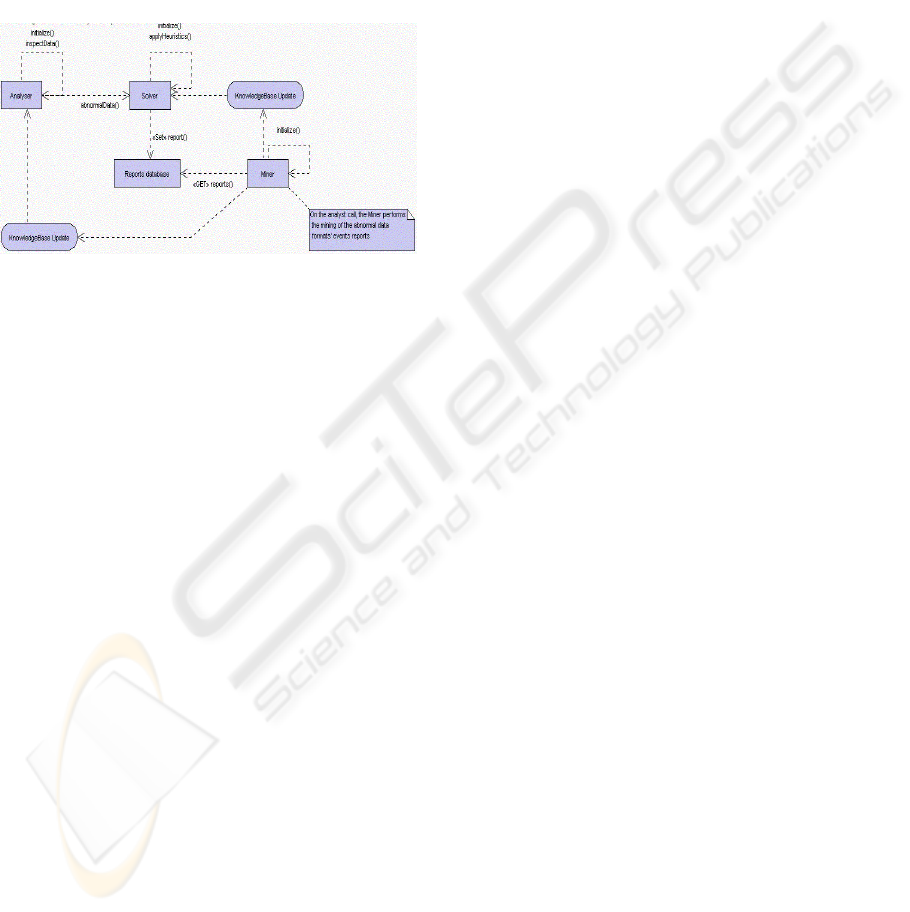

Figure 2: The main agents’ general procedures.

There are three main agent groups (Figure 2):

analyzers, solvers, and miners. Analysers inspect

data, spotting possible error situations and when one

pumps up, they send it to a solver agent. Actually,

the detected abnormal situations are checked against

the resolution rules (based on heuristics) of a solver

agent; if a analyser is capable, by itself, to solve the

issue, the work is done, recorded in the abnormal

situations reports’ database and, the correct data is

goes back to the analysis level (main data stream).

On the contrary, if a analyser is incapable of solving

the problem, it posts a help message to the rest of the

community and a record gives entry in the abnormal

situations reports’ database. If another agent has the

expertise to solve the case, the announcement will be

made. There will always be a report about the

abnormal situation and all the efforts that were taken

in order to repair it. These reports are stored in a

database that, from time to time, is mined, trying to

understand the occurrences. By doing so, it will be

possible to evolve agents’ knowledge bases towards

sharper detection and more skilled resolution.

Obviously, in order to sustain all these activities,

the agents have to be conveniently instructed,

through specialized knowledge acquisition

procedures. It is necessary to collect information

concerning the different kinds of errors that we what

to cover and the correspondent resolution schemas.

All this information is then integrated into the

knowledge bases of the analysis and solvers agents.

Moreover, the agents have to be instructed about

their communication patterns, i.e., they have to

know with whom they can talk to and when each

interaction situation is in order. This implies the

existence of a robust communication medium and an

adequate communication language, capable of

sustaining all inter-agent communication acts.

In this sense, the choice was to set a

communication model that stands over FIPA-

compliant messages (Figure 3) and the multi-agent

environment is integrated in the JADE facility (Pitt

& Bellifemine 1999), a middle-ware that complies

with the FIPA specifications and delivers a set of

tools that support the debugging and deployment

phase (Bellifemine et al. 2001) (Bellifemine et al.

1999). It allows the spread of the agents across

multiple platforms which is essential for this kind of

application area, as well as, supports the agents’

configuration control via a remote GUI. Moreover it

sustains distinct communicative acts and allows the

creation of ontologies according to the application

area.

(request-resolution-schema-begin, // message type

['wrapper', '999.999-99-99'], // sender identification

'2003-06-01 14:00:00', // date

[('extraction-error-manager', '999.999-99-00')], // receiver identification

[('wrapper', '999.999-99-99')], // receiver for the answer

'FIPA-Based-ACL', // communication language

[resolution-schema-suggestion], // expected message

[(*'information-source', '*system', '*table', // message’s body

155,’*attribute3’, ’NULL’ )]

)

Figure 3. A wrapper’s message example.

However, resolving these kind of situations is

anything less straightforward. Sometimes, the local

abnormal situations’ manager has not enough

knowledge to work around the problem. When this

happens, the manager takes the initiative of posting

the wrapping problem to a “higher” manager, hoping

that this helping effort will permit data recovery.

4 CONCLUSIONS

This paper presented an agent-based platform that

targets both regular ETL process and abnormal data

formats identification and resolution within the data

warehousing scenario. The aim is set on optimising

the volume and more important than that, the quality

of the data that populates these systems.

Unquestionably, ETL processes are quite complex,

consuming a large amount of processing resources.

Data keeps evolving and new abnormal data formats

are always pumping in. It is no longer feasible to

sustain such a process manually, urging for

automatic monitoring and control tools.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

414

The software agents are able to balance work,

setting specialised workers for certain tasks (such as

abnormal data formats recognition and repair).

Moreover, it is intended to learn from the past

experiences, evolving the cooperative work.

Therefore, each event is recorded in a database that,

from time to time, it is mined. The obtained results

will be studied in order to better understand the

abnormal data formats that are appearing and thus,

keeping up-to-date the wrappers and the solvers

knowledge bases.

This platform is a FIPA-compliant, JADE

sustained multi-agent system. It allows the spread of

the agents across multiple platforms, as well as,

supports the agents’ configuration control via a

remote GUI. Moreover it sustains distinct

communicative acts and allows the creation of

ontologies according to the application area.

In the future, new resolution rules for abnormal

data formats identification and resolution will be

integrated. Also, the other two platforms, concerning

the transformation and the loading stages of the

process, will be deployed in a similar way.

REFERENCES

Barnett, V. and Lewis, T., 1994. Outliers in Statistical

Data. John Wiley and Sons.

Bellifemine, F., Poggi, A. and Rimassa, G. 2001.

Developing multi agent systems with a FIPA-

compliant agent framework. In Software - Practice

And Experience, no. 31, pp. 103-128.

Bellifemine, F., Poggi, A. and Rimassa, G. 1999. JADE –

A FIPA-compliant agent framework. CSELT internal

technical report. Part of this report has been also

published in Proceedings of PAAM'99, pp.97-108.

London, United Kingdom.

Bock, R.K. and Krischer, W. 1998. The Data Analysis

Briefbook. Springer.

Doan, A., Domingos, P. and Levy, A. 2001. Reconciling

Schemas of Disparate Data Sources: A Maching-

Learning Approach. In SIGMOD, pp. 509-520.

Fox, C. J., Levitin, A. and Redman, T. 1994. The Notion

of Data and Its Quality Dimensions. Information

Processing and Management 30(1): 9-20.

Guess, F. 2000. Improving Information Quality and

Information Technology Systems in the 21st Century.

Invited talk and paper for the International Conference

Statistics in the 21st Century.

Hernandez, M. A. 1996. A Generalization of Band Joins

and the Merge/Purge Problem. Ph.D. thesis, Columbia

University.

Hernandez, M. A. and Stolfo, S. J. 1998. Real-world data

is dirty: Data Cleansing and the Merge/Purge problem.

Journal of Data Mining and Knowledge Discovery,

2(1):9-37.

Hipp, J., Guntzer, U. and Grimmer, U. 2001. Data Quality

Mining - Making a Virtue of Necessity. In

Proceedings of the 6th ACM SIGMOD Workshop on

Research Issues in Data Mining and Knowledge

Discovery (DMKD 2001), pp. 52-57.

Jennings, N. 2000. On Agent-Based Software

Engineering. Artificial Intelligence, 117 (2) 277-296.

Jeusfeld, M.A., Quix, C. and Jarke, M. 1998. Design and

analysis of quality information for data warehouses. In

Proceedings of the 17th Int. Conf. On Conceptual

Modeling, pp. 349-362. Singapore, China.

Knorr, E. M. and Ng, R. T. 1997. A unified notion of

outliers: Properties and computation. In Proceedings

of the KDD Conference, pp. 219-222.

Lee, M.L., Lu, H., Ling, T. W. and Ko, Y. T. 1999.

Cleansing Data for Mining and Warehousing. In

Proceedings of the 10th International Conference on

Database and Expert Systems Applications (DEXA),

pp. 751-760. Florence, Italy.

Maletic, J. and Marcus, A. 2000. Automated Identification

of Errors in Data Sets. The University of Memphis,

Division of Computer Science, Technical Report.

Marcus, A. and Maletic, J. 2000. Utilizing Association

Rules for the Identification of Errors in Data.

Technical Report TR-14-2000. The University of

Memphis, Division of Computer Science, Memphis.

Miller, R. and Myers, B. 2001. Outlier Finding: Focusing

User Attention on Possible Errors. In the Proceedings

of UIST Conference, pp. 81-90.

Monge, A. 1997. Adaptive detection of approximately

duplicate database records and the database integration

approach to information discovery. Ph.D. Thesis,

University of California, San Diego.

Naumann, F. 2001. From Databases to Information

Systems - Information Quality Makes the Difference.

In Proceedings of the International Conference on

Information Quality.

Pitt, J. and Bellifemine, F. 1999. A Protocol-Based

Semantics for FIPA '97 ACL and its implementation

in JADE. CSELT internal technical report. Part of this

report has been also published in Proceedings of

AI*IA.

Rahm, E. and Do, H. H. 2000. Data Cleaning: Problems

and Current Approaches. Bulletin of the Technical

Committee on Data Engineering, vol. 23, n.4, pp. 3-

13. IEEE Computer Society.

Wooldridge, M. and Ciancarini, P. 2001. Agent-Oriented

Software Engineering: The State of the Art. In Paolo

Ciancarini and Michael Wooldridge (editors), Agent-

Oriented Software Engineering. Springer-Verlag

Lecture Notes in AI Volume 1957.

ATTENUATING THE EFFECT OF DATA ABNORMALITIES ON DATA WAREHOUSES

415
