MINING CLICKSTREAM-BASED DATA CUBES

Ronnie Alves and Orlando Belo

Departament of Informatics,Schooç of Engineering, University of Minho

Campus de Gualtar, 4710-057 Braga, Portugal

Keywords: Clickstream Analysis, OLAP systems, Multidimensional Databases, On-line Analytical Mining.

Abstract: Clickstream analysis can reveal usage patter

ns on company’s web sites giving highly improved

understanding of customer behaviour. This can be used to improve customer satisfaction with the website

and the company in general, yielding a great business advantage. Such information has to be extracted from

very large collections of clickstreams in web sites. This is challenging data mining, both in terms of the

magnitude of data involved, and the need to incrementally adapt the mined patterns and rules as new data is

collected. In this paper, we present some guidelines for implementing on-line analytical mining engines

which means an integration of on-line analytical processing and mining techniques for exploring

multidimensional data cube structures. Additionally, we describe a data cube alternative for analyzing

clickstreams. Besides, we discussed implementations that we consider efficient approaches on exploring

multidimensional data cube structures, such as DBMiner, WebLobMiner, and OLAP-based Web Access

Engine.

1 INTRODUCTION

The concepts (and techniques) of data mining and

knowledge discovery could be applied efficiently on

web sites (or e-commerce sites). Recently, web

usage mining has attracted much attention from

researchers and e-business professionals, because it

offers many benefits to an e-commerce website such

as:

– Targeting customers based on usage behaviour

or profile (personalization).

– Adjusting web content and structure dynamically

based on page access pattern of users (adaptive

web site).

– Enhancing the service quality and delivery to the

end user (cross-selling, up-selling).

– Improving web server system performance based

on the web traffic analysis.

– Identifying hot area/killer area of the web site.

The data needed to accomplish such tasks is

deri

ved normally from a Web server log file −

almost all e-commerce applications are Web based.

Clickstream files are generated in order to represent

information that is specific to each Web access

attempt.

The recent progress and development of data

ining and data warehousing technologies

contribute effectively to the emergence of new data

mining and data warehousing systems (Fayyad et al.,

1998) (Chen et al., 1996), opening new doors to the

handling of very large data files like clickstreams.

In this paper we propose a new computational

latform specially design to support the exploration

of multidimensional data cube structures. We also

describe some of the most relevant mechanisms for

exploring data cubes, and discuss the best practices

in data cubes analysis and exploration.

2 EXPLORING DATA CUBE

STRUCTURES

The main idea of a data warehouse is to provide

decision makers with integrated information that is

organized according to their requirements. Online

Analytical Processing (OLAP) systems are the

predominant front-end tools used in these

environments. The main focus of OLAP tools is to

provide multidimensional analysis over decision-

support oriented data. To achieve this goal, these

tools employ multidimensional models for the

storage and presentation of data. In these systems,

583

Alves R. and Belo O. (2004).

MINING CLICKSTREAM-BASED DATA CUBES.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 583-586

DOI: 10.5220/0002631305830586

 SciTePress

data is organized in data cubes (or hypercubes),

which are defined over a multidimensional space

involving several dimensions of analysis.

Consequently, mining can be performed in different

portions of data cubes and at different levels of

abstraction (Zaiane et al., 1998).

2.1 Mining Functions of Data Cube

Engines

Building a clickstream data cube allows for the

application of OLAP operations − such as drill-

down, roll-up, and slice and dice −, to view and

analyze clickstreams from different angles, derive

ration and compute measures across many

dimensions (Kimbal, 2000). This greatly facilitates

the exploration process, since such a process should

be investigative in nature, that is, mining should be

performed at different portions of data at multiple

levels of abstraction improving Knowledge

Discovery Process in Database systems.

We believe the following mining functions are

essential for successful implementation of data cube

engines, and its uses are extremely desired for

clickstream analysis: data characterization, class

comparison, association, prediction, classification,

and time-series analysis.

2.2 Data Cube Engines

There are several projects and implementations

on data cube engines. Most of them try to

accomplish the features mentioned in the previous

section.

DBMiner

DBMiner has been developed for interactive

mining of multiple-level knowledge in large

relational databases and data warehouses (Han et al.,

1997). The system implements a wide spectrum of

data mining functions, including characterization,

comparison, association, classification, prediction,

and clustering. By incorporating several interesting

data mining techniques, including OLAP and

attribute-oriented induction, statistical analysis,

progressive deepening for mining multiple-level

knowledge, and meta rule guided mining, the system

provides a user friendly, interactive data mining

environment with good performance.

WebLogMiner

In the WebLogMiner project, the data collected in

the web logs goes through four stages. In the first

stage, the data is filtered to remove irrelevant

information and a relational database is created

containing the meaningful remaining data. This

database facilitates information extraction and data

summarization based on individual attributes like

user, resource, user’s locality, day, etc. In the second

stage, a data cube is constructed using the available

dimensions. On-line analytical processing (OLAP) is

used in the third stage to drill-down, roll-up, slice

and dice in the web log data cube. Finally, in the

fourth stage, data mining techniques are put to use

with the data cube to predict, classify, and

discoverer interesting correlations (Zaiane et al.,

1998).

An OLAM based Web Access Analysis Engine

In (Chen et al., 1999), was described a scalable

framework developed on top of an Oracle-8 based

data warehouse and a commercially available multi-

dimensional OLAP server, Oracle Express, which

they have used to develop applications for analyzing

customer calling patterns from telecom networks

and shopping transaction from e-commerce sites. In

(Chen et al., 2000), they have described a web

access analysis engine implemented on this

framework to support the collection and mining of

web log records at the high data volumes typical of

large commercial web sites.

3 A DATA CUBE ALTERNATIVE

ENGINE FOR CLICKSTREAM

ANALYSIS

Although there are many studies, implementations

and proposals for efficient and effective data mining

algorithms, data cube engines require fast response

due to its nature of interactive mining, which poses

new challenges on efficient implementation.

The main goal of this system is to develop a data

cube engine based on data mining and OLAP

techniques with abilities to analyze specific

clickstreams from specialized data cubes. In

addition, using this engine, it will be possible to:

– create efficient data cube structures for effective

pattern behaviour analysis;

– create efficient data cube structures for pattern

usage analysis;

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

584

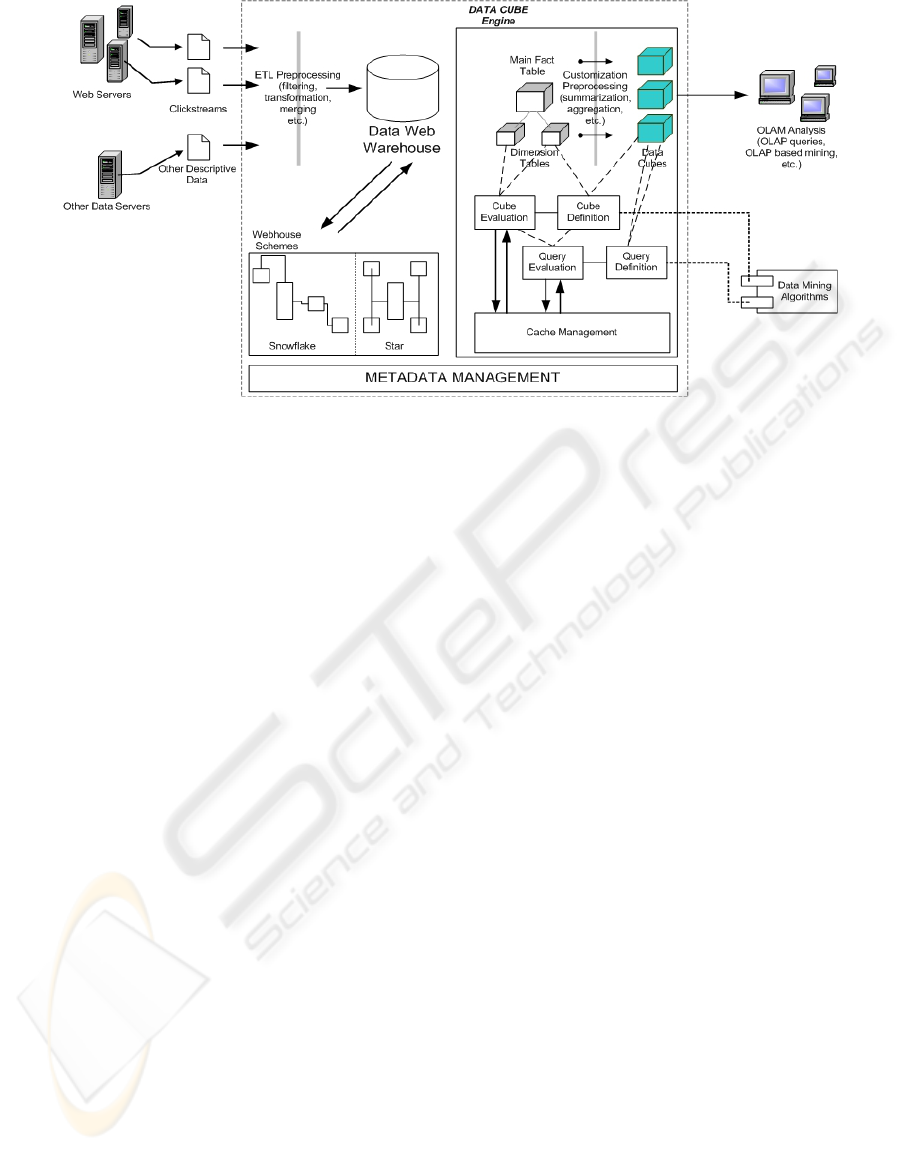

Figure 1: An overall perspective of analysing clickstreams using data cubes.

– perform efficient OLAP operations for effective

exploration of data cubes;

– perform efficient mining techniques for effective

discovery and understanding of clickstream data

cubes.

In fact, we believe that these features will allow

users to carry out several web usage mining tasks

such as mentioned previously. Our motivation in this

data cube approach relies not only on the

implementation issues behind such integration of

OLAP and mining techniques, but on the

configuration, handling and deployment of data

cubes for e-commerce purposes.

3.1 Implementation Guidelines

It is expected that special attention should be paid to

the following implementation considerations to the

successful of this approach, as mentioned in (Han et

al., 1998).

– Modularized design and standard APIs.

– Support of OLAM by high performance data

cube technology.

– Constraint-based on-line analytical mining.

– Progressive refinement of data mining quality.

– Layer-shared mining with data cubes.

– Book marking and backtracking techniques..

Based on these considerations in the next section

we introduce our data cube alternative for analyzing

clickstreams.

3.2 The Engine

In way to attend the requirements previously

mentioned, the data cube engine has been built in

five modules (Figure 1):

– Cube Definition. In this module is defined the

data source which it will be used for creating the

data cube. Then, it is possible to model the cube,

which means designing dimensions and

measures. Also, some hierarchies are defined as

well as some OLAP operations.

– Cube Evaluation. It is responsible for evaluating

cubes generated, which means to verify if all the

constraints and the requirements on the cube

definition engine are satisfied.

– Query Definition. This module is responsible for

describing the query for exploring data cube

using OLAP operations. And sometimes,

interchange these OLAP operations with mining

techniques.

– Query Evaluation. This module acts in the same

way as the cube evaluation module. But, in this

case, it analyzes the query with constraints and

definitions of the data cube that would be

explored, checking the consistency and

presenting query results.

– Cube Mining. This system’s module must be

used for mining data cube using the techniques

available inside the engine. It is also used when

some mining query is required by the query

evaluation module.

The process of analyzing clickstreams, using data

cube structures, begins with some ETL tasks on the

MINING CLICKSTREAM-BASED DATA CUBES

585

clickstream. Next, a ROLAP database is used for

storing the clickstreams. As long as the clickstream

are available on the database it is possible to perform

exploratory analysis using data cubes. Besides,

before any kind of exploration over data cubes a

multidimensional structure needs to be built. This is

supported using the data cube definition module. It

includes the following attributes: page_dimension,

time_di-mension, date_dimension, user_agent,

referrer_di-mension, request_dimension, and

session_di-mension.

Building this clickstream data cube allows the

application of OLAP operations, to view and

analyze the clickstreams from different angles,

derive ratios, or compute measures across many

dimensions. The data cube structure offers analytical

modelling capabilities, including a calculation

engine for deriving various statistics, and a highly

interactive and powerful data retrieval and analysis

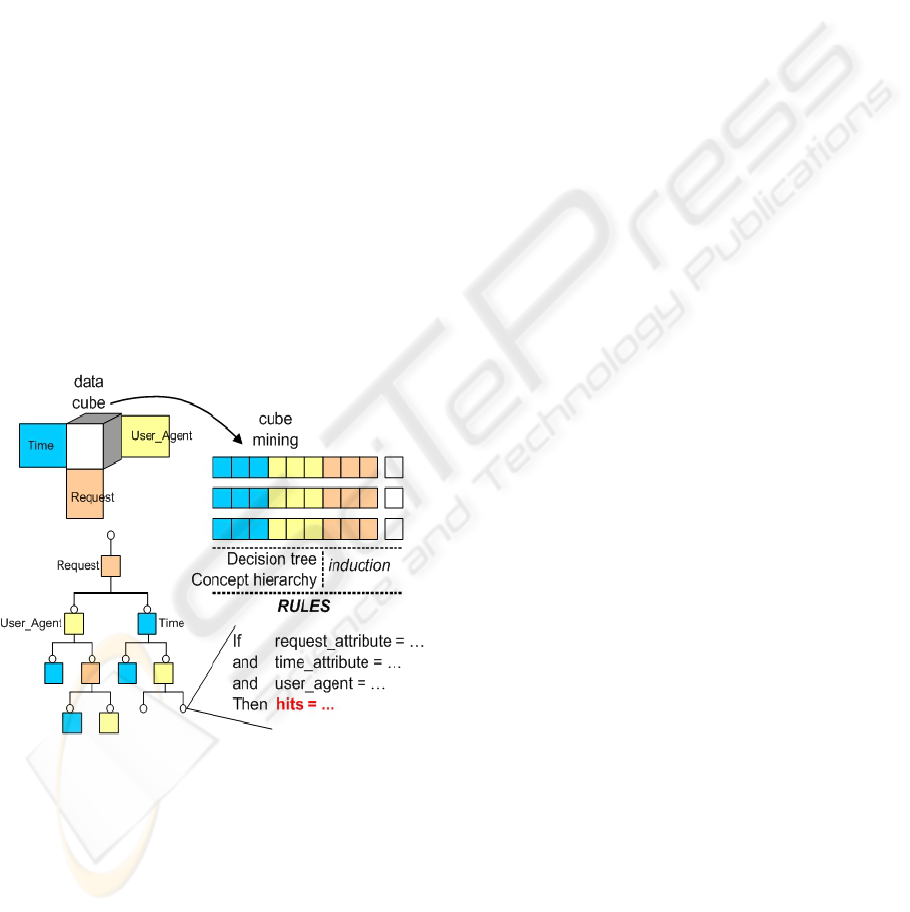

environment. It is possible to use this engine to

discover implicit knowledge in the clickstream data

cube. The knowledge that can be discovered is

represented in the form of rules, tables, charts,

graphs, and other visual presentation forms for

associating or classifying data from clickstream data

cube (Figure 2).

4 CONCLUSIONS AND FUTURE

WORK

In this paper, we have discussed some

implementation issues on on-line analytical mining,

specifically on the data cube engines and its desired

functions. In fact, the observations mentioned in

(Han et al., 1998) (Chen et al., 1999) (Chen et al.,

2000) (Han et al., 1997) motivated us to study the

desired way to perform data cube mining and its

efficient implementation. As a result, we present our

data cube mining engine proposal, which contains

some guidelines and perspectives of research in

applying data cube techniques for analyzing

clickstreams.

REFERENCES

Chen, S., M., Han, J. and Yu, S., P., 1996. Data Mining:

An overview from database perspective. IEEE Trans.

Knowledge and Data Engineering, 8:866-8883.

Chen, Q., Dayal, U. and Hsu, M., 2000. An OLAP-based

Scalable Web Access Analysis Engine”. HP Labs,

Hewlett-Packard, 1501 Page Mill Road, MS 1U4, Palo

Alto, CA 94303, USA.

Chen, Q., Dayal, U. and Hsu, M., 1999. A Distributed

OLAP Infrastructure for E-Commerce. Proc. Fourth

IFCIS Conference on Cooperative Information

Systems (CoopIS’99).

Fayyad, U., M., Piatetsky-Shapiro, G., Smyth, P., and

Uthurusamy., R., 1998. Advances in Knowledge

Discovery and Data Mining. AAAI/MIT Press.

Han., J., 1998 Towards on-line analytical mining in large

databases. ACM SIGMOD Record, 27:97-107.

Han, J., Chee, S., and Chiang, J., Y., 1998. Issues for On-

line Analytical Mining of Data Warehouses,

SIGMOD’98 Workshop on Research Issues on Data

Mining and Knowledge Disvovery (DMKD’98).

Han, J., Chiang, J., Chee, S., Chen, J., Chen, Q. , Cheng,

S., Gong, W., Kamber, M., Liu, G., Koperski, K., Lu,

Y., Stefanovic, N., Winstone, L., Xia, B., Zaiane, O.,

R., Zhang, S. and Zhu H. 1997. DBMiner: A system

for data mining in relational databases and data

warehouses. In Proc. CASCON'97.

Figure 2: Discovering implicit knowledge on

clickstream data cubes.

Kimbal. R., 2000. The Data Webhouse Toolkit, Wiley.

Zaiane, O., Xin, M., and Han. J., 1998. Discovering web

access patterns and trends by applying olap and data

mining technology on web logs. In Proceedings of

Advances in Digital Libraries Conference (ADL),

pages 19—29.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

586
