PRACTICAL APPLICATION OF KDD TECHNIQUES TO AN

INDUSTRIAL PROCESS

Victoria Pachón, Jacinto Mata, Francisco Roche

Escuela Politécnica Superior,Universidad de Huelva, Crta Huelva-La Rabida s/n, 21071 Palos de la Frontera,Huelva.

Spain

Jose Cristobal Riquelme Santos

Escuela Técnica Superior de Ingenieros Informáticos, Universidad de Sevilla, Av. Reina Mercedes, s/n. 41012, Sevilla.

Spain

Jose María Tejera

Atlantic Copper SA. Avda Francisco Montenegro s/n. Huelva. Spain

Keywords: Data Mining, KDD, Industrial Applications of Artificial Intelligence

Abstract: In the process of smelting copper mineral a large amount of sulphuric dioxide (SO2) is produced. This

compound would be highly pollutant if it was emitted to the atmosphere. By means of an acid plant it is

possible to transform it into sulphuric acid, using for this a set of chemical and physical processes. In this

way we dispose of a marketable product and, at the same time, the environment is protected. However, there

are certain situations in which the gases escape to the atmosphere, creating pollutant situations. This would

be avoidable if we exactly knew under which circumstances this problem is produced. In this paper we

present a practical application of KDD techniques to the chemical industry. By means of the obtained results

we show the viability of using automatic classifiers to improve a productive process, with an increase of the

production and a decrease of the environmental pollution.

1 INTRODUCTION

The extraction process of copper from ore, requires

of a very complex production system that makes

necessary the connection of several subsystems,

being each one in charge of a phase of the

productive process. The sub processes carried out by

these subsystems release a set of elements that

instead of being waste material can be used as by-

products (this research has been realised in

collaboration with Atlantic Copper S.A). In several

phases of the productive process, gases containing

sulphur are generated and this is used to produce

sulphuric acid. With the KDD (Knowledge

Discovery in Databases) (Fayyad,1996) process we

intend to obtain the necessary information about the

functioning of the sulphuric acid production system.

In this research, we have specifically used

classification (Chen,1996) as Data Mining technique

(Perner 2001). With this technique we obtain rules

that make possible the definition of procedures that

should help to optimise the functioning of the

system.

The goals that we want to reach with the

realisation of this KDD aplication are:

- To identify the parameters that have an influence

on the system behaviour.

-To know the influence degree of each one of the

parameters on the system.

-To know which response is going to have the

system with regard to performances on the

parameters.

-To know the reasons of the periods of instability of

the system.

-To detect possible disturbances.

-To detect unnecessary or damaging proceedings in

the control of the system, and to discover new

actions that have not been taken into account.

309

Pachón V., Mata J., Roche F., Cristobal Riquelme Santos J. and María Tejera J. (2004).

PRACTICAL APPLICATION OF KDD TECHNIQUES TO AN INDUSTRIAL PROCESS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 309-314

DOI: 10.5220/0002632203090314

 SciTePress

-To obtain performance rules that permit to carry out

a later model of the system as exact as possible, and

-To increase the production and minimise the

environmental impact.

With the obtaining of the goals the company will

have: an optimisation of the functioning of the

sulphuric acid production system, a greater

knowledge of the system that will be useful to help

in a later taking of decisions and a reduction of the

production costs at the same time that a greater

protection of the environment.

In order to study the viability of the improvement

of the control of the sulphuric acid production

system, it is essential to know how the system

works, not only from the point of view of its use but

internally. Since at the present time we do not have a

detailed model of the system, it would be necessary

to give the first steps to obtain such model.

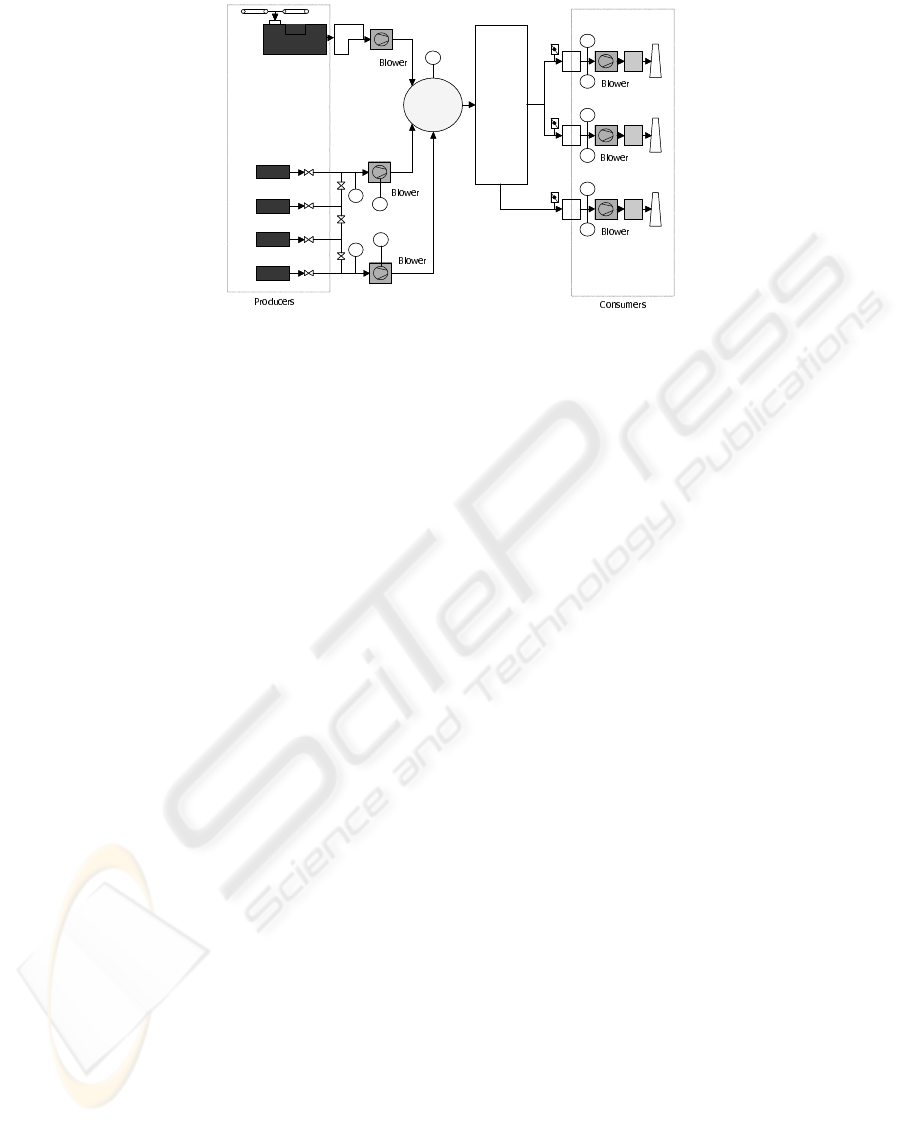

In figure

1 we show a diagram of the aforementioned system.

Basically, this consist in a gas flux system that

contains sulphur in a higher or lesser quantity. By

subjecting the gases to the appropriate processes, we

can use this sulphur to produce sulphuric acid

instead of releasing it to the atmosphere. In this way,

we can contribute to protect the environment at the

same time that we have a marketable product.

In the system there are producers and consumers

of gases. The process consists in canalising in a

suitable way the gases generated by the producers

towards the consumers, in such a way that there is

no production surplus at the same time that the

necessities of the consumers are cared for. The

produced gases are conveyed to the Blending

Chamber (BC), from which they are distributed to

the different consumers.

The gases are conveyed from a point to another

by blowers. The extreme towards which the blower

works has pressure, while the contrary one has

draught. We say that there is draught in the BC,

when the average pressure is below a prefixed value.

It is of vital importance that we always have some

stable and already-established values of pressure in

the BC, since an increase of this can cause the gases

to leak out to the atmosphere, what we must avoid in

every moment.

Due to the complexity of the system and to the

great number of parameters and situations that are

continuously given, sometimes the system is not

stable during a certain time (that is to say, there is

pressure in the BC). Although at present time all the

appropriate measures to avoid this have been taken,

a KDD process would help to know which rank of

values of the variables that operate in the system is

the most suitable to maintain a stability in the BC

and to discover, which are the reasons that provoke

instability to the draught in the BC

2 OPERATIONAL DATA

In our case of study there are sensors that take

measures of different properties or parameters of the

industrial plant. This measures are stored in files,

therefore we have a large database. The KDD

process tries to know why the system doesn´t work

properly.

The results are obtained from the acid factory

data. Each database record consists of the measure

datatime, and the numeric value of 52 diferent

sensors. We have one different record each 2

seconds. We add a new column, called class, to

indicate the system behaviour. An example of the

parameters we are working with is shown in Table 1.

SIST. 1

CV. 4

CV. 1

CV. 3

CV. 2

B.C.

Cleaning

QIC

FIC

QIC

FIC

QIC

FIC

RTM 3

RTM 1

RTM 2

F.F

Boiler

FFC101

FFC102

SIST. 2

CV. 4

CV. 1

CV. 3

CV. 2

B.C.

Cleaning

QIC

FIC

QIC

FIC

QIC

FIC

RTM 3

RTM 1

RTM 2

F.F

Boiler

FFC101

FFC102

SIST. 2

Figure 1: Sulphuric acid production system

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

310

Table 1: Descriptions and measurement units of several

parameters

Parameter

name

Description Mesurement

unit

TCM4 Opening Valve of the

smelting furnace

TCM12 Real value of

pressure in BC

mbar

TCM42 Desired value of

pressure in BC

mbar

TCM37 Blower Velocity Rpm

The tool used to get these results is C4.5

(Quinlan,1993). It is one of the most used in

classification. We have chosen this tool because the

resultant rules can be easily interpreted by the

industrial chemistry experts.

We are working with a real system, so a change

in one of the parameters in the instant of time t can

be reflected in the class in the instant of time t+

t is a difficult value to know because it is the sum

of the different phisical delays of the system. So, the

value of the class in a record in a determinate instant

of time could come about a change in the parameters

of the previous instants of time. Changes will be

recorded in previous database records. The results

have been obtained without consideration of delay.

3 THE KDD PROCESS

The KDD process is a cyclic process. The results

obtained in each period change as the KDD process

stages develop. In order to obtain enough accuracy

in the rules extracted from the data, different

preprocessing stage prototypes have been tested and,

therefore, different Data Mining process results have

been obtained.

3.3 First stage

In a first stage, the operations performed in each step

of the process can be reduced to:

• Data selection: A study of the correlation

between columns was realized. One column was

selected from those that were highly correlated

(correlation higher than 0.8), eliminating the others

since we can consider that they provide the same

information to the KDD process.

• Cleaning: As the data come from a real industrial

system, we have to check some problems that could

appear, and in that case we have to solve them:

1. It is possible that some parts of the system are

not working in the moment of the data acquisition

(for example, because of a failure), so errors in the

sample taking can be produced. These errors are

shown as out of range values for that parameter in

the whole data or as a constant value. Each possible

error was detected and eliminated from the

respective parameter study.

2. During some specified periods of time,

because of unknown reasons, the data acquisition

can be incorrect (of all the parameters or only some

of them). We have to look for each row of the file

corresponding to incorrect data acquisition and

eliminate from the study the respective period of

time information. After the data selection and

cleaning stages, 36 columns were selected from the

starting 57.

• Coding: A new column named label or class with

a Class 1 or Class 0 value was added. The value of

this column is set by the value of the parameter

named TCM12 (see Table 1). What we have to study

is when the draught exists in the BC. Talking to the

expert, it was established that there is pressure when

the TCM12 value is in the interval [-2.7, -2.3]. In

this case, we can assume that the system is working

in an optimum way. Then, we have a Class 1 record.

On the other hand, it is said that the system is not

working in an optimum way when the TCM12 value

is not between the interval [-2.7, -2.3]. In this case,

we have a Class 0 record. The assignment of these

classes is necessary to create the training file which

the Data Mining algorithm works with, since it is a

supervised learning process.

When the data preparation step is finished, the

knowledge extracted from the Data Mining

algorithm is represented as decision rules. A rule has

Rule 3

TCM22 <= 1.19833

TCM35 > 9.02952

TCM40 > 9.43208

TCM44 > 0.0140164 -> Class 0 (1015 records)

Figure 2: Example of decision rule

PRACTICAL APPLICATION OF KDD TECHNIQUES TO AN INDUSTRIAL PROCESS

311

two parts, the antecedent and the consequent. The

antecedent is the group of conditions that are

established on the parameter values and the

consequent, in our case, is one of the classes

assigned to the file. In Figure 2 it is shown an

example of the decision rules obtained during the

process

The expression “Rule 3” indicates only one label

assigned to the rule. The rule in Figure 3 express that

if TCM22 <= 1.19833 and TCM35 > 9.02952 and

TCM40 > 9.43208 and TCM44 > 0.0140164 then,

the class is Class 0. If all the antecedent conditions

are true, the system would not be working properly

since a Class 0 is obtained as consequent. Moreover,

parenthetically, it is shown the number of records

from the training file that fulfil that rule. This value

gives us a sign of the importance of the rule. If the

rule is true in a high percentage of the records, this

indicates that we are in front of a frequent situation

for the system. If a record fulfils the antecedent of a

rule, but not the consequent, that is, fulfils the

parameter restrictions but is of a different class, it is

considered as a learning mistake.

To have a more intuitive interpretation of the rule

for the industrial expert, a graph where the

maximum and minimum values that the parameter

can take (grey color) and the specified rule value

(black color) are shown, has been included (Figure

3). When TCM22 takes low and medium values

(below 1,19) and TCM35 does not take high values,

when TCM40 takes medium and high values and

TCM44

takes medium and high values, the system operation

is not optimum (Class 0).

In Table 2, the operations performed on the data

after the preprocessing step are summarized.

In this first stage, only rules whith apparition

frequency is 1% or higher have been taken into

account. The file has 43201 records, so, only rules

that are true in more than 430 records will be shown.

In further studies, rules with a lower apparition

frequency can be taken into account, if neccesary.

Table 2: Data preprocessing

Number of records before

preprocessing

43201

Number of columns before

preprocessing

Number of records after

preprocessing

43201

Number of columns after

preprocessing

Number of records with Class 1 9804

Number of records with Class 0 33397

The total number of errors covered by each rule is

specified in Table 3. The number of classification

errors found by each rule during the training process

is shown parenthetically. The number of errors

compared with the number of instances gives us an

idea of how “reliable” a rule is. For example, rule 2

is true in 1075 records, but with 29 errors. This

means that from the 1075 times in which the

condition is fulfilled (antecedent), a Class 1 appears

29 times, instead of a Class 0. When there is nothing

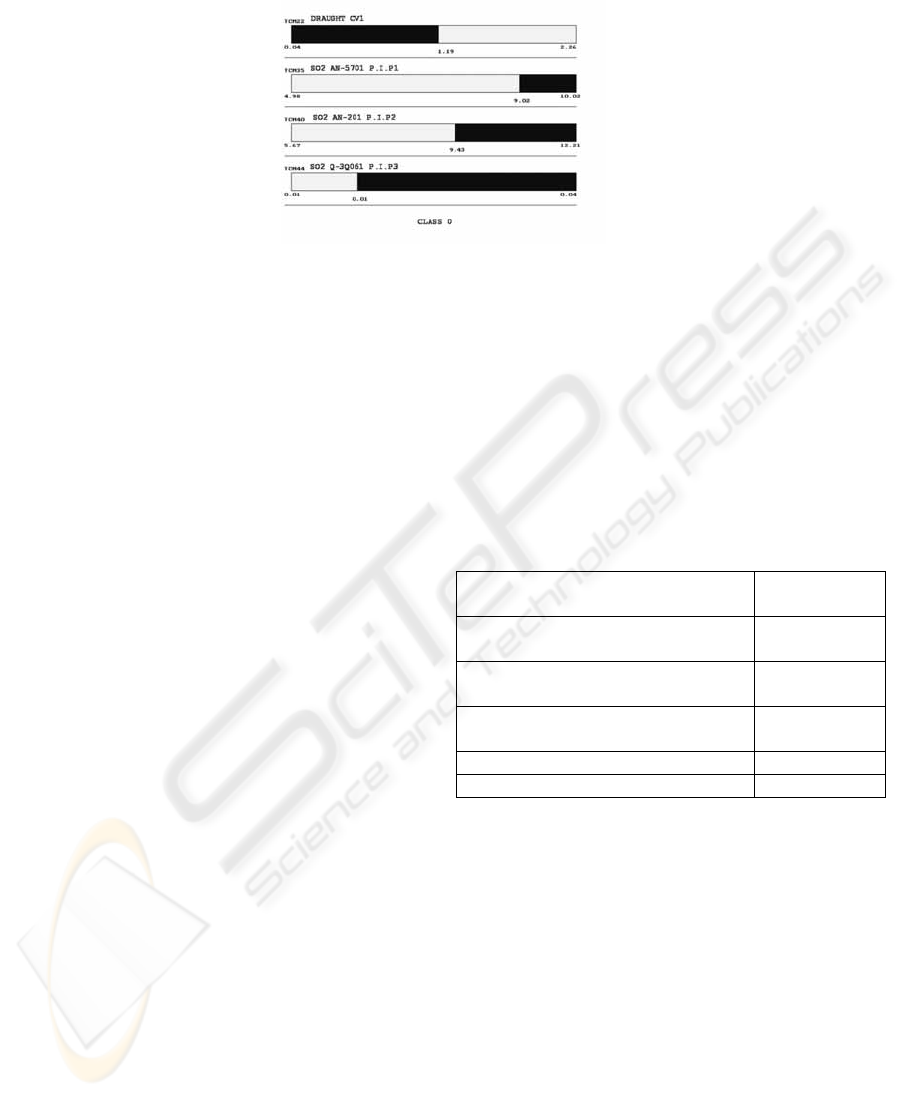

Figure 3: Graphic representation of Rule 3

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

312

to say, it means that the rule does not have any

classification errors.

3.3.1 Results and conclusions of the first stage.

Having analized the rules, it is found that the

parameter TCM37 (Factory 3 Blowers speed) is the

most determining one in the rules 1,2,4,5 and 10 for

a very high range of values in each one.

Table 3 Records covered by each rule

Rule Number of records covered

by the rule

Class

1 1025 (72 errors) Class 0

2 1075 (29 errors) Class 0

3 7493 (1614 errors) Class 0

4 478 (11 errors) Class 0

5 718 (9 errors) Class 0

6 1096 (338 errors) Class 0

7 1824 (458 errors) Class 0

8 1001 Class 0

9 443 Class 0

TCM37 also affects rules 6 and 8 although in

these rules it is just needed that the parameter

reaches high values.

In consequence, high values or very high values

of TCM37 imply pressure in BC. This is the way

this fact might be explained: TCM37 refers to the

blower speed which extracts the gas from BC to the

acid factory. Besides, this blower is the most

powerful one among the three blowers used to

extract the gas from the BC. When the blower

reaches a very high speed for a long time, it is not

possible to extract more gas because it is working at

its maximum. That produces an accumulation of gas

in the BC which creates pressure, and therefore,

Class 0 records.

The extracted rules involve parameters from

different subsystems in its predecessor, which makes

its explanation difficult to an expert. Then, it was

necessary a higher decrease in the number of

parameters if we wanted that the ones which took

part were the most significant ones. This idea would

make the rules easier to understand. To reduce the

system as much as possible, it was thought to work

with the TCM to obtain a productive system

equivalent to the 3 productive systems and another

one with the consumers. This way the system would

only consist of a productive system, the blending

chamber and a consuming system.

The Class 1 rules that can be deduced from the

data, gather a very low records pecentage, and

therefore, not very much significant. In order to

know if the system is working properly, more Class

1 data are needed, or at least, a significant number

of them compared with the Class 0 ones. Besides,

the study could be improved if the TCM12 group of

values could be separated in more classes, not only

Class 0 and 1. We could have 3, 4 or 5 m

ore classes

to express the different states of the system.

Table 4: Number of instances of each class

From the results obtained in the First Stage, we

can conclude that, although these results were

Range of

values

(TCM42-

TCM12)

Class Number of

instances

of each

class

(-0,5..0,5) OK 29843 298

(0,5..1,5)

Pressure

7393 739

(1,5...+inf)

High

pressure

1295 13

(-1,5..-0,5) Draught 3825 38

(-inf...-1,5) High Draught 845 8

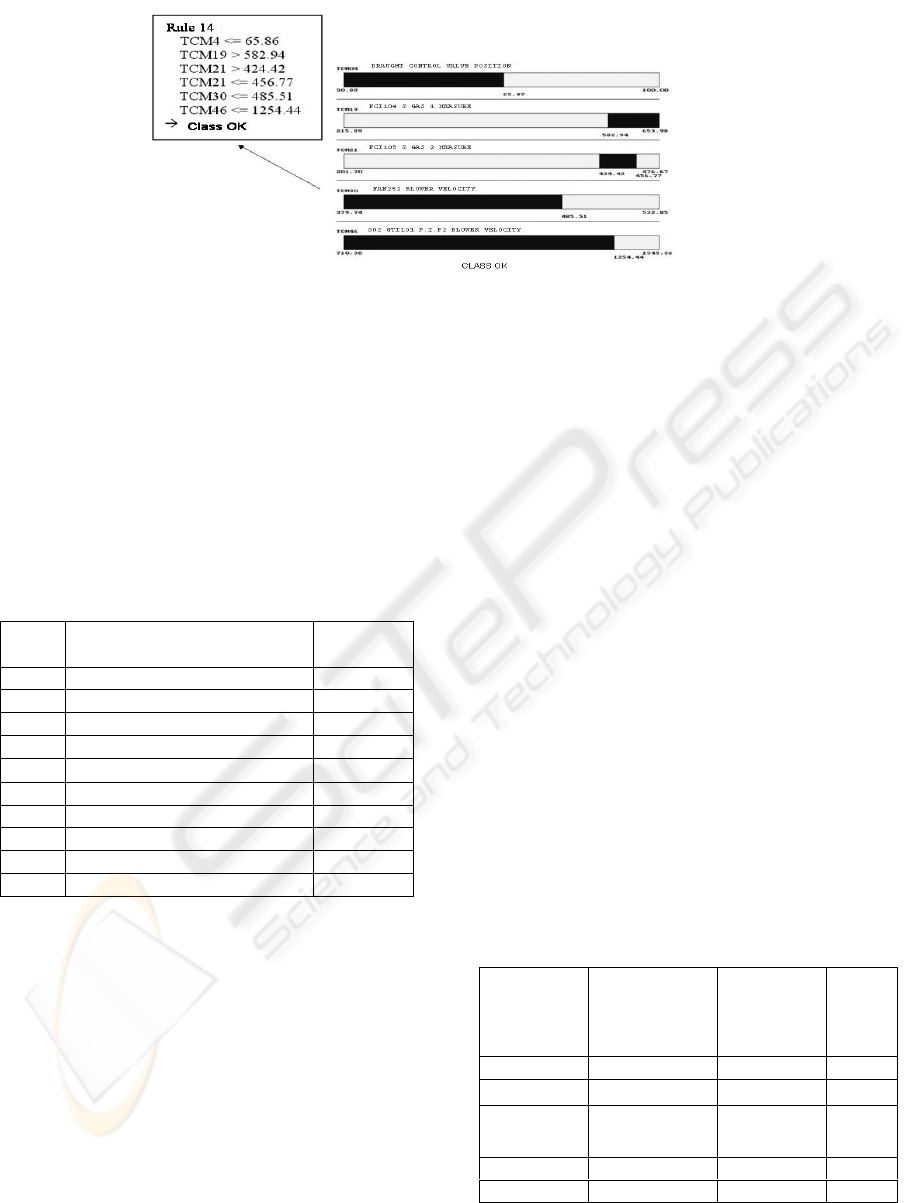

Figure 4: Graphic representation of Rule 14

PRACTICAL APPLICATION OF KDD TECHNIQUES TO AN INDUSTRIAL PROCESS

313

satisfactory, more useful rules could be found if the

number of parameters was reduced and the number

of classes was increased. With these changes, a

second stage of the KDD process could be

developed. In this stage, the preprocessing step

could be done again to prepare the data for the new

circumstances.

3.4 Second Stage

In this stage, the study is a consequence of the

possible improvements that were found after the first

stage. The differences between them are:

• In the first stage, the value of the class depended

on a calculus on the TCM12 value. However, Class

0 was detected corresponding with a correct

behaviour of the system was set by the expert to

solve some situations. To solve this problem, it is

neccesary to think of another way to calculate the

class. The new classes are obtained calculating the

error between the draught set point value in the BC

(measured by TCM42) and the real draught value in

the BC measured by TCM12. We obtain: Pressure,

High pressure, Draught and High Draught.

• To reduce the number of parameters, we must

take into account the blowers and valves that take

the gas to BC and the blowers and valves that extract

gas from BC. Table 4 shows the range of values

corresponding to each class and the amount of

instances of each class. We have selected only those

rules that are true in more than 1% of the instances

of its class. The fourth column expresses the value

that indicates if we can consider that a rule is true in

a significative number of cases.

Table 5: Number of records covered by the rule

Rule

Identifying

Number of

records covered

by the rule

(number of

Class

7 215 (2 errors) Pressure

8 216 (1 error) Pressure

714 (14 errors)

801(38 errors)

840

(44 errors)

3.4.1 Results and conclusions of the second

stage

We don´t have a lot of instances of classes: High

pressure, Draught and High Draught , so the rules

with these classes are not categorical enough.

Table 5 shows the most representative rules of

each class obtained in the second stage. These rules

have a graphic representation, as we show in the

Figure 4.Developing the second stage, we can get

rules that describe the optimal behaviour (class OK).

However, these rules are easier to interprete by the

human expert.

4 CONCLUSIONS

Using data from a real industrial process, we have

developed a KDD proccess. We have obtained a set

of classification rules that approach the system

behaviour. We have two stages in our KDD process.

In the first stage, we worked with two classes, and a

high number of parameters. In the second stage, we

worked with the most significative parameters of

each subsystem, and 5 classes only. In this paper, we

describe all the stages of the process and the most

representative rules. The rules obtained from the

KDD process have helped the human expert to know

the range of values in which the system works

properly. With this analysis we probe the viability of

using authomatic classifiers in a productive process,

with an increase of the production and a decrease of

the contamination.Future works will study the errors

due to the system delays and develop a method of

obtaining rules with delay.

REFERENCES

U.M. Fayyad, G. Piatetsky-Shapiro y P. Smyth: From

Data Mining to Knowledge Discovery in Databases,

pages 37-54. Ai Magazine. 1996

M.S. Chen, J. Han y P.S. Yu. Data Mining: An Overview

from Database Perspective. IEEE Transactions on

knowledge and Data Engineering, pages 866-883.

1996

J.R. Quinlan. C4.5: Programs for Machine Learning.

Morgan Kaufmann Publishers. San Mateo. California,

1993

Perner, P., 2001. Tutorial part on data mining. In: Perner,

P., Ahlemeyer-Stubbe, A. (Eds.), Proceedings of the

1st Industrial Conference on Data Mining, ICDM

2001, IBaI Report, Leipzig, 2001

Santen, A., Koot, G.L.M. y Zullo, L.C., 1997. Statistical

data analysis of a chemical plant. Computers and

Chemical Engineering 21, S1123–S1129

Alex Berson, Stephen Smith y Kurt Thearling: Building

Data Mining Applications for CRM. McGraw-Hill.

New York, 2000

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

314
