ADVANTAGES OF UML FOR MULTIDIMENSIONAL MODELING

∗

Sergio Luj

an-Mora, Juan Trujillo

Department of Software and Computing Systems, University of Alicante

Carretera de San Vicente s/n, Alicante, Spain

Panos Vassiliadis

Department of Computer Science, University of Ioannina

Ioannina, Hellas

Keywords:

Multidimensional modeling, UML, data warehouses, multidimensional databases, OLAP, object orientation.

Abstract:

In the last few years, various approaches for the multidimensional (MD) modeling have been presented. How-

ever, none of them has been widely accepted as a standard. In this paper, we summarize the advantages of using

object orientation for MD modeling. Furthermore, we use the UML, a standard visual modeling language, for

modeling every aspect of MD systems. We show how our approach resolves elegantly some important prob-

lems of the MD modeling, such as multistar models, shared hierarchy levels, and heterogeneous dimensions.

We believe that our approach, based on the popular UML, can be successfully used for MD modeling and can

represent most of frequent MD modeling problems at the conceptual level.

1 INTRODUCTION

Data warehouses (DW), Multidimensional databases

(MDB), and On-Line Analytical Processing (OLAP)

applications relay on the multidimensional (MD)

paradigm. The basic underlying constructs of MD

modeling are facts, measures (fact attributes), dimen-

sions, and attributes (dimension attributes). The star

schema (Kimball, 1996) has been widely accepted

as the underlying logical construct of MD systems

(i.e., DW). However, there does not exist a precise

model for the conceptual modeling, although various

approaches for the conceptual design of MD systems

have been proposed in the last few years, such as

(Golfarelli and Rizzi, 1998; Sapia et al., 1998; Try-

fona et al., 1999).

On the other hand, the Uniﬁed Modeling Language

(UML) (Object Management Group (OMG), 2001)

has been widely accepted as the standard object-

oriented (OO) modeling language for describing and

designing various aspects of software systems. We

have previously proposed a MD modeling approach

based on the UML (Trujillo et al., 2001), which has

been recently formalized as a UML extension (Luj

an-

Mora et al., 2002a). We take advantage of the ﬂexibil-

ity of the UML to elegantly represent main MD prop-

∗

This paper has been supported by a grant from the State

Secretary of Education and Universities (Spanish Ministery

of Education, Culture and Sport).

erties at a conceptual level. Our approach imposes a

three-layered schema that guides the designer in mod-

eling the MD schema and the ﬁnal user in navigating

in the schema (Luj

an-Mora et al., 2002b).

The main contribution of this paper is to show how

to use together in a uniﬁed proposal our previously

presented partial solutions. Therefore, we show how

our approach resolves some important problems of

the MD modeling, such as multistar models, shared

dimensions, multiple and alternative hierarchy levels,

and heterogeneous dimensions. Furthermore, we also

compare the solutions that our approach provide with

other authors’ solutions.

The remainder of this paper is organized as fol-

lows. Section 2 discusses some related work. Sec-

tion 3 summarizes the basis of our OO conceptual

MD modeling approach based on the UML. Section 4

highlights the main situations where the use of UML

shows great advantages for MD modeling with re-

spect to other approaches. Finally, Section 5 presents

the main conclusions and introduces topics for future

work.

2 RELATED WORK

In the last few years, several MD data models have

been published. Some of them fall into the logical

level (such as the well-known star schema by Kimball

298

Luján-Mora S., Trujillo J. and Vassiliadis P. (2004).

ADVANTAGES OF UML FOR MULTIDIMENSIONAL MODELING.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 298-305

DOI: 10.5220/0002633302980305

 SciTePress

(Kimball, 1996)). Others, such as The Dimensional-

Fact (DF) model (Golfarelli and Rizzi, 1998), The

Multidimensional/ER (M/ER) model (Sapia et al.,

1998) and The starER model (Tryfona et al., 1999),

may be considered as formal models as they provide

a formalism to consider main MD properties. A re-

view of the most relevant logical and formal models

can be found in (Blaschka et al., 1998; Abell

o et al.,

2001).

However, none of the current conceptual modeling

approaches considers all MD properties at both the

structural and dynamic levels. Therefore, we claim

that a standard conceptual model is needed to con-

sider all MD modeling properties at both the struc-

tural and dynamic levels. We argue that an OO ap-

proach with the UML is the right way of linking struc-

tural and dynamic level properties in an elegant way

at the conceptual level.

3 MULTIDIMENSIONAL

MODELING APPROACH

BASED ON UML

In this section we summarize

our OO MD modeling

approach based on the UML. Our approach is based

on the one hand, in the use of package diagrams in

order to simplify huge and inter-related MD models,

and on the other hand, in a set of stereotypes

(FACT,

DI ME NS IO N, DESCRIPTO R, etc.) in order to repre-

sent the main structural properties of MD models.

3.1 Extending UML

UML is a general purpose modelling language that is

broadly applicable to different types of systems, do-

mains, methods and processes. However, there may

be situations in which the user might want to extend

the language in some controlled ways to tailor it to

speciﬁc problem domains. In anticipation of this situ-

ation, the UML provides a set of extensibility mecha-

nisms that allow us to customize and extend the UML

by adding new building elements (stereotypes), cre-

ating new properties (tagged values), and specifying

new semantics (constraints).

We have previously proposed a UML extension for

MD modeling (Luj

an-Mora et al., 2002a; Luj

an-Mora

et al., 2002b). In this paper, we unify our proposals

and present all the stereotypes together. In a UML

diagram, there are four possible representations of a

stereotyped element, e.g., the four representations of

A complete description of our approach can be found

in (Luj

an-Mora et al., 2002a; Luj

an-Mora et al., 2002b).

The stereotypes are highlighted in the text using a

SM ALL CA PS font.

a class with the FACT stereotype are shown in Figure

1: icon (the stereotype icon is displayed), decoration

(the stereotype decoration is displayed inside the el-

ement), label (the stereotype name is displayed and

appears inside guillemots), and none (the stereotype

is not indicated).

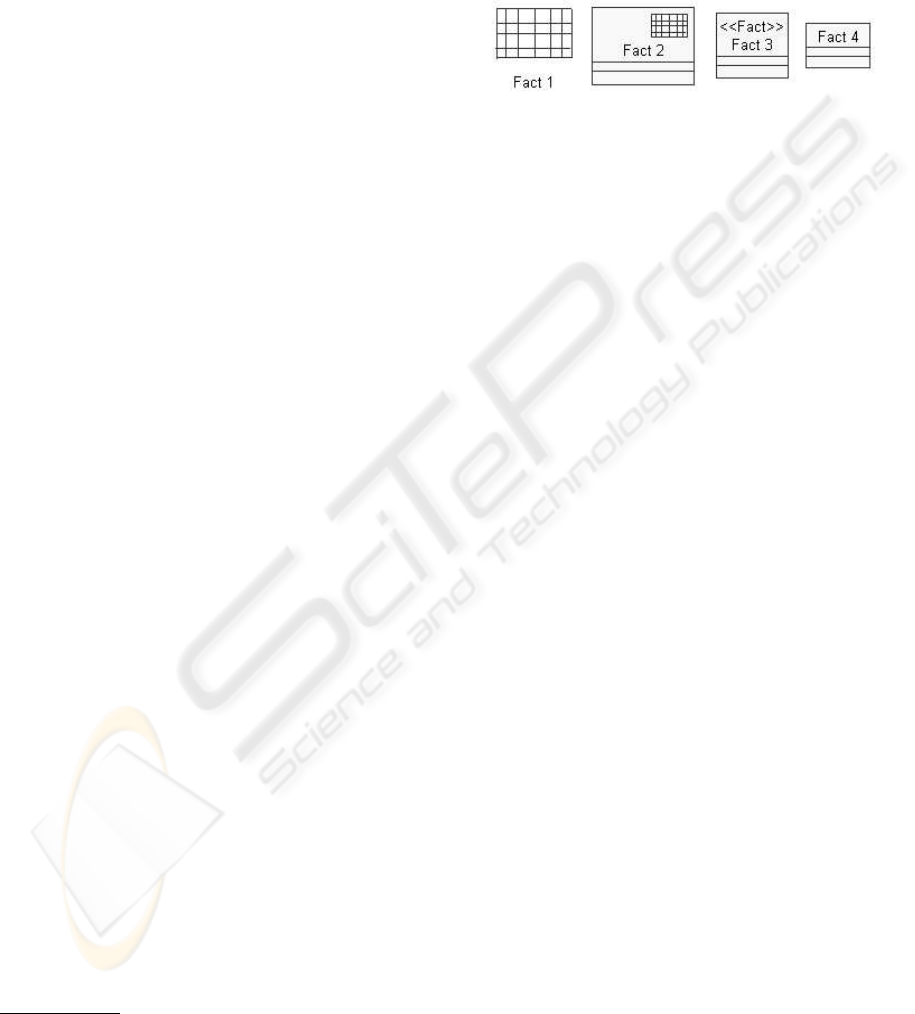

Figure 1: Different representations for a stereotyped class

3.2 Package Diagrams

A MD model can be very complex when the scale

of the MD system is large and includes a large num-

ber of interconnections among its different elements

(mainly facts and dimensions). In our MD modeling

approach, we use packages to group classes together

into higher level units creating different levels of ab-

straction, and therefore, simplifying the ﬁnal model.

In this way, we avoid the use of ﬂat diagrams, which

are usually confusing for both ﬁnal users and design-

ers in most of the cases. We have divided the design

process into three levels (Figure 2 shows a summary

of our proposal):

Level 1 : Model deﬁnition. We use one package

stereotype called STA RPACKAG E that represents a

star schema of a conceptual MD model. A depen-

dency between two packages at this level indicates

that the star schemas share at least one dimension.

Level 2 : Star schema deﬁnition. We use two pack-

age stereotypes called FACTPACKAGE and DI-

ME NS IO NPACKAGE that represent a fact or a di-

mension of a star schema respectively. A de-

pendency between two dimension packages at this

level indicates that the packages share at least one

level of a dimension hierarchy.

Level 3 : Dimension/fact deﬁnition. A package from

the second level is exploded into a set of classes

that represent the hierarchy levels in a dimension

package, or the whole star schema in the case of

the fact package. We use three class stereotypes at

this level: FACT, DIM EN SI ON, and BASE.

3.3 Facts and Dimensions

In our MD modeling approach, the main structural

properties of MD models are speciﬁed by means of

a UML class diagram in which the information is

clearly separated into facts and dimensions. Facts and

dimensions are represented by FACT and DIMENSION

ADVANTAGES OF UML FOR MULTIDIMENSIONAL MODELING

299

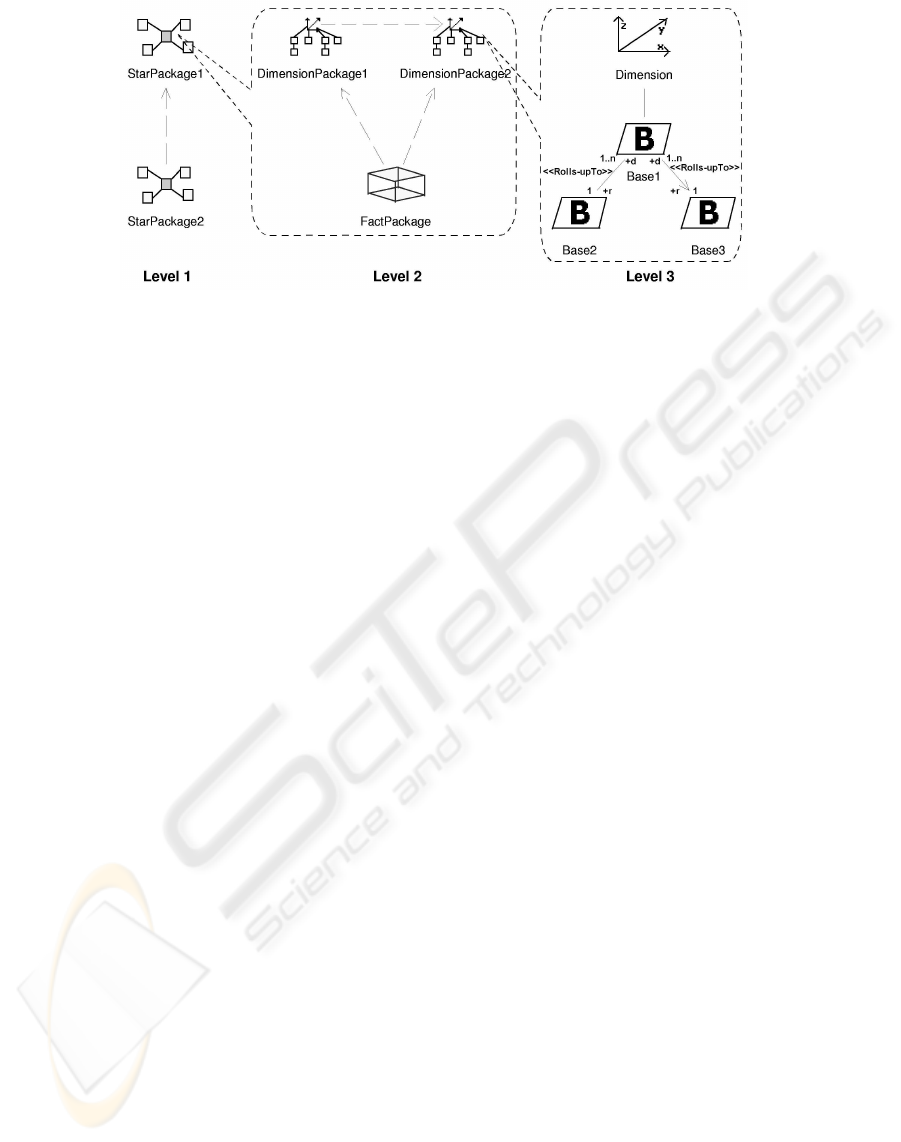

Figure 2: The three levels of a MD model.

classes, respectively. Then, FACT classes are speci-

ﬁed as composite classes in shared aggregation rela-

tionships of n DIMENSION classes.

FACT classes consist of two kinds of attributes:

FACTATT RI BUTEs, which represent measures (the

transactions or values being analyzed), and DEGEN-

ER ATEDIMENSIONs (Kimball, 1996; Giovinazzo,

2000), that allow the DW designer to represent

other FACT features in addition to the measures for

analysis; DEGENERATEDIM EN SI ONs also facilitate

joins with On-Line Transaction Processing (OLTP)

databases.

With respect to dimensions, every classiﬁcation hi-

erarchy level is speciﬁed by a class called BASE class

(see level 3 in Figure 2). A RO LL S-UP TO association

of BASE classes speciﬁes the relationships between

two levels of a classiﬁcation hierarchy; the roll-up

and drill-down direction of the association is repre-

sented by means of “r” and “d” roles on the ends of the

association. Our approach can represent both multi-

ple and alternative classiﬁcation hierarchies. The only

prerequisite is that the hierarchy levels must deﬁne a

Directed Acyclic Graph (DAG) rooted in the DIMEN-

SI ON class. Every classiﬁcation hierarchy level must

have a DE SC RIPTOR attribute; this attribute is nec-

essary for an automatic generation process into com-

mercial OLAP tools, as these tools store this informa-

tion in their metadata. The multiplicity 1 and 1..* de-

ﬁned in the target associated class role addresses the

concepts of strictness and non-strictness, respectively.

Strictness means that an object at a hierarchy’s lower

level belongs to only one higher-level object. More-

over, deﬁning an association as COM PL ET EN ES S ad-

dresses the completeness of a classiﬁcation hierarchy.

By completeness we mean that all members belong

to one higher-class object and that object consists of

those members only. Our approach assumes all clas-

siﬁcation hierarchies are non-complete by default.

Finally, the categorization of dimensions, used to

model additional features for a class’s subtypes, is

represented by means of generalization-specialization

relationships. However, only the dimension class can

belong to both a classiﬁcation and specialization hier-

archy at the same time.

4 ADVANTAGES OF UML FOR

MULTIDIMENSIONAL

MODELING

In this section we highlight the main situations where

the use of UML means a considerable advantage for

MD modeling regarding other approaches. To exem-

plify our approach, we will use a simpliﬁed version of

the warehouse example taken from (Kimball, 1996).

In this example, there are three separate inventory def-

initions within the same model, representing different

approaches of the inventory problem. The ﬁrst ap-

proach is the inventory snapshot, which measures the

inventory levels in a regular period of time (every day,

every week, etc.). The second is the delivery status in-

ventory, which tracks the disposition of all the items

in a delivery until they leave the warehouse. Finally,

the third is the transaction inventory; in this case ev-

ery change of status of delivered products is recorded

throughout the deliver ﬂow of the product.

4.1 Multistar Models

The multistar concept, also called fact constellation,

refers to the situation where a single MD model has

multiple facts, and therefore, creating multiple star

schemas. Basically, this structure is required when the

facts do not share all the dimensions (Kimball, 1996).

As commented in Section 3.2, our approach is

based on a three-layered model. At level 1, multi-

ple packages that represent different star schemas can

be speciﬁed. For example, in Figure 3, the ﬁrst level

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

300

of the warehouse example is depicted. According to

our MD approach, we have deﬁned three packages

that represent a star schema each one: Inventory De-

livery Status Star, Inventory Snapshot Star, and

Inventory Transaction Star. A UML dependency

(represented as a dotted line with an arrow) connect-

ing two packages indicates that one package uses el-

ements (e.g. dimensions, hierarchy levels) deﬁned in

the other. The direction of the dependency indicates

that the common elements shared by the two packages

were ﬁrst deﬁned in the package pointed to by the ar-

row. To simplify the design, and therefore, reducing

the number of dependencies, we highly recommend to

choose a star schema to deﬁne the dimensions. Then,

other schemas can use them with no need to deﬁne

them again. If the common elements had been ﬁrst

deﬁned in another package, the direction of the arrow

would have been different.

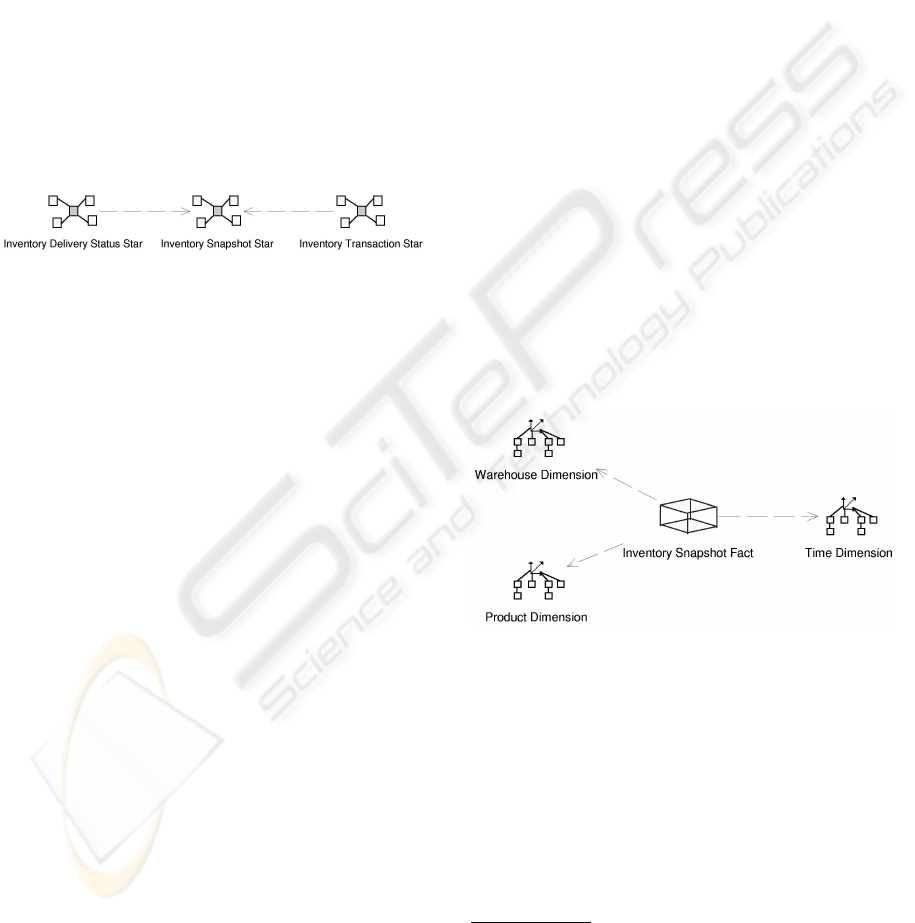

Figure 3: Multistar multidimensional model.

4.2 Support for Different Building

Perspectives

There exist two “extreme” perspectives of building a

DW (Kimball, 1998):

• To build the whole DW all at once from a central,

planned perspective (the monolithic approach).

• To build separate subject areas (data marts) when-

ever is needed (the stovepipe approach).

Our MD modeling approach allows the user to ap-

ply any of these perspectives or a mixing of them.

Thanks to the use of the UML packages, the DW de-

signer can deﬁne the DW gradually or all at once.

Moreover, thanks to the UML importing mechanism,

the user can reutilize a concept deﬁned in a package

in other packages.

For example, regarding the MD model depicted in

Figure 3, on the one hand the DW designer could

have modeled and implemented each one of the star

schemas one by one or, on the other hand, the DW

designer could have modeled the three star schemas

ﬁrstly and then could have implemented all of them

together.

4.3 Shared Dimensions

In multistar models, two or more star schemas can

share some dimensions. The use of the same dimen-

sion in different STAR PACKAGEs

provides several

advantages:

• Creating a set of shared dimensions takes 80%

of the up-front data architecture effort (Kimball,

1998), because a single dimension can be used

against multiple fact tables

• The ﬁnal user is allowed to perform drill-across op-

erations: requesting data from two or more facts in

a single report.

• Sharing dimensions provides consistent deﬁnitions

and data contents: it avoids the redeﬁnition of the

same concept twice and inconsistent user inter-

faces.

For example, following the example presented in

Figure 3, Inventory Snapshot Star shares some di-

mensions with Inventory Delivery Status Star and

Inventory Transaction Star, but the last two ones do

not share any dimension between them. Then, if we

explore each package diagram at a second level, we

can observe which dimensions are shared. For exam-

ple, Figure 4 shows the content of the STARPACKAG E

Inventory Snapshot Star. The FAC TPACKAGE In-

ventory Snapshot Fact is represented in the mid-

dle of the ﬁgure, while the DI ME NS IO NPACKAGEs

(Product Dimension, Time Dimension, and Ware-

house Dimension) are placed around the fact pack-

age.

Figure 4: Level 2 of Inventory Snapshot Star.

On the other hand, Figure 5 shows the content of

the STARPACKAGE Inventory Delivery Status Star;

three of the dimension packages have been previously

deﬁned in the Inventory Snapshot Star, so they are

imported in this package. Because of this importa-

tion, the name of the packages where they have been

ﬁrstly deﬁned appears below the package name; the

name of the package also acts as a name space, there-

fore avoiding name conﬂicts when importing pack-

ages from different sources: it is possible to import

“When multiple fact tables are tied to a dimension ta-

ble, the fact tables should all link to that dimension table.

When we use precisely the same dimension table with each

of the fact tables, we say that the dimension is ’conformed’

to each fact table” (Kimball, 1996).

ADVANTAGES OF UML FOR MULTIDIMENSIONAL MODELING

301

DI ME NS IO NPACKAGEs with the same name but de-

ﬁned in different STA RPACKAG Es. Moreover, a de-

pendency has been drawn from Vendor Dimension

to Warehouse Dimension because both dimensions

share some hierarchy levels, as we will show in the

next section.

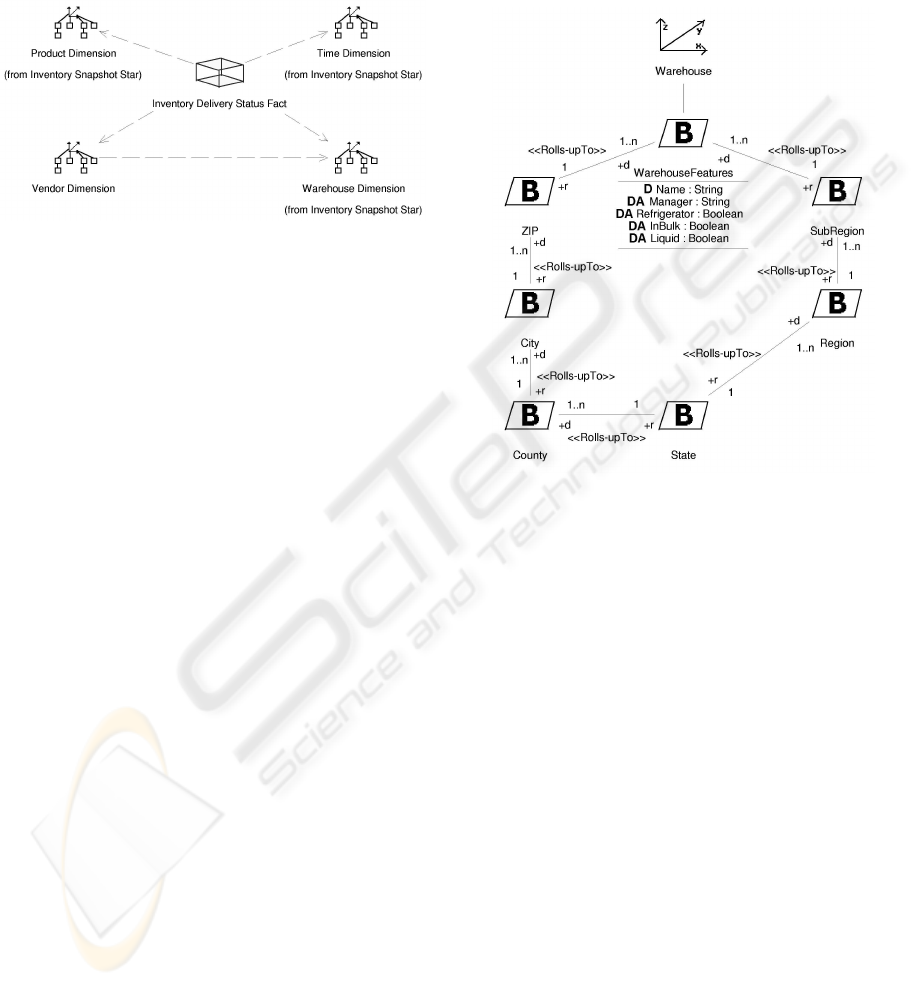

Figure 5: Level 2 of Inventory Delivery Status Star.

4.4 Shared Hierarchy Levels

In some cases, two or more dimensions share some

hierarchy levels. As in the case of shared dimen-

sions, the use of the same levels in different dimen-

sions avoids redeﬁnitions and inconsistencies in the

data.

For example, Figure 6 shows the content of the

package Warehouse Dimension (from Figure 4)

and Figure 7 shows the content of Vendor Di-

mension (from Figure 5) at level 3. In a DI-

ME NS IO NPACKAGE, a class is deﬁned for the DI-

ME NS IO N class (Warehouse and Vendor respec-

tively) and one class for every classiﬁcation hierarchy

level (WarehouseFeatures, ZIP, City, SubRegion,

SubZone, etc.). For the sake of simplicity, only the

attributes of the ﬁrst BASE class have been depicted

in both diagrams; we can distinguish two kinds of

attributes: DESCRIPTO R, represented by means of a

D icon, and DIMENSIONATTRIBUTE, represented by

means of a DA icon.

In this example, Warehouse and Vendor share

some hierarchy levels: ZIP, City, County, and State.

These levels have been ﬁrstly deﬁned in the Ware-

house Dimension; therefore, the name of the pack-

age where they have been previously deﬁned ap-

pears below the class name (from Warehouse Di-

mension) in the Vendor Dimension (see Figure 7).

Moreover, both dimensions contain some hierarchy

levels that do not contain the other: SubRegion and

Region in the Warehouse Dimension, and Sub-

Zone and Zone in the Vendor Dimension.

In this example we also notice a salient feature of

our approach: two dimensions, that share hierarchy

levels, do not need to share the whole hierarchy. The

package mechanism allows us to import only the re-

quired levels, thereby providing a higher level of ﬂex-

ibility. Moreover, we have decided to share a hier-

archy for both dimensions to obtain a clearer design,

although the designer may have decided not to do it if

such sharing is not totally feasible.

Figure 6: Level 3 of Warehouse Dimension.

4.5 Multiple and Alternative

Classiﬁcation Hierarchies

Deﬁning dimension classiﬁcation hierarchies is

highly crucial because these classiﬁcation hierarchies

provide the basis for the subsequent data analysis.

Thanks to the ﬂexibility of UML association relation-

ships, we can represent multiple and alternative clas-

siﬁcation hierarchies. On the one hand, a classiﬁca-

tion hierarchy is multiple when a dimension has two

or more classiﬁcation hierarchies, therefore data can

be rolled-up or drilled-down along two different hier-

archies at least; on the other hand, two or more clas-

siﬁcation hierarchies are alternative when they con-

verge into the same hierarchy level.

In Figure 7, Vendor Dimension presents a multi-

ple classiﬁcation hierarchy: (i) PersonalData, ZIP,

City, County, and State, and (ii) PersonalData,

SubZone, and Zone. On the other hand, Ware-

house Dimension (see Figure 6) presents an alterna-

tive classiﬁcation hierarchy, because we have deﬁned

two classiﬁcation hierarchies that converge into State

BA SE class.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

302

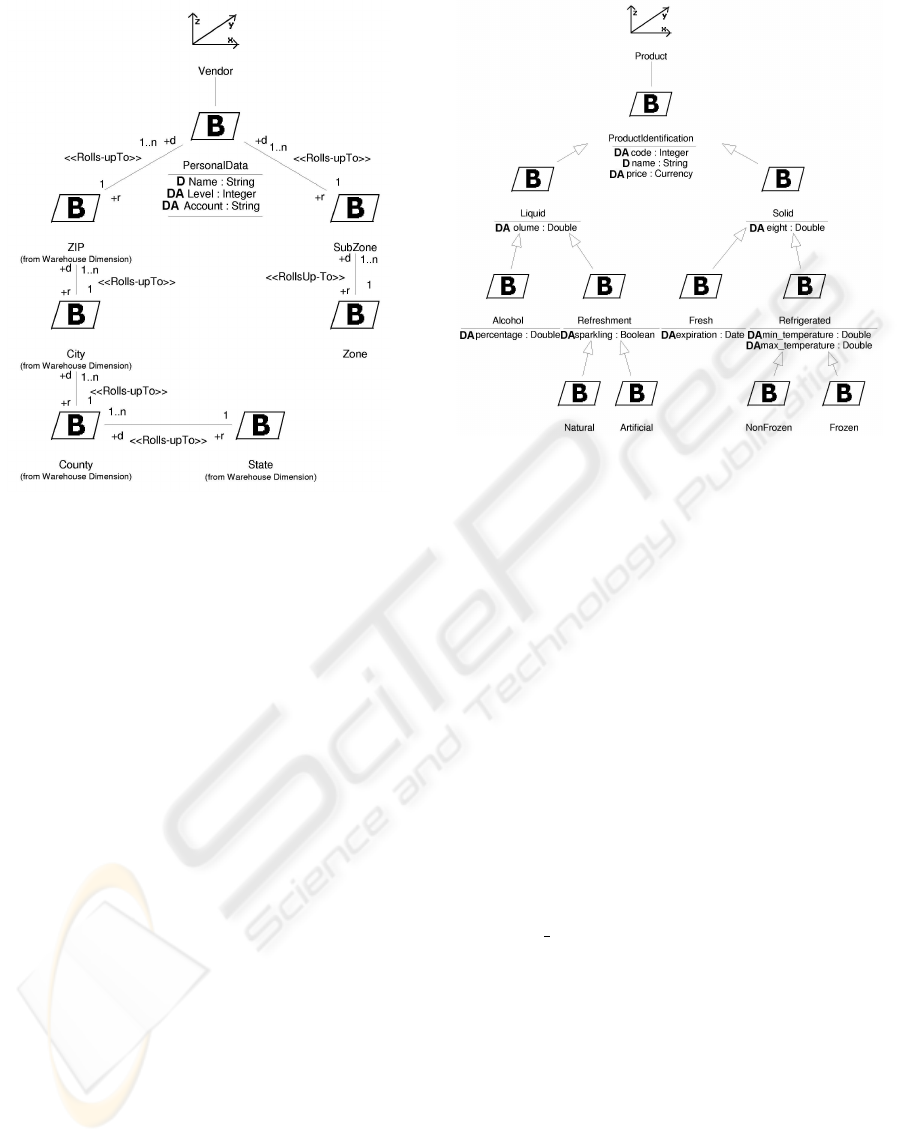

Figure 7: Level 3 of Vendor Dimension.

4.6 Heterogeneous Dimensions

A heterogeneous dimension is a dimension that de-

scribes a large number of heterogeneous items with

different attributes (Kimball, 1996). Our MD mod-

eling approach allows the DW designer to elegantly

represent heterogeneous dimensions by means of

generalization-specialization hierarchies. In our ap-

proach, the different items can be grouped together

in different categorization levels depending on their

properties. In this way, our approach allows us to have

elements at the same aggregation level that have dif-

ferent attributes.

For example, Figure 8 shows the Product Dimen-

sion at level 3. The Product FACT has been modeled

depending on the different subtypes –Liquid or Solid,

Alcohol or Refreshment, etc.–, and each one of

the subtypes contains particular properties –volume,

weight, expiration, etc.–. For the sake of simplicity,

we have omitted sone of the attributes of the BASE

classes.

4.7 Shared Aggregation

In our MD modeling approach, FACT classes are

speciﬁed as composite classes in shared aggregation

relationships of n DIM EN SI ON classes. The ﬂexibil-

ity of shared aggregation in the UML allows us to

represent many-to-many relationships between FAC T

classes and particular DIM EN SI ON classes by indicat-

Figure 8: Level 3 of Product Dimension.

ing the 1..n cardinality on the DIMENSION class role.

For example, in Figure 9 we can see how the FAC T

class Inventory Delivery Status has a many-to-

one relationship with the DIMENSION classes Time,

Vendor, Product, and Warehouse (not completely

shown in the diagram). For the sake of simplicity,

we have omitted all the attributes of the DIMENSION

and BASE classes. As noted, there are three shared

aggregation relationships between Inventory Deliv-

ery Status and Time: Ordered, Received, and In-

spected. Thanks to the use of UML named rela-

tionships, we can deﬁne more than one relationship

between two classes. In this way, we can use the

same DIMENSION and avoid redundancy and incon-

sistency problems. The FACT class Inventory De-

livery Status contains six FAC TATTRIBUTEs (rep-

resented by means of a FA icon) and two DEGEN-

ER ATEDIMENSIONs (represented by means of a DD

icon). PO number is the key to the purchase order

header record and it is useful to the ﬁnal user because

it serves as the grouping key for pulling together all

the products ordered on one purchase order (Kimball,

1996).

4.8 Derivation Rules

In the UML, derived attributes are identiﬁed by plac-

ing / before the name of the attribute. In our MD mod-

eling approach, the derivation rules are explicitly de-

ﬁned by means of Object Constraint Language (OCL)

(Object Management Group (OMG), 2001) expres-

sions. In this way, we provide a precise and formal

mechanism to deﬁne derivation rules.

ADVANTAGES OF UML FOR MULTIDIMENSIONAL MODELING

303

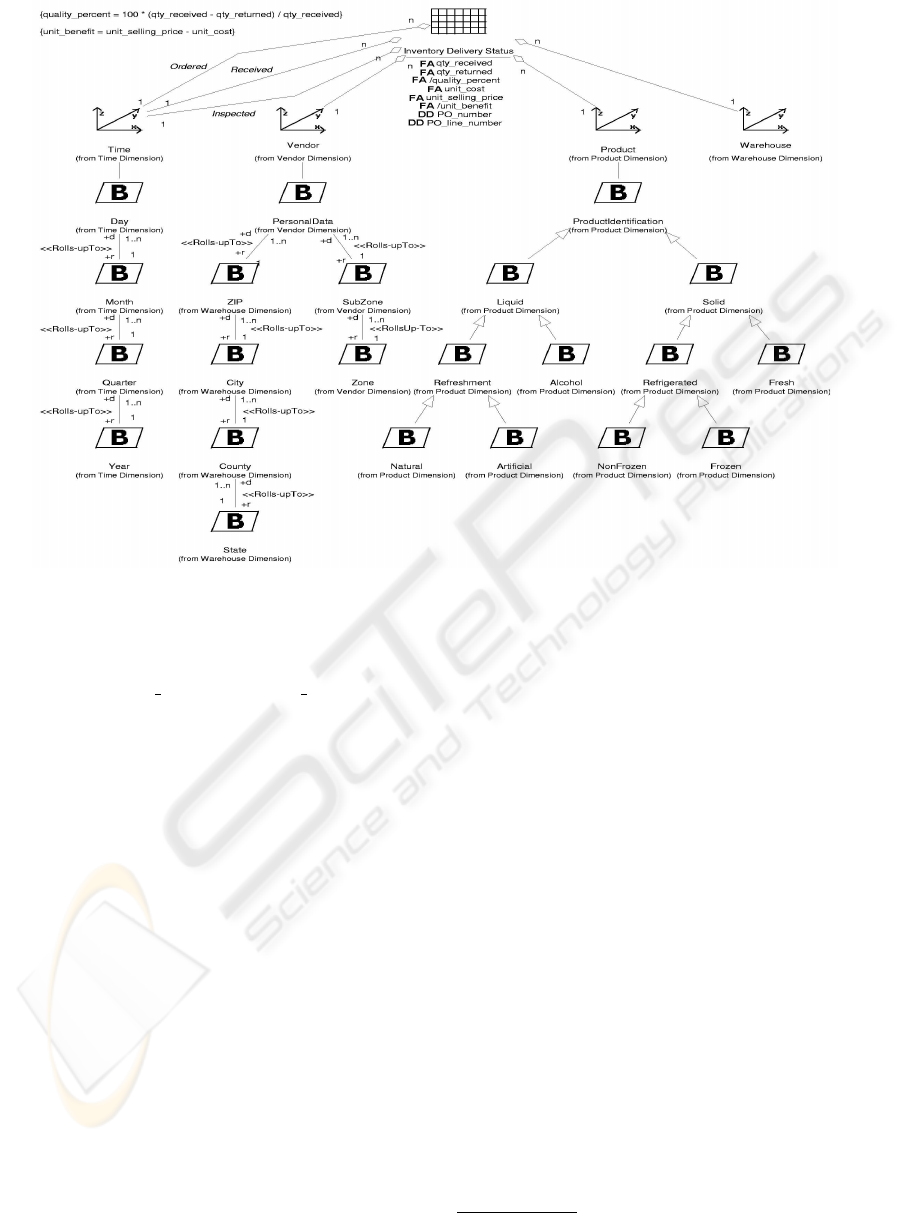

Figure 9: Level 3 of Inventory Delivery Status Fact.

For example, in Figure 9 we can see two deriva-

tion rules for quality percent and unit beneﬁt. The

inclusion of the deﬁnition of the derived attributes at

the conceptual design phase avoids the incorrect deﬁ-

nition in the following phases. Moreover, the deriva-

tion rules can be used in a later implementation phase.

4.9 CASE Tool Support

Instead of creating our own CASE (Computer-Aided

Software Engineering) tool, we have chosen to extend

a well-known CASE tool available in the market, such

as Rational Rose 2002. In this way, we do not have to

develop our own CASE tool from scratch.

We have chosen Rational Rose as it is one of the

most well-known visual modeling tools and is ex-

tensible by means of add-ins, which allows the user

to package customizations and automation of several

Rational Rose features through the Rose Extensibil-

ity Interface (REI) (Rational Software Corporation,

2001) into one component. An add-in is a collection

of some combination of the following: main menu

items, shortcut menu items, custom speciﬁcations,

properties (UML tagged values), data types, UML

stereotypes, online help, context-sensitive help, and

event handling.

We have developed an add-in, which allows us to

use our MD modeling approach in Rational Rose.

Therefore, we can use this tool to easily accomplish

MD conceptual models

. In Figure 10, we can see

a screenshot from Rational Rose that shows the ﬁrst

level of the inventory example used in Section 4.

Some comments have been added to the screenshot

in order to remark some important elements: the new

toolbar buttons, the new package icons, the new icons

shown in the model browser, and the new menu item

called MD Validate that checks the correctness of a

MD model.

5 CONCLUSIONS AND FUTURE

WORK

In this paper we have presented the main advantages

of our OO conceptual MD modeling approach based

on the UML. We have highlighted the main situa-

tions where the use of the UML means a consider-

able advantage. For example, we have exhibited how

the usage of package diagrams leads to an exception-

ally clean MD design of huge and complex systems,

because package diagrams allow us to structure MD

All the MD models shown in this paper have been mod-

eled using our Rational Rose add-in.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

304

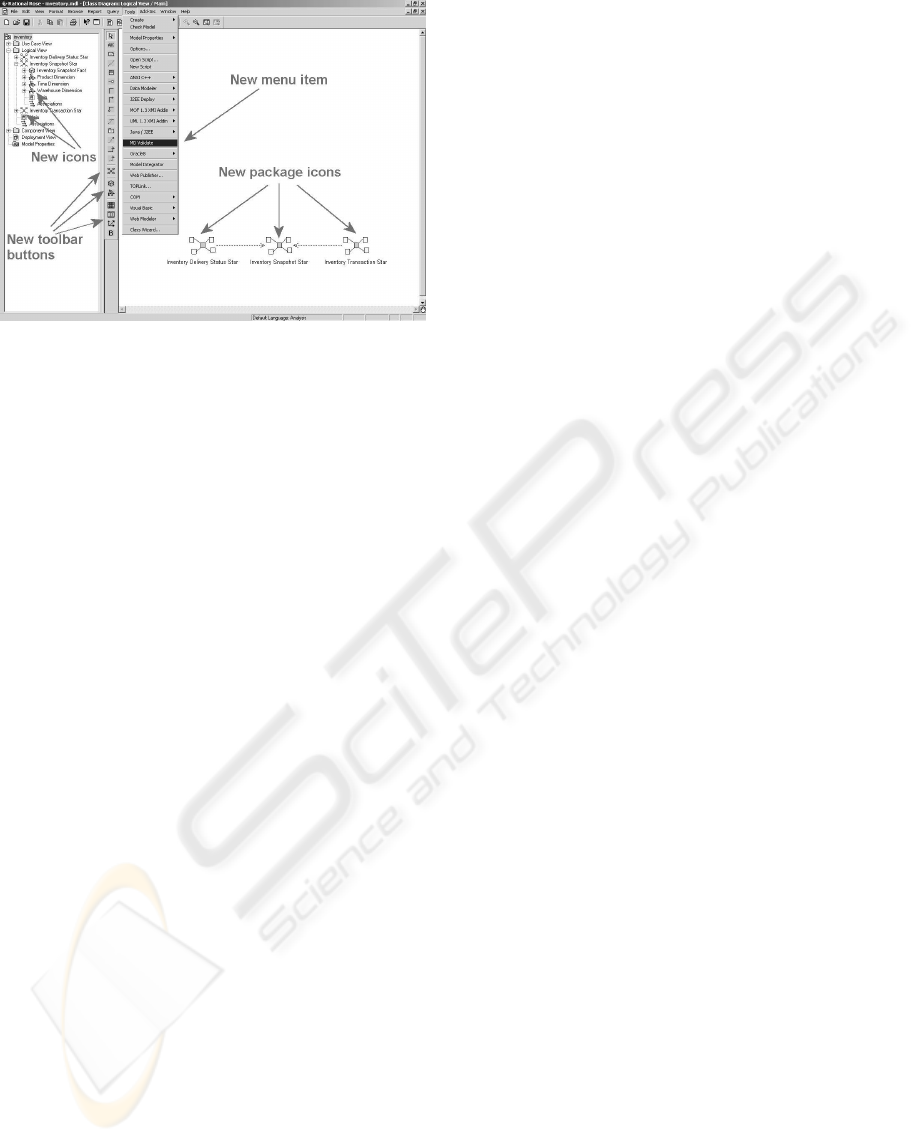

Figure 10: MD modeling in Rational Rose.

models at different levels of abstraction. Moreover,

the importation mechanism in the UML simpliﬁes the

use of an element from one package in another pack-

age. In this way, we avoid the problems related to the

redeﬁnition of an element several times: redundancy,

inconsistency, and ambiguity.

Our MD modeling approach can be continued fol-

lowing several different research lines. Firstly, we are

considering the implementation of the MD concep-

tual models on pure MD databases, object-relational

databases (ORDB), and OO databases (OODB). Due

to the OO nature of our MD conceptual approach,

we are studying the implementation in ORDB and

OODB. Since our MD approach is semantically rich,

we will need to deﬁne our own metadata to sup-

port all the expressiveness power of the approach.

Secondly, we also plan to include different imple-

mentation strategies, e.g., the option of normaliz-

ing (snowﬂake structure) or denormalizing (only one

structure) the dimension hierarchies. Finally, we are

also considering incorporating UML use cases into

our MD conceptual approach. These diagrams will

allow us to partition the functionality of OLAP appli-

cations in an early stage of the analysis phase.

REFERENCES

Abell

o, A., Samos, J., and Saltor, F. (2001). A Frame-

work for the Classiﬁcation and Description of Mul-

tidimensional Data Models. In Proc. of the 12th Intl.

Conf. on Database and Expert Systems Applications

(DEXA’01), volume 2113 of LNCS, pages 668–677,

Munich, Germany. Springer-Verlag.

Blaschka, M., Sapia, C., H

oﬂing, G., and Dinter, B. (1998).

Finding Your Way Through Multidimensional Mod-

els. In Proc. of the 9th Intl. Workshop on Database

and Expert Systems Applications (DEXA’98), pages

198–203, Vienna, Austria. IEEE Computer Society.

Giovinazzo, W. (2000). Object-Oriented Data Warehouse

Design. Building a star schema. Prentice-Hall, New

Jersey, USA.

Golfarelli, M. and Rizzi, S. (1998). A methodological

Framework for Data Warehouse Design. In Proc.

of the ACM 1st Intl. Workshop on Data Warehous-

ing and OLAP (DOLAP’98), pages 3–9, Washington

D.C., USA.

Kimball, R. (1996). The Data Warehouse Toolkit. John

Wiley & Sons. (Last edition: 2nd edition, John Wiley

& Sons, 2002).

Kimball, R. (1998). Bringing Up Supermarts. DBMS, 11(1).

Luj

an-Mora, S., Trujillo, J., and Song, I. (2002a). Extend-

ing UML for Multidimensional Modeling. In Proc.

of the 5th Intl. Conf. on the Uniﬁed Modeling Lan-

guage (UML’02), volume 2460 of LNCS, pages 290–

304, Dresden, Germany. Springer-Verlag.

Luj

an-Mora, S., Trujillo, J., and Song, I. (2002b). Multi-

dimensional Modeling with UML Package Diagrams.

In Proc. of the 21st Intl. Conf. on Conceptual Model-

ing (ER’02), volume 2503 of LNCS, pages 199–213,

Tampere, Finland. Springer-Verlag.

Object Management Group (OMG) (2001). Uniﬁed

Modeling Language Speciﬁcation 1.4. Internet:

http://www.omg.org/cgi-bin/doc?formal/01-09-67.

Rational Software Corporation (2001). Using the Rose Ex-

tensibility Interface. Rational Software Corporation.

Sapia, C., Blaschka, M., H

oﬂing, G., and Dinter, B. (1998).

Extending the E/R Model for the Multidimensional

Paradigm. In Proc. of the 1st Intl. Workshop on Data

Warehouse and Data Mining (DWDM’98), volume

1552 of LNCS, pages 105–116, Singapore. Springer-

Verlag.

Trujillo, J., Palomar, M., G

omez, J., and Song, I. (2001).

Designing Data Warehouses with OO Conceptual

Models. IEEE Computer, special issue on Data Ware-

houses, 34(12):66–75.

Tryfona, N., Busborg, F., and Christiansen, J. (1999).

starER: A Conceptual Model for Data Warehouse De-

sign. In Pro. of the ACM Second Intl. Workshop on

Data Warehousing and OLAP (DOLAP’99), pages 3–

8, Kansas City, USA. Springer-Verlag.

ADVANTAGES OF UML FOR MULTIDIMENSIONAL MODELING

305
