FROM CORBA TO WEB SERVICES COMPOSITION

Denivaldo Lopes

1,2

and Slimane Hammoudi

1,2

Université de Nantes, Nantes, France

Ecole Supérieure d’Electronique de l’Ouest- ESEO, Angers, France

Keywords: Web Service Composition, Transaction, Workflow and CORBA

Abstract: CORBA has some positive aspects to develop applications, but its communication model is limited to

accomplish interactions among clients and enterprise servers on the Web. The technologies of Web Service

seem to offer a better answer for developing distributed applications on the Web. The first part of this paper

is a discussion about the evolution of CORBA and of Web Services, showing their benefits and limitations.

The new solutions provided by the technologies of Web Services (XML, WSDL, UDDI and SOAP) are

more adapted for the Web than CORBA. However, these technologies are not sufficient to compose Web

Services, which represents a real challenge. Workflow Technology seems to be a better answer for this

challenge. The second part of this paper deals with this integration of Workflow technology and Web

service that is designed in WEWS. An approach for transaction based on conversation plus optimistic

commit protocol is also presented. A comparison of our work and other propositions is provided too,

highlighting similarities and differences.

1 INTRODUCTION

In the last decade, people thought that Distributed

Object Technology (DOT) could be the solution for

the development of wide-scale distributed systems

on the Web

(Harkey, 1998), (Northrop, 1997).

DOT can encapsulate the software components in

different levels of detail and makes possible the

inter-process communication in a transparent way.

This is realized through utilization of middleware,

i.e. a software tier among hardware, operating

systems and applications. It provides homogeneity

of development for heterogeneous platforms. The

OMG’s Common Object Request Broker

Architecture (CORBA) (OMG, 2001), Microsoft’s

Distributed Component Object Model (DCOM) (it is

implemented only for Windows) and Sun’s Java

Remote Method Interface (RMI) are the

fundamental examples of middleware. Amongst

these, CORBA is a specification for general

distributed system architecture and was the major

element to support the utilization of DOT. But

CORBA has problems, e.g. it is complex, it requires

specialized training and it has a high cost for

development.

In the last years, a set of technologies based on

XML has been developed to facilitate the

development of applications on Web, i.e. SOAP,

UDDI and WSDL. These technologies have

resulted in the creation of Web Services that are

Web applications that interact with other Web

applications using these open standards.

However, this set of technologies is limited and

it cannot meet all the requirements in Web services

development, i.e. reliability, transactions, security,

scalability, accountability and management (Zhang,

2001), (Tsur, 2001). Moreover, these technologies

are not sufficient to allow service composition. In

this paper, we suggest an integration of Web

Services and Workflow to meet several of these

requirements and take into account service

composition.

This paper is organized as follows. Section 2 is a

discussion about CORBA and Web Services,

detaching their benefits, limitations, similarities and

differences. Section 3 presents some modification on

WSFL to better compose Web Services. Section 4 is

our proposal to enable transactions in the context of

Web Services. Section 5 is a discussion about the

architecture of Workflow Environment for Web

Services (WEWS) to support the composition of

Web Services and transaction. Section 6 shows the

comparison among WEWS and other frameworks.

The last section is the conclusion about our work.

* In this paper, we use the word Web to make reference

to the Internet (i.e. the large network) and to the Web

(i.e. an Internet service).

114

Lopes D. and Hammoudi S. (2004).

FROM CORBA TO WEB SERVICES COMPOSITION.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 114-121

DOI: 10.5220/0002635901140121

 SciTePress

2 CORBA AND WEB SERVICES

In the DOT context, Web objects (e.g. ORBlets)

were the major approach of CORBA on the Web,

because they would stimulate the adoption and fast

development of applications on the Web (Harkey,

1998). However, these events did not happen

because the standardization of the Internet Inter-

ORB Protocol (IIOP) had a long delay (OMG,

2001). Moreover, the submission for IIOP firewall

traversal is not a consistent standard yet, and the

integration of CORBA/IIOP with Netscape browser

and server was not well accepted in industrial

circles.

The frustrations with CORBA have modified the

vision of many enterprises about the future of

distributed systems on the Web.

The set of technologies formed of eXtensible

Markup Language (XML), Simple Object Access

Protocol (SOAP) (W3C, 2001a), Web Services

Description Language (WSDL) (W3C, 2001b) and

Universal Description, Discovery and Integration

(UDDI) (UDDI Project, 2000) is being accepted for

the development of the next generation of

applications on the Web.

2.1 CORBA and Object Technology

CORBA is the best example of DOT, although their

benefits have not yet been totally explored. Many

services and facilities designed for it are not very

well standardized or implemented. Its qualities are

unquestionable, e.g. portability and interoperability

across heterogeneous platforms (language,

operating system, hardware and other Object

Request Brokers-ORBs), transparency, real time

specification, uniform error detection, adapted to

wrap legacy applications and uniform security

mechanism (SAS) (Northrop, 1997), (OMG, 2001).

2.2 The CORBA Stack

CORBA can be seen as a stack composed of

Interface Definition Language (IDL), CORBA

Services, Stubs/Skeletons, Common Data

Representation (CDR) and GIOP/IIOP (OMG,

2001), (OMG, 2000).

IDL is used to describe the interfaces that allow

client objects to call up the remote object

implementations. In other words, it defines a

contract between client and server.

CORBA Services define a set of services, e.g.

Trading Object, Security and Transaction. Among

these services, we draw attention to the Trading

Object Service that enables a service provider to

of an interface on the trader. Afterwards, the

requester asks for a service with characteristics

which are specific to the trader. The trader receives

the requisition, searches for a suitable service object

based on the described characteristics and responds

to the requester passing the location of selected

service’s interface (OMG, 2000).

The client object uses the stubs to access a

specific object implementation. The client Stubs are

created from the IDL description to make access to a

service operations and data possible. The stubs make

calls on the ORB using interfaces that are private or

optimized to a particular ORB. The object

implementation uses the skeletons as an adapter to

make its operations and data available. The ORB

calls the operations and has access to data on object

implementation through the skeleton.

Common Data Representation (CDR) is a

transfer syntax definition that maps OMG IDL data

types into a bi-canonical and low-level

representation (i.e. an octet stream) for transfer

between ORBs and Inter-ORB bridges. In other

words, it implements an Electronic Data Interchange

(EDI).

General Inter-ORB Protocol (GIOP) is a low-

level protocol that specifies standard transfer syntax

and a set of message formats to enable

communication between ORBs. The Internet Inter-

ORB Protocol (IIOP) defines how GIOP messages

are exchanged using TPC/IP connections on the

Internet.

2.3 Web Services

Web Services can be seen as an evolution of the

Web based on lessons learned in past decades with

middleware (including CORBA) and markup

languages (e.g. XML).

The main characteristics of Web Services are

independence of platform (language, operating

system and hardware), a world-wide scenario for

transactions, the utilization of multiple transport

protocol (HTTP, SMTP or FTP), the message

encoded in XML, friendly behavior with firewall,

easily adaptable with legacy systems, and the

localization as Uniform Resource Identifier (URI).

2.3.1The Web Services Stack

The Web Services stack is composed of WSDL,

UDDI, SOAP, XML and HTTP (or SMTP or FTP).

WSDL is an abstract definition based on XML

grammar to describe the syntax and semantics

necessary to call a service (W3C, 2001b). This

FROM CORBA TO WEB SERVICES COMPOSITION

115

abstraction is utilized to build an invocation on a

service that is often implemented with SOAP.

UDDI is the universal registry for Web Services

and its core is based on XML files that may store

information about a business entity and its Web

Services. It is similar to white pages (to find a

service by contact, name and address), yellow pages

(to find a service by topic based in standard

taxonomies) and green pages (to find a service by

technical characteristic) (UDDI Project, 2000).

SOAP is a protocol based on XML and it is used

to exchange information in decentralized and

distributed systems (W3C, 2001a).

XML is an extensible markup language that has

been used for documents and data representation. In

other words, it resolves the problem of Electronic

Data Interchange (EDI) and it can be rapidly

modified to address new types or requirements.

One advantage of Web Services is the possibility

to use multiple protocols to transport the request and

response, e.g. Hypertext Transfer Protocol (HTTP),

Simple Mail Transfer Protocol (SMTP) and File

Transfer Protocol (FTP).

The concepts around Web Services are not new.

CORBA promised a structure that would make it

possible to build services (as components), to

publish services, to find services and to bind these

services; in other words, it would make possible the

reutilization of a component by other components.

This notion is present in the Trading Object Service

designed for CORBA (OMG, 2000) and developed

by PrismeTech’s OpenFusion software

(www.prismtechnologies.com). However, CORBA

is not sufficiently loose-coupled to implement final

applications on the Web. Table 1 shows the CORBA

and Web Services stack.

Table 1: CORBA and Web Services Stack

Stack

CORBA Web Services

IDL WSDL

CORBA Services UDDI

Stubs/Skeletons SOAP

CDR XML

GIOP/IIOP HTTP (or SMTP, FTP)

Analyzing the CORBA and the Web Services

stacks, we come to the conclusion that together they

can be used to provide a powerful set of

technologies to cover a vast scope of domains. In

(Gokhale, 2002), the authors have demonstrated that

the combination of CORBA and Web Services

brings some benefits.

In fact, applications for the Web can be

implemented with Web Service technologies or with

CORBA technology; the difference will be observed

in the efforts to develop the desired service. In other

words, the enterprise will be free to choose what

technology is more suitable. For example, software

that demands high performance, persistency, notion

of object and stable QoS will still be constructed

with CORBA and IIOP. It is important to observe

that any software developed in CORBA can be

developed using Web Services technologies, and

vice-versa. In order to choose which technology is

suitable, it is necessary to know the characteristics of

the problem. Recently, there has been a consensus

that Web Service is more adapted to Internet, and

CORBA is more adapted to Intranets.

3 WORKFLOW AND WEB

SERVICES

Organizations have been concerned with the

improvement of the quality of their processes.

Therefore, the interest for workflow technology has

increased significantly in the industrial and

academic fields. A workflow is defined as an

organized collection of tasks to perform a business

process (WfMC, 2002a). A Workflow Management

System (WFMS) is a set of tools implementing

techniques that allow the definition, management

and execution of workflows (WfMC, 2002a).

Recently, the use of workflow to compose

services has been explored and developed by

industrial and academic laboratories (Dayal, 2001),

(Helal, 2002). These efforts have resulted in the

creation of workflow languages and meta-models to

describe the Web Service composition, e.g. Web

Services Flow Language (WSFL) (Leymann, 2001)

and Workflow Process Definition Interface (WfMC,

2002b).

3.1 A modified WSFL

WSFL is an XML language designed to compose

Web Services. With WSFL, it is possible to

describe how to achieve a particular business goal

(i.e. business process) and the interaction of a

collection of Web Services (i.e. partner interactions).

In WSFL, a Web Services composition consists

of the description of the use of functionalities

provided by the set of composite Web Services. The

composite Web Services will be executed following

a flow model used to describe the execution order. A

workflow engine based on Web Services executes

this flow model. Afterwards, the global models are

used to describe how Web Services interact with

each other.

In (van der Aalst, 2003), the authors present the

patterns for Workflow and compare them with some

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

116

languages of service composition, including WSFL.

According to this work, WSFL has the following

patterns: sequence; parallel split; synchronization;

exclusive choice; simple merge; multiple choice;

synchronization merge; implicit termination; MI

without synchronization; MI with a priori design

time; cancel activity; and cancel case.

We have extended WSFL with the following

patterns: multiple merge and discriminator.

The fragment of WSFL schema presented in the

figure 1 illustrates the patterns introduced in WSFL.

<attribute name= “condition” type= “wsfl:NCNameList”

use= “required”/>

<attribute name= “when” type= “wsfl:whenType”

use= “default” value= “deferred”/>

</complexType>

…

<attribute name= “condition” type= “wsfl:NCNameList”

use= “required”/>

<attribute name= “when” type= “wsfl:whenType”

use= “default” value= “deferred”/>

</complexType>

…

…

<element name=”multimerge”

type=”wsfl:mutimegeType” minOccurs=”0”/>

<element name=”discriminator”

type=”wsfl:discriminatorType” minOccurs=”0”/>

</extension>

</complexContent>

</complexType>

Figure 1: The extension of WSFL schema.

4 TRANSACTION FOR WEB

SERVICES

The joining of transactions and Workflow concepts

provides a powerful mechanism for the management

of e-business. However, the traditional models of

transactions are not sufficient for the context of the

Web. A service transaction cannot be seen as a

single ACID transaction (i.e. Atomicity,

Consistency, Isolation and Durability). In order to

implement transactions suited with the Web Services

context, we assume a transaction model based on

conversation plus optimistic commit protocol that

uses transaction compensation (Ouyang, 2001).

Conversations are sequences of interactions between

multiple Web services that enable the conversational

transaction. In this context, a transaction that has

sub transactions aborted is able to create a new sub

transaction, instead of direct use of all-or-nothing

semantics.

Our transaction protocol is based on the XIP

protocol (Ouyang, 2001) with some modifications.

The main parts of this approach are:

• Component transaction is the unit of business at

each service. The component transactions within

a conversation create a conversational

transaction;

• Services conversation C, C={s

, s

, …, s

n-1

}

where s

is the root service starting the

conversation, and s

, …, s

n-1

are the participating

children of services;

• Conversational transaction T, T={t

, t

, …, t

n-1

}

where t

is the root transaction starting the

conversational transaction, and t

, …, t

n-1

are

component transactions corresponding to a

service s

, …, s

n-1

;

• d

represents an interaction from the service t

the service t

. A service interacts with other

exchanging messages;

• Each component transaction has a function

denoted f(d

) that performs the business logic,

and j(ti) that performs the compensation to

cancel the committed operations for ti;

• Each t

, t

,…,t

n-1

has two attributes: a deadline

and a status. The deadline defines when the

committed transaction cannot be cancelled. The

status defines t’s life-cycle (i.e. created,

prepared, running, waiting for other events,

compensating, hard-committed, local-committed,

global-committed, aborted and cancelled).

A conversational transaction is organized in a

spanning tree formed by component transactions. In

this tree, a commit or cancellation is propagated

using the correlators. A correlator is a handle to a

node that has information about its parent and their

immediate children. A correlator is defined in XML

schema as following:

<element name = “ParentHandle” type= “HandleType”

minOccurs= “0” maxOccurs= “1”/>

<element name = “ChildrenHandles” type= “HandleType”

minOccurs = “0” maxOccurs = “unbounded”/>

</complexType>

</complexType>

A correlator has information about its parent and

their immediate children represented by

HandleType. This HandleType has information

about endpoint (i.e. URL), transaction ID,

transaction status, time statistics and workflow

engine identification.

FROM CORBA TO WEB SERVICES COMPOSITION

117

The XIP protocol consists of two parts. The first

part has the specification of root transaction that

starts the conversation. The second part specifies the

behavior of a component transaction. In our

protocol, we follow the same perspective that is

implemented by the Transaction Assistant in the

Workflow Engine. The root transaction coordinator

(RTC) implements the root transaction, and the

component transactions coordinator (CTC)

implements the component transaction behavior.

The RTC has some events that are described as:

• The start event – the root service sends a start

event to the RTC that starts the root transaction;

• The handshaking event – when a component

transaction is started, it sends a handshaking

event to its parent, in order to establish a

connection;

• The response event – the CTC sends this event to

RTC, when its suitable component transaction

ends;

• The timeout event – each timeout event results in

a checking in the CTC, using a ping message. If

there is an error, the suitable service is informed

about the failure;

• The compensation event – this event is sent by a

CTC to its parent. If this parent does not have

another immediate child executing a

compensation event, it sends back to the

requester CTC a confirmation in order to call the

function

);

• The end event – this event is generated by the

root service that commits or not the

conversational transaction. The RTC sends to

each immediate child a commit request and waits

for a global-committed event;

• The cancel event – this event is generated by the

root service that cancels the conversational

transaction.

The CTC has dual events to RTC events (i.e.

start, handshaking, response, timeout, compensation,

end, and cancel event) and more the following

events:

• The global commit event – if a local transaction

component receives a global commit from their

children, then it sends a global commit to its

parent/root;

• The ping event – a ping event is generated to test

a transaction component. If a component

transaction receives a ping, then it checks if its

children are in a good state by sending a ping. If

all the children are in a coherent state, then a

confirmation of execution is sent to its parent, or

else an error message is created.

Our protocol differs from other protocols (e.g.

optimistic commit protocols (Ouyang, 2001),

transactional conversation, Saga (Dayal, 2001),

Activity-Transaction (Dayal, 2001)) in terms of

complexity and implementation to provide process

design, rollback for compensation, and forward

execution process to guarantee the success of the

global transaction in presence of faults in sub

transactions.

5 WORKFLOW ENVIRONMENT

FOR WEB SERVICE

Workflow Environment for Web Service (WEWS)

is an intermediary infrastructure among service

providers and service requesters. The Workflow

technology, WSFL and a transaction compensation

model are used in order to enable the development

and the life-cycle control of e-business process. The

WEWS prototype is being developed in Java, and

then it will be able to operate in all machines that

have a JVM.

5.1 WEWS Architecture

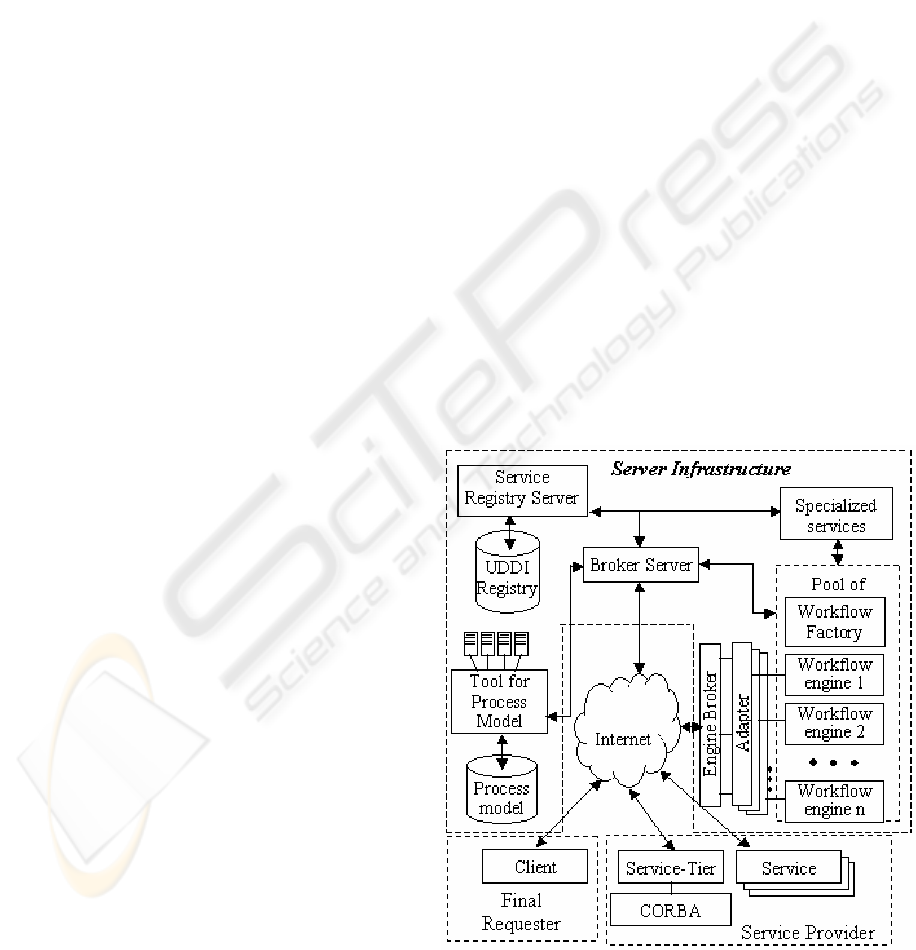

Figure 2 shows the WEWS architecture. The Server

Infrastructure is a tool for service composition as

business process, a repository of described services

based on UDDI, a scalable workflow engine for flow

process control, a tool of specialized services and a

service-tier to enable CORBA objects on the Web.

Figure 2: WEWS Architecture

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

118

Server Infrastructure is composed of:

• Broker Server – it receives all the requests to

find, to publish and to monitor a service;

• Service Registry Server – it allows publication

and search of a service in UDDI Registry;

• Process Model Tool – it allows service

composition, in other words, it helps to build a

business process description using the modified

meta-model of WSFL;

• Specialized Services – they include some

services as login, payment and authentication;

• Pool of Workflow – it is a Workflow Factory and

a set of Workflow Engines that controls all

services. The Workflow Factory is responsible

for creating the workflow engines. The workflow

engines execute a process based on a process

model. The pool can be formed for one or more

machines, then it can provide scalability in the

server infrastructure;

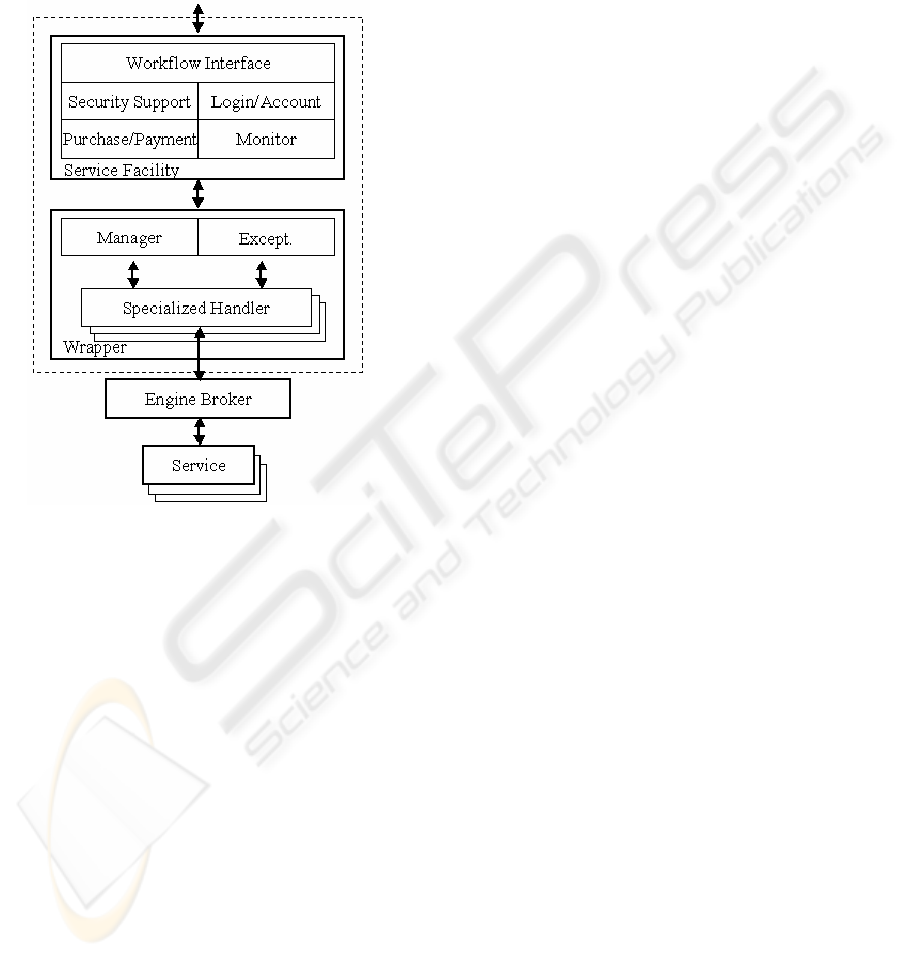

• Adapter – it is formed of a service facility and a

wrapper. It is the tier that makes the link between

the workflow engines and the engine broker;

• Engine Broker – the pool of workflow can have

many machines, but the access for an intranet

must be limited for proxies, in order to maintain

security notions. Then all workflow engines use

an “Engine Broker” as proxy to communicate

with the Service Adapters and Service Interfaces

that are not in the server infrastructure;

• Service-Tier – it is a layer to adapt CORBA

objects as Web Service.

5.2 WEWS Implementation

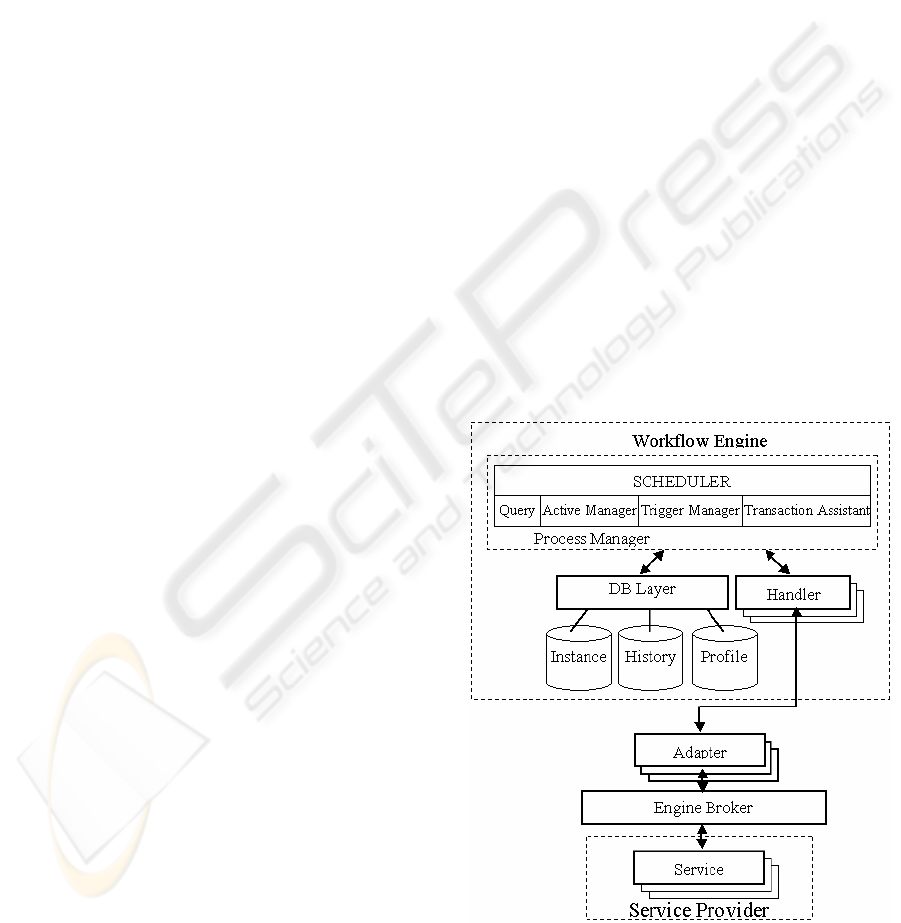

The workflow engine is shown in figure 3. It is

composed of:

• Scheduler – it schedules and controls the

execution of tasks according to a defined priority

list, an execution time, availability, performance,

and resources;

• Query – this functional block allows

administration tools to interact with a workflow

engine to acquire information about the state of

process execution, e.g. individual performance,

dependencies and exceptions;

• Active Manager – each task in active state is

controlled and monitored by this manager;

• Trigger Manager – it supervises tasks in a

waiting state (task waiting for an event) and

notifies the scheduler when all resources are

available for execution of a suitable task;

• Transaction Assistant – the execution of a

service composition can follow a transaction

process. In this case, WEWS includes a

transaction assistant into the workflow engine to

support compensation transaction. It

complements the monitor present in the stack of

specialized functions;

• DB Layer – this is a database layer responsible to

control the information storage, search and

recovery. It is composed by three data banks:

Instance, History and Profile. When the Server

Broker creates a workflow engine to execute a

process, it delivers a copy of process model to

DB Layer that will create an instance of this

process and put it in Instance repository. If there

is a fault, the instance repository is used to

recover a process instance. An instance is a

process ready for execution. The history

repository stores all happened events of an

already executed instance and it can be utilized

for performance analysis or processes debugging.

The profile has all information about

configuration, participants and necessary

resources;

• Handler – the active manager delegates activities

to be executed by a handler. It is responsible for

binding the requests with the suitable service

provider (i.e. service adapter) and controlling the

service execution. If a resource is not available

for an activity, the handler informs the Active

Manager that puts it in a waiting state. After that,

the active manager contacts the trigger manager

that monitors the resource, performs the

allocation of the requested resource and notifies

the scheduler, when the resource is available.

The Adapter is presented in figure 4. It is formed

of Service Facility and Wrapper. Service Facility

Figure 3: Workflow Engine

FROM CORBA TO WEB SERVICES COMPOSITION

119

provides support for service monitoring, interaction

with its suitable workflow engine, security

requirements, negotiation and payment. Wrapper

controls a service directly, following the instructions

received from the workflow engine. It helps the

engine with exception detection and notification

support. For the wrapper, a service can be a

business application or a legacy application.

The Service Facility is structured as following:

• Workflow Interface – it enables a service to

participate in a workflow and allows the

workflow engine to inquire about a service

execution;

• Security Support – it complements the

authentication and authorization management

that are made for the stack of specialized

functions. In Web Services, a high granularity of

protection is desirable. Because of this, in our

framework, each service has a suitable set of

entities and a list of restrictions to provide

security;

• Login/Account – it controls all accounts and

limits the access to a registered service.

Moreover, it is completed by the specialized

stack. Furthermore, each service provider must

limit the use of its service;

• Purchase/Payment – it defines and stores the

constraints to sell a service, negotiate it and

enable its payment. It has access to

functionalities in the stack of specialized

functions (Purchase/Payment) in order to realize

the sale of a service and receive the benefits of

this business;

• Monitor – this is a tool to facilitate the load

monitoring in WEWS;

The Wrapper is structured in:

• Manager – it realizes a local schedule of service

and provides a mechanism control for the

Service Handler. The workflow engine executes

a process, but the local manager controls each

service. It allows the management of concurrent

access and keeps the coherent execution of

services;

• Exception Support – it detects the occurrence of

exceptions in a service, gets information (e.g.

messages about errors and faults) and notifies

the workflow engine;

• Specialized Handler – each service has a

specialized handler to accomplish its direct

control and hide all the complexities of WEWS.

6 RELATED WORKS

In the next subsections, we present some approaches

that have been proposed as a solution to support the

development of Web Services in small, medium and

larger virtual enterprises. Moreover, we will state a

comparison with our proposal (i.e. WEWS) and

these approaches, showing similarities and

differences.

The Web Service Enablement Framework

(Akkiraju, 2001) is a software layer between service

providers and service requesters that facilitates

several steps of service life-cycle. It allows business

partners to discover, select and automatically invoke

services. It provides authentication, logging,

monitoring and data protection. In other words, it

assists the management of dynamic e-business. This

framework has been developed using IBM’s

WebSphere Application Service and Web Service

Toolkit (Akkiraju, 2001).

In comparison with the Web Service Enablement

Framework, WEWS aims to support the business

process composition, which is based in Workflow

Technology and has a stack of specialized functions.

In (Helal, 2002), an infrastructure is presented to

manage Web Services. It uses services as

participants in an Internet-wide workflow engine. It

is composed by: BizBuilder, Sangam and Dynamic

Workflow Server. This framework allows several

steps of service life-cycle: publish, discover and

binding. Hence, it supports service composition,

negotiation and contracts, process modeling and

legacy systems integration.

This framework (Helal, 2002) and WEWS

allows the services composition based on Workflow

Figure 4: Adapter

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

120

Technology. They have a coherent and well-defined

infrastructure to publish, discover, bind and

compose services.

However, in contrast with all presented

frameworks in this paper, WEWS introduces an

extension of WSFL as workflow language, a

compensation transaction model and CORBA

objects wrapped as Web Service.

7 CONCLUSION

In this paper, we have discussed the features of

CORBA and Web Services. On one hand, we have

shown that CORBA was not yet completely

explored; and the Web protocols have not evolved

enough to support CORBA. On the other hand, Web

Services use the protocols of the Web, thus it is

more adapted for the Web than CORBA. The Web

object was not a very successful solution to integrate

CORBA on the Web, but with the sprouting of Web

Services new opportunities can be envisaged. We

propose the externalization of CORBA objects

inside an Intranet as Web Services.

Web Services is not a complete solution to create

complex systems. We have proposed an integration

of Web Services and Workflow to compose services

in order to create real systems. Moreover, we have

suggested an extension to WSFL and a transaction

protocol.

An architecture (WEWS) that uses our approach

for Web Services composition and transaction

models was depicted and compared with other

propositions in the same context. To validate this

architecture, several tests are envisaged as

implementation of a virtual enterprise in WEWS,

performance monitoring and analysis.

REFERENCES

Akkiraju, R., et al., (2001). A Framework for Facilitating

Dynamic e-Business Via Web Services, In OOPSLA

2001, Workshop on Object-Oriented Web Services,

Tampa Bay, USA.

Dayal, U., Hsu, M. and Ladin, R., (2001). Business

Process Coordination: State of the Art, Trends, and

Open Issues, In VLDB 2001, 27th International

Conference on Very Large Data Base, Roma, Italy.

Gokhale, A., and et al., (2002). Reinventing the Wheel?

CORBA vs. Web Services. In WWW2002, the

Eleventh International World Wide Web Conference,

Honolulu, Hawaii, USA.

Harkey, D., and Orfali, R., (1998). Client/Server

Programming with Java and CORBA, 2nd Edition,

John Wiley & Sons.

Helal, S., et al., (2002). The Internet Enterprise, In

SAINT'02, Second IEEE/IPSJ Symposium on

Applications and the Internet, Nara, Japan.

Leymann, F., (2001). Web Services Flow Language -

(WSFL 1.0)”.

Northrop, L., et al., (1997). Distributed Object Technology

with CORBA and Java: Key Concepts and

Implications, Technical Report CMU/SEI-97-TR-004,

Printed in the USA.

OMG, (2000). Trading Object Service Specification,

Version 1.0.

OMG, (2001). The Common Object Request Broker:

Architecture and Specification, Revision 2.4.2.

Ouyang, J., and et al., (2001). An Approach to Optimistic

Commit and Transparent Compensation for E-Service

Transactions, In PDCS 2001, 14th International

Conference on Parallel and Distributed Computing

Systems, Dallas TX, USA.

Tsur, S., (2001). Are Web services the next revolution in

e-commerce?, In VLDB 2001, 27th International

Conference on Very Large Data Bases, Roma, Italy.

UDDI Project, (2000). UDDI Technical White Paper.

van der Aalst, W.M.P., (2003). Don’t go with the flow:

Web Services composition standards exposed. Web

Services – Been there done that? Trends &

Controversies, issue of IEEE Intelligent Systems, IEEE

Press.

W3C, (2001a). Simple Object Access Protocol (SOAP)

1.1, W3C Submission.

W3C, (2001b). Web Services Description Language.

WfMC, (2002a). The Workflow Handbook 2002, Edited by

Layna Fischer, 428 pages.

WfMC, (2002b). Workflow Process Definition Interface –

XML Process Definition Language, Specification

(Draft), version 0.04.

Zhang, L., Yadav, P., Chang, H., et al., (2001). ELPIF: An

E-Logistics Processes Integration Framework Based

on Web Services, In OOPSLA 2001, Workshop on

Object-Oriented Web Services, Tampa Bay, USA.

FROM CORBA TO WEB SERVICES COMPOSITION

121
