ROBUST SPOKEN DOCUMENT RETRIEVAL BASED ON

MULTILINGUAL SUBPHONETIC SEGMENT RECOGNITION

Shi-wook Lee, Kazuyo Tanaka

National Institute of Advanced Industrial Science and Technology, JAPAN

AIST Central # 2, Umezono 1-1-1, Tsukuba, 305-8568, Japan

Yoshiaki Itoh

Iwate Prefectural University, JAPAN

Sugo, 152-52, Takizawa, IWATE, 020-0193, Japan

Keywords:

Spoken document retrieval, Multi-lingual, Open-vocabulary Speech Recognition, Subphonetic unit.

Abstract:

This paper describes the development and application of a subphonetic segment recognition system for spoken

document retrieval. Following from the development of an open-vocabulary spoken document retrieval sys-

tem, where the retrieval process is accomplished in the symbolic domain by measuring the distance between

the parts of subphonetic segment results from pattern recognition in the acoustic domain, the system proposed

here performs matching based on subphonetic segment as more basic unit than the semantic unit. As such,

the system is not constrained by vocabulary or grammar, and can be readily extended to multilingual tasks.

This paper presents the proposed spoken document retrieval system including the proposed subphonetic seg-

ment recognition scheme, and evaluates the performance and feasibility of the system through experimental

application to multilingual retrieval tasks.

1 INTRODUCTION

Recently, information retrieval techniques have been

widely adopted for text databases to identify docu-

ments that are likely to be relevant to text queries. The

aim of spoken document retrieval (SDR) is to provide

similar functionality for databases of spoken docu-

ments. Such spoken documents, stored in the form of

audio signals, may be collected from many different

sources, such as news broadcasts on radio and televi-

sion, voice/video e-mail, and multimedia material on

the Web. Furthermore, as the volume of such acces-

sible multimedia databases continues to grow, the de-

mand for user-friendly methods to access, process and

retrieve the data has become increasingly important.

Therefore, it has become indispensable to be able to

retrieve such documents in response to speech queries

as well as text queries.

Overall, subword-based retrieval is not as effec-

tive as word-based retrieval, but is helpful when the

word-based speech recognition output is prone to er-

ror or undesirable, as may occur in out-of-vocabulary

(OOV) problems and multilingual tasks. With current

technology, there is a practical limit on the size of the

vocabulary. When new speech queries that are not in

the pronunciation dictionary (lexicon) are input, the

system undesirably replaces the query with the most

probable word. If the system is more sophisticated, it

regards the input query as unknown, and fails to of-

fer a result, without providing further details. The

system can never output a string of subwords that

is not listed in the pronunciation dictionary. Large-

vocabulary continuous speech recognition (LVCSR)

systems cannot deal with articulation at the subword

level unless subword units are used as the fundamen-

tal units. The video mail retrieval project is address-

ing this requirement by developing systems to retrieve

stored video material using the spoken audio sound

track(Jones, 1996).

In the task of cross-language retrieval, non-native

pronunciation characteristics (i.e., foreign accents) in

foreign language speech lead to extremely poor per-

formance in SDR. For example, English uttered by

a Japanese speaker will retain many Japanese speech

characteristics (Japanese-English). Therefore, it is de-

sirable that the system can deal with those speech

queries with foreign accents. As the prevalence of

multimedia material on the Web continues to grow,

the demand for multilingual SDR systems is rapidly

strengthening. The development of multilingual SDR

systems will therefore be of signiﬁcant beneﬁt for

multilingual task, and will parallel the development

of retrieval in these systems.

To accomplish cross-media tasks, for example text

134

Lee S., Tanaka K. and Itoh Y. (2004).

ROBUST SPOKEN DOCUMENT RETRIEVAL BASED ON MULTILINGUAL SUBPHONETIC SEGMENT RECOGNITION.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 134-139

DOI: 10.5220/0002636201340139

 SciTePress

queries of spoken documents and speech queries of

text documents, the choice of suitable subword units

for multimedia retrieval is important. The advantage

of subword units is that the transcript is readable by

humans and can be used to translate text queries into

subword sequences so as to be acceptable in SDR.

The present authors have been developing an SDR

system in which retrieval is conducted by calcu-

lating the distance between the parts of a subpho-

netic segment(SPS) sequence extracted from under-

lying speech recognition. As the system is based

on matching SPS sequences directly, the system is

not constrained in terms of vocabulary or grammar,

and is robust with respect to recognition error(Tanaka,

2001)(Lee, 2002). Most existing SDR systems are

based on matching text, and speech recognition sys-

tems usually employ the integration of likelihood val-

ues of acoustic phoneme sequences given from a top-

down hypotheses. Thus, it should be possible to

merge both acoustic and symbolic processing simul-

taneously. In this work, the feasibility of subpho-

netic units for retrieval in an SDR system is investi-

gated. The effect of varying the distance measure is

also examined in an attempt to improve the perfor-

mance of the shift continuous dynamic programming

(Shift-CDP) matching based on SPS sequences. Fi-

nally, SDR experiments are conducted to evaluate the

performance of the proposed system in both monolin-

gual and multilingual tasks.

2 SPOKEN DOCUMENT

RETRIEVAL SYSTEM

A spoken document database containing a signiﬁ-

cantly high proportion of OOV words is assumed,

such as names and places. Such words will be suscep-

tible to poor retrieval performance due to misrecogni-

tion. Speech retrieval is similar to text retrieval, ex-

cept for a number of difﬁculties in actual application

such as accurate detection of word boundaries, recog-

nition errors, and acoustic mismatching. For this rea-

son, existing SDR systems perform retrieval using a

text-based database linked to multimedia material in

the speech-based database. The SDR system pro-

posed here aims to retrieve speech keyphrases directly

from the object multimedia database. In the system,

if the object multimedia database has parts similar to

those included in the input queries, the relevant data

can be retrieved using only the accumulated distance

between arbitrary durations of SPS sequences. Such

a scheme is suitable for an open-vocabulary system.

This function can be performed by applying Shift-

CDP for optimal matching between SPS sequences.

This is an essential difference from the conventional

speech processing methods. In the proposed system,

the input utterance is ﬁrst encoded in terms of acous-

tic features. Then, the SPS extracted by a recognizer

is transferred to Shift-CDP(Tanaka, 2001). Figure 1

shows the overall block diagram of the proposed SDR

system.

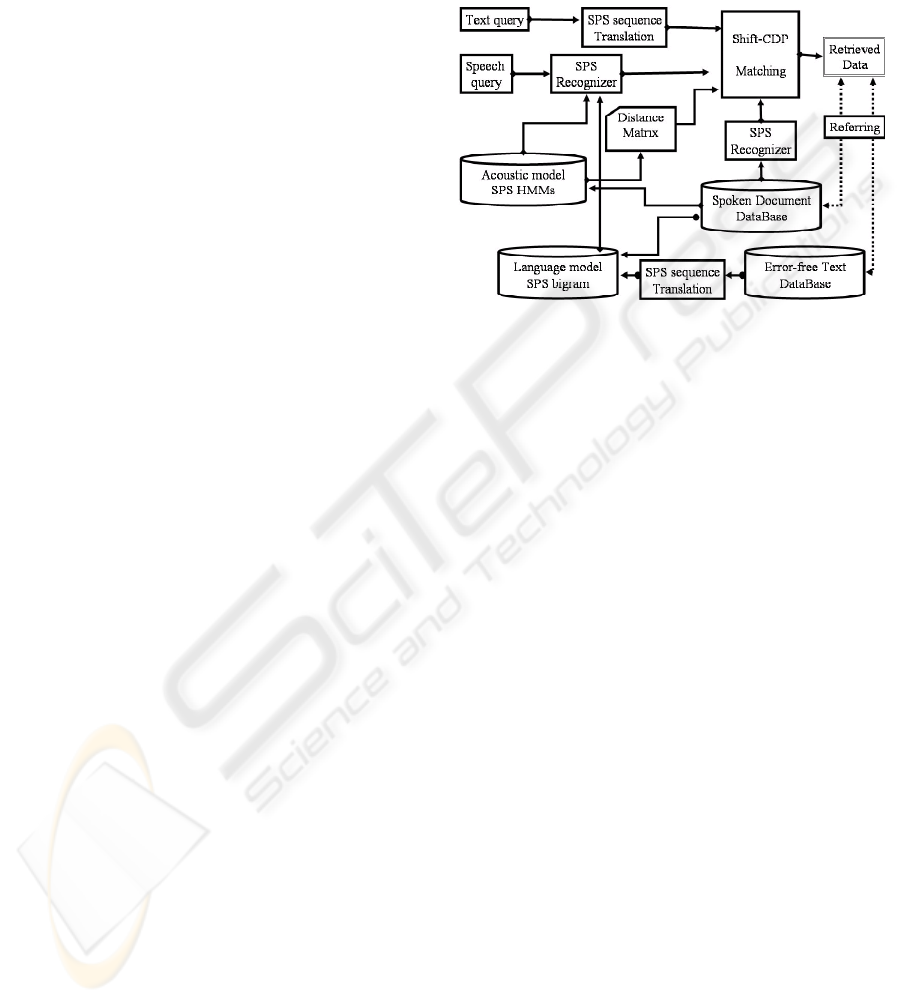

Figure 1: Block diagram of proposed SDR system based on

subphonetic segments

3 SUBWORD UNITS

In order to allow user-friendly queries of a multi-

media database, speech signals are converted into

words, phonemes, or other subword units, using

a speech recognition system. This work focuses

on a SPS-based approach, where spoken documents

are recognized as SPS sequences and the retrieval

process is carried out based on matching the dy-

namic programming scores of these transcriptions.

Although word-based approaches have consistently

outperformed phoneme approaches(Voorhees, 1998),

there are several compelling reasons for using SPS, as

mentioned above.

The present authors have been developing an ar-

chitecture for speech processing systems based on the

universal phonetic code (UPC)(Tanaka, 2001). All

of the speech data in the systems are once encoded

into UPC sequences, and then the speech process-

ing systems, such as recognition, retrieval, and diges-

tion, are constructed in the UPC domain. The inter-

national phonetic alphabet (IPA) or extended speech

assessment methods phonetic alphabe (XSAMPA) is

the candidate set for the UPC set. Here SAMPA is a

machine-readable phonetic alphabet. The SPS is de-

rived from XSAMPA and is reﬁned under the consid-

eration of acoustic-articulatory effects. For example,

the XSAMPA (i.e., IPA) contains partly extra-detailed

categorization to be modeled in an engineering sense.

Therefore, only primary IPA symbols are adopted,

ROBUST SPOKEN DOCUMENT RETRIEVAL BASED ON MULTILINGUAL SUBPHONETIC SEGMENT

RECOGNITION

135

and minor phonetic variations are represented by sta-

tistical distributions in the acoustic domain. A sim-

ple example of an SPS converted from XSAMPA se-

quences consisting of stationary and non-stationary

segments in the speech stream is given below. The ad-

vantage of training SPS models is that pronunciation

variation is trained directly into the acoustic model,

and does not need to be modeled separately in the dic-

tionary.

• Speech: She had your dark · · ·

• XSAMPA-Phoneme: # S i h E dcl dZ @ r dcl d A

kcl k · · ·

• SPS: # #S SS Si ii ih hh hE EE EdZ dcl dZdZ dz@

@@ @r rr rd dcl dd dA AA Ak kcl kk · · ·

• Core SPS: # SS ii hh EE dZdZ @@ rr dd AA kk· · ·

where # denotes a pause or silence interval.

A total of 429 SPSs are extracted from the 43

phonemes for Japanese (including 3 silence types),

and 1352 SPSs are extracted from the 42 phonemes

of English (including 3 silence types). Theoret-

ically, 1610 SPSs can be extracted from the 42

English phonemes,however, some concatenations of

phonemes do not exist in real language. The remark-

ably fewer Japanese SPSs is due to the fact that most

Japanese syllables consist of 1 consonant and 1 vowel

(C+V). Therefore, concatenations of consonants are

very rare in Japanese, resulting in a lesser degree of

acoustic-articulation than in English. Acoustic mod-

els of English and Japanese are simply represented by

a left-to-right hidden Markov model (HMM) with 3

states, each with a single mixture diagonal distribu-

tion for simplicity.

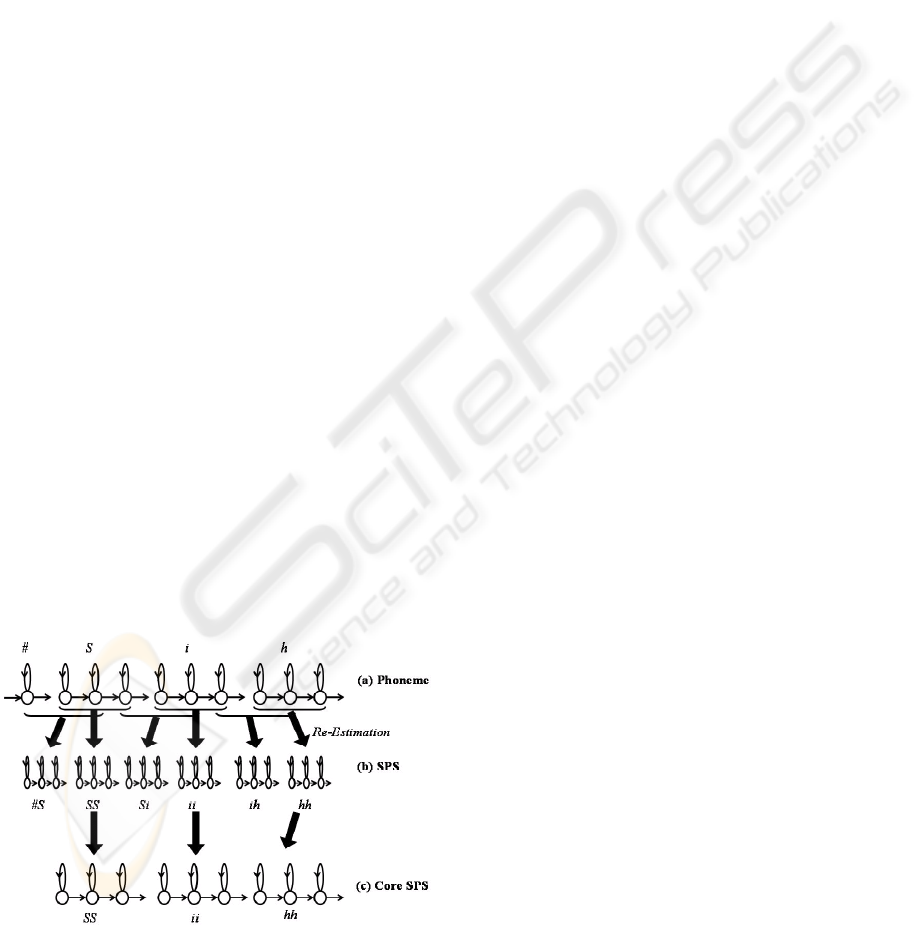

Figure 2: Acoustic models of subword units: phoneme,

SPS, core SPS

4 SHIFT CONTINUOUS

DYNAMIC PROGRAMMING

When subword sequences are recognized directly,

with higher error rates than for words, selection of a

good matching approach becomes much more impor-

tant. Shift-CDP is an algorithm that identiﬁes simi-

lar parts between a reference pattern R

and the in-

put pattern sequence I

synchronously. The pre-ﬁxed

part of the reference pattern, called the unit reference

pattern (URP), is shifted from the start point of the

reference pattern to the end by a certain number of

frames. The matching results for each URP in the

reference pattern are then compared and integrated.

Shift-CDP is an improved version of the reference

interval-free CDP (RIFCDP), and performs matching

between arbitrary parts of the database and arbitray

parts of the query input(Itoh, 2001).

= {R

, · · · , R

τ +r

, · · · , R

N−1

} (1)

= {I

, · · · , I

t+i

, · · · , I

T −1

} (2)

The ﬁrst URP is taken from R

in the reference pat-

tern R

. The next URP is then composed of the same

number of N

URP

frames from the (N

shift

+ 1)

frame. In the same way, the k

URP is composed

of N

URP

frames from the k × (N

shift

+ 1)

frame.

Thus, the number of URPs becomes [N/N

shift

] + 1,

where [] indicates any integer that does not exceed the

enclosed value. Shift-CDP is then performed for all

URPs in the reference R

. It is not necessary to nor-

malize each cumulative distance at the end frame of

a URP because all URPs are of the same length. Ac-

tually, Shift-CDP is a very simple and ﬂat algorithm

that performs CDP for each URP and integrates the

results.(Itoh, 2001)

5 DISTANCE MEASURE

In the Shift-CDP algorithm, the DP matching score

is calculated using a pre-measured SPS distance ma-

trix. Therefore, the system is directly inﬂuenced by

the distance measure, and selecting a proper measure

is important for the performance. Distance measures

have been widely applied in a number of speech tech-

nologies. For speech coding, distance measures are

used in the design scheme for vector quantization al-

gorithms and as objective measures of speech qual-

ity. In speech and speaker recognition, the spectral

difference between two speech patterns is measured

to compare patterns and make similarity decisions.

Motivated by these speech recognition techniques,

some unit-selection algorithms for speech synthesis

and optimal-joining algorithms now use the distance

measure between feature vectors. Here, the distance

ICEIS 2004 - HUMAN-COMPUTER INTERACTION

136

measures D

between two multivariate Gaussian

distributions, N(µ

, Σ

) and N(µ

, Σ

), are con-

sidered. The Bhattacharyya distance D

BHAT

, which

is covered in many texts on statistical pattern recog-

nition(Fukunaga, 1990), is a separability measure be-

tween two Gaussian distributions:

BHAT

n=1

(µ

− µ

)

+ Σ

−1

+Σ

|Σ

||Σ

(3)

where N is the number of HMM states and N = 3

states is used throughout this work. The ﬁrst term

of Eq. (3) provides the class separability from the

difference between class means, while the second

term gives the class separability from the difference

between class covariance matrices. Here, consider-

ing the insufﬁciency of training data, the distance

measure derived directly from the difference between

class mean is adopted, that is, the ﬁrst term of Eq. (3),

as formulated below. This distance is very close to the

weighted Mahalanobis distance.

n=1

(µ

− µ

)

+ Σ

−1

(4)

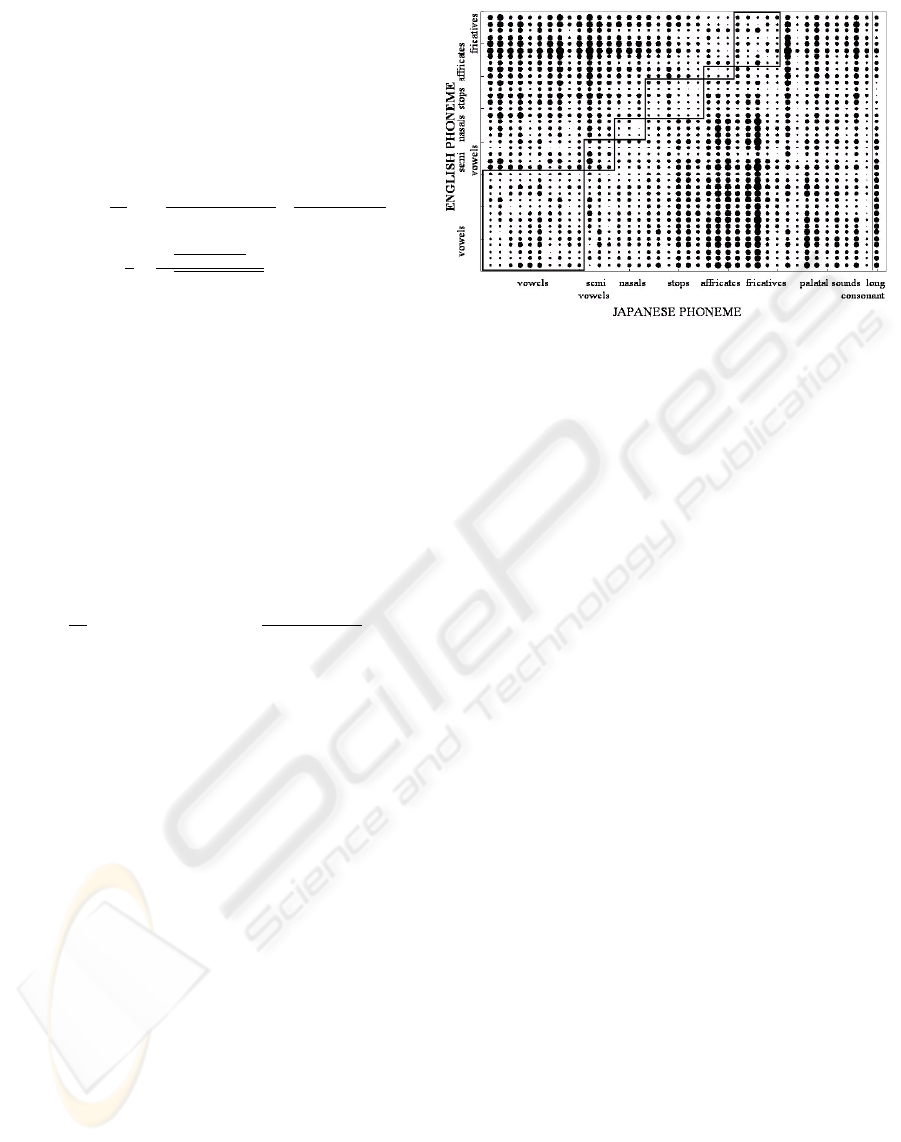

Figure 3 shows the phonetic distance matrix be-

tween English and Japanese phonemes measured by

Eq. (4). The radius of the spots is linearly pro-

portional to the distance between the English and

Japanese phoneme HMMs. Thus, a larger spot area

indicates a longer distance.

6 EXPERIMENTAL EVALUATION

6.1 Multilingual Corpus and Models

For research into the underlying speech recognition

and information retrieval technologies based on sub-

word units, it was necessary to prepare a sufﬁcient

corpus of spoken documents. The observation vec-

tor consists of 12th-order mel-cepstra, their delta,

power, and its derivative. Thus, a 26-dimensional

feature vector is extracted from each 5 ms analy-

sis frame. HMMs for English and Japanese are

estimated separately on language-dependent native-

speaker speech data as in typical monolingual speech

recognition. The phoneme models used here were 42

monophones (including 3 silence types) for English,

Figure 3: Phonetic distance matrix between English (# 39)

and Japanese (# 40) phonemes calculated by Eq.(4). The 3

silence models are not presented here.

and 43 monophones (including 3 silence types) for

Japanese. The English phoneme models were ﬁrst es-

timated from TIMIT phonetically labeled data. The

acoustic models for the 1352 English SPSs were es-

timated using Wall Street Journal data (WSJ0). In

the case of Japanese acoustic models, Japanese news-

paper articles sentences (JNAS) were used to ob-

tain phonemes and the 429 SPSs. For all training

utterances, phoneme and SPS sequences were gen-

erated from the text transcription and a dictionary.

The Carnegie Mellon University (CMU) pronunci-

ation dictionary (120,000 words) was used for En-

glish, and the IPA pronunciation dictionary (60,000

words)(Kawahara, 1998) was used for Japanese to

translate all English and Japanese spoken documents

into phoneme/SPS sequences for forced-alignment in

training acoustic models and subword n-gram lan-

guage models. English acoustic phoneme models

were primarily built using the TIMIT 61 label set. In

order to use the CMU pronunciation dictionary (39

phonemes) to estimate English SPS models, the En-

glish phoneme models were collapsed down to the

39 labels. To increase underlying subword recogni-

tion accuracy, phoneme/SPS bigram language mod-

els were also estimated from the same corpus used to

train the acoustic models. The training material used

for acoustic and language models is summarized in

Table 1.

6.2 Experimental Results

A set of 10 short keyphrase queries were prepared for

SDR experiments. Each query had 9 relevant docu-

ments in each language-dependent target database of

2000 sentences. The input queries and target database

for experimental evaluation are detailed in Table 2.

The underlying recognition system for decoding

ROBUST SPOKEN DOCUMENT RETRIEVAL BASED ON MULTILINGUAL SUBPHONETIC SEGMENT

RECOGNITION

137

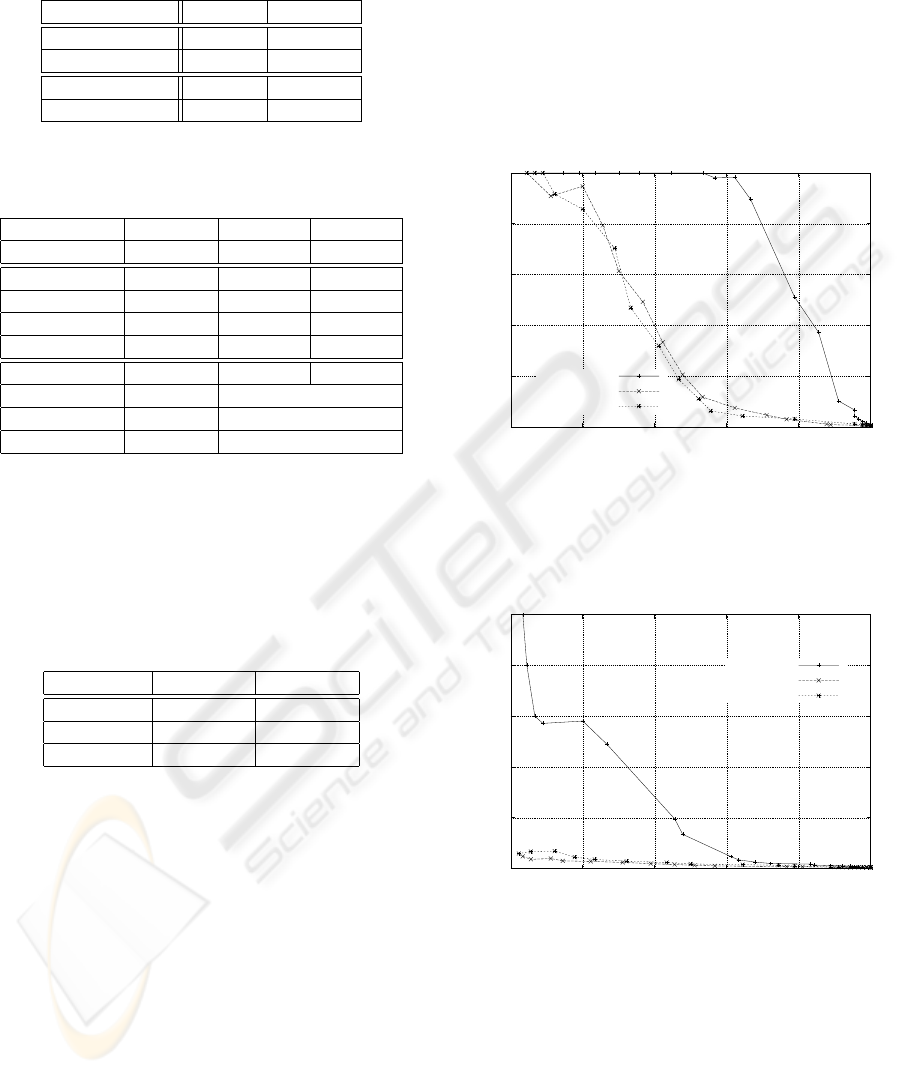

Table 1: Training material used for acoustic and language

models

Language English Japanese

# Sentences 29150 13786

Length 55.68 h 25.62 h

# Phonemes 42 43

# SPSs 1352 429

Table 2: Analysis of test material for monolingual and mul-

tilingual SDR tasks

Speaker Japanese Japanese English

Speech Japanese English English

Ave. length 1.19 s 2.00 s 1.01 s

# Phonemes 12.4 7.9 8.4

# SPSs 26.0 19.1 19.4

# Core SPSs 11.3 8.7 9.0

# Relevant 9 9 9

Target DB Japanese English

# Sentences 2000 2000

Length 3.29 h 1.87 hr

subwords was a single-pass beam search decoder

based on the JULIUS system(Kawahara, 1998). Ta-

ble 3 summaries the error rates for each language and

subword unit.

Table 3: Subword error rates (%) for each language and

subword unit

English Japanese

Phonemes 42.97 45.76

SPSs 50.90 46.21

Core SPSs 41.66 35.66

Figures 4 and 5 show the language-dependent

monolingual SDR performance for English and

Japanese according to subword units. The speech

of input queries and target DBs were uttered by na-

tive speakers. Both in English and Japanese SDR

experiments, the SPS-based SDR outperformed the

phoneme-based and core SPS-based schemes remark-

ably. Longer subword units can capture word or

phrase information, while shorter units can only

model word fragments. The trade-off is that the

shorter units are more robust to error and word vari-

ants than the longer units. There were no signiﬁcant

differences between the performance of SDR based

on phonemes and core SPSs. As seen in Tables 2

and 3, although the error rates when using core SPSs

are lower than for the use of phonemes, the SDR

performance is heavily dependent on the number of

subwords per unit time. This also demonstrates that

the amount of information per unit time is an essen-

tial consideration in subword-based SDR. The per-

formance of SDR for English is worse than that for

Japanese, due to the extremely large number of vari-

ant pronunciations in English, and the larger amount

of information per unit time in Japanese. The former

cause can be counteracted to some extent by prepar-

ing various pronunciations in a dictionary, however,

cross-word coarticulation cannot be predicted.

100

0 20 40 60 80 100

Precision Rate [%]

Recall Rate [%]

SPS

SPScore

PHONE

Figure 4: Performance of Japanese SDR according to sub-

word units, phoneme(PHONE), subphonetic segment(SPS),

and core SPS(SPScore)

100

0 20 40 60 80 100

Precision Rate [%]

Recall Rate [%]

SPS

PHONE

SPScore

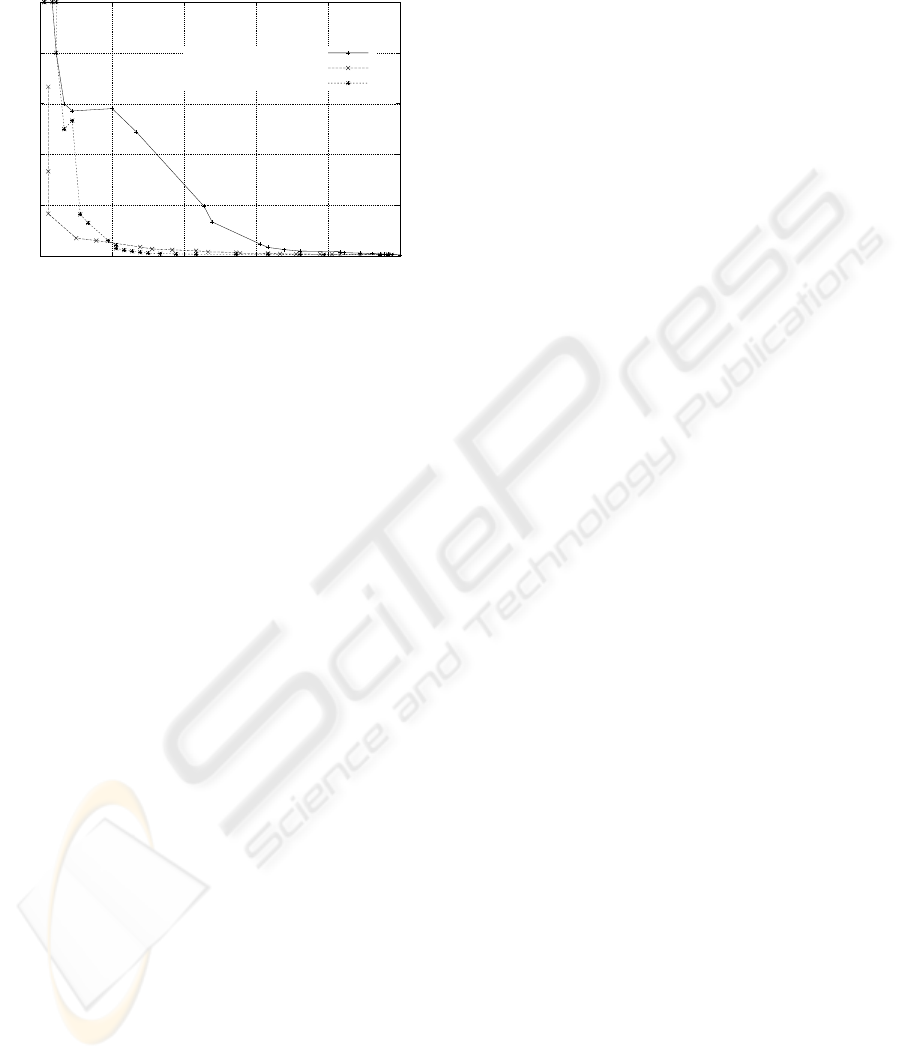

Figure 5: Performance of English SDR according to sub-

word units

The two HMM sets, Japanese and English, are

used together in English SDR tasks for Japanese-

English, labeled as EJ.model in Figure 6. The acous-

tic EJmodel contains 1778 SPS HMMs from the

1352 English HMMs, and 429 Japanese HMMs. The

3 silence models are chosen from the English mod-

els. Despite the simple method for combining the two

acoustic models, the performance is improved consid-

erably for Japanese-English tasks. This result demon-

ICEIS 2004 - HUMAN-COMPUTER INTERACTION

138

strates that this approach is a feasible means of han-

dling foreign accents in multilanguage SDR.

100

0 20 40 60 80 100

Precision Rate [%]

Recall Rate [%]

Espk - E.model

Jspk - E.model

Jspk-EJ.model

Figure 6: Performance of SPS-based English SDR accord-

ing to speaker type and acoustic model. Native English

speaker (Espk) and Japanese speaker (Jspk), English acous-

tic model (E.model), and Multi-lingual acoustic model

(EJ.model)

7 CONCLUSIONS

This paper presented the development of an open-

vocabulary SDR system and the use of SPSs as a new

subword unit. Experimental evaluation demonstrated

that the SPS-based approach signiﬁcantly improves

the performance of both monolingual and multilin-

gual SDR. Future work will concentrate on extending

the system to other languages, as well as coupling the

scheme with LVCSR-based systems.

REFERENCES

E. Voorhees and D. Harman (1998). “Overview of the Sev-

enth Text REtrieval Conference” In Proc. of the 7th

Text Retrieval Conference (TREC-7) pp. 1–24 .

K. Ng (2000). “Subword-based approaches for Spoken

Document Retrieval” In Ph.D. thesis, Massachusetts

Institute of Technology, Cambridge, MA .

M. A. Siegler, et al. (1997). “Automatic Segmentation,

Classiﬁcation and Clustering of Broadcast News Au-

dio” In ARPA Speech Recognition Workshop pp. 97–

99.

K. Sp

arck Jones, G. J. F. Jones, J. T. Foote and S. J. Young

(1996). “Experiments in spoken document retrieval”

In Information Processing and Management 32(4):pp.

399-417.

K. Tanaka, et al. (2001). “Speech data retrieval system

constructed on a universal phonetic code domain” In

Proc. of ASRU2001 pp. 1–4.

S. Lee, et al. (2002). “Evaluation of speech data retrieval

system using sub-phonetic sequence” In Proc. of Au-

tumn Meeting of the Acoustical Society of Japan pp.

159–160.

Y. Itoh and K. Tanaka (2001). “Automatic Labeling and Di-

gesting for Lecture Speech Utilizing Repeated Speech

by Shift CDP” In Proc. of EUROSPEECH-2001 pp.

1805-1808.

K. Fukunaga (1990). “Introduction to Statistical Pattern

Recognition” Academic Press

T. Kawahara, et al. (1998). “Sharable software reposi-

tory for Japanese large vocabulary continuous speech

recognition” In Proc. of ICSLP’98 pp. 3527–3260.

The CMU Pronouncing Dictionary (v. 0.6), In

http://www.speech.cs.cmu.edu/cgi-bin/cmudict.

ROBUST SPOKEN DOCUMENT RETRIEVAL BASED ON MULTILINGUAL SUBPHONETIC SEGMENT

RECOGNITION

139
