TOWARDS A BUSINESS PROCESS FORMALISATION BASED

ON AN ARCHITECTURE CENTRED APPROACH

Fabien Leymonerie, Lionel Blanc Dit Jolicoeur, Sorana Cîmpan, Christian Braesch, Flavio Oquendo

University of Savoy at Annecy – ESIA Engineering School - LISTIC Laboratory

B.P. 806 - 74016 Annecy Cedex - France

Keywords: enterprise modeling, business process, enterprise application in

tegration, architectural description language,

architectural styles.

Abstract: Nowadays, enterprises need to control their business processes and to manage more and more information.

EAI - Enterprise Application Integration - solutions offer a partial response to these requirements.

However, the lack of formalisation that characterises such solutions limits the reuse and verification of

properties. This paper claims that business processes have to be formally defined using a formalism that

presents certain features (representation of several abstraction levels, domain specific concepts, property

expression and preservation, etc.) and proposes the use of an ADL - Architecture Description Language - as

formalism. A case study illustrates our proposition.

1 INTRODUCTION

Enterprises are increasingly aware that the control of

their information system is a key element in

industrial performance and a differential element in

competitiveness. Today, one of the main issues

restraining this competitiveness is the large number

of application integrations required to synchronise

and optimise business processes throughout

enterprises. EAI - Enterprise Application Integration

- solutions provide a new framework able to take

synchronisation of business processes into account.

This paper claims that business processes have to be

formally defined using a formalism that presents

certain features (representation of several abstraction

levels, domain specific concepts, property

expression and preservation, etc.) and proposes the

use of an ADL - Architecture Description Language

- as formalism.

In the following sections we go deeper into the

problem we

address (management of application

integration synchronised with the optimisation of

business processes) and we illustrate the use of this

ADL in a specific industrial case study.

2 BUSINESS PROCESSES TO

OPTIMISE, APPLICATIONS TO

INTEGRATE

In a free market context, enterprises have to adopt

new organisation models in order to meet customer

requirements. Rather than acquiring new know-how,

more and more enterprises work with external

partners that are already efficient and consequently

cheaper. Enterprises have to be able to react quickly

to changes by adopting new effective organisation

instead of betting on static organisation mode. In

fact, enterprises have to identify, standardise and

update their business processes which become the

enterprise referent. Moreover, in order to have their

information system in accordance with these

business processes, most of the enterprises have

generally deployed an Enterprise Resource Planning

(ERP) system.

However, even if an ERP system covers a large

ectrum of functionalities, it is not modifiable

enough to support all kinds of system evolution

(MESA, 1997a) (MESA, 1997b). Today, the trend is

clearly oriented towards integration of

heterogeneous applications based on EAI concepts

(Mann, 1999) (Hostachy, 2000) (Schmidt, 2000)

(Beck et al., 2000).

513

Leymonerie F., Blanc Dit Jolicoeur L., Cîmpan S., Braesch C. and Oquendo F. (2004).

TOWARDS A BUSINESS PROCESS FORMALISATION BASED ON AN ARCHITECTURE CENTRED APPROACH.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 513-518

DOI: 10.5220/0002636405130518

 SciTePress

An EAI system is often viewed as the enterprise

skeleton (Hostachy, 2000). An EAI system is a set of

tools and integration software which allows

connecting several enterprise applications, relying

on different technologies (Linthincum, 2000).

An EAI system aims at controlling interactions

between heterogeneous applications existing into an

enterprise (legacy software or specific applications

developed for internal needs) with the purpose to

(Schmidt, 2000) (Stonebraker, 1999):

– build an efficient support to enact business

processes by solving consistency problems

arising from application interactions,

– supply a structure able to evolve by taking

environment changes into account,

– propose to the end-user aggregated information

to help him take decisions; this information is

built with data managed by different

applications.

The architecture of the EAI system can be

structured in terms four parts:

– the connection part interfaces the EAI system

and the COTS - Component Of the Shelf - of the

enterprise,

– the transformation part aims at transforming the

collected data format of the COTS to a pivot

format,

– the routing part transmits the information to the

good COTS, being based on the modeling of the

business processes,

– the modeling part aims at providing a

representation of the business processes of the

enterprise.

An EAI system evolves continuously in order to

be adapted to the COTS and especially to the

enterprise business processes. It is essential to

continuously check the consistency of the EAI

system to take the COTS and process evolutions into

account. So, it is necessary to formalize the business

processes architecture.

Moreover, due to the structure of the enterprise

in several interacting and co-evolving levels, the

language used for the formalisation has to exhibit

some features like:

– capability to express evolvable business

architectures integrating business processes at

different abstraction levels,

– capability to refine the business architecture into

a concrete architecture defining integration

between enterprise legacy software,

– capability to express quality attributes describing

extra-functional properties related to the

considered domain.

Two communities of researchers tackled the

problem of formalising business processes: the

software engineering community and the industrial

engineering one. The first community started from

the software engineering perspective, and focused on

on the software processes. Efforts were put on

finding approapriate means for their formalization.

Although the work started from the study of

software processes in general, the proposed

formalisms are suitable for the definition of

processes in general. Recent work adopts an

architecture centric approach software development

process, leading to the production of a certain

number of architecture description languages

(ADLs). The industrial engineering community

focused on formalisms for business process

description, as well as on processes themselves.

Several process models and formalisms are proposed

in the literature, and unification efforts are noted

(Braesch et al., 2000) (Vallespir et al., 2003)

(GERAM, 1999) (Vernadat, 2001).

The first community focused more on

formalisms, leading to formal description languages

allowing the description of evolvable systems, while

the second focused more on models, leading to the

production of better organization models. In this

paper we propose to make the bridge between the

two communities, and use performant formalisms

for better modeling the identified processes. We use

thus an architecture description language for the

modeling of business processes. The ADL we adopt

has been proposed in the ArchWare European

project presented below in this draft.

More precisely, our work aims at using a

parameterized ArchWare environment able to

develop solutions adapted to the industrial

management of SMI/SME companies. This

industrial management is based on COTS such as

ERP, Quality Management Software, Maintenance

Management Software, etc. In our solution, we

integrate these COTS within an EAI solution built

following a style-based software development

process.

3 THE ARCHWARE ADL

The presented work has been partially funded by the

European Commission in the framework of the IST

ArchWare Project (IST–2001–32360). Hereafter, we

present the main issues of the ArchWare project and

the language it proposes.

The ArchWare project (www.arch-ware.org)

aims to develop and validate an innovative

architecture-centric software engineering

framework, i.e. architecture description and analysis

language, architectural styles, refinement models,

architecture-centric tools, and a customisable

software environment. The main concern is to

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

514

guarantee required quality attributes throughout

evolutionary software development (initial

development and evolution), taking into account

domain-specific architectural styles, reuse of

existing components, support for variability on

software products and product-lines, and run-time

system evolution.

Evolvable software systems such as EAI systems

are those that are capable of accommodating change

over an extended lifetime with reduced impact for

cost and schedule and controlled impact for quality.

The key novelty of the ArchWare project approach

is its holistic view of evolvable software systems.

This starts with a high-level description of the

software system expressed in a formal architecture

description, possibly using domain-specific

architectural styles. The required quality attributes

(e.g. scalability, performance, modifiability, safety,

reliability) of the software system may then be

proved/checked/evaluated using analysis tools. This

high-level description may then be incrementally

refined into more low-level, intermediate

descriptions until reaching a concrete level that may

be used for application generation. Refinements are

applied to architecture descriptions as well as to

quality attributes.

The architecture description is based on

architectural styles. An architectural style counts the

whole of the functionalities and of the architectural

properties of a particular field; its objective is to

limit the architecture definition space (Cîmpan et al.,

2003). Using architectural styles allows an architect

to reuse the collected wisdom of the architecture

design community in much the same way that

object-oriented design patterns give novice designers

access to a vast array of experience collected in the

object-oriented design community (Klein and

Kazman, 1999).

The ArchWare ADL (Oquendo et al., 2002)

(Cîmpan et al., 2002) is a formal language for

modeling evolvable software architectures. It

provides a higher level of abstraction based on

formal foundation based on the concepts of the π-

calculus formal algebra (Milner et al., 1992), the µ-

calculus formal algebra (Kozen, 1983), persistent

programming and dynamic system composition and

decomposition. The ArchWare ADL also defines a

set of style mechanisms that allows starting from the

core language, the creation of domain specific

languages.

The ArchWare ADL core description language is

based on the concept of formal composable

components and on a set of operations for

manipulating these components. The ADL supports

the concepts of behaviours, abstractions of

behaviours, to represent respectively running

components and parametric component types.

Behaviour is described using all the basic π-calculus

(Milner et al., 1992) operations as well as

composition and decomposition. Communication

between components is via channels represented by

connections (representing component interfaces as

well). The ArchWare ADL allows the definition of

evolvable architectures, i.e. where new components

and connectors can be incorporated and existing

ones can be removed, governed by explicit policies.

The style layer of the language allows the

definition of architectural element styles,

represented by property-guarded behaviour

abstractions. Thus, we can define kinds of

architectural elements and express constraints on

their internal structure and their behaviour. The style

layer allows the definition of domain specific

extensions of the core language, where the domain

properties can be explicitly defined and preserved.

These ArchWare ADL features make it suitable

for the modeling of enterprise processes, which due

to the changes in their economic environment are

constantly changing. We use this ADL to describe

the evolution characteristics of an EAI system and to

define the EAI domain.

4 EAI FORMALISATION

Currently, there is no EAI solution proposing a

model able to represent and control the business

processes of the company. We claim that the

business process view of an enterprise is the key

element to the definition of the EAI architecture.

Within the framework of our work, we

especially were interested in the “modeling” level.

In fact, we need on the one hand to verify the model

at a “generic level”, and on the other hand, to verify

the interactions between the different elements of the

model.

4.1 EAI architecture

In order to apprehend this modeling part, we have

decomposed it in three abstraction levels:

– The Inter-Enterprises level where enterprises are

organised for providing a product or a service

are defined.

– The Enterprise level where ICs - Industrial

Component (Chaudet, 2002) (Braesch et al,

2000) -, one PS - Performance System - and one

RMS - Resource Management System - are

defined.

– The Performance System identifies the

industrial components able to satisfy a need

and evaluates the goal reached by these

components,

TOWARDS A BUSINESS PROCESS FORMALISATION BASED ON AN ARCHITECTURE CENTRED APPROACH

515

– The Resource Management System manages

the different enterprise resources.

– The Workflow level where COTS and a

Workflow engine are defined. The Workflow

engine synchronizes the COTS interactions.

This architectural framework aims at enhancing

modifiability decoupling interactions between

various architectural elements at the three

abstraction levels.

In the following section we illustrate the use of

the ArchWare ADL in the modeling of a framework

for the Inter-Enterprises level, and more particularly

a process related to negotiation.

Negotiation

Mediator

Contractor

Supplier

Contractor

4.2 Architecture formalisation

The process used to illustrate an EAI system

architecture design is placed in the context where an

enterprise needs to sub-contract a part of its

manufacturing process and begins a negotiation

process with several suppliers (Blanc dit Jolicoeur et

al., 2002).

The negotiation process involves a contractor

and several suppliers, identified as enterprise

components in the architecture (cf. Figure 1). A

negotiation mediator, entailing the negotiation

protocol, is added to the architecture.

The protocol is succinctly described below:

– The contractor opens an invitation to tender by

sending an offer to chosen suppliers,

– The suppliers reply to this invitation to tender by

sending a response (a proposal if they are

interested or a signal if not),

– The contractor studies the received proposals

and establishes a contract from interesting

proposals.

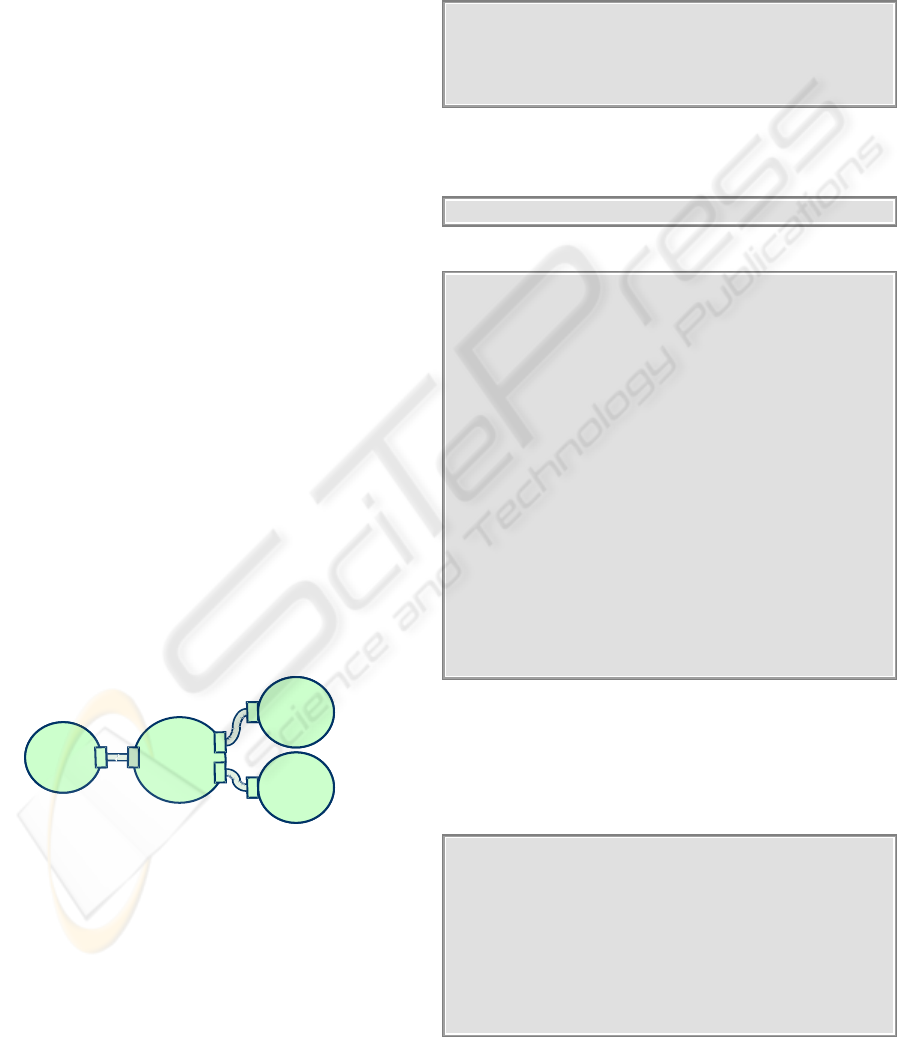

Figure 1: Architecture for negotiation process

The set of suppliers concerned by the negotiation

depends on the offer. As there are several

negotiations, the suppliers are not always the same.

So, the architecture evolves during the production

plan construction. Thus, the architecture needs to be

dynamically evolutive.

We first define the communication interface of

elements and the negotiation protocol between one

contractor and one supplier.

The interface of an architectural element is given

by a set of connections. We use the view type

provided by the ADL in order to structure the

interface (attachment) in several interaction points.

Thus we defined the Negotiation_Attachment type.

type Negot is view[ iation_Attachment

offer:connection[String, String],

answer:connection[String,String],

noanswer:connection[String],

contract:connection[String, String],

close:connection[String]]

The one_one_negotiation protocol expresses the

negotiation between one contractor and one supplier

by an ordonnanced set of communication actions.

via ATTACHMENT_NAME ::CONNECTION_NAME send MESSAGE

It is formally described in the following.

value one_one_negotiation is abstraction(

contractor: Negotiation_Attachment,

supplier: Negotiation_Attachment).{

{ via contractor::offer

receive offer:String.

via plier::offer send offer. sup

choose

{ { via supplier::answer

receive answer:Stri ng.

via tractor::answer send answer. con

choose

{ { via contractor::contract

receive contract:String.

via supplier::contract

send contract.

via contractor::close receive }

or{ via contractor::close receive.

via supplier::close send }

}

or{ via supplier::noanswer receive.

via contractor::noansw send er .

via contractor::close receive }

or{ via contractor::clos receive. e

via supplier::close send }

} }

Several one_one_negotiation protocols need to

be dynamically generated in order to contract with

several suppliers. Thus, we define a recursive

abstraction (negotiation_creation) that instantiates a

new one_one_negotiation protocol after receiving

the corresponding order.

recursive value negotiation_creation is

abstraction().{

value egotiation is free new_n

connection(Negotiation_Attachment).

via new_negotiation receive

ttachment, supplier attachment. contractor_a

compose{

one_one_negotiation(contractor_attachment,

supplier attachment)

and

negotiation_creation()

} }

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

516

This particular negotiation process is thus

formalized, allowing the verification of several

properties. In the following section we focus on

how domain know-how can be captured using

architectural styles.

4.3 Domain formalisation

Using ArchWare ADL we can formalise an EAI

style in order to give support for EAI architect. On

the one hand the EAI style describes the various

elements of EAI architectures. On the other hand it

defines the whole of the constraints specific to this

kind of architecture (Blanc dit Jolicoeur et al.,

2003a).

We use styles in order to provide specific kinds

of architectural elements for the industrial domain

(cf. Figure 2).

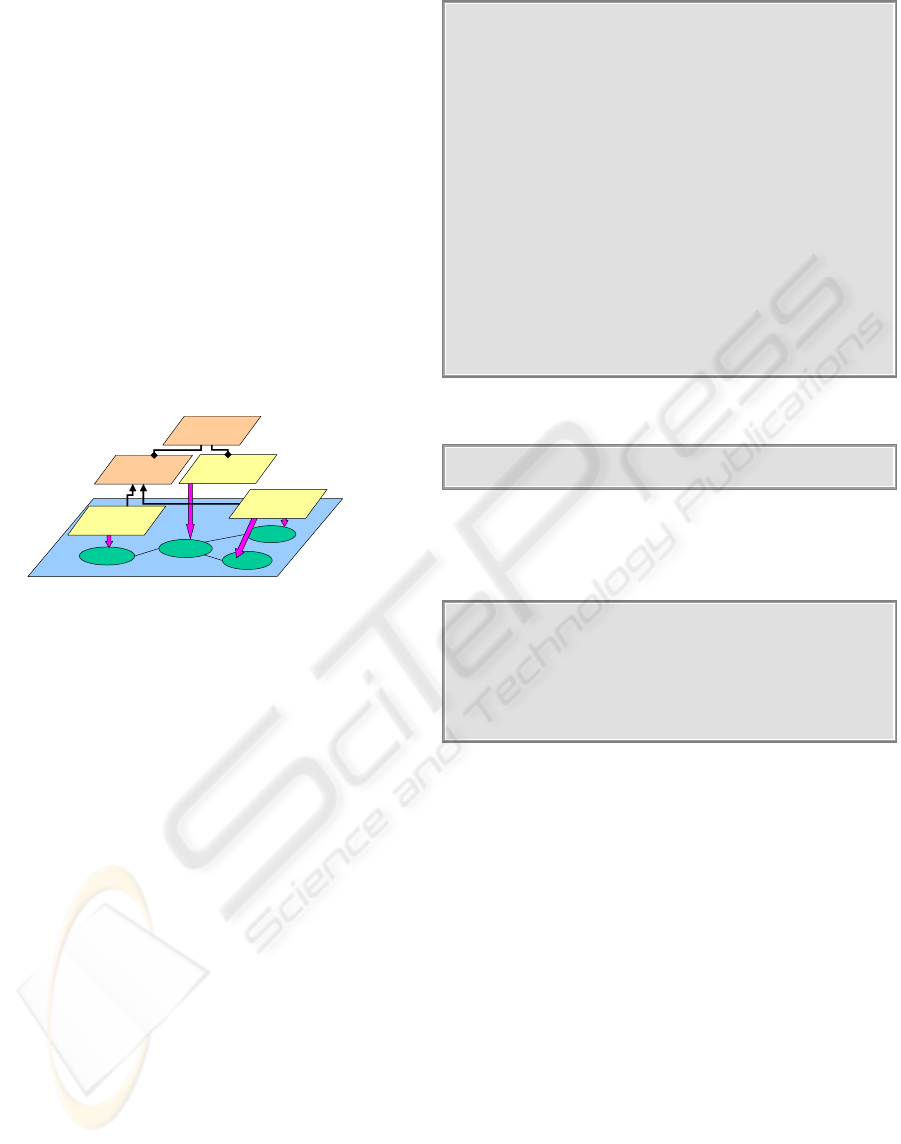

Figure 2: Architectural styles

For each main part involved in the process

(enterprises, mediator) a style is introduced. Thus we

define an InterEnterprise style which gives a

framework for the whole system. The

InterEnterprise style refers to other styles like the

Enterprise style. There are two sub-styles of

Enterprise, namely Contractor and Supplier. These

styles give a framework for sub-structures of the

system.

At definition, each of these styles has a

parameterized computational part guarded by a set

of additional properties (in the verifying part of the

definition). The use of mixfix notations for new

architectural elements (mechanism provided by the

ADL) offers the possibility to introduce domain-

specific notations for the new constructs (in the as

part of the definition).

The InterEnterprise style must be parameterized

with a set of Enterprise components and a Mediator

component. If these components verify expressed

constraints, they are composed when the style is

applied. The constraints mean that components must

be of Enterprise and Mediator kind, and that

enterprises are not directly connected but using a

Mediator.

value InterEnterprise is

style( terprises:sequence[ rprise_T], en Ente

r:Mediator_T). mediato

{ compose{

iterate enterprises by e

from ent_comp is abstraction().{}

accumulate compose{e and ent_comp}.

comp ent_

and mediator

}

verifying(

to enterprises apply{

forall(e|e in style Enterprise) and

forall(e1,e2|not(connect(e1,e2)) and

forall(e1| connect(e1,mediator))

mediator in style Mediator

)

as{ interEnterprise grouping

enterprises

which are mediated by

mediator }

As a sub-style of Enterprise, the Contractor

style exhibits additional properties.

Contractor

Mediator

Supplier1

Supplier2

Enterprise

style

Mediator

style

Contractor

style

Supplier

style

Inter-enterprise

style

value Contractor is Enterprise{}.

verifying( CONTRACTOR SPECIFIC PROPERTIES )

Finaly an architecture can be instantiated from

the style. In the following example we used the style

specific notation for defining an EAI system with

one contractor and one supplier.

value contractor is Contractor( PARAMETERS ).

value supplier is Supplier(PARAMETERS ).

value system is

interEnterprise grouping

sequence(contractor,supplier)

which are mediated by

negotiation_Med

5 CONCLUSION

As we saw, enterprises need to integrate existing

applications in order to stay competitive. But these

applications are heterogeneous and have to

synchronise and optimise well-defined business

processes. The EAI approach provides a framework

enabling the synchronisation of these business

processes. However, if this approach gives a broad

spectrum of tools that can be used to control

enterprise activities, there is a lack of formalisation

leading to the incapacity to handle the co-evolution

between the several enterprise processes situated in

different abstraction levels. In order to face this need

for co-evolution we propose the use of an

architecture description language allowing the

description of evolvable systems. This language has

been proposed in the the ArchWare European

project, who’s main concern is to guarantee required

quality attributes throughout evolutionary software

TOWARDS A BUSINESS PROCESS FORMALISATION BASED ON AN ARCHITECTURE CENTRED APPROACH

517

development (initial development and evolution),

taking into account domain-specific architectural

styles, reuse of existing components, support for

variability on software products and product-lines,

and run-time system evolution.

REFERENCES

Beck, M., Finout, J., and Westlake, B., 2000. “Change

Management and EAI”, in eAI Journal, September

2000, pp. 77-79.

Blanc dit Jolicoeur, L., Braesch, C., Dindeleux, R.,

Gaspard, S., Le Berre, D., Leymonerie, F., Montaud,

A., Chaudet, C., Haurat, A., and Théroude, F., 2002.

“Final Specification of Business Case 1, Scenario and

Initial Requirements”. ARCHWARE European RTD

Project IST-2001-32360. Deliverable D7.1b.

December 2002.

Blanc dit Jolicoeur, L., Braesch, C., Dindeleux, R.,

Gaspard, S., Le Berre, D., Leymonerie, F., and

Montaud, A., 2003a. “Definition of Architectural

Styles and Process Models for Business Case 1”.

ARCHWARE European RTD Project IST-2001-

32360. Deliverable D7.2. June 2003.

Blanc dit Jolicoeur, L., Braesch, C., Dindeleux, R., and

Théroude, F., 2003b. “An EAI system based on an

Industrial Component model”. In proceedings of

CESA 2003, IMACS Multiconference, July 9-11

2003, Lille, France.

Braesch, C., Théroude, F., and Haurat, A., 2000.

“OLYMPIOS : towards a component-based enterprise

modeling”, CEN Workshop, Berlin.

Chaudet, C., 2002. “Pi-Space : langage et outils pour la

description d’architectures évolutives à composants

dynamiques. Formalisation d’architectures logicielles

et industrielles”. Ph.D. Thesis (in french) of the

University of Savoy.

Cîmpan, S., Oquendo, F., Balasubramaniam, D., Kirby,

G., and Morrison, R., 2002. “The ArchWare ADL:

Definition of the Textual Concrete Syntax”.

ARCHWARE European RTD Project IST-2001-

32360. Deliverable D1.2b. December 2002.

Cîmpan, S., Leymonerie, F., and Oquendo, F., 2003.

“ArchWare ADL Foundation Style”. ARCHWARE

European RTD Project IST-2001-32360. Internal

Report, R1.3-1. June 2003.

GERAM, 1999. “Generalised Reference Architecture and

Methodology”. Version 1.6.3, IFIC-IFAC Task Force,

March 1999.

Hostachy, E., 2000. “Le système d’information doit être

centré sur l’EAI”, in Informatiques Magazine, May

2000, pp. 40-44.

Klein, M., and Kazman, R., 1999. “Attribute-Based

Architectural Styles”, technical report of Carnegie

Mellon University.

Kozen, D., 1983. “Results on the propositional Mu-

Calculus”, in Theorotical Computer Science 27, 1983,

pp 333-354.

Linthincum, D., S., 2000. “Application Servers and EAI”,

in eAI Journal, 2000.

Mann, J., E., 1999. “Workflow and EAI”, in eAI Journal,

September-October 1999, pp. 49-53.

MESA International, 1997a. “Execution-Driven

Manufacturing Management for Competitive

Advantage”, White Paper number 5.

MESA International, 1997b. “MES Functionalities &

MRP to MES Data Flow Possibilities”, White Paper

number 2.

Milner, R., Parrow, J., and Walker, D., 1992. “

A calculus

of mobile processes”. Information and Computation,

September 1992, pp. 1-40.

Oquendo, F., Alloui, I., Cimpan, S., and Verjus, H., 2002.

“The ArchWare ADL: Definition of the Abstract

Syntax and Formal Semantics”. ARCHWARE

European RTD Project IST-2001-32360. Deliverable

D1.1b. December 2002.

Schmidt, J., 2000. “Enabling Next-Generation

Enterprises”, in eAI Journal, July-August 2000, pp.

74-80.

Stonebraker, M., 1999. “Integrating Islands of

Information”, in eAI Journal, September-October

1999, pp. 1-5.

Vallespir, B., Braesch, C., Chapurlat, V., and Crestani, D.,

2003. “L’intégration en modélisation d’entreprise: les

chemins d’UEML”. MOSIM’03, French conference on

modeling and simulation in enterprise, Toulouse, April

23-25 2003, pp. 140-145.

Vernadat, F., 2001. “UEML: towards an unified enterprise

modeling language”. MOSIM’01, French conference

on modeling and simulation in enterprise, Troyes,

April 25-27 2001, pp. 3-10.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

518
