TRANSACTION CONCEPTS FOR SUPPORTING CHANGES IN

DATA WAREHOUSES

Bartosz Bębel, Zbyszko Królikowski, Tadeusz Morzy, Robert Wrembel

Institute of Computing Science, Poznań University of Technology, Poznań, Poland

Keywords: data warehouse, materialized view refreshing, schema modification, data and schema versioning, transaction

Abstract: A data warehouse (DW) provides information from

external data sources for analytical processing,

decision-making, and data mining tools. External data sources are autonomous, i.e. they change over time,

independently of a DW. Therefore, the structure and content of a DW has to be periodically synchronized

with its external data sources. This synchronization concerns DW data as well as schema. Concurrent work

of synchronizing processes and user queries may result in various anomalies. In order to tackle this problem

we propose to apply a multiversion data warehouse and an advanced transaction mechanism to a DW

synchronization.

This work is supported by the grant no. 4 T11C 019 23 from the Polish State Committee for Scientific Research

(KBN), Poland

1 INTRODUCTION

A data warehouse (DW) integrates autonomous and

heterogeneous external data sources (EDSs) in order

to provide the information for analytical processing,

decision-making, and data mining tools. The

operational data, produced by OLTP (On-Line

Transaction Processing) applications are periodically

loaded into a DW, previously being cleaned,

integrated, and often summarized. Then the data are

processed by OLAP (On-Line Analytical

Processing) applications in order to discover trends,

anomalies, patterns of behavior, to predict future,

and support pertinent business decisions. The

subjects of analysis are called facts and they are

described by dimensions that set the context of facts.

External data sources are autonom

ous, i.e. they

change over time, independently of a DW. We

distinguish three types of data source modifications,

which imply changes in a DW, i.e. fact data changes,

dimension data changes, and schema changes. Fact

data changes represent modification of data, which

are sources for facts in data warehouse. Dimension

data changes represent modifications of data, which

are sources for data warehouse dimensions. A

content modification in the EDS, e.g., inserting a

new record, may lead to a modification of a

dimension structure in a DW. For instance, inserting

a new product in an EDS may lead to modification

of the structure of the Products dimension in a DW.

So far the dimension information has been treated as

static one. But in real life the changes to this kind of

information are common. Schema changes represent

changes to the schema of EDSs, e.g. adding an

attribute to a table, dropping an attribute, adding a

new table.

As data sources change, warehouse data become

obs

olete and therefore, the structure and content of a

DW have to be periodically refreshed. An efficient

refreshing a DW under EDSs content changes is one

of the basic problems in data warehouse research

area. A DW needs to be informed when some

changes appeared in EDSs data. This functionality is

the most often provided by EDS wrapper, which

observes data source state and sends notifications to

a DW when changes take place. Having received

such a notification, a DW may begin its refreshing

process.

Data in a DW are stored in materialized views,

whi

ch are usually defined by SPJ (selection-

projection-join) query over tables in EDSs. There

are two basic techniques of refreshing a materialized

view, namely full refreshing and incremental

refreshing. The first technique consists in re-

computing a materialized from scratch. Whereas an

incremental refreshing consists in finding and

290

BÄ

Zbel B., Królikowski Z., Morzy T. and Wrembel R. (2004).

TRANSACTION CONCEPTS FOR SUPPORTING CHANGES IN DATA WAREHOUSES.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 290-297

DOI: 10.5220/0002636702900297

 SciTePress

applying to a materialized view only these changes

in source tables that appeared since the last refresh.

However, the result of this process can be incorrect

because of concurrent source tables updates. Many

algorithms proposed so far try to solve this problem

using wide range of mechanisms, e.g. (Zhuge,

Garcia-Molina, Hammer, Widom 1995, Zhuge,

Garcia-Molina, Wiener 1996).

Another problem with a DW refreshing is caused

by concurrent work of refreshing processes and

users running analytical queries. Typical way of data

analysis, performed by a DW user, consists of series

of long-lasting, complicated queries, built with join,

group-by, sort, and aggregate operations, reading

large amounts of data. The problem is how to

synchronize DW users' work with the process of

refreshing a DW? Users' queries need to see a

consistent state of data, but concurrent data

warehouse refreshing can violate this requirement.

The refreshing techniques proposed so far, called

commonly on-line warehouse maintenance, use

multiversion concurrency control algorithms (Quass,

Widom, 1997). The limitation of these algorithms is

that they do not support the mechanism of

transaction with its atomicity, consistency, isolation,

and durability properties. In a consequence, a DW

user may see various data anomalies while a DW is

being refreshed. The only algorithm for transactional

DW refresh was proposed by (Chen, Chen,

Rundensteiner 2000), however proposed solution

does not cover all aspects of DW dynamics (for

example dimension updates).

1.1 Basic Definitions

The most popular data model of DWs is based on

multidimensional data cubes, where measures – the

instances of facts, i.e. subjects of analysis, are

described in terms of dimensions. Examples of

measures include: number of items sold, income,

turnover, etc. Typical examples of dimensions are

Time, Geography, Products, etc. A value of a

measure in n-dimensional cube is referenced by n-

dimensional vector, where each element corresponds

to an element of a dimension. Dimensions are

usually organized in hierarchies. An example of a

hierarchical dimension is Geography, with

Countries at the top, that are composed of Regions,

that in turn are composed of Cities, i.e. Cities ->

Regions -> Countries. A schema object in a

hierarchy is called a level. Values in every level are

called dimension members.

Multidimensional cubes can be implemented

either in MOLAP (multidimensional OLAP) or in

ROLAP (relational OLAP) servers. In the former

case, a cube is stored in multidimensional array. In

the latter case, a cube is implemented as the set of

relational tables, some of them represent

dimensions, and are called dimension tables, while

others store values of measures, and are called fact

tables.

In the rest of this paper, we will use the

definitions of a DW schema and a DW instance. A

schema of a DW is composed of the set of all

dimensions, dimension levels, dimension members

and facts. Whereas an instance of a DW consists of

measures, i.e. cell values stored in fact tables.

1.2 Motivating Examples

Changes to the content and structure of EDSs, as

well as concurrent work of user queries and

refreshing processes may lead to serious DW

anomalies.

In order to illustrate these anomalies, let us

assume the existence of three data sources: DS

with

table Categories (storing categories of products),

with table Products (storing product

descriptions), and DS

with table Sales (storing

records about sale of products). A DW integrates

these three sources. Its schema is composed of two

dimensions, namely Category and Time. The latter is

organized hierarchically as follows: Month -> Day.

Fact table Daily_Sales stores information about total

sales of products in every day of a year. The

Daily_Sales fact table is a materialized view, whose

query joins records from Products at DS

and Sales

at DS

, and groups sale records by the category of

product and the day of sale. Second materialized

view, i.e. Monthly_Sales, aggregates daily sales in

the Time dimension.

Example 1 – incorrect refreshing a materialized

view

Let us assume that transaction T

at data source

inserts a new product "soap" of category

"Hygiene" into table Product. The data source

notifies a DW. In a consequence, the DW sends its

maintenance query Q

to DS

in order to retrieve a

delta, i.e. new sales for product "soap" from

category "Hygiene". This delta will refresh

materialized view Daily_Sales. During the transfer

of Q

to DS

, another transaction, T

at DS

, inserts

into table Sales a record describing the sale of

product "soap". Next, T

commits and notifies the

DW. When Q

arrives at DS

, it retrieves a record,

which didn't exist when maintenance query Q

was

sent. The delta is sent back to the DW and it

refreshes Daily_Sales. In a meantime, the DW

receives notification from DS

, sends maintenance

query Q

to DS

and receives the delta, which is the

same record as the one retrieved by Q

. The

TRANSACTION CONCEPTS FOR SUPPORTING CHANGES IN DATA WAREHOUSES

291

materialized view Daily_Sales will be refreshed

twice with the same data, and its content will

become incorrect. This situation is called duplication

anomaly and occurs during concurrent data sources

updates. Additional, overflow records that make

materialized view incorrect are called an error term

(Zhuge, Garcia-Molina, Hammer, Widom 1995,

Zhuge, Garcia-Molina, Wiener 1996).

Example 2 – inconsistent content of dependent

materialized views

Let us assume that a DW user begins its OLAP

session for analyzing monthly sales of given

categories (he/she queries the Monthly_Sales

materialized view). During his/her work, some

products were sold, so the Sales table at data source

was updated. This change triggers refreshing

the Daily_Sales fact table. As Monthly_Sales

depends on Daily_Sales it should also be refreshed.

If refreshing Daily_Sales and Monthly_Sales is not

realized as a transaction, a user querying

Monthly_Sales and drilling down to Daily_Sales will

see inconsistent data (Zhuge, Garcia-Molina, Wiener

1997).

Example 3 – wrong interpretation of results

Let us assume that the 1st March, 2003 category

"Hygiene" was merged into category "Cosmetics".

In a consequence, each product from table Products,

which previously belonged to category "Hygiene",

belongs to category "Cosmetics". Let us take a look

at DW user's analysis. If a user retrieves information

about monthly sales of products from category

"Cosmetics" he/she will observe that in March the

total sale of "Cosmetics" grows rapidly. A user can

then draw wrong conclusions, not knowing that

category "Hygiene" was merged into "Cosmetics".

This problem was caused by data sources updates,

which resulted in dimension change in a DW.

Example 4 – refreshing under concurrent fact

and dimension updates

This example shows potential problems when

concurrent fact and dimension updates occur. Let us

review the following sequence of transactions at data

sources. T

at DS

inserts a record about sale of

product "soap" from category "Hygiene". Before T

commits, T

at DS

changes the category of "soap"

from "Hygiene" to "Cosmetics". Next, T

and T

commit. Then T

at DS

inserts sales of "soap"; this

time "soap" belongs to "Cosmetics". Now the

problem appears how a DW should be refreshed?

Without a suitable concurrency control mechanism,

all sales of "soap" will refresh the Daily_Sales for

category "Cosmetics", which is incorrect since the

sales, committed by T

, were for product of category

"Hygiene".

Example 5 – broken query

A serious problem with refreshing a DW may

appear if during the execution of transaction T

data source DS

the schema change occurs at DS

(for example one attribute of table Sales is dropped).

A maintenance query sent by a DW to DS

, as a

reaction for notification received from DS

, can not

be executed since it is incorrect because of a schema

change at DS

. Refreshing process cannot be

completed. DW schema has to be rebuilt in order to

reflect schema changes at data sources.

Observations. The examples presented above

lead us to two following observations. Firstly,

incorrect refreshing of a materialized view

(Example 1) and inconsistent content of dependent

materialized views (Example 2) anomalies are

caused by the lack of transaction mechanism applied

to DW refreshing. Moreover, in order to alleviate the

incorrect refreshing of a materialized view anomaly,

concurrent changes in EDSs have to be serialized.

Secondly, wrong interpretation of results (Example

3), refreshing under concurrent fact and dimension

(Example 4), and broken query (Example 5)

anomalies are caused by such changes in EDSs that

have impact on a DW schema. In order to handle

this kind and other kinds of schema changes, a DW

has to: either (1) dynamically adapt its structure and

transform existing data to a new structure, or (2) use

versioning mechanism of schema and data, what we

propose.

1.3 Contribution

Our approach to the problem of maintaining a DW

under changes of schemas and contents of EDSs is

based on explicit versioning the whole DW (i.e.

schema and data) (reference removed for blind

reviewing). Changes into a DW structure and data

are reflected in a new, explicitly derived, version of

a DW.

Maintaining versions of the whole DW allows us

on the one hand, to run queries that span multiple

versions and compare various factors computed in

those versions, and on the other hand, to create and

manage alternative virtual business scenarios.

Moreover, in order to assure consistent view of a

DW for a user, while the DW is being refreshed, and

to assure correctness of the whole DW refreshing

process we propose two types of transactions (1) a

fact transaction and (2) a schema and dimension

structure transaction. A fact transaction is

responsible for incremental refreshing DW fact

tables to reflect updates of underlying EDSs' data.

Whereas a schema and dimension transaction is

applied to: (1) modifying a DW schema when EDSs'

schemas change, and (2) to modifying a DW

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

292

dimension structures when EDSs' data reflected in

dimensions change.

Paper organization. The rest of this paper is

organized as follows. Section 2 overviews related

work in the area of DW maintenance under schema

and data changes in EDSs. Section 3 briefly presents

our concept a multiversion data warehouse. Section

4 discusses our concept of transactions in a DW.

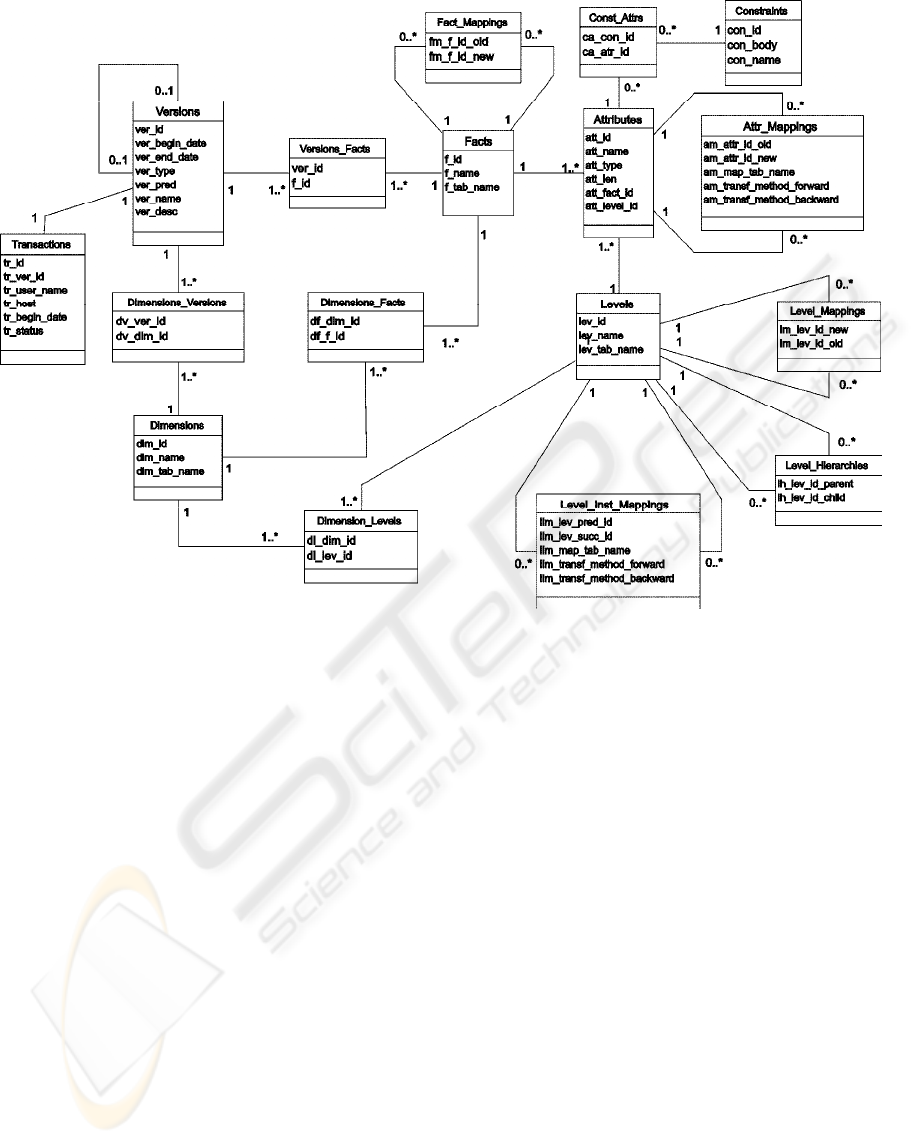

Section 5 presents the metamodel of our

multiversion data warehouse. Finally, Section 6

concludes the paper.

2 RELATED WORK

The existing approaches to propagating changes

from EDSs to a DW can be classified into two

categories: (1) data refreshing and (2) handling

changes in a DW schema.

The solutions in the first category incrementally

refresh DW fact table using different mechanism for

avoiding duplication anomaly. The ECA algorithm

(Zhuge, Garcia-Molina, Hammer, Widom, 1995),

removes an error term by applying so called

compensating queries. Two extensions of the basic

ECA algorithm, namely ECA

and ECA

, are able to

process some data source modifications locally at

DW, i.e. without sending maintenance queries to

EDSs. The same idea is used in the Sweep algorithm

(Agrawal, El Abbadi, Singh, Yurek, 1997). Next

solution, i.e. the Strobe algorithm (Zhuge, Garcia-

Molina, Wiener, 1996), stores the list of EDSs’

updates reported to DW during maintenance query

execution. This list, called an action list, is used for

compensating an error term. (Mostefaoui, Raynal,

Roy, Agrawal, 2002) propose an architecture where

EDSs form a ring. The process of finding delta

caused by EDSs' updates is based on exchanging a

token among EDSs. None of above solutions uses

transactional refreshing a DW. In a consequence the

atomicity and isolation of the refreshing process

cannot be guaranteed. Moreover, the above

approaches focus on only those changes in EDSs'

data that do not have any impact on a DW schema.

The only transactional solution to the problem

of incremental DW refresh is, to the best of our

knowledge, (Chen, Chen, Rundensteiner 2000). The

authors propose a special purpose transaction, called

DWMS_Transaction, which covers the whole

process of a DW fact table refreshing. The

DWMS_Transaction has been defined as a sequence

of two transactions, namely local EDS update

transaction and its corresponding DW maintenance

transaction. The main contribution of the reported

work is an observation that the anomaly during the

process of incremental refreshing can be mapped

into the problem of guaranteeing the serializability

of DWMS_Transactions. The authors point out that

DWMS_Transaction is rather conceptual than a real

transaction mechanism, which is the potential

solution's weakness. However, even such conceptual

model of transaction allows to reformulate a

maintenance anomaly problem to well-known "read

dirty data" problem. The compensation techniques

are no longer required. The solution also deals with

schema changes, but does not tackle the problem of

data warehouse dimension structure changes and

concurrent DW users' sessions.

The support for handling changes in a DW

schema was studied in the two following categories:

(1) schema and data evolution, (2) temporal and

versioning extensions. The approaches in the first

category (Koeller, 1998), (Blaschka, 1999),

(Hurtado, 1999a), (Hurtado, 1999b) support only

one DW schema and its instance. When a change is

applied to a schema all data described by the schema

must be converted, that incurs high maintenance

costs.

In the approaches from the second category, in

(Eder, Koncilia, 2001), (Eder, Konicilia, Morzy,

2002), (Chamoni, Stock, 1999), (Mendelzon,

Vaisman, 2000) changes are time stamped in order

to create temporal versions. However, the last two

approaches expose their inability to express and

process queries that span or compare several

temporal versions of data. On the contrary, the

model and prototype of a temporal DW presented in

(Eder, Koncilia, 2001), (Eder, Koncilia, Morzy,

2002) support queries for a particular temporal

version of a DW or queries that span several

versions. In the latter case, conversion functions

must be applied, as data in temporal versions are

virtual.

In (Kang, Chung, 2002), (Kulkarni, Mohania,

1999), (Quass, Widom, 1997), (Rundensteiner,

Koeller, Zhang 2000) implicit versioning in a DW

was proposed. In all of the four approaches, versions

are used for avoiding conflicts and mutual locking

between OLAP queries and transactions refreshing a

DW. Versions are implicitly created and removed by

the system, which is a drawback of these

approaches. On the contrary, (Bellahsene, 1998)

proposes permanent user defined versions of views

in order to simulate changes in a DW schema.

However, the approach supports only simple

changes in source tables and it does not deal either

with typical multidimensional schemas or evolution

of facts or dimensions. Also (Body et al., 2002)

supports permanent time stamped versions of data.

The proposed mechanism, however, uses one central

fact table for storing all versions of data. In a

consequence, the set of schema changes that may be

TRANSACTION CONCEPTS FOR SUPPORTING CHANGES IN DATA WAREHOUSES

293

applied to a DW is limited, and only changes of

dimensions' structure are supported.

3 MULTIVERSION DATA

WAREHOUSE

This section informally overviews our concept of a

multiversion DW. Its formal description was

presented in Morzy, Wrembel, 2003 (reference

removed for blind reviewing).

In order to be able to manage changes in a DW

schema we developed the model of a DW with

versioning capabilities. In our approach, changes to

a schema may be applied to a new version of a DW.

This version, called a child version, is derived from

a previous version, called a parent version. Versions

of a DW form a version derivation graph. Each node

of this graph represents one version, whereas edges

represent derived–from relationships between two

consecutive versions. In our approach, a version

derivation graph is a DAG.

A multiversion data warehouse (MVDW) is

composed of the set of its versions. Every version of

a MVDW is in turn composed of a schema version

and an instance version. The latter stores the set of

data consistent with its schema version.

In our approach we distinguish two following

kinds of DW versions: real versions and alternative

versions. A real version reflects changes in the real

world. Real versions are created in order to keep up

with the changes in a real business environment, like

for example: changing organizational structure of a

company, changing geographical borders of regions,

creating and closing shops, changing prices/taxes of

products. Real versions are linearly ordered by the

time they are valid within.

The purpose of maintaining alternative versions

is twofold. Firstly, an alternative version is created

from a real version in order to support the what-if

analysis, i.e. it is used for simulation purposes.

Several alternative versions may be created from the

same real versions. Secondly, such a version is

created in order to simulate changes in the structure

of a DW schema. The purpose of such versions is

mainly the optimization of a DW structure and

system tuning. A DW administrator may create an

alternative version that would have a simple star

schema instead of an original snowflake schema,

and then test the system performance using new data

structures.

Every version is valid within certain period of

time. In order to check a version validity, every real

and alternative DW version has associated, so called

valid time, represented by two timestamps, i.e. begin

valid time (BVT) and end valid time (EVT).

4 TRANSACTION CONCEPT IN

DATA WAREHOUSE

In order to assure the correctness of a DW refreshing

process we propose two types of transactions: (1) a

fact transaction as well as (2) a schema and

dimension transaction.

4.1 Fact transaction

A fact transaction is responsible for incrementally

refreshing a DW fact tables. This transaction begins

after updates at one of the EDSs were committed.

The following problems may occur during the

refreshing process:

1. Computed delta may be wrong because of an

incorrect refreshing a materialized view (cf.

Example 1).

2. The communication channels between EDSs and

DW may fail during refreshing. As a result, a

DW would not be able to finish its refreshing.

3. If EDSs are extensively used, there may be

started many refreshing processes. A DW should

use some techniques to assure the proper

execution of these concurrent processes.

4. A refreshing process can conflict with a user

analytical sessions.

The problems mentioned above can be solved by

applying to a refreshing process the mechanism of

transaction. Our solution is based on the algorithm

proposed in (Chen, Chen, Rundensteiner 2000)

where the basic functionality of each EDS's wrapper

is extended to support data versions generated by

EDS's updates. Thus, maintenance queries are

answered using appropriate data versions. This

mechanism eliminates an incorrect refreshing a

materialized view (the first problem). The wrapper

can still answer the maintenance queries even if its

data source is unavailable (the second problem). The

proper execution of concurrent refreshing

transactions should be arranged by transaction

scheduler, serial or parallel (the third problem). The

isolation of refreshing transactions and DW user

sessions should be achieved by applying a

multiversion concurrency control algorithm where

user sessions read an "old" version of data while the

"new" version is created at the moment by a

refreshing transaction (the fourth problem).

As an extension to the above algorithm we

propose to introduce a parallelism inside the fact

refreshing transaction. A delta construction process

can be easily made parallel – many concurrent sub-

transactions inside a main transaction concurrently

build separated parts of delta, then a process

coordinator joins the partial results into a final delta.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

294

However, this extension imposes advanced

transaction models.

4.2 Schema and dimension structure

transaction

A schema and dimension structure transaction is

responsible for refreshing a DW schema and

dimensions structures. The necessity to change a

DW schema or/and dimension structures may be

caused by two types of events: (1) changes at EDSs

and (2) explicit changes made by DW users.

In the first case either an EDS schema is changed

(for example – an attribute is dropped from a table)

or data updates, which are the sources for DW

dimensions data, appeared. A DW is notified of

these changes and starts a process to adapt its

schema and/or dimension structure. In the second

case a DW user (administrator) makes decision to

change the schema or the dimension structure. In

both cases the administrator decides if the changes

are applied to the current DW version or are applied

to a new version (a real or an alternative one).

Each change to a DW schema and dimensions

structure should also be reflected in the metadata

describing the DW.

Changes in a schema or dimension structure can

also cause the transformations of fact table data, e.g.

removing a specified dimension from DW schema.

In a consequence, fact data have to be transformed

to a new structure.

We can now define the following steps of

schema and dimension structure transaction.

1. Creation of a new DW version, which depends

on the administrator's decision.

2. Application of schema and/or dimensions

structure changes in the specified version of a

DW (the current or a new one).

3. Modification of DW metadata reflecting the

changes.

4. Transformation of fact table data.

Some of the above steps can be made parallel,

e.g. step 3 and 4. The implementation of operations

within a given step can also be executed in parallel,

e.g. modifications of separated dimensions, the

transformations of fact table data.

We argue that handling DW dynamics can not be

based on the concept of standard OLTP transaction

since:

1. Standard transaction was designed for great

number of very short user interactions with a

database. A DW refreshing process and user

queries are much longer than standard OLPT

activities. Moreover, the concurrency control

mechanisms of OLTP systems (for example

locking the resources) are inappropriate for a

DW since they reduce the degree of concurrency.

2. Standard transaction has a flat structure – it

cannot be divided into set of sub-transactions

executed concurrently.

For these reasons advanced transaction models

should be applied in data warehouses. There are

three such models (Barghouti, Kaiser 1994): (1)

nested transactions, (2) multilevel transactions, and

(3) sagas. A nested transaction is a composition of

the set of subtransactions, each subtransaction can

itself be a nested one. Only the top-level nested

transaction is visible to other transactions and it

appears as a normal atomic transaction. Sub-

transactions inside the top-level transaction are run

concurrently and their actions should be

synchronized by an internal concurrency control

mechanism. A multilevel transaction has similar

structure to a nested one, but it has predefined

number of levels and different concurrency control

mechanism can be used for each level. Saga is a

multilevel transaction limited to only two levels.

Partial results of subtransactions inside one saga are

visible to other sagas.

Another interesting solution is the possibility of

dynamically restructuring running transactions

(Barghouti, Kaiser 1994). This model allows

changing the execution of transaction as the reaction

for modification of user requirements, e.g. splitting

one transaction into several new transactions or

merging several transactions into a new one.

5 METAMODEL OF

MULTIVERSION DW

The advanced models of transactions are currently

implemented in our prototype multiversion DW

management system.

The metamodel of our MVDW is shown in

Figure 1. The diagram presents data dictionary

tables used for representing a multiversion schema

of a DW as well as mappings between fact tables,

dimension tables, and attributes in adjacent DW

versions. The Versions table stores the information

about existing DW versions. Every DW version is

composed of fact tables (dictionary tables Facts and

Versions_Facts) and dimensions (dictionary tables

Dimensions and Dimensions_Versions).

TRANSACTION CONCEPTS FOR SUPPORTING CHANGES IN DATA WAREHOUSES

295

Figure 1: The metamodel of MVDW

Dimensions, in turn, have levels, represented by

dictionary tables Levels and Dimension_Levels. The

association between fact tables and dimensions is

represented by table Dimensions_Facts. The

Fact_Mappings data dictionary table is used for

storing mappings between a given fact table in DW

version V

and the same fact table in version V

derived from V

Every fact and level table has the set of its

attributes that are stored in Attributes. Every

attribute may have integrity constraints defined

(dictionary tables Constraints and Const_Attrs).

Table Attr_Mappings is used for storing mappings

between an attribute existing in DW version V

and

the same attribute in adjacent version V

. The

am_transf_method_forward is used for storing the

name of a transformation program between

continuous values of an attribute in a previous

version V

to values of this attribute in version V

derived from V

. Backward transformation program

name is stored in am_transf_method_backward.

Transformation programs are implemented as

procedures stored in a database. Discrete values of

attributes are mapped in a separate table, whose

name is pointed by map_tab_name. The schema of

this mapping table is composed of three attributes:

attr_id, attribute_value_from, and attribute_

value_to. The first one stores the identifier of an

attribute whose value is mapped. An

attribute_value_from stores the original value in

version V

, whereas attribute_value_to stores the

value as required in version V

The Level_Mappings table represents mappings

between levels in consecutive DW versions.

Level_Inst_Mappings represents mappings between

dimension members in case of structural changes in

dimensions, for example, splitting a faculty, merging

several shops into one, changing the name of a

product. The meaning of lim_map_tab_name,

lim_transf_method_forward, and lim_transf_

method_backward is the same as respective

attributes am_map_tab_name, am_transf_method_

forward, and am_transf_method_backward of

Attr_Mappings.

The Transactions table stores the information

about transactions used for creating new versions of

a DW. Since a DW version may be committed or

under derivation, Transactions store also the status

of every DW version.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

296

6 CONCLUSIONS

In this paper we tackled the problem of

synchronizing a DW content and schema with

respect to changes in EDSs. We analyzed various

anomalies that can appear in a DW during a

refreshing process. These anomalies are the results

of lacking transaction mechanisms in refreshing.

In our approach, handling the changes in EDSs is

done by means of: (1) DW versions and (2)

advanced transaction mechanisms. Currently, we are

implementing our concepts in a multiversion DW

management system based, which is implemented in

Java. Data and metadata are stored in an Oracle9i

database.

Future work will focus on:

• comparing advanced transaction models (nested,

multilevel, and saga) in a DW environment;

• the analysis and development of inter– and intra–

version integrity constraints;

• the development of a query language able to

span, work on, and compare data from multiple

versions of a data warehouse;

• the development of new data structures for

efficient storing and indexing multiversion data

and their experimental evaluation.

REFERENCES

Agrawal D., El Abbadi A., Singh A., Yurek T., Efficient

View Maintenance at Data Warehouse. Proc. of the

1997 ACM SIGMOD International Conference on

Management of Data, May 13-15, 1997, Tucson,

Arizona, USA.

Barghouti N.S., Kaiser G.E., Concurrency Control in

Advanced Database Applications. Department of

Computer Science, Columbia University, New York,

USA, 1994.

Bellahsene, Z. (1998). View Adaptation in Data

Warehousing Systems. Proc. of the DEXA Conf.

Blaschka, M. Sapia, C., Hofling, G. (1999). On Schema

Evolution in Multidimensional Databases. Proc. of the

DaWak99 Conference, Italy.

Chamoni, P., Stock, S. (1999). Temporal Structures in

Data Warehousing. Proc. of the Data Warehousing

and Knowledge Discovery DaWaK, Italy.

Chen J., Chen S., Rundensteiner E., TxnWrap: A

Transactional Approach to Data Warehouse

Maintenance. Worcester Polytechnic Institute

Technical Report, 2000. (Revisited on February 2002).

Eder, J., Koncilia, C. (2001). Changes of Dimension Data

in Temporal Data Warehouses. Proc. of the DaWak

2001 Conference, Germany.

Eder, J., Koncilia, C., Morzy, T. (2002). The COMET

Metamodel for Temporal Data Warehouses. Proc. of

the 14th Int. Conference on Advanced Information

Systems Engineering (CAISE'02), Canada.

Hurtado, C.A., Mendelzon, A.O.: Vaisman, A.A. (1999a).

Maintaining Data Cubes under Dimension Updates.

Proc. of the ICDE Conference, Australia.

Hurtado, C.A., Mendelzon, A.O.: Vaisman, A.A. (1999b).

Updating OLAP Dimensions. Proc. of the DOLAP

Conference.

Kang, H.G., Chung, C.W.: (2002). Exploiting Versions for

On–line Data Warehouse Maintenance in MOLAP

Servers. Proc. of the VLDB Conference, China.

Kulkarni, S., Mohania, M. (1999). Concurrent

Maintenance of Views Using Multiple Versions. Proc.

of the Intern. Database Engineering and Application

Symposium.

Mendelzon, A.O., Vaisman, A.A (2000). Temporal

Queries in OLAP. Proc. of the VLDB Conference,

Egypt.

Morzy T., Wrembel R. (2003). Modeling a Multiversion

Data Warehouse: a Formal Approach. Proc. of the 5th

International Conference on Enterprise Information

Systems (ICEIS), Angers, France.

Mostefaoui A., Raynal M., Roy M., Agrawal D., El

Abbadi A., The Lord of the Rings: Efficient

Maintenance of Views at Data Warehouse. Proc. of

16th International Conference Distributed Computing,

DISC 2002, Toulouse, France, October 28-30, 2002.

Quass, D., Widom, J. (1997). On–Line Warehouse View

Maintenance. Proc. of the SIGMOD Conference.

Yang, J., Widom, J. (2000). Temporal View Self–

Maintenance. Proc. of the EDBT Conference,

Germany.

Rundensteiner E., Koeller A., and Zhang X.: Maintaining

Data Warehouses over Changing Information Sources.

Communications of the ACM, vol. 43, No. 6, 2000.

Zhuge Y., Garcia-Molina H., Hammer J., Widom J., View

Maintenance in a Warehousing Environment. Proc. of

the 1995 ACM SIGMOD International Conference on

Management of Data, San Jose, California, May 22-25,

1995.

Zhuge Y., Garcia-Molina H., Wiener J., The Strobe

Algorithms for Multi-Source Warehouse Consistency.

Proc. of the 4th International Conference on Parallel

and Distributed Information Systems, December 18-

20, 1996, Miami Beach, Florida, USA.

TRANSACTION CONCEPTS FOR SUPPORTING CHANGES IN DATA WAREHOUSES

297
