AN ALTERNATIVE APPROACH TO BUILDING

WEB-APPLICATIONS

Oleg Rostanin

University of Saarland, chair Siekmann

Stuhlsatzenhausweg, 3, D-66123 Saarbr

ucken, Germany

Keywords:

Web applications, Model-Controller-View, multi-client support, e-learning, XML, database

Abstract:

Nowadays in J2EE-world there is a lot of blueprints, articles and books that propose some recommendations,

recipes and patterns for producing web-applications in right way. There are also ready decisions like Jakarta

Struts or JavaServer Faces that can be taken as a base of a new project development. While developing the

DaMiT e-learning system we tried to collect, analyse and implement many of the architectural features being

proposed as well as to invent some new mechanisms such as supporting multiple kinds of client software or

introducing XML-based interfaces between application tiers.

1 INTRODUCTION

Data Mining Tutor (DaMiT) is an e-learning project

sponsored by the German Ministry of Education and

Research. The main objective of the project was to

create an adaptive e-learning system for teaching and

studying of Data Mining in German universities. Dur-

ing the project time it got clear that the system should

be developed as a general framework on which e-

learning systems in different scientiﬁc, educational or

industrial areas could be build. Such requirements

would imply a higher ﬂexibility and extensibility level

of the system (extensible system of user roles, differ-

ent interface requirements etc. - see (Schulz-Br

unken

et al., 2002; Grieser et al., 2003)).

On the other hand, at the beginning of the project

there was no strict requirements to the user inter-

face (layout, client implementation technology: html,

ﬂash, applet or java application etc.) whereas the re-

quirements to the business logic and to the database

structures were formulated more deﬁnitively.

The next speciality of the project was distributed soft-

ware development because the project partners that

were responsible for development of the different sys-

tem parts (business logic, database procedures, ﬂash

client, exercise engine, certiﬁcation authority soft-

ware etc.) worked at least in 6 different German cities.

As a rule, the development process of different mod-

ules was not 100% synchronized because of lack of

human resources.

In such circumstances of fuzzy requirements, poor re-

sources and relatively low communication possibili-

ties between developers, we made some engineering

and organisational decisions like:

• customizing the standard J2EE Model-View-

Controller implementation for:

– advanced navigation support;

– supporting multiple web client types;

• introducing xml interfaces between the application

layers;

in order not to waste humans work and to get at the

end a high quality product that could be extended,

adapted and conﬁgured according to the new require-

ments and application areas.

As a result of the project, we have got not only an

universal e-learning system framework that was used

only during the project lifetime for building 2 differ-

ent e-learning systems (DaMiT and IPAC), but also an

environment for creating large scalable web applica-

tions.

The main features of the DaMiT e-Learning System

one can ﬁnd in (Jantke et al., 2004).

2 SYSTEM ARCHITECTURE

To meet our needs we had to choose such an architec-

ture that would allow us to make the main impact on

119

Rostanin O. (2004).

AN ALTERNATIVE APPROACH TO BUILDING WEB-APPLICATIONS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 119-124

DOI: 10.5220/0002637601190124

 SciTePress

the development of business logic of the application

that could be tested with the help of quick-and-dirty

html based interface. In such a case the layout could

be easily changed or completely replaced. In addition

to this, DaMiT was supposed to be a rather complex

system. This two facts speak for building the system

according to the MVC Model 2 pattern (Alur et al.,

2001).

Once having chosen a basic architecture one must de-

cide if it has a sense to use an existent implementation

like Jakarta Struts or to design and implement some

own framework that would be more powerful in some

way. In case of DaMiT we decided for the own im-

plementation that would be able to support new client

types (such as Flash, Java applications and applets),

provide the possibility of advanced navigation (redi-

rect to the certain page in dependency of some con-

dition etc.) and, last but not least, make the process

of web programming as easy as possible in order that

less qualiﬁed persons like students could participate

the development process.

2.1 Classical Model 2

implementation

The classical implementation scheme of MVC-

framework by the means of J2EE technologies is il-

lustrated by the ﬁg. 1. An approximate algorithm of

work of such a system looks like following:

1. User clicks a link or submits an html form.

2. As a response to the user action, the browser sends

an http request to the servlet that was speciﬁed by

the

href

attribute of the anchor <a> html tag or

by the

action

attribute of the <form ..> html tag.

Every link or html form must always deliver some

special parameters such as

command

action

, as

well as

session id

and some others. The names of

obligatory parameters and their quantity vary be-

tween different Model 2 implementations.

3. The servlet plays the role of a request controller. It

parses the http request, ﬁgures out the command to

be executed and ﬁnally runs the

execute()

method

of the corresponding

command

class.

4. The

command

class instantiates business-classes,

calls their business methods and ﬁnally calculates

some command dependent as well as obligatory

parameters. As an example of an obligatory pa-

rameter can serve the ﬂag indicating whether the

command was successfully executed or not that al-

lows to make a decision if the system’s state must

be changed or the system must be returned to the

previous state.

5. After the command has been executed, the servlet

decides to which url it must redirect the request.

6. If the control was given to a jsp page - the page

reads data from the

Session

and the

Request

ob-

jects and displays them on the screen.

Servlet Command Manager Command

getCommand

JSP

HttpCall

Redirect

Create

execute

getRedirectUrl

Display Data

Session/Request Data

getValues

command

session/request data

setValues

setRedirectUrl

redirectUrl

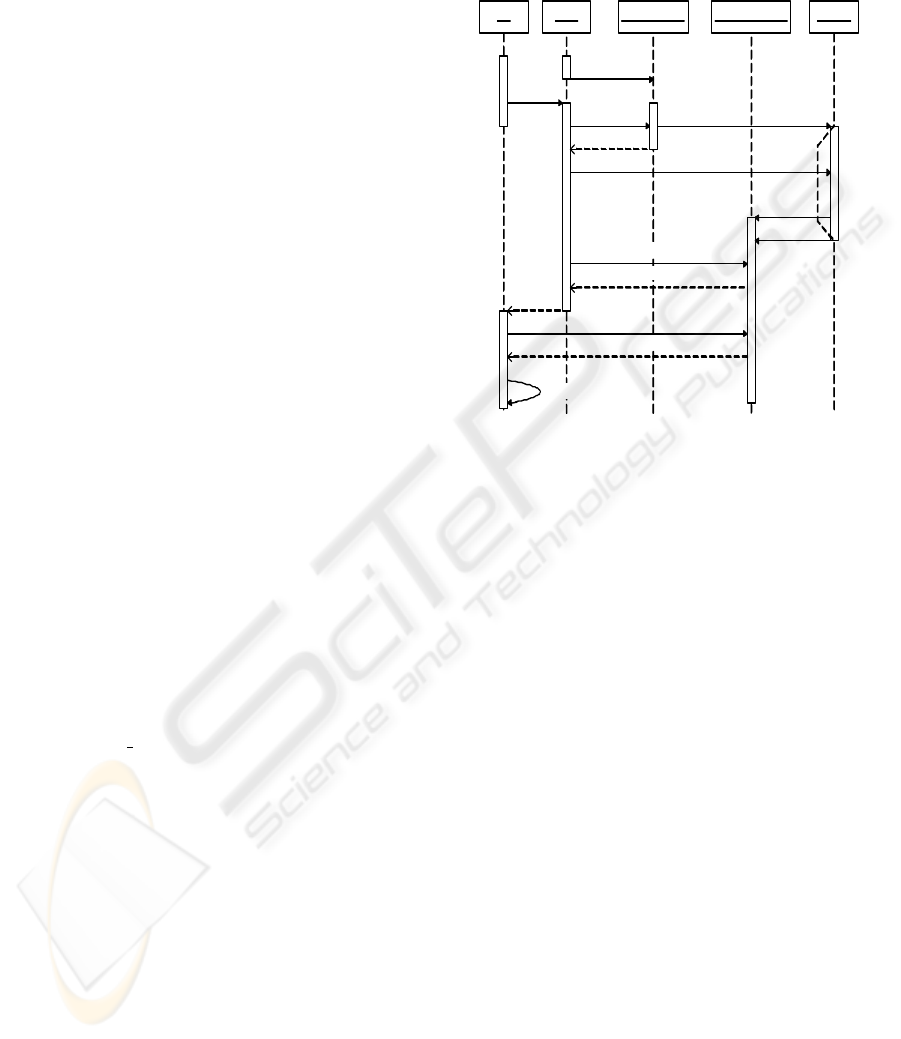

Figure 1: Sequence diagram of a MVC web application.

2.2 Conﬁguration of the Framework

Let us introduce the notion of

MVC framework in-

stance

. We will call

framework instance

a web sys-

tem that was created on a base of a certain MVC

framework. This could be Struts (Husted et al., 2002;

Cavaness, 2002), JavaServer Faces (Budi Kurniawan,

2003) or DaMiT frameworks to name a few.

The functionality of such framework instance is de-

ﬁned by the set of so called

actions

commands

In addition to this, the system developer must deﬁne

all the possible system states (pages) as well as the

rules for the system state changing. In other words,

these rules determine the navigation paths in the sys-

tem. Let us call these state changing rules

navigation

rules

. Mathematically, navigation rules could be ex-

pressed by the formula 2.

q = f(c, r)

where q ∈ Q - the resulting system state (page) from the set Q of all the possible system

pages, c ∈ C - the command, and r - the result of command execution.

The result r of the command execution can be calculated as follows:

r = f(c, I, S)

where I - user input or command parameters, S the state of the user session.

Although, r is a variable, it can take values only from the ﬁnite set R of the possible

command results.

Formula 2: Navigation Rule

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

120

Thus, to design a new system on a base of some

MVC framework, the system developer must deﬁne:

1. the sets Q of possible states (pages), C of com-

mands, and R of command results;

2. dependencies of the type 2

Usually, these steps are done by ﬁlling in the cor-

responding xml structures that are speciﬁc to each

MVC framework. We use in the DaMiT framework

the structures shown in the listing 3.

<command name="process

allowed groups="0,1,3,4,5,6,7">

<command

class>LoginProcessCommand</command class>

</command>

...

</facade>

<pages>

...

<adaptor>de.dfki.damit.servlet.HTMLAdaptor</adaptor>

<conf>StartPageHTMLAdaptor.cnf</conf>

</client>

<adaptor>de.dfki.damit.servlet.JavaAdaptor</adaptor>

<conf>StartPageJavaAdaptor.cnf</conf>

</client>

</page>

...

Listing 3: DaMiT system conﬁguration.

The tag <command> contains the description of

the command. The tag <command class> deﬁnes

the java command class that will be instantiated

to process the request. The tag <display> deﬁnes

possible alternatives of the system state changing in

dependency of the command execution result.

Speaking in terms of our mathematical notation, the

list of tags <command> deﬁnes our sets C, Q and R

as well as the dependency 2.

The main difference between our approach and

those proposed by Struts or JavaServer Faces is that

we deﬁne the system states (pages) abstractly and

does not tie them to the certain jsp page or some other

action. We call our states

logical pages

. Each

logical

page

is characterized by its

name

and the deﬁnite set

of attributes. We divide the attributes into two main

groups:

• session values (S) are computed and collected dur-

ing the session of user interaction with the system.

These values are stored in the

Session

object which

lives until the user logs out from the system.

• request values are computed during the current http

request and are disposed after the dialog step is ﬁn-

ished.

The advantages of our approach are that:

• we can introduce some speciﬁc pages like RE-

TURN (see 2.3) that provides the system support

of the complex navigation paths;

• our system states are completely independent of the

visualisation technology. We deﬁne so called

page

adaptors

for each pair {page, client} so that sys-

tem states (pages) can be displayed correctly by

each of the supported client types - see 2.4.

2.3 Advanced Navigation Support

Such complex web systems as DaMiT contain much

functionality that should be easily accessible by the

user from his web interface. Otherwise the system

becomes unattractive or even unusable for the user.

The standard solution of this problem is to provide a

drop-down menu

tab control

for accessing these

functions.

In the DaMiT project we chose a two-level tab con-

trol (the ﬁrst level for dividing the functionality into

groups -

modules

, the second for accessing the func-

tionality itself -

submodules

). Our system has 5 main

standard modules as well as some dynamically gener-

ated modules:

• Study (contains references to all the learning re-

sources - courses, glossary, search etc.).

• User data (gives access to the user proﬁle - chang-

ing identiﬁcation data and learning preferences).

• Import (allows content provider to import/update

learning modules).

• Group management (allows administrator to insert

a user to a learning group, so deﬁning user rights

for the learning content).

• Dynamical lesson modules (it is very convenient

for the user to open each new lesson as a new mod-

ule - so the learner has always a possibility to re-

turn to any previously visited lesson with only one

mouse click).

Although such organization of the user interface

makes the system comfortable, it bears the problem

of the module persistence. We can illustrate this prob-

lem, taking the DaMiT system as an example:

1. The DaMiT user is working with a certain lesson

(L1).

2. The user decides that he should read some material

from another lesson (L2) to understand the mate-

rial of the L1 and opens the new lesson as a new

module.

AN ALTERNATIVE APPROACH FOR BUILDING WEB-APPLICATIONS

121

3. The problem is that when the user ﬁnishes reading

the L2 he should have a possibility to return to the

L1. Having returned to the L1, the user should be

on the same place in the L1 on which he leaved

it. In other words each module should be able to

restore its state.

One way to solve this problem is to invent some

module-speciﬁc approaches like to store the identiﬁer

of the last displayed content for the lesson modules or

to regenerate the menu structure according to the state

of a certain module but these approaches are complex

and often not universal. We propose the following

decision:

• We describe a hierarchical application module

structure as an xml structure (see listing 4, instan-

tiate it in the application memory as a hierarchy of

java

Module

objects (see ﬁg 5) and save in the

Ses-

sion

object.

• We introduce one more obligatory http parameter -

module

into each http request so that the applica-

tion always knows in the context of which module

the current command is being executed.

• Each module stores the history of http calls (

com-

mand call stack

) that were executed within this

module during the user session, so that one can re-

turn to any of the module states.

• Each top level module knows the submodule that is

active at the moment.

• We introduce a command

show module

as a part

of the application framework. This command re-

produces the state of the module using the

module

call stack

<module name="DaMiT LOGGED IN"

allowed groups="0,1,2,3,4,5,6,7">

<module name="COURSES" allowed groups="1,2,3,4,5,6,7"

default command="goto strt"/>

</module>

<module name="PREFERENCES" allowed groups="1,3,4,5,6,7"

default command="udisplay&mode=pref"/>

</module></module></modules>

Listing 4: Application module structure.

Command call stack

allows us to build in some

advanced navigation features into the framework.

Example 1 Let the command C1 display a universal

form for editing user data (page P3) and it could be

used for editing of both

learning preferences

(page

DaMiT_LOGGED_OUT DaMiT_LOGGED_IN

STUDY

COURSES

GLOSSARY

SEARCH

CASE-STUDIES

ROOT

USER_DATA

USER_PREFS IDENT_DATADEC_TREES

FCAXYZ

module

default

command

Command Callstack

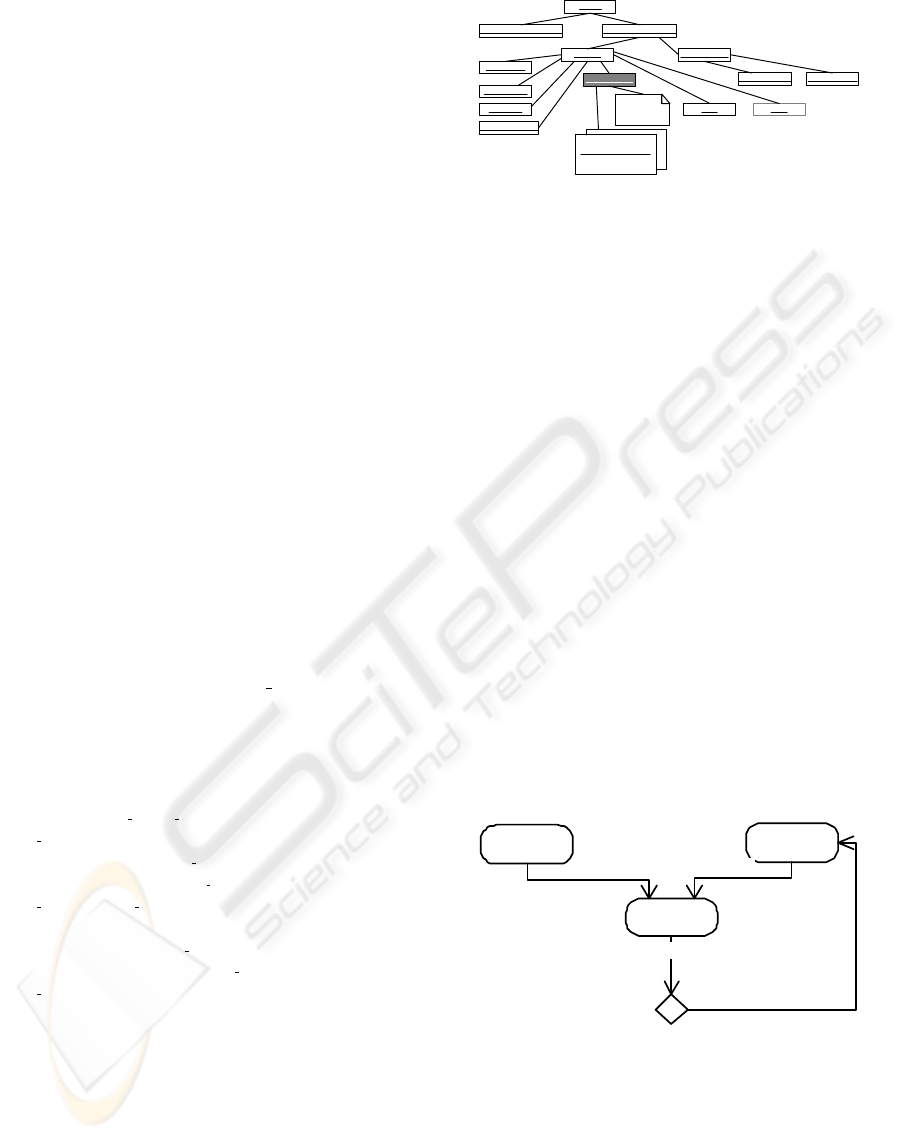

Figure 5: Application module structure.

P1) and

personal data

(page P2) that belong to the

different system modules. After submitting the P3

the system saves the changed data into the database

and further has to decide where to return: to the page

P1 or to the page P2.

Example 2 Let the command C1 display a univer-

sal page for access to the payment system (page P3)

and it could be called practically from the every page

of the lesson module (for example from the pages

P1 and P2) if the lesson contains some information

that is available for some fee. After the payment

procedure was completed the system has to decide

which content to display - P1 or P2.

We can solve such problems by introducing the log-

ical page RETURN that makes the system to repeat

the last command saved in the

module call stack

(ﬁg.

6). It is interesting to notice that in the Example 1

the user sees the same picture that he saw before call-

ing the editing form but in the case of the Example

2 the user sees the lesson content that was previously

hidden for him beyond the payment form.

P1

P2

P3

[C1]

[return]

Figure 6: Using RETURN logical page.

2.4 Extension of MVC Model 2

One of the problems of the standard Model 2 frame-

works is that it is complex to work with clients others

than web browser. These inconveniencies appear in

two places on the scheme 1:

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

122

1. when the servlet parses the http request;

2. when the servlet makes redirect to a jsp page.

The ﬁrst problem is that requests coming from dif-

ferent client types have different request format:

• Browser clients send parameters in the form of:

param1=value1

;

• Java/applet client sends usually instantiated serial-

ized objects via http-protocol;

• Flash client can send for example an xml structure

that has to be parsed with xml parser to get the in-

formation about the request parameter.

Our decision to this problem is to introduce the

HttpRequestFactory

class that analyses the http

request and creates an instance of the

HttpRequest

interface that corresponds to the client type. The

instances of

HttpRequest

interface provide all the

methods for accessing the initial request information.

Having introduced the

HttpRequest

interface, we can

be sure that the controller component may not care

about the initial request format and work uniformly

with

HttpRequest

instances.

Thus, to introduce a new supported client type, we

need only to create a new implementation of

HttpRe-

quest

interface and to teach the

HttpRequestFactory

to recognize this new type of request.

The second problem is that different clients accept

different output formats:

• Browser client expects html code;

• Java/applet client expects to get an object from the

input stream;

• Flash client expects as a rule some xml structure

that contains all the output parameters.

To solve this problem, we introduce a notion of

client

into description of our logical pages (see 2.1

and listing 3). We also extend our framework by

providing the adaptor classes for each client type.

Now each logical page can be properly conﬁgured

for the individual client (see the tag <conf>). The

structure of the adaptor conﬁguration ﬁle is out of

scope of this paper.

Adaptor classes implement the

PageAdaptor

interface

and are called by the controller component after the

command was executed. The controller component

has to deal only with the instance of

PageAdaptor

interface. The name of the adaptor class that will

be really instantiated is pointed by the <adaptor>

tag (listing 3). In the case of the

START PAGE

the

HTMLAdaptor

class will be launched in the case

of html client, and the

JavaAdaptor

class will be

launched in the case of java client. These speciﬁc

adaptors are able to display the system state in the

way required by the corresponding client type (for

example, the

HTMLAdaptor

makes redirect to the

certain jsp page whereas the

JavaAdaptor

constructs

a java object that contains all the necessary output

information and writes it into the

ServletOutput-

Stream

3 XML INTERFACES BETWEEN

THE APPLICATION LAYERS

One more speciality of the DaMiT-System implemen-

tation is that we use the xml structures as interfaces

between the application layers.

3.1 Application and Database Logic

The DaMiT system uses the database (IBM DB2

UDB) very intensively because all the data like user

proﬁles, learning objects and lessons’ structure are

stored in the database.

We separated strictly the database logic from the

application logic by having implemented it with

stored procedures to increase the performance of

database operations and not to mix Java und SQL

program code to get the system better structured and

easier portable between different databases.

We introduced also the following protocol between

Java code and stored procedure call:

1. input parameters of the stored procedure that are

simple separate values like numbers, strings are

given to the procedure in normal way;

2. input parameters that are lists of database identi-

ﬁers are given to the procedure as a comma sepa-

rated list of values;

3. output parameters that corresponds to one and only

one value are returned as they are;

4. output parameter that could produce multiple rows

(cursors) are returned as an xml-structure that is de-

ﬁned for each parameter separately;

5. in the most stored procedures there is always one

output parameter that returns the xml-structure

containing logical errors that happened while ex-

ecuting the stored procedure.

We beneﬁt from this approach at least in the fol-

lowing:

1. We can combine multiple procedure calls in one

larger procedure that returns multiple xml struc-

tures. This allows us to decreases the number of

database (JDBC) calls;

AN ALTERNATIVE APPROACH FOR BUILDING WEB-APPLICATIONS

123

2. Some xml values returned from the database can be

directly given to the application view modules that

can make XSLT transformations with these values

and display them;

3. We give the application logic developer a possibil-

ity to work independently from the database devel-

oper: if the stored procedure is not written the busi-

ness logic developer can use dummy xml structures

as if they were received from the database.

3.2 Model and View

As our view component deals mostly with displaying

xml structures it has sense to use xml interfaces be-

tween the model and the view components as well. It

means that if our business logic generates some data

(instead of getting them directly from the database,

like dynamically changing menu etc.) it should gen-

erate xml structures that could be easily displayed.

Like in the case with the database logic such xml in-

terfaces allow us to make the view modules develop-

ment independent from the application logic develop-

ment.

4 CONCLUSION

4.1 Summarizing

In this paper we show some achievements of the

DaMiT Project in the area of the web applications

building. The methods and approaches being de-

scribed can be extended and used to construct differ-

ent internet sites. The main results of the research and

constructive work in this area are adaptation and ex-

tension of the standard J2EE Model-View-Controller

implementation in:

• advanced navigation support by introducing the no-

tion of

module

and providing a command calling

stack for each module that allows to restore the

state of module;

• supporting multiple web client types by introduc-

ing the notion of

logical page

;

• providing xml interfaces between the application

layers that allows to develop the application layers

independent from each other.

4.2 Future work

The world of the web technologies is changing very

quickly. Recently Sun Microsystems has proposed its

own standards for design and implementation of the

web applications (JavaServer Faces). The standard

tools and libraries are getting more and more com-

fortable for the developer. Therefore, one of the main

directions of the future work is to adapt the solutions

found during the DaMiT project for using them within

the JavaServer Faces framework.

Another important direction is to proceed the research

in the area of web based applications formalisation

and to integrate further navigation schemes (Thalheim

and D

usterh

oft, 2001).

4.3 Acknowledgements

The author of this paper is grateful to the follow-

ing scientists for given support and advices: Bernd

Tschiedel (Technical university in Cottbus, Ger-

many), Dr. Steffen Lange and Prof. Klaus P. Jan-

tke (both German Research Center of Artiﬁcial Intel-

ligence, Germany).

REFERENCES

Alur, D., Crupi, J., and Malks, D. (2001). Core J2EE Pat-

terns: Best Practices and Design Strategies. Prentice

Hall.

Budi Kurniawan, N. M. (2003). JavaServer Faces Program-

ming. McGraw-Hill Osborne Media.

Cavaness, C. (2002). Programming Jakarta Struts. O‘Reilly

and Associates.

Grieser, G., Lange, S., and Memmel, M. (2003). DaMiT:

Ein adaptives Tutorsystem f

ur Data Mining. In Jan-

tke, K. P., Wittig, W. S., and Herrmann, J., edi-

tors, Von e-Learning bis e-Payment. Das Internet als

sicherer Marktplatz, Leipzig, Germany, September

24-26, Tagungsband LIT03. Akademische Verlagsge-

sellschaft Aka.

Husted, T., Dumoulin, C., Franciscus, G., Winterfeldt,

D., and McClanahan, C. R. (2002). Struts in Ac-

tion: Building Web Applications with the Leading

Java Framework. Manning Publications Company.

Jantke, K. P., Lange, S., Grieser, G., Grigoriev, P., Thal-

heim, B., and Tschiedel, B. (2004). LEARNING BY

DOING AND LEARNING WHEN DOING: Dove-

tailing E-Learning and Decision Support with a Data

Mining Tutor. In This conference proceedings.

Schulz-Br

unken, B., Herrmann, K., and Grimm, R.

(2002). Kundenrollen als Vermarktungskonzept im

e-Learning. In Klaus P. Jantke, Wolfgang S. Wit-

tig, J. H., editor, Von e-Learning bis e-Payment. Das

Internet als sicherer Marktplatz, Leipzig, Germany,

September 24-26, Tagungsband LIT02. Akademische

Verlagsgesellschaft Aka.

Thalheim, B. and D

usterh

oft, A. (2001). SiteLang: Concep-

tual Modeling of Internet. In SitesConceptual Model-

ing - ER 2001, 20th International Conference on Con-

ceptual Modeling, Yokohama, Japan, November 27-

30, Proceedings, volume 2224. Springer.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

124
