COMPONENT-BASED SOFTWARE DEVELOPMENT

ENVIRONMENT (CBDE)

Raphael M. S. Neto, Daniel Lucrédio, Adriano A. Bossonaro, João R. D. D. Cunha, Antonio F. Prado

Computing Department, Federal University of São Carlos, Rd. Washington Luís, Km 235,São Carlos-SP, Brasil

Iolanda C. S. Catarino, Alexandre Marcilio de Souza

Computing Department, UNOPAR – Universidade Norte do Paraná, Rua Tietê, 1208, Londrina-PR, Brasil

Keywords: Component-Based Software Development Environment, Catalysis, EJB and JavaBeans components, CASE

and RAD tool

Abstract: This paper presents an Component-Based Software Development Environment - CBDE that supports the

construction and reuse of software components according to Catalysis. Its integrates a CASE tool, named to

MVCase, and a RAD tool, named to C-CORE, to support the whole process of Component-Based Software

Development (CBD). The CBD process, follows the spiral model of software development, including

activities that start from communication with the customers to identify the requirements for construction and

reuse of components, until the delivery and customers component assessment. This paper focuses on details

related to the two phases of the CBD Construction process. The MVCase and C-CORE help the software

engineer automating great part of the components construction and reuse tasks.

1 INTRODUCTION

In recent years emphasis has been given to the need

for integrated support for software engineering tasks,

that can relate to the software life cycle (Harrison,

2000). At the same time as the integrated software

support development concept was in place, the

principles of Software Development Environment

(SDE) (Moura, 1992) became an important aid in

software development. SDE combines methods,

techniques and tools with this objective in view.

More recently, aided by the software system

composition concept, SDEs have evolved to help in

the development of the Component-Based Software

Development Environment (CBDE). CBDE is an

environment that combines techniques, methods and

tools to support the CBD. The CBDE have possess

an integrated architecture that gives coherency

between the phases of the software development.

Today there are SDEs already available with

resources that greatly facilitate software

development. However, there is still a lack of

integrated environments that support the whole

Development of Software process that are

compatible with the cost involved for the software

industry.

Motivated by these considerations a CBDE was

developed. It uses Catalysis (D’Souza, 1998) as a

mean of component construction and reuse method;

the CASE tool, MVCase for modelling, with UML

techniques; a Rapid Application Development

(RAD) (Pressman, 2001) tool, C-CORE, for

component construction and implementation;

Support for JavaBeans (Sun, 2003) and Enterprise

JavaBeans (EJB) (Sun, 2003) for components

implementation; and Mechanisms to help in the

correction of inconsistencies during the components

and applications development phases.

This paper is organized as follows: section 2

presents the ADSBC environment; section 3

presents the software development process in the

ADSBC; section 4 presents the main mechanisms in

the ADSBC; section 5 presents an actual Case

Study; section 6 presents the conclusions and the

section 7 presents the related works.

2 COMPONENT-BASED

SOFTWARE DEVELOPMENT

ENVIRONMENT (CBDE)

The CBDE is a computer system that provides

support for development, repair and improvements

338

M. S. Neto R., Lucrédio D., A. Bossonaro A., R. D. D. Cunha J., F. Prado A., C. S. Catarino I. and Marcilio de Souza A. (2004).

COMPONENT-BASED SOFTWARE DEVELOPMENT ENVIRONMENT (CBDE).

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 338-343

DOI: 10.5220/0002638303380343

 SciTePress

of components and of their applications

The main characteristics presented by the

proposed CBDE are: Mechanisms that support the

construction and reuse of components; Module

responsible for controlling the access and objects

evolution, known as the environment Repository;

Support for the inclusion of new tools to allow the

extension of the environment through an efficient

integration mechanism within the environment; and,

Integration between all modules. The environment

tools agree on the types of data, operations, methods

utilized and the developmental process being

followed. Being integrated, the tools share

information consequently, avoiding redundancies

and inconsistencies.

The CBDE tools are integrated through

mechanisms of: Presentation: The interfacing of the

CBDE tools are built based on the same user

interface library denominated Motif (Sun, 2003);

Control: The tools influence others, that is, they

share functions, activate other tools and inform each

other of up-coming activities; and Integration: data

integration is obtained by means of sharing the same

data and interpretation between the tools. The

sharing operation is established through XMI

extension files (XMI, 2003).

The CDBE integrates two tools. The integration

constitutes one of the great advantages of developing

components and their applications. Besides the

support in the different phases of the development is

also had the support among the development phases.

Modelling flaws, inconsistencies that occur during

the software development phases can be auto-

matically corrected by the environment mechanisms.

A component or application can be refined and

validated by means of an execution environment,

permiting the detection and correction of possible

flaws, defore it is released to the consumer.

CBDE also provides a software development

process that consists of a group of tasks enabling

software construction. Next is a process description.

3 SOFTWARE DEVELOPMENT

PROCESS WITH CBDE

SUPPORT

The proposed CBDE follows the Component-Based

Development (Pressman, 2001). This model can be

considered an evolution from the spiral model. The

spiral model (Pressman, 2001) is an evolutionary

model for the software development, incrementally

generating prototypes based on a sequence of

operations. CBDE follows the spiral model, adding

tasks that take into consideration the construction

and reuse of components. Each stage of the life

cycle is accomplished by a group of work tasks that

are adapted to the characteristics of the project being

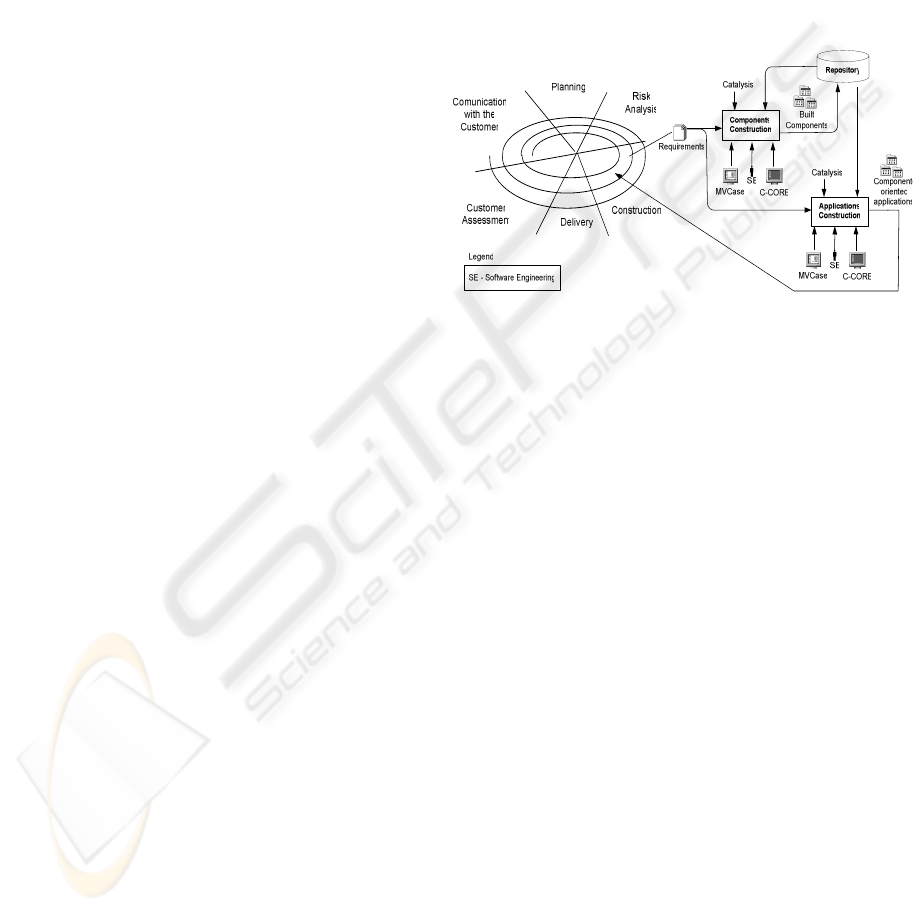

developed.The Figure 01, adapted from (Pressman,

2001), shows on the left, the model of the

Component-Based Development process withing the

proposed environment, divided in 6 stages:

Communication with the Customer; Planning; Risk

analysis; Construction; Delivery; and Customer

Assessment. The process is evolutionary and to each

cycle a new prototype is added. To the right of

Figure 01, there is, in SADT

notation (Ross, 1997),

a more detailed view of the Construction stage, that

is divided in 2 phases: component and application

construction

Figure 01 - CDB model

Next we describe the process stages. The

construction stage is presented with more details,

with a greater emphasis on production and reuse of

components.

3.1 Comunication with the customer,

Planning and Risk Analysis

At the Communication with the customer stage,

steps are taken to establish communication between

the software engineer and the customer. Different

techniques are used, for example, meetings,

questionnaires and others that may be used to

identify the requirements of the problem domain.

In the Planning stage, tasks related to the

planning of Project resources and time limits are

undertaken. To this end, initially, a description of the

scope of the Project is broken down into smaller

units wich allow estimate, utilizing historical and

experiential data, of time and resources needed

In the Risk Analysis stage, technical and

managerial risks are evaluated. The risks constitute

uncertainties in estimates, cronogram, resource and

others. The identification and analysis of risks helps

understand and administer uncertainties. Each

identified risk is analyzed and later classified by

probability and impact. Finally a plan is elaborated

to administer the risk(s). Also the viability of

development of the actual software is analyzed. Next

to this the component development phase and

COMPONENT-BASED SOFTWARE DEVELOPMENT ENVIRONMENT (CBDE)

339

application construction is iniciated.

3.2 Construction

At this stage components and applications are

developed in 2 phases, the Component Construction

and Application Construction. In the first phase,

domain components that are not present in the

repository are developed, starting from

understanding the Problem Domain. Components

implemented, in a component-oriented language are

stored in a repository, for instance, components of

basic domains can be like GUI and DB, can be

found in domain applications such as E-Learning, E-

Commerce, and others. In this phase, components of

a Problem Domain are built in five steps: Problem

Domain, Component Specification, Component

Internal Project, Specific Component Construction

Application and Component Implementation. The

EJB architecture is used to Project and to Implement

the components.

In the Problem Domain step, the requirements of

the domain are specified using Catalysis techniques.

Then, the specifications at the Problem Domain

level are refined to obtain new specifications now

component-oriented. The next step continues the

process of refinement of the component

specifications, at this point considering the platform

and the architecture adopted for the project. In the

event that Java is the programming language and

EJB the component project technology.

Having built the components of the problem

domain, the Software Engineer can build

applications that reuse the components in the

Application Construction phases. This begins with

application requirements and takes into account the

software’s expected life-cycle that includes,

Specification, Project and Implementation of the

Application. In the Application Tests step, the

Software Engineer tests the application to verify

whether or not the application meets with the

specified requirements. The Catalysis method and

the MVCase and C-CORE tools are also used here to

orient and to support the development process.

Tests allow the verification as to whether or not

the components meet the requirements of the

applications domain. This model mainly seeks

software reuse allowing the benefits of reduced

development time, costs, besides increasing the

compatibility of the developed software. The

following activities deal with the delivery and

assessment of the development process at each stage

ot the components life cycle.

3.3 Delivery and Customer

Assessment

The tasks in the Delivery stage are designed to

install and to supply support to the user in, for

instance, documentation and training (Pressman,

2001) and the tasks in the Customer Assessment

stage are necessary to obtain the customer feedback,

through an assessment of the software during the

development and implementation stages and during

the application installation (Pressman, 2001).

The CBDE tools are used to help some process

stages. Next we present the tools available in the

CBDE to help the Software Engineer.

4 MAIN MECHANISMS: C-CORE

AND MVCASE TOOL

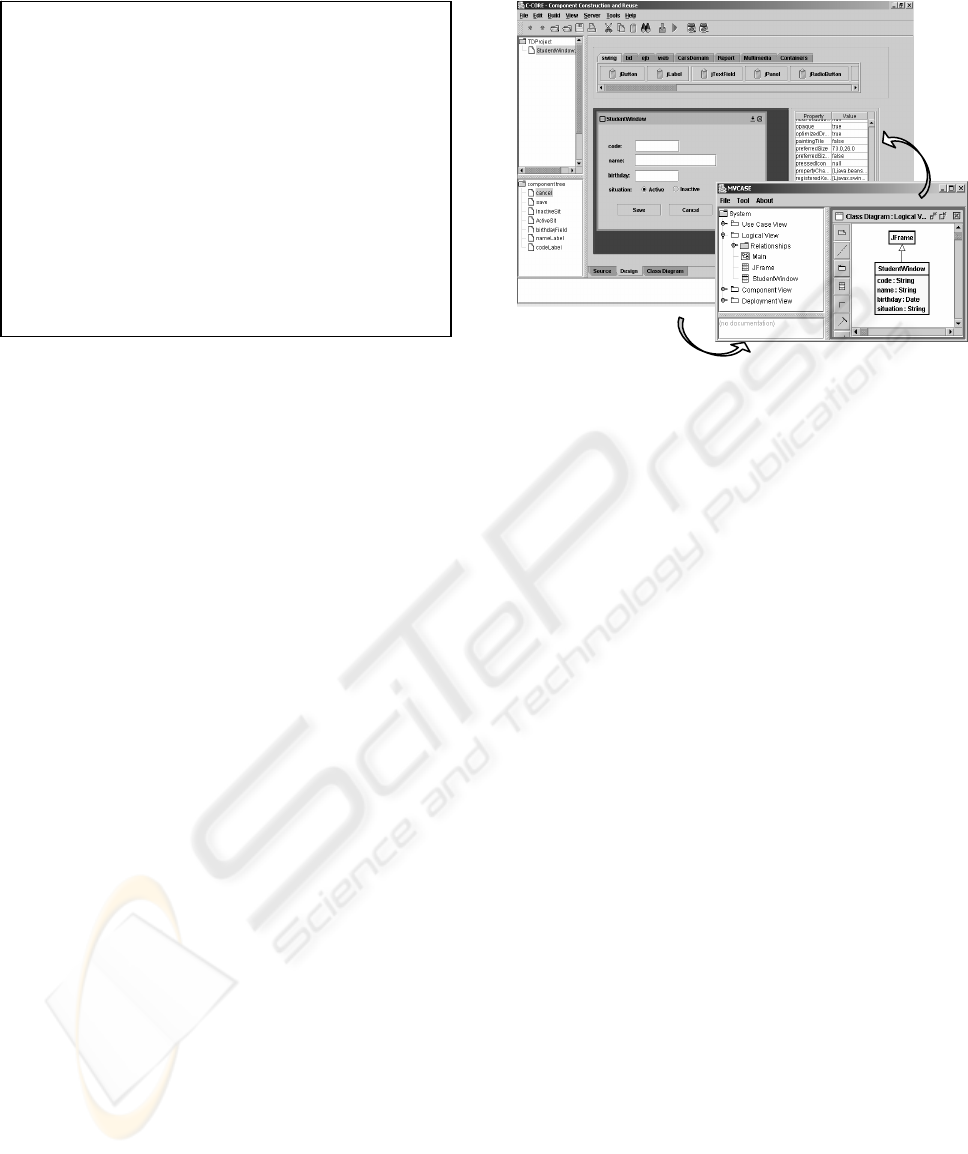

The C-CORE is a tool centered in the Java

programming language, which supports the

development and reuse of software components. It

has graphic and textual interfaces that facilitate

CBD. It was developed according to the Catalysis

component-based development method, with the

Java programming languages and XML (XML,

2003). Its graphic interface was built using

Java/Swing libraries of the package. The

components are built according to the Java Beans

architecture, and they use reflexive classes (Sun,

2003), to support introspection. The introspection

analyses the code object of the component and

passes to the tool properties that indicate the

component’s presentation and state including the

events generated so that the Software Engineer can

define what actions to be taken as a result of their

occurrence. The editing of the properties values and

of the actions of the events supported.

The MVCASE (MVCase, 2003) is a Java-based,

platform-independent modelling tool, providing

graphical and textual techniques based on UML

notation (Booch, 1999).

By supporting UML, MVCASE allows the

Software Engineer to specify systems in different

abstraction levels and in four different views: Use

Case View, Logical View, Component View and

Deployment View.

To persist with the UML specifications,

MVCASE uses the OMG’s XMI format (XML

Metadata Interchange) standard. The XMI is a

XML-based format used to represent UML models.

Based on four views cited above, MVCASE

generates XMI descriptions that can be physically

stored, in a file or a repository.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

340

5 CASE STUDY

To test CBDE was build a framework for E-

Learning (EL) with 60 software components. It was

a result of a master degree dissertation (Sanches,

2002). The framework supports the elaboration and

the administration of courses, assisting, mainly,

requirements related to the resources and didactic

services, administrative and course support. The

main customers involved in the EL domain of this

case study are specifically teachers and the students.

The following is a presentation of each step in the

development and reuse process according to that

indicated in section 3.

5.1 Comunication with the Customer,

Planning and Risk Analysis

Initially "brainStorming" sessions were

accomplished, involving teachers and students with

the intention of specifying the context of the

problem and to identify the requirements related to

the different applications of E-Learning domain

using it as a problem domain. As a result of these

sessions a group of documents and models that

described the identified requirements was

elaborated. Starting from the identified

requirements, hardware and software necessary for

task accomplishment were determined. Developers

were allocated to work on the required tasks. For

this a cronogram was defined for these activities and

the costs for the accomplishment were also dear.

Starting from the cronogram and of the dearly

costs, were identified the risks that the project was

exposed. A systematic assessment was

accomplished, mapping the threats and

vulnerabilities in his viability. They were also

prioritized actions to subsidize effective alternatives

for the uncertainties.

5.2 Construction

In this phase, Component Construction, the E-

Learning domain components were built. In the

Problem Domain step, corresponding to the first

level of Catalysis, the requirements and the rules of

business of the EL domain are identified. The

requirements were obtained starting from the study

of several courses authorship environment: WebCT

(Sanches, 2002), AulaNet(Sanches, 2002) and

LearningSpace (Sanches, 2002). In this step are

identified also the actors, and their interactions in the

context of the EL domain. The following actors were

identified: Administrator, Author, Teacher and

Student. Different models built in this development

stage as a mind-map (D’Souza, 1998) had with the

identified actors, which creates the collaboration

model, that is represented in a cases of use model,

that it represents the actors and their interactions in

the content of the problem domain, in which

represents the case of use to register for each actor.

In the Component Specification step,

corresponding to the second level of Catalysis, the

Problem Domain models are refined, being specified

the Types (D’Souza, 1998) and Sequence (Fowler,

1997), (Booch, 1999) Models, without worrying

with the implementation. The model of types is

obtained by the refinement of the use case models,

that represent the behaviors of the objects and their

messages connections, and of the snapshot models

that represent the attributes of the objects and their

relationships. The Use Case Models, of the previous

step, are refined in Interactions Models represented

by the sequence diagrams, aiming to detail the

sceneries of use of the components in the different

applications of the problem domain.

In the Component Internal Project step,

corresponding to the third level of Catalysis, the

classes are modeled, obtained by the refinement of

the types of the domain built in the second step,

worrying about the definition of the components

with their interfaces. Now, the implementation

details are important, such as: safety, persistence,

distribution architecture and the implementation

language. The Interactions Models are refined to

show project details of the methods behaviors in

each class. In the Specific Component Construction

Application step, the software engineer consults in

the repository all the components that he needs to

build. With the identification of the components that

are already available for the reuse, the Software

Engineer can refine the components model reusing

these available components. The specific

components of the application that are not in the

repository are built aiming to complete the

application.

In the Component Implementation step, the

Software Engineer uses MVCase to accomplish the

implementation of the components in the EJB

architecture. After having built the components of

the problem domain, the Software Engineer goes to

the Application Construction.

Different applications of the problem domain can

be developed reusing the EL components framework

built. Figure 02 summarizes one of the applications,

of this domain.

COMPONENT-BASED SOFTWARE DEVELOPMENT ENVIRONMENT (CBDE)

341

It is an application that supports the development

of courses to teach HTML, Flash and others. The

application has an interactive interface that makes

possible that interested people can register in one or

more courses than are periodically offered. A course

has a responsible, the course author, and one or more

teachers that watch the course. All of the classes of a

healthy course registered by the date and schedule.

A student's registration is approved or not by the

application administrator, after the approval of the

student's personal register. The application should

control the type of permission of the users' access:

administrator, author, teacher, and student. The

application still controls the assessment and

exercises of the courses.

Figure 02 – E-Learning Application

In the Application Specification step, the problem

understanding is accomplish with the application

requirements identification. Before beginning the

application requirements specification, in the

MVCase, the Software Engineer imports the

problem domain components, in this case E-

Learning components, that will be reused by the

application. Another model built in this stage is the

Use Cases Techniques, like Mind-Maps, SnapShots

(D’Souza, 1998) and others.

Afterwards, the models previously specified are

refined, reusing the framework components.

In the Application Project step is made the

component internal project of the application. The

classes model is obtained by the refinement of the

types model specified in the previous step.

In the Application Implementation step is made

the implementation of the application with base in

his project. A first version of the implementation is

generated in the MVCase, starting from the class and

components models. Afterwards, the implementation

continues in the C-CORE, that has resources to

refine the code. Figure 03 shows the development of

the Student interface of the application in the C-

CORE tool, reusing component from GUI domain.

For each component selected in the application, C-

CORE generates your respective code. The Object

Inspector allows the direct interaction in the

properties and events of the components selected

that can be altered in "design" and execution time

through method calls. The Software Engineer can

develop the project in the C-CORE, and through the

interaction with MVCase can obtain the consistence

modelling of the application

In the Application Tests step, the Software

Engineer accomplishes tests with the application.

The tests, allow verifying if the application satisfies

the specified requirements. The results of execution

can guide the Software Engineer in the debugging

process of the application and of the components of

the built domain.

Figure 03 – Development of the Student Interface

5.3 Delivery and Customer

Assessment

In the Delivery stage, were deliver the produced

artefact, jointly with the hardware configuration and

software, that allowed do the deployment of the

components distributed in different computers.

Afterwards, trainings were accomplished with the

users, jointly with the documentation of the built

application.

In the Customer Assessment stage, assessments

of the artefacts were accomplished. Were detected

some problems which were corrected through tasks

of the maintenance. Besides that, were observed on

the part of the customer some details related to new

requirements that were not initially identified.

Therefore, this stage contributed to the stage of

communication with the customer of the next

iteration of the cycle of life of the components and

their applications. About the planning of the

accomplished project, it was made an assessment of

the accomplished activities as the productivity, real

costs verse forecast costs and periods.

6 CONCLUSION

This paper presented a Component-Based Software

Development Environment (CBDE), that supports

the construction and reusing components method.

The CBDE integrates a CASE tool with focus for the

modelling and a RAD development tool with focus

for the implementation to support the component-

based software development process.

The environment architecture allows the tools to

cooperate amongst themselves allowing to minimize

the periods and costs of the software development.

Integration with MVCase

Integration

with

C-CORE

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

342

Between the advantages of the environment can

emphasize the CBD support. The use of components

allows the maintenance of the simplest and reliable

software, once the components are blocks that were

previously tested. And, other advantages of the

environment are: the support to the Catalysis method

for the components and applications development,

the support for the phases and during the phases of

components and applications development,

facilitating the corrections of the inconsistencies,

and the generation of great part of the code starting

from the specifications in high abstraction level.

7 RELATED WORKS

Aiming to help in the process of software

development there are integrated tools as, for

instance, Poseidon (Poseidon, 2003) and NetBeans

(NetBeans, 2003) and others. Poseidon is a

modelling tool, that is a commercial version of the

ArgoUML (ArgoUML, 2003) that contains

functionalities and additional innovations. Some

versions have additional resources as, for instance,

RoundTrip that allows modelling of classes from the

source code and vice-versa, UMLDoc that produces

documents in HTML, JarImport that generates a

classes model and your relationship starting from a

jar file and MDLImport that allows importing from a

MDL project. NetBeans is an application

development environment (IDE) free, oriented for

Java language and it allows the fast development of

applications with GUI. It has resources for

compilation and debugging of the Java code,

wizards that allow creating different types of Java

applications quickly as, for instance, RMI (Sun,

2003), applets (Sun, 2003), JavaBeans and others

Poseidon is a stable and complete tool. However,

it is not free. NetBeans is equally complete, is free

but it is used only for Java. The use of integrated of

theses tools should be accomplished with the use of

appropriate versions.

The CBDE presents tools destined to the

modelling and implementation too. However, such

tools are of open code, they presents the RoundTrip

and MDLImport resources, the possibility of

extension of functionalities, because both are open

code and it presents support for component

construction and reuse in differents architectures.

ACKNOWLEDGMENT

The authors would like to thank to CAPES, FAPESP

and UNOPAR, the brazilian institutions which help

to support this work.

REFERENCES

Pressman, R., S, 2001; Software Engineering: A

Practitioner's Approach. McGraw-Hill.

Rational Software; Rational Rose Tool. URL:

http://www.rational.com. Consulted in 03/12/2002.

MVCase Tool Site, URL: http://www.recope.dc.ufscar.br/

mvcase consulted in 30/09/2003

Booch, G. et al.; The Unified Modeling Language – User

Guide. USA: Addison Wesley, 1999.

Ross, D. T.; Structure Analysis (SA): A language for

communicating Ideas. IEEE Transaction on Software

Engineering. 1997

Harrison, W., Ossher, H., Tarr, P., 2000, “Software

Engineering Tools and Environments: a Roadmap”,

In: Proceedings of The Future of Software

Engineering, 22nd. ICSE 2000

Moura, L. M. V., Rocha, A. R. C., 1992, Ambientes de

Desenvolvimento de Software, Publicações Técnicas

COPPE/UFRJ, ES-27/01/92, Rio de Janeiro, Brasil.

D’Souza, D.; Wills, A; 1998. Objects, Components and

Frameworks with UML – the Catalysis Approach.

Addison Wesley, USA.

Fowler, M.; 1997. UML Destilled - Applying the Standard

Object Modeling Language. Addison Wesley, England.

Sun Microsystems; Java Language. URL:

http://java.sun.com, Consulted in 14/03/2003

XML. Extensible Markup Language (XML) URL:

http://www.w3.org/XML. Consulted in 14/04/2003.

The Common Object Request Broker - CORBA. URL:

http://www.omg.org. Consulted em 14/03/2003

Sanches, I.C.;2002. Framework para Ensino a Distancia

via Web. Mastes degree dissertation – PPG in

Computer Science – Computing Department –

UFSCar, São Carlos, São Paulo – Brasil.

Object Management Group. XML Metadata Interchange

(XMI) – Version 1.2. Available at Site OMG. URL:

http://www.omg.org/technology/documents/formal/xm

i.htm - Consulted in February, 2003.

Poseidon Site, URL: http://www.gentleware.com,

consulted in 30/09/2003

NetBeans Site, URL: http://www.netbeans.org, consulted

in 20/09/2003

ArgoUML Site, URL: http://argouml.tigris.org/, consulted

in 30/05/2003

COMPONENT-BASED SOFTWARE DEVELOPMENT ENVIRONMENT (CBDE)

343
