FEDERATED MEDIATORS FOR QUERY COMPOSITE ANSWERS
Dong Cheng and Nacer Boudjlida
LORIA-University Henri Poincar
´
e Nancy 1
BP 239, 54506 Vandoeuvre L
`
es Nancy CEDEX(F)
Keywords:
Composite answer, Description Logics, Mediator, complementary.
Abstract:
The capture, the structuring and the exploitation of the expertise or the capabilities of an “object” (like a
business partner, an employee, a software component, a Web site, etc.) are crucial problems in various appli-
cations, like cooperative and distributed applications or e-business and e-commerce applications. The work
we describe in this paper concerns the advertising of the capabilities or the know-how of an object. The
capabilities are structured and organized in order to be used when searching for objects that satisfy a given
objective or that meet a given need. One of the originality of our proposal is in the nature of the answers the
intended system can return. Indeed, the answers are not Yes/No answers but they may be cooperative answers
in that sense that when no single object meets the search criteria, the system attempts to find out what a set of
“complementary” objects do satisfy the whole search criteria, every object in the resulting set satisfying part
of the criteria. In this approach, Description Logics (DL) is used as a knowledge representation formalism and
classification techniques are used as search mechanisms. The determination of the “complementary objects”
is founded on the DL complement concept.
1 INTRODUCTION
In many situations and applications, one is faced
to the problem of discovering “entities” that satisfy
given requirements. On the other hand, most often,
information retrieval in a distributed context, like the
World Wide Web, usually lacks selectivity and pro-
vides large answer-sets due to the fact that the avail-
able information sources are not well structured nor
well classified, as attested by the tremendous work
about Semantic Web (W3C, 2003a). Moreover, most
of the systems usually return yes/no answers (i.e. ei-
ther they find out answers to a given query or they
fail). The work we describe here concerns the pub-
lishing of the capabilities of given entities (i.e. what
functionalities a given entity is offering, what exper-
tise it has and so on). The capabilities are organized
and structured in order to be exploited when search-
ing for entities that satisfy an objective or that meet
given needs (searching for Web services that offer
given functions, searching for a component in the
context of component-based design and component-
based programming, searching for a business part-
ner with a given expertise, looking for an employee
whose records and expertise satisfy a given work po-
sition profile are application examples of our work).
It is clear that these needs require the capture and the
organization of the entities capabilities together with
the classification of the entities and their capabilities.
In this work, we adopted an object-oriented knowl-
edge representation using description logics (DL-org,
2003). From the system architecture point of view, we
opted for a model based on distributed and coopera-
tive mediators (or traders). A significant originality
of our approach resides in the type of answers we aim
at providing. Indeed, when no single entity satisfies
the search criteria, the systems attempts to determine
a set of complementary entities who, when grouped
together, satisfy the criteria.
The presentation is structured as follows. In
section 2, we expose some motivations together
with the architecture of the target system viewed as
a Knowledge-Based Management System (KBMS).
Section 3 briefly introduces elements of description
logics and shows how description logics is used for
entities capabilities management and retrieval. Con-
cluding remarks are in section 4.
170
Cheng D. and Boudjlida N. (2004).
FEDERATED MEDIATORS FOR QUERY COMPOSITE ANSWERS.
In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 170-175
DOI: 10.5220/0002638601700175
Copyright
c
SciTePress
2 MOTIVATION AND
ARCHITECURE
The dynamic discovery of services or capabilities
an “entity” offers, has different application domains.
Component-based programming, electronic business
(e-business) and even enterprise knowledge manage-
ment (Nonaka and Takeuchi, 1995) are among the ap-
plication domains in which there is a need for the dis-
covery of services or capabilities an “entity” offers.
The only syntactic description of an entity’s capability
(like the signature of a software component’s service)
is not satisfactory when using that description for an-
swering a request: an additional semantic description
is required. Moreover, the elicitation of possible re-
lationships among services may contribute to find out
“the best” service or the “the best complementary”
services that satisfy a search query.
In e-business, this approach can be applied in the
constitution of business alliances or when looking for
business partners. For example, when trying to con-
stitute a business alliance, the system we aim to de-
velop services that may help in retrieving the most ap-
propriate candidate partners. Furthermore, the work
depicted hereafter may also serve for semantic-based
discovery of Web services (W3C, 2003c) and it is
in line with current activities on semantic and ontol-
ogy for the Web (uddi.org, 2000; Dyck, 2002; W3C,
2003b; W3C, 2003a).
The purpose of this work requires formalizing and
structuring the knowledge that concern the “entities”
in a given application domain. We opted for Descrip-
tion Logics (DL) (DL-org, 2003; Horrocks, 2002b) as
a knowledge representation formalism: it has the no-
table merit that a single mechanism (the classification
mechanism) serves at the same time to build and to
query extendible domain descriptions.
As a matter of comparison, in (Han et al., 1999),
“entities” are design fragments that are described
thanks to keywords, the relationships between the
fragments are constituted by metrics that measures
the similarity between fragments. In (Borgida and
Devanhu, 1999), entities are object-oriented software
components and description logics is used, notably, to
describe their intended semantics together with possi-
ble constraints involving objects methods.
In (Bouchikhi and Boudjlida, 1998), “entities” are
software objects and the capabilities of a software ob-
ject are specified giving a syntactic part (signatures
of the methods or operations the object offers) and a
semantic part expressed as logical expressions (a pre-
condition and a post-condition are associated with ev-
ery object’s method). The syntactic conformance of a
method to a query is trivial and the semantic confor-
mance uses theorem proving techniques.
One should notice that description logics has been
used in the database domain (Borgida, 1995; Boud-
jlida, 1995)
1
, not only for querying but also for
database schema design and integration (Calvanese
et al., 1998), for reasoning about queries (query
containment, query refinement, query optimisation,
. . . ) (Beeri et al., 1997). From our concern, descrip-
tion logics is used for query purposes with the special
objective to produce more than “Yes or No” results.
From the system architecture point of view, we
choose a trader (also called mediator) based architec-
ture (OMG, 1992) very similar to the notion of dis-
covery agency in the Web services architecture. In
this architecture, an “entity”, called exporter, pub-
lishes (tells) its capabilities at one or more mediators
sites (see figure 1). Entities, called importers, send re-
quests (queries) to the mediator asking for exporters
fitted with a given set of capabilities.

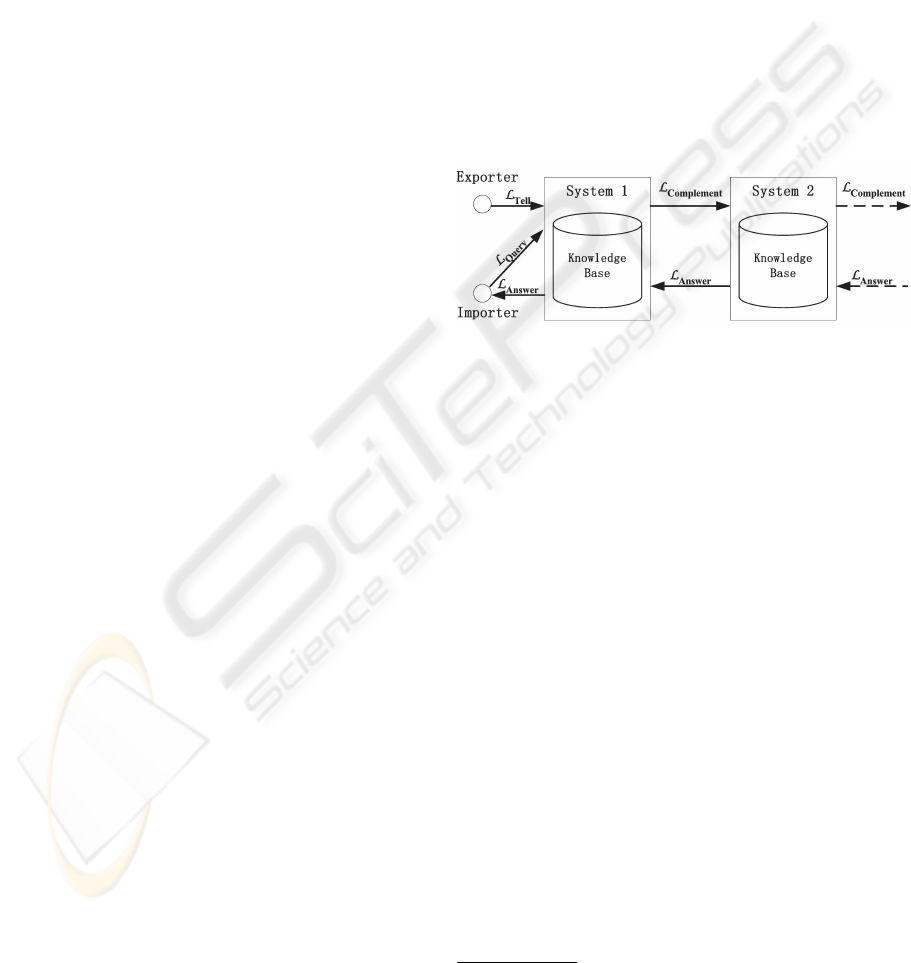

Figure 1: The Mediator-based Architecture
The mediator explores its knowledge base to try
to satisfy the query. The capability search process is
founded on the exported capabilities and on relation-
ships between them, these relationships being trans-
parently established by the mediator. When some ex-
porters known from the mediator satisfy the query, the
references of those exporters are sent back to the im-
porter in L
answer
. Nevertheless, satisfying the query
falls into different cases (Boudjlida, 2002) (see figure
2):
Case1: There exist exporters that exactly satisfy the
query;
Case2: There exist exporters that fully satisfy the
query, but their capabilities are wider than those re-
quested;
Case3: There exists no single exporters that fully
satisfy the query, but when “combining” or com-
posing capabilities from different exporter, one can
fully satisfy the query;
Case4: Neither a single exporter nor multiple ex-
porters satisfy the query, but there exist some ex-
porters that partly satisfy the query;
Case5: No single exporter nor several exporters
fully or partly satisfy the query.
1
See also (DL-org, 2003) for the proceedings of the vari-
ous “Knowledge Representation meets DataBase” (KRDB)
Workshops.
FEDERATED MEDIATORS FOR QUERY COMPOSITE ANSWERS
171

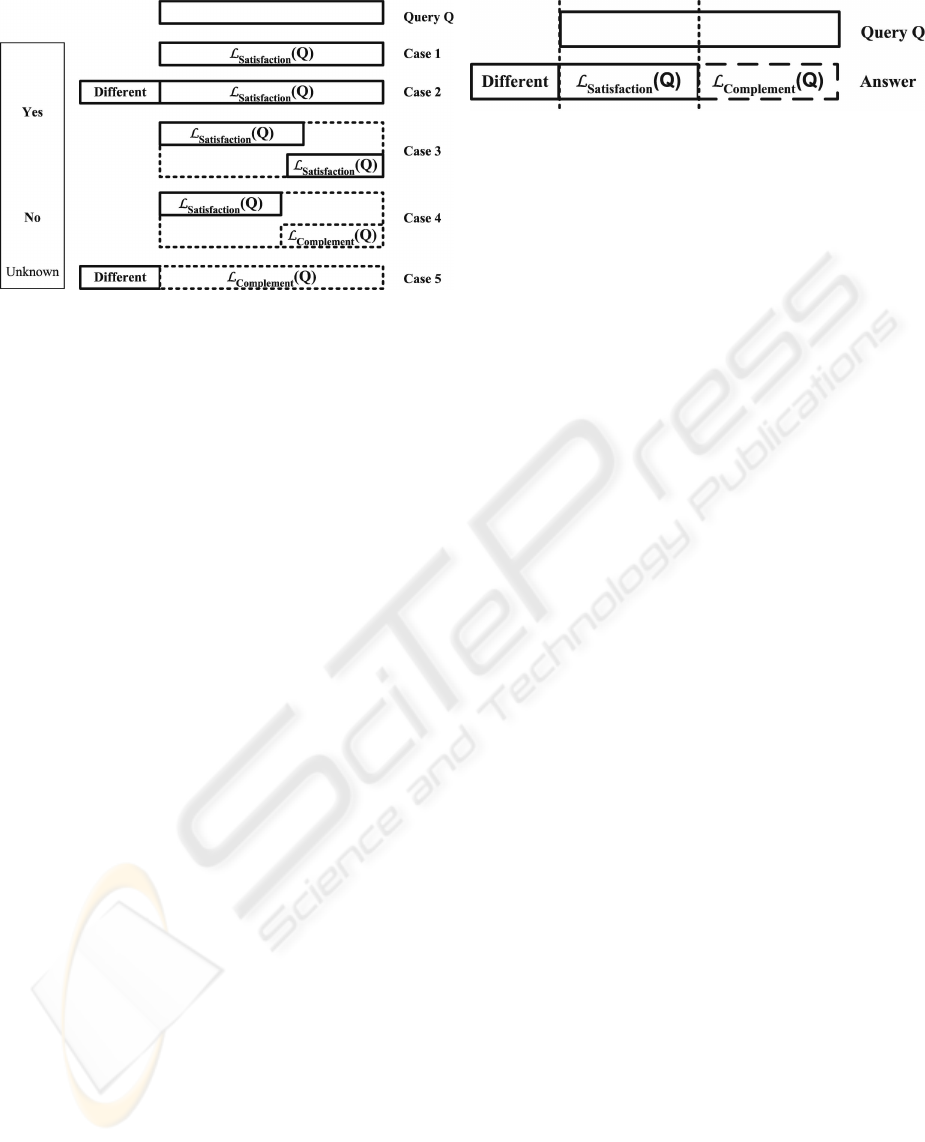

Figure 2: The cases of satisfaction
One should notice that cases 4 and 5 would con-
duct to a failure of the query when only one mediator
is implied. But, if we assume a grouping of media-
tors (into a federation of mediators), these cases are
typical cases where cooperation among the mediators
is required. In the case 5, the whole query is trans-
mitted for evaluation to other mediators whereas in
the case 4, we need to determine “what is missing” to
the individuals to satisfy Q, that means to determine
what part of the query is not satisfied by the found in-
dividuals. This part as well as the original query are
transmitted then to a mediator of the federation. Con-
ceptually, we can see the query as being addressed to
“the union” of by the federated mediators’ knowledge
bases. Concretely, this union is explored from “near
to near” within the federation, that means from a me-
diator to an other.
Let us now elaborate more on the conceptual
framework and the underlying formal foundations.
Given a query Q expressed as a sentence of a
query language L
Query
, a simple result (noted
L
Answer
(Q)) is generally returned in most of the
systems and usually L
Answer
(Q)
.
={Yes, No, Un-
known}, the meaning of “Yes” is that one or sev-
eral entities satisfy the L
Query
and “No” is the oppo-
site. In this work, we try to offer a L
Answer
(Q) that
may not be a single entity satisfying L
Query
, but that
may possibly be a collection of entities where “the
union” of the members of the collection of entities
satisfies the search criteria of L
Query
. This collection
can be found in a knowledge base or in a federation
of knowledge bases (that means a set of knowledge
bases).
In this work, we adopted a Description Logic lan-
guage (DL) (DL-org, 2003), that were intensively de-
veloped and studied in the field of Knowledge Repre-
sentation. So it is not surprising that they are partic-
ularly adapted for representing the semantics of real
world situations including data semantics (Calvanese
et al., 1998; Borgida, 1995). The query language is
Figure 3: A model of composite answer
defined by L
Query
.
={ DLs formulaes}, and L
Answer
is defined by two components the L
Satisfaction
and
L
Complement
. L
Satisfaction
describes a satisfaction,
that is a single entity or a set of entities satisfying a
query Q. If Q is completely satisfied, its complement
(noted L
Complement
(Q)) will be empty. In the con-
trary, the system will try to determine a complement
for this answer. We define a function Comp(, )
to calculate the complement of an answer to a query:
L
Complement
(Q) = Comp(L
Satisfaction
(Q), Q).
Intuitively this complement designates “the missing
part” to an entity in order for that entity to satisfy the
query.
The ultimate goal of this work is the design and the
development of a set of services to export, import and
mediate, as well as the study and the development of
alternative strategies and mechanisms for mediators
cooperation. The coming sections detail the adopted
approach and its foundations, beginning with a short
introduction to description logics.
3 COMPLEMENT AND
COMPOSITE ANSWER
The determination of unsatisfied part of a query is
founded on the concept of complement (Schmidt-
Schauss and Smolka, 1991) in DLs and the test of
the relation of subsumption between the concepts of
the query and those in the mediator’s base. The algo-
rithm that we propose to test if this relation exists or
not, presents the originality, in the case where the re-
lation is not true, to identify the concepts of the query
that are the reason of the non existence of the relation
(concretely, it is about the concepts of the query that
are not subsumed by the concepts in the mediator’s
base): these concepts describe “the part that is miss-
ing” to the individuals who partly satisfy the query.
Let us now describe the proposal in a more formal
way, beginning by defining the notion of complement
to arrive progressively to the procedure of its calcula-
tion.
3.1 An introduction to DLs
DLs (DL-org, 2003; Horrocks, 2002b; Napoli, 1997)
is a family of knowledge representation languages
ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING
172
where a description of a world is built using concepts,
roles and individuals. The concepts model classes
(sets of concepts, TBox)of individuals (sets of indi-
viduals, ABox) and they correspond to generic enti-
ties in an application domain. An individual is an in-
stance of a concept. Roles model binary relationships
among the individual classes. A concept is specified
thanks to a structured description that is built giving
constructors that introduce the roles associated with
the concept and possible restrictions associated with
some roles. Usually, the restrictions constrain the
range of the binary relationship that is defined by a
role and the role’s cardinality.
PERSON
˙
v TOP
SET
˙
v TOP
MAN
˙
v PERSON
WOMAN
˙
v (and PERSON
(not MAN))
member
˙
v toprole
chef
˙
v member
TEAM
.
= (and SET
(all member PERSON)
(atleast 2 member))
SMALL-TEAM
.
= (and TEAM
(atmost 5 member))
MODERN-TEAM
.
= (and TEAM
(atmost 4 member)
(atleast 1 chef)
(all chef WOMAN))
Figure 4: An exemple of LDs TBox
Concepts are of two types, primitive and defined
concepts. Primitive concepts may be considered as
atoms that may serve to build new concepts (the de-
fined concepts). Similarly, roles may be primitive
roles as well as defined roles. In the figure 4, PER-
SON and SET are primitive concepts: they are in-
troduced using the symbol
˙
v and they are linked to
a “TOP” concept (>)
2
; TEAM SMALL-TEAM and
MODERN-TEAM are defined concepts (they are in-
troduced using the symbol
.
=. The and constructor
enables defining concepts as a conjunction of con-
cepts: these concepts are the immediate ascendants
of the defined one. The all constructor constrains a
role’s range and the at-least and at-most constructors
enable specifying the role’s cardinals. Finally, the not
constructor only applies to primitive concept.
Subsumption is the fundamental relationship that
may hold among described concepts. Intuitively, a
concept C subsumes a concept D, if the set of indi-
2
Intuitively the TOP concept is the “most general one”
and it contains all the individuals while the BOTTOM con-
cept () is the most specific one and is empty.
viduals represented by C contains the set of individu-
als represented by D. More formally, C subsumes D
and it is denoted as D v C (or D is subsumed by C)
if and only if D
I
for every possible interpretation I.
C is called the subsuming concept and D is the sub-
sumed. For example in figure 4, PERSON subsumes
MAN, SMALL-TEAM is subsumed by TEAM.
The subsumption relationship organizes the con-
cepts into a hierarchy of concepts. The classifica-
tion process aims at determining the position of a new
concept in a given hierarchy. In this framework, a
query is represented as a concept Q to be classified
in a given hierarchy. The result of the query is the
set of instances of the concepts that are subsumed by
Q. The classification is a process that enables discov-
ering whether a subsumption relationship holds be-
tween a concept X, and those present in a hierarchy
H. The classification process is decomposed into 3
steps:
Retrieve the most specific subsuming concepts of
X (denoted MSSC(X));
Retrieve the most general concepts subsumed by X
(denoted MGSC(X));
(possibly) Update the links between X and its
MSSC and its MGSC.
The result of MSSC and MGSC can determine the
cases of satisfaction (see figure 5).
In DLs a classic definition of the complement[3]is:
given two descriptions A and B in ALCN R
3
as
A v B, the complementary of A relatively to B,
noted Comp(A, B), is defined as the description C
is most general as A B u C. Comp(A, B) cor-
responds to the minimal additional knowledge that
is missing to a process of B to be an instance of
A. For example, Comp(SMALL-TEAM, TEAM) =
(at-most 5 member). The complementary of a con-
cept relatively to another concept and smallest sub-
suming common of two concepts. This definition
of the complement requires (B u C) A, where
(BuC) A ((BuC) v A)((BuC) w A). The
determination of a complement is based on the sub-
sumption relationship as explained in the next section
where the test of the existence of the subsumption re-
lationship is based on a Normalize-Compare process.
3.2 Determination of the
Complement Concept
The aim of a normalization process is to put defined
concepts to be compared, let say A and B, under a
conjunctive form: A = ( and A
1
, A
2
, A
3
, . . . , A
n
)
and B = ( and B
1
, B
2
, B
3
, . . . , B
m
). Once
3
ALCN R is a family of representation langage of DLs
FEDERATED MEDIATORS FOR QUERY COMPOSITE ANSWERS
173
normalized, two concepts can be easily com-
pared to check wither the subsumption relation-
ship holds between pairs of them or not: giving
A = ( and A
1
, A
2
, A
3
, . . . , A
n
) and B = ( and
B
1
, B
2
, B
3
, . . . , B
m
), the test “does the concept A
subsume the concept B?” returns “true”, if and only
if A
i
(i 1,. . . ,n) B
j
(j 1,. . . ,m) such that
B
j
v A
i
.
The implementation of this process uses an array
of Boolean (called “Table Of Test” further) to record
the result of the subsumption relationship evaluation
(see figure 5). In that figure, C
1
, C
2
, C
3
, · · · , C
n
de-
note the query concept under its normal form and
D
1
, D
2
, D
3
, . . . , D
m
denotes the concepts “known
from” the mediators, i.e. every D
j
has to be
viewed under its normal form D
1
j
, D
2
j
, · · · , D
nj
j
.
Then T able Of T est[D
j
, C
i
] = true means that
D
i
j
v C
i
. When the value returned by the func-
tion Subsumes(C, D
j
) is “false” (i.e. the con-
cept D
j
does not fully satisfy the concept C.),
therefore we need to determine a possible com-
plement of D
j
relatively to C. Using the Ta-
ble Of Test it is easy to get the complement of the
concept D
j
relatively to the concept C. For exam-
ple, “MODERN-TEAM subsumes SMALL-TEAM”
is false, “(atmost 4 member), (atleast 1 chef) and
(all chef WOMAN)” is false, then Comp(MODERN-
TEAM,SMALL-TEAM)=(and (atmost 4 member)
(atleast 1 chef) (all chef WOMAN)). Then us-
ing Table Of Test the definition of Comp() is:
Comp(C, D) =
T
r
k=1
C
k
, k|T ableOf T est[k] =
false
4
.
C
1
C
2
. . . C
n
D
1
False False . . . True
D
2
False True . . . True
. . . . . . . . . . . . . . .
D
m
False False . . . False
ORoD False True . . . True
ORoS ANDoS
True False
Figure 5: Three parameters of “Table Of Test”
That means that the complement is given by the
conjunction of all the atomic concepts for which the
corresponding values in “Table Of Test” are “false”.
The composition of the truth values will permit us
to determine the cases of satisfaction. Let’s consider
a table ORoD[1..n] as ORoD[i] =
W
m
j=1
T [D
j
, C
i
].
ORoD[i] = true means that the concept C
i
is
satisfied by at least a D
k
. If the conjunction of
4
In the following, we will use T[x] instead of Table-
OfTest[x]
MSSC MGSC ORoS ANDoS CASE
X X True True 1
X True True 2
> True True 3
> True False 4
> False False 5
Figure 6: The analyse of the satisfaction case
the values of ORoD, noted AN DoS, is true (i.e.
V
n
i=1
ORoD[i] = T rue), it means that all the C
i
s are
satisfied and therefore the query. When AN DoS is
false, the logical disjunction of the values of ORoD,
noted ORoS, enables to determine a possible partial
satisfaction. Indeed if ORoS =
W
n
i=1
ORoD[i] =
T rue, it means that there exist some C
k
that are sat-
isfied. If both ORoS and AN DoS are false then no
atomic concept D
k
j
(j 1..m) satisfies a C
i
.
The figure 6
5
summarizes this discussion (in this
figure, the numbers in the CASE column refers to the
satisfaction cases listed in section 2). By this analyse
with the classification algorithm (Boudjlida, 2002),
we can get a complete method to determine the sat-
isfaction cases that were listed in section 2.
3.3 Status of The Implementation
Based on these algorithms, an experimental platform
has been developed in Java. Some services, like
testing the subsomption relationship, determining the
complement of a concept and computing a compos-
ite answer, have been implemented on this platform.
All these services can be accessed through a Web
Server in a “classical” client/server architecture over
the Web. The services accept the DL concepts writ-
ten DAML+OIL (Horrocks, 2002a), an ontology lan-
guage in XML.
The DL concepts are encoded in XML and transmit-
ted to the Web Server who in turn transmit them to the
appropriate mediator service. Then a normalization
class transforms them into Java objects and an exper-
imental knowledge base, described in XML, is loaded
and normalized into a TBox object when the service is
started. All the algorithms of the mediator’s services
are implemented in the TBox class. The services’ out-
puts are also encoded in XML. Furhermore, XML is
also used to exchange information and concepts be-
tween the mediators when mediators’ copperation is
needed. For example, in the service that computes a
composite answer for a query concept, if the query
concept is not satisfied in the local knowledge base,
the complement concept is sent to next mediator as
5
In this table, X is a concept, > is the concept TOP and
is the concept BOTTOM.
ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING
174
an XML focument.
In the current status of the implementation, a medi-
ator “discovers” an other mediator using a static medi-
ator address list. More complex and dynamic discov-
ery techniques will be supported in the coming ver-
sions. Moreover, we deliberately ignored the search
of the actual individuals (ABox) that satisfy a query,
i.e. in the current work, we only consider TBoxes.
4 CONCLUSION
In this paper, we presented a method and an algo-
rithm for testing the subsumption relationship, deter-
mining concept complements and finding composite
answers. Some service of subsumption test and de-
termine Complement has been implemented in Java,
that is based on a normalization-comparison algo-
rithm and we can access these services by Web. One
of the originality of this work is in the type of query
answering we provide and also in the way we used
and implemented the complement concept. Indeed, to
the best of our knowledge, using the complement con-
cept for query answers composition does not figure
in the literature we had in hands nor in systems that
implement DLs, like RACER (Haaslev and Moller,
2003) one of the most representative DL system.
Future work may consider the complexity of the
algorithm, and the cooperation of mediators in het-
erogeneous environments, i.e. environments where
mediators’ knowledge bases are described in differ-
ent languages.
REFERENCES
Beeri, C., Levy, A., and Rousset, M.-C. (1997). Rewriting
Queries Using Views in Description Logics. In ACM
Symposium on Principles Of Database Systems, pages
99–108, Tucson, Arizona.
Borgida, A. (1995). Description Logics in Data Manage-
ment. IEEE Transactions on Knowledge and Data
Engineering, 7(5):671–682.
Borgida, A. and Devanhu, P. (1999). Adding more ”DL”
to IDL: Towards more Knowledgeable Component In-
teroperability. In 21rst International Conference on
Software Engineering, ICSE’99, pages 378–387, Los
Angeles, CA. ACM Press.
Bouchikhi, M. and Boudjlida, N. (1998). Using Larch to
Specify the Behavior of Objects in Open Distributed
Environments. In Proceedings of the 1998 Maghre-
bian Conference on Software Engineering and Artifi-
cial Intelligence, pages 275–287, Tunis, Tunisia. 98-
R-300.
Boudjlida, N. (1995). Knowledge in Interoperable and
Evolutionary Systems. In Dreschler-Fischer, L. and
Pribbenow, S., editors, KRDB’95, Workshop on “Rea-
soning about Structured Objets: Knowledge Repre-
sentation Meets Databases”, pages 25–26, Bielefeld,
Germany. (Position Paper).
Boudjlida, N. (2002). A Mediator-Based Architecture for
Capability Management. In Hamza, M., editor, Pro-
ceedings of the 6th International Conference on Soft-
ware Engineering and Applications, SEA 2002, pages
45–50, MIT, Cambridge, MA.
Calvanese, D., de Giacomo, D., Lenzerini, M., Nardi, D.,
and Rosati, R. (1998). Information Integration: Co-
ceptual Modeling and Reasoning Support. In 6th In-
ternational Conference on Cooperative Information
Systems, CoopIS’98, pages 280–291.
DL-org (2003). Description logics. http//dl.kr.org/.
Dyck, T. (2002). Uddi 2.0 provides ties that bind.
(http://www.eweek.com/).
Haaslev, V. and Moller, R. (2003). Racer: Renamed
abox and concept expression reasoner. http://www.fh-
wedel.de/mo/racer/index.html.
Han, T.-D., Purao, S., and Storey, V. (1999). A Methodol-
ogy for Building a Repository of Object-Oriented De-
sign Fragments. In 18th International Conference on
Conceptual Modelling, ER’99, pages 203–217, Paris.
Spriger Verlag. LNCS 1728.
Horrocks, I. (2002a). DAML+OIL: a description logic for
the semantic web. IEEE Data Engineering Bulletin,
25(1):4–9.
Horrocks, I. (2002b). Description Logic: Axioms and
Rules. Talk given at Dagstuhl ”Rule Markup Tech-
nique” Workshop. http://www.cs.man.ac.uk/ hor-
rocks/Slides/.
Napoli, A. (1997). Une introduction aux logiques de de-
scription. Technical Report RR No 3314, INRIA-
LORIA, Nancy.
Nonaka, I. and Takeuchi, H. (1995). The Knowledge Creat-
ing Company; How Japanese Companies Create the
Dynamics of Innovation. Oxford University Press.
OMG (1992). The Object Model Architecture Guide. Tech-
nical Report 91.11.1, Revision 2.0, Object Manage-
ment Group.
Schmidt-Schauss, M. and Smolka, G. (1991). Attribute
Concepts Description with Complements. Artificial
Intelligence Journal, 48(1):1–26.
uddi.org (2000). UDDI: Universal Description, Dis-
covery and Integration. Technical White Paper.
(http://uddi.org).
W3C (2003a). Semantic Web. http://www.w3.org/2001/sw.
W3C (2003b). Web Ontology.
http://www.w3.org/2001/sw/WebOnt.
W3C (2003c). Web Services. http://www.w3.org/2002/ws.
FEDERATED MEDIATORS FOR QUERY COMPOSITE ANSWERS
175
