HOW TO BUILD A MULTI-MULTI-AGENT SYSTEM

The Agent.Enterprise Approach

Tim Stockheim

Institute of Information Systems, Universität Frankfurt,

Mertonstr. 17, D-60325 Frankfurt am Main, Germany

Jens Nimis

Institute for Program Structures and Data Organization, Universität Karlsruhe (TH),

Am Fasanengarten 5, D-76131 Karlsruhe, Germany

Thorsten Scholz

Center for Computing Technologies (TZI), Universität Bremen,

Postfach 33 04 40, D-28334 Bremen, Germany

Marcel Stehli

Institute of Information Systems, Technische Universität Ilmenau,

Postfach 100 565, D-98684 Ilmenau, Germany

Keywords: Agent-oriented software engineering, Multi-agent systems, Application integration

Abstract: The maturity of technical foundations for multi-agent systems and the support by development tools, infra-

structure services, and a number of development methodologies leads to an increasing number of existing

multi-agent systems. A more and more networked environment drives the demand for coupling these het-

erogeneous systems to large multi-multi-agent systems. Unfortunately, the design and implementation steps

necessary in this context are currently not supported by established development methodologies; conven-

tional approaches mainly focus on isolated multi-agent systems. In this paper, we present an approach for

the integration of heterogeneous multi-agent systems. The Agent.Enterprise system is a coupled multi-

multi-agent system that has been designed and tested in the manufacturing logistics domain.

1 INTRODUCTION

With the growing success of FIPA-standardization

(http://www.fipa.org) for multi-agent systems

(MAS) and the increasing availability of FIPA-

compliant frameworks (e.g. JADE -

http://jade.cselt.it) various MAS have been devel-

oped and real applications of MAS are emerging.

These applications usually focus on a specific issue

within a certain domain (e.g. manufacturing). In re-

ality these systems often depend on each others’ in-

and output; therefore, the need for integration re-

spectively coupling of these systems arises. Thus,

coupled systems result in a large heterogeneous sys-

tem. In this context we refer to the concept of cou-

pled MAS as multi-multi-agent systems (MMAS).

Each MAS represents a closed organizational entity

with predetermined boundaries of its agents’ influ-

ence. The MMAS restricts the communication be-

tween single MAS to prevent uncontrollable and

unmanageable system complexity.

Nowadays, open service infrastructures such as

Age

ntcities (http://www.agentcities.org) as well as

technical foundations for the coupling of MAS are

available. However, guidance in the software engi-

neering process (analysis, design, implementation,

testing) for these MMAS is missing, since existing

364

Stockheim T., Nimis J., Scholz T. and Stehli M. (2004).

HOW TO BUILD A MULTI-MULTI-AGENT SYSTEM - The Agent.Enterprise Approach.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 364-371

DOI: 10.5220/0002638703640371

 SciTePress

agent-oriented development methodologies are fo-

cusing on isolated MAS only.

This paper presents an approach for analysis, de-

sign and implementation of MMAS that has been

developed and applied by five research projects

(Special interest group) for coupling their MAS. The

resulting system is called Agent.Enterprise and was

introduced in (Frey et al., 2003).

Outline. Section 2 considers and compares sev-

eral existing MAS development methodologies. On

this basis, we introduce the Agent.Enterprise ap-

proach as well as technical improvements (Gateway-

Agent-Concept), which set up basic conditions for

the approach in Section 3. The pros and cons of the

proposed approach and conventional methodologies

are discussed in Section 4. Finally, we conclude the

paper in Section 5.

2 AGENT-ORIENTED

DEVELOPMENT METHODS

Over the last years, the need for applicable and

broadly accepted development methods for multi-

agent systems resulted in a large number of efforts in

order to overcome this problem. Various methods

exist, which support at least one of the development

phases (analysis, design, implementation, and de-

ployment) with representations of varying formal

accuracy and of varying semantic foundations, e.g.

Gaia (Wooldridge, Jennings and Kinny, 2000),

PASSI (Costenio, and Potts, 2002), MASSIVE (Lind

2001), MaSE (Wood, and DeLoach, 2001), AUML

(Odell, Parunak and Bauer, 2001).

The focus of most of the mentioned methods is on

building single (most often closed) MAS and thus,

none of them considers the development or integra-

tion of MMAS. Nevertheless, one can be expect, that

the development process for MAS and MMAS will

have some joint properties. The following subsec-

tions take a closer look at three of the most promi-

nent methods in order to get a better understanding

of the nature of MAS development methods before

we present our method to interconnect different

MAS.

2.1 Gaia

One of the best known representatives is the Gaia

methodology for agent-oriented analysis and design

(Wooldridge, Jennings and Kinny, 2000). It starts

with a statement of requirements and ends up in a

sufficiently detailed system that can be implemented

directly. Hence, this methodology that consists of

analysis and design steps can be thought of as a

process of developing increasingly detailed models

of the system to be constructed.

Analysis. The objective of the analysis stage is to

gain an understanding of the system and its struc-

ture. The system's organization is viewed as a collec-

tion of roles that have certain relationships to each

other, and that take part in systematic, institutional-

ized patterns of interaction with other roles. Thus,

the organization model in Gaia comprises two fur-

ther models: the role model and the interaction

model.

The role model identifies the key roles in the sys-

tem. Such roles are characterized by two types of at-

tributes:

− The responsibilities of a role: A role captures a

specific functionality. This functionality is repre-

sented by attributes known as the role's liveness

and safety responsibilities.

− The permissions/rights associated with a role: A

role has certain permissions, relating to the type

and the amount of resources that can be exploited

when carrying out the role.

The interaction model expresses relationships and

dependencies between the various roles in a multi-

agent system. Interactions need to be captured and

represented in the analysis phase. Links between

roles are represented by the interaction model. It con-

sists of a set of protocol definitions, one for each type

of inter-role interaction. A protocol is a pattern of in-

teraction that has been formally defined and ab-

stracted away from any particular sequence of execu-

tion steps.

Design. The aim in Gaia’s design phase is to

transform the analysis models into a sufficiently low

level of abstraction so that traditional design tech-

niques including object-oriented techniques may be

applied in order to implement agents. The Gaia de-

sign process involves generating three models: The

agent model identifies the agent types that will make

up the system, and the agent instances that will be

instantiated from these types. The service model

identifies the main services that are required to carry

out the agents’ roles. Finally, the acquaintance

model documents the communication links between

the different agents.

2.2 Passi

The Process for Agent Societies Specification and

Implementation (PASSI) is a step-by-step require-

ment-to-code methodology (Costenio, and Potts,

2002). It consists of five models and twelve process

steps for building multi-agent systems and makes in-

tense use of the UML notation.

Analysis. The analysis is described in detail by

the system requirements model that focuses on the

HOW TO BUILD A MULTI-MULTI-AGENT SYSTEM: THE AGENT.ENTERPRISE APPROACH

365

requirements in terms of agency and purpose. UML

use-case diagrams are used to describe the agent

domain and help to identify the agents and their

roles within the system by analyzing their communi-

cation relationships.

Design. The design phase is characterized by the

Agent Society Model that consists of an ontology

description, a role description, and a protocol de-

scription. The ontology description visualizes two

ontologies: the domain ontology for the involved en-

tities and the communication ontology that models

the agents’ knowledge components and the inter-

agent communication. The advantage of this ap-

proach is the ability to model the agents’ knowledge

and the communication specification as two related

elements in the same way. The role description re-

fines the defined agents’ roles within the scope of

the agents’ lifecycles, collaboration, and communi-

cation. For formal communication protocol descrip-

tions AUML is recommended.

Implementation. The agent implementation

model defines the resulting system architecture by

developing a multi-agent and a single-agent struc-

ture definition. Furthermore a behavior definition us-

ing activity diagrams is used to describe the multi-

agent system.

All models have to be converted into a code

model. Following the implementation, the deploy-

ment model is used to describe the location of the

agents regarding the processing units and the migra-

tion and mobility constraints.

The strength of PASSI is the integration of known

object oriented design methods into multi-agent sys-

tem design.

2.3 Massive

MASSIVE stands for “Multi-Agent SystemS Itera-

tive View Engineering” and provides a framework

for the development of multi-agent systems (Lind,

2001). It combines new software development ap-

proaches and standard software engineering tech-

niques and applies them to multi-agent systems. The

MASSIVE method differs from other traditional

methodologies by being rather view-oriented than

process-oriented, which makes it pointless to sepa-

rate analysis and design.

Views are used to describe different aspects of the

complete design. The logical decomposition of a

system contains seven views: task, environment,

role, interaction, society, architecture and system.

The task view depicts the system from a functional

perspective whereas the environment view analyses

the accessibility of the environment from the system

and the developer perspective. The role view de-

scribes the role model for the agents by analyzing

the functional and physical relations within the sys-

tem. The interaction view models the interaction

necessary for solving a problem and the society view

takes a macro perspective for building up structured

collections of MAS entities. The resulting software

model for the MAS and the single agents are de-

scribed in the architectural and the system view.

The views are embedded in a stepwise refinement

of the process model, the so called iterative view en-

gineering. Due to this approach the model can deal

with an incomplete problem specification and is not

fixed for the entire project lifetime.

Another characterizing part of MASSIVE is the

experience factory that provides a conceptual

framework for enabling a systematic learning proc-

ess within an organization. This way it is possible to

improve the model according to the experience

gained in the development process.

3 THE AGENT.ENTERPRISE

APPROACH

The Agent.Enterprise initiative is a joint platform

within the priority research program of the Deutsche

Forschungsgemeinschaft to integrate recent research

results and to join forces in order to build up a net-

worked, agent-based application scenario for the

manufacturing domain (Frey et al., 2003). In order to

address the difficulties caused by the distributed

structure of the involved projects, we developed a

methodology based on aforementioned concepts of

agent-oriented software engineering. The following

subsections outline our scenario, the developed

methodology, and some underlying design decisions.

Scenario

The research groups participating in

Agent.Enterprise cover supply-chain-related aspects

of enterprise co-operation as well as intra-

organizational tasks of individual enterprises. In the

context of the MMAS scheduling functions are of-

fered by the DISPOWEB

project, shop floor pro-

duction planning and control are provided by the

KRASH

†

project, the IntaPS

‡

project and the

Dispositive Supply-Web-Coordination, Available from:

http://www.dispoweb.de [Accessed 13.09.03]

†

Karlsruhe Robust Agent Shell, Available from:

http://www.ipd.uka.de/KRASH/ [Accessed 13.08.03]

‡

Integrated Agent-based Process Planning and Produc-

tion Control, Available from: http://www.intaps.org

[Accessed 13.09.03]

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

366

FABMAS

project. Finally the ATT/SCC

project

provides proactive tracking and tracing services to

guarantee the reliability of supply chain processes in

the case of unforeseen disruptions.

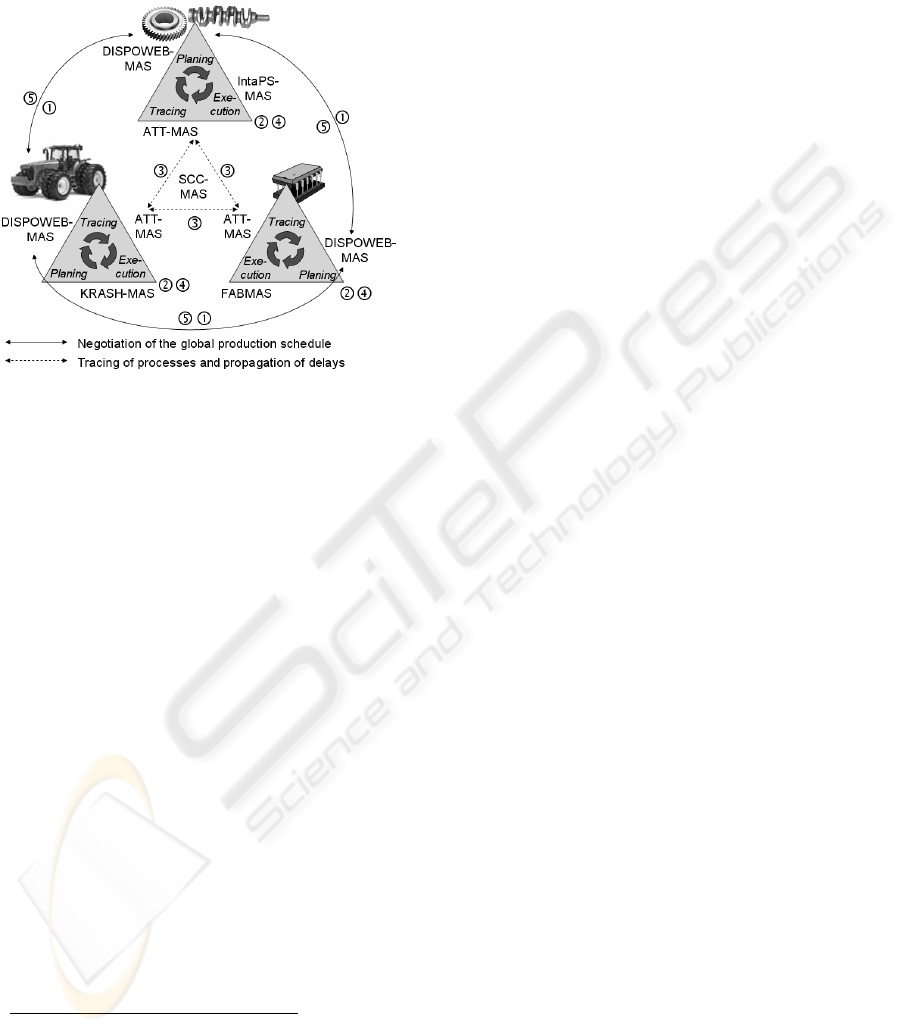

Figure 1: Interaction in the integrated SCM architecture

A typical supply chain management cycle of dis-

tributed global planning of supply chain activities is

shown in Figure 1. After generating an initial plan of

orders and suborders comprising prices and dates of

delivery, software agents located at the different

supply chain partners carry out negotiations.

Thereby, they optimize the cost and the due dates of

deliveries (c).

These optimized delivery plans are used on the

intra-organizational level inside each enterprise (i.e.

in KRASH, IntaPS, and FABMAS) to plan the pro-

duction of goods on each stage of the supply chain

in detail. Three different MAS are concerned with

varying aspects of production planning (d). They

require the input from DISPOWEB agents and gen-

erate detailed plans for their production facilities.

These plans are the initial input for a controlling

system, which is developed in the ATT/SCC project.

The latter MAS monitors orders on every stage of

the supply chain using a distributed architecture in

order to proactively detect events that endanger the

planned fulfillment. In case of such an event, e.g. a

disruption in a production cycle, the ATT system in-

forms the related partner enterprises about the event

Agent-Based System for Production Control of Semi-

conductor Manufacturing Processes, Available from:

http://www.tu-ilmenau.de/fabmas/ [Accessed 13.09.03]

Agent-based Tracking and Tracing of Business Proc-

esses, Available from: http://www.wi2.uni-erlangen.de/

research/ATT/index-e.html [Accessed 13.09.03]

(e). This information can be used to trigger the re-

scheduling of the production steps on an enterprise

level (f) or, in case of major events, even in the re-

negotiation of the contracts on the inter-enterprise

level of the DISPOWEB system (g).

3.1 Agent.Enterprise Methodology

Unlike GAIA, PASSI, MASSIVE and other agent-

oriented development methods the Agent.Enterprise

methodology focuses on a distributed and weakly

coupled development process, while minimizing the

time required for face-to-face communication. Con-

sequently, the initial design period is comparatively

short and restricted to create the speech acts and in-

teraction protocol design.

The result of the analysis and design process are

consolidated in functionally restricted prototypes,

which constitute a test bed for the components of the

evolving MMAS. The projects substitute their proto-

types with gateway-agents to connect their applica-

tions to the common scenario requiring a process of

repeated cycles of redesign, implementation, and

tests. Figure 2 depicts our development approach,

while a detailed description can be found in the fol-

lowing subsections.

Analysis. To assign the participating projects to a

specific functionality within the supply chain, the

focus of the related research was taken as the major

criterion which roles each project would play. Yet,

the integration work starts solely with the Role

Definition and Assignment followed by the Use

Case Specification – the next step is to bring life to

the roles.

A first approximation of the Role Definition and

Assignment is made by performing a simple role-

playing technique. To simulate the exchange of in-

formation between the systems a member of the sci-

entific staff of each of the participating projects

takes over the role of her MAS, and writes down its

informational requirements. Then cards are handed

out. The sender writes down the contents of the mes-

sage as well as the receiver, therefore each card

represents a single act of communication. Starting

with the initiator of an order – the customer – the

whole supply chain is acted out until finally the last

card announces the delivery of the order from the

OEM to the customer. As a result of this role-

playing technique, the communication acts between

the projects’ MAS as well as the required informa-

tion are specified informally and can be formalized

into a Use Case Specification without requiring fur-

ther interaction between the participating projects.

HOW TO BUILD A MULTI-MULTI-AGENT SYSTEM: THE AGENT.ENTERPRISE APPROACH

367

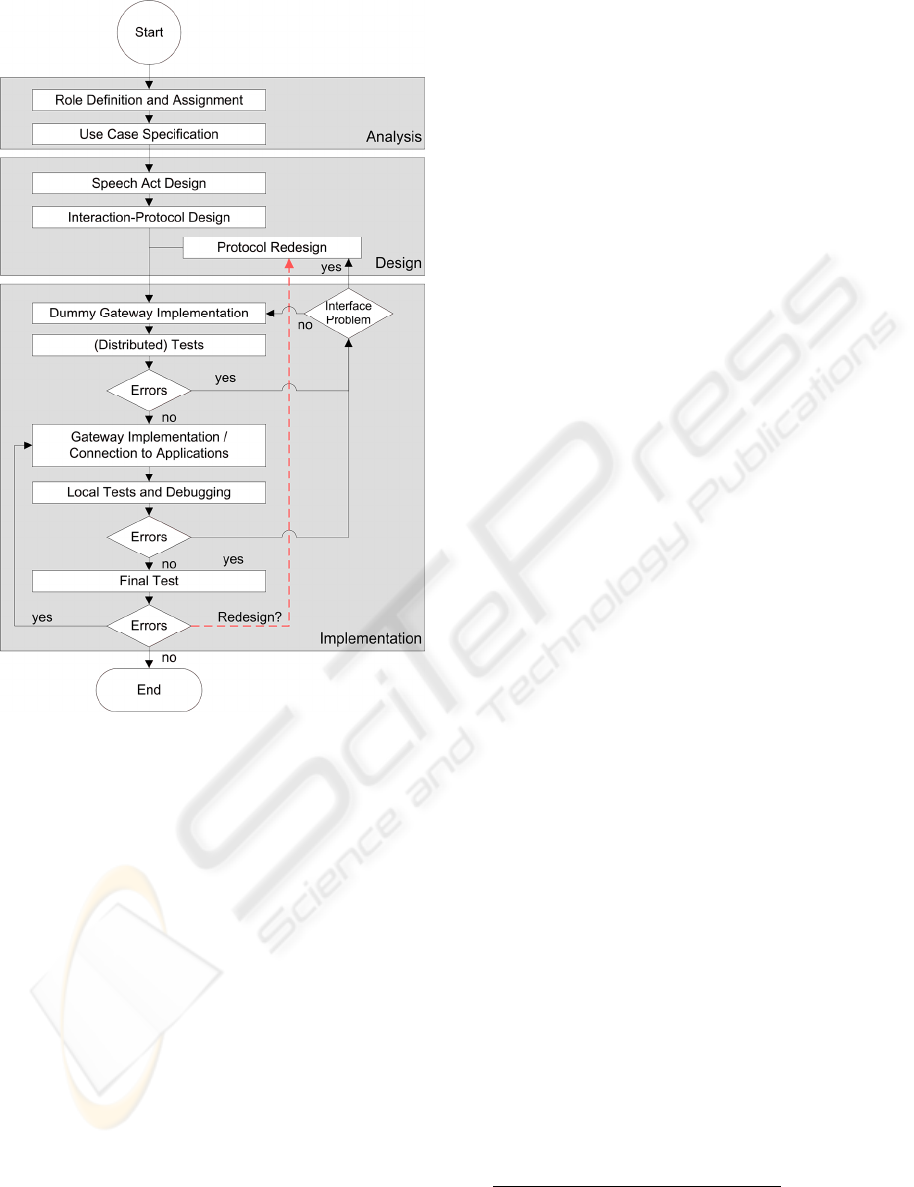

Figure 2: The Agent.Enterprise development process

Speech Act Design. After defining the roles for

each participating MAS, it is necessary to ensure

that high-level communication between the systems

is possible. Due to the heterogeneity of knowledge

representation and semantics in the individual sys-

tems a language barrier for the communication ex-

ists. Consequently we introduce the so-called Gate-

way-Agent Concept, which is outlined in the next

subsection. This concept defines a virtual MAS

where the agents are scattered across a number of

agent platforms such that an ontology can specify

the semantics of conversations. While using onto-

logical expressions as a means of communication,

there are basically two methods to ensure that the

partners understand each other: Shared ontologies or

semantic mediation. As a first approach, we chose to

agree on a shared ontology for communication be-

tween gateway-agents. In our scenario of 5 commu-

nicating gateways the setup cost for implementing

semantic mediation would exceed the cost for agree-

ing on a shared ontology (Wache et al., 2001). Fu-

ture work will include the semantic mediation based

on a common terminology to further open the

Agent.Enterprise system to other MAS.

The task of ontological modeling is performed us-

ing the method described in (Noy, and McGuinness,

2001), which is supported by an ontology modeling

tool

††

. There is a number of tools, which support on-

tology-modeling, ranging from Protégé (Gennari et

al., 2002), OilEd (Bechhofer et al., 2001) to Web-

Onto (Domingue, 1998). Protégé has proven to be

best suited for the task of ontology modeling in our

context. The Protégé-plug-in Beangenerator (van

Aart et al., 2002) is able to generate code, which can

be used for the communication funded on the mod-

eled ontology. The code is deployed on the JADE

agent platform, a development framework employed

for several projects within the Agent.Enterprise

group.

A starting point for an ontology modeling is to

identify actions of the agents, which are requested

from a communication partner. They are directly de-

rived from assigned functionalities and specify tasks

to perform. Afterwards, ontological concepts defin-

ing the artifacts to be dealt with in agent actions can

be specified, e.g. the products to be manufactured.

After modeling all the details for the supply chain,

the concepts required for the supervision of all par-

ticipating MAS are designed.

Interaction-Protocol Design. The next step in

the overall design process is to define dynamics in

conversations, i.e. which interaction-protocols have

to be used for communication. The informal specifi-

cation of interactions resulting from the card role-

play is mapped to corresponding FIPA interaction

protocols if available. As a result, the behavior of

each gateway-agent for each MAS is specified as far

as communication between gateways is concerned.

The final step for integration is to ensure that the

communication between the gateway-agent and the

underlying MAS works.

(Distributed) Implementation. Based on the dis-

tributed structure of our research program, the de-

velopment process takes into account comparatively

long periods of independent development. Inspired

by the concepts of Extreme Programming (Beck,

1999), the development process starts by the imple-

mentation of functionally restricted prototypes exe-

cuting a simplified test case. These prototypes serve

two purposes: On the one hand a consolidation of

speech acts and interaction protocols is enforced. On

the other hand, a test bed for autonomous develop-

††

An overview of methodologies to develop ontologies

has been given in Fernández-López, and Gómez-Pérez

(2002).

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

368

ment emerges. The implementation of these proto-

types is closely bound to test-sessions. The hereby

gained experience is used for improvement and re-

finement of speech acts and/or interaction protocol

design. The outcome of this work is a set of test

modules and an exchange of experience within the

covering research program. As an inevitable restric-

tion of our approach, the simplification of the central

projects’ functions in the ‘Dummy Gateway Imple-

mentation’ could result in a setting where some as-

pects of the interaction protocols could not be suffi-

ciently tested.

Subsequent to the completion of the prototypes,

each project integrates its fully functional applica-

tion into the test bed. Obviously each project some-

times has to debug prototypes of other projects. Re-

sulting from clearly defined responsibilities for each

prototype, explicit phases for consolidation are not

intended.

3.2 The Gateway-Agent Concept

Integration of complex systems needs agreements of

technical nature in order to avoid a time-consuming

struggle with implementation details. For the

Agent.Enterprise approach two central design deci-

sions are subsumed in the Gateway-Agent Concept,

which is illustrated in Figure 3.

Firstly, the agreement upon the use of FIPA-

compliant platforms avoids many of the communica-

tion-related obstacles and allows for concentrating

on domain aspects. The second decision is that every

individual MAS to be integrated should be repre-

sented by a single agent in the resulting MMAS.

FIPA-compliant MAS-Platform

(e.g. FIPA-OS)

FIPA-compliant MAS-Platform

(e.g. JADE)

MAS B

(e.g. SCM)

MAS A

(e.g. PPC)

GW-

Agent

GW-

Agent

interaction

Figure 3: The Gateway-Agent Concept

Thus, the interacting gateway-agents build up a

virtual MAS. Together, these decisions can be seen

as a specific MMAS architecture, which subsumes

aspects of various well-known software patterns

(Gamma et al., 1995):

- Façade pattern: The gateway-agents provide a

unified interface to their MAS as a subsystem,

comprising different roles and their respective

functionality.

- Wrapper pattern (also called Adaptor): The

gateway agents translate between internal for-

mats and behavior of their corresponding MAS

and the common representation in the virtual

MAS.

- Bridge pattern: The different types of the gate-

way agents provide abstract interfaces decoup-

led from the implementation of their MAS. In

the next section we give an example of three

MAS that play the role of a supplier in a supply

chain scenario. In the virtual MAS they all are

represented by the same type of gateway agent

while their implementation is completely differ-

ent and independent.

There are several advantages of the Gateway-

Agent Concept, e.g., developers can focus their ef-

fort on a single agent and only the gateway-agents

must be available during operation. Also, there is no

restriction in the centralization of the different roles

of the MAS into a single gateway-agent, as the dif-

ferent functionalities of this agent can be redirected

to several other agents in the MAS it represents.

4 BENEFITS OF THE

AGENT.ENTERPRISE

METHODOLOGY

In spite of the many differences of the presented

methods, e.g. in respect to scope, representation

format, development process, and semantic founda-

tion, they share some central concepts. Agents pro-

vide functionality by taking over certain tasks asso-

ciated with a role. They interact in order to build up

societies and have a domain model of the environ-

ment in which they are situated.

The presence of the concepts and their corre-

sponding models in the described development

methods on one hand raises the question if and how

they must be addressed by a design process, which

aims at the integration of several existing independ-

ent MAS to an MMAS. On the other hand, such an

integration method needs not to cover all aspects of

agent-oriented development. It has to concentrate on

the requirements from the integration of different al-

ready existing systems.

HOW TO BUILD A MULTI-MULTI-AGENT SYSTEM: THE AGENT.ENTERPRISE APPROACH

369

Table 1. MAS-specific concepts and aspects covered by the discussed methods

Gaia PASSI MASSIVE

Agent.Enterprise

Functionality

- (input) Domain Description Task View - (input)

Roles / Agents

Role Model

/ Agent Model

Agent and Roles Iden-

tification

/ Role Description

Role View Role Identification

and Description

Tasks

Role M. (activities),

Services Model

Task Specification Task View - (input)

Interaction

Interactions Model

/ Services Model

Protocols

Description

Interaction View Protocols

Description

Domain

Knowledge

- Ontology - Shared + Individual

Ontologies

Macro Level

- (not yet) (Role Description) Society View (Role Description)

Environment

Role M. (rights, perm.

and responsibilities)

- Environment View -

Architecture /

Implementation

- Agent Implementation

and Code M.

Architectural View Gateway Model

Deployment

Acquaintance Model Deployment Model System View (not yet)

Although our Agent.Enterprise approach is com-

parable to fully-fledged development methods, it

rather has to be seen as an addition to such methods.

For example, the functionality of the resulting

MMAS derives from existing MAS instead of being

newly designed. Hence certain aspects of the differ-

ent approaches can not be compared (cp. Table 1). In

the following we emphasize three aspects where

conventional methodologies could not be applied.

Architecture. The Gateway-Agent Concept calls

for the assignment of a specific functionality to the

corresponding gateway-agent. One could say that the

gateway-agents give a macro level view of the

MMAS as representatives of their specific MAS.

The distinction between functionality and role can

be unattended in this context, as a specific function-

ality is carried out by individual MAS and therefore

its gateway-agent is required to play the role associ-

ated with the functionality.

Domain Knowledge. In most development meth-

ods, the modeling of the domain knowledge does not

play a central role. Often an implicit common do-

main model is assumed when a (closed) MAS is de-

veloped from scratch. This assumption does not hold

for the integration of existing MAS. Thus, the design

of a domain model, which is common to all gate

way-agents, and suitable at least for communication

purposes becomes a major development step.

The same applies to the interaction design: it has

to consider the dynamic aspects of the functionality

provision and leads to a number of communication

protocols. A basic experience of Agent.Enterprise is

the necessity of a bottom-up approach for the design

of interactions caused by the established functional-

ity of the participating MAS. The interaction design

comprises three elements which are similar to the

PASSI method (but less formalized): informal speci-

fication, mapping to FIPA-interaction protocols

(AUML), and ontology-based content specification

(e.g. Protégé).

All other mentioned aspects such as accessibility

of the environment and deployment can be left to the

individual projects as no overall design guideline is

necessary for integration. The result of the applica-

tion of our methodology is the fully functional

Agent.Enterprise MMAS.

5 CONCLUSION

This paper introduces a new methodology for cou-

pling MAS using methods from agent-oriented de-

sign. The existence of sufficiently specified concepts

applicable for most steps of our prospected method-

ology made little conceptual effort necessary.

Our approach addresses special needs, e.g. deal-

ing with individual ontologies that arise from the na-

ture of MAS integration. Special attention is given to

agreements on the technical system architecture. The

introduced technical concept, called Gateway-

Agents, accelerates the implementation by enforcing

those necessary agreements on technical standards.

Furthermore we could replace an often inflexible

standardization of interfaces by tool-supported ver-

bal agreements. Moreover, the Agent.Enterprise

methodology is designed to fit the need for distrib-

uted development.

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

370

The resulting MMAS called Agent.Enterprise

covers services in the range of supply chain schedul-

ing, shop floor production planning and control, and

proactive tracking and tracing services. By building

this large-scale adaptable MMAS we showed the

applicability of our methodology. The provided reli-

ability of overall supply chain processes also sup-

ports our assumption that MMAS will turn out to be

a valuable extension to MAS esp. in the context of

Supply Chain Management.

ACKNOWLEDGEMENTS

This work as well as the participating projects is

funded by the Deutsche Forschungsgemeinschaft

(DFG) within the German priority research program

1083 “Intelligent Agents in Real-World Business

Applications” (refer to http://www.realagents.org for

further information).

We also like to thank Daniel Pfeifer, Michael H.

Schwind and Ingo J. Timm for their contributions.

REFERENCES

van Aart, C. J., Pels, R.F., Giovanni, C. & Bergenti, F.

(2002) ‘Creating and Using Ontologies in Agent

Communication’, Proc. of the Workshop on Ontolo-

gies in Agent Systems, 1st International Joint Confer-

ence on Autonomous Agents and Multi-Agent Systems

(AAMAS2002), Bologna, Italy.

Bechhofer, S., Horrocks, I., Goble, C. & Stevens, R.

(2001) ‘

OilEd: a Reason-able Ontology Editor for the

Semantic Web

‘, Proc. of Joint German/Austrian con-

ference on Artificial Intelligence (

KI2001), Springer-

Verlag.

Bellifemine, F., Poggi, A. & Rimassa, G. (2001) ‘JADE: a

FIPA2000 Compliant Agent Development Environ-

ment‘, Proc. of the Fifth International Conference on

Autonomous Agents, ACM Press.

Cosentino, M. & Potts, C. (2002) ‘A CASE Tool Sup-

ported Methodology for the Design of Multi-Agent

Systems‘, Proc. of the International Conference on

Software Engineering Research and Practice, CSREA

Press.

Domingue, J. (1998) ‘

Tadzebao and WebOnto: Discuss-

ing, Browsing, and Editing Ontologies on the Web’,

Proc. of the 11th Workshop on Knowledge Acquisition

for Knowledge-based Systems, Banff, Canada.

Fernández-López, M. & Gómez-Pérez, A. (2002) ‘Over-

view and Analysis of methodologies for building on-

tologies’ The Knowledge Engineering Review (KER),

vol. 17 [2]. pp: 129-156.

Frey, D., Stockheim, T., Woelk, P.-O. & Zimmermann, R.

(2003) ‘Integrated Multi-agent-based Supply Chain

Management’, Proc. of the 1st International Workshop

on Agent-based Computing for Enterprise Collabora-

tion, IEEE Computer Society Press.

Gamma, E., Helm, R., Johnson, R. & Vlissides, J. (1995)

‘Design Patterns: Elements of Reusable Object-

Oriented Software’, Addison-Wesley, Reading, Mass.

Gennari, J., Musen, M. A., Fergerson, R. W., Grosso, W.

E., Crubézy, M., Eriksson, H., Noy, N. F. & Tu, S. W.

(2002) ‘The Evolution of Protégé: An Environment for

Knowledge-Based Systems Development‘, Medical

Informatics Technical Report SMI-2002-0943, Stan-

ford.

Lind, J. (2001) ‘Iterative Software Engineering for Multi-

agent Systems: the MASSIVE Method‘, Lecture Notes

in Computer Science and Lecture Notes in Artificial

Intelligence, Vol. 1994, Springer-Verlag.

Noy, N.F. & McGuinness, D.L. (2001) ‘Ontology Devel-

opment 101: A Guide to Creating Your First Ontol-

ogy‘. Stanford Knowledge Systems Laboratory Tech-

nical Report KSL-01-05 and Stanford Medical

Informatics Technical Report SMI-2001-0880, Stan-

ford, CA.

Odell, J., Van Dyke Parunak, H. & Bauer, B. (2001) ‘Rep-

resenting Agent Interaction Protocols in UML‘, Proc.

of the First International Workshop on Agent-oriented

Software Engineering, Springer-Verlag.

Special Interest Group on Manufacturing Logistics of the

German priority research program

1083 “Intelligent

Agents in Real-World Business Applications”

Wache, H., Vögele, T., Visser, U., Stuckenschmidt, H.,

Schuster, G., Neumann N. & Hübner, S. (2001) ‘On-

tology-Based Integration of Information - A Survey of

Existing Approaches’, Gómez-Pérez, A., Gruninger,

M., Stuckenschmidt, S. & Uschold, M. (eds.), Proc. of

the IJCAI-Workshop Ontologies and Information

Sharing, Seattle, WA, pp. 108-117.

Wood, M.F. & DeLoach, S.A. (2001) ‘An Overview of

the Multiagent System Engineering Methodology’,

Proc. of the First International Workshop on Agent-

oriented Software Engineering, Springer-Verlag.

Wooldridge, M., Jennings, N. R. & Kinny, D. (2000) ‘The

Gaia Methodology for Agent-Oriented Analysis and

Design‘, Journal of Autonomous Agents and Multi-

Agent Systems, vol. 3, no. 3, pp. 285–312.

HOW TO BUILD A MULTI-MULTI-AGENT SYSTEM: THE AGENT.ENTERPRISE APPROACH

371
