SYSTEM DEVELOPMENT USING A

PATTERN LANGUAGE-BASED TOOL

Rosana Braga, Paulo Masiero and Fernao Germano

ICMC - University of Sao Paulo, SCE

13560-970 Sao Carlos

Brazil

Key

words: System Development, Pattern Languages, Frameworks, Systems Engineering Methodologies

Abstract: Domain-specific pattern languages can be used to model applications, so that following particular paths in

the pattern language lead to the complete design of particular systems. This paper shows how to use a

pattern language-based analysis method and tool to help in the development of domain-specific systems,

where the development is basically done at the analysis level. The requirements of the target system are

matched against analysis patterns, so that the system is specified in terms of the patterns used to model it.

The tool is fed with this information and uses it to instantiate a framework that was built based on the same

pattern language. The result is the source-code for the target system, that can be used as a prototype,

extended or improved to become the real system.

1 INTRODUCTION

Software reuse is a goal pursued since the beginning

of the computer era, because reusing already tested

artefacts leads to more productivity and quality in

software development. Providing means of writing

less code is an important topic of research, and in

this sense, several approaches have emerged in the

last decades, as for example object-oriented

programming, domain analysis, software

components, frameworks, and patterns. In particular,

object oriented frameworks are composed of

concrete and abstract classes that represent a family

of systems for a specific domain, and they can be

specialized to produce many different applications in

that domain.

Software patterns document solutions to

common problems found during software

development, so that inexperienced developers can

use these solutions when facing the same problems

(Gamma et al., 1995; Aarsten et al., 2000). A pattern

language is a structured collection of patterns that

can be applied sequentially to obtain the entire

architecture of a system (Coplien, 1998). A pattern

language represents the temporal sequence of

decisions that lead to the complete design of an

application, so it becomes a method to guide the

development process (Brugali & Menga, 1999).

Pattern languages reflect experience in specific

domains, covering all their main aspects.

Consequently, particular systems of that domain can

be specified in terms of the patterns applied to model

them. A framework can be built based on a pattern

language composed of analysis patterns that cover

the desired functionality of a specific domain (XXX

et. al., 2002). Such framework supports the

implementation of applications modelled using the

corresponding pattern language, so that the

development can be focused on the analysis level,

i.e., by knowing which patterns of the pattern

language were used to model a specific application,

it is possible to easily instantiate the framework to

that application. A visual builder can aid this task,

by automatically creating the source-code needed to

produce specific applications.

In this work we postulate that the use of a pattern

language-based tool, which automates the

instantiation of a framework, built based on the same

pattern language, substantially eases the

development of domain-specific systems. They can

be developed with no programming, focused only on

the system functionality at the analysis level. This

helps to shorten the gap between system

requirements and implementation, as the patterns are

155

Braga R., Masiero P. and Germano F. (2004).

SYSTEM DEVELOPMENT USING A PATTERN LANGUAGE-BASED TOOL.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 155-162

DOI: 10.5220/0002639001550162

 SciTePress

situated on the analysis level and can be easily

mapped to the users requirements. At the same time,

the framework construction, which was based on the

pattern language, allows the mapping of the patterns

into the implementation classes. The pattern

language-based tool closes the cycle, allowing the

user to inform the patterns used to model the system

and automatically produce the application source-

code that, together with the framework source-code,

composes the final application.

A case study is used in this paper to illustrate the

approach. It consists of the development of a pothole

repair system, using GREN-Wizard (XXX & YYY,

2003), which is a tool to instantiate the GREN

framework (XXX & YYY, 2002), based on GRN, a

pattern language for business resource management

(XXX et al., 1999). We use this particular pattern

language and tool, but the approach is general and

can be reused for other domains.

The focus of this paper is the use of the pattern

language-based tool to obtain domain specific

systems. Before using this tool, the target system is

analyzed based on a pattern language, producing an

analysis model marked with the patterns used to

model it. This modelling is shown in Section 2.

After automatically producing the source-code of the

application, as described in Section 3, it has to be

validated and may be extended to add functionalities

not provided by the pattern language. This is

described in Section 4. Section 5 discusses the

proposed approach and related work. Finally,

Section 6 presents the conclusions and future work.

2 MODELING WITH THE USE OF

A PATTERN LANGUAGE

The first step of our approach is the system analysis

based on a domain-specific pattern language. To

begin with, it is considered that there is a domain-

specific pattern language, composed of analysis

patterns, which present solutions, in terms of class

diagrams, to solve all the main problems found when

modeling systems in that domain. Each pattern has a

solution to a particular problem and the use of this

pattern leads to a small class diagram representing

part of the target system. After applying one pattern,

the pattern language provides means of deciding

about the next patterns to be applied.

For example, consider the GRN Pattern

Language, for Business Resource Management

(Gestão de Recursos de Negócios, in Portuguese),

which was built based on practical experience

acquired during development of systems for

business resource management. We will use this

pattern language to illustrate the process proposed in

this paper. Business resources are assets or services

managed by specific applications, as for example

videotapes, products or physician time. Business

resource management applications include those for

rental, trade or maintenance of assets or services.

GRN has fifteen patterns (see Figure 1), that

guide the developer during the analysis of systems

of this domain. Its main patterns are R

ENT THE

RESOURCE, TRADE THE RESOURCE, and MAINTAIN

THE

RESOURCE. Patterns are grouped according to

their purpose: the first three patterns concern the

identification, quantification and storage of the

business resource. The next seven patterns deal with

several types of management that can be done with

business resources, as for example, rental,

reservation, trade, quotation, and maintenance. The

last five patterns treat details that are common to all

the seven types of transactions, as for example

payment and commissions.

Figure 2 shows part of pattern 9, extracted from

GRN. Observe that the pattern structure diagram

uses the UML notation with some modifications.

Special markers are included before input and output

system operations, which are more than methods, as

they are executed in response to system events that

occur in the real world. A ? mark is used for input

operations and a ! mark is used for output

operations. A * mark before a method name means

that its call message is sent to a collection of objects,

instead of to a single instance, i.e., it will probably

be implemented as a class method. So, each pattern

has participant classes, each of them with attributes,

methods and operations. Besides, a pattern can have

alternative solutions depending on the specific

context in which it is applied. Pattern variants are

used to denote each possible solution to the same

UANTIFY THE

ESOURCE

(2)

RESERVE THE

RESOURCE (5)

ENT THE

ESOURCE

(4) T

RADE THE

ESOURCE

(6)

HECK

ESOURCE

ELIVERY

(8)

AINTAIN THE

ESOURCE

(9)

AY FOR THE

RESOURCE

RANSACTION

(12)

TEMIZE THE

ESOURCE

RANSACTION

(11)

DENTIFY THE

RANSACTION

XECUTOR

(13)

QUOTE THE

RADE

(7)

QUOTE THE

AINTENANCE

(10)

IDENTIFY

AINTENANCE

ASKS

(14)

DENTIFY

AINTENANCE

ARTS

(15)

DENTIFY THE

ESOURCE

(1)

Section

2.2

Business

Transactions

Section

2.1

Business

Resource

Identification

Section

2.3

Business

Transaction

Details

TORE THE

ESOURCE

(3)

Figure 1: GRN Pattern Language

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

156

problem. A pattern can have optional participants, as

for example, Source Party of Pattern 9, and this is

explained in the “Participants” element. The

“Following Patterns” element guides the user to the

next patterns to be used.

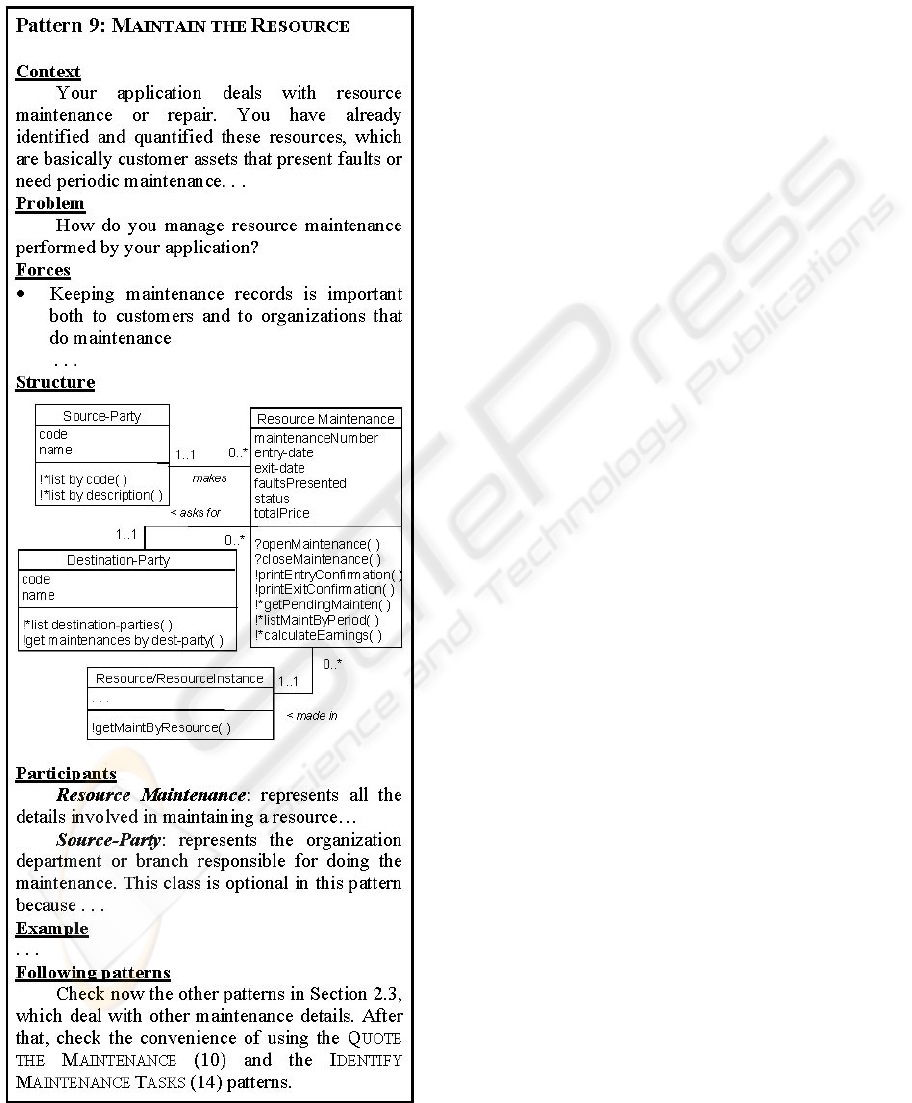

Figure 2: Example of a GRN Pattern

We consider that the software engineer is

familiar with the pattern language, i.e., its domain,

the patterns available, and how to apply them. It is

also considered that a requirements artifact has been

produced that describes the desired functionality for

the system to be developed. So, this artifact has to be

studied to allow the decision of whether the analysis

pattern language and the corresponding framework

can be used for the system development.For

example, consider a Pothole Tracking Repair System

(PHTRS), as the one defined by Pressman (2001). In

this system, citizens can log onto a Web site and

report the location and severity of potholes. As

potholes are reported, they are logged within a

“Public works department repair system” and are

assigned an identifying number, stored by street

address, size (on a scale of 1 to 10), location

(middle, curb, etc.), district (determined from street

address), and repair priority (determined from the

size of the pothole). Work order data are associated

with each pothole and include pothole location and

size, repair crew identifying number, number of

people on crew, equipment assigned, hours applied

to repair, hole status (work in progress, repaired, not

repaired), amount of filler material used, and cost of

repair (computed from hours applied, number of

people, material and equipment used).

After studying GRN, the software engineer

easily recognizes that, in PHTRS, the pothole is the

resource being managed and its repair is one of the

transactions allowed to be made with resources, in

particular it is a resource maintenance, so PHTRS

can be modeled using GRN.

Once decided to go ahead, the pattern language

has to be used to model the system. The pattern

language has to be self-contained, in terms that it

needs to have the necessary information to allow its

application. In order to discipline the work, a class

diagram can be sketched that shows the portion of

the system that will use a certain pattern, using

distinct colors or symbols to stress possible

attributes, methods, or operations added to those of

the pattern. This class diagram grows gradually as

new patterns are applied. For each applicable

pattern, a mark in the requirements document has to

be made to indicate which requirements have been

satisfied by each pattern.

UML stereotypes can be used to indicate the

roles played by each class of the pattern. For each

applicable pattern, its name has to be recorded, as

well as its variant or sub-pattern, if it exists. If the

pattern has an element “Following Patterns” or

equivalent, then it is suggested which possible

patterns to investigate after applying or not a certain

pattern. This defines several possible paths to follow

that should be recorded by the developer and

SYSTEM DEVELOPMENT USING A PATTERN LANGUAGE-BASED TOOL

157

investigated individually. The requirements

document then should be examined to detect

requirements not satisfied or only partially satisfied

by the pattern language. The class diagram then has

to be complemented by the addition of new

attributes, classes, relationships, methods, and

operations, using a different color and registering in

the requirements document the parts not covered by

the pattern language.

A table containing the history of patterns and

variants used could be prepared containing: the

pattern applied; the variant or sub-pattern used

(“default” should be marked if the pattern has been

used as presented in the solution); the name of the

class participating of the pattern; and the name of the

application class that plays the role of the pattern

class participant. This table is latter useful to supply

information to be filled in the visual builder GUI

forms. The result of this step is a class diagram

complemented with information about the patterns

used and the requirements not fulfilled by the pattern

language. Alternatively, experienced developers can

proceed directly to use the tool, based only on the

analysis model.

In the PHTRS example, after applying several

patterns, the system analysis model shown in Figure

3 is obtained, together with Table 1, which shows

the history of patterns applied and roles played by

each PHTRS class. The analysis model is marked

with the patterns, using UML stereotypes, to ease

the future interaction of the software developer with

the visual builder. Notice, in Figure 3, that the P#N

stereotypes are used to denote the patterns used and,

at the same time, the roles played by a PHTRS class

in each pattern. For example, Work Order plays the

role of Resource Maintenance in patterns 9, 14, and

15, and the role of Transaction in pattern 13. These

roles can also be seen in Table 1. In fact, this table

contains the same data shown in the diagram, but

organized in such a way to ease the next step, which

consists of feeding the visual builder.

3 USING THE VISUAL BUILDER

BASED ON THE SYSTEM

MODEL MARKED WITH THE

PATTERN LANGUAGE

The second step of our approach is the use of a

visual builder or tool to implement the specific

application. Based on the analysis model of the

specific application, together with the log of the

patterns and variants used, the tool is fed with the

information needed to automatically generate the

source code of the specific application classes.

Figure 3: PHTRS Analysis Model

asks for

«P#9:Destination-Party»

Public works department

idCode

name

!*list in alphabetic order

!*list work orders by department

«P#9, P#14, P#15:

Resource Maintenance»

«P#13: Transaction»

Word Order

workOrderNumber

beginDate

endDate

faultsPresented

costOfRepair

numberOfPeopleOnCrew

?open work order

?close work order

!*list pending work orders

«P#1, P#9:Resource»

«P#2:SingleResource»

Pothole

idNumber

address

status

!*list by street address

!*list by district

!*list by size

!*list by location

«P#1:ResourceType»

District

idCode

name

!*list in alphabetic order

«P#1:ResourceType»

Size

idCode

description

repairPriority

!&list in alphabetic order

«P#1:ResourceType»

Location

idCode

description

!*list in alphabetic order

«P#1:ResourceType»

Citizen

idCode

name

address

phoneNumber

!*list in alphabetic order

is reported by

«P#13:Transaction Executor»

Repair Crew

idCode

name of members

!*list work orders by repair crew

«P#14:Maintenance Task»

Repair Task

problem to solve

labor description

hours applied to repair

cost of repair

!*list tasks by repair crew

«P#15: Part used in Maintenance»

Material used to repair

quantity

cost

«P#15: Part»

Material

idCode

name

quantity in stock

!*list by name

!*list out of stock

is a

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

158

Table 1: History of patterns applied to model PHTRS

Pattern: 1 - Identify the Resource

Variant Pattern

Participant

Application

Class

Resource Pothole

Resource Type District

Resource Type Size

Resource Type Location

Multiple types

Resource Type Citizen

Pattern: 2 - Quantify the Resource

Single Resource Resource Pothole

Pattern: 9 - Maintain the Resource

Resource Pothole

Resource

Maintenance

Work Order

No source party

Destination-Party Public Works

Department

Pattern: 13 - Identify the Transaction Executor

Transaction

Executor

Repair Crew No commission

Transaction Work Order

Pattern: 14 - Identify Maintenance Tasks

Resource

Maintenance

Work Order Transaction

Executor instead

of Task executor

Maintenance Task Repair Task

Pattern: 15 – Identify Maintenace Parts

Resource

Maintenance

Work Order

Part used in

Maintenance

Material used

to repair

Default

Part Material

It is considered that a framework was built,

based on the pattern language, to support the

implementation of classes in the same domain of the

pattern language. Also, there is a mapping between

the patterns of the pattern language and the

framework classes, i.e., for each participant class of

a pattern, with its attributes and methods, it is

possible to know the corresponding framework

classes, attributes, and methods. This framework can

be manually instantiated based on this mapping, but

this task is time consuming and error prone. So, a

visual builder can be built to help this task, with the

following desirable features:

 It controls the sequence of application of the

patterns, because a pattern language usually has

restrictions about the order in which the patterns

are applied, and the application of one pattern

may require the application of one or more other

patterns;

 It allows the future use of specifications when

modeling similar systems, i.e., it has to log all the

information about the patterns used to model a

particular application, to ease other

developments;

 It allows the application of one pattern more than

once, because the same problem may occur

several times during system development;

 It automatically creates the concrete application

classes and database to persist objects, which can

be done based on the mapping between patterns

and framework classes.

Table 2 summarizes the five sub-steps involved

in the use of a visual builder. The first sub-step may

require iteration through the pattern language, as

many real applications deal with more than one

resource. For example, in a car repair shop, “car” is

the resource being maintained and “part” is the

resource being sold to the customer during the

repair. Besides, “part” is the resource being bought

from the supplier. So, there are two resources being

managed in this example, the first related to a

transaction (maintenance), and the other to two

corresponding transactions (sale and purchase).

In the second sub-step, the user has to decide

about which reports, among those offered by the

pattern language, are part of the specific application

requirements. For example, in PHTRS it is

interesting to have a report of the pending work

orders, i.e., work orders that are in progress. This

corresponds to the system operation:

“!*getPendingMainten()”, which is part of the class

diagram of Figure 2 (Resource Maintenance class).

It is important to notice that basic system operations,

such as inclusion or update of the work order, search

of objects by idcode or description, etc., are

automatically provided by GREN-Wizard, so they

do not need to be chosen by the user.

Table 2: The process for using the visual builder

Step Description

1 – Model

definition

The model of the target application

is informed to the visual builder, in

terms of patterns applied.

2 – Choose

reports

Output system operations, denoted

in the pattern language with a !

mark, can be chosen to make part of

the final application.

3 – Generate

classes

Final application classes are

generated, overriding the necessary

methods and dealing with added

attributes and classes.

4 – Generate

database

Depending on the framework, the

corresponding database is created to

persist objects.

5 – Adapt the

graphical user

interface

Adjustments are made to the final

application to adapt its graphical

user interface according to the

specific application.

SYSTEM DEVELOPMENT USING A PATTERN LANGUAGE-BASED TOOL

159

Sub-steps 3 and 4 deal with code and tables

generation, and depend on the particular framework.

Sub-step 5 takes care of small adaptations done to

the generated code, as for example changing labels

and position of widgets in the GUI. More elaborated

adaptations are part of the third step of our approach,

shown in Section 4.

As an example, consider the GRN pattern

language, introduced in Section 2. The GREN

framework (XXX & YYY, 2002) was developed to

support the implementation of applications modeled

using GRN. All the behavior provided by classes,

relationships, attributes, methods, and operations of

GRN patterns, is available on GREN. Its

implementation was done using VisualWorks

Smalltalk, and the MySQL DBMS for object

persistence. The first GREN version contains about

150 classes and 30k lines of Smalltalk code.

GREN instantiation consists of adapting its

classes to particular requirements of concrete

applications. This is done by creating subclasses

inheriting from GREN abstract classes and

overriding the necessary methods. As GREN has

been built based on GRN, its documentation was

done in such a way that, by knowing which patterns

and variants were applied, several mapping tables

can be consulted to determine which classes need to

be specialized, and which methods need to be

overridden, to obtain the concrete application.

GREN-Wizard is a visual builder to support

GREN instantiation. It was designed so that

framework users need only to know the GRN pattern

language in order to obtain the Smalltalk code for

their specific applications. So, the interaction with

GREN-Wizard GUI forms is inspired on using

GRN. In fact, they are used in parallel. The user will

be asked which patterns to use, which variants are

more appropriate to the specific application, and

which classes play each role in the pattern variant

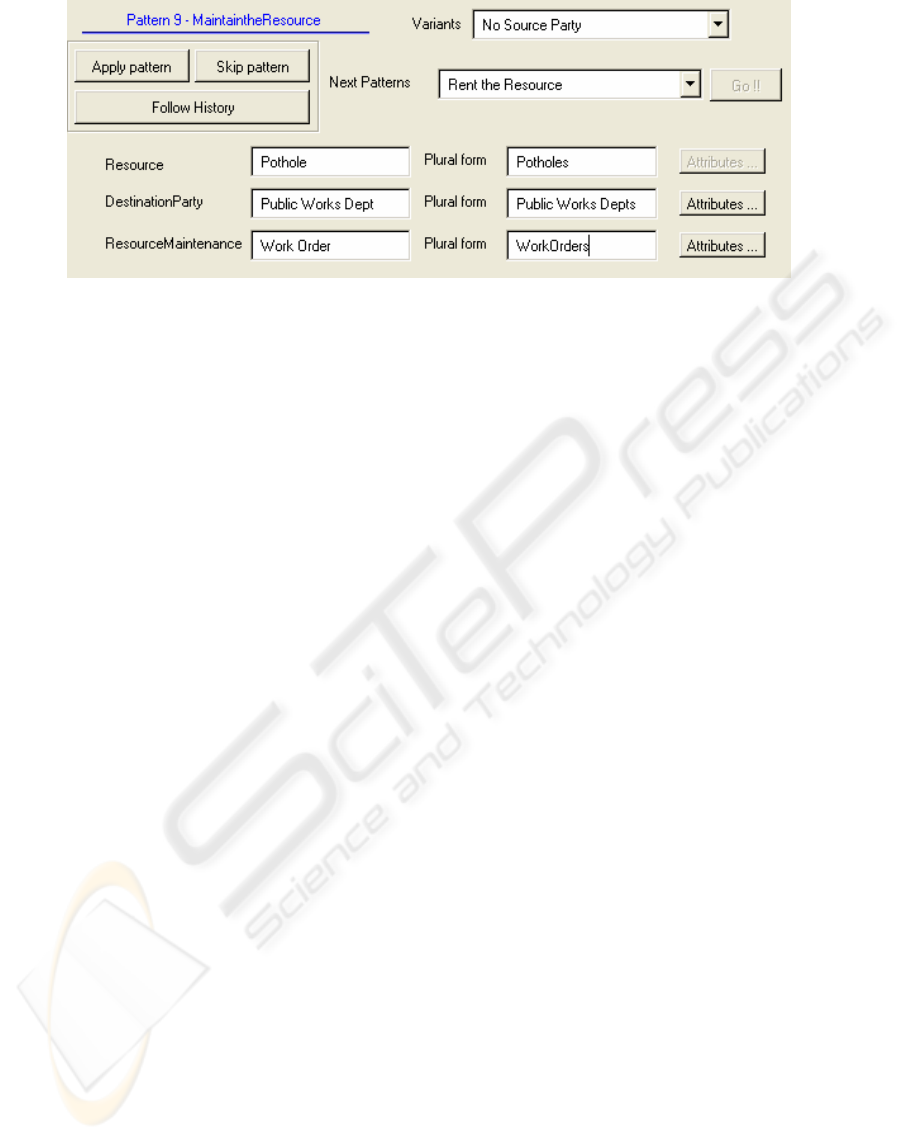

used. For example, in Figure 4, Pattern 9 of GRN –

Maintain the Resource – is being applied, so the user

is feeding information about the resource

maintenance. A specific variant has been selected,

which allows the omission of a pattern participant

(see Figure 2). After applying this pattern, several

choices will be offered to proceed with the

application of other GRN patterns.

Some characteristics of GREN-Wizard are: 1)

storage of the pattern language meta-model,

containing the patterns, their possible variants, the

classes, methods, and attributes belonging to each

pattern, the relationship among patterns, the possible

sequence of application of the patterns, etc. For

example, the fields of the form shown in Figure 4

are dynamically built from a database; 2) creation

and storage of new applications, generated based on

GRN, with information about the patterns used and

the patterns application order. This information can

be used to reengineer the application, or to build

similar systems. Furthermore, reports about the

history of patterns applied to model the application,

can be shown; 3) addition of new attributes to the

classes (other than the pattern attributes), which can

be of a simple data type (for example, integer, string,

float, etc.), obtained from a Table or discrete List, or

a multi-valued type. The last three types make easier

to include N to 1 and N to N relationships between

classes; 4) reuse of attributes or classes from

previous systems implemented with the builder. For

example, if you have developed an application in

which the attributes of the Customer class have been

entered, you can reuse most of them when

developing a Patient class; and 5) partial or total

reuse of systems implemented with the builder, in

the construction of similar systems.

Returning to our example, after PHTRS is fully

specified in terms of GRN patterns, this information

is saved using GREN-Wizard. Then, the reports that

will be available in the final application are chosen,

and the code generator is invoked to automatically

create classes, methods, and the graphical user

interface. Also, the MySQL tables are automatically

created by GREN-Wizard, for objects persistence.

The result of this step is a prototype for the PHTRS

system that has to be tested and possibly extended.

4 PROTOTYPE VALIDATION AND

EXTENSION

The third step of our approach is the adaptation of

the source-code, to satisfy the requirements that are

not covered by the pattern language and by the

framework. This action is optional, as some

applications can be fully generated in an automatic

way. During the first step of our approach, when the

target system was analyzed using the pattern

language, the requirements document was annotated,

to highlight all possible non-covered requirements.

However, an elaborated test may help to find other

more fine-grained requirements that should be

fulfilled. So, a complete functional test has to be

conducted, aiming at producing a list of adaptations

to be done to the prototype, which will evolve into

the real system.

Once decided to enhance the prototype with

additional functionality, the framework technical

documentation and code have to be understood, to

allow the adaptations to be made. The result is the

application specific code, that has to be submitted to

new tests, before delivery to the final user.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

160

It is important to notice that this step will depend

exclusively on the coverage of the domain provided

by the framework. A framework may cover less than

half of the functionality of a particular domain, so a

lot of work has to be done after instantiating it, or it

can offer a 100% coverage of the functionality,

implying in no programming at all.

In our PHTRS example, GREN-Wizard was able

to cover all the functionality, so the system could be

executed with no additional programming, except

that we have improved the GUI with more

meaningful labels and repositioned some widgets.

The fact that GREN-Wizard allows the inclusion of

typed attributes, as proposed by the Type-Object

pattern (Johnson & Wolf, 1997), eases substantially

the coverage of the domain, because classes that are

not part of the patterns can be added to the model

using these typed attributes. Nevertheless, if new

functionality is needed by the system, the resulting

source-code can be modified using the VisualWorks

environment and, in this case, the GREN

documentation needs to be studied by the software

engineer, to determine which classes need to be

modified or added. Adaptations should be evaluated

to determine if they are worth to be implemented in

the framework for future use, or if they are specific

to the application and should be implemented only

in the specific system.

5 RELATED WORK

The approach presented in this paper follows the

patterns proposed by Roberts and Johnson (1998) for

framework development, but differs in an important

aspect: the use of a pattern language to guide the

instantiation process. This makes the instantiation

process easier, because it occurs in a higher semantic

level than other framework instantiation processes.

Another advantage, for the framework developer, is

that it is possible to construct a visual builder

without needing to gradually build a component

library and developing black box objects.

Our approach is similar to the software product-

line engineering approach, that aims at generating

code for families of applications (Weiss and Lai,

1999). Both approaches generate code to be

compiled and executed, but differ on how the code is

generated. The product-line approach generates code

from templates of code, whose place-holders are

filled in by instructions supplied by the application

developer, from a high level Application Modeling

Language, while the visual builder instantiates a

framework following the same procedure that would

be followed by a human application developer, when

instantiating the white-box version of the GREN

framework. We think that this is only possible

because the framework and the visual builder were

developed based on a pattern language.

Similar work, concerning the relationship

between pattern languages and frameworks, was

done by Brugali et al. (2000), who have developed a

framework for flexible manufacturing systems,

based on a pattern language for the same domain.

However, their pattern language is not an analysis

pattern language, like the one presented in this work,

and we do not know about the existence of a tool to

automate the framework instantiation.

6 CONCLUDING REMARKS AND

ONGOING WORK

System development can be enhanced with the aid

of tools that accept information about the system in

higher abstraction levels. Our approach uses domain

specific pattern languages to achieve this goal, so

that the reuse of object-oriented frameworks can be

done without requiring the user to know the

framework implementation details. Rather, they

Figure 4: Example of the GREN-Wizard Graphical User Interface

SYSTEM DEVELOPMENT USING A PATTERN LANGUAGE-BASED TOOL

161

basically need to know about the pattern language

usage, in order to instantiate the framework. Thus,

system development is focused on the functionality

required, with a clear notion of which requirements

are attended by each pattern.

The visual builder can also be used as an

instrument to compose systems from patterns,

choosing each pattern from its syntactic structure,

instead of its semantic meaning in the pattern

language domain, thus enlarging enormously the

domain of applications that can be generated.

Several systems were developed by students

using GREN-Wizard, with good results in

productivity and requirements satisfaction. The

analysis step, for these case studies, took in average

2 hours for medium applications such as: video

rental with 32 classes, product sales with 16 classes,

car repair shop with 22 classes, library with 24

classes, among others. The time required to develop

these applications, using GREN-Wizard was

approximately half an hour for each of them, while

the same application, when manually instantiated

using the white-box version of the framework, took

approximately 10 hours. Notice that programming

these applications from scratch would require

several one-person-week work.

Other case studies are being conducted to

evaluate the visual builder usability and the

difficulties to implement the functionalities not

provided by the framework. Some early results point

that, a significant part of the non-attended

functionality, can be used as feedback to improve

the framework, while a minor part should be

implemented only in the specific application.

As shown in this paper, the Visual Builder does

not have a graphical interface yet. We are working

now in developing an interface with the UML CASE

tool ROSE, such that the patterns can be chosen

from graphical templates, adapted according to the

application semantic and exported to our tool using

XML, for example.

GREN-Wizard is being used as a prototype

creation tool, to support an agile process, named

PARFAIT, for reengineering in the domain of

business resource management (Cagnin et al. 2003).

Aspect based development (Kiczales, 1996) is

being used within a Master’s research to include

non-functional requirements in applications

instantiated from the framework/pattern language.

REFERENCES

Aarsten, A.; Brugali, D.; Menga, G. 2000. A CIM

Framework and Pattern Language, in “FAYAD, M.

E. & JOHNSON, R. E. (eds.). Domain-Specific

Application Frameworks: Frameworks Experience by

Industry, John Wiley & Sons.”, p. 21-42.

XXX, X. X. X.; YYY, Y. Y. Y.; ZZZ, Z. Z. 1999 A

Pattern Language for Business Resource Management.

Proceedings of the 6th Pattern Languages of

Programs Conference (PLoP’99), Monticello-IL,

USA, v.7, p. 1-34.

XXX, X. X. X.; YYY, Y.Y., 2002. A Process for

Framework Construction Based on a Pattern

Language. In: Proceedings of the 26

Annual

International Computer Software and Applications

Conference, Oxford, IEEE Computer Society, 2002. p.

615-620

XXX, X. X. X.; YYY, Y.Y., 2003. Building a Wizard for

Framework Instantiation Based on a Pattern Language.

In: 9

International Conference on Object-Oriented

Information Systems, Genebra, Suiça. Lecture Notes

on Computer Science, LNCS 2817, Springer, p. 95-

106.

Brugali, D.; Menga, G.; Aarsten, A. 2000. A Case Study

for Flexible Manufacturing Systems, in in “Fayad, M.

E. & Johnson, R. E. (eds.). Domain-Specific

Application Frameworks: Frameworks Experience by

Industry, John Wiley & Sons.”, p. 85-99.

Brugali, D. & Menga, G. (1999). Frameworks and Pattern

Languages: an Intriguing Relationship. In ACM

Computing Surveys, march 1999.

Cagnin, M.I.; Maldonado, J.C.; Penteado, R.; Germano, F.

2003. PARFAIT: Towards a Framework-based Agile

Reengineering Process. In: Agile Development

Conference (ADC'2003), IEEE Proceedings, p. 22-31.

Coplien, J.O. 1998. Software Design Patterns: Common

Questions and Answers, in Linda Rising (editor)

(1998) The Patterns Handbook: Techniques,

Strategies, and Applications, Cambridge University

Press, New York, p. 311-320.

Gamma, E.; Helm, R.; Johnson, R.; Vlissides, J. (1995).

Design Patterns – Elements of Reusable Object-

Oriented Software. Reading-MA, Addison-Wesley.

Johnson, R. & Woolf, B. 1997. Type Object, chapter 4, In

“Martin et al. et al. (1998), Pattern Languages of

Program Design 3, Reading-MA, Addison-Wesley”, p.

47-65.

Kiczales, G. 1996. Aspect-oriented programming. ACM

Computing Surveys, v. 28, n. 4es, p. 154.

Pressman, R. S. Software Engineering – A Practitioner’s

Approach, 2001. 5

edition. McGraw Hill.

Roberts, D. & Johnson, R. E. (1998). Evolving

Frameworks: A Pattern Language for Developing

Object-Oriented Frameworks, in “Martin et al. (1998),

Pattern Languages of Program Design 3, Reading-

MA, Addison-Wesley”, p. 471-486.

Weiss, D. M. & Lai, C. R. R. 1999. Software product-line

engineering. Addison-Wesley.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

162
