SOLVING INTEROPERABILITY PROBLEMS ON A

FEDERATION OF SOFTWARE PROCESS SYSTEMS

Mohamed Ahmed-Nacer

Computer Science Department/ Faculty of Electrical Engineering, University of Science and Technology Houari

Boumediene, BP 32, El-Alia 16123 Bab-Ezzouar Algeria

Med-Amine Mostefai

Software Laboratory, Center of Research in Scientifique and Technical Information

03 frère Aissou, Ben Aknoun, 16030 Algiers, Algeria

Keywords: Software engineering, software process, interoperability, federation, development platform.

Abstract: Software process components that share information and that co

operate for common tasks lead to multiple

problems of interoperability. Some based-interoperability approaches have been proposed. However, more

problems remain to be solved to enable the heterogeneous process components interoperability at execution

level. This paper presents a process-based approach (architecture) for the federation of software process

systems. Based on this approach, we focus on its implementation problems for the process execution

interoperability. We show how we solve these problems and we discuss their implementation through the

main development techniques of distributed applications.

1 INTRODUCTION

The first Process Centered Software Engineering

Environment (PSEE) approaches such as EPOS

(Conradi, 1995), SPADE (Bandinelli, 1996), APEL

V.3 (Dami, 1998), MARVEL (Kaiser, 1988) and OZ

(Ben-Schaul, 1998) didn’t met the requirements for

a process support environment because of

monolithic approaches (single formalism, non-

openness, weak evolution...).

Many researchers have explored the problem of

PSEE i

nteroperability and multiple systems have

been proposed through different approaches such as

the multi-view approach (Sommerville, 1995)

(interoperability at model level), distributed

process/workflow approach (Bolcer, 1996)

(heterogeneity at execution level) and federation of

distributed process engines (Ben-Schaul, 1998).

However, the federation of process components

remains a real challenge with regard to the multiple

problems of interoperability to solve, especially at

process execution level.

In this paper, we present a new conceptual

approach (a

rchitecture) of federated PSEE’s and its

associated implementation problems. We discuss

how we solve these problems through the main

development techniques of distributed applications:

Corba (Miller, 1996), Dcom (Williams, 1994) , EJB

(Sun, 1999) and Soap (W3C, 2000).

Section 2 presents the different approaches of the

fede

ration architectures and the associated problems

for process components interoperability. Section 3

addresses these problems of interoperability, mainly

at process execution level. Solutions for these

problems are given and their implementations are

discussed. Section 4 concludes this paper.

2 FEDERATION OF

INTEROPERABLE PROCESS

COMPONENTS

Many works have been addressed for the

interoperability of process components (Cugola,

2000). Multiple approaches have been proposed

591

Ahmed-Nacer M. and Mostefai M. (2004).

SOLVING INTEROPERABILITY PROBLEMS ON A FEDERATION OF SOFTWARE PROCESS SYSTEMS.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 591-594

DOI: 10.5220/0002639805910594

 SciTePress

such as the state-based approach (Estublier, 1999),

(Heimbigner, 1992), the control-based approach

(Orlafi 1997) and the process-based approach

(Estublier, 1998).

This last approach seems adequate for software

process support environments (the recovering

problem is solved through the use of the common

state, flexibility at execution level, control of the

federation behaviour, ...). In this approach, two

specific process components are introduced. The

first one called “Common Process Sensitive System

(PSS)” allows, through its associated model, to

manage the global federation behaviour. The second

process component, called “PSS of

interoperability”, plays the supervisor role.

However , its implementation causes multiple

problems of interoperability at execution level. Next

section presents these problems and tempts to

propose a solution for each of them.

3 PROCESS-BASED

INTEROPERABILITY:

ARCHITECTURE, PROBLEMS

& SOLUTIONS

We present a new conceptual approach

(architecture) of federated PSEE’s and its associated

implementation problems. We discuss how we solve

these implementation problems through the

following development techniques of

distributed

applications

: Corba, Dcom, EJB and Soap.

3.1 Federation Architecture

The architecture that we retain to federate

interoperable process components is designed

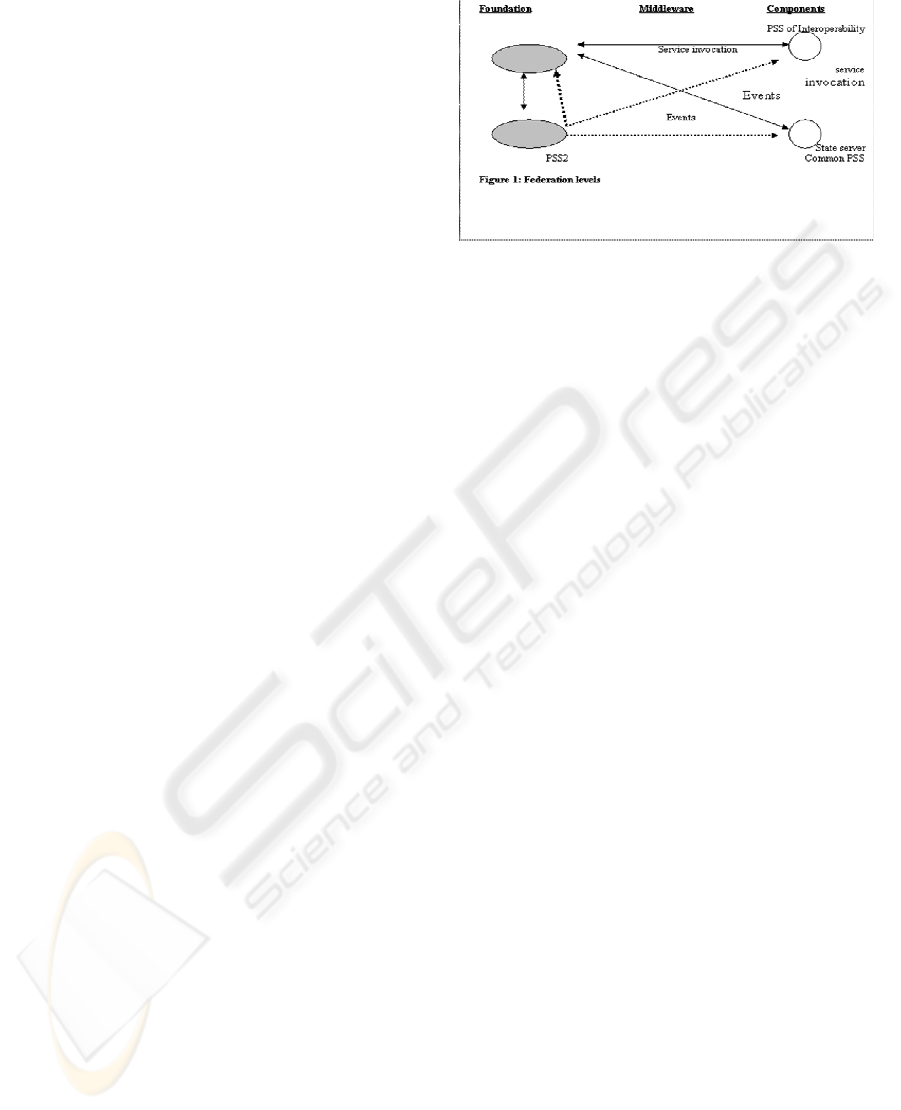

through three levels (Figure 1): 1) the foundation

level to coordinate the execution of the different

process components and to manage the synchronous

(services) and asynchronous (events)

communications, 2) the middleware level to ensures

the transparency of the delivered messages and the

referred services into the federation and 3) the

component level that contains the multiple

components participating in the support of the

process. We have identified three main problems :

Openess and heterogeneity of the federation,

communication infrastructure and external tool

integration.

3.2 Openness and heterogeneity of the

federation:

The heterogeneity of the process components

(different description formalisms, different process

engines,...) make somewhat difficult the desire to

maintain the openness of the federation without

modifying the federation model.

Concerning this problem, our approach is to

associate, for each process component into the

federation, an “abstract” parent that offers some

services called “minimal service”. This includes:

Control operations: They are required by the

PSS of interoperability and concern the launch , the

end and the suspend operations .

Subscription operations: They allow the state

server to manage the global state of the federation.

Message management operations to be sent by

the state server, the foundation level or the

middleware.

Import/export operations: These operations are

used to solve the problem of the different data

formats.

The implementation of this “minimal service”

ensures each process component to be added or

replaced through the control operations (launch, end

and suspend), to communicate via subscription and

message management operations, and to duplicate

easily the common state using the Import and export

operations.

3.3 Communication infrastructure

In order to ensure the transparency of the

synchronous and the asynchronous communications

(event subscriptions and service communications),

the middleware (that is in charge of this

functionality) is decomposed through three

components: 1) a message server component for

message delivering to the components of the

federation, 2) a subscription server component to

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

592

filter messages and to communicate the different

messages sent by the state server to the concerned

components and 3) a registration server to add new

components (service storage) into the federation.

3.4 External tool integration

The needs to reuse existing tools and process

components or to complete them with new ones, has

naturally conducted us to search the way that gives

the possibility to integrate these tools into the

federation without major difficulties (minimal

coasts).

As the external tools (to integrate) didn’t provide

the concept of “minimal service” (that we have

introduced above concerning the problem of

openness and heterogeneity of the federation) and in

order to unifiy them with the other components of

the federation, we associate to each external tool a

special component called “proxy”. This component

is in charge to intercept the different requests from

the federation and to translate them in interpretable

commands to its associated external tools (in forms

of command execution, API,...).

These “proxies” are provided with script

interpreters allowing them to execute their

associated external tool.

3.5 General discussion

We presented in the previous sections the major

problems we can encounter when implementing

federations and we gave our solutions for each

problem. Being nothing more than a distributed

application, we can implement our solutions using

the techniques DCOM, CORBA, EJB or SOAP.

DCOM provides very interesting technologies

such as Automation that can be an efficient method

for external tools integration or GUID identification

that allows a flexible identification mechanism.

However, the main lack of DCOM is its Microsoft

platform dependence.

CORBA provides an architecture for

heterogeneous distributed applications and its

services (as identification) can be a promising

supports for implementing our solutions. However,

its complexity can be a serious obstacle.

Analogically to DCOM suffering of platform-

dependence, EJB lacks of its language dependence

but remains a multiplatform and quite simple

mechanism.

Based on popular standards XML and HTTP,

SOAP is an astonishing simple solution for

implementing distributed application. However,

SOAP is still immature because it does not provide

complete services and supports as the previous

techniques.

The following tables summarize respectively the

advantages and the drawbacks of each technique, the

best techniques for each solution and the degree of

quality of each technique to implement all the

solutions.

Table 1

Advantages

Drawbacks

DCOM

Promising Technology

Oriented component

Microsoft

platform-

dependent

CORBA

Platform-independent

Language-independent

Complex system

EJB

Platform-independent

Oriented-component

Java language

dependent

SOAP

Platform-independent

Language-independent

- Non-object

structure

-Non-component

structure

-No services

TABLE 2

Recommended platforms

for each solution

Openess & component

heterogeneity

CORBA, SOAP

Communication

infrastructure

CORBA, SOAP

tool integration DCOM

Process component support CORBA, DCOM, EJB

Table 3 DCOM CORBA EJB SOAP

Openess

component

heterogeneity

+++

Communication

infrastructure

+ +++ ++ +++

Tool integration +++ ++ ++ +

(+++) good (++) very acceptable

(+) acceptable (-) not recommended

In one hand, we notice that the use of CORBA

with XML (import/export) can constitute an

adequate solution for the process interoperability at

SOLVING INTEROPERABILITY PROBLEMS ON A FEDERATION OF SOFTWARE PROCESS SYSTEMS

593

execution level. In the other hand, the use of a

platform that derive some benefit from the flexibility

of SOAP protocol and combined with the use of a

programming oriented component concepts can also

constitute a solution seeing the CORBA complexity.

DCOM and EJB can be used with multiple

development tools. However, they are respectively

limited to Microsoft systems and to Java language.

For the process component support aspect that

ensures the development of stable process

components and that make them easy to maintain,

we notice the ability of DCOM, CORBA and EJB to

offer some supports for component development.

DCOM allows the development oriented-component

using the COM technology (the ActiveX

components are a concrete exemple), CORBA offers

the CCM technology (Corba Component Model) and

EJB is provided with Java Beans technology.

4 CONCLUSION

The work presented in this paper deals with the

problem of interoperability aspects of federated

PSEE’s (Process Centered Software Engineering

Environments). Our first concern was to highlight

the multiple implementation problems, and we have

focussed our work on the mechanisms that enable

the interoperability of heterogeneous process

components at execution level

We have proposed solutions to solve

interoperability problems on a federation of software

process systems according to different aspects

(openness, communication infrastructure, external

tool integration and format heterogeneity). The

implementation of these solutions has been studied

through the well-known development techniques of

distributed applications (DCOM, CORBA, EJB and

SOAP).

The general discussion above (section 3.5)

shows that there is a variety of solutions according

to the process federation goals. However, all the

solutions remain open and can be improved in

respect with new protocols and standards (for

instance, WSDL or .net platforms).

Our exploration has led us to conclude that a

general infrastructure for interoperability is more

important than a specific implementation. The

current work aims at studying the concepts of a

general architecture where interoperability is

supported at modeling level and at a high level of

abstraction (semantic interoperability), and enforced

using heterogeneous and distributed process engines

at execution level.

REFERENCES

Bandinelli, S.,et al., 1996. Supporting cooperation in the

SPADE-1 Environment” IEEE Trans. On Soft. Eng.

Vol 22 , pp:841-865.

Ben-Shaul, I. Z. and Kaiser, G. E, 1998. Federating

Process-Centered Environments: the Oz Experience.

ASE Journal (Automated Softawre Engineering), Vol.

5, Issue 1, Kluwer Academic Publishers.

Bolcer, G. A. and Taylor, R. N.,1996. Endeavors: A

process System Integration Infrastrucutre. 4

Int’l

Conference on Software Process ICSP4.

Conradi,R. et al., 1995. PSEE architecture: EPOS process

model and tools. Workshop on process-centered

software engineering environment architecture. 20-23

March 1995. Milano- Italia.

Dami, S., et al., 1998. Apel: A Graphical yet executable

formalism for process modeling. Automated Software

Engineering 5(1):61-96 (1998).

Estublier, J., et al., 1999. Building a Federation of Process

Support Systems. International Conference on Work

Activities Coordination and Collaboration. San

Francisco, California,USA. pp:197-206.

Estublier, J., and Barghouti, N. S., 1998. Interoperability

and Distribution of Process-Sensitive Systems.

Software Engineering for Parallel and Distributed

Systems (PDSE’98). Kyoto.

Heimbigner, D., 1992. The Process Wall: A process state

server approach to process programming.

ACM/SIGSOFT –Conference on Software

Development Environment. Washington, DC.

Kaiser, G. E, et al., 1988. Intelligence assistance for

software development and maintenace. IEEE

Software, 5(3).

Miller, J. A., et al., 1996. CORBA-Based Run Time

Architecures for Workflow Management Systems.

Journal of Database Management, Special Issue on

Multidatabases, 7(1):16-27.

Orfali, R., et al., 1997. Client/server. International

Thomson Publishing Company (F), 2sd Edition.

Sommerville, I., et al., 1995. Process Viewpoints . 4th

European Workshop on Process Technology

(EWST’95), Noordwijkerhout (NL), pp. 2-8.

Sun Microsystems., 1999. Entreprise Java Beans ».

(

www.sun.com).

Williams, S., and Kindel, C., 1994. The Component

Object Model. A Technical Overview. Developer

RelationsGroup Bibliothèque. MSDN (Microsoft).

W3C., 2000. Simple Object Access Protocol.

(

www.w3c.com).

G. Cugola, G., et al., 2000. Support for Software

Federations : The PIE Platform. EWSPT: 38-53.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

594
