Q-ONLINE

Integrating a questionnaire system in an organization

Cláudio Sapateiro, Hugo Gamboa, Nuno Pina Gonçalves

Escola Superior de Tecnologia de Setúbal,

Rua Vale de Chaves – Campus do IPS,Estefanilha,

2910-761 Setúbal,

Portugal

Keywords: Internet, Questionnaire, Platform, Human Computer Interaction, Data Mining

Abstract: Organizations are increasingly using questionnaires as a form of collecting data. Our work

focus in a

creation of a web based questionnaire platform, Q-Online, that managed a multi-questionnaires projects on a

multi-users environment. The project goal is to provide a standard structure to collect data in several

organization situations, particularly answering the needs of our organization: a school of technology.

Examples of application of the platform are the collection of data from students or teachers and the usage

inside of an Elearning system. The system was tested in a major school questionnaire focusing the entire

school population. We present preliminary results from this questionnaire. The user interaction during the

answering of the questionnaire was monitored in order to enable future retrieve of behavioural information.

The data analysis developed permits a first overview of the questionnaire answers while Data Mining

techniques will be provided to identify relevant information in the answers data.

1 INTRODUCTION

In the last years we have noticed that organisations

have paid a great attention to collect and organise

useful information to their activity areas. Present

state of Web applications and technologies allows

the easy distribution of questionnaires, becoming a

current way of collecting information used in several

departments and organisations (Nichols et al, 1998).

Analysis, processing and consolidation of

received information between departments could not

be easy, losing this way (or at least becoming more

difficult) the chance to obtain information that can

represent a real profit of the total information got.

Also users are confronted with different formats,

structures and possible repeated questions. All this

factors doesn’t promote the right filling of the

questionnaires and information reliability (Robert D.

et al., 1998; Don A.Dilman et al., 1999).

This paper reports the creation of the Platform Q-

Online, a web application that allows creating and

generating questionnaires in an environment that is

multi-user, multi-questionnaire and with security

layer having the internet as support. This platform

will allow the reutilisation of already developed

projects, as well as the profit of the compatibility of

the information, also allowing the eventual crossing

of inter-projects information.

The interaction behaviour of the user, while

answering a questionnaire is monitored by the

platform Q-Online. This is done by integrating a

system called Web Interaction Display and

Monitoring (WIDAM) that remotely monitors the

human computer interaction of a user while visiting

the several questionnaire pages. Our research goal is

to obtain a richer understanding of the several user

answers by comparing his interaction behaviour

while he is exposed and give answers to the

questions.

Another objective of the Q-Online platform will

be, considering the uniformization of the

information structure, to give an improved analyse

of the recovered information. Immediate basic

results of the obtained information are given. Based

on these first analyses the information will be

filtrated and sent to future consolidation, using Data

Mining techniques.

In reality we have nowadays several systems to

create and generate questionnaires, some of them

free of charge and at our disposal in a web-based

format, and others are commercial products. In a

general way all of them present almost complete

Part of the implementation of Q-Online was possible due to João Daniel graduate student work, from

ESTSetúbal, to whom, we would like to express our thanks, for his work and commitment.

543

Sapateiro C., Gamboa H. and Pina Gonçalves N. (2004).

Q-ONLINE - Integrating a questionnaire system in an organization.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 543-547

DOI: 10.5220/0002640505430547

 SciTePress

functionalities and similar among them. However

the Q-Online aims to add some extra functionalities

to the ones we are used to. First of all developing

our own product will easily allow the integration we

intend with other systems like the E-learning

platform (RoBling, G. et al. 2000; Gamboa, H. et al.

2001), which exists in ESTSetúbal, and with the

Intelligent Miner to the Data Mining analysis (IBM

Redbooks 2003). In fact this last point is also an

innovation to the usual results processing of the

existing tools. The major test to the system was done

with a questionnaire, involving all the ESTSetúbal

2500 student population. At last the monitoring of

the questionnaires filling integrated in a tool with

these characteristics is not usual too.

2 SYSTEM ARCHITECTURE

The Q-Online platform architecture is based on a

questionnaire management tool that enables users

edit, test, visualize, and fill the questionnaire by the

authenticated users. Other questionnaires, from the

platform can be totally or partially reused, as well as

sections, or simple questions. Authors can also

permit other authenticated users to access and use

their existing questionnaires.

Figure 1 presents a use case for Q-Online

platform. There are several actors that interact with

the system. Administrators, with full access to the

platform, manage new users and configure their

privileges. Authors create and manage their

questionnaires. Users fill questionnaires created by

authors, and visitors visualize obtained results from

the questionnaires.

Authors, after their authentication, start

questionnaire creation with sections definition and

their associated questions. For each question it is

possible to define some attributes: type, properties,

possible answers and dependencies.

When users Access the platform, Q-Online

engine dynamically generates the questionnaire to

fill, from the structure created by authors. Visitors

can access questionnaires results created by the

Result Engine, based on the obtained answers.

2.1 Users and authentication

Q-Online platform has an initial authentication

system for administrators, authors, users and

visitors. This system is managed by the

administrator.

Questionnaire may be public or private

depending on the author’s choice. If it is public, the

filling will not need the authentication system

management.

As well as filling, results visualization can also

be managed by the author, and can be public or

private. If it is public, any visitor may have access to

results without authentication.

2.2 Q-Online structure

Q-Online is based on a structure with questionnaires

and their contents. From these contents the Q-Online

engine generates the wanted questionnaire. This

structure has, for each questionnaire, one or many

sections, and inside each sections their

correspondent questions.

Conceptually, as it is possible to observe in

figure 2, questions can only exist if sections exist.

Each question has possible answers, dependencies

and other properties. These properties can be

managed by the author and are related to question

types and if they are mandatory or not.

Each question has many possible types, from

multiple answers, single or multiple classification

answers and text answers.

Questionnaire results are obtained and stored for

each question, inside each section, for a given

questionnaire.

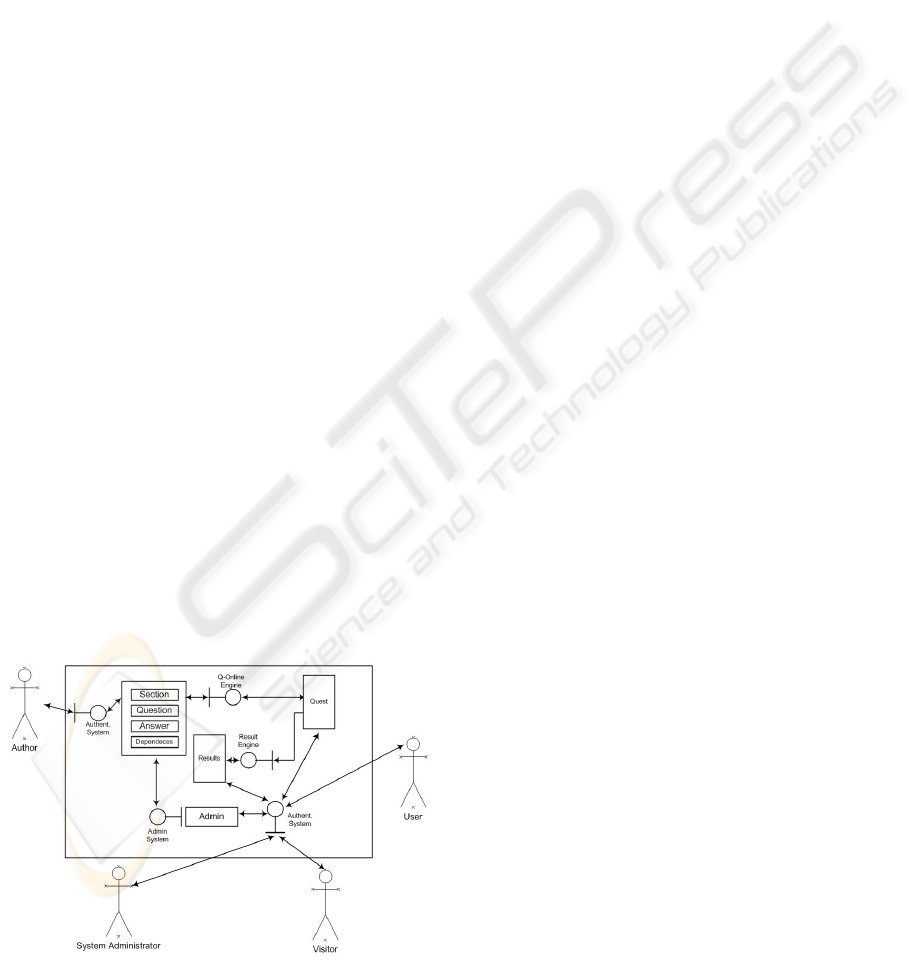

Figure 1: A use case for the Q-Online Platform

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

544

2.3 Dependencies

Dependencies are an important issue among

questions and sections because, many times,

questionnaires have a large number of questions and

only a subset of them are applied to a specific user,

due to answers given in other questions. For

example, if a questionnaire has 100 questions,

maybe only 60% of them are to be asked to the user.

The best way to avoid having the user to see all the

questions is to create dependencies among questions

and sections, and showing him only the questions he

need to fill.

Having in mind the platform’s concept, a section

may depend from one or many answers to a

question. In this context, a section may only appear

if a certain condition – a specific answer to a given

question - is true. This condition can be a

conjunction or a disjunction or both. Questions may

have the same kind of dependencies.

Figure 3 shows created dependencies structure.

2.4 WIDAM system

The Web Interaction Display and Monitoring system

(WIDAM) (Gamboa, H. et al., 2003) is a web based

client-server application that offers the capability to

record the user interaction. The WIDAM system

allows the usage of an interaction monitoring system

directly over a web page, without the need of any

installation, requiring low bandwidth.

The client script collects several interaction

events and evokes the remote procedure in the server

via XML-RPC sending the interaction data. For each

event the data passed is:

Event Id; X position; Y position; Object-id;

Extended data; Timestamp. The X-Y positions are

the mouse coordinates where the event occurred.

The Object-ID identifies the DOM object in the web

page where the event was called, used to identify the

text or picture in the page related to the generation

of the event. The extended data carries information

about the pressed key. The time stamp identifies the

time when the event occurred.

Figure 2: Q-Online structure

The WIDAM system was also used in a

biometric verification system, where the user

interaction with a web page was monitored and

analyzed to validate the identity of the user. The

results were comparable to other behavioural

biometric techniques like voiceprint and signature

verification. The work is reported in (Gamboa, H. et

al., 2003a).

2.5 Results analysis

Users obtain questionnaire results after their filling.

Users may view the most and less answered

questions, ignored questions, as well as obtained

percentages for each possible answer and for each

question with no answers at all.

The system has three types of possible answers:

categorical, numerical and free text. In case of

numerical type, the system offers simple statistics

like average, standard deviation, maximum value,

minimum value, modal value, mean value.

This statistical results offered by Q-Online

platform help visitors making a first selection to

data, giving a higher confidence level to the selected

answers.

Figure 3: Dependencies structure

Questionnaire results will be later imported to a

data mining tool, where some mathematical analysis

will be done to help validating the results, and to

give some patterns and associations related to the

obtained data.

Data Mining which is also referred to as

knowledge discovery in databases means a process

as non trivial extraction of implicit, previous

unknown and potential useful information (such as

knowledge rules, constrains, regularities) from data

in databases (

Piatetsky-Shapiro et al., 1996).

With this kind of studies, visitors, authors and

authenticated users will be able to identify some

Q-ONLINE: INTEGRATING A QUESTIONNAIRE SYSTEM IN AN ORGANIZATION

545

clusters where data have the same characteristics.

Visitors may also identify associations between data,

and may also associate all this information with

statistical information obtained from Q-Online

platform. The Data Mining tool can also help users

to identify more complex statistical information,

such as bivariate statistics and correlation analysis of

the given answers.

3 EXAMPLE OF APPLICATION

The High School of Technology of Setúbal

(ESTSetúbal) part of the Polytechnic Institute of

Setúbal is an example of organisation in which the

several departments produce questionnaires to

retrieve information, using each one his own

structure and technology.

Every year, in the beginning of the scholar year

the students fill in a questionnaire which, later,

allows the school to take new measures to improve

the school conditions and promote the students

success.

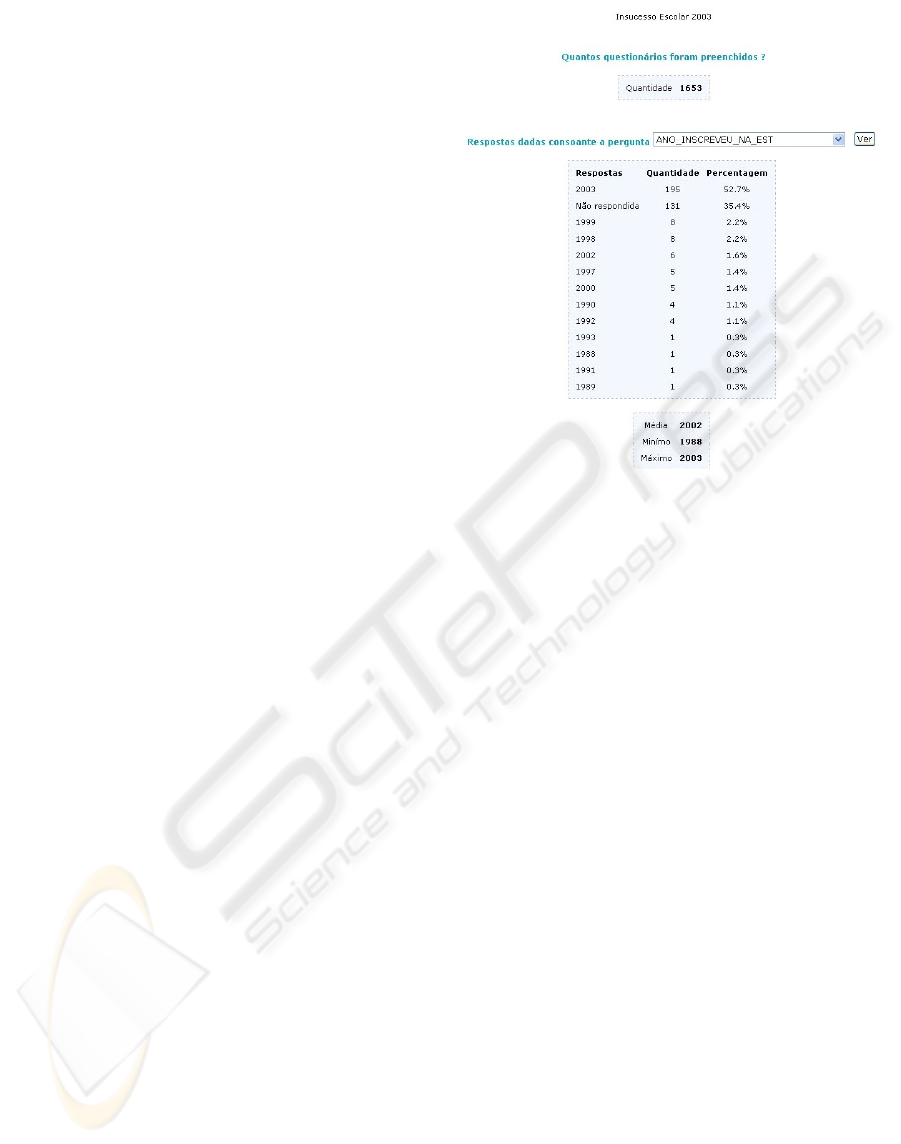

Figure 4: Q-Online results screenshot

About two years ago, ESTSetúbal have started a

project of receiving and analysing the student’s

information using Data mining tools.

With the platform Q-Online we constructed the

questionnaire scholar success 2003 to be filled on-

line. This questionnaire consisted of a list of

questions used in previous years combined with a

list of questions that the work group of Data Mining

has considered important.

The scholar success questionnaire target, was a

total of approximately 2500 students. We obtained

1800 questionnaire fills. After checking the

questions, based on the elimination of the non

correct answered questionnaires or not answered at

all we obtained 1653 questionnaires to analyse.

To each asked question Q-Online provide two

kinds of answer, the categorical and the numerical.

In the categorical is possible to obtain the quantity of

given answers for each category as well as the

associated proportion. To the numerical ones is

possible to obtain some simple statistics, like the

average, the highest and the lowest value. It is also

possible to create a top-ten and a bottom-less with

the given answers to each question.

In the figure 4 is shown a snapshot of Q-Online

results analysis. The text of the picture is in

Portuguese since the organization is a Portuguese

school.

4 CONCLUSIONS AND FUTURE

WORK

The project of the platform Q-Online has been

validated with the above mentioned practical case.

In reality the described questionnaire has been

obtained with an inter-departments effort from

ESTSetúbal that ended with the isolated creation of

questionnaires and the repeated

information collection. In fact the obtained result

serves the required specifications from the different

involved departments, since each of them can

analyse the questions they have elaborated. The use

of a common structure makes possible the analysis

of eventual crossing of all the obtained information.

The developed system proved that the

application has always been stable, even when the

number of users has been around 500.

The collected interaction will be analyzed using

pattern recognition methods in order to detect a set

of behavioural characteristics. We have the goal of

producing probabilistic statements about the user

behaviour while answering a question. One of the

first tasks is to construct the set of the behavioural

states we will be able to detect. The results of the

study could be extended to different questionnaires

and testing environments with a particular interest in

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

546

Intelligent Learning Environments where the

detection of behavioural states would be used to give

feedback to the learner and better conduce the user

activity and experience.

The future work will be the integration with a

data mining server, allowing that results of a data

mining analysis be available to users that access the

platform from their machines.

REFERENCES

Nichols E.; Sedivi, B..1998. In press “Economic data

collection via Web: A census bureau case study”.

Proceedings of Survey Methods Section. American

Statistical association annual meetings, Dallas, Texas.

RoBling, G.; Freisleben, Bernd. 2000. “Topkapi: A tool

for performing Knowledge tests over the WWW”.

Interdisciplinary Conference on Electrical, Electronics

and computer Engineering in the third millennium

(ICEECEE)2000.

Robert D.; Toratora, Jon Conradt; Don

A.Dilman.1998.“Influence of plain vs fancy design on

response rates”. Proceedings of Surveys methods

section. American Statistical Association Annual

Meetings. Dallas, Texas.

Don A.Dilman, Robert D. Toratora, Jon Conradt, Dennis

Bowker.1999. “Principals for constructing Web

surveys”. Technical report. Washington State

University.

Integrating IBM DB2 Intelligent miner visualization into

your web application. IBM Redbooks.2003.

Gamboa, Hugo; Ribeiro, Nuno V.; Holt Anatol, Fred, Ana.

2001. An e-learning Platform Concept, 2a

Conferência Internacional em Tecnologias de

Informação e Comunicação na Educação: Chalanges

2001.

Gamboa, Hugo; Ferreira, Vasco. 2003.WIDAM - Web

Interaction Display and Monitoring. 5th International

Conference on Enterprise Information Systems,

ICEIS'2003.

Gamboa, Hugo; Fred, Ana. 2003a. An Identity

Authentication System Based on Human Computer

Interaction Behaviour. Proceeding of the 3rd

Workshop on Pattern Recognition in Information

Systems PRIS 2003.

Piatetsky-Shapiro, G.; Fayyad, U.; Smith P..1996. From

data mining to knowledge discovery: An overview. In

U.M. Fayyad, G. Piatetsky-Shapiro, P. Smith, and R.

Uthurusamy, editors, Advances in knowledge

Discovery and Data Mining, pages 1-35. AAAI/MIT

Press, 1996

Q-ONLINE: INTEGRATING A QUESTIONNAIRE SYSTEM IN AN ORGANIZATION

547
