F2/XML: MANAGING XML DOCUMENT

SCHEMA EVOLUTION

Lina Al-Jadir, Fatmé El-Moukaddem

Department of Computer Science, American University of Beirut, P.O. Box 11-0236, Beirut, Lebanon

Keywords: XML, schema evolution, object-

oriented database system

Abstract: XML has become an emerging standard for data representation and data exchange on the Web. Although

XML data is self-describing, most application domains tend to use document schemas. Over a period of

time, these schemas need to be modified to reflect a change in the real-world, a change in the user’s

requirements, mistakes or missing information in the initial design. Most of the current XML management

systems do not support schema changes. In this paper, we propose the F2/XML method to manage XML

document schema evolution. We consider XML documents associated with DTDs. Our method consists in

three steps. First, the DTD and XML documents are stored as a database schema and a database instance

respectively. Second, DTD changes are applied as schema changes on the database. Third, the updated DTD

and XML documents are retrieved from the database. Our method supports a complete set of DTD changes.

The semantics of each DTD change is defined by preconditions and postactions, such that the new DTD is

valid, existing XML documents conform to the new DTD, and data is not lost if possible. We implemented

our method in the F2 object-oriented database system.

1 INTRODUCTION

As eXtensible Markup Language (XML) has

become an emerging standard for data representation

and data exchange on the Web, it has gained

attention in the database (DB) community. Recently,

researchers have addressed the problem of storing

XML data in databases and processing XML queries

using the mature technology of database systems

(Florescu and Kossmann 1999, Shanmugasundaram

et al. 1999, Shimura, Yoshikawa, and Uemara 1999,

Kappel et al. 2000, Klettke and Meyer 2000,

Schmidt et al. 2000, Chung et al. 2001). In this

paper, we go further, and use schema evolution

capabilities of a database system (DBMS) in order to

manage XML document schema evolution.

In many applications a schema is associated with

an XML

document to specify and enforce the struc-

ture of the document. The schema of an XML docu-

ment is allowed to be irregular, partial, incomplete,

not always known ahead of time, and may conse-

quently change frequently and without notice (Kap-

pel, Kapsammer, and Retschitzegger 2001).

Moreover, the schema may change over time to re-

flect a change in the real-world, a change in the

user’s requirements, and mistakes in the initial

design (Su et al. 2001). Most of the current XML

management systems do not support schema

changes. Modifying the schema of XML documents

is not a simple task, since the documents which

conform to the old schema must be transformed in

order to conform to the new schema. This problem is

similar to schema evolution in databases (Banerjee

et al. 1987, Penney and Stein 1987, Tresch 1991,

Ferrandina et al. 1995, Al-Jadir et al. 1995, Al-Jadir

and Léonard 1998). Our approach is to use what has

been done in database schema evolution and apply it

to XML documents.

In this paper, we consider the D

ocument Type

Definition (DTD) as XML schema mechanism. To

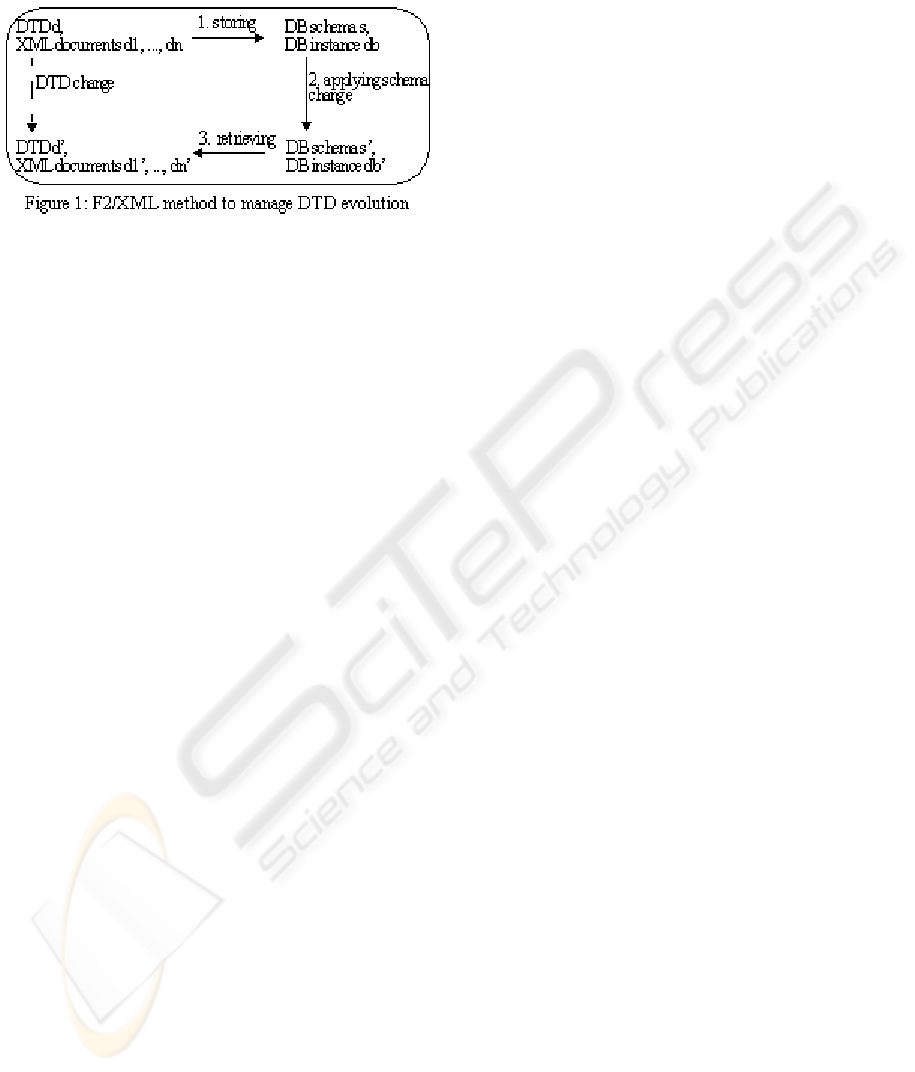

modify the DTD of XML documents we propose the

F2/XML method which consists in three steps (see

Figure 1). Step 1: the DTD is stored as an object

database schema and the XML documents are stored

as an object database instance. Step 2: DTD changes

are applied as schema changes on the database. Step

3: the updated DTD and XML documents are

retrieved from the database. Our method supports a

complete set of DTD changes. The semantics of

each DTD change is defined by preconditions and

postactions, such that the new DTD is valid, existing

XML documents conform to the new DTD, and data

is not lost if possible. We implemented our method

in the F2 general-purpose DBMS, but it can be

251

Al-Jadir L. and El-Moukaddem F. (2004).

F2/XML: MANAGING XML DOCUMENT SCHEMA EVOLUTION.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 251-258

DOI: 10.5220/0002640602510258

 SciTePress

applied using any object or object-relational DBMS

which supports schema evolution.

The paper is organized as follows. Section 2 re-

views related work. Section 3 describes the storage

and retrieval of XML documents in/from object

databases in the F2/XML method. Section 4 presents

the DTD changes supported in F2/XML with their

semantics and implementation. Section 5 concludes

the paper.

2 RELATED WORK

Several approaches have been proposed to store

XML documents in databases. Some of them are

independent of DTDs (Florescu and Kossmann

1999, Shimura, Yoshikawa, and Uemara 1999,

Schmidt et al. 2000). Others map the DTD into a

relational database schema (Shanmugasundaram et

al. 1999, Kappel et al. 2000), an object-relational

database schema (Klettke and Meyer 2000), or an

object database schema (Chung et al. 2001). In

(Shanmugasundaram et al. 1999) the authors

propose three inlining techniques to generate a

relational schema from a DTD after simplifying the

DTD and building a DTD graph. In (Kappel et al.

2000) the authors propose mappings between a DTD

and a relational schema according to the charac-

teristics of XML elements and XML attributes. The

mappings are not hard-coded within an application,

but stored within the meta-schema. In (Klettke and

Meyer 2000) the authors present some straightfor-

ward mappings to transform a DTD into an object-

relational schema, and propose to use hybrid

databases, i.e. databases with a data type XML,

using statistics. In (Chung et al. 2001) the authors

store XML data in an object-oriented database using

an inlining technique, and propose to use inheritance

in case of alternative and optional elements.

Our F2/XML method (Steps 1 and 3) has the fol-

lowing advantages. It uses the object model which

allows us to represent parent-child relationships by

direct references (no need to create manually join

database attributes and foreign keys as in relational

DB), and repetition of children by multi-valued data-

base attributes (no need to create separate relations

as in relational DB). Note that we use the term

database attributes for attributes of a class/relation,

and XML attributes for attributes of an element.

Our

method stores alternatives among children. The

other approaches (except Kappel et al. 2000) either

do not store the DTD, or remove alternatives by

simplifying the DTD, or use inheritance (which may

lead to an explosion of the number of subclasses due

to all combinations). Our method stores the order

among children, which is missing in some

approaches. It keeps track of groups, while the other

approaches (except Kappel et al. 2000) do not.

Moreover, it allows us to go backward, i.e. to

retrieve back the DTD from the database without

loss of information, which is not possible in the

other approaches (except Kappel et al. 2000).

XEM (Su et al. 2001) is an approach which han-

dles DTD evolution. It supports 14 DTD changes,

the semantics of which is given by preconditions and

results to ensure the validity of the new DTD and the

conformity of XML documents. Our F2/XML meth-

od differs from XEM. It supports more DTD

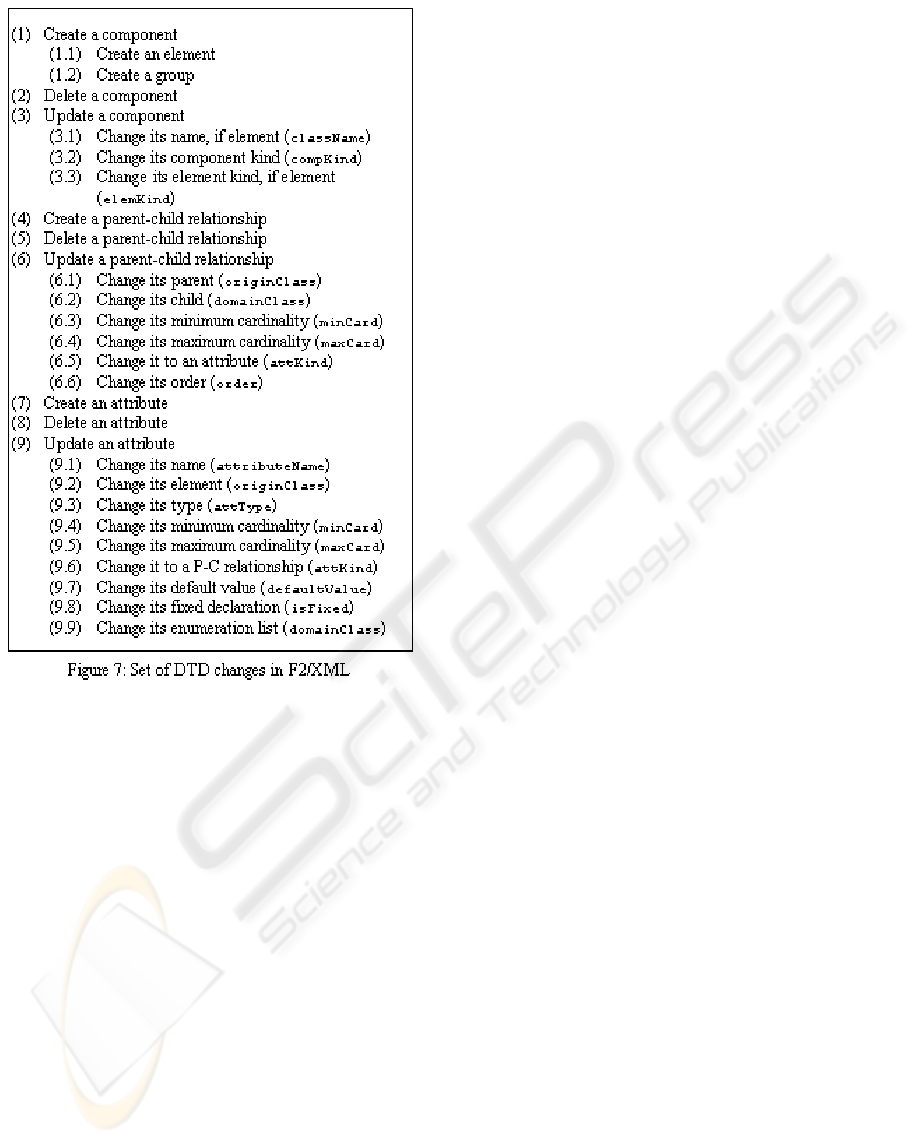

changes (see §4.1), such as changing the parent or

child in a parent-child relationship, changing a

parent-child relationship to an XML attribute and

vice-versa, changing the order of a parent-child

relationship, renaming an attribute, changing the

element of an attribute, and changing the type of an

attribute. Moreover, our semantics of the same DTD

changes is different. For example, when changing

the cardinality of a child

C in the definition of

element

E from repeatable to non-repeatable, XEM

removes all occurences of the child

C except the

first, while F2/XML rejects this DTD change if an

instance of element

E has more than one occurence

of child C in the document. Avoiding data loss in the

XML document when changing its DTD is a major

concern in our method. It motivates the existence of

some of our DTD changes (not available in XEM)

and our semantics of DTD changes (different from

XEM’s semantics). Finally, F2/XML (unlike XEM)

implements DTD changes as database schema

changes performed by primitive and triggered meth-

ods.

Our approach, like XEM, is tightly-coupled with

a database system. SAXE (Su et al. 2002) is a

loosely-coupled approach for XML-Schema

evolution. An XML-Schema change is expressed as

an Update-XQuery statement. This statement is

rewritten into a safe Update-XQuery statement, by

embedding constraint checking operations into the

query, to ensure the consistency of XML documents.

The safe query can be then executed by any XML

system supporting the Update-XQuery language.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

252

In (Bertino et al. 2002) the authors tackle a

different problem. They propose an approach to

evolve a set of DTDs, representative of the

documents already stored in a database, so to adapt

it to the structure of new documents entering the

database.

3 STORAGE AND RETRIEVAL OF

XML DOCUMENTS

In this section we present Steps 1 and 3 of the F2/

XML method. The former stores an XML document

in an object database, while the latter retrieves it

from the database (Al-Jadir and El-Moukaddem

2002).

3.1 Running Example

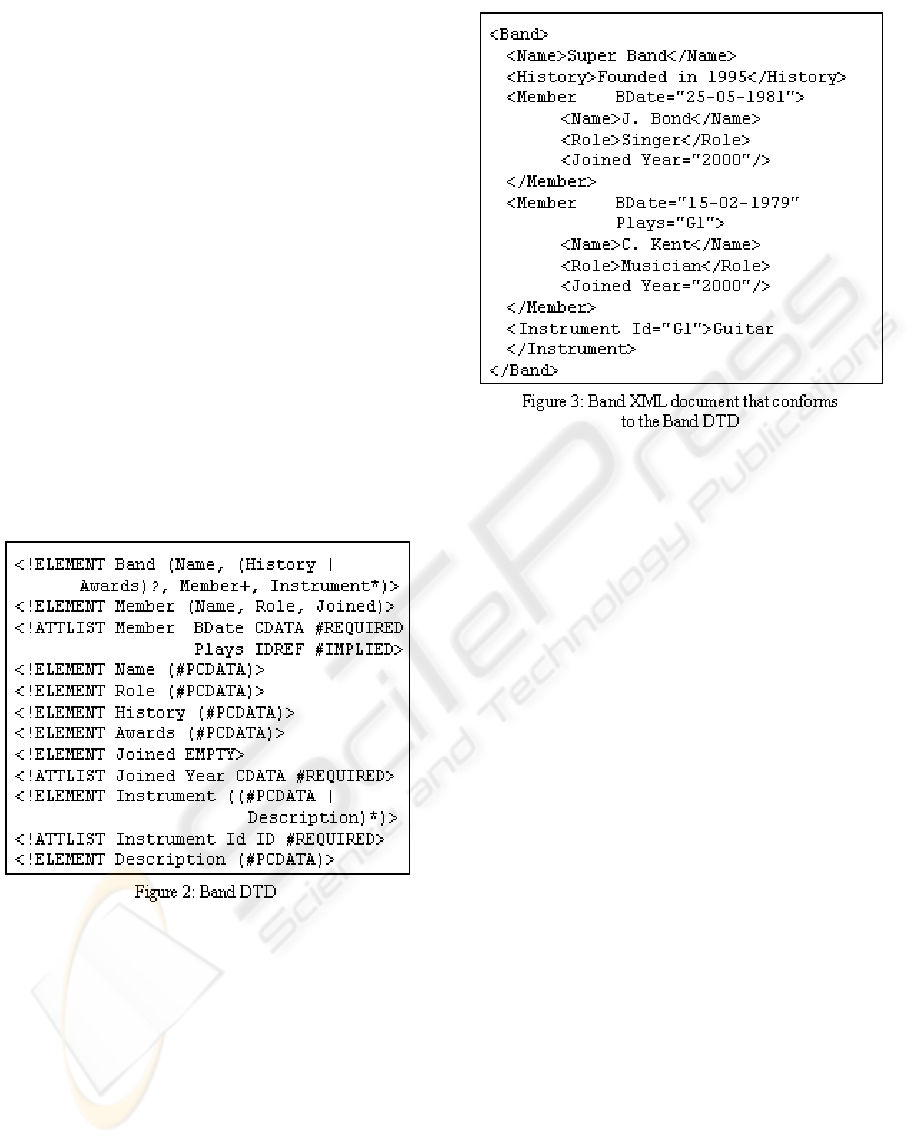

Figure 2 gives a DTD example about a musical

band, and Figure 3 gives a document which

conforms to this DTD.

3.2 Extending the Meta-Schema

Since the F2 DBMS supports uniformity of objects

(i.e. database objects, schema objects, and meta-

schema objects are stored, accessed, and

manipulated in the same way) (Al-Jadir et al. 1995),

its meta-schema is accessible and can be easily

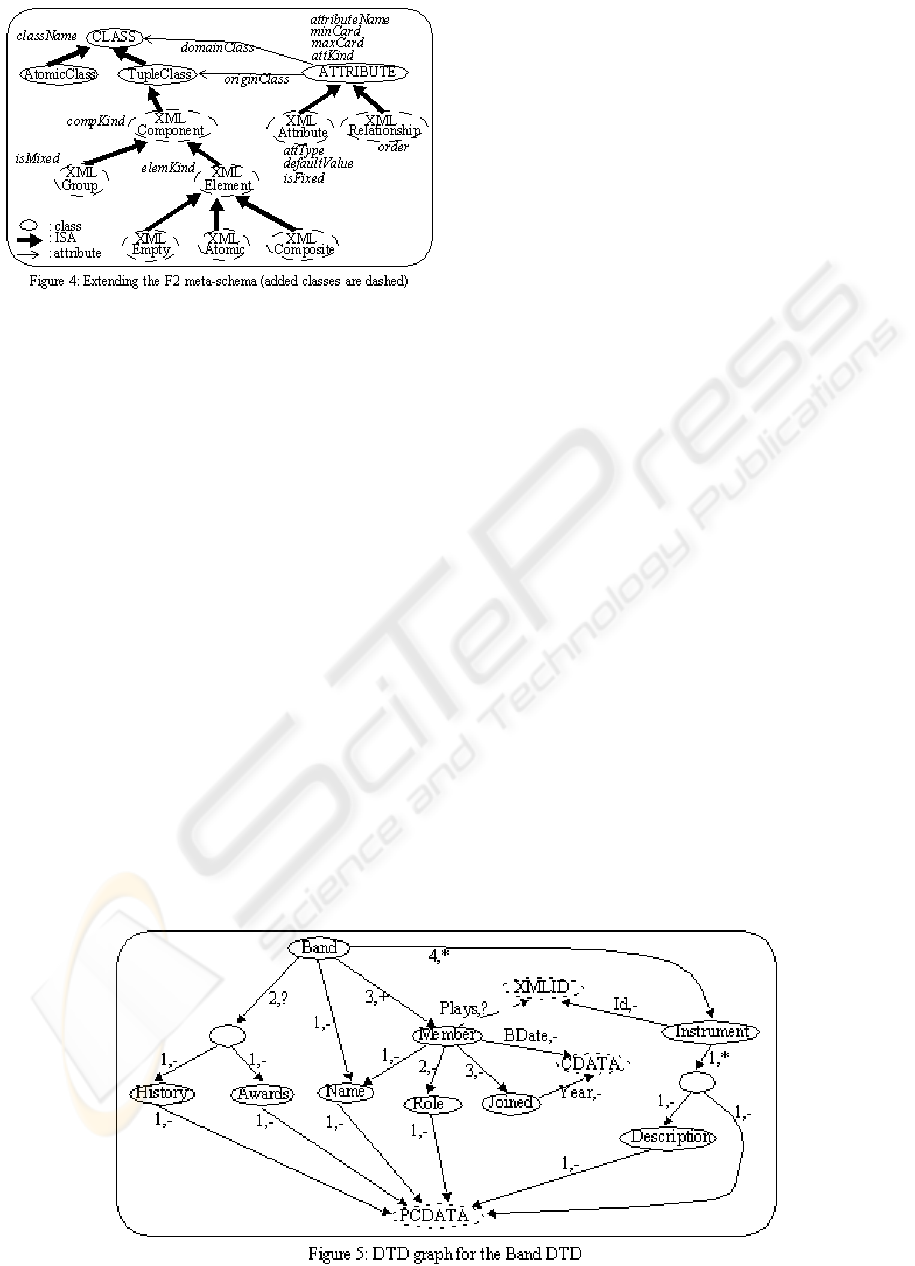

extended. To store DTDs and XML documents in F2

databases, we add the following classes to the F2

meta-schema (see Figure 4).

We add the class

XMLComponent as a subclass

TupleClass. It inherits the attribute className of

CLASS, and has the compKind attribute (component

kind is “element” or “group”). It has 2 subclasses:

XMLElement (to store elements) and XMLGroup (to

store groups).

XMLElement has the elemKind

attribute (element kind is “empty”, “atomic”, or

“composite” as in (Kappel, Kapsammer, and

Retschitzegger 2001)) and is specialized into

XMLEmpty (to store empty elements, e.g. Joined),

XMLAtomic (to store atomic elements, e.g. Name),

and

XMLComposite (to store composite elements,

e.g.

Band). XMLGroup has a boolean attribute

isMixed (e.g. (#PCDATA | Description) is a mixed

group).

We also add the classes

XMLRelationship (to

store parent-child relationships, e.g.

Band-Name,

Name-PCDATA) and XMLAttribute (to store element

attributes, e.g.

BDate) as subclasses of ATTRIBUTE.

Thus they inherit the attributes:

attributeName,

originClass, domainClass, minCard, maxCard and

attKind (attribute kind is “DBAttribute”,

“XMLRelationship”, or “XMLAttribute”).

XMLRelationship has an additional integer attribute

order. XMLAttribute has three additional attributes:

attType (CDATA, enum, ID, or IDREF),

defaultValue, and isFixed (boolean).

3.3 Storing XML Documents in

Object Databases

The F2/XML method, in Step 1, stores a DTD as a

database schema and XML documents as a database

instance.

F2/XML: MANAGING XML DOCUMENT SCHEMA EVOLUTION

253

3.3.1 Storing an XML DTD as a Database

Schema

First, our method builds a directed DTD graph as

follows. Each element

E in the DTD is represented

as a node labeled

E. If element E has a child C, this

is represented by an edge from node E to node C.

This edge is labeled with an integer indicating the

order of the child in element E, and a cardinality (?,

−, ∗, +). The simplest case is when the child is an

element. If the child is a group (i.e. between

parentheses), an edge links node

E to an

intermediate unlabeled node. To this node are added

edges for the components of the group. If element E

is atomic, an edge links node E to node PCDATA.

Two alternate children of element

E take the same

order on the corresponding edges. An attribute of

element

E is represented by an edge from node E to

node

CDATA or to node XMLID (in case of ID or

IDREF(S). In the last case, the edge is dashed) or to

a new node (in case of enumerated attribute). This

edge is labeled with the attribute name and the

cardinality ‘?’ if #IMPLIED or ‘−’ if #REQUIRED

(if the attribute is of type IDREFS, the cardinality

becomes ‘∗’ or ‘+’ respectively). The DTD graph

corresponding to the Band DTD is shown in Figure

Second, our method maps the DTD graph into a

database schema in a straightforward way. Each

node labeled

N is mapped into a class (object in

XMLEmpty or XMLAtomic or XMLComposite) named

N. Unlabeled nodes are mapped into classes (objects

XMLGroup) named group1, group2, etc. Dashed

nodes are mapped into predefined classes. Each edge

labeled with order o, from node A to node B, is

mapped into an attribute (object in

XMLRelationship)

of class

A, having domain class B, named B and

taking order

o. Similarly, each edge labeled with

name

l, from node A to node B, is mapped into an

attribute (object in

XMLAttribute) of class A, having

domain class

B, and named l. The edge cardinality

labels are mapped into minimal and maximal

cardinalities of the DB attribute, i.e. ‘?’ into (0,1),

‘−’ into (1,1), ‘∗’ into (0,

m) and ‘+’ into (1,m). The

value of

m is set by default to 10, and can be

changed later by a schema change (Al-Jadir et al.

1995). Note that a multi-valued DB attribute is

implemented as list-of to maintain the order among

values.

3.3.2 Storing an XML Document as a

Database Instance

At this stage, the document’s DTD is stored in a

database. Our method parses the XML document to

get its tree representation. Starting from the root

node

R, it retrieves the children of node R and stores

their names in a string S1. It queries the meta-

schema to get the attributes of the class

corresponding to node R, and forms a regular

expression S2 (S2 corresponds to the definition of

the root element in the DTD). It applies then regular

expression match between S1 and S2, and creates

objects in the corresponding classes in the database.

This process is applied recursively. The database

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

254

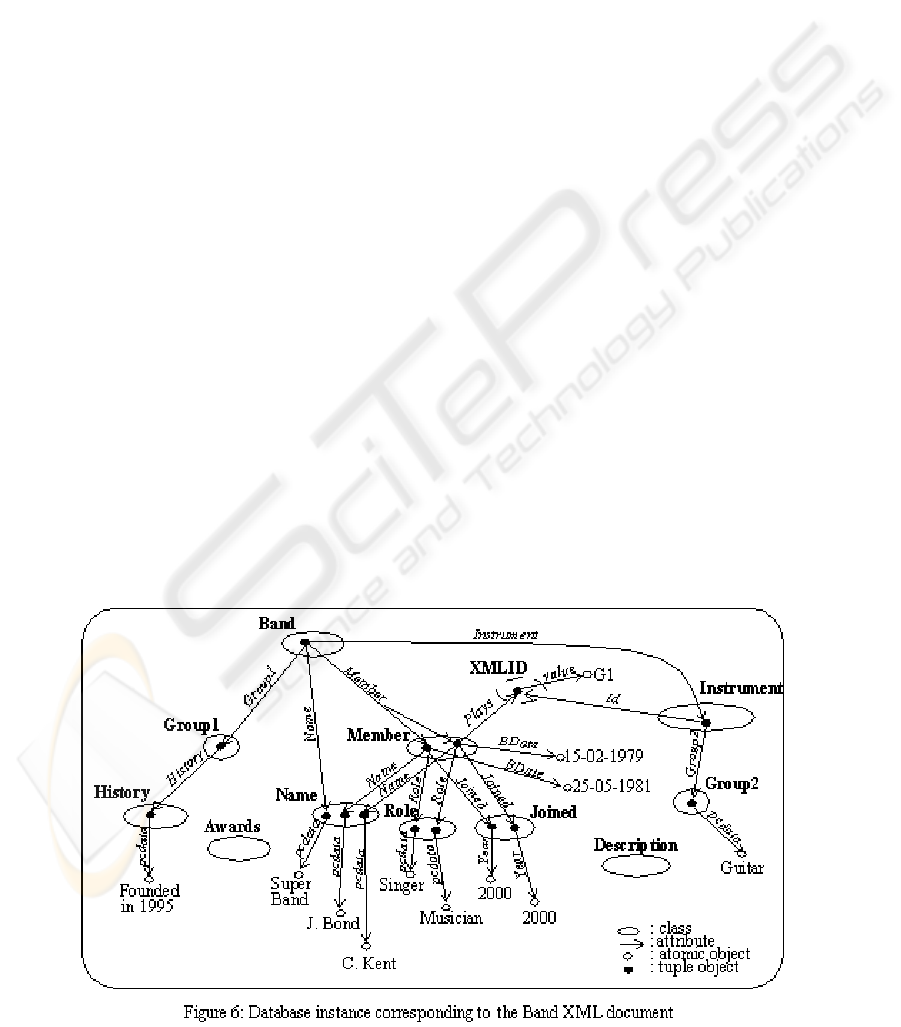

instance corresponding to the Band XML document

is shown in Figure 6. Note that classes

PCDATA and

CDATA are atomic classes and contain string atomic

objects.

3.4 Retrieving XML Documents from

Object Databases

The F2/XML method, in Step 3, retrieves the DTD

and the documents stored in the database. By query-

ing the meta-schema, it retrieves the documents’

DTD easily. To retrieve an entire document, it finds

first the object representing its root instance (this in-

formation is recorded when the document is stored).

Then it navigates through the database by querying

the meta-schema and following this object’s

attribute values. Although the document is

fragmented, the object model allows easy navigation

(instead of joins as in relational DB) to reconstruct

the document.

We tested the storage and retrieval of XML

documents in/from F2 databases with Shakespeare’s

plays and DBLP bibliography (Al-Jadir and El-

Moukaddem 2002).

4 DTD EVOLUTION

In this section we present Step 2 of the F2/XML

method. We build a complete set of DTD changes.

We list the invariants that must be preserved across

DTD changes. We define then the semantics of DTD

changes. This framework is similar to the one used

in DB schema evolution (Banerjee et al. 1987,

Penney and Stein 1987, Tresch 1991, Ferrandina et

al. 1995, Al-Jadir et al. 1995). Then we implement

DTD changes as database schema changes.

4.1 Set of DTD Changes

Which DTD changes to support? To answer this

question, we look at the XML part of the F2 meta-

schema (Figure 4) since it reflects the XML model.

For each of its classes, we apply the primitive

methods create, delete, and update on its objects. We

define the set of DTD changes thus built as

complete, since it includes all the possible “atomic”

DTD changes. The set of DTD changes supported in

the F2/XML method is shown in Figure 7. Note that

we omit two changes because they emerge from the

F2 implementation level and not from the XML

context: change the

isMixed value of a group, and

update the name of a parent-child relationship. Our

definition of completeness of a set of DTD changes

is different from XEM’s definition. The latter (set of

operations that allows to transform any DTD

d into

any DTD

d’) in (Su et al. 2001) does not take into

account the data. Indeed, reducing a DTD

d to an

empty DTD and then building the new DTD d’ will

have as consequence the loss of data in the XML

documents (deleting all elements in the DTD deletes

all element instances in the documents).

F2/XML: MANAGING XML DOCUMENT SCHEMA EVOLUTION

255

4.2 XML Invariants

XML invariants are properties that must always be

satisfied, even across DTD changes. We identify the

following invariants from (Bray et al. 2000):

• An empty element has no children. An atomic el-

ement has one PCDATA child. A composite element

has children which are elements or groups. Note that

an element with mixed content (e.g.

Instrument) is a

composite element with one repeatable child which

is a group. This group is a choice between PCDATA

and other elements.

• No element may be declared more than once.

• The type of an attribute is either CDATA, or ID,

or IDREF(S), or an enumeration list.

• No attribute may be declared more than once for

the same element.

• The default declaration of an attribute is either a

default value, or #IMPLIED, or #REQUIRED, or

#FIXED with a default value.

• No element may have more than one ID attribute.

• An ID attribute is defined either with a default

value or as required.

• ID values uniquely identify the elements which

bear them.

• An IDREF value matches the value of some ID

attribute.

• The default value of an attribute is compatible

with the attribute type.

4.3 Semantics of DTD Changes

We define the semantics of each DTD change by

preconditions and postactions such that the new

DTD is valid (i.e. XML invariants are preserved),

existing XML documents conform to the new DTD,

and data is not lost if possible. Preconditions are

conditions that must be satisfied to allow the DTD

change to occur. Otherwise, the DTD change is

rejected by the system. Postactions are actions that

take place as consequences of the DTD change.

They are applied by the system on the DTD and on

the documents.

As an example, we give the semantics of

changing the parent in a parent-child relationship

(DTD change 6.1 in Figure 7). The parameters of

this DTD change are the

P-C relationship and the

new parent

P’.

Preconditions:

• there exists a parent-child

P’-P relationship. In

other words, we can move a nested element only one

level up.

Postactions on the DTD:

• the new

P’-C relationship takes the order max+1

(max is the highest order of a relationship for

P’),

and the order of subsequent relationships for

P is

decremented by 1.

• if the

P’-P relationship is multi-valued (‘+’ or ‘∗’)

and

P-C was single-valued (‘−’ or ‘?’), then P’-C be-

comes multi-valued.

• if the

P’-P relationship is optional (‘?’ or ‘∗’) and

P-C was mandatory (‘−’ or ‘+’), then P’-C becomes

optional.

Postactions on the document:

• all

C instances are removed from the content of P

instances and added to the content of

P’ instances at

the end.

We illustrate this DTD change with our Band ex-

ample. We find out that all members joined the

musical band in the same year. Thus there is no need

to store the year for each member. Consequently, we

make

Joined a child of Band instead of Member, i.e.

we change the parent in the

Member-Joined relation-

ship to

Band. The precondition of this DTD change

is satisfied since there is a

Band-Member

relationship. As postactions on the DTD, the

Band-

Joined

relationship takes the order 5, and gets the

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

256

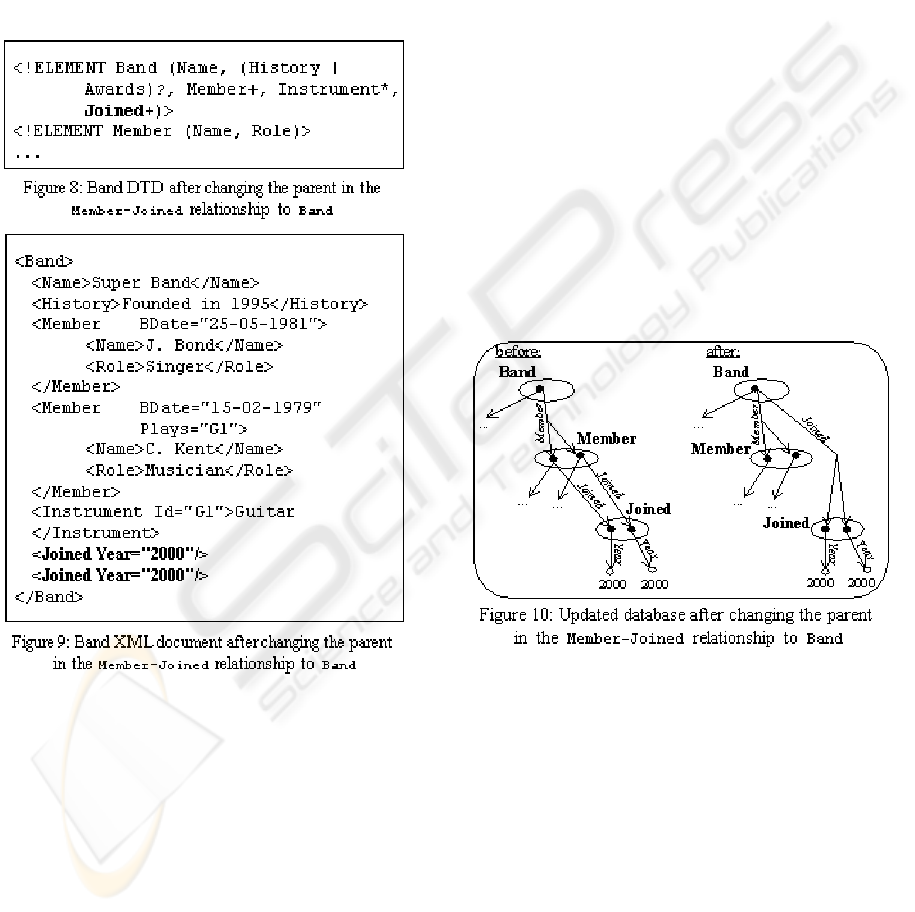

cardinality ‘+’ (see Figure 8). As postactions on the

document, the

Joined instances are removed from

the

Member instances and added to the Band

instance (see Figure 9). It is up to the user to keep

the duplication (two

Joined instances), or remove it

and then change the cardinality of the

Band-Joined

relationship to ‘−’ (DTD change 6.4 in Figure 7).

Note that changing the parent in the

Member-Joined

relationship is different from deleting this

relationship and adding a

Band-Joined relationship,

because in this case the content and attribute values

of Joined would be lost.

Other examples of DTD changes can be found in

(Al-Jadir and El-Moukaddem 2003).

4.4 Implementation of DTD Changes

Let us recall that modifying the DTD of XML docu-

ments is done in F2/XML by storing the DTD and

documents in a database, modifying the database

schema, and retrieving the updated DTD and docu-

ments from the database. To each DTD change

corresponds a DB schema change (by construction

of the set of DTD changes, in §4.1). A DB schema

change is implemented in the F2 DBMS by a

primitive method (create, delete, update) and

triggered methods (Al-Jadir et al. 1995). The

triggered methods implement the semantics of DTD

changes (defined in §4.3). We wrote the triggered

methods for all our DTD changes.

As an example, we give the implementation of

changing the parent in a parent-child relationship. A

parent-child relationship is stored as a database at-

tribute (object in the meta-class

XMLRelationship

which is a subclass of

ATTRIBUTE, in §3.2).

Modifying the origin class of this attribute

corresponds to modifying the parent in the parent-

child relationship. This schema change is

implemented by the primitive method

update (which

is the same for all objects), and a triggered method

(for the event

before-update of the attribute

originClass of the class XMLRelationship) to check

the precondition, and four triggered methods (for the

event

after-update of the attribute originClass of the

class

XMLRelationship) to apply the postactions on

the DB schema and DB instance (see semantics in

§4.3). In our Band example, modifying the origin

class of the attribute

Joined, from class Member to

class

Band, results in the database shown in Figure

10. From this updated database are retrieved the up-

dated DTD and document shown in Figures 8 and 9.

5 CONCLUSION

In this paper, we addressed the issue of XML docu-

ment schema evolution. We proposed and

implemented the F2/XML method to handle it. Our

method is based on the similarity with database

schema evolution. It stores XML documents with

their DTD in an object database, applies DTD

changes as DB schema changes, and then retrieves

the updated DTD and documents from the database.

Our method supports 25 DTD changes, which form

a complete set of DTD changes according to our

definition of completeness. The semantics of each

F2/XML: MANAGING XML DOCUMENT SCHEMA EVOLUTION

257

DTD change is defined by preconditions and

postactions, such that the new DTD is valid, existing

documents conform to the new DTD, and data is not

lost if possible. To each DTD change corresponds a

DB schema change which is implemented by a

primitive method and triggered methods in the F2

DBMS.

Although we used DTDs as schema specification

language, our method can be easily extended to

XML-Schema. In this case, it will support more

changes, since XML-Schema has a more sophisticat-

ed typing mechanism and supports more features.

Future work includes testing our method in real-life

applications. Querying and manipulating XML

documents stored in databases are other important

issues that we need to address. Also performance

issues deserve to be studied. Research efforts have

been put recently to benchmark XML databases

(Schmidt et al. 2001).

REFERENCES

Al-Jadir L., El-Moukaddem F., 2002. F2/XML: Storing

XML Documents in Object Databases. Proc. Int. Conf.

on Object-Oriented Information Systems, OOIS’02,

Montpellier, France.

Al-Jadir L., El-Moukaddem F., 2003. Once Upon a Time a

DTD Evolved into Another DTD. Proc. Int. Conf. on

Object-Oriented Information Systems, OOIS’03,

Geneva, Switzerland.

Al-Jadir L., Estier T., Falquet G., Léonard M., 1995.

Evolution Features of the F2 OODBMS. Proc. Int.

Conf. on Database Systems for Advanced

Applications, DASFAA’95, Singapore.

Al-Jadir L., Léonard M., 1998. Multiobjects to Ease

Schema Evolution in an OODBMS. Proc. Int. Conf.

on Conceptual Modeling, ER’98, Singapore.

Banerjee J., Kim W., Kim H-J., Korth H.F., 1987.

Semantics and Implementation of Schema Evolution

in Object-Oriented Databases. Proc. ACM Conf. on

Management Of Data, SIGMOD’87, San Francisco,

USA.

Bertino E., Guerrini G., Mesiti M., Tosetto L., 2002.

Evolving a Set of DTDs according to a Dynamic Set

of XML Documents. Proc. EDBT Workshop on XML-

Based Data Management, XMLDM’02, Prague,

Czech Republic.

Bray T., Paoli J., Sperberg-McQueen C.M., Maler E.

(eds), 2000. Extensible Markup Language (XML) 1.0

(2nd Edition). W3C Recommendation,

http://www.w3.org/TR/2000/REC-xml-20001006,

Oct. 2000.

Chung T-S., Park S., Han S-Y., Kim H-J., 2001.

Extracting Object-Oriented Database Schemas from

XML DTDs Using Inheritance. Proc. Int. Conf. on

Electronic Commerce and Web Technologies, EC-

Web’01, Munich, Germany.

Ferrandina F., Meyer T., Zicari R., Ferran G., Madec J.,

1995. Schema and Database Evolution in the O2

Object Database System. Proc. Int. Conf. on Very

Large Data Bases, VLDB’95, Zürich, Switzerland.

Florescu D., Kossmann D., 1999. Storing and Querying

XML Data Using an RDBMS. IEEE Data Eng.

Bulletin, vol. 22, no 3, pp. 27-34.

Kappel G., Kapsammer E., Rausch-Schott S.,

Retchitzegger W., 2000. X-Ray - Towards Integrating

XML and Relational Database Systems. Proc. Int.

Conf. on Conceptual Modeling, ER’00, Salt Lake City,

USA.

Kappel G., Kapsammer E., Retschitzegger W., 2001.

XML and Relational Database Systems – A

Comparison of Concepts. Proc. Int. Conf. On Internet

Computing, IC’01, Las Vegas, USA.

Klettke M., Meyer H., 2000. XML and Object-Relational

Databases - Enhancing Structural Mappings Based on

Statistics. Proc. Int. Workshop on the Web and

Databases, WebDB’00, Dallas, USA.

Penney D.J., Stein J., 1987. Class Modification in the

GemStone Object-Oriented DBMS. Proc. Conf. on

Object-Oriented Programming Systems, Languages

and Applications, OOPSLA’87, Orlando, USA.

Schmidt A., Kersten M., Windhouwer M., Waas F., 2000.

Efficient Relational Storage and Retrieval of XML

Documents. Proc. Int. Workshop on the Web and

Databases, WebDB’00, Dallas, USA.

Schmidt A., Waas F., Kersten M., Florescu D., Carey

M.J., Manolescu I., Busse R., 2001. Why and How to

Benchmark XML Databases. SIGMOD Record, vol.

30, no 3.

Shanmugasundaram J., Tufte K., He G., Zhang C., DeWitt

D., Naughton J., 1999. Relational Databases for

querying XML Documents: Limitations and

Opportunities. Proc. Int. Conf. on Very Large

DataBases, VLDB’99, Edinburgh, UK.

Shimura T., Yoshikawa M., Uemura S., 1999. Storage and

Retrieval of XML Documents using Object-Relational

Databases. Proc. Int. Conf. on Database and Expert

Systems Applications, DEXA’99, Florence, Italy.

Su H., Kane B., Chen V., Diep C., Guan D.M., Look J.,

Rundensteiner E., 2002. A Lightweight XML

Constraint Check and Update Framework. Proc. ER

Workshop on Evolution and Change in Data

Management, ECDM’02, Tampere, Finland.

Su H., Kramer D., Chen L., Claypool K., Rundensteiner

E.A., 2001. XEM: Managing the Evolution of XML

Documents. Proc. Int. Workshop on Research Issues

in Data Engineering, RIDE’01, Heidelberg, Germany.

Tresch M., 1991. A Framework for Schema Evolution by

Meta Object Manipulation. Proc. Workshop on

Foundations of Models and Languages for Data and

Objects, Aigen, Austria.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

258
