REFERENTIAL INTEGRITY MODEL FOR XML DATA

INTEGRATED FROM HETEROGENEOUS DATABASES

SYSTEMS

Using the power of XML for consistent data integration

Mauri Ferrandin

UNERJ - Centro Universitário de Jaraguá do Sul - SC, Brazil

Murilo S. de Camargo

UnB – Universidade de Brasília, Brasília - DF, Brazil

Keywords: Distributed Heterogeneous Databases Systems Integration, XML

Abstract: This article presents a proposal f

or maintenance of the referential integrity in data integrated from relational

heterogeneous databases stored in XML materialized views. The central idea is the creation of a repository

of rules that will have to be observed to if carrying through any operation of update in the mediating layer of

a system for integration of heterogeneous relational sources of data to guarantee that the updates carried

through in the data stored in this layer can be propagated to the relational databases that are part of the

system integrated without causing problem of referential integrity in the same ones. This proposal has as

main objective to specify a mechanism capable to guarantee that the data after exported from the relational

heterogeneous databases in a mediating layer continue respecting the same integrity which these were

submitted in the origin databases.

1 INTRODUCTION

A Database Management System (DBMS) is

capable to solve problems of data access and

management of big data amount in one system, but

many problems appears when two or more platforms

need to work in an integrated way. The majority of

these problems are consequences of semantic

heterogeneity – same data duplicated and

represented in different ways in the database

schemas (Hull, 1997).

The major idea of this paper consists is the

specification of a system

capable of guarantee the

referential integrity of data integrated from relational

heterogeneous sources through the XML (Extended

Markup Language) materialized views, keeping the

same integrity that the data was submitted in the

relational databases. For that, will be proposed a

mechanism to define the referential integrity for data

stored in the integrated view, making possible a

synchronization of the data integrated back to the

databases from which it was integrated.

The proposed system doesn’t care about

que

stions and problems with data updates in the

distributed databases; the major focus of this work is

the maintenance of the referential integrity for

exported data.

There are several researches and proposals in the

dat

abases and semi-structured data that are

correlated to this work, among then, we can

enumerate the proposals of MIX (Zhu, 2000),

SilkRoute (Fernandez et al, 1999), Argos (Quan et

al., 2001), Heros (Castro, 1998), Jupter (Murphy e

Grimson, 1995) and others.

The work contains four

main sessions: the

section 2 describes the interoperability between

heterogeneous data provided by XML; the section 3

describes the maintenance of integrity in XML data;

the section 4 describes the specification of integrity

maintenance mechanism for the XML materialized

views.

Ferrandin M. and S. de Camargo M. (2004).

REFERENTIAL INTEGRITY MODEL FOR XML DATA INTEGRATED FROM HETEROGENEOUS DATABASES SYSTEMS - Using the power of XML for

consistent data integration.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 15-20

DOI: 10.5220/0002643800150020

 SciTePress

2 INTEROPERABILITY OF DBMS

SYSTEMS AND XML

With the specification of XML standard, people

around the world begun to use it for data exchange

because it makes possible and easy to represent self

described data through metadata, making possible

the representation of some data that couldn’t be

represented in the relational model, model used by

the most databases systems. With XML standard is

possible to create views (materialised or not) of data

stored in one DBMS and use this view for many

ends.

In this scenario that researches about databases

are being developed is clear the need of models for

data integration between relational databases and the

Web. The convergence of the solutions involving

XML and semi-structured data technologies will

create a new combined technology for the Web

(Abiteboul et al., 2000).

The technologies related to XML are being

incorporated like native functions in the most

important databases systems. Databases that don’t

implement this native support need the

implementation of an intermediary layer called

middleware with the objective of guarantee the

interoperability.

A middleware is a software component that

exploits the codified knowledge about sets or subsets

of data for create a layer with useful data for the

application layer (Wiederhold, 1992). An application

that need to access data stored in heterogeneous

databases will need an intermediary software layer

for intermediate the data exchanges between her (the

application) and the data sources, this mediation

layer will have functions like abstraction,

combination and explication of data.

The presence of a middleware indicates the

existence of architecture based on three layers

showed in the Figure 1.

DBMS

Middleware

Application

Figure 1: Basic architecture of a data integration system

with middleware.

The superior layer is composed by the

applications, the intermediary layer is composed by

multiples mediators managed by a specialist in

knowledge domains and the number of mediators

depends of how much the heterogeneous data are

needed by applications in the application layer and

the databases that composes the data layer where the

data are stored.

A mediator have a job of provide data for the

applications, acting like a intelligent interface to solve

problems of different data representation and abstraction

in the different data sources, it works with active rules and

contains knowledge structures to guide the data

transformations.

2.1 Representing Relational Data

with XML

A relational DBMS is represented by a schema, for

example:

r1(a,b,c) and r2(d,e)

where r1 and r2 are the relations name, a,b,c are

columns of the relation r1 and d,e are columns of the

relation r2.

Let’s consider an example of a relational

database composed by two relations r1 and r2

described by a notation:

{r1 : i

, r2 : i

}

where i

and i

represent the data stored in the

respective relations that can be represented by a set

of rows (tuples) like:

{r1 : {tuple{a : a1, b : b1, c : c1},

{tuple{a : a2, b : b2, c : c2},

{r2 : {tuple{d : d1, e : e1},

{tuple{d : d2, e : e2},

{tuple{d : d3, e : e3}

}

These relations can also be represented as tables

as showed bellow:

r1:

r2:

a b c d e

a1 b1 c1 c1 e1

a2 b2 c2 d2 e2

Abiteboul (Abiteboul et al., 2000) says that we

can represent the data as a tree and in various ways

as we can see in the Figure 2 and Figure 3.

Figure 2: Representation of relational data as a tree (1)

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

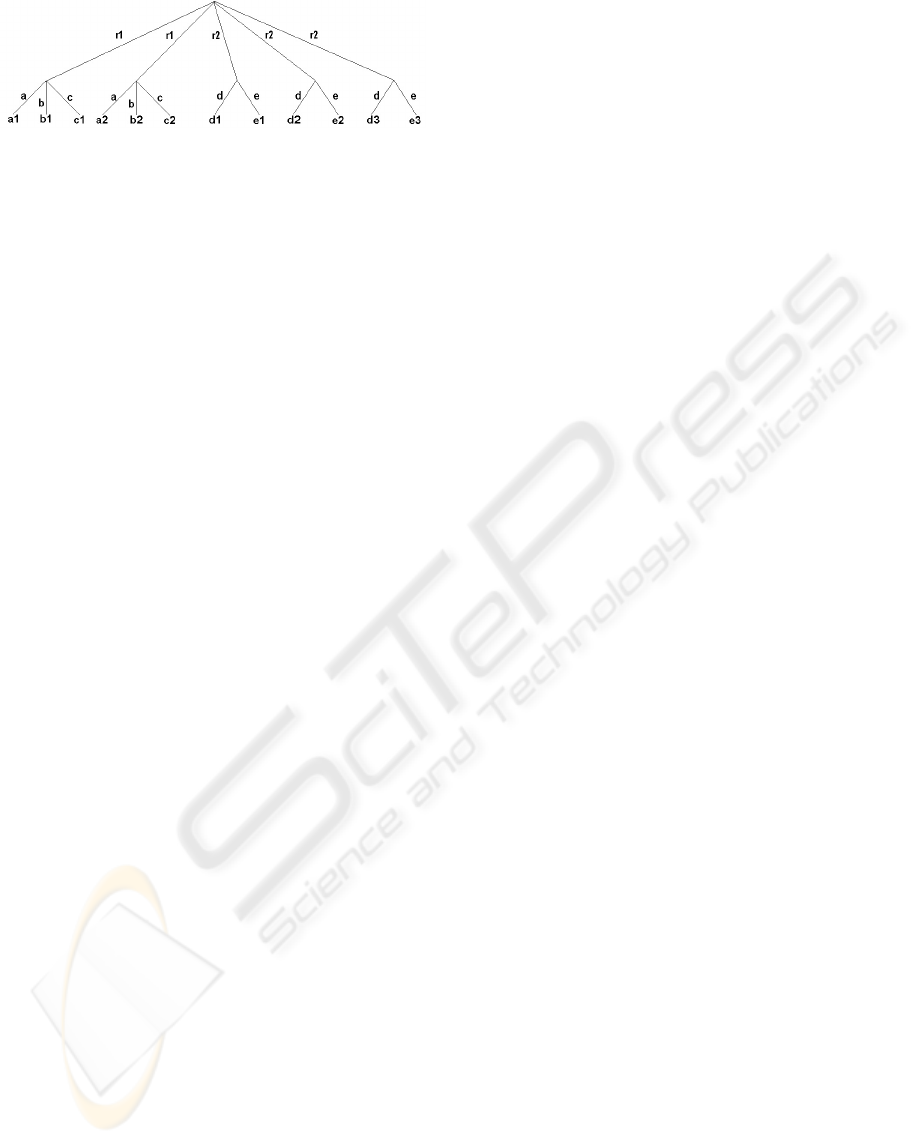

Figure 3: Representation of relational data as a tree (2)

Every tree represented in the pictures Figure 2

and Figure 3 can also be represented with XML:

<?xml version=”1.0”?>

<db>

<r1>

<tuple>

</tuple>

<tuple>

</tuple>

</r1>

<r2>

<tuple>

</tuple>

<tuple>

</tuple>

<tuple>

</tuple>

</r2>

</bd>

In this way, we conclude that we can represent

the data stored in a relational database with XML in

many ways. The structure of this XML document

will be determined by who

(user/application/developer) will eventually uses it.

3 REFERENTIAL INTEGRITY

WITH XML DATA

The questions related to the maintenance of integrity

in XML data is receiving great attention by

researchers communities around the world with

intuit of create ways and standards to define and

validate integrity rules with XML documents, like

primary keys and foreign key rules in a database, for

example. Various models were proposed to define

and verify the integrity of XML documents using the

standards of the XML specification, like the Data

Type Definition (DTD) and the XML Schema, and

others (Buneman et al., 2001).

The biggest problem on specify integrity

constraints for XML documents is how to determine,

for example, that one element present in one part of

the tree is a primary key and may appear only once

in a determined context, or how to determine that a

attribute of this element is a foreign key referenced

to a existence of other element with the same value

of this attribute in other part of the document. To

solve this problem, is necessary use a standard to

make possible the representation of the path between

root and one element in a XML document, and then

represent a element and in what level of the

document it is.

For (Buneman et al., 2001), keys have a

fundamental importance in a database providing a

efficient way for data integrity maintenance,

establishing relationships between the entities and

lookup data, having a great importance in the

validation of data making possible to keep the data

according to a model defined to represent then based

on the real world. Many models were proposed for

maintenance of keys using the XML standard

through the DTD and XML Schema, but major part

of them was inefficient in many cases. The XML

document doesn’t need to have its definition

(through DTD or XML Schema), so it’s very useful

to create a mechanism for creation of integrity

constraints independent of his type.

For to surpass these limitations, authors proposed

that mechanisms of key definition for XML

documents:

• should be defined through one or more path

expressions making possible determine

precisely on node in a XML tree;

• should be defined for a relatively set of nodes;

• doesn’t have any dependencies of any

mechanism used for to specify the document

structure like DTD or XML Schema;

(Chen et ali., 2002) proposed one notation

for to define keys with the following syntax:

(Q, (Q’,{P

,...,P

}))

where Q, Q’, and P

,...,P

are path expressions. Q is

called context path, Q’ target path and P

,...,P

are

the keys paths. The idea is that the context path Q

identifies the set of context nodes where, for which

node n the integrity constraint must be respected in

the set of nodes accessible through the target path

Q’.

For example, a key KS

defined by :

= (/, (./university, {./name}))

REFERENCIAL INTEGRITY MODEL FOR XML DATA INTEGRATED FROM HETEROGENEOUS DATABASES

SYSTEMS - Using the power of XML for consistent data integration

indicates that in a context path “/” (the root of the

document) one university is identified by a sub

element denominated “name”. Other example, the

key :

=(/university,(.//employee, {./@employeeId}))

indicates that in some level of a document identified

by a element university (context path), one

employee node present in any sub level (indicated

by “.//”) of the document in the context path is

uniquely identified by a attribute (“@”) of the

element employee named “employeeId”. Lets take

another example of integrity constraint defined by :

= (/, (.//employee, {./name, /phonenumber}))

that indicates that in the context path “/” (or better,

entire document), one element “employee” present

in any sub level of the XML tree is identified

uniquely by a element named “name” and one

element named “phonenumber”.

This notation seems to be a little bit complex, but

it makes possible the definition of integrity rules

about XML documents. There are several researches

for implementation of the algorithms and

mechanisms for validate this kind of rules over

XML documents.

4 PROPOSED MODEL

Too many questions should be considered to propose

a integration of data proceeded from relational

heterogeneous databases. Thus, the proposed model

is focused in the maintenance of integrity constraints

for XML data integrated from heterogeneous

RDBMS, providing a mechanism capable of to keep

the integrity of the database of origin to the data

integrated through XML views. This mechanism

makes possible to serialize the data back to his

originally database from where it was integrated,

with no integrity violation.

4.1 General view of the proposed

system

Usually, a system that provides data integration from

two or more relational sources is composed by a lot

of software modules. Those modules have a main

objective the data integration and to provide the

integrated data to the application layer, in a

transparent way.

Commonly, a general architecture proposed to an

integration framework specifies a set of specialised

wrappers for the different data sources that are

capable of export the data from a relational schema

to a XML view. The set of wrappers will generate a

set of views that will be integrated, generating

another view (global view) storing the data from all

databases components of the system. This makes

possible applications/developers to access this data

in a transparent way.

This work proposes the inclusion of a software

module responsible for the maintenance of

constraint integrity rules in a global view (Figure 4)

composed by integrated data making possible the

serialization of the updates made to the global view

to de local views and then to the original data

sources without violation of referential integrity.

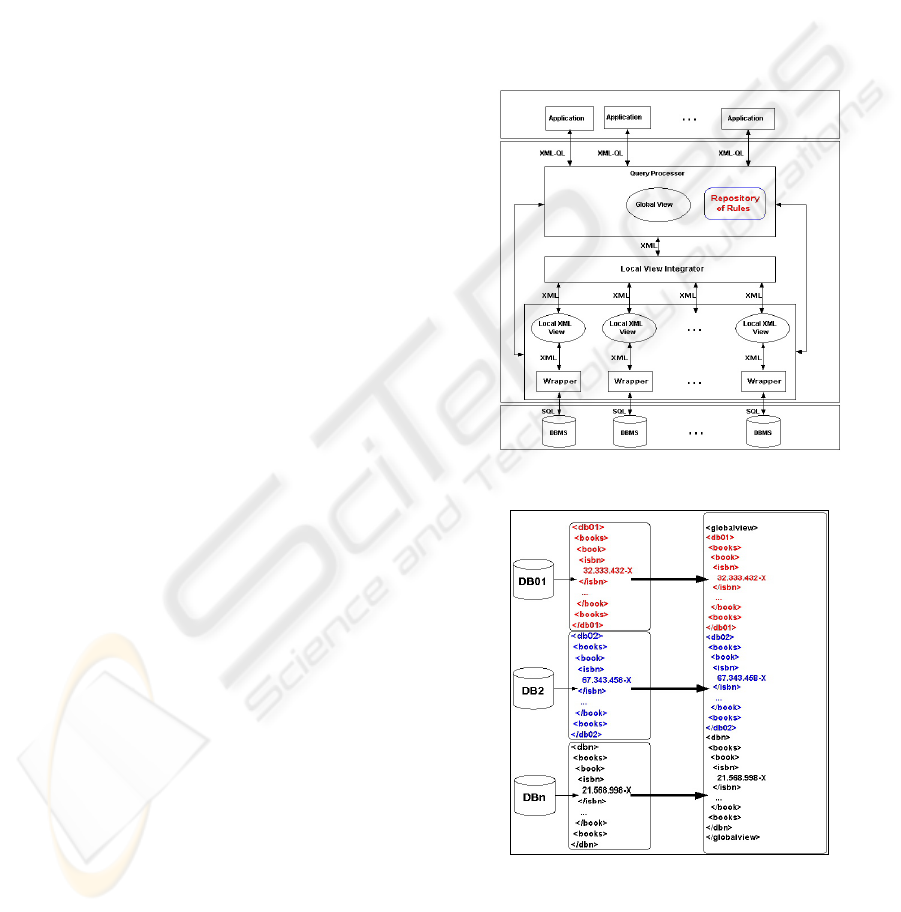

Figure 4: Architecture proposed for data integration.

Figure 5: How is composed the global view.

In order to store the integrity rules for the global

view, a repository will be created and these rules

will be defined using the XML standard. In a

integration framework the presence of a human

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

specialist will be necessary for the definition of the

integrity rules, this expert will define what rules

presents in the databases will be preserved in the

global view too according with the application. A

minimal integrity will be necessary because rules

like primary keys and foreign keys are indispensable

for synchronise the data back to the origin.

The picture Figure 5 show us how the data

exported from the databases will be organised with n

local views compounding a global xml view. The

root element of the global view was called

<globalview>, and every database integrated is

identified by a node <dbxx> that will be stored like a

sub element of the root element.

4.2 Repository of integrity rules

The integrity rules of the global view are defined

according to the integrity rules of the databases from

which the data was exported to the local views. For

storing these rules a XML based notation will be

used, maintaining in this way, a standard mechanism

for query and data exchange between the modules of

the integration framework.

The following example shows an example of the

one repository of integrity rules stored with XML:

<?xml version="1.0" encoding="UTF-8"?>

<globalview.db01.books.book type="pk">

<?xml version="1.0" encoding="UTF-8"?>

</fields>

</globalview.db01.books.book>

<globalview.db02.bookpublishers type="pk">

</fields>

<field>publish_id</field>

</fields>

</globalview.db02.bookpublishers>

. . .

</integrityrules>

One rule is represented by one tag that indicates

the context path of the global view where this rule

will be observed and it’s type is represented through

a attribute of this tag that can be “pk” (for a primary

key rule) or “fk” (for a foreign key rule).

The tag that represents a rule will have one or n

sub tags to represent the fields that compose the key

in that context.

Let’s analyse this rule:

. . .

<globalview.db01.books.book type="pk">

Now, we can generalize and define other

integrity rules and other features presents in the

databases, like triggers, stored procedures or others

in the repository of rules :

</fields>

</globalview.db01.books.book>

...

Basically, the described rule represents a primary

key rule meaning that in the context

<globalview.db01.book> we will never insert two

sub elements called isbn with the same values.

The following cod represents a set of invalid

values in a global view according to the primary key

rules defined before for store the books data :

<?xml version="1.0" encoding="UTF-8"?>

<db01>

<books>

<book>

<title>Teaching XML to Yourself</title>

</book>

<book>

<title>Teaching XML to Yourself</title>

</book>

</books>

</db01>

...

</globalview>

A foreign key rule indicates, in fact, that one

object only can be stored in a context if there is a

related object in other context of the document. So,

the foreign key rules need one more attribute to

represent the context where the related object must

exists. In the following example we show a

definition of a foreign key rule:

<globalview.db01.books.book type="fk">

<field>publisher_id</field>

<globalview.db01.publishers.plublisher>

<field>publisher_id</field>

</fields>

</globalview.db01.publishers.plublisher>

</relatedcontext>

</globalview.db01.books.book>

</integrityrules>

As we can see, the foreign key specification is

composed by a tag indicating the context element

and a sub tag indicating the related context. In

practice, this rule means that an element

representing the book publisher in the books context

must have a related element in the publishers

context.

<?xml version="1.0" encoding="UTF-8"?>

REFERENCIAL INTEGRITY MODEL FOR XML DATA INTEGRATED FROM HETEROGENEOUS DATABASES

SYSTEMS - Using the power of XML for consistent data integration

<globalview.db01.books type="trigger">

dbms_functions.updaterelatedcontext()

</execute>

</onnewrecord >

dbms_functions.deleterelatedcontext()

</execute>

</ondeleterecord >

</globalview.db01.books>

</integrityrules>

5 CONCLUSION

Keep the integrity constraints of data exported from

heterogeneous databases systems is a hard job,

hardest than to create integrity rules for validation of

a simple XML document, due to the fact that every

database that will compose the system has his own

schema with his integrity rules defined.

The major deficiencies of the proposed system

are:

• the necessity of a human expert to start up the

system, defining the initial integrity for the

system and if a one database schema is changed,

this specialist will have to do the work again;

• a complexity acquired by the system if we

consider a context where the most part of

queries executed by the system are for updating

the data in the global view, overcharging the

system for the data synchronisation with the

distributed databases.

Compared to other models and strategies for data

integration and constraint rules validation for the

integrated data, the proposed model bring as major

contribution to the context of data integration from

heterogeneous sources a solution to the problematic

of maintenance of the same referential integrity in

the integrated data that this was respecting in the

database from which it came from, with the

objective of to guarantee that this that the updates in

a global view will not cause integrity violations if

propagated to de databases. The proposed system

was specified using open standards with intuit of

keep it independent from hardware or software

platform, and the XML is very important for this

job, for this reason, we used XML for specify the

integrity rules.

As suggestions for future works we enumerate,

(i) a specification of a system capable of to extract

automatically the integrity rules from databases and

generate the repository, (ii) a implementation of a

XML API (as SAX, DOM etc) capable of validate

the rules like these proposed in this work against

XML views, (iii) extent this idea to object oriented

databases.

REFERENCES

ABITEBOUL, S.; BUNEMAN, P.; SUCIU, D. Data on

the Web : From relations to semistructured data and

XML. Morgan Kaufmann Publishers, San Francisco,

CA, 2000.

BUNEMAN, Peter; DAVIDSON, Susan; et al. Reasoning

about Keys for XML (Technical Report). International

Workshop on Database Programming Languages

(DBPL), 2001. Disponível em

http://db.cis.upenn.edu/DL/absreltr.ps.gz

CASTRO, C. E. P. S.. Integração de Legacy Systems a

Sistemas de Bancos de Dados Heterogêneos.

Dissertação de Mestrado, Departamento de

Informática, Pontifícia Universidade Católica do Rio

de Janeiro, Rio de Janeiro, Jul. 1998.

CHEN, Yi; DAVIDSON, Susan; ZHENG, Yifeng.

Validating Constraints in XML. Department of

Computer and Information Science, University of

Pennsylvania, 2002. Disponível em

http://db.cis.upenn.edu/DL/validate.ps.

FERNANDEZ, M.; TAN, W. C.; SUCIU, D. SilkRoute:

Trading between Relations and XML. University of

Pennsylvania: [s.n.], 1999. Disponível em: <

http://db.cis.upenn.edu/RXL/papers/sr.html>. Acesso

em: 22 mar 2000.Technical Report.

HULL, R. Managing semantic heterogeneity in databases :

A theoretical perspective. In: ICDT, 1997. [s.n.], 1997.

MURPHY, J. & GRIMSON, J.. Multidatabase

Interoperability in the Jupiter System. Information and

Software Technology. Vol 37, N. 9, 1995.

QUAN, L.; CHEN, L.; RUNDENSTEINER, E. A. Argos:

Efficient refresh in an XQL-based Web caching

system. Lecture Notes in Computer Science, [S.l.],

v.1997.

WIEDERHOLD, G. Mediators in the architecture of

future information systems. Computer Magazine of the

Computer Group News of the IEEE Computer Group

Society, [S.l.], 1992.

ZHU, Y. et al. Materializing Web data for OLAP and DSS.

In: WEB-AGE INFORMATION MANAGEMENT,

2000. [s.n.], 2000. p.201–214.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
