A CASE STUDY OF COMBINING i* FRAMEWORK AND THE Z

NOTATION

Aneesh Krishna, Sergiy Vilkomir and Aditya Ghose

Decision Systems Lab, School of IT and Computer Science

University of Wollongong, NSW 2522, Australia

Keywords:

Agent-Oriented Conceptual Modelling, i* framework, Requirements Engineering, Z notation.

Abstract:

Agent-oriented conceptual modeling (AoCM) frameworks are gaining wider popularity in software engineer-

ing. In this paper, we are using AoCM framework i* and the Z notation together for requirements engineering

(RE). Most formal techniques like Z are suitable for and designed to work in the later phases of RE and early

design stages of system development. We argue that early requirements analysis is a very crucial phase of

software development. Understanding the organisational environment, reasoning and rationale underlying re-

quirements along with the goals and social dependencies of its stakeholders are important to model and build

effective computing systems. The i* framework is one such language which addresses early stage RE issues

cited above extremely well. It supports the modeling of social dependencies between agents with respect to

tasks and goals both functional and non-functional. We have developed a methodology involving the com-

bined use of i* and the Z notation for agent-oriented RE. In our approach we suggest to perform one-to-one

mapping between i* framework and Z. At the ﬁrst instance general i* model has been mapped into Z schemas,

and then i* diagrams of the Emergency Flood Rescue Management Case Study are mapped into Z. Some steps

explaining further information reﬁnement with examples are also provided. Using Z speciﬁcation schemas,

we are in a position to express properties that are not restricted to the current state of the system, but also to

its past and future history. The case study described in this paper is taken from one of the most important

responsibilities of the emergency services agency, managing ﬂood rescue and evacuation operations. By using

this case study, we have tested the effectiveness of our methodology to a real-life application.

1 INTRODUCTION

The early phase of requirements engineering is the

most vital phase in the software development process

(Fuxman et al., 2001). In this phase understanding of

the organisational environment, reasoning and ratio-

nale behind requirements captured is crucial to model

and realize efﬁcient computing systems. This phase is

based on the interactions between users and the stake-

holders.

Agent-oriented conceptual modeling framework i*

was primarily designed to model the requirements

gathered during the early-phase of requirements en-

gineering. The framework is based on the notion

of “distributed intentionality“ (Yu and Mylopoulos,

1994; Yu, 1994). Intentional characteristics such as

goals, beliefs, capabilities and commitments are as-

signed to actors in their organizational environment

(Yu, 1997). The i* framework consists of two main

modelling components: the Strategic Dependency

(SD) Model and the Strategic Rationale (SR) Model.

An SD model is used to represent strategic dependen-

cies between actors. Actors in i* framework depend

on each other to accomplish goals, perform tasks, and

supply resources (called dependum). The framework

provides a graphical notation to describe such situa-

tions. An actor (called depender) becomes “vulner-

able“ if the other actor/actors (called dependee), on

which it depends, do not participate in the success of

the dependency. Softgoal dependencies are compa-

rable to goal dependencies and are commonly used

to represent optimisation objectives. The concept

of Softgoal is based on the Non-Functional Require-

ments (NFR) framework proposed by (Chung et al.,

2000). The SR model provides an internal intentional

characteristic of each actor/agent via task decomposi-

tion links, means-end links and the rationales behind

them. The detailed information on i* framework is

presented in (Yu, 1995).

Many formal techniques (Heitmeyer et al., 1996;

192

Krishna A., Vilkomir S. and Ghose A. (2004).

A CASE STUDY OF COMBINING i* FRAMEWORK AND THE Z NOTATION.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 192-200

DOI: 10.5220/0002645301920200

 SciTePress

Bowen, 1996) have been proposed to address the

later-phase of software development, which are im-

portant for specifying precise requirements, focusing

on consistency and completeness issues etc. They are

mostly designed to work in the design phase. We

argue that formal methods lack features for model-

ing the rationale behind the various design decisions

taken during the early phase of requirements analysis.

This paper describes a methodology for the com-

bined use of i* framework (Yu, 1997) and the Z no-

tation (Bert et al., 2003; Bowen, 1996; Spivey, 1992)

for requirements engineering. This approach incorpo-

rates the advantages of i* framework for early-phase

RE like modeling different alternatives of the desired

system, easy requirements modiﬁcations etc and then

continues specifying requirements in Z using advan-

tages of mature formal method like powerful means

of specifying precise requirements, better tool sup-

port, facility of veriﬁcation etc. We can also claim

that i* adds value to the Z formal method. Using Z

speciﬁcation schemas, we are in a position to express

properties that are not restricted to the current state of

the system, but also to its past and future history. The

approach is based on describing a one-to-one map-

ping of the i* framework into the Z notation. This

mapping is used to formalize the i* framework with-

out incorporating any additional information. Further

reﬁnement is done to this process by using concealed

additional information from i* framework and inte-

grating in Z schemas. This requires further investi-

gation but we have explained this reﬁnement with the

help of simple examples. Some approaches have been

proposed (Fuxman et al., 2001; Wang and Lesprance,

2001) suggesting the use of i* framework for later

phases of software development.

The remainder of this paper is structured as fol-

lows. Section 2 describes Emergency Flood Res-

cue Management Case Study. It also explains agent-

oriented conceptual modelling concepts using i* no-

tation along with a brief introduction to Z. Section 3

concentrates on explaining the mapping of i* mod-

els into Z schemas. Steps explaining further informa-

tion reﬁnement with examples are also discussed in

this section. Section 4 discusses some lessons derived

from the real-life conceptual modelling exercise. Sec-

tion 5 presents concluding remarks.

2 CASE STUDY: FLOOD RESCUE

MANAGEMENT

This paper presents a case study based on a collab-

orative project to build a comprehensive enterprise

model for an emergency services agency (ESA). The

case study concentrates on a key function of the ESA:

managing ﬂood rescue and evacuation operations.

The ESA is responsible for managing diverse emer-

gency situations. The case study deals with an event,

which can be described in many different ways, but

from an ESA perspective the event is deﬁnitely a ﬂood

response operation. The timing of the emergency re-

sponse is critical in these scenarios. The ESA is the

agency chosen to deal with these kinds of situations

since it has the expertise and appropriate resources to

deal with the threat.

During the emergency situation described above, at

ESA Emergency Coordination Centre is formed and

the Coordinator (ECCC) heads it. The nominated Co-

ordinator is the person in charge of the overall emer-

gency coordination. The ﬁrst action taken by the co-

ordinator is to activate the Emergency plan partially

or fully depending on the situation. The main func-

tion of the coordinator is to bring together elements

of the organization together to ensure effective emer-

gency management response and is primarily con-

cerned with the systematic planning and application

of resources (manpower and equipment). He is re-

sponsible for the acquisition of additional resources

requested by different Field Control Centre Coordi-

nator(FCCC). His other responsibilities are to collect

and assess ﬁeld information so that he can coordinate

the rescue and evacuation operation in a more effec-

tive and efﬁcient manner. Other signiﬁcant activities

are to analyze weather forecast supplied by weather

bureau and forward the analyzed forecast to the con-

cerned FCCC with his comments/observations.

Field Control Centre is a facility, where the FCCC

is located, near the scene of an emergency to facili-

tate better control and management of the emergency.

FCCC is primarily responsible for proﬁciently man-

aging the rescue and evacuation operation in the ﬂood

affected area. He is also responsible for publicizing

evacuation routes for the community, manages volun-

teers and available resources at his disposal in most

optimal way.

The other people involved in the case study are Call

Taking Supervisor/System, Volunteers/Emergency

Workers, Community and Weather Bureau. Call

Taking Supervisor/System is responsible for man-

aging/handling calls from the affected people, clas-

sifying/prioritizing them and forwarding calls to

concerned authorities for further action. Volun-

teers/Emergency Workers are very important actors

in the whole emergency situation. They are trained

in all aspects of rescue operation. They are proﬁcient

in general rescue, providing ﬁrst aid, operating com-

munication equipment, map reading and navigation,

ﬂood rescue boat operations, giving storm safety ad-

vice, provision of essentials to people cut off by ﬂood

waters etc. Community actors in our case study are

people who are affected by the ﬂood. They are the

people who are living in the ﬂood-prone area. They

are concerned about many issues and would like to

A CASE STUDY OF COMBINING I* FRAMEWORK AND THE Z NOTATION

193

know the answers of following questions:

• How deep the water could get in and around my

property?

• Whether I might need to evacuate or could get cut

off by ﬂooding?

• Which are the safest evacuation routes?

The volunteers and the ESA provide the answers to

these questions. Weather Bureau is responsible for

providing weather forecast data that is crucial for the

efﬁcient planning of emergency operation. The other

people involved in rescue and evacuation mission are

dependent on weather bureau to provide forecast data

at regular interval for the duration of emergency.

As we are aware that agent-oriented conceptual

modelling notations are in their early years of devel-

opment. Very few attempts have been made to deploy

them in industry scale projects. The ESA is good test-

ing ground for agent-oriented conceptual modelling

deployment in the large-scale project. We believe that

ESA offers some distinctive features like infrastruc-

ture that remains inactive for long periods of time

but gets activated only during an emergency situation.

These features make traditional conceptual modelling

frameworks somewhat difﬁcult to use in this domain,

but this paves the way for using agent-oriented con-

ceptual modelling techniques (a more detailed discus-

sion of these issues is outside the scope of this paper,

but is being reported elsewhere).

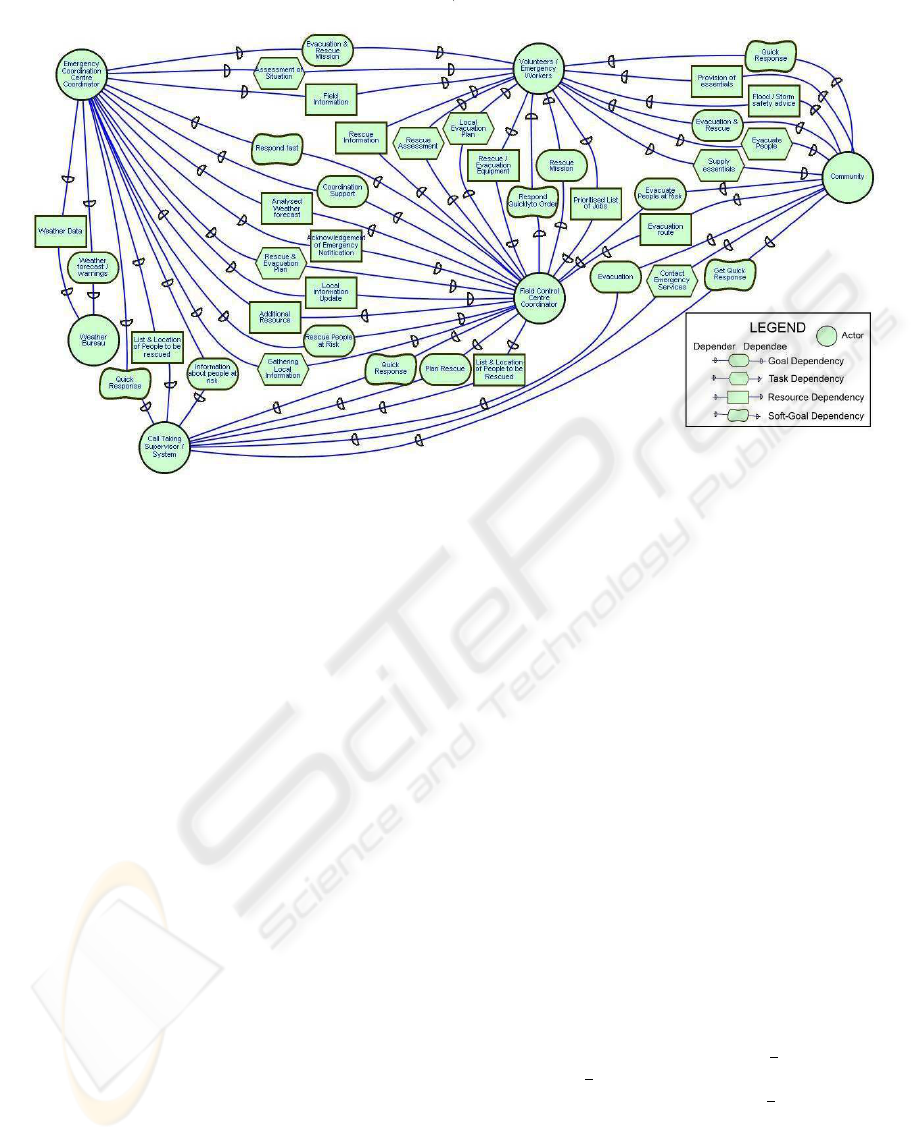

The case study shown in Figure 1 is used to il-

lustrate the SD model (Yu, 1995) of managing ﬂood

rescue and evacuation operations by ESA. The mod-

eling process begins with the identiﬁcation of ac-

tors/agents involved in the ﬂood rescue and evacu-

ation operation and identifying mutual relationships

between them. The Emergency Coordination Centre

Coordinator (ECCC) agent depends on the Field Con-

trol Centre Coordinator (FCCC) agents to accomplish

its goal Rescue People At Risk. Similarly the FCCC

agent depends on the ECCC agent to achieve Coor-

dination Support goal. The ECCC depends on the

Call Taking Supervisor/System to provide Informa-

tion About People At Risk, modeled as a goal depen-

dency. Similarly, ECCC agent depends on Weather

Bureau and Volunteers/Emergency Workers agents

to achieve the goals Weather Forecast/Warnings and

Evacuation and Rescue Mission respectively. The

ECCC has a dependency on the Weather Bureau to

provide Weather Data, modelled as a resource depen-

dency. Similarly, ECCC has a dependency on the

Volunteers/Emergency Workers and FCCC agents to

provide Field Information and Acknowledgment of

Emergency Notiﬁcation, Local Information Update

respectively, modelled as resource dependencies. The

remaining dependencies may well be explained on the

similar lines.

The SD model provides an external characterisa-

tion of an actor/agent in terms of two sets of depen-

dencies: incoming dependencies (the agent acting as

dependee) and outgoing dependencies (the agent act-

ing as depender) (Yu, 2001). In SD model this is

represented by showing the left half-arrow (pointing

from right to left) to denote incoming dependency and

the right half-arrow to denote outgoing dependency.

In the SR model a more detailed level of model-

ing is performed by looking “inside“ the actors/agents

to model internal relationships (Yu, 1995). The SR

model is a graphical representation that captures some

of the rationales involved in the rescue and evacuation

setting. The SR model shown in Figures 2 and 3 elab-

orates on the relationships between the actors shown

in SD model of Figure 1. There are two main types

of links possible in SR model: means-ends links and

task decomposition links.

For example, Volunteers/Emergency Workers has

an internal task to Rescue People. This task can

be performed by subtasks Prepare For Rescue, Map

Reading and Navigation, Operate Rescue Boats,

Communication Equipment Operation, Supply Es-

sentials, Rescue/Evacuate People at Risk and goal Re-

port Situation-which indicates that there can be dif-

ferent ways of achieving it (these are related to the

parent task via task decomposition links). The Res-

cue/Evacuate People at Risk task is further decom-

posed into subtasks Provide First Aid and Conduct

Emergency Drills. The softgoal Fast and Efﬁciently

is also related to the Rescue People task via a task

decomposition link. When a softgoal is a component

in task decomposition, it serves as a quality goal for

that task. Assessment of the local ﬂood situation by

Volunteers/Emergency Workers in the ﬂood-affected

region is crucial for the ECCC and FCCC agents to

further plan their resources and strategies in an opti-

mal way. This is represented as subgoal Report Situa-

tion in the SR model of Volunteers/Emergency Work-

ers. This subgoal can be achieved by using any one of

the shown subtasks, Radio/Mobile Phone or Satellite

Phone. This is represented by a means-ends link. This

is a Goal-Task Link (GTLink), the end here is speci-

ﬁed as a goal Report Situation, and means is speciﬁed

as a tasks (by using Radio/Mobile Phone or Satellite

Phone). This task speciﬁes the “how“ through its de-

composition into components.

3 i* - Z TRANSFORMATION

We believe that formal speciﬁcation offers signiﬁcant

beneﬁts to the developers of computer systems and

it can play major role towards improving their qual-

ity. The Z notation is foremost amongst formal meth-

ods in use at present and is based on set theory and

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

194

Figure 1: The Strategic Dependency Model

ﬁrst order predicate logic (Spivey, 1992). A Z nota-

tion works by modelling the states that a system can

take and the operations that cause changes in those

states. A speciﬁcation document written in Z consists

of schemas. The schema is referred to by the name. It

consists of declarations and constraining predicates.

Motivations and advantages behind the combined

use of i* and Z are the following:

• We feel that the usefulness and effectiveness of i*

can be increased manifold by using it with a formal

speciﬁcation language such as Z. Mapping rules

provide a formal semantics to i* framework. Our

view is that the Z formal notation and the i* mod-

elling framework can function in a complementary

and synergistic fashion and that a conceptual mod-

elling methodology that supports their co-evolution

is of interest.

• There is a need to map both SD and SR models

into late phase requirements speciﬁcations; Z can

be used effectively to realize these goals.

• We can formalize softgoals in Z, along with the task

and goals. The i* notation allows us to represent

and reason with softgoals (representations of non-

functional requirements or objectives).

• There is tool support available for Z and Z is a ma-

ture method that is widely used in arriving at com-

plete speciﬁcations.

• For translating informal speciﬁcations provided in

i* into Z, there is no need to add more details into

the corresponding i* model. The mapping from i*

models into Z schemas does not result in any infor-

mation loss.

• Using Z speciﬁcation schemas, we are in a position

to express properties that are not restricted to the

current state of the system, but also to its past and

future history.

3.1 Representation in Z of General

SD and SR Models

The basis of mapping speciﬁc i* models into Z is

the representation in Z of general SD and SR mod-

els. Then existing information is added into general Z

schemas to specify the speciﬁc i* models i.e., general

representation in Z is used as a template. We have

suggested and considered in detail Z representation

of general SD and SR i* models in (Vilkomir et al.,

2004), so here we are just showing the respective no-

tations with the essential comments.

The source of names of actors all actors and de-

pendencies all depend is given set NAME. Free types

STATE, TYPE, DEGREE and LINK TYPE describe

correspondingly the possible states, types and degrees

of dependencies and internal intentional elements and

the types of links between internal intentional ele-

ments.

[NAME]

A CASE STUDY OF COMBINING I* FRAMEWORK AND THE Z NOTATION

195

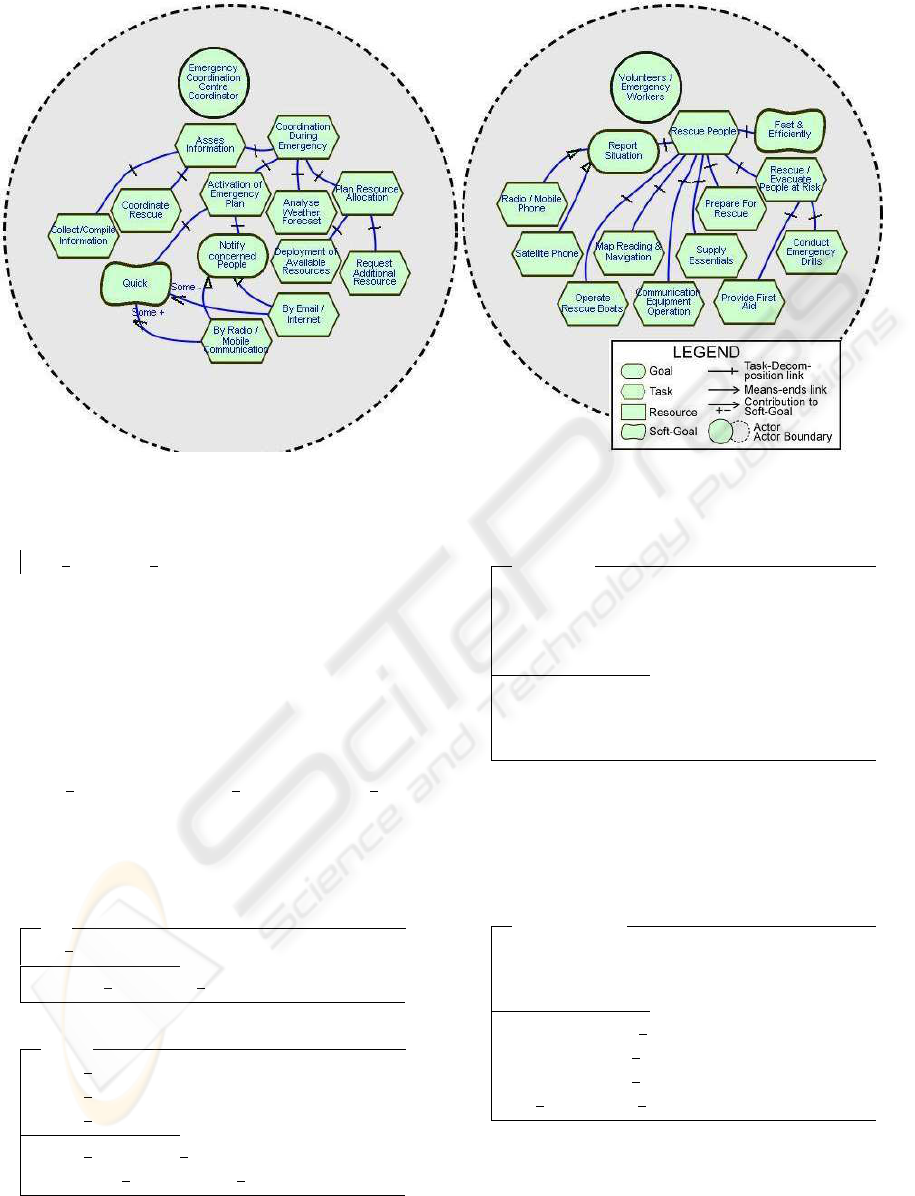

Figure 2: The Strategic Rationale Model

all actors, all depend : P

NAME

STATE ::= inapplicable | unresolved

| fulﬁlled | violated | satisﬁced

| denied | undetermined

TYPE ::= goal | softgoal | task | resource

| ISA

DEGREE ::= open | committed | critical

LINK TYPE ::= NA | task decomp | means ends

| contrib

The state of a SD model is a collection of states of all

dependencies. The state of an actor is a collection of

states of all internal intentional elements.

SD state : NAME 7→ STATE

dom SD state = all depend

Actor

actor name : NAME

actor element : P

NAME

actor state : NAME 7→ STATE

actor name ∈ all actors

dom actor state = actor element

As a common pattern for SD dependencies and SR

elements, the partial speciﬁcation ΦDepend is used.

ΦDepend

dependum : NAME

type : TYPE

degree : DEGREE

result! : STATE

result! 6= unresolved

result! = satisﬁced ∨ result! = denied ∨

result! = undetermined ⇒ type = softgoal

All these schemas allow creating SDependency

schema to describe the general structure of a SD de-

pendency.

SDependency

∆SD

ΦDepend

depender, dependee : NAME

dependum ∈ all depend

depender ∈ all actors

dependee ∈ all actors

SD state

= SD state ⊕ {dependum 7→ result!}

To describe the general structure of internal ele-

ments in an actor, ﬁrstly it is necessary to create a

Z schema, which reﬂects a structure of links between

internal intentional elements.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

196

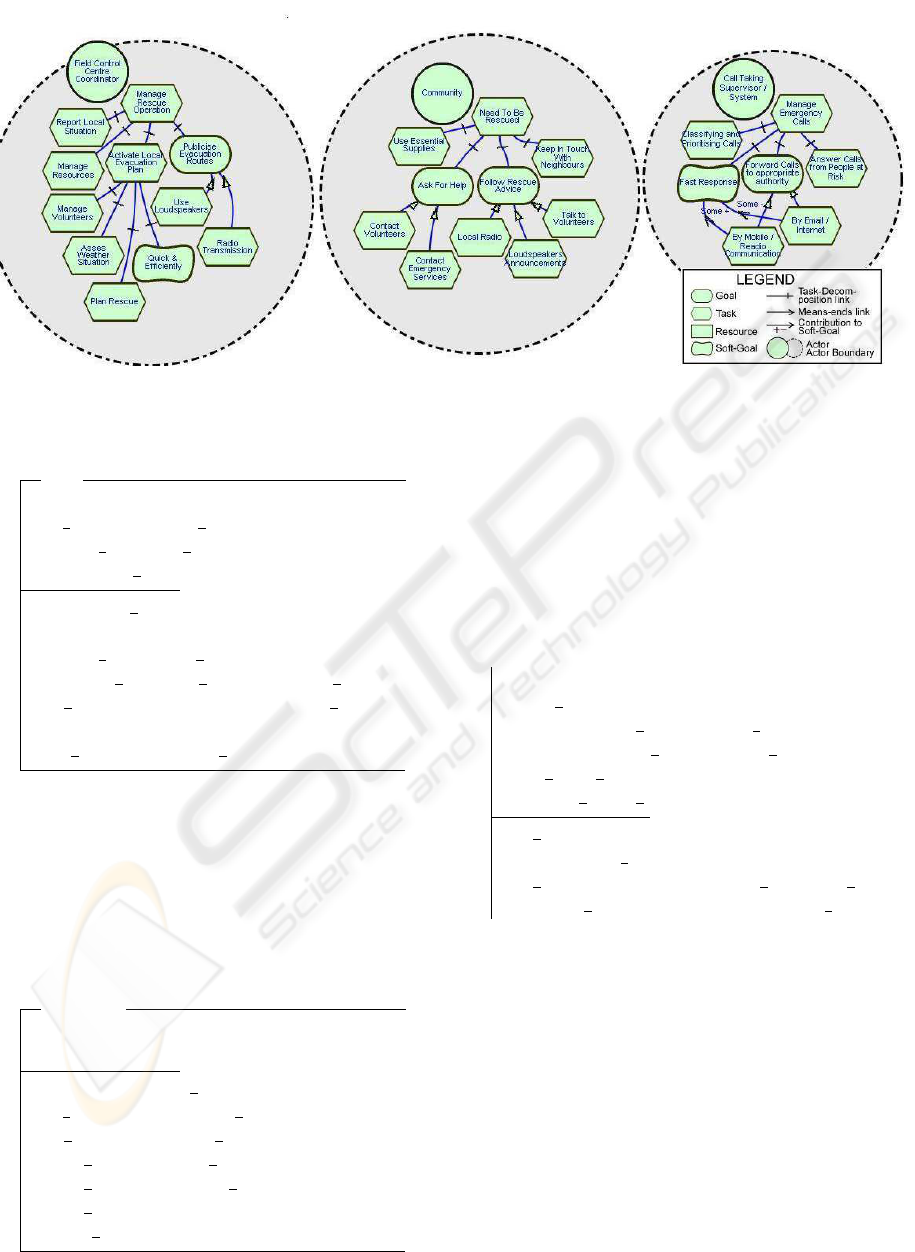

Figure 3: The Strategic Rationale Model

Link

ΦDepend

int components, ext components : P NAME

contrib p, contrib m : P NAME

link : LINK TYPE

link = task decomp ⇒ type = task

link = contrib ⇒ type = softgoal

contrib p ∪ contrib m 6= ∅ ⇒ link = contrib ∧

hcontrib p, contrib mi partitions int components

ext components 6= ∅ ⇒ link = task decomp

link = NA ⇔

int components ∪ ext components = ∅

Using Link schema as a component, now it is possi-

ble to describe the general structure of an intentional

internal element in a general SR model.

AElement

∆Actor

Link

dependum ∈ actor element

int components ⊂ actor element

ext components ⊆ all depend

actor name

= actor name

actor element

= actor element

actor state

actor state ⊕ {dependum 7→ result!}

3.2 Mapping the Speciﬁc i* Model

into Z

The ﬁrst step of mapping SD model of managing

ﬂood rescue and evacuation operations is to specify

names of all the actors and all external dependencies.

coordinator, bureau, supervisor, worker,

ﬁeld coord, community : NAME

weather, rescue plan, respond quickly,

evacuation, ﬁeld info, evacuate people,

get quick response,

contact emerg services : NAME

all actors = {coordinator, bureau, supervisor,

worker, ﬁeld coord, community}

all depend = {weather, rescue plan, ﬁeld info,

respond quickly, evacuation, evacuate people}

For simplicity, we are specifying only 8 out of 38

dependencies but for proper mapping it is necessary

to specify all the names.

The second step is the creation of a Z schema for

every dependency using SDependency schema as a

basis. So for SD model of managing ﬂood rescue and

evacuation operations we need to create 38 schemas.

Thus, the volume of using Z notation corresponds

with the complexity of SD model. However, all Z

schemas are of the same type, the process of their cre-

ation is very simple and can be easily automated. For

simplicity, we are creating only 4 schemas for differ-

ent types of dependencies below.

A CASE STUDY OF COMBINING I* FRAMEWORK AND THE Z NOTATION

197

Weather

SDependency

dependum = weather

depender = coordinator

dependee = bureau

type = resource

degree = committed

RescuePlan

SDependency

dependum = rescue plan

depender = coordinator

dependee = ﬁeld coord

type = task

degree = committed

RespondQuickly

SDependency

dependum = respond quickly

depender = ﬁeld coord

dependee = worker

type = softgoal

degree = committed

Evacuation

SDependency

dependum = evacuation

depender = community

dependee = supervisor

type = goal

degree = committed

The ﬁrst step of mapping SR model of managing

ﬂood rescue and evacuation operations is creating a Z

schema for every actor using Actor schema as a ba-

sis. In these schemas we need to specify names of all

the internal intentional elements. As an example, the

schema for supervisor actor is as shown below:

Supervisor

Actor

classifying calls, fast response, mobile, email,

forward calls, emergency calls,

answer calls : NAME

actor name = supervisor

actor element = {classifying calls,

fast response, mobile, email, forward calls,

emergency calls, answer calls}

The second step is the creation of a Z schema

for every internal intentional element using AElement

schema as a basis. For example, we need to create 7

schemas for the internal elements of supervisor actor.

To demonstrate this approach and show various pos-

sible situations, we are creating below three of them.

ClassifyingCalls

AElement

Supervisor

dependum = classifying calls

type = task

degree = committed

int components = ∅

ext components = ∅

link = NA

FastResponse

AElement

Supervisor

dependum = fast response

type = softgoal

degree = committed

int components = {mobile, email}

contrib p = {mobile}

contrib m = {email}

ext components = ∅

link = contrib

AnswerCalls

AElement

Supervisor

dependum = answer calls

type = task

degree = committed

int components = ∅

ext components = {get quick response,

contact emerg services}

link = task decomp

We have considered Z schemas represented above

as part of one to one mapping of i* models (of the

case study) into the Z notation. Using this approach,

all the information from the i* models is reﬂected in

Z. Further reﬁnement is done to this process by using

concealed additional information from i* framework

and integrating it in Z schemas.

For example, consider again dependencies of

supervisor actor. It is necessary to classify a call be-

fore forwarding it to the appropriate authority so de-

pendency classifying calls should be realized before

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

198

dependency forward calls. This fact is not reﬂected

in the i* diagrams but can be easily incorporated into

Z. For this, it is necessary to include into the predicate

part of ForwardCalls schema the following precondi-

tion: SD state(classifying calls) = fulﬁlled.

ForwardCalls

AElement

Supervisor

dependum = forward calls

type = goal

degree = committed

int components = {mobile, email}

ext components = {quick response 1, list 1,

plan, quick response 2, list 2,

contact emerg services}

link = means ends

SD state(classifying calls) = fulﬁlled

For dealing with systems which stipulate special

timing requirements (like concurrent real-time reac-

tive systems), it is possible to use special extensions

of Z like Timed Communicating Object Z (TCOZ)

(Mahony and Dong, 2000) which are designed for

modelling real-time applications.

By applying our approach on the Emergency Flood

Rescue Management Case Study, we are in a position

to test the effectiveness of our methodology to real-

life application.

4 ANALYSIS

Managing ﬂood rescue and evacuation operation can

be considered as a rich and challenging example for

requirements engineering. As compared to conven-

tional examples used in various research papers, it of-

fers extraordinary combination of features found in

real-life requirements engineering exercise. For ex-

ample, the performance of the automated part (Call

Taking Supervisor/System) of the combined system

depends heavily on the satisfactory actions taken by

the agents/actors in the environment.

This case study presents some methodological

principles and lessons derived from a real-life con-

ceptual modelling exercise:

Adding some structure to the modeling process

Early-phase RE activities have traditionally been

done informally, beginning with stakeholder inter-

views and discussions on the existing systems and

rationales. The motivation of early phase RE is to

create a conceptual model of the domain, which is

closer to the user view. We have proposed (Unni et al.,

2003) to add some structure to this requirements gath-

ering exercise by introducing the use of Requirements

Capture Templates. These templates are to be ﬁlled

out by the modeller whilst conducting interviews with

the stakeholders. These forms have been designed to

seek information speciﬁc to the needs of the under-

lying agent-oriented conceptual model that the mod-

eller seeks to build. Consequently stakeholders are in

a position to provide information for the conceptual

modeling task, without being exposed to the complex-

ities of understanding and using the conceptual mod-

elling language. The design of RCT’s makes it easy to

systematically transform the details captured directly

into AoCM.

Using existing domain knowledge

Many problem domains are well understood, with an

existing body of knowledge, which a modeller can

access. In (Unni et al., 2003) we have outlined an

approach in which the pre-deﬁned domain ontolo-

gies (speciﬁc to appropriate domain) can be used to

generate elicitation triggers. We have also suggested

how completeness and consistency testing of the con-

ceptual models in relation to the domain ontology

can lead to elicitation prompts for the modeller. We

have proposed a methodology, which supports the co-

evolution of conceptual models, ontologies and RCTs

through the process of requirements elicitation and

modelling.

Incremental creation of knowledge and model

The requirements gathering exercise began by con-

ducting stakeholder interviews and discussions on the

existing activities, systems and rationales. We agree

that most of the RE activities are informal in nature.

Modelling exercise beneﬁted a lot as a result of ob-

serving practicing stakeholders and additional read-

ing was undertaken to clarify these observations. We

had constant interactions with the stakeholders dur-

ing the requirements gathering as well as modeling

exercise. Feedback from the stakeholders led to the

development of conceptual model, which was closer

to the users view. As a consequence the model was

modiﬁed three times, reﬂecting upon the incremental

creation of knowledge and model.

Observation

We believe that the modellers or systems analysts

bring theoretical and technical knowledge to the

RE process. The stakeholders bring comprehensive

knowledge of their domain and experience of the

problem situation. Neither has superior knowledge,

rather they are both proﬁcient in their own domains;

it is the interaction between these two group of people

that forms the basis for the problem solving required

from the RE process. We feel that it is in this area that

further research will bring advance understanding of

the RE process.

A CASE STUDY OF COMBINING I* FRAMEWORK AND THE Z NOTATION

199

5 CONCLUSION

This paper describes a methodology for the combined

use of i* framework and the Z notation for require-

ments engineering. This approach incorporates the

advantages of i* framework for the early phase and

then continues specifying requirements in Z using ad-

vantages of mature formal methods. The approach

is based on describing a one-to-one mapping of i*

framework into the Z notation. This mapping is used

to formalize i* framework without incorporating any

additional information. Further reﬁnement is done

in this process by using concealed information from

i* framework and incorporating it in the Z schemas.

This requires further investigation but we have ex-

plained this reﬁnement with the help of simple exam-

ple. The case study described in this paper is taken

from one of the most important and challenging re-

sponsibilities of the emergency services agency, man-

aging ﬂood rescue and evacuation operations. By us-

ing this case study, we have tested the effectiveness of

our methodology to real-life application. Further we

would like to add that the formalization of i* frame-

work to Z can be automated.

REFERENCES

Bert, D., Bowen, J. P., King, S., and M. Walden, e. (2003).

Formal Speciﬁcation and Development in Z and B,

Third International Conference of B and Z Users

(ZB2003), Turku, Finland, June 4-6, 2003, Proceed-

ings. LNCS 2651. Springer.

Bowen, J. P. (1996). Formal Speciﬁcation and Documenta-

tion Using Z: A Case Study Approach. International

Thomson Computer Press.

Chung, L., Nixon, B. A., Yu, E., and Mylopoulos, J. (2000).

Non-Functional Requirements in Software Engineer-

ing. Kluwer Academic Publishers.

Fuxman, A., Pistore, M., Mylopoulos, J., and Traverso, P.

(2001). Model checking early requirements speciﬁca-

tions in tropos. In Proceedings of Fifth IEEE Interna-

tional Symposium on Requirements Engineering, 27-

31 August 2001, pages 174–181, Toronto, Canada.

Heitmeyer, C., Jeffords, R., and Labow, B. (1996). Auto-

mated consistency checking of requirements speciﬁ-

cations. ACM Transactions on Software Engineering

and Methodology, pages 231–261.

Mahony, B. and Dong, J. S. (2000). Timed communicating

object z. IEEE Transactions on Software Engineering,

26(2):150–177.

Spivey, J. M. (1992). The Z Notation: A Reference Man-

ual. Prentice Hall International Series in Computer

Science, 2nd edition.

Unni, A., Krishna, A., Ghose, A. K., and Hyland, P. (2003).

Practical early phase requirements engineering via

agent-oriented conceptual modelling. In To appear

in Proceedings of ACIS-2003: The 2003 Australasian

Conference on Information Systems, 26-28 November

2003, Perth, Australia.

Vilkomir, S., Ghose, A. K., and Krishna, A. (2004). Com-

bining agent-oriented conceptual modeling with for-

mal methods. In Submitted to Australian Software

Engineering Conference (ASWEC-2004), 13-16 April

2004, Melbourne, Australia.

Wang, X. and Lesprance, Y. (2001). Agent-oriented require-

ments engineering using congolog and i*. In Proceed-

ings of 3rd International Bi-Conference Workshop

Agent-Oriented Information Systems (AOIS-2001),

pages 59–78, Berlin, Germany.

Yu, E. (1994). Towards modelling strategic actor relation-

ships for information systems development – with ex-

amples from business process reengineering. In Pro-

ceedings of 4th Workshop on Information Technolo-

gies and Systems, 17-18 December 1994, pages 21–

28, Vancouver, B.C., Canada.

Yu, E. (1995). Modelling strategic relationships for process

reengineering. Technical report, PhD Thesis. Dept. of

Computer Science, University of Toronto.

Yu, E. (1997). Towards modelling and reasoning support

for early-phase requirements engineering. In Pro-

ceedings of 3rd IEEE International Symposium on

Requirements Engineering, 6-8 January 1997, pages

226–235, Washington D.C., USA.

Yu, E. (2001). Agent orientation as a modelling paradigm.

Wirtschaftsinformatik, 43(2):123–132.

Yu, E. and Mylopoulos, J. (1994). Understanding why in

software process modelling, analysis, and design. In

Proceedings of 16th International Conference on Soft-

ware Engineering, 16-21 May 1994, pages 159–168,

Sorrento, Italy.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

200
