A WEB-BASED TIME BOOKING FRAMEWORK

Liping Zhao, Abdelgadir Ibrahim

Department of Computation, UMIST, Manchester, U.K.

Keywords: Framework, pattern, product family, web-based application

Abstract:

A framework can be viewed as a design schema from which application systems derive.

Application systems of a framework are called instantiations of the framework and collectively

form a product family. The article describes the development of a web-based time booking

framework. The development consists of three main stages: meta level design, framework level

design and application instantiation. The article illustrates, through the development of a car

hiring application system, that once the framework is in place, instantiating an application system

only requires a few simple steps.

1 INTRODUCTION

Many business and service providers require that

assets, whether they are tangible such as conference

rooms or intangible ones such as doctor

appointments, be booked for a particular date and

time prior to their use in order to prevent overload

and undesirable time clashes. For the purpose of this

article a booking system is defined as a set of

mechanisms and procedures together with the

supporting tools, whether in paper or electronic

form, that enable a business to provide its customers

with a specific service at a pre-agreed date and time.

In this article, the terms asset and service are used

interchangeably to refer to the booked entity, and the

same applies to business and service provider.

The booking procedure may vary from one

busi

ness to another and may also vary according to

the characteristics of the customer or the booked

asset. Some business for example only accepts

bookings from registered customers e.g. a health

care surgery. Others may impose some restrictions

on the assets that a customer is allowed to book. A

car hiring company, for example, may employ a

policy that prevent customers with certain number of

license penalty points from hiring cars of a certain

value. Yet other business may demand that bookings

be made at least a specific number of days in

advance for managerial purposes. These collectively

are termed business rules and they provide the

operational behaviour of the booking system.

Although the business rules for time booking

ay vary from one application to another, most time

booking applications share, albeit possible small

variations, a common set of procedures for asset

booking. These involve a customer contacting a

service provider and requesting a specific service.

Based on the service request, the provider then

presents the customer with a list of possible times at

which the service can be offered. Once the customer

has selected the desired time, the provider then

confirms the agreed time either verbally or in written

form. Figure 1 illustrates this common booking

process.

The identification of the common booking

ocess in Figure 1 suggests that it make sense to

develop a time booking framework for different

booking applications. Developers utilising this

framework can then extend this common

functionality as appropriate for their specific

application requirements.

Framework development is more difficult and

expe

nsive than normal application development

(Durham, Johnson, 1996). In order to be useful, a

framework must be simple and easy for a developer

to understand and learn while at the same time be

functionally rich so that it can be used quickly and

easily without much effort by developers.

Furthermore, a framework must be sufficiently

flexible so that they can be customised for the

individual application requirements. Hence a

framework should only be developed in situations

where applications share a common set of

requirements. Application systems of a framework

are called instantiations of the framework and

collectively, they are referred to as a product family

(Parnas, 1976). All the members in a product family

439

Zhao L. and Ibrahim A. (2004).

A WEB-BASED TIME BOOKING FRAMEWORK.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 439-442

DOI: 10.5220/0002646404390442

 SciTePress

Client

Interface

Web

Server

Request

Response

Database

Request

Response

Java Servlets

Java Sever

Pages

Java Beans

Controller

Model

View

Application Server

Client

Interface

Web

Server

Request

Response

Database

Request

Response

Java Servlets

Java Sever

Pages

Java Sever

Pages

Java Beans

Controller

Model

View

Application Server

Customer

requests

to book

a service

Clerk searches

For available

time slots

Clerk presents

a list of available

time slots

to customer

are similar in their generic functionality, but each

member addresses a different business need.

This article illustrates the development of a web-

based framework for time booking applications. It

describes the three main design stages, which are

meta level design, framework level design and

application instantiation. The article illustrates,

through the development of a car hiring application

system, that once the framework is in place,

instantiating an application system only requires a

few simple steps.

Clerk confirms

booking

Valid request

Invalid

request

Not available

Available

Customer declines

Customer accepts

a slot

Booking completed

End

Start

Customer

requests

to book

a service

Customer

requests

to book

a service

Clerk searches

For available

time slots

Clerk searches

For available

time slots

Clerk presents

a list of available

time slots

to customer

Clerk presents

a list of available

time slots

to customer

Clerk confirms

booking

Clerk confirms

booking

Valid request

Invalid

request

Not available

Available

Customer declines

Customer accepts

a slot

Booking completed

End

Start

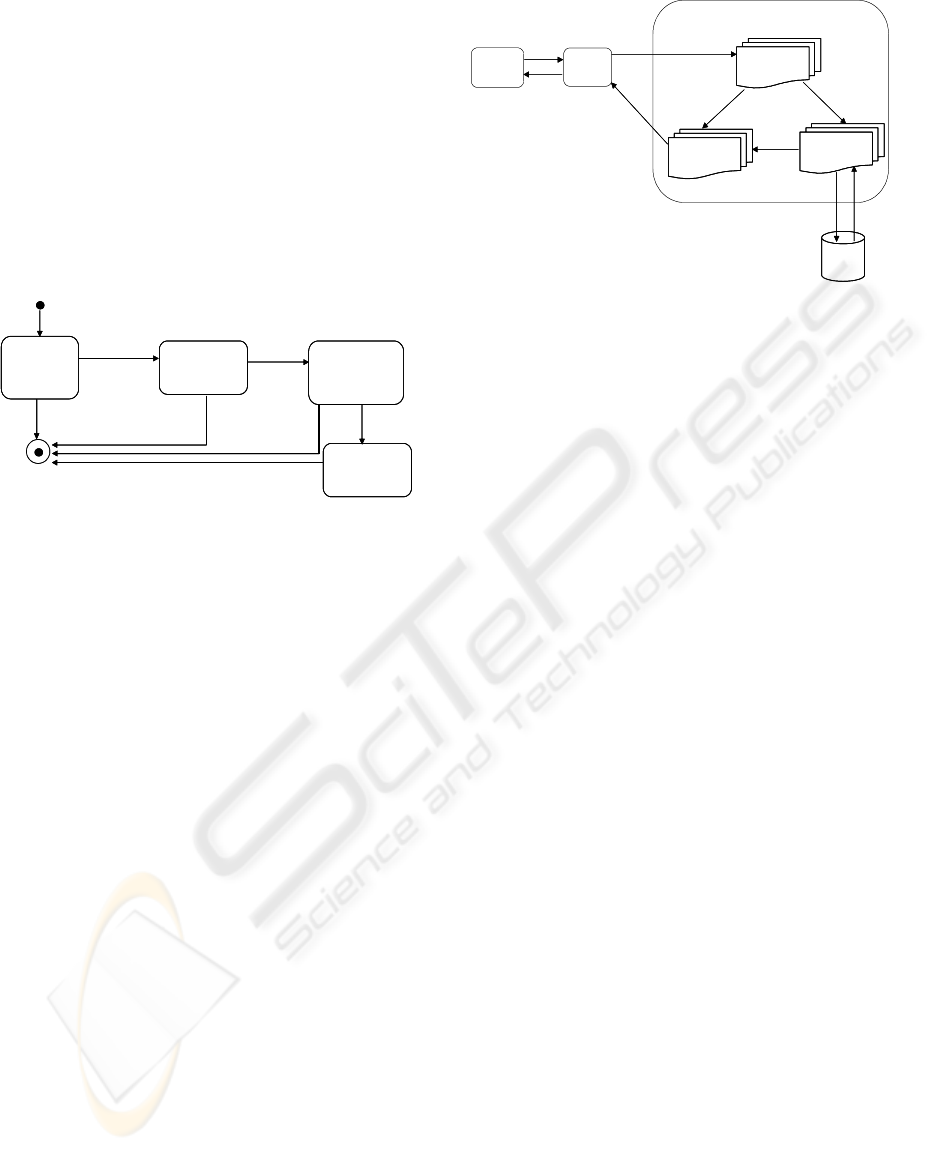

Figure 1: Common booking process

2 FRAMEWORK DEVELOPMENT

We have adopted the classic three-tier architecture

for the framework development and the Model 2

(PetSchulat, 2001) approach as our server side

technology (Figure 2). Model 2 combines Java

Server Pages (JSPs), Java Servlets and Java Beans

(Govoni, 1991), (Hall, 2002), which fit into the

Model-View-Controller (MVC) architecture

(Reenskaug, 1996). In Model 2, Java Beans act as

the model, containing time booking functionality

and requirements. Java Servlets act as the

controllers, receiving users’ input and serving their

requests before forwarding control to the appropriate

JSP for presentation. The controllers also make

available to the JSP environment all the required

beans from which the JSPs can extract the results for

presentation to users. The JSPs play the role of the

view which provides the page layout for the user

interface. By dividing the application server into the

model, the views and the controllers, the framework

developers can work independently on different

parts of the application.

Figure 2: The framework architecture

For space reason, this paper focuses on the

development of Java Beans (the model) as shown in

Figure 2. We divide framework development into

the three levels. At the top level, or meta-level, we

design the framework’s schema, which outlines the

arrangement of the framework components. At this

level, a framework component is a grouping of a set

of classes. The framework schema is similar to the

relational database schema in that it is generally

applicable to a broad range of frameworks. In the

middle level, or framework level, we design the

classes and interfaces of a particular framework. A

framework thus can be viewed as an instance of the

framework schema. A framework corresponds to a

relational table description. At the bottom level, we

derive a particular application system by extending

the framework.

2.1 Meta Level Design

The model is the heart of the framework, which

contains time booking information, functionality and

requirements. The model is also the gateway to the

database which stores all the persistent booking

information. The meta level of the model consists of

two components: Application Services and Java

Beans (Figure 3). Java Beans are a set of Java

classes which have three main responsibilities: (1) to

represent business requirements, (2) to serve as a

mapping between the database and other framework

components, and (3) to manipulate the database.

These Java Bean classes are called Data Beans to

reflect the nature of their responsibility. The

Application Services component has two major

responsibilities: (1) to interact with Data Bean

classes and (2) to provide other framework

components with all the booking related functions.

The Application Services interacts with a data bean

in the following manner:

– An application service component first creates

and populates a bean with the content of a

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

440

database record. Thereafter, all changes to that

record are made to the specific bean, which then

propagates to the database.

Application

Services

Table A

Table B

Table C

Database

Data Beans

Application

Services

Table A

Table B

Table C

Database

Data Beans

– A data bean holds the content of a database record

created by a booking service object and knows

how to update, insert or delete that record. The

framework makes changes to a record here instead

of directly manipulating the database.

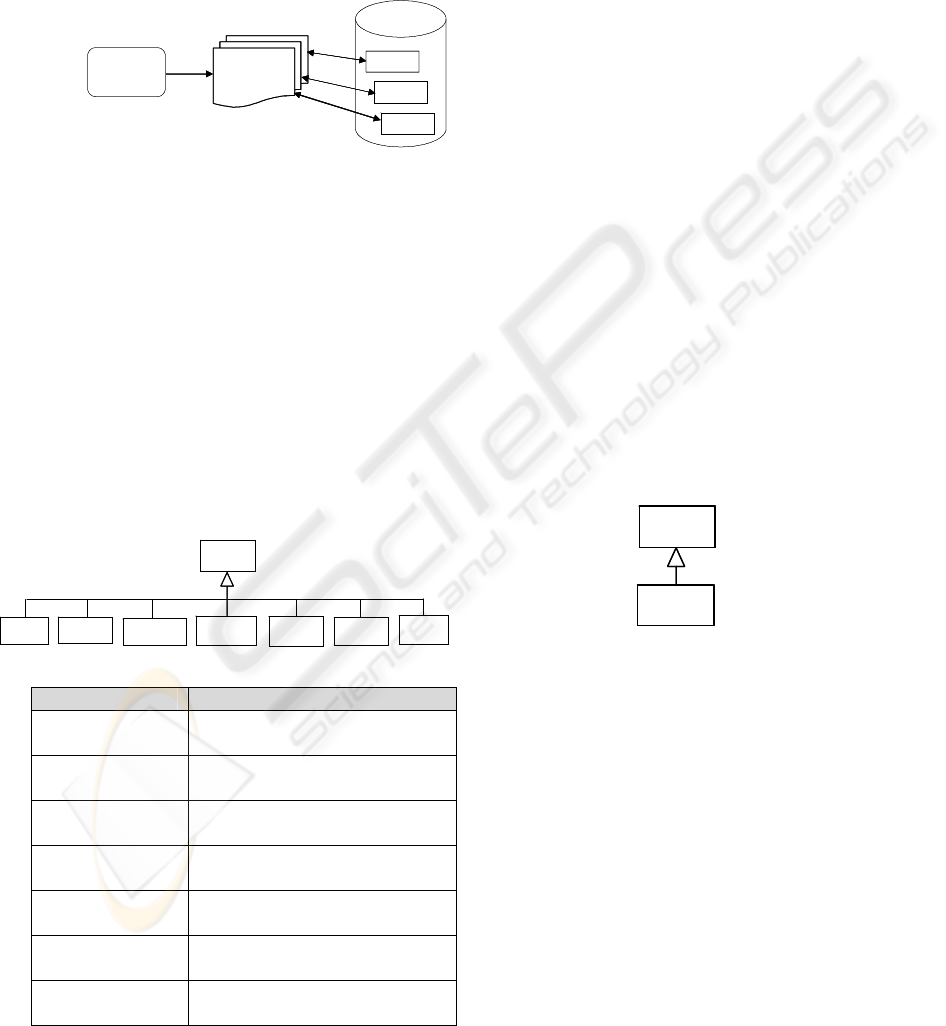

Figure 3: The schema of the

framework model

2.2 Framework Level Design

The framework level design concerns designing the

classes and interfaces of the booking framework,

which consists of the following steps.

Step 1. Designing data bean classes. The data

bean classes represent business requirements and

map these requirements onto a set of database tables.

The challenge is to decide how to divide the

business requirements into appropriate classes to

achieve a common maximum subset of

requirements. To help us to make the decision, we

have used the E-R modelling and relational database

normalization techniques. The result of this design

is given in Figure 4.

DataBean

Asset

Category

Booking

AssetOp

Time

Time Slot

User

Booking

Services

Application

Services

Booking

Services

Application

Services

Bean Class Description

Asset Represent an asset record and

related operations

AssetCategory Represent an asset category

record and related operations

AssetOpTime Represent an operational hour

record and related operations

Booking Represent a booking record and

related operations

Category Represent a category record and

related operations

TimeSlot Represent a time slot record and

related operations

User Represent a user record and

related operations

Figure 4: Java bean classes for booking requirements

In Figure 4, all the classes are abstract classes.

DataBean is the interface to all the Bean classes.

This reduces the coupling between other framework

components and the Bean classes and increases the

framework’s extendibility. The application

developer can extend or add a new Bean class

through the interface. Similarly, this design reduces

the coupling between the framework components

and the database tables. Hence, if changes are to be

made to a database table such as renaming or adding

a new column, only the relevant bean may need to

be changed. Furthermore, the relational-object

mapping in the Bean classes simplifies other

framework components as they can now interact

with the relational database in an object-oriented

fashion.

To maximize the flexibility and extensibility of

these Beans, we have used the Factory Method

pattern for instantiating Bean objects and the

Template Method pattern (Gamma, Helm, Johnson,

Vlissides, 1995) for implementing operations.

Step 2. Designing Application Services classes.

As stated in Section 2.1, the Application Services

component holds the responsibility of interacting

with the Data Beans and providing all the booking

related functions. We first design an Application

Services interface for other framework components,

such as the controllers. We then derive a Booking

Services interface as the main entry point for all the

booking related functions. Figure 5 illustrates this

design.

Figure 5: Booking services containing booking functions

2.3 Framework Instantiation

To develop a car hiring booking system, we take the

following steps:

1. Add the following vehicle specific fields to the

ASSETS table:

REGNO; MODEL; INSURANCE; FUEL;

MILEAGE; PRICING; ADDITONALINFO;

DEPOSIT; SEATING; TONNAGE

2. Create a Bean class Vehicle which extends class

Asset with attributes and methods that handle the

above additional fields.

3. Create a VehicleBeanFactory class which extends

BookingBeanFactory and overrides the

appropriate methods to return an asset of type

Vehicle instead of the default DefaultAssetImpl.

A WEB-BASED TIME BOOKING FRAMEWORK

441

4. Create a VehicleBookingServices class which

extends the BookingServices class and overrides

method createBeanFactory() to return a

VehicleBeanFactory instead of the default

BookingBeanFactory.

5. Modify the appropriate JSP to include vehicle

specific fields.

Figure 6 illustrates the framework design structure.

Asset

DataBean

BookingBean

Factory

DataBean

Factory

Booking

Services

Application

Services

Vehicle

Extends

VehicleBean

Factory

VehicleBooking

Services

Extends

Meta Level

Framework

(e.g. a booking

framework)

Application

System or

Instantiation

(e.g. a booking

system)

Asset

DataBean

BookingBean

Factory

DataBean

Factory

Booking

Services

Application

Services

Booking

Services

Application

Services

Vehicle

Extends

VehicleBean

Factory

VehicleBooking

Services

Extends

Meta Level

Framework

(e.g. a booking

framework)

Application

System or

Instantiation

(e.g. a booking

system)

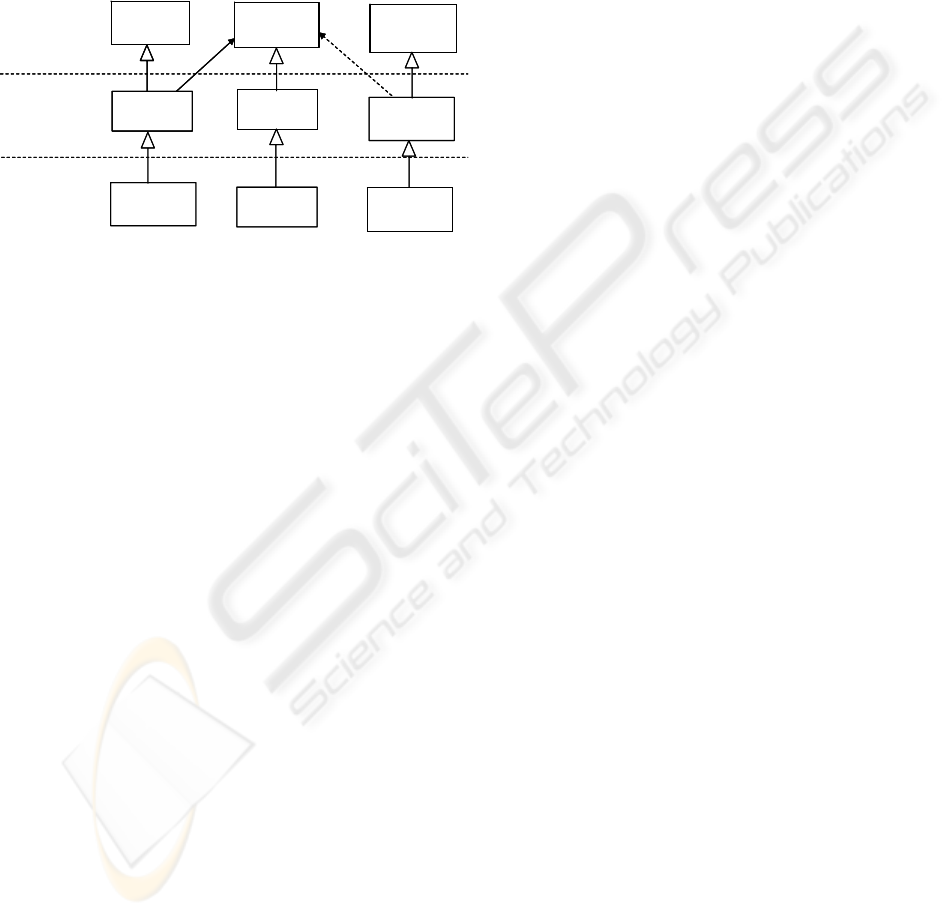

Figure 6: The three levels of framework design

3 CONCLUSION

Framework design takes place at the three levels.

The top level is the schema or meta design, which

identifies and arranges the groupings of the

framework components. A framework schema

should be generally applicable to a variety of

frameworks. The middle level design is specific to a

framework, concerning the mapping of user

requirements onto the classes, the design of

interfaces and functionality. The middle level design

is perhaps the most challenging one as it needs to

consider how the framework can cope with the

future change and what flexibility should be built

into the framework so that changes can be made

without major redesign of the framework.

The bottom level design is to generate a specific

application system, which involves extending the

framework classes and overriding the class methods.

Suffice it to say that the main purpose of

frameworks is to reduce the time and cost of design

at this level by facilitating reuse of both design and

implementation at the levels above.

The article has demonstrated that the booking

framework can be easily extended to implement an

application system. Although framework

development incurs higher costs, the costs will be

paid off when the framework is used to create

application systems, which only requires a few

simple steps.

ACKNOWLEDGEMENTS

We appreciate the valuable comments from the

reviewers.

REFERENCES

Durham, A., Johnson, R. (1996). A Framework for Run-

time Systems and its Visual Programming Language.

In Proc. Of OOPSLA ’96, Object-Oriented

Programming Systems, Languages, and Applications.

San Jose, CA.

Gamma, E., Helm, R., Johnson, R. Vlissides, J. (1995).

Design Patterns, Elements of Reusable Object-

Oriented Software, Reading, MA: Addison-Wesley.

Govoni, D. (1999). Java application frameworks, John

Wiley & Sons.

Hall, M. (2002). More servlets and Java server pages, Sun

Microsystems Inc.

Parnas, D. L. (1976). On the design and development of

program families, IEEE Transactions on Software

Engineering, vol. 2, no. 1.

PetSchulat, S. (2001). JSP or Servlets - which architecture

is right for you? Java Report, no. 6.

Reenskaug, T. (1996). Working With Objects, USA:

Manning.

ICEIS 2004 - SOFTWARE AGENTS AND INTERNET COMPUTING

442
