BUSINESS PROCESS MODELING WITH OBJECTS AND ROLES

Artur Caetano

, António Rito Silva

, José Tribolet

Department of Information Systems and Computer Science, Instituto Superior Técnico, Technical University of Lisbon.

CEO - Organizational Engineering Center, INOV, INESC Inovação.

Software Engineering Group, INESC-ID.

Surface Mail Address: INESC, Rua Alves Redol 9, 1000-029 Lisboa, Portugal.

Keywords: business process modeling, role modeling, object-oriented analysis and design, organizational engineering.

Abstract: Role-based business process modeling deals with partitioning the universe of process modeling into differ-

ent areas of concern by describing how business objects collaborate. A business object represents a concept

of interest in the organization, such an activity or an entity, which can play multiple roles according to its

behavior while interacting with other business objects. A specific business object collaboration can be ex-

pressed by the roles played by every participant in that scenario. This approach allows creating semantically

richer business process models, and designing business objects where behavior is clearly separated and de-

pendent on its usage context. Both of these results contribute to increase the understandability of process

models and to enhance business object reuse.

1 INTRODUCTION

Organizational modeling deals with providing an

enterprise-wide view of an organization from where

decisions can be made. Business process modeling

specializes on describing how activities interact with

organizational entities in order to support the opera-

tion of the business. The analysis, modeling and

representation of the knowledge about an organiza-

tion and its processes has been the focus of specific

research in past years and significant work has been

done on developing business process modeling con-

cepts, methodologies and ontologies as well as on

the specification of process modeling languages.

As a product, business process models can be

used for multiple purposes, such as facilitating hu-

man understanding and supporting process im-

provement, re-engineering and the analysis and de-

sign of process-oriented software implementations.

Business process models define a common me-

dium for communicating organizational concepts,

offering a set of domain level concepts and enabling

a broader distribution of information among people

with different knowledge about an organization.

Business process analysis relies on a detailed de-

scription of process models and related concepts. In

contrast, simulation allows for a detailed run-time

breakdown of a process model, and does not rely on

the structural properties of a business process but on

the execution of previously designed processes using

instances of entities and values. The combined re-

sults from both process analysis and simulation pro-

vide input for process reengineering, which involves

redesigning the structural or collaboration aspects of

a process model. Business process models may also

be used to design business-driven software (Curtis

1992, Scheer 1999) or to derive workflow schemas

(Aalst 2002).

Process modeling techniques often rely on cap-

turing procedural and behavioral aspects of the busi-

ness value chain, using data flow based models and

are based on notations such as IDEF (McGowan

1993), where processes are described as a flow of

activities along with the data and resources inter-

changed between these activities. However, and with

such approaches, it is difficult to abstract away from

the functional details of the process and to capture

details such as how differently the same resource is

used by different activities.

Modeling business processes involves capturing

the structure of its business objects, their relation-

ships and collaborations. A business object repre-

sents a concept of interest in the organization, such

as human actors or automated actors, such as a pro-

duction machine or an information system, and ac-

tivities (whereas a set of activities coordinated to-

wards the achievement of a goal is a business proc-

ess). Identifying the business objects of an organiza-

tion is fundamental to help documenting and evolv-

109

Caetano A., Rito Silva A. and Tribolet J. (2004).

BUSINESS PROCESS MODELING WITH OBJECTS AND ROLES.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 109-114

DOI: 10.5220/0002648901090114

 SciTePress

ing the business by facilitating communication and

analysis. Moreover, if an organization holds a docu-

mented view on its business objects and their rela-

tionships, then this information may assist later reus-

ing the same business object across organizational

units and in other business processes.

However, properly identifying the business ob-

jects of an organization is not a simple task, espe-

cially when reuse is a concern. For instance, the

same business object may be manipulated by multi-

ple different activities in different business contexts.

On the one hand, each business object relates to a set

of multiple other business objects. This leads to a

highly connected relationship graph for every busi-

ness object, which may not be easy to document or

understand. On the other hand, a business object

exhibits different behavior according to the relation-

ships it has at a given time. For example, the same

entity depicting a business product plays different

roles when relating to a financial activity or to a

manufacturing activity, meaning that the object’s

visible attributes, methods and behavior as a whole,

may be different, depending on the object’s active

relationships. Furthermore, the specific usage con-

text of a business object also defines it behavior. For

example, in a given context, a business object may

behave as an activity when being executed by an

actor, and, in other context, it may behave as a busi-

ness entity when being inspected by an audit activ-

ity.

Despite these issues, identifying an organiza-

tion’s business objects and specifying their behavior

so that reuse is facilitated is fundamental to partition

the universe of process modeling into different areas

of concern, each of which can then be handled and

documented independently. In order to address these

problems, this paper proposes a set of organizational

concepts, modeled as business objects, where their

relationships are specified through the roles the ob-

jects play. A role describes the behavior of an object

in a specific relationship and context, i.e., how an

object is involved in a situation or what responsibili-

ties it has. These concepts are represented by object-

oriented constructs and are illustrated as a meta-

model using the Unified Modeling Language

(UML). This approach allows modeling a business

process by (1) depicting the individual structure of

business objects and (2) describing business object

relationships according to the usage contexts of the

objects.

The remaining of this paper is structured as fol-

lows: next section reviews role and business process

modeling. Section 0 describes how role modeling

can be used along with business process modeling to

increase its expressive power along with some ex-

amples of application. Finally, section 0 outlines

future work and draws some conclusions.

2 ROLE MODELING

From the perspective of sociological role theory, an

organization is a system of interactions between en-

tities constrained by norms and expectations. Enti-

ties can occupy a number of social positions and

play the roles associated with these positions. Inter-

actions are determined by the relationships among

the roles, and constitute the structural aspect of the

social system. They also include norms and rules

designed to regulate the behavior of entities so that

the goals of the system can be achieved. From this

viewpoint, the analysis and design of an organiza-

tional system should focus on the three building

blocks of a social system: the roles, the relationships

among roles and the regulations that constrain them.

Role theory defines concepts such as role and posi-

tion in order to specify the organizational structure.

In this perspective, Biddle and Thomas define a role

as a collection of rights and duties relating to a posi-

tion (Biddle 1979).

2.1 Roles and Software Engineering

Sociological role theory deals with collaboration and

coordination of actors, focusing on the position and

responsibilities of an element within an organization

or system. Nonetheless, the concept of role is also a

well-established modeling principle in computer

science that aims at separating multiple crosscutting

concerns existing in a given domain. It is used in

methodologies such as RM-ODP (ISO 1995) and

especially in object-oriented frameworks (Gottlob

1996, Kendall 1999, Halpin 2001). Here, a role is

defined as a set of its properties which are important

for an object to behave in a certain way as expected

by other objects. Therefore, a role translates the ex-

pectations other objects have upon an object. Roles –

just like objects – can be abstracted and later reused

as types, since they capture the similar behavior

properties of a class of individuals. Hence, there

may be several instances of a role at a given time.

Likewise, roles can also be decomposed and special-

ized and serve as a basis for reuse.

Roles emphasize on describing how objects in-

teract with each other. While classes define the

common capabilities of individual objects or in-

stances, roles focus on the responsibilities of ele-

ments within a system or organization. A role model

identifies the structure of elements and describes it

as a structure of roles. A role model is similar to a

UML collaboration diagram since both capture the

interactions between objects in a given scenario.

However, a UML collaboration diagram is subordi-

nated to class diagrams and is based on instances of

a specific application; its potential for reuse is thus

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

110

limited. Conversely, class diagrams address informa-

tion modeling but not interaction modeling. Classes

decompose objects based on their structural similari-

ties and not because of their shared or collaborative

activities and interactions. Role models overcome

this limitation by describing a system in terms of

their patterns of interaction, providing an abstraction

that is orthogonal to classes and objects. However,

they present a complimentary view on object inter-

action and do not aim replacing class models. Role

models, like class models, can be instantiated, spe-

cialized and aggregated into composite models,

promoting reuse in multiple contexts.

2.2 Roles and Process Modeling

In procedural and behavioral process models the

activities that are to be carried out by an actor are

spread around the process model because decompo-

sition focus on function, i.e. activities are decom-

posed into a hierarchy of functionally simpler sub-

activities. Nevertheless, for an actor to carry out its

activities, it needs to know what activities it must

take part in, in what order those activities must take

place, and what other actors or groups of actors it

must interact with. Ould proposed Role-Activity

Diagrams to overcome this issue (Ould 1995). Ac-

tivities in a RAD describe the interaction between

pairs of actor roles, from a driving to a target role.

By executing an interaction activity, both of the in-

teracting roles move to the next state in sequence. A

RAD may also represent other activity flows than

sequential, such as parallel and conditional. How-

ever, RADs only make use of a limited subset of the

role concepts discusses before which somewhat lim-

its the approach when used to capture context and

describe object relationships.

First, actors are the only concept that may play a

role. Thus, other concepts, such as entities, are not

modeled according to the different roles they also

play. Second, an actor role is defined by grouping

the set of activities the actor can execute in some

business process, thus describing its potential behav-

ior. However, the same actor may execute different

activities in different processes. By not capturing

this, reuse is not promoted and only macroscopic

roles are easily conveyed (e.g. an actor playing an

accounting role may interact with actors playing the

manufacturing and marketing roles; however the

actor behaves differently in each case, playing dif-

ferent sub-roles of accounting). Third, roles, as used

in RADs, are not abstracted as types or classes,

which hold back role specialization and reuse.

Recent approaches, such as Eriksson’s (2001),

have explicitly integrated the object-oriented para-

digm in business process modeling, making use of

an extended subset of the UML as a modeling nota-

tion. UML activity and collaboration diagrams are

used to represent the interaction between activities

(objects and classes), grouped as roles (swim lanes).

Activities, which are named with verbs, are descrip-

tions of work that form one logical step within a

business process. Activities are what organizational

actors “do” in their roles. However, a role is used

here with the same meaning of that of RADs, repre-

senting the macroscopic responsibilities of actors or

of organizational parties, grouping the set of activi-

ties representing some unit of responsibility.

3 ROLE-BASED BUSINESS PROCESS

MODELING

Role modeling has been adapted in software engi-

neering as an abstraction mechanism to improve

several analysis and design qualities of software

when compared to standard object oriented tech-

niques. These qualities include making models eas-

ier to understand and communicate, promoting re-

use, and facilitating model adaptation. However, role

model, as currently is used in business process mod-

eling, is short of achieving the same goals since it is

limited to grouping activities into roles, highlighting

the responsibilities of each organizational actor or

unit. Despite improving the understanding of how

responsibilities are specified, it is not enough for

capturing the context usage and behavior of business

objects. For that reason, a challenge in process mod-

eling is not only to understand how process activities

are operationally carried out, but also to allow the

universe of process modeling to the separated into

different areas of concern, each of which can then be

handled independently. This approach differs from

current modeling approaches that focus on describ-

ing context free representations of processes. The

remainder of this section describes the fundamental

concepts of an object-oriented framework for role-

based business process modeling.

3.1 Proposed Framework

An organization can be perceived as a set of busi-

ness objects, coordinated towards the achievement

of common goals. Business processes comprise a set

of orchestrated activities, which operate over organ-

izational entities, and are executed by human or me-

chanical actors in order to achieve goals.

Previously we have presented an object-oriented

framework for capturing the structural and flow as-

pects behind business goals, activities and the sup-

porting information system infrastructure (Vasconce-

BUSINESS PROCESS MODELING WITH OBJECTS AND ROLES

111

los 2001, Caetano 2003). This paper presents a meta-

model that allows describing the relationships of

business objects in a specific interaction context.

These concepts are represented as extensions to the

UML as a set of stereotypes. Stereotype declarations

are user-defined meta-elements that appear at the

model layer of the UML four-layer meta-modeling

hierarchy.

The core concept behind the model is that of

business object. A business object represents a thing

that is active in the business domain or organization.

It is modeled as a class. Business objects may relate

to other business objects. The semantics of a rela-

tionship is given by one or more roles.

A role defines the attributes or methods that are

relevant to be stated for the business object to be-

have in a certain way as expected by other business

objects, thus defining its observable behavioral as-

pect. Roles are organized into role models. A role

model defines the set of roles required for a business

Object to fulfill a collaboration.

An activity is a specialization of a business ob-

ject and describes how to perform a piece of work. It

corresponds to a verb in the business domain and is

performed by at least one actor. A business process

is an abstraction mechanism, comprising a set of

activities that create a result with some value for an

external or internal customer and contributes toward

the achievement of goals.

An entity is a specialization of a business object

and stands for a noun (e.g. product, document) or an

actor in the business domain. Entities usually play

the role of “resource” when relating to activities,

representing their capacity to be created, accessed,

modified, produced or consumed.

An actor is someone or something that can act in

the context of an activity. It can be cognitive (a per-

son) or mechanical (e.g. production machines and

computer systems, including workflow systems).

A goal is a specialization of entity describing a

measurable state that the organization intends to

achieve.

A constraint asserts conditions over business ob-

jects or roles, defining their behavior and relation-

ships (e.g. entity E may not play roles R and S si-

multaneously; activity A must be performed by actor

M).

These concepts can be represented as extensions

to the UML as a set of stereotypes, as shown in the

following two diagrams. Stereotype declarations are

user-defined meta-element that appears at the model

layer of the UML four-layer meta-modeling hierar-

chy. A stereotype is declared by specifying its name,

base class, tags and constraints (OMG 2003).

«metaclass»

Class

«stereotype»

Business Object

«stereotype»

Tags

role: «Role» [1..*]

constraint: «Constraint» [0..*]

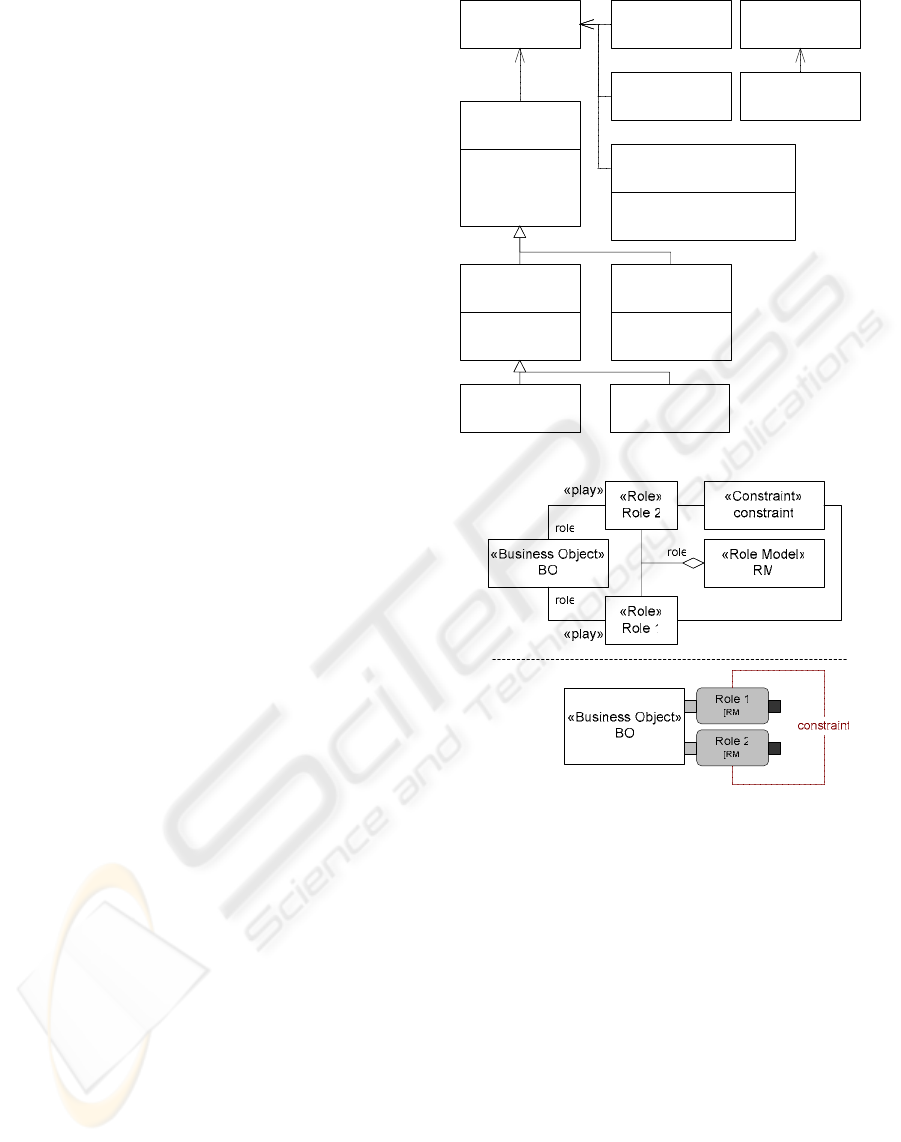

Figure 1. UML stereotype declaration.

Figure 2. Roles, role models and business objects. Full

notation (top). Compact notation (bottom).

Figure 1 represents the previously defined frame-

work concepts as stereotypes. Note that not all tags

and constraints are shown in the diagram for sim-

plicity. Figure 2 shows the full and compact notation

for associating business objects to roles on a specific

role model.

3.2 Examples

This section exemplifies the framework concepts

using two different scenarios. The first example

show how the association entities and activities can

be detailed. The second example focuses on a sim-

plified business process, emphasizing entity and role

modeling.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

112

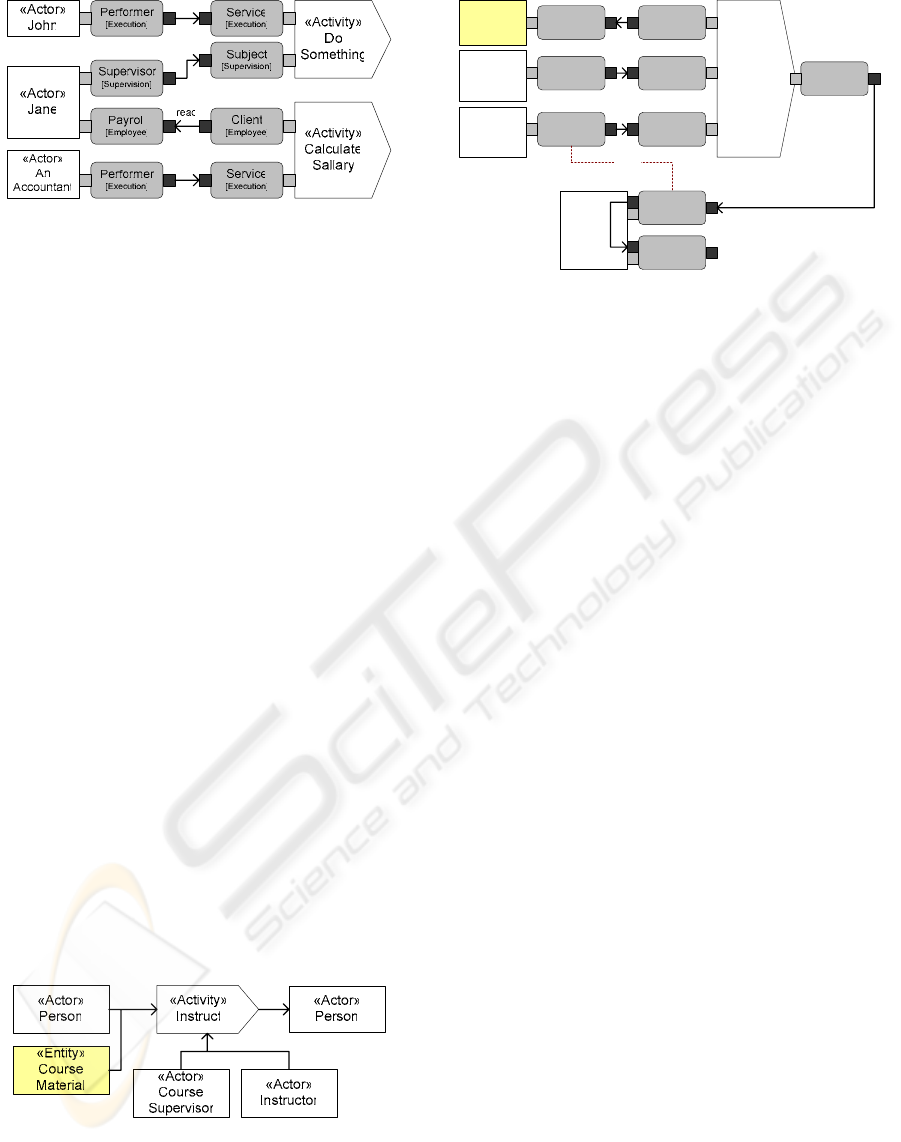

Figure 3. Actors and activities.

Figure 3 focuses on the relationships between

three actors and two activities. Three role models are

used by the business objects in this example: Execu-

tion, Supervision and Employee. A role model re-

lates roles required for an object to express some

behavior. For example, both actor John and actor

Accountant are performing a Service role in an Exe-

cution role model.

Actor Jane is playing roles from two different

roles models: supervision and employee. The Super-

vision role model relates the Supervisor and Subject

roles (meaning that a business object that is able to

play a Subject role can be supervised by some other

business object). The Employee role model relates

the Payroll and Client roles. Therefore, Jane is acting

as an actor supervisor of the activity “do some-

thing”. However, the same entity Jane is behaving as

a resource when her payroll information is being

accessed from the Calculate Salary activity. This

means that in perspective of activity “do some-

thing”, Jane is an actor, whereas from the “calculate

salary” activity, Jane is being regarded not as an

actor but as a payroll data resource.

Figure 4 depicts the top-level process for teach-

ing a course without roles. The goal of the process is

to enhance or add some skill to a person in a given

subject. To do so, the instruct activity uses course

material, is performed by an instructor and con-

trolled by a course supervisor. As an input, the proc-

ess takes an “unskilled” person and outputs the same

person in a “skilled" state (these states as well as the

corresponding transitions can be modeled with a

state machine).

Figure 4. Top-level process for course instruction.

However, the above diagram can be enhanced

with roles so that the behavior of each business ob-

ject is made clearer, as shown in Figure 5.

«Actor»

Course

Supervisor

«Activity»

Instruct

Subject

[Supervision]

Performer

[Instruction]

Supervisor

[Supervision]

Service

[Instruction]

Creator

[Instruction]

Instruct

[Instruction]

«Entity»

Course

Material

«Actor»

Person

Resource

[Instruction]

Client

[Instruction]

«Actor»

Instructor

Role

forbid

Figure 5. Top-level process for course instruction with the

roles played by each business object.

The role diagram depicts that the instruction ac-

tivity interacts with the trainee being instructed by

creating a new role on that person. In case the in-

struction activity did not add a new role to the actor,

then the situation would be modeled as the same

described in Figure 3, where payroll information is

read. In this case, the instruct activity would interact

with the actor through a resource role that, in its turn

would allow the actor’s skills to be updated accord-

ingly. A “forbid” constraint is defined between the

Performer and Creator roles, meaning that the actor

who is providing the services required for perform-

ing the instruction activity cannot be the same as the

target of the instruction activity (i.e. the trainee can-

not be the course instructor).

4 CONCLUSIONS AND FUTURE WORK

This paper has presented the fundamental concepts

required for building a role-based business process

model. These concepts were described as a UML

meta-model using a set of stereotypes. To illustrate

the concept usage, two examples were shown which

focused separating different concerns while model-

ing business objects. The approach here presented

relies on specifying individual business objects and

making the collaborations between these dependent

on the usage context. This is accomplished by defin-

ing and reusing roles that are assigned to business

objects and composed in role models. The examples

shown on this paper aim emphasizing that roles can

be used to detail the collaboration patterns between

business objects.

We are currently using these concepts in real or-

ganizations to enhance object-oriented representa-

tions of complex business processes. However, sev-

eral areas that we are currently researching make

direct usage of the concepts here presented. We em-

phasize activity-actor modeling and role reuse.

BUSINESS PROCESS MODELING WITH OBJECTS AND ROLES

113

Activity-actor modeling deals with describing

how an actor (such as a person, an information sys-

tem or a web service) providing a set of services is

supporting the execution of an activity, which, in

turn, requires another set of services for successfully

being completed. These service contracts can be

specified as role models. A role binds an actor to an

activity during a specific collaboration, while ob-

serving business constraints. A service is then a fea-

ture of an actor that enables her to execute an activ-

ity. The goal of such modeling is to provide the

means to analyze the current situation of an organi-

zation and identifying requirements for future sce-

narios.

Role modeling can be used to promote reuse at

role level instead of business object level. Since be-

havior is not activity-dependent, reuse is enabled at a

role-level basis, as opposed to activity or process

level as it often happens in process modeling. It is

common that activities are identified and modeled

by depicting either control flow (representing the

orchestration of activities) or data flow. However, a

resource is repeatedly used in multiple different con-

texts, in the same process or by different processes,

which makes difficult identifying opportunities for

reuse. This arises either from modeling the resource

as a different business object on each different sce-

nario it occurs, or because the resource ends up a

specific and complex object. Moreover, resource or

entity modeling is essential not only to business

modeling but also during the requirements identifi-

cation of the software that supports and evolves with

the business. Entities or resources assigned to proc-

esses specify who has to work on the activity and

what will be needed. However, current approaches to

entity modeling offer only a set of simple features

for the descriptions of resources and do not explic-

itly address separation of concerns to facilitate re-

source aspect reuse or minimizing and enclose the

number and location of changes at the supporting

information systems caused by business process

redesign. For example, in UML, resources are not a

specific language feature; and Scheer’s (1999)

event-driven process chains do not include construct

for specifically modeling resources, which have to

be modeled using entity-relationship diagrams. In

this perspective, role modeling can facilitate re-

source and entity modeling and later reuse by identi-

fying the set of intrinsic roles and role models.

REFERENCES

Aalst, W., Hee, K. (2002). Workflow Management -

Models, Methods, and Systems. MIT Press.

Biddle B., Thomas E. (1979). Role Theory: Concepts and

Research. Kluwer,.

Caetano A., Vasconcelos A., Sinogas P., Mendes R.,

Tribolet J., 2003. A Business Process Oriented

Framework. Information Resources Management

Association International Conference, Philadelphia,

USA.

Curtis B., Kelner M., Over J. (1992). Process Modeling.

Communications of the ACM, Vol. 35, No. 9, pp. 75-

90, 1992.

Eriksson H., Penker M. (2001). Business Modeling with

UML: Business Patterns at Work. OMG Press.

Gottlob G., Schrefl M., Röck B.m (1996). Extending

Object-Oriented Systems with Roles. ACM

Transactions on Information Systems, 14. 268-296.

Halpin, T. (2001). Augmenting UML with Fact-

orientation. Proceedings of the HICCS-34 Conference.

ISO (1995). ISO/IEC 10746 International Standards

Organization, ODP Reference Model, ISO.

Kendall E. (1998). Agent Roles and Role Models: New

Abstractions for Multiagent System Analysis and

Design. International Workshop on Intelligent Agents

in Information Management.

Leymann F., D. Roller, M-T. Schmidt (2002). Web

Services and Business Process Management. IBM

Systems Journal, Vol. 41, No. 2.

McGowan C., Bohmer L. (1993). Model-based business

process improvement. 15

International Conference

on Software Engineering, IEEE Computer Society

Press.

OMG (2003, March). Unified Modeling Language

Specification. Version 1.5, formal/03-03-01.

Ould M. (1995). Business Processes: Modeling and

Analysis for Reengineering and Improvement. John

Wiley and Sons.

Scheer, A.-W. (1999). ARIS - Business Process Modeling.

edition, Springer.

Vasconcelos A., Caetano A., Neves J., Sinogas P., Mendes

R., Tribolet J. (2001). A Framework for Modeling

Strategy, Business Processes and Information

Systems. EDOC 2001, IEEE Computer Society Press.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

114
