VISUALIZING SOFTWARE PROJECT ANALOGIES TO SUPPORT

COST ESTIMATION

Martin Auer, Bernhard Graser, Stefan Bifﬂ

Institute for Software Technology

Vienna University of Technology

Keywords:

Software project portfolio, portfolio decisions, portfolio visualization, multidimensional scaling, analogy-

based cost estimation.

Abstract:

Software cost estimation is a crucial task in software project portfolio decisions like start scheduling, resource

allocation, or bidding. A variety of estimation methods have been proposed to support estimators.

Especially the analogy-based approach—based on a project’s similarities with past projects—has been re-

ported as both efﬁcient and relatively transparent. However, its performance was typically measured automat-

ically and the effect of human estimators’ sanity checks was neglected.

Thus, this paper proposes the visualization of high-dimensional software project portfolio data using mul-

tidimensional scaling (MDS). We (i) propose data preparation steps for an MDS visualization of software

portfolio data, (ii) visualize several real-world industry project portfolio data sets and quantify the achieved

approximation quality to assess the feasibility, and (iii) outline the expected beneﬁts referring to the visualized

portfolios’ properties.

This approach offers several promising beneﬁts by enhancing portfolio data understanding and by providing

intuitive means for estimators to assess an estimate’s plausibility.

1 INTRODUCTION

Cost and effort estimation (Jones, 1998; Boehm,

1981; Conte et al., 1986) is a ubiquitous task

in software project environments, which are typi-

cally multi-project environments or software project

portfolios. High-quality estimates are fundamental

to stakeholders—success-critical project participants

like project and portfolio managers, as well as quality

managers—in making a variety of prominent software

project portfolio decisions, for example, in the quota-

tion phase and bidding process, in resource allocation,

in project start scheduling, or in risk management. Es-

timation quality thus greatly affects a project portfo-

lio’s performance—high-quality estimates are vital in

making portfolio decisions.

Estimates are typically created in a variant of a

generic estimation process depicted in ﬁgure 1 (a

more detailed process is proposed by (Agarwal et al.,

2001)). The process is inﬂuenced by a variety of fac-

tors (data quality, estimators’ expertise, used mod-

els, portfolio environment, etc.)—yet much research

effort tries to automatically assess tools’ or meth-

ods’ estimation performance as measured by accuracy

metrics (Shepperd and Schoﬁeld, 1997).

While yielding important insights, these ap-

proaches are not sufﬁcient to achieve much-needed

high quality estimation, for two reasons:

• The estimator’s inﬂuence is not addressed. Ev-

ery estimate must ﬁnally be approved by the de-

cision maker—as (Stensrud and Myrtveit, 1998)

point out—, which greatly affects the results es-

pecially in case of outliers or unlikely estimates,

where the mere automatic application of estimation

tools notoriously fails.

• In addition to the often-used effectiveness criteria

like accuracy and reliability, many other, secondary

criteria must be addressed as well. Efﬁciency cri-

teria (estimation effort, learning effort), usability

(both to novices and experts), transparency of the

model etc. greatly affect the acceptance of cost es-

timation methods and processes; if not addressed

properly, decision makers will not apply the pro-

posed approaches. (Hihn and Habib-Agahi, 1991)

describe how few methods are actually applied in

industrial environments; (Shepperd and Schoﬁeld,

1997) indicate that some complex estimation meth-

Auer M., Graser B. and Bifﬂ S. (2004).

VISUALIZING SOFTWARE PROJECT ANALOGIES TO SUPPORT COST ESTIMATION.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 61-68

DOI: 10.5220/0002651200610068

 SciTePress

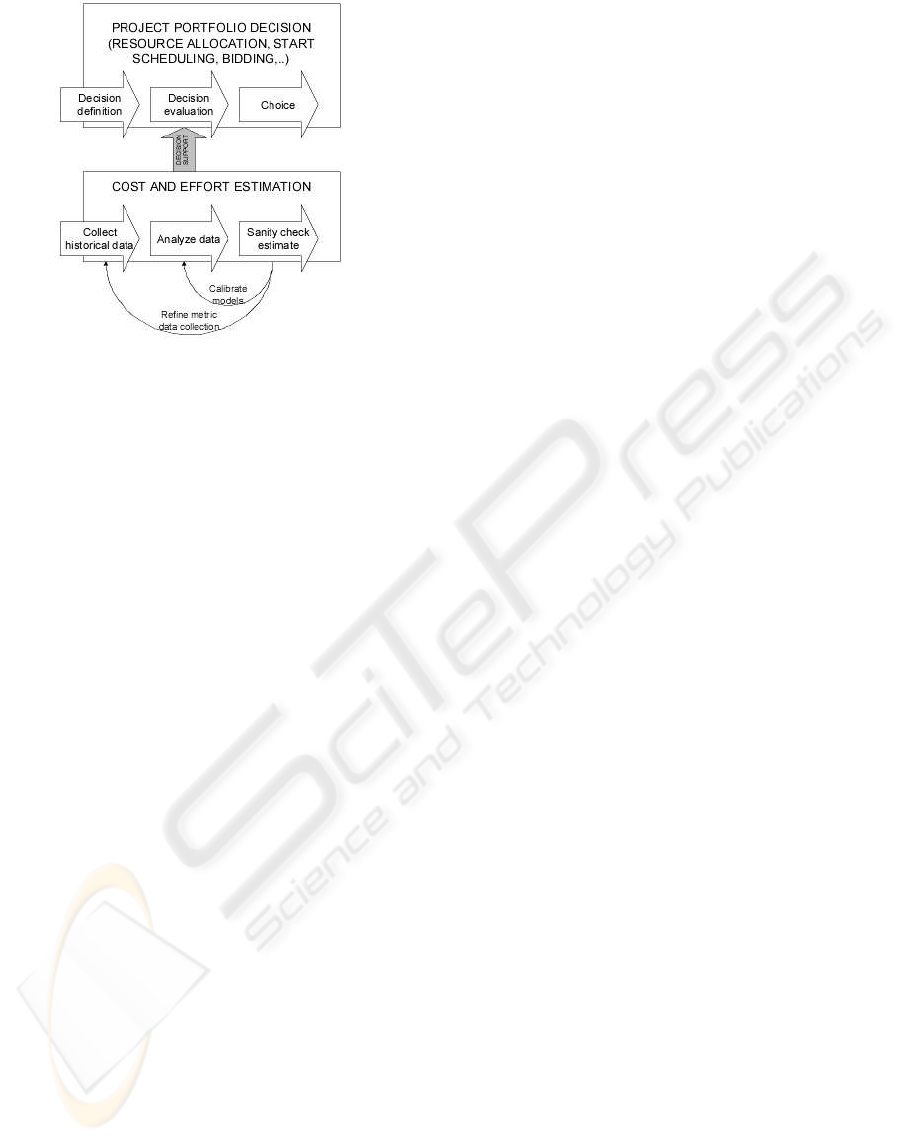

Figure 1: Estimation in portfolio decision making

ods often provide little insight on why a speciﬁc es-

timate is proposed, which may be a reason for their

lack of acceptance.

The estimator’s performance and the acceptance

and transparency of the method or process are thus

elementary to achieve high-quality estimates. There-

fore, the presentation of the model and portfolio data

to the estimator becomes fundamental. Unfortunately,

people are generally not performing well at analyzing

typical raw project portfolio data—high-dimensional

data sets—, due to the high search effort to link the

data items literally spread out in a spreadsheet for-

mat. According to (Robinson and Shapcott, 2002),

the assimilation of such information is not intuitive

while visualization aids the understanding. Accord-

ing to (Larkin and Simon, 1987), features are often

more easily extracted from diagrams than from tab-

ular or sentential representations, because some dia-

gram types can group together related concepts, while

tabular representations may store related items in sep-

arate areas, resulting in higher search efforts for link-

ing concepts.

Standard methods to handle such high-dimensional

data (like regression analysis or traditional analogy-

based approaches) propose estimates, but it is difﬁcult

to understand if the result can be trusted—estimators

do not know how conﬁdent they can be with an esti-

mate proposal.

To overcome these fundamental analysis and

recognition difﬁculties, this paper aims at applying

advanced visualization methods to project portfolio

data. Multidimensional scaling methods are applied

to visualize high-dimensional data in two or three

dimensions; this way, the project portfolio data be-

comes understandable as the data is clustered visu-

ally, yielding an immediate aggregate overview of the

portfolio. The visualization relies on the concept of

similaritiy or analogy between projects, which can

be expressed using similarity (or dissimilarity) val-

ues between the n projects—n(n − 1)/2 values in the

symmetric case—, or Minkowski distance functions

on the projects’ features, i. e., the data dimensions.

This paper proposes an MDS-based user interface

to high-dimensional project portfolio data to support

software cost estimation. It applies this approach to

several real-world industry project portfolio data sets

and it quantiﬁes the MDS approximation quality. Fi-

nally, it outlines promising beneﬁts by referring to vi-

sualized project portfolio properties.

This approach should give estimators an intuitive

insight into portfolio data and exploit human cogni-

tion and pattern processing, thus achieving an effec-

tive, efﬁcient and accepted estimation method, as well

as a better understanding of the correlation between

data characteristics and estimation methods’ accura-

cies.

• People can immediately assess the structure of

portfolio data, especially the clusters of similar

projects—this eases identiﬁcation of outliers or un-

usual project behavior and allows for higher esti-

mation accuracy and reliability. In addition, an es-

timate’s conﬁdence can easily be determined, for

example, when the project to be estimated is sim-

ilar to a large, dense cluster of projects perform-

ing similarly the estimator can be conﬁdent with an

analogy-based estimate proposal.

• The method is visual, the mathematical model

transparent, the process fast and easy-to-learn—

this should guarantee high acceptance and low es-

timation effort. The interactive playing with the

data set—i. e., choosing subsets of the data dimen-

sions, zooming in on particular interesting project

clusters—will enhance portfolio understanding and

inﬂuence portfolio measurement.

More strictly, this papers outlines expected beneﬁts

in the areas of model transparency, portfolio overview

and understanding, selection of methodology, oper-

ational data handling, and estimation conﬁdence as-

sessment.

Section 2 refers to related work in the areas of cost

estimation and MDS. Section 3 outlines the MDS ap-

proach and some quantitative criteria for assessing

the approximation quality. Section 4 applies MDS to

some real-world industrial project portfolio data sets.

Section 5 discusses the potential beneﬁts of the pro-

posed visualization in the area of software cost esti-

mation. Section 6 gives an outlook on further research

directions in this ﬁeld.

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

2 RELATED WORK

Different approaches to software effort prediction

have been proposed—algorithmic models like CO-

COMO 2 have been proposed by (Boehm, 1981), neu-

ral networks are used by (Boetticher, 2001), other

methods rely on regression analysis (e.g., (Schroeder

et al., 1986)).

Several studies compare the different approaches’

performance. (Kemerer, 1987) reports potentially

high error rates for COCOMO of up to 600 percent.

(Briand et al., 2000) compare different cost estima-

tion techniques. The results illustrate the importance

of deﬁning appropriate similarity measures—without

them the analogy method is outperformed by other

methods. (Wieczorek and Ruhe, 2002) have investi-

gated the question whether multi-organizational data

is of more value to software project cost estimation

than company-speciﬁc data. Different methods like

analogy, ordinary least squares (OLS) regression, and

analysis of variance between groups (ANOVA) were

used to predict costs for a large portfolio of multi-

organizational project data. Results showed that if

a company’s project portfolio contains homogenous

data, more accurate results can be achieved by ana-

lyzing the company’s own data than by using large

portfolios from external sources.

(Shepperd and Schoﬁeld, 1997) compare analogy-

based approaches to regression analysis. Estimation

results for regression methods and analogy are com-

pared using a jack-kniﬁng approach: one project is

taken from the portfolio, its effort is predicted based

on the remaining data, then the predicted effort is

compared to the project’s real effort; this is repeated

for all projects. The result of this experiment was

that analogy outperforms regression in most circum-

stances.

(Myrtveit and Stensrud, 1999), however, come to a

different conclusion. The authors design an environ-

ment where experienced and less experienced estima-

tors have to estimate project effort using regression

analysis or an analogy-based approach. A main result

is that both regression and analogy can substantially

improve an estimator’s performance, but that regres-

sion analysis is not outperformed by analogy.

Several publications point out the importance of

graphical representations in data mining environ-

ments (Thearling, 2001). According to (Robinson

and Shapcott, 2002) the assimilation of unprepared,

tabular information is not intuitive and visualization

therefore aids the understanding and the extraction of

features. According to (Larkin and Simon, 1987) cer-

tain features are more easily extracted from diagrams

than from tabular or sentential representations as dia-

grams can group together related concepts more eas-

ily than tabular representations. Tables may store re-

lated items in separate areas, which results in higher

search effort to link concepts.

Joseph B. Kruskal, a psychometrist, was one of the

ﬁrst to work with MDS and authored many of the

early publications (Kruskal, 1964a; Kruskal, 1964b;

Kruskal and Wish, 1978). (Leeuw, 2001) offers a

general introduction to MDS. Application ﬁelds for

MDS, the different types of MDS, the different loss

functions and algorithms are presented along with ex-

amples to illustrate the theoretical information. An-

other introductions to MDS is given (Borg and Groe-

nen, 1996).

MDS is used in a wide ﬁeld of science disciplines.

(Coxon and Davies, 1982) present a collection with

many of the classical MDS papers. (Clouse and Cot-

trell, 1996) apply MDS methods to the ﬁeld of infor-

mation retrieval. (Goodhill et al., 1995) use MDS for

understanding brain connectivity.

Finally, early research results (Auer et al., 2003) in-

dicate the feasibility of the proposed approach for sev-

eral portfolio decisions and point out speciﬁc appli-

cations, especially cost estimation and portfolio stan-

dard compliance visualization.

3 VISUALIZING

HIGH-DIMENSIONAL DATA

This section sums up the method of MDS and ex-

plains quantitative and graphical criteria for assessing

its approximation quality.

MDS is a method to transform high-dimensional

data to lower dimensions—usually in order to visu-

alize it (e. g., with 2D-charts). MDS is based on

the analogy or similarity of the visualized entities—

in this case, software projects—, which are described

as a vector of attributes or features. Originating from

mathematical methods in psychology, MDS is gain-

ing popularity in different areas such as medicine and

knowledge management. We describe the procedure

of preparing portfolio data, as well as an MDS tool in

(Auer et al., 2003).

In particular, MDS offers several advantages over

other multivariate statistical methods, as it (i) sup-

ports non-continuous, i.e., ordinal, data, (ii) allows

for missing values, and (iii) makes no assumptions on

the underlying data’s distribution. These properties

match typical properties of real-world data sets well.

The remaining section describes the following

steps in applying MDS:

1. Prepare the portfolio data by selecting or weight-

ing the data dimensions to cluster projects using the

relevant dimensions.

2. Compute project dissimilarities to provide the input

to the MDS visualization.

VISUALIZING SOFTWARE PROJECT ANALOGIES TO SUPPORT COST ESTIMATION

3. Visualize the dissimilarities using dedicated MDS

tools.

4. Quantitatively assess the approximation quality of

the MDS visualization and verify if the quality is

within the boundaries of the MDS literature.

Sets of objects—in this case, projects—are charac-

terized by the dissimilarities, i.e., distance-like quan-

tities. The dissimilarities are denoted as δ

and are

usually deﬁned in a n × n dissimilarity matrix. The

importance of a dissimilarity δ

can be reﬂected by

its weight w

. Distances in the lower-dimensional

space R

are denoted as d

(X), with the conﬁgura-

tion X representing the m coordinates of n entities in

the m-dimensional space.

In order to compute the project dissimilatities, usu-

ally the Euclidean distance function is applied to two

projects’ features, where the feature values are ﬁrst

normilized to [0 − 1], and w

= 1 (Note: in our case

the features used to calculate the dissimilarity did not

include the feature “effort”; this so-called target fea-

ture is depicted on the resulting MDS visualization).

However, each feature or dimension would have the

same impact on the dissimilarity, which is unlikely.

One approach to weight the dimensions is to use a

brute force approach to weigth all dimension combi-

nations and to assess each combinaion’s mean magni-

tude of relative error (MMRE) value. A special case

is weighting all combinations with 0 and 1, which is

equivalent of selecting dimensions.

After selecting the dimensions’ weights, the dis-

similarity matrix can be computed using the Eu-

clidean distance on the project dimensions, yielding

the dissimilarity matrix. Then, tools are used to it-

eratively transform this matrix to coordinates in the

lower-dimensional space R

In order to assess the approximation quality of an

MDS visualization, a so-called stress value can be

used. It compared the values of the original dissim-

ilarities with the lower-dimensional distances to as-

sess the degree, to which the new distances repre-

sent the original analogies or similarities in the high-

dimensional feature space.

One example of a stress value function is Kruskal’s

stress-1; it gives the quality of the representation

based on the square root of the squared errors of the

representation compared with the disparities, divided

by the sum of the squared distances on the represen-

tation:

i<j

(δ

− d

)

i<j

There is no general agreement on which value is

acceptable; different authors deﬁne their own crite-

ria. According to Kruskal’s rule of thumb (Kruskal,

1964a), a Kruskal stress-1 value of 0.2 reﬂects a poor

ﬁt between the distances and the dissimilarities, while

a value of 0.1 is considered fair, 0.05 is good, 0.025

excellent and 0 is perfect.

A more detailed analysis is possible with Shepard

diagrams; they visualize original project dissimilar-

ities vs. distances in the two-dimensional graphical

representation. Good approximations therefore pro-

duce almost linearly aligned data points.

4 INDUSTRIAL PORTFOLIO

DATA

In this section several high-dimensional real-world

project portfolio data sets available in the public do-

main are visualized two-dimensionally using MDS. In

addition, the approximation quality is assessed quan-

titatively and graphically. Please refer to the refer-

ences given in table 1 for the original data sources.

Data sets could have been visualized using all the

given dimensions; however, several dimensions con-

tribute little or nothing to the clustering of projects.

In the ﬁrst step, the original number of dimensions

was thus reduced by performing a brute-force search

to achieve the optimal subset of dimensions. For this

task we used the tool ArchANGEL

to select the sub-

set of dimensions that minimizes the mean magnitude

of relative error (MMRE) measure in a jack-kniﬁng

analysis. The MMRE value indicates how good an es-

timation approach is likely to perform in terms of ac-

curacy or error percentage of estimated effort, in our

case, ArchANGEL’s analogy-based approach. How-

ever, this error value should rather be used to compare

different approaches applied to the same data set, as it

highly depends on the underlying portfolio data prop-

erties. Note, that the brute-force approach searches all

combinations of dimensions by weighting them with

either 0 or 1. A better result could be achieved by us-

ing a larger set of weight factors, for example (0, .25,

0.5, 0.75, 1).

In addition, dimensions describing project length

or duration were excluded as these values are unlikely

to be known at time of estimation.

Table 1 gives an overview of the data sets, giv-

ing the original number of data dimensions (includ-

ing the feature “effort”), the optimal number of data

dimensions according to ArchANGEL’s procedure of

searching all possible combinations of dimensions

(excluding the feature “effort”), and the resulting

MMRE value.

In the second step, the standard Euclidean distance

function was applied to the normalized values of the

selected features to calculate the dissimilarity matrix.

This was performed by a custom spreadsheet macro.

http://dec.bmth.ac.uk/ESERG/ANGEL.

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

Table 1: Visualized data sets

Data set Dimensions Subset MMRE

Albrecht

(Albrecht and Gaffney, 1983)

5 4 0,635

Desharnais 1

(Desharnais, 1989)

9 1 0,368

Desharnais 2

(Desharnais, 1989)

9 3 0,388

Desharnais 3

(Desharnais, 1989)

9 3 0,343

Kemerer

(Kemerer, 1987)

2 1 0,676

Table 2: Stress values

Data set 2D stress 3D stress

Albrecht

0.051 0.019

Desharnais 2

0.007 -

Desharnais 3 0.021 -

In step 3, the dissimilarities were visualized using

MDS (Note: only if the number of selected dimen-

sions was greater than 2). In this paper Addinsoft’s

Excel plug-in XLSTAT 6.1 and Miner3D were used.

Finally, table 2 lists the stress values of the data

sets with more than two dimensions to be visualized.

According to Kruskal’s rule of thumb (see previous

section), the given visualizations are between good

and excellent with respect to the approximation to the

original data; the Shepard diagrams support this im-

pression.

Figure 2 depicts the MDS visualization of Al-

brecht’s data set. As it can be seen, several projects

(depicted in the left-hand part of the graph) are fairly

different, thus distant, from the other projects. These

projects (1, 2, 20) also have the highest effort values

of the portfolio. The project arranged more densely

on the graph’s right-hand part are more similar to each

other, but still contain several outliers with respect to

their effort value, for example, project 5.

Figure 3 displays the Shepard diagram for this

MDS visualization. It seems to support the impres-

sion of an good overall approximation quality.

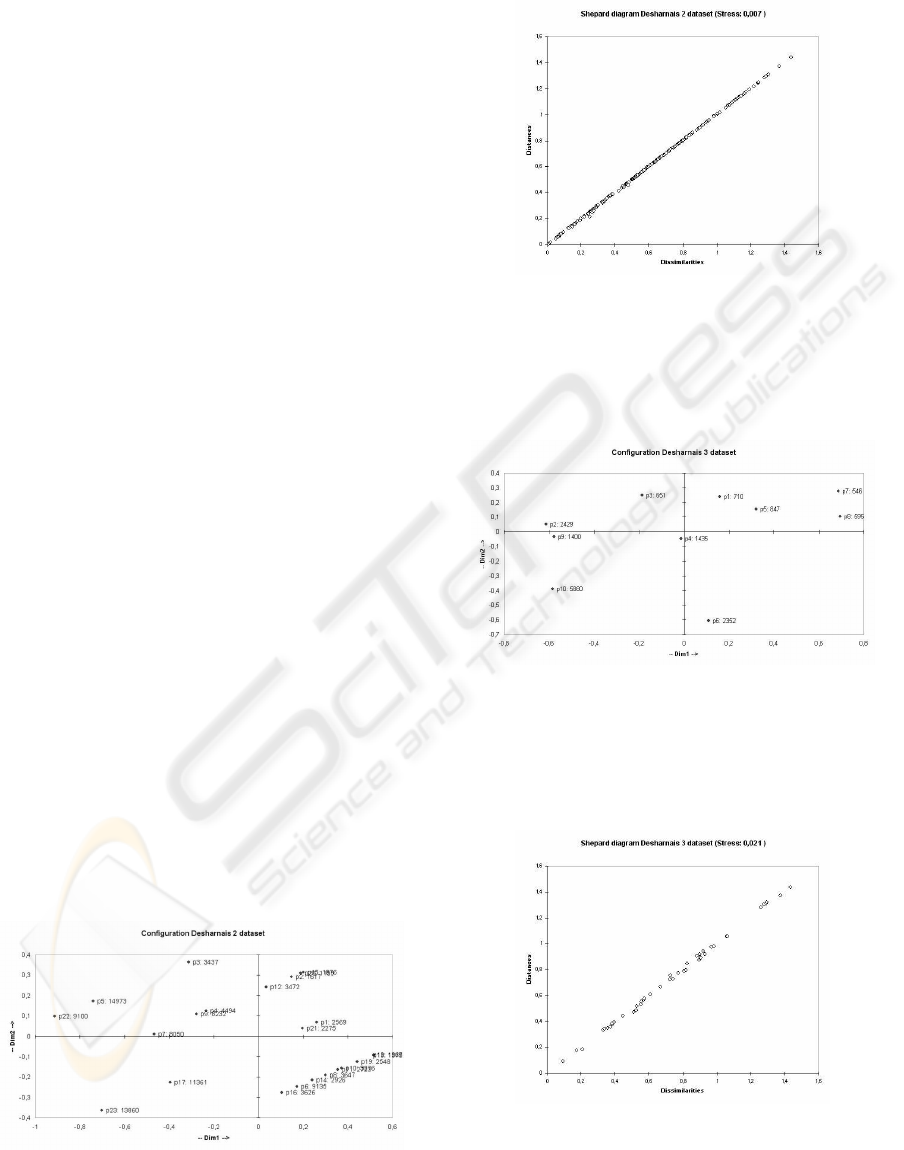

Further ﬁgures (MDS visualizations of the Deshar-

nais 2 and 3 data sets in tables 4 and 6; the respective

Shepard diagrams in tables 5 and 7) are given in the

appendix.

It is important to point out some limitations of

the analogy-based approach and its visualization us-

ing MDS. First, the collected portfolio measurement

data should be consistent. If collected by different

persons using different procedures, data quality can

be compromised; analysis relying on it has to fail.

In our case, existing portfolio data sets were visual-

ized, with little context information available about

the data quality. Applying analogy-based approaches

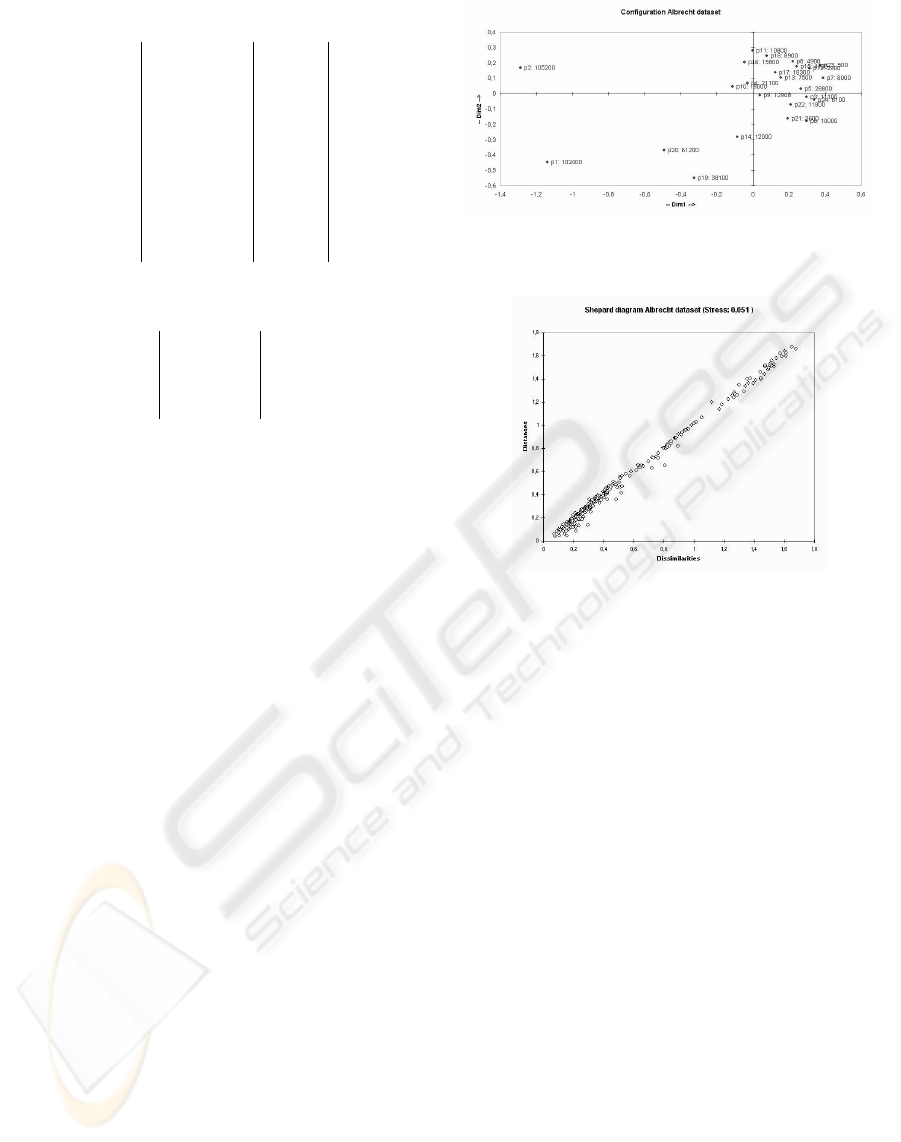

Figure 2: 2D MDS visualization of Albrecht data

Figure 3: Shepard diagram of Albrecht data set

and MDS in an industrial environment would require

careful data collection and veriﬁcation procedures to

ensure data quality.

Furthermore, some portfolios might not be suited

for analogy-based analysis, especially if they com-

prise of mostly innovative projects, involving mainly

new, unknown technology—the concept on analogy is

simply not well-suited in environments dealing with

singular projects.

5 DISCUSSION AND BENEFITS

Although there are many different approaches to sup-

port people in estimating software project efforts

(e.g., formal models like COCOMO 2, neural net-

works, regression analysis, etc.), few of them are ac-

tually applied in typical industrial environments. Sev-

eral reasons can be identiﬁed—software projects typi-

cally involve substantial parts with new and unknown

technologies and tools; often, the relevant constraints

to a development project is quality rather than effort,

and deadlines can be inﬂuenced by corporate politics

as much as by precise estimations; not to forget, es-

timation needs to rely on measurement data which is

costly and time-consuming to obtain.

VISUALIZING SOFTWARE PROJECT ANALOGIES TO SUPPORT COST ESTIMATION

However, one important reason is certainly that

many proposed methods lack of transparency and ac-

cessibility. Especially methods like neural networks

give little insight on how they reach a certain estimate

and do little to foster portfolio measurement data un-

derstanding.

But even seemingly simpler methods like analogy-

based approaches can be improved in providing hu-

man estimators with context information. Analogy-

based methods rely on similarities between projects

expressed as distances between high-dimensional fea-

tures or attribute sets. Humans, however, are not

particularly good at analyzing high-dimensional data

without the aid of visualization techniques. Thus,

simple tools supporting analogy-based methods like

spreadsheet applications are severely delimited. Even

dedicated tools like ArchANGEL offer only slightly

better results—e.g., they relieve the burden of time-

consuming and error-prone tasks like normalizing the

measurement data—but their result is again a list of n

projects/feature sets. The degree of the projects’ sim-

ilarities, as well as the structure of the project clusters

and thus valuable addition information is not given.

This paper proposed to enhance analogy-based ap-

proaches by visualizing high-dimensional portfolio

measurement data with multidimensional scaling. In

many circumstances, this is a feasible method to re-

produce high-dimensional feature sets graphically;

the approximation quality can be measured by the

stress value. Data sets with 6 and more dimensions

were visualized successfully within reasonable stress

boundaries given in (Kruskal, 1964a).

The beneﬁts of visualizing portfolio data are mani-

fold:

• Transparency. The proposed method is straight-

forward and transparent; even estimators not ac-

quainted with it immediately grasp the process and

the visualizations’ implications. We are aware of

several instances in industrial environments where

estimation was hindered by its relation to software

measurement being perceived differently by var-

ious stakeholders—by applying MDS to multidi-

mensional data, the connection between metrics

and result becomes transparent, and measurement

procedures are easier to agree upon. Finally, as no

model conﬁguration or difﬁcult-to-reproduce algo-

rithms are involved, users are far more likely to ac-

cept and apply this method in the ﬁrst place.

• Overview. MDS gives the user a visualization with

a high information density. It is therefore easy to

gain a fast overview of a project portfolio’s proper-

ties, for example, its project cluster structures and

sizes. If based on the same metrics, the method al-

lows for a fast comparison of different portfolios—

the portfolios’ entropy properties are visualized in

a highly intuitive way.

For example, while the projects in the Desharnais

2 data set form some clusters (see ﬁgure 4), the

projects in the Desharnais 3 data set are less cou-

pled.

• Methodology. Several publications comparing es-

timation methods indicate that no method can gen-

erally be regarded as the best one; a method’s per-

formance depends highly on the underlying portfo-

lio data properties. Visualizing the data can help es-

timators to assess whether it is reasonable to apply

analogy-based methods in a speciﬁc circumstance

or whether a particular project cluster structure is

unlikely to yield high-quality analogy-based esti-

mates. This could happen if the project to be es-

timated is distant to relevant project clusters, if the

nearest cluster is very small, or if the effort variance

in the nearest cluster is too high. In that case, other

methods, like regression analysis, could be used to

overrule the analogy-based estimate.

For example, projects 6 and 10 in the Desharnais

3 data set (see ﬁgure 6) should probably not be es-

timated using the analogy-based approach as they

are distant to the rest of the projects.

• Operation. The task of analyzing analogies in

portfolio data involves identifying similar project

feature sets. This can be performed fast and re-

liably on a visual representation of the data, espe-

cially as the criteria are varying (e.g., in some cases

a larger cluster could be used as basis for the es-

timate if it is dense, while in other cases instead

of a ﬁxed number of similar projects only one or

few should be used due to a portfolio’s high en-

tropy). Outliers, which can degrade the estimate’s

quality considerably, can be identiﬁed and removed

easily—both projects that are distant to all other

projects, and projects that are within a cluster but

behave differently with regard to the related effort

value. It would be possible to enhance conven-

tional tools to perform similar tasks, for example,

by making them conﬁgurable using threshold val-

ues for distances and cluster homogeneity, but this

would make the tool far less transparent and acces-

sible.

For example, project 5 in the Albrecht data set (see

ﬁgure 2) should probably not be allowed to inﬂu-

ence estimates of nearby projects—its high effort

value should ﬁrst be analyzed to decide if this is a

valid project to compare other projects to.

• Conﬁdence. Finally, the beneﬁts mentioned above

(method transparency and user acceptance; coarse

portfolio overview and understanding; assessment

of a methodology’s suitability; easy data selection

and manipulation) contribute to increase the conﬁ-

dence in a particular estimation. Usually, estima-

tion methods were compared using accuracy and

reliability measures; they did not take into account

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

the conﬁdence an estimator had in its estimate at

the time of estimation. The transparency of the pro-

posed visual support is likely to increase this con-

ﬁdence, which should allow—in many cases—to

agree on more narrow estimates.

For example, the lower right project cluster of the

Desharnais 2 data set (see ﬁgure 4) seems—despite

some outliers—to increase conﬁdence in an effort

estimate range between 2500 and 3500.

6 CONCLUSION AND FURTHER

RESEARCH

MDS provides a transparent method to visualize high-

dimensional data and to analyze analogies or similari-

ties intuitively. In this paper we propose portfolio data

preparation steps for an MDS visualization of high-

dimensional project portfolio data, we visualize sev-

eral real-world data sets and assess the achieved ap-

proximation quality, and we outline several beneﬁts

of the approach referring to concrete portfolio prop-

erties.

Main ﬁndings are that the approximation quality is

within reasonable boundaries given in the MDS liter-

ature, and that cost estimation can indeed beneﬁt sub-

stantially from MDS—speciﬁc beneﬁts include better

transparency of the analogy-based approach, a better

understanding of a portfolio’s data properties, thus,

easier assessment of the validity of analogy-based ap-

proaches in speciﬁc circumstances, easier data han-

dling and project selection, and ﬁnally, higher conﬁ-

dence in estimates.

However, many aspects have to be reﬁned and will

be addressed in future research efforts. First, weight-

ing portfolio data dimensions using brute force could

be extended from the current appoach to ﬁne-grained

weight levels. Second, user interface issues will be

addressed to facilitate cluster analysis, for example,

providing easy access to project cluster mean and

variance values. Finally, quantitative measures for es-

timation conﬁdence will be deﬁned to assess the value

of the visualization for the estimators, for instance, by

weighting estimates’ accuracies (post-project) with

the estimators’ corresponding conﬁdence values in

these estimates (pre-project).

To sum up, this and future research aims at support-

ing decision makers in the crucial task of cost estima-

tion, by providing transparent and intuitive means to

analyze portfolio data and assess estimates’ plausibil-

ity.

REFERENCES

Agarwal, R., Kumar, M., Yogesh, Mallick, S., Bharadwaj,

R. M., and Anantwar, D. (2001). Estimating software

projects. Software Engineering Notes, 26(4):60–7.

Albrecht, A. J. and Gaffney, S. H. (1983). Software func-

tion, source lines of code and development effort pre-

diction: A software science validation. IEEE Trans-

actions of Software Engineering, 9(6):639–48.

Auer, M., Graser, B., and Bifﬂ, S. (2003). An approach to

visualizing empirical software project portfolio data

using multidimensional scaling. In Proceedings of the

IEEE International Conference on Information Reuse

and Integration Paper Notiﬁcation (IRI 2003).

Boehm, B. W. (1981). Software Engineering Economics.

Prentice Hall.

Boetticher, G. D. (2001). Using machine learning to predict

project effort: Empirical case studies in data-starved

domains. In Proceedings of the Model Based Require-

ments Workshop, pages 17–24.

Borg, I. and Groenen, P. (1996). Modern Multidimensional

Scaling: Theory and Applications. Springer.

Briand, L. C., Langley, T., and Wieczorek, I. (2000). A

replicated assessment and comparison of common

software cost modeling techniques. In Proceedings

of the 22nd International Conference on Software En-

gineering (ICSE’00), pages 4–11, Limerick, Ireland.

Clouse, D. and Cottrell, G. (1996). Discrete multi-

dimensional scaling. In Cottrell, G., editor, Proceed-

ings of the 18th Annual Conference of the Cognitive

Science Society (COGSCI’96), pages 290–4.

Conte, S. D., Dunsmore, H. E., and Shen, V. Y. (1986).

Software Engineering Metrics and Models. Ben-

jamin/Cummings.

Coxon, A. and Davies, P. (1982). Key Texts in Multidimen-

sional Scaling. Heinemann.

Desharnais, J. M. (1989). Analyse statistique de la produc-

tivitie des projets informatique a partie de la technique

des point des fonction. Master’s thesis, Univ. of Mon-

treal.

Goodhill, G., Simmen, M., and Willshaw, D. (1995). An

evaluation of the use of multidimensional scaling

for understanding brain connectivity. Philosophical

Transactions of the Royal Society, B 348:265–80.

Hihn, J. and Habib-Agahi, H. (1991). Cost estimation of

software intensive projects: A survey of current prac-

tices. In Proceedings of the 13th International Confer-

ence on Software Engineering (ICSE’91), pages 276–

87.

Jones, C. (1998). Estimating Software Costs. McGraw-Hill.

Kemerer, C. (1987). An empirical validation of software

cost estimation models. Communications of the ACM

(May), pages 416–29.

Kruskal, J. B. (1964a). Multidimensional scaling by opti-

mizing goodness of ﬁt to a nonmetric hypothesis. Psy-

chometrika, 29(1):1–27.

VISUALIZING SOFTWARE PROJECT ANALOGIES TO SUPPORT COST ESTIMATION

Kruskal, J. B. (1964b). Nonmetric multidimensional scal-

ing: A numerical method. Psychometrika, 29(2):115–

29.

Kruskal, J. B. and Wish, M. (1978). Multidimensional Scal-

ing. Sage Publications.

Larkin, J. and Simon, H. (1987). Why a diagram is (some-

times) worth ten thousand words. Cognitive Science,

11:65–99.

Leeuw, J. D. (2001). Multidimensional scaling. In Inter-

national Encyclopedia of the Social and Behavioral

Sciences. Elsevier.

Myrtveit, I. and Stensrud, E. (1999). A controlled experi-

ment to assess the beneﬁts of estimating with analogy

and regression models. IEEE Transactions on Soft-

ware Engineering, 25(4):510–25.

Robinson, N. and Shapcott, M. (2002). Data mining in-

formation visualisation beyond charts and graphs. In

Proceedings of the Sixth International Conference on

Information Visualisation (IV’02), pages 577–83.

Schroeder, L., Sjoquist, D., and Stephan, P. (1986). Regres-

sion Analysis: An Introductory Guide. SagePublica-

tions.

Shepperd, M. and Schoﬁeld, C. (1997). Estimating software

project effort using analogies. IEEE Transactions on

Software Engineering, 23(12):736–43.

Stensrud, E. and Myrtveit, I. (1998). Human performance

estimating with analogy and regression models: An

empirical validation. In Proceedings of the Fifth In-

ternational Symposium on Software Metrics (MET-

RICS’98), pages 205–13.

Thearling, K. (2001). Visualising data mining models. In

Information Visualisation in Data Mining and Knowl-

edge Discovery. Morgan Kaufman.

Wieczorek, I. and Ruhe, M. (2002). How valuable is

company-speciﬁc data compared to multi-company

data for software cost estimation? In Proceedings of

the Eighth International Symposium on Software Met-

rics (METRICS’02), pages 237–48.

Figure 4: 2D MDS visualization of Desharnais 2 data

Figure 5: Shepard diagram of Desharnais 2 data set

Figure 6: 2D MDS visualization of Desharnais 3 data

Figure 7: Shepard diagram of Desharnais 3 data set

ICEIS 2004 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS
