ARCO: MOVING DIGITAL LIBRARY STORAGE TO GRID

COMPUTING

Han-fei, Nuno Almeida, Miguel Loureno, Paulo Trezentos

ADETTI/UNIDE

Av. Foras Armadas, Edif. ISCTE, 1600-082 Lisboa, Portugal

Jos Borbinha, Joo Neves

Biblioteca Nacional

Direco de Servios de Inovao e Desenvolvimento

Campo Grande, 83 - 1749-081 Lisboa, Portugal

Keywords:

Distributed Multimedia Storage, Grid Computing, Digital Library, HPC

Abstract:

Storage has been extensively studied during the past few decades (Foster et al., 1997; Jos Guimares, 2001).

However, the emerging trends on distributed computing bring new solutions for existent problems. Grid com-

puting proposes a distributed approach for data storing. In this paper, we introduce a Grid-based system

(ARCO) developed for multimedia storage of large ammounts of data. The system is being developed for

Biblioteca Nacional, the National Library of Portugal. Using Grid informational system and resources man-

agement, we propose a transparent system where TeraBytes of data are stored in a beowulf cluster built of

commodity components with backup solution and error recover mechanisms.

1 INTRODUCTION

The National Library of Portugal (BN - Biblioteca

Nacional) is a patrimonial library. This presents spe-

cial motivations to pursue some goals at both national

and international levels, related with a wide range of

new technical area especially concerning with digital

publishing; digitization; preservation of cultural ar-

tifacts; metadata creation, processing and exchange;

services for resource discovery, access and interoper-

ability; etc. Each of these areas brings new expecta-

tions and requirements for new skills, which BN has

been identifying and developing during recent years

in trials and pilot initiatives. As a result, valuable ex-

pertise has been built, resulting in the actual initiative

for the National Digital Library (BND - Biblioteca

Nacional Digital).

The BND is deﬁned to serve two main purposes.

The ﬁrst and most immediate is the development of

an operational framework by which the BN will ad-

dress speciﬁc problems posed by the management of

large collections of digital and digitized items. As a

side effect, we expect to reach a critical mass (in tech-

nology, knowledge and contents) after which we will

be able to address the other areas in a complementary

approach.

The actual moment of the BND is not anymore

to be experimental, presenting short-term results, but

to be stable and trustworthy. That requires thinking

seriously in stable models and long-term sustainable

strategies for the developments and convergence with

the traditional library. Also, this has to be done in

accordance not only with our general mission, but es-

pecially taking in account the limited resources that

BN will be able to reserve for it.

To provide us the expected necessary ﬂexibility, it

was decided that the technical solutions will be based

mainly on open and scalable technology, to be built

and integrated incrementally. This will make it also

possible to better consolidate the results with the tra-

ditional library’s services.

The main services that the BND is expected to as-

sure are the storage, search, retrieval and preservation

of digital resources. In this paper we are addressing

the problem of the storage.

2 PROPOSED ARCHITECTURE

The goal of ARCO system is to provide and managing

a transparent layer for storing large amounts of data.

The high level requirements suggest that all interac-

tions with lower or higher abstractions layers would

be throughout interfaces. This interfaces should be

public and well deﬁned in the System Deﬁnition doc-

ument.

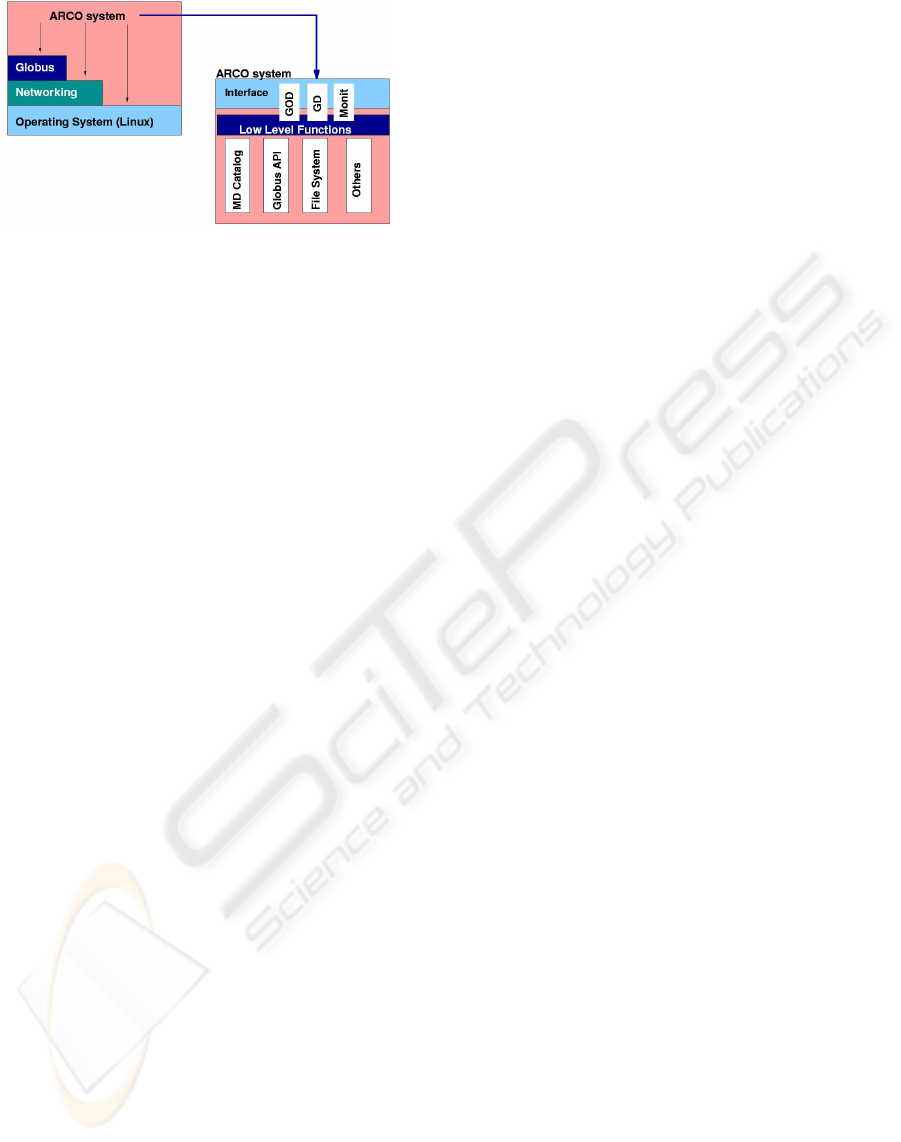

Figure 1 depicts the ARCO architecture. The left

ﬁgure represents the interaction of ARCO system

-fei H., Almeida N., Loureno M., Trezentos P., Borbinha J. and Neves J. (2004).

ARCO: MOVING DIGITAL LIBRARY STORAGE TO GRID COMPUTING.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 64-69

DOI: 10.5220/0002651400640069

 SciTePress

Figure 1: ARCO high level view

with the operating system, the network resources and

with Globus middleware. ARCO uses several OS sys-

tem calls to access the local ﬁle system, uses net-

work resources for integration purposes and Globus

for Grid Services(Foster, 2001; Open Grid Services

Infrastructure (OGSI), 2003). ARCO is build over

Globus toolkit 3.0 that supports Webservices (Foster

et al., 2002).

The right part of 1 contains the internal components

of ARCO system. In the upper level we have the inter-

face layer that is responsible both for providing graph-

ical interfaces for storing data and retrieving it. The

graphical interfaces are implemented in HTML/PHP

but they could be implemented with other program-

ming language since there is a low level layer with

commands for the basic features of the system.

3 SYSTEM COMPONENTS

The ARCO system is divided in three units, GOD

(Digital Object Management); GG (Grid Manage-

ment) and Monitorization. These are the types of

operations that users are allowed to do, according to

their functions. In each of these units exist subunits

according to the type of tasks allowed to the users.

3.1 GOD

This section can be accessed both by the system ad-

ministrator and other users. It has several operations

regarding Digital Objects, such as Store (Stores a new

object in the grid), Remove (Removes an existing ob-

ject from the grid), Copy (Copies an object from the

grid to the working directory), Replace (Replaces an

existing object with a new one), Update (Updates an

object with a newer version) and Recover (Recovers a

deleted object). When removing an object, the object

is not physically removed. Instead, it is moved to a

different location, allowing its recovery. The physical

removal is only allowed to the system administrator.

3.2 GG

The system management operations are available in

this unit. The system administrator is responsible for

performing these tasks, concerning to “Grid Nodes”,

“Volumes”, “Users” and “Groups”.

The Node Management subunit is where the grid

nodes’ conﬁgurations are done. The operations avail-

able are Add Node (Add a new node to a vol-

ume), Remove Node(Remove a node from a vol-

ume),Edit Node(Edit the node conﬁguration), List all

Objects(List all objects presented in the node) or Lo-

cate an object(Locate one object in the system). This

kind of operations are very useful because it’s very

easy to add or remove one node from the system, and

if a node with objects is removed it’s possible to syn-

chronize the volume or use the volume mirror as mas-

ter.

The Volume Management is where the operations

related to volumes are done. The role of operations

possible are Add Volume(Add a new volume to the

system), Remove Volume(Remove a volume from

the system), Edit Volume(Edit volume information),

List Volumes(List all volumes) and Synchronize Vol-

ume(Synchronize volume information with the vol-

ume mirror). Here there are several considerations to

have in mind. One volume can only have one mirror,

but when a master volume is deleted or shutdown the

mirror one will pass to master automatically. It’s not

possible to remove a volume that has nodes associated

to it. Every time that one object is inserted in one vol-

ume it is inserted automatically in his mirror, if there

is one.

In the User Management subunit the user can do

several operations related to the system’s users. The

user management operations are Add User (Adds a

new user to the system), Remove User (Removes a

user from the system), Edit User (Edits the user’s

data) and List Users (Lists all the users).

In the Group Management area the user can do

several operations related to the system’s groups. The

group management operations are Add Group (Adds

a new group to the system, specifying the group’s ac-

cess permissions on GOD, GG, and Monitorization),

Remove Group (Removes a group from the system),

Edit Group (Edits the group’s data and access permis-

sions) and List Groups (Lists all the groups). It’s not

possible to remove a group that has users associated

to it.

3.3 Monitorization

The Monitorization is done over a grid node. It is

very useful to analyze node performance and behavior

along the time and setup the needed alarms.

The main goal is to prevent system failures by

warning the administrator and provide information to

ARCO: MOVING DIGITAL LIBRARY STORAGE TO GRID COMPUTING

the users, that can be used to improve the storage

strategy.

It presents information of the actual state of the

node (available space, used space, cpu temperature,

detected errors, system logs, etc.). It is also possible

to setup alarm values and desirable actions like warn-

ing the system administrator or do a load balancing.

4 LOW LEVEL OPERATIONS

4.1 Object Description

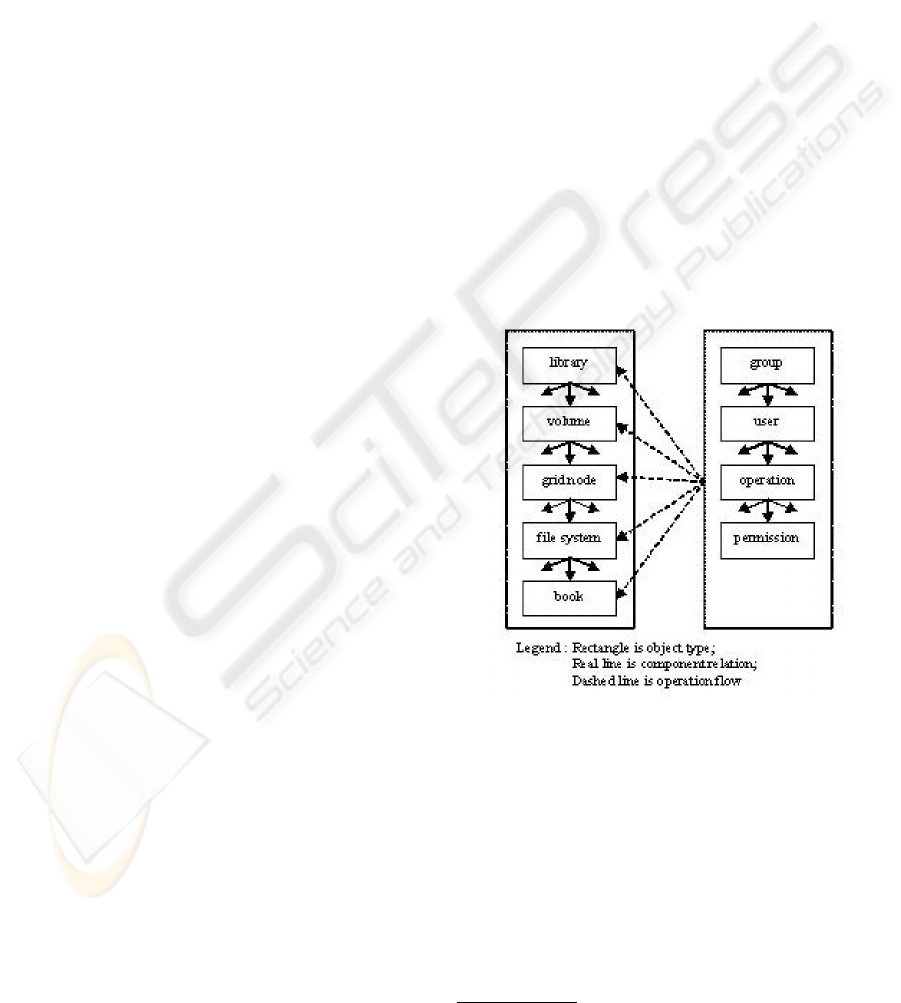

Figure 2 is the general system structure of the ARCO

system. The ARCO system can be abstracted into dif-

ferent level from several viewing angles.

Firstly, the whole concept of digital library can be

broken down into volumes, grid nodes, ﬁle systems,

books. Secondly, actions can be from groups, users,

and can be further divided as basic operations. Fi-

nally, operations can be taken to objects in different

abstraction level of ARCO system.

The ARCO system provides webpage interface by

using API function calls, as well as command line in-

terface.

ARCO metadata catalogue is used to provide de-

tails of object description in different level, opera-

tion description, and system conﬁgures information

description.

There are two interfaces between the high level

webpage toolkit and the low level function call re-

alization. The ﬁrst is the data interface that uses

the common metadata information, the second is the

function call control interface. The metadata set in-

cludes information about user and user group descrip-

tion, digital library general description, volume stor-

age object description, grid nodes description, book

object description, and management operation de-

scription.

The user object has ﬁelds of user id, user name,

password, and group id. The description of group ob-

ject includes group name and group id. The permis-

sion description provides detailed control information

about users, groups, and different operations. The

digital library virtual structure is described in several

levels.

The full storage of the library can be divided into

normal part and mirror part. The mirror storage is a

real time backup of the normal storage in the meaning

of every operation to book object. The mirror mech-

anism demands every operation to the normal storage

in the book object level will also take place mean-

while to the mirror storage. The library storage ob-

ject, normal or mirror, is composed of one or several

volume objects. The volume object description de-

picts volume attributes, such as volume name, mirror-

ing pointer, and other management information. Ev-

ery volume is composed by one or several grid host

nodes. Each node can only belong to one volume.

The grid node is not only the component of the stor-

age volume from the view point of digital library ab-

straction, but also it is the basic unit of computing

grid environment for staging operations, as well as

the basic unit of grid computational information and

resource discovering entity.

The MDS(Fitzgerald et al., 1997) in grid node pro-

vides resource information, such as every mounted

ﬁle system. The ARCO system utilizes the MDS

computational resource information by querying the

LDAP server default port 2135 in every grid node. In

ARCO metadata catalogue, the grid node description

include host full domain name and ip address.

There are different operations which can be taken

to different objects. The smallest basic object is the

digital object

. The digital object description gives

out the details of a book, for instance. The book ob-

ject description includes object id, status, book size,

last operation date, book name, ﬁle system mounting

point where book locates, full path, node ip address,

user name who command the operation.

Figure 2: Object component and operations

4.2 Operation Basis

In order to provide stable and different operations for

the ARCO system, several data descriptors have been

used to deﬁne objects. The data structure of bk-list is

a structure type. There are mainly three parts of ﬁelds

in the bk-list structure, the ﬁrst is information that

can be queried and got from book object description

table, the second is information that can be queried

A digital object can be a book or a ﬁlm.

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

and got from grid node description table, and the third

is information that can be queried and got from vol-

ume object description table. The function bk-list-init

does a joint query to several tables in the database, get

as many attributes as the metadata can provide. The

function bk-list-print is for printing the bk-list struc-

ture.

In the god-stdlib.h header ﬁle, we have deﬁned

server host names, globus gass server port for

url-copy, globus-personal-gatekeeper port and login

name, ldap server query port, ldap search base, ﬁle

system mounting points in grid nodes, etc.

To describe the grid node, we use sv-list structure

type. The library storage can be composed of several

volumes. There can be several grid nodes in each vol-

ume. When a book is copied into the library storage

system, ﬁrstly according to the volume attribute of the

book, there are several nodes can the possible place

where book will be copied into. And in each of these

nodes, there can be several ﬁle systems mounted. In

each node, some ﬁle systems are only used for oper-

ation system, such as swap area, system installation

partition. The ﬁle system that can be used on the li-

brary storage will named in a special way, including a

special mode that will be recognized and be taken as a

possible candidate for storing the new book. Starting

from the volume attribute of the new book, the func-

tion sv-list-init ﬁrstly query the metadata database to

get the nodes information belong to this volume, so

the sv-list structure has ﬁelds to store the total num-

ber of available nodes, and a list of recorder for each

of the grid node. Then function sv-list-init will try to

query the node object description table to get some

detail information about each node, such as node ip

address. Next step, the function sv-list-init will send

ldap query to mds server of each grid node, parse the

query result and get detailed node information, such

as total number of mounted ﬁle system, ﬁle system

name, free space, then we will further recognize the

ﬁle systems that can be used for book storage, ﬁll all

the detailed ﬁle system information into each node

ﬁeld of sv-list structure.

4.3 Functions and Operations

In ARCO system, there are many operations, which

can be taken to an object that can be in a different

abstraction level. In general, the library as an object,

different users and user groups have different permis-

sion to take actions on it. The library is composed by

volumes, some of which are mirroring backup of oth-

ers. In each volume there are several nodes. Every

node has several ﬁle systems can be used.

The function god-update is a low level operation,

which copy a new book to a proper ﬁle system or

update an old book that is already in the system. In

this function, volume attribute can be got from bk-list,

then by using volume attribute, sv-list can be initial-

ized, and we can get the proper ﬁle system for stor-

ing the book. The book will be tarred and transferred

to remote node, and then untarred. The procedure

of taring, transferring and untarring are staged to the

grid system as a job, so the command can be send

from a server, and actual operation can take place be-

tween other two remote nodes. If the volume of the

new book has a mirror volume, then the same pro-

cedure will also take place to the mirror volume for

real time backup. After the work has done, book in-

formation will insert into the table of book object de-

scription. For the time being, the scheduling policy

of god-update is ”largest capacity ﬁrst”, which means

we always choose the server that has largest storage

capacity. We can also change the scheduling policy

by using different calling parameters.

The function god-cp is also a low level operation,

which just simply copies a book between two remote

nodes. The realization of this function is a much sim-

ple version of function god-update. The function god-

cp is used for copying a book between different work-

ing areas.

The function god-rm is for remove a book in a vol-

ume. In this function, we ﬁrst ﬁnd which node the

book locates in, then move the book to a temp delete

directory, and update the book status as deleted in

book description table. All of the procedures are sub-

mitted as remote jobs to grid system and take place in

remote nodes.

The function god-rc recovers a removed book in a

remote node. This function does reverse operation as

the function god-rm.

To every action, when the operation has ﬁnished,

the operation execution information (book name, size,

time costing in different procession stage, etc.) will be

recorded into the job information statistic database.

This is done by the statistic module, which collect

time benchmarks in different places of procession and

update the statistic database.

The module func-job-submit and url-copy provide

the programming interface to the globus[5-3][5-4]

fundamental service. The url-copy provides two dif-

ferent interfaces for remote ﬁle transfer and copy, re-

spectively for globus version 2.0 and globus version

2.2. The func-job-submit receives globus-personal-

gatekeeper port and login name, and job descrip-

tion rsl language sentence as the parameters. In our

prototype, all the operations that take place on re-

mote server are customized and submitted from local

server. The rsl description sentence deﬁnes job de-

tails, such as the name of executable, parameters, ex-

ecution environment demand, stdout and stderr, etc.

One of the project objectives is to provide the sys-

tem with scalability, so at any time, there are the pos-

sibility of adding in some new servers into the system

or shutting down and removing some servers from the

ARCO: MOVING DIGITAL LIBRARY STORAGE TO GRID COMPUTING

system. The function god-shutdown is a function for

physically take a node out off the system. When a

node is to be shutdown and taken out off the sys-

tem, all the books located in this node need to be

reloaded to other nodes, to guarantee the data inte-

gration. There are two cases, one is the volume has a

mirror, another is the volume don’t have any mirror.

In the ﬁrst situation, books in this node can be copied

from the mirror volume, so the node can be shutdown

at once. In the second case we need ﬁrstly to redis-

tribute all books in this node to other nodes in the

same volume. The realization of the god-shutdown

utilizes the god-update and god-cp basic operations.

The function god-synch is for check the data inte-

gration between a volume and its mirror. It tries to

ﬁnd any difference between the two volumes and take

proper operation to recover the storage.

5 EXPERIMENT AND RESULTS

In this phase of the prototype the work has not evolved

into network and processing optimization. Never-

theless, it is interesting to present some benchmarks

with process phases. This benchmarks were also used

to verify Grid applicability using Trezentos-Oliveira

model (Trezentos and Oliveira, 2003).

Table 5-1 depicts the performance statistic result

with different book size.

In our experiment, the largest book is about 660

MB. The table presents in the ﬁrst column is the book

size in Kbytes; the second column is the time used for

query free space, this time cost is a constant value.

The free space query has done by send ldap query to

ldap server port in each server. For the time being, our

prototype has any one node act as book input point,

it means books will be copied from this local server

toward distributed multi-servers. The reason about

why we provide dynamic free space capacity query is

for the ability of our prototype expanding into multi-

servers input, and copy toward multi-servers. From

the trend in ﬁgure 3, we can clearly know that the time

cost of tar process is perfect linear, correspondent to

different book size. The time cost item of url copy and

all, are nearly linear relation relative to the book size.

In ideal environment, the url copy time should be lin-

ear relation with the book size. In our result, the url

copy time costing coarse is introduced by the network

delay, operation system, globus system work load and

scheduling policy, etc. The feature of time cost of un-

tar is something like a step function, within a sphere

of book size, it keeps stable, out of the sphere, it steps

down or up a class.

Table 5-1 Book Size and Process Benchmark

Bk Size(kb) FS Query Tar Url CP All

132 4 0 0 4

132 2 0 0 2

6156 3 1 6 10

8652 3 2 15 20

79360 3 16 96 115

101272 2 20 102 124

126676 2 25 112 139

131564 4 28 138 170

192000 2 41 296 339

295952 2 62 244 308

447652 2 92 736 830

660372 2 137 830 969

Note: unit of book size is in Kbytes, unit of

benchmark is in second

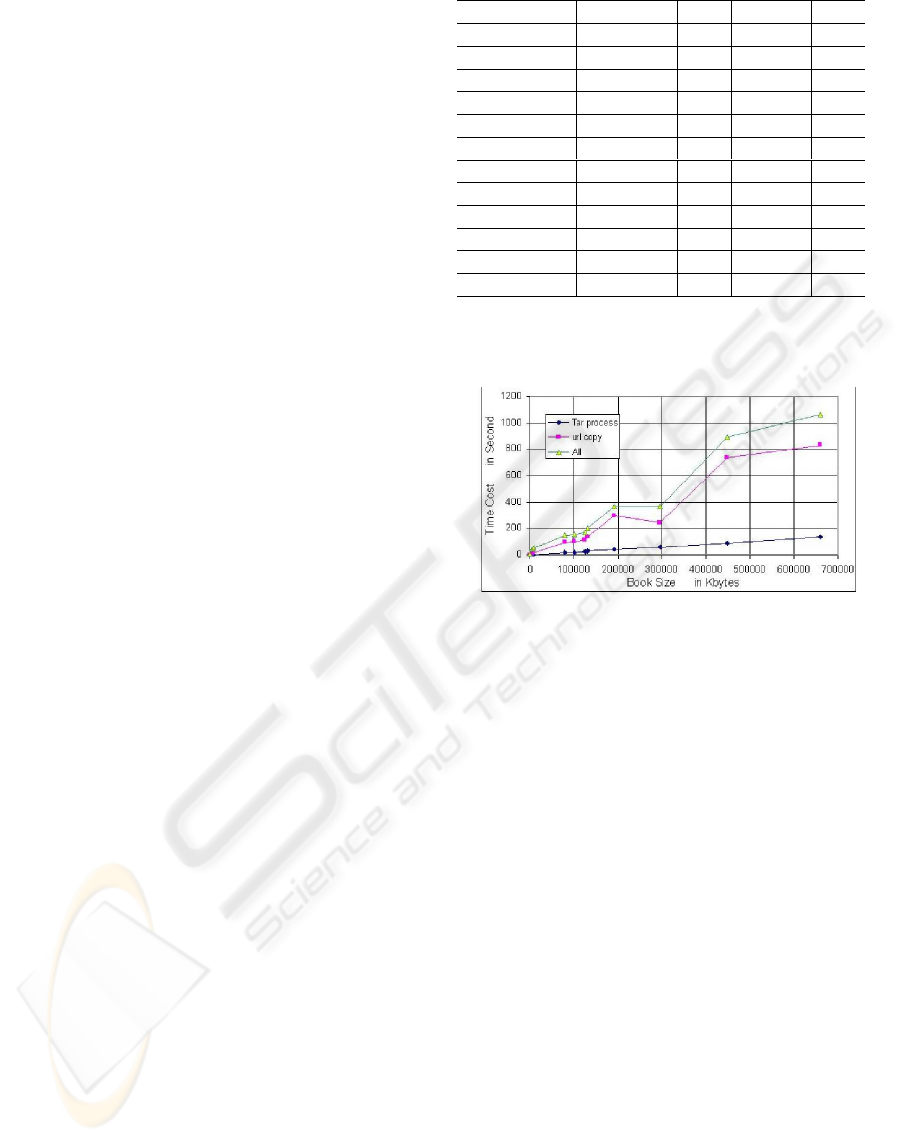

Figure 3: Process benchmarks

6 RELATED WORK

Indiana University’s Distributed Storage Services

Group (DSSG)(University, 2000) has provided a

scalable, network accessible, standards-based stor-

age infrastructure. This is accomplished via the

Distributed Computing Environment Distributed File

System (DCE DFS) to deliver a ubiquitous common

ﬁle system to IU researchers and with the Massive

Data Storage Service (MDSS, based on the High

Performance Storage System or HPSS) to store vast

amounts of archival or near line data on a hierar-

chy of storage media. These are augmented by the

Andrew File System (AFS) for remote collabora-

tion and data sharing. In September 2000, working

with IBM, Indiana University instituted into produc-

tion the world’s ﬁrst geographically distributed High

Performance Storage System (HPSS). With hardware

and software components distributed across two In-

diana University campuses (located at Bloomington

and Indianapolis, some 50 miles apart), users are

able to read or write data locally. In DCE DFS sys-

tem (Schroeder et al., 1999) , IBM 3590E Magstar

tape drive and IBM H70 HPSS Tape Mover are used

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

to provide very large amount of storage capacity in

types (total capacity of the tape library is nearly 1500

tapes).

However, with the rapidly progress in hardware,

now the 100 Giga-bytes hard-disk become relatively

cheaper, and the retrieving time of data resided on

hard disk is quicker than tapes. The distributed

server clusters composed of cheap brand-less ordinary

performance computer with large capacity of hard-

disk storage ability become possible for our demand.

The remaining core technology point is how to auto-

matically distribute data to geographically dispersed

servers. The globus fundamental toolkit gives us vi-

able solutions. Combined with globus job adminis-

trating and staging interface, we have developed our

distributed storage prototype for digital library data

storage system.

7 CONCLUSION

The ﬁrst phase of ARCO system implementation

proved that the architecture is efﬁcient for large

amounts of data. The management framework also is

becoming very powerful for maintenance operations.

Globus/Grid and commodity components as key com-

ponents assured a very good price / performance com-

promise.

Nevertheless, the ARCO subsystem need to be fur-

ther developed and enhanced. Future work will be

developed in the optimization of ARCO transfer func-

tions and storage process.

The development of the BND presents a unique

class of challenges. The ambitious vision is bounded

by the limited resources that BN can reserve for this

purpose, which requires technical solutions with great

ﬂexibility, to be developed in an incremental process.

In this context it was decided to give special attention

to open and scalable technology, for the services and

also for the storage.

The price of the storage technology has been drop-

ping in an amazing rate. However, the prices of com-

plete commercial storage solutions for libraries have

been not following this trend in the same speed. Top

market companies still price their products too high,

especially when we compare them with the prices of

the original hardware components and the expected

software development.

Also, commercial companies have been too slow

in adopting innovative emerging technology for dig-

ital libraries. After realizing this, it was decided to

build a new speciﬁc framework for BND, based on

open technology, new models for partnerships and al-

liances, and also internal developments.

At the services and contents level, the solution de-

scribed in this paper will be complemented with other

open source technology and community based solu-

tions, such as the FEDORA(FEDORA, 2003) frame-

work for middleware services and the METS format

(METS, 2003) for the structural metadata.

REFERENCES

FEDORA (2003). Flexible extensible digital object and

repository architecture. http://www.fedora.info/.

Fitzgerald, S., Foster, I., Kesselman, C., von Laszewski, G.,

Smith, W., and Tuecke, S. (1997). A Directory Service

for Conﬁguring High-Performance Distributed Com-

putations. In Proceedings of the 6th IEEE Symposium

on High-Performance Distributed Computing, pages

365–375.

Foster, I. (2001). The anatomy of the Grid: Enabling scal-

able virtual organizations. Lecture Notes in Computer

Science, 2150:1–??

Foster, I., Geisler, J., Nickless, W., Smith, W., and Tuecke,

S. (1997). Software infrastructure for the i-way

high performance distributed computing experiment.

Proc. 5th IEEE Symposium on High Performance Dis-

tributed ComputingSoftware Infrastructure for the I-

WAY High Performance Distributed Computing Ex-

periment.

Foster, I., Kesselman, C., Nick, J., and Tuecke, S. (2002).

The physiology of the grid: An open grid services ar-

chitecture for distributed systems integration.

Jos Guimares, P. T. (2001). Spino: A distributed architec-

ture for massive text storage. ICEIS, 1:244–248.

METS (2003). Mets. metadata encoding and transmission

standard. http://www.loc.gov/standards/mets/.

Open Grid Services Infrastructure (OGSI), v. . (2003).

Gwd-r (draft-ggf-ogsi- gridservice-23).

Schroeder, W., Marciano, R., Lopez, J., Gleicher, M.,

Kremenek, G., Baru, C. K., and Moore, R. (1999).

Analysis of HPSS performance based on per-ﬁle

transfer logs. In IEEE Symposium on Mass Storage

Systems, pages 103–115.

Trezentos, P. and Oliveira, A. (2003). Metrics for grid ap-

plicability: a distributed elliptic curve platform assess-

ment. Proceedings of the Fifth International Confer-

ence On Parallel Processing And Applied Mathemat-

ics, to be included in Lecture Notes in Computer Sci-

ence, Springer-Verlag.

University, I. (2000). Distributed storage services group

(dssg), http://www.indiana.edu/ dssg/.

ARCO: MOVING DIGITAL LIBRARY STORAGE TO GRID COMPUTING
