DATA EXTRACTION AND TRANSFORMATION WITH FLAT

FILE FOR BUSINESS INTEGRATION

Sheng YE, Wei SUN, Zhong TIAN

IBM China Research Lab

Keywords: Flat file, XML, data extraction, data transformation, app

lication integration

Abstract: With the development of e-business, the capability of exchanging data in different formats is necessary for

integrating heterogeneous enterprise applications. Though XML is becoming the standard communication

protocol over the Internet, most enterprise applications today can only process a specific format text data,

mostly in a flat file. This paper introduces a round trip transformation technology between flat file and XML,

Flat File Adapter. This technology employs a systematic data extraction and formatting method to support

the processing of complex format flat file. By using Flat File Adapter, developer can quickly design

templates containing the data transformation rules. It can be easily updated when requirements change later.

In this paper, we introduce the system architecture, detailed components, and particular data extraction and

transformation method. Finally, a sample application in B2B e-procurement solution is also described.

1 INTRODUCTION

Data exchange is the most widely applied business-

to-business integration (B2Bi) pattern. Data

exchange B2Bi is effective because it is simple in

concept and has been in use since the days of

Electronic Data Interchange (EDI).

(Andre, 2001)

Different application has its own data management

method and in-house data format. Although

Extensible Markup Language (XML) can serve as a

universal data communication language, most

business applications can only produce and process

flat files. Flat file is defined as data with fixed

format rule and typically encoded as printable

characters. We can divide the flat file in three types

according to their format characteristics. The first

type has strict space position rule, for example, the

recognized results by scanning traditional tables or

forms. The second type has strict logic rule, for

example, inquiry results list of a database, EDI

messages, SAP IDOC. The third type aggregates

both logic and space rule, for example, the general

reports used for reading, transmitting or printing. To

enable the flat file based documents to exchange

between heterogeneous enterprises' backend

applications, data extraction and transformation

between different types of flat file and XML is in

great demand.

In prior arts, developers design specific adapter from

scrat

ch for each possible application to be integrated

with, and it’s difficult to update when application or

data change. Such a data exchange technology is

inefficient and wastes time and human resources.

Unidex XML Converter could transform flat file into

XML, and vice versa by process a same template

based on XFlat schema

(Unidex, 2003)

. XFlat schema

demands that flat file consists of records with

delimiter or with fixed length. XML Converter is

mainly designed to process flat file with delimitated

format. Additionally, Zamora devised a data

transformation method to analyze data files by using

the structural, syntactic and semantic knowledge

about the data files

(Zamora, 1990)

. This technology is

particularly appropriated to extract information from

business correspondence documents. Richard and

Shin-Ywan have respective patent on data extraction

om printed form or image but not flat file

(Casey et al.,

1992)(Wang et al., 1998)

These existing solutions can only

handle some types of flat file, especially for data

format has strict logic rules. Flat File Adapter (FFA)

technology is a template driven dual-way engine for

data extraction and transformation between flat file

and XML. FFA features flexible data markup,

extraction and output formatting mechanism for flat

file and XML, it also features data fusion and

processing extension mechanism, which make FFA

differentiate with the existing techniques.

643

YE S., SUN W. and TIAN Z. (2004).

DATA EXTRACTION AND TRANSFORMATION WITH FLAT FILE FOR BUSINESS INTEGRATION.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 643-646

DOI: 10.5220/0002652106430646

 SciTePress

2 SYSTEM ARCHITECTURE

As depicted in the figure 1, a data extraction and

transformation system comprises the data locating

component, the format mapping component, the data

extracting and the data transforming component.

The data locating component generates the location

descriptions of data units. The format mapping

component builds up the correspondence between

the data units and the target format. The data

extracting component extracts the data which

position has been determined. The data transforming

component transforms the extracted data into data in

the target data file. According to the architecture,

FFA is invented to facilitate the transformation from

flat file to XML and vice versa. FFA includes three

core function components, Flat File Reader(FFR),

Flat File Writer(FFW), and Extension Controller.

According to the predefined data extraction and

transformation rule, the FFR could transform flat file

to XML. The FFW could transform XML file to flat

file. The responsibility of Extension Controller is to

invoke external extension programs during the

transformation process to fulfill complex data

processing.

Two different types of template, FFR and FFW,

define the data extraction and transformation rules.

FFR introduces multi-dimension data extraction and

transformation technique to support complex format

flat file processing. According to the difference of

the problem addressed, FFR and FFW don’t adopt

symmetrical template.

Developer designs a FFR or FFW template mapping

source flat file to target XML file or vice verse. FFA

loads the corresponding template, reads a source flat

file or XML, performs the extraction, and transforms

to target XML or flat file according to the loaded

template definition.

3 FUNCTION COMPONENTS

3.1 Flat File Reader

FFR engine comprises data extracting unit and data

transforming unit. The FFR template design covers

data locating and data format mapping. FFR Engine

interprets a FFR template and applies to an input flat

file, extracts required data and transforms into

designated objective format XML.

• Data Markup and Locating

According to the FFR template design, the data in a

flat file is identified by predefined different data

units. The “data units” are located by location

description and may include “sub data units”.

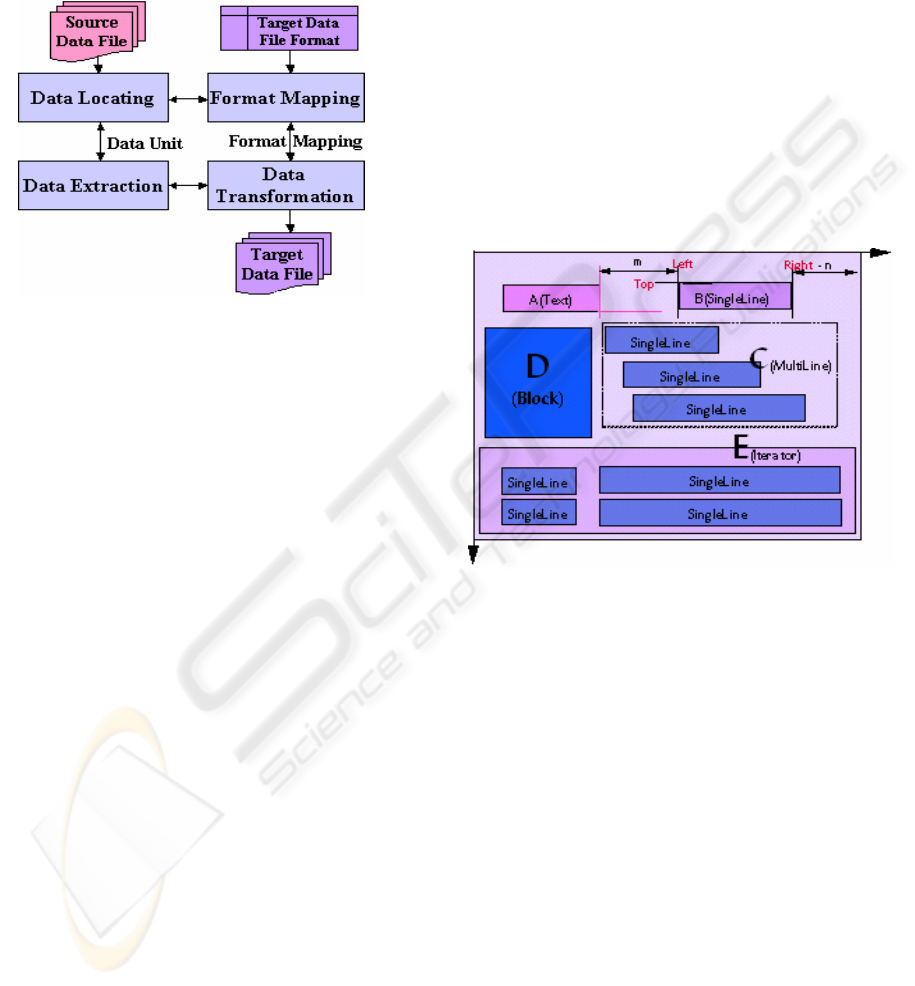

Figure 1: FFA Architecture

Figure 2: FFR Data Markup and Locating

As shown in figure 2, the “data units” mainly consist

of five types, that is, the “Text”, “SingleLine”,

“MultiLine”, “Block” and “Iterator”. In particular,

the “Text” represents the string capable of being

located and matched. The “SingleLine” represents

the defined data unit is arranged in a line. The

“MultiLine” represents the defined data unit is

arranged in multiple lines consisting of plurality of

single lines. The “Block” represents a rectangular

area in the file. The “Iterator” represents the data

unit arranged in such a manner that the data unit

includes several sub data units with same form

feature and iteratively presenting. For example, the

data unit E in figure 2 is defined as an “Iterator” data

unit, including the sub data units “SingleLine”

having the same type and iteratively presenting. The

“Iterator” is used to define the list data.

After the data units are defined, the position

descriptors of data units need to be determined by

the location elements, except that the “Text” data

unit is directly defined by string matching. By

design, four location elements are used to determine

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

644

the position of a data unit, that is, the “Top, Bottom,

Left, and Right”, representing the uppermost

position, lowest position, most left position, and

most right position of the data unit respectively.

Each location element has several attributes, they are:

“Base” which is another data unit as a location

reference; “From”, which is a position in the “Base”

data unit for referring; “Skip”, which represents the

offset of the location element from the “From”

position. The positive offset “+N” represents moving

N columns/rows in the down/right direction; the

negative offset “-N” represents moving N

columns/rows in the up/left direction.

The value of the attribute “Base” may be the ID of a

“data unit” having been located, such as the ID of

the data unit having the type of “Text”, or “the start

of a row (RB)”, “the end of a row (RE)”, “the start

of a column (CB)” and “the end of a column (CE)”.

Here row or column refers to the row or the column

of the “Base” currently located. The “Base” may

also be an original point in an absolute coordinate.

For example, as show in figure 2, the data unit A

may be defined as a “Text” data unit by string

matching. The location element “Left” of the data

unit B may be defined by using the attributes:

Base=”A”, From=”End”, Skip=”+m”. The data unit

B may be described by the basic attributes of the

location elements, when using XML language based

on the FFR Template XML schema, as followings:

</SingleLineSpan>

• Data Format Mapping and Transformation

According to the FFR template XML schema design,

each data unit location element has attributes

"TargetTag" and "PrintFormat", which would be

used to formulate the output document structure.

Through this approach, FFR can put extracted data

into XML file with predefined format.

Attribute “TargetTag” defines the XML tag name of

the data in the objective XML file. Attribute

“PrintFormat” determines the format of extracted

data which is output into target XML, such as

keeping or trimming space and line break.

FFR output simple structured XML. Through XML

transformation technology, the simple FFR output

can be transformed to standard conformance or any

complex structure, such as CXML, RossetaNetXML.

3.2 Flat File Writer

Data exchange is always round trip. Many legacy

systems require data conforming to some specific

format, such as SAP IDOC, CVS or form style file.

XSLT can transform XML text file. But XSLT is

very weak in describing space position.

FFW is designed for generating plain text with strict

position requirements. Table 1 illustrates different

types of transformation rules of FFW template.

Table 1: Flat File Writer Template Elements

Type Elements

Retrieve Data ForEach Variable

Output Text Row Cell

Logic Switch Loop

Structure Head PageNum Body Tail

“Retrieve” type elements can be used to retrieve data

from source XML using XPath expression. As

shown in figure 3, “Output” and “Structure” type

elements can work together to facilitate output with

specified position and generating required page

structure. This enables the user experience of design

FFW template is just like designing HTML form.

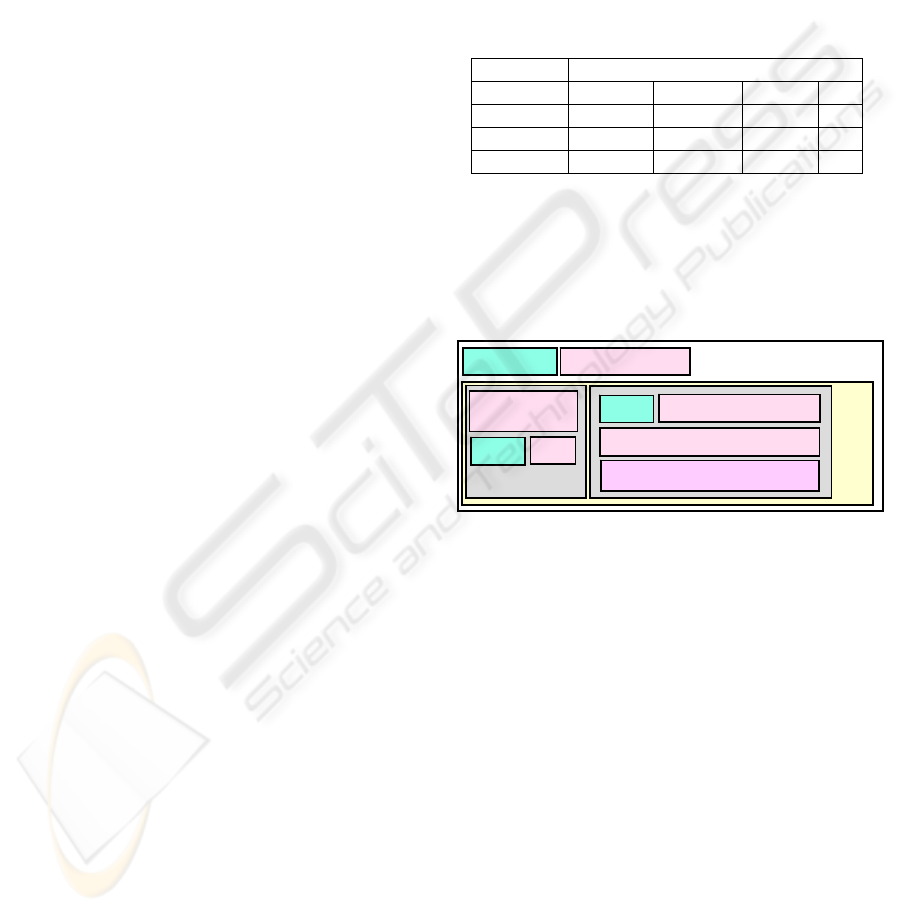

Figure 3: Flat File Writer Template Structure

“Logic” elements can describe complex rule of data

retrieving and output, it facilitates the dynamic

generation of output according to input instance data.

3.3 Extension Controller

Though FFA template is designed to cover most

transformation pattern, FFA does not include

semantic rules on data. The extension mechanism of

Flat File Adapter can help in this situation.

Extension is a piece of code developed by user. The

extension code can perform a specific complex

processing on retrieved data and return the result to

the FFA to fill into target. The FFA template defines

extension type, extension URL, and reference name,

so as to let FFA engine reach and invoke the

extension code. Extension code can be called

anywhere in the template. The input arguments of

extension usually are data extracted from source file.

Text Data

Text

Data

Row

Cell

Data

Cell

DATA EXTRACTION AND TRANSFORMATION WITH FLAT FILE FOR BUSINESS INTEGRATION

645

3.4 Advantages of Flat File Adapter

Flat File Adapter can be used to bridge XML with

flat file, which is a common requirement of business

integration application. FFA technology introduced

in this paper provides the following advantages:

• FFA provides a complete solution for round trip

transformation between flat file and XML.

• FFA employs pattern matching plus two

dimensional position data locating method. This

facilitates the data extraction from data sources

with diverse layout format.

• FFW template combines the user experience of

XSLT, XPath expression and HTML form

design together, makes it has low study barrier.

• The transformation logic is separated from

engine. This makes the transformation rule easy

to design and flexible to change.

To those applications which can only process flat

file, the FFA application would be a great choice for

fulfilling XML based data exchange without need to

be upgraded to XML capable system, which would

help to protect the existing IT investment.

4 FLAT FILE ADAPTER

APPLICATION

FFA technology has been included in the Data

Fusion component of our business integration

platform, eDocXchange. It has been successfully

deployed in several production systems. One of the

sample applications is described as follow.

IBM China Procurement Center (CPC) serves as

general and product procurement brokering house

for 4 IBM manufacturing joint ventures in China.

The e-procurement (e-Proc) solution for CPC is a

lightweight solution, supports ordering and

invoicing functions for 4 JVs. Each JV has its own

ERP/MRP systems. The e-Proc system connects the

4 JVs and suppliers to CPC on the Internet.

To reduce the investment and impact to exiting

enterprise backend system, JVs prefer to export their

Purchase Orders as flat files from their ERP and

upload into e-Proc system. The FFA component on

the e-Proc system combines information extracted

from the flat files with information from other

sources (e.g. Buyer profile, trading partner profile)

to formulate a formal PO in XML/EDI format.

Suppliers can connect to the e-Proc system through

messaging systems, or directly review and process

messages from CPC on the Web with a browser. PO

Acknowledgment (PO ACK, either accept or reject)

against PO, PO Change, PO Cancel and Invoice

against PO, PO Change ban be sent back to CPC.

Each document from the ERP systems has a

different format. As most JVs were suffering major

business transformations, e-Proc system has to

survive a number of major file format changes as the

JV’s adjust their order printout or switch from one

ERP to another as part of overall IT transformation.

This actually prompted our design of the FFA. The

successful experience demonstrated that FFA is an

effective and lightweight approach and solution for

rapid and cost effective business integration.

5 SUMMARY

Data exchange is the most effective business

integration pattern. XML has been becoming the

B2B transaction protocol, however most enterprise

legacy systems can only handle specific flat file. To

enable the effective data exchange between the

heterogeneous enterprise applications of different

trading partners or even different divisions within

one enterprise, a flexible and easy solution for

transformation between flat file and XML is in great

demand. Flat file adapter has been designed to tackle

this problem. It provides the capability of round trip

transformation between XML and flat file. The

system architecture and core function components,

Flat File Reader, Flat File Writer, Extension, have

been introduced in detail. One real application

sample in B2B e-procurement solution is presented

also to demonstrate how this technology can be used

in a business solution. This technology’s advantages

have been summarized in this paper.

REFERENCES

Andre Yee, 2001. E-Business Integration pattern,

Retrieved Oct. 8, 2003, from http://www.informIT.com

Unidex Inc., Overview of XML Convert and XFlat,

Retrieved Oct. 8, 2003, from

http://www.unidex.com/

Zamora, Elena M., 1990. Computer method for automatic

extraction of commonly specified information from

business correspondence, US Patent 4,965,763

Casey, Richard G., Ferguson, David R., 1992. Computer-

implemented method for automatic extraction of data

from printed forms, US5140650

Wang, Shin-Ywan; Yagasaki, Toshiaki, 1998. Feature

extraction system for identifying text within a table

image, US5848186

ICEIS 2004 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

646
