A Generic Architecture for SOAP Transaction

Management

Lyndal Kanagasabai

1,2

, Wayne Brookes

University of Technology, Sydney,

PO Box 123, Broadway NSW 2007, Australia

Insession Technologies

Level 13, 234 George Street, Sydney NSW 2000, Australia

Abstract. Web Services and SOAP, the Simple Object Access Protocol, looks

set to become not only the cornerstone of transactions between businesses, but

SOAP is also is an emerging protocol for application interoperability within

organisations. A successful, standard, transaction management protocol for

SOAP is vital to its ongoing success, yet there is no single protocol standard

emerging. A generic transaction management architecture is proposed to solve

the problem of conflicting standards by concurrently supporting Web Service

partners which use different transaction management protocols. A prototype of

such an architecture was developed, for both the BTP and TIP protocols,

showing that not only is the proposal feasible, but that it can meet all of SOAP's

distributed transaction management requirements, without the need to wait for a

suitable, ubiquitous protocol to emerge.

1 Introduction

Web Services are emerging as a key paradigm for supporting application

interoperability, primarily in a business-to-business (B2B) environment. Web

Services are based upon three core standards: SOAP (Simple Object Access

Protocol), WSDL (Web Services Description Language) and UDDI (Universal

Distribution, Discovery and Interoperability). However, these three basic Web

Services standards do not address all of the necessary requirements for successful

application interoperability. This paper focuses on one of the requirements that is

lacking – transaction management.

An electronic transaction is a well-established concept. It represents a set of basic

operations that must be treated as a single, indivisible activity to the user.

Traditionally, a transaction requires the ACID properties of atomicity, consistency

and isolation from other transactions, as well as being able to produce durable results.

Web Services are a unique concept in distributed transaction processing, because

they are intended for B2B communication between partners, without requiring a trust

relationship or prior arrangement. It is generally agreed that traditional distributed

transaction protocols, with an emphasis on strict ACID properties, are not suitable,

Kanagasabai L. and Brookes W. (2004).

A Generic Architecture for SOAP Transaction Management.

In Proceedings of the 2nd International Workshop on Web Services: Modeling, Architecture and Infrastructure, pages 95-102

DOI: 10.5220/0002663700950102

 SciTePress

because they require resources to be blocked for the duration of a transaction,

something that is not appropriate in an Internet environment.

However, the machine-independent nature of the Web Services protocols makes

them not only useful in a B2B scenario, but also for performing distributed

transaction processing within an organisation's intranet. Web Services in an intranet

environment may take one of two forms. In the simplest case, SOAP can be used as a

protocol to expose the existing interfaces of legacy applications as Web Services,

without fundamentally changing the applications themselves. Or in a more complex

scenario, Web Services can be used to enable Enterprise Application Integration

(EAI), by supporting interactions between existing heterogeneous systems.

Here we characterise the use of Web Services into three different application

scenarios, each with differing transactional requirements:

− Legacy. In the more conservative legacy scenario, full ACID properties of

transactions normally must be preserved. The transaction will still occur within a

trust boundary, application logic remains the same, and hence full atomicity,

consistency, isolation and durability are required.

− B2B. For the other extreme, B2B, allowances must be made for long-running

transactions, so a “relaxed” version of ACID transaction management is required.

Transactions occur across trust boundaries (between organisations), and in a less

secure environment, so locking of transactional resources is not advisable.

− EAI. Between these two lies the EAI scenario, in which transactions may be short

or longer-lived, and depending on the organisation's structure, trust boundaries

may or may not be crossed. Hence some mixture of support for ACID and relaxed

ACID transactions is a likely requirement.

The industry has not yet reached consensus on a protocol for Web Services

transaction management. Three important industry groups, to address the varied

requirements, have proposed three different protocols: TIP (Transaction Internet

Protocol), BTP (Business Transaction Protocol) and the combination of WS-

Coordination and WS-Transaction.

Although each of these protocols attempts to address some or all of the transaction

management requirements, they are not compatible with each other. The last protocol

pair, WS-Coordination and WS-Transaction, has only recently been proposed, and is

not specified to an extent suitable for implementation. At this stage, it is not possible

to predict which protocol, if any, will eventually attain broad acceptance, although

BTP and WS-Coordination/Transaction appear to be the more likely candidates.

Hence any vendor developing Web Services software is left in a quandary as to the

most appropriate protocol to implement.

This paper outlines a generic architecture for Web Services transaction

management, which can be used in a B2B, EAI or simple legacy application scenario,

using SOAP as the Web Services transport protocol. The architecture is intended to be

suitable for concurrent implementation and use of any or all of the transaction

management protocols mentioned above, and hopefully, any future protocols that may

be introduced for distributed transaction management.

This paper first introduces the different transaction management protocols for

SOAP, and discusses their suitability for the different usage scenarios (Legacy, B2B,

EAI). Then the proposed generic architecture is introduced, followed by an overview

of a prototype implementation demonstrating the feasibility of the approach.

2 Protocols for SOAP Transaction Management

There are currently three candidate protocols for Web Services transaction

management: TIP, BTP and WS-Coordination/WS-Transaction as outlined below.

2.1 Transaction Internet Protocol

The Transaction Internet Protocol 3.0 (TIP) is defined in an RFC [1], and currently

has IETF “Proposed Standard” status. TIP dates from before the first proposals for

SOAP and Web Services, and is both application and transport protocol independent.

TIP was designed with the ACID principles of transactions in mind, and

consequently does not consider the case of long-running transactions.

Although TIP was originally intended for communication between traditional

transaction managers, it has been suggested for use between a client application and

transaction servers. Indeed, in 2001, Keith Evans, one of the TIP authors, suggested

that TIP is ideal for “web agency type applications, which act as brokers for the

services of other providers.” [2]. Vogler, et al. [3] also suggest use of TIP for WWW

applications, and describe an example implementation. Both papers however, still

focus on full ACID transaction properties and do not acknowledge any WWW need

for supporting long-running transactions and autonomous organisations.

TIP could be a suitable approach for transaction management wherever SOAP is

used as a direct replacement for a legacy front-end, and for EAI scenarios where long-

running transactions are not required. Also, without some modification of the protocol

to allow it to be used directly between transaction participants, trust and security

issues mean that TIP is unlikely to be popular where autonomous parties’ transaction

managers must communicate directly.

2.2 Business Transaction Protocol

The Business Transaction Protocol (BTP) Version 1.0 [4] was developed by the

OASIS Business Transactions Technical Committee. Unlike TIP, BTP messages are

XML-based. A SOAP binding is defined (for carrying BTP messages), however BTP

could be used with any application message protocol.

BTP’s major design goal is to cater for loosely coupled, distributed, transaction

applications between autonomous organisations without assuming strict ACID

principles of transactions.

BTP transactions are categorised as either atoms or cohesions. An atom is a

transaction with all the ACID principles, except it relaxes the isolation principle [5].

A cohesion also relaxes ACID, by allowing the participants to negotiate the atomic

properties of the transaction. In a cohesion, consistency is maintained, the isolation

principle is relaxed as with atoms, and durability is also relaxed [5].

The BTP protocol cannot achieve full ACID, due partly to its semantics and partly

to the heuristics used with its commit protocol.

The focus of all BTP development and discussion in the industry is towards true

B2B Web Services and solving the problem of managing long-running transactions

between autonomous participants. The BTP specification appears to accomplish this

goal by allowing transaction participants to themselves determine the degree of

ACIDity they will or must support, including a mechanism for dynamic negotiation,

but fails to explicitly cater for transactions with full ACID.

2.3 WS-Coordination and WS-Transaction

WS-Coordination and WS-Transaction are sister specifications for Web Services

transaction management, published by IBM, Microsoft and BEA in [6] and [7].

WS-Transaction defines the protocol sets that can be used for transaction

management and includes options for both atomic and long-running transactions. WS-

Coordination is described in its specification as “an extensible framework for

providing protocols that coordinate the actions of distributed applications.” It could

also be defined as an XML-message-based API for transaction participants to create

transaction contexts and to register for the various transaction management protocol

options provided by WS-Transaction.

WS-Coordination and WS-Transaction provide support for SOAP's major

transactional requirements by supporting both ACID and long-running transactions.

The WS-Coordination and WS-Transaction specifications have been published for

“review and evaluation only.” As such, they are not rigorous specifications, omitting

some details such as error recovery procedures and message formats (other than in

external schemas). Therefore, the specifications are not at a stage where a third party

could accurately implement them - an implementation could only be built from these

specifications by making assumptions about the missing details.

However, from the details that have been published, it appears that these protocols

will be suitable to all of the scenarios where SOAP could be used, in legacy, B2B and

EAI scenarios, due to their support for both atomic and long-running transactions.

2.4 Summary of Candidate Protocols

Of the three protocols presented, WS-Coordination/Transaction is promising but still

immature, therefore at the present time, BTP and TIP are left as the two most suitable

contenders for SOAP transaction management.

However, considering the legacy, B2B and EAI scenarios, neither protocol

completely meets the requirements of each. BTP caters only for relaxed isolation and

atomic principles, which is not suitable for legacy scenarios. TIP provides full ACID

support, but does not directly satisfy the requirements of long-running transactions.

The most ideal implementation would use a combination of both TIP and BTP and

be extensible to WS-Coordination/Transaction. This is possible given the similarities

in architecture between the three protocols. An additional benefit of such a solution is

that the resulting implementation would be compatible with solutions from multiple

vendors, regardless of which of these three transaction management protocols they

eventually choose for use in their products.

3 A Generic Transaction Gateway

Given that there is no single transaction management protocol that fulfils all of the

requirements of different applications of Web Services, this paper proposes a gateway

approach to allow SOAP applications to simultaneously support multiple transaction

management protocols using a single, protocol-agnostic API. Further, it theoretically

means that any single, nested transaction may in reality be implemented with different

transaction protocols between the various transaction participants.

Analysis of the transaction management protocols has shown several areas of

commonality between them that make the concept of a gateway architecture possible.

The most fundamental aspect of commonality is the basic model of interaction: in all

cases, applications “talk” to a transaction coordinator that implements the protocol.

The second area of commonality is the APIs used between applications and the local

transaction coordinator. In TIP, BTP and WS-Coordination/Transaction, the APIs are

roughly equivalent in terms of abstract function, but the abstract functions are known

by different names in each protocol. In essence, the most significant difference

between the transaction management protocols is the “across the wire” messages and

states between transactional nodes.

After examining the currently available transaction management protocols for

SOAP, a generic transaction gateway would need to meet the following requirements:

− Concurrently support multiple transaction management protocols, and interoperate

with any standard-conforming implementation of each protocol it supports;

− TIP and BTP must be supported at a minimum;

− Be extensible for any future protocols that may become prominent, especially WS-

Transaction and WS-Coordination;

− Be portable across different platforms and able to be integrated into different

transaction processing architectures;

− Allow a node to simultaneously take the role of transaction participant and/or

coordinator;

− Support the normal architectural requirements of distributed transaction processing

systems, such as scalability, reliability, short response times, high availability and

cost-efficiency;

− Be compatible with SOAP when applied to legacy, B2B and EAI scenarios.

3.1 Transaction Gateway Architecture

At a high level, the architecture consists of two main parts, as shown in Fig 1:

− Transaction Gateway API (TGAPI) that provides an interface for applications

using the Gateway;

− The Transaction Gateway component itself.

The Transaction Gateway API provides a consistent interface for programmatic

users (applications and/or a SOAP service component and/or a higher level wrapper

API) to initiate, control or participate in distributed transactions, independent of the

transaction management protocol being used. It provides the means for the user to

choose the transaction management protocol that will apply to the transaction for its

duration, if the user is a transaction coordinator (client).

The Transaction Gateway component bridges in both directions between requests

and responses delivered by the API and the transaction management protocol that is

being used for a particular transaction. It implements the finite state machines of the

protocols it supports, implements persistence where required and performs other tasks

as required for conformance with the appropriate specifications and standards. It is

responsible for interfacing to the lower layer protocols (SOAP, HTTP, TCP, etc.) and

uses the services of the local transaction manager provided by the operating system to

start, stop and abort transactions locally, on behalf of the application.

Internally, the Transaction Gateway consists of sub-components for processing

API requests and sending API responses, for implementing the various transaction

protocols, and for interfacing to lower layer transport networks, as shown in Fig 2.

Main API Management

TIP Protocol

BTP Protocol

(Not implemented

for this project)

WS-

Transaction

BTP Connection

Handler

SOAP Transport

TCP Transport

TIP Connection

Handler

Local

Transaction

Handler

X/Open or proprietary TM

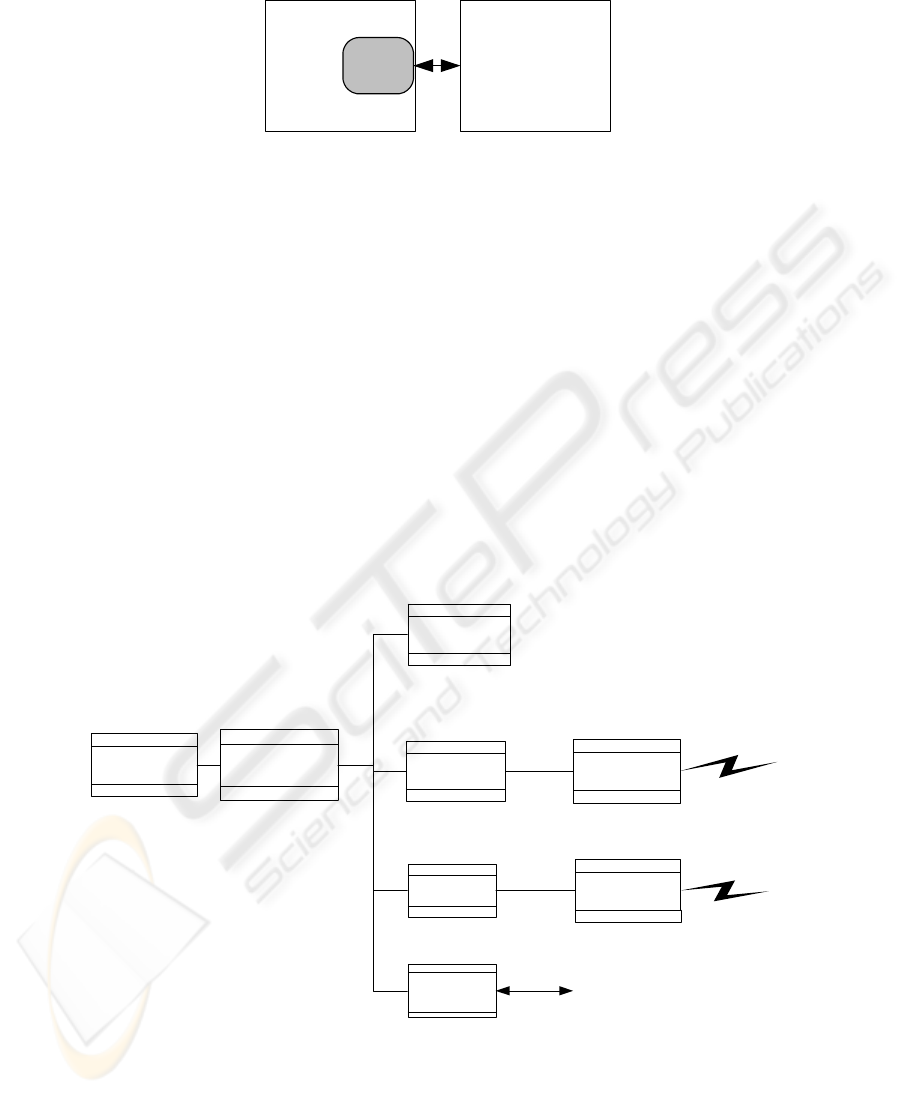

Fig. 2. Transaction gateway internal structure

Transaction

Gateway

Application

TG API

Fig. 1. Transaction gateway relationships

100

3.2 Prototype and Results

For this project, a prototype of the Transaction Gateway architecture was

implemented, as a proof of concept. Both the Transaction Gateway API (used by

clients) and a Transaction Gateway itself were implemented.

Only limited transaction management functionality was implemented for this

project, but sufficient to demonstrate the architecture's feasibility, namely:

− Begin a TIP “push” transaction;

− Begin a BTP transaction;

− Begin a BTP transaction with context.

These functions included implementation of the applicable protocol-level messages

required to facilitate these, e.g. TIP PUSH command and BTP ENROL command.

The tests conducted demonstrate that the Transaction Gateway architecture meets

the following requirements:

− TIP and BTP can be concurrently supported, and the architecture is theoretically

extensible to WS-Coordination/Transaction;

− It is possible to create a generic API that encompasses functions from the different

transaction management protocols (and supporting both ACID and relaxed ACID

requirements);

− Allows a node to act in transaction participant and/or coordinator roles;

− Is compatible with SOAP;

− Supports geographically distant nodes.

Most importantly, the gateway allows a client (the transaction coordinator) to begin

a transaction using any of the transaction management protocols supported by the

gateway merely by specifying the required protocol at the time the connection to the

gateway is opened. The same API for creating and managing transactions is used

regardless of which protocol is selected, reducing both the complexity of the client

code and removing the need to install protocol-specific libraries on the client. A

single client can even participate in transactions using multiple protocols

simultaneously, by opening multiple connections to the gateway.

4 Conclusion

This paper has investigated the field of transaction management, from the viewpoint

of business-to-business, legacy and EAI applications of the SOAP protocol.

It has found that all three types of SOAP applications have much in common with

traditional management of distributed transactions. However, the business-to-business

nature of Web Services, and to some extent, EAI applications, is likely to require

relaxed ACID semantics, in order to accommodate long lived transactions, an

unstable environment and the spanning of trust boundaries by transactions.

Although the theoretical basis for addressing these issues is well-established, new,

standardised, transaction management protocols are required to apply this theory, as

well as support the traditional full-ACID properties for legacy applications, so that

heterogeneous transaction management environments can interoperate.

101

There has been significant industry activity towards various aspects of this goal.

Three distributed transaction management protocols have received the main industry

focus: TIP, an IETF protocol, BTP, proposed by the OASIS consortium and WS-

Coordination/Transaction which was put forward by BEA, Microsoft and IBM.

Despite these efforts, no technology yet appears to be emerging to become the

ubiquitous solution that is required. It leaves the industry in a situation where the

interoperability promises of SOAP and its associated standards are compromised due

to the lack of a single distributed transaction management protocol that can be relied

upon as a standard, de facto or otherwise.

To address this interoperability problem for distributed SOAP transaction

management, this paper proposes a generic transaction management architecture as a

solution. The intention is to work around the problem of conflicting standards, by

allowing an application to participate in transactions with other applications, even if

multiple heterogeneous transaction management protocols are used by those other

applications. The Transaction Gateway approach is designed to concurrently support

any or all distributed transaction management protocols that may conceivably be

required for SOAP, yet provide a single, protocol-independent API for use by

transaction participants.

The design, development and prototype development of the proposed Transaction

Gateway, and the subsequent tests run against it, have demonstrated that it is a viable

concept. It is capable of using existing infrastructure facilities for communications,

and most importantly multiple distributed transaction management protocols can co-

exist in the one product, sharing a common API.

References

1. Lyon, J., Evans, K., Klein, J.: Transaction Internet Protocol Version 3.0. Internet

Engineering Task Force RFC 2371 (1998)

2. Evans, K.: Transaction Internet Protocol: Facilitating Distributed Internet Applications. In:

W3C Workshop on Web Services, San Jose, CA, USA (2001)

3. Vogler, H., Moschgath, M. L., Kunkelmann, T., Grunewald, J.: The Transaction Internet

Protocol in practice: reliability for WWW applications. In: Internet Workshop '99 (IWS'99)

(1999) 189-194

4. Ceponkus, A., Dalal, S., Fletcher, T., Furniss, P., Green, A., Pope, B.: Business Transaction

Protocol [Online]. Organization for the Advancement of Structured Information Systems

(2002) Available: http://www.oasis-open.org/committees/download.php/1184/2002-06-

03.BTP_cttee_spec_1.0.pdf [Accessed 12 Dec 2003]

5. Potts, M., Cox, B., Pope, B.: Business Transaction Protocol Primer [Online]. Organization

for the Advancement of Structured Information Systems (2002) Available:

http://www.oasis-open.org/committees/business-

transactions/documents/primer/BTP_Primer_v1.0.20020603.pdf [Accessed 12 Dec 2003]

6. Cabrera, L. F., Copeland, G., Cox, W., Feingold, M., Freund, T., Johnson, J., Kaler, C.,

Klein, J., Langworthy, D., Nadalin, A., Orchard, D., Robinson, I., Shewchuk, J., Storey, T.:

Web Services Coordination (WS-Coordination) [Online]. IBM developerWorks (2003)

Available: http://www.ibm.com/developerworks/library/ws-coor/ [Accessed 12 Dec 2003]

7. Cabrera, F., Copeland, G., Cox, B., Freund, T., Klein, J., Storey, T., Thatte, S.: Web

Services Transaction (WS-Transaction) [Online]. IBM developerWorks (2002) Available:

http://www.ibm.com/developerworks/library/ws-transpec/ [Accessed 12 Dec 2003]

102
